  1. Abstract Data TypesStack, QueueAmortized analysis Cormen: Ch 10, 17 (11, 18)

  2. ADT is an interface • It defines • the type of the data stored • operations, what each operation does (not how) • parameters of each operation

  3. Application חוזה בין מתכנת האפליקציה ומיישם מבנה הנתונים ממשק Implementation of the Data structure ADT

  4. ADT : how to work with • Advantage: • Application programming can be done INDEPENDENTLY of implementation • If care about efficiency (complexity): • BE CAREFUL!! • Using the ADT the “wrong way” might become quite inefficient!!!

  5. Example: Stacks • Push(x,S) : Insert element x into S • Pop(S) : Delete the last (time) element inserted into S • Empty?(S): Return yes if S is empty • Top(S): Return the last element inserted into S • Size(S) • Make-stack()

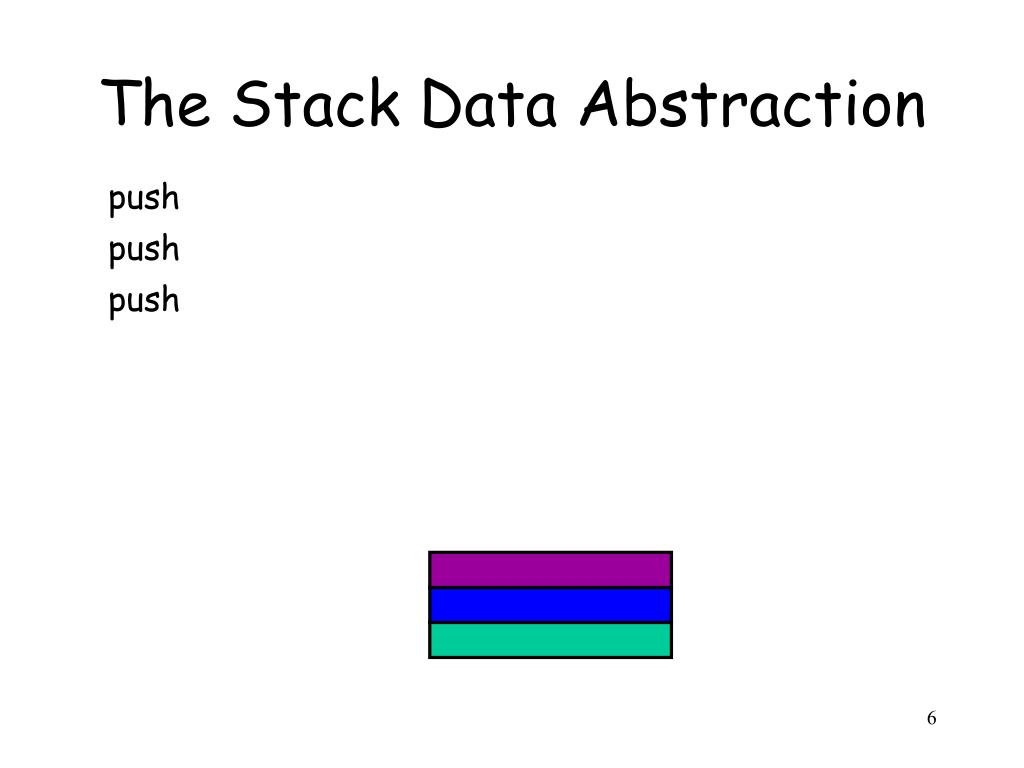

  6. push push push The Stack Data Abstraction

  7. push The Stack Data Abstraction push push Last in, First out. push pop

  8. The Stack: Applications?? • REAL-LIFE: • Rifle • Some document handling? Last in, First out. • Computers/ Communications: • In some applications – LIFO preferred on FIFO • Program control + algorithm == a KEY

  9. Application חוזה בין מתכנת האפליקציה ומיישם מבנה הנתונים ממשק Implementation A stack application InfixPostfix (2+ 3) * 5 2 3 + 5 * ( (5 * (7 / 3) ) – (2 * 7) ) 5 7 3 / * 2 7 *- • Evaluate an expression in postfix or Reverse Polish Notation

  10. Application חוזה בין מתכנת האפליקציה ומיישם מבנה הנתונים ממשק Implementation A stack application 2 3 + 5 * 3 2

  11. A stack application 2 3 + 5 * 5 5

  12. A stack application 2 3 + 5 * 25

  13. A Word on Pseudo-code Pseudo = כאילו Combination of: • Programming (like) commands • “free style English” Allows to conveniently express and algorithm. See Cormen (one page) for his language constructs. No need for FORMAL syntax. (can deviate Cormen)

  14. Pseudo-code S ← make-stack() while ( not eof ) do B ← read the next data; if B is an operand thenpush(B,S) else X ← pop(S) Y ← pop(S) Z ← Apply the operation B on X and Y push(Z,S) return(top(S))

  15. Application חוזה בין מתכנת האפליקציה ומיישם מבנה הנתונים ממשק Implementation Implementation • We will be interested in algorithms to implement the ADT.. • And their efficiency..

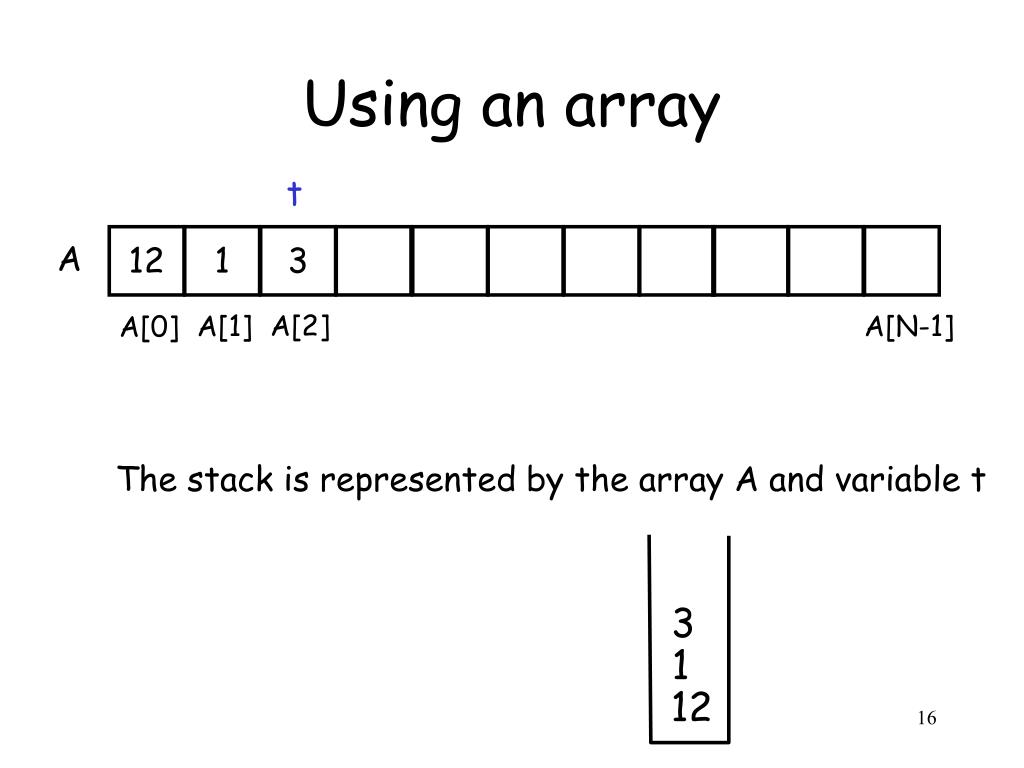

  16. Using an array t 12 1 3 A A[2] A[1] A[N-1] A[0] The stack is represented by the array A and variable t 3 1 12

  17. Using an array t 12 1 3 A A[2] A[1] A[N-1] A[0] The stack is represented by the array A and variable t make-stack(): Allocates the array A, which is of some fixed size N, sets t ← -1

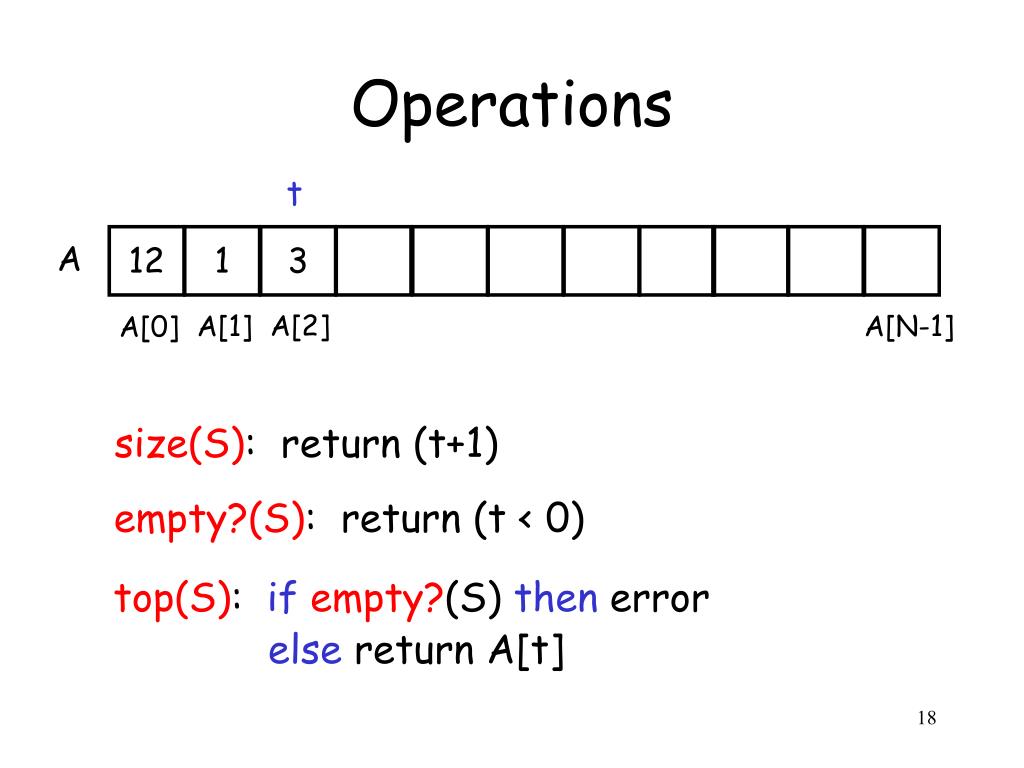

  18. Operations t 12 1 3 A A[2] A[1] A[N-1] A[0] size(S): return (t+1) empty?(S): return (t < 0) top(S): ifempty?(S) then error else return A[t]

  19. Pop t 12 1 3 A A[2] A[1] A[N-1] A[0] pop(S): ifempty?(S) then error else e ←A[t] t ← t – 1 return (e) pop(S)

  20. Pop t 12 1 3 A A[2] A[1] A[N-1] A[0] pop(S): ifempty?(S) then error else e ←A[t] t ← t – 1 return (e) pop(S)

  21. Push t 12 1 3 A A[2] A[1] A[N-1] A[0] push(x,S): ifsize(S) = N then error else t ←t+1 A[t] ← x push(5,S)

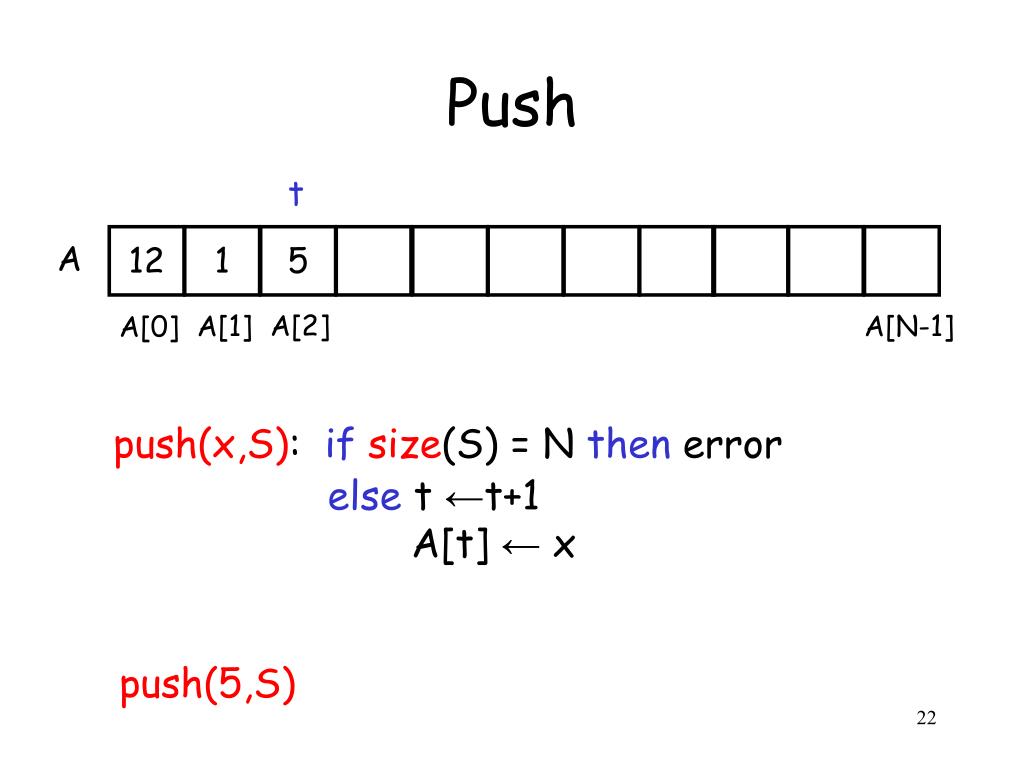

  22. Push t 12 1 5 A A[2] A[1] A[N-1] A[0] push(x,S): ifsize(S) = N then error else t ←t+1 A[t] ← x push(5,S)

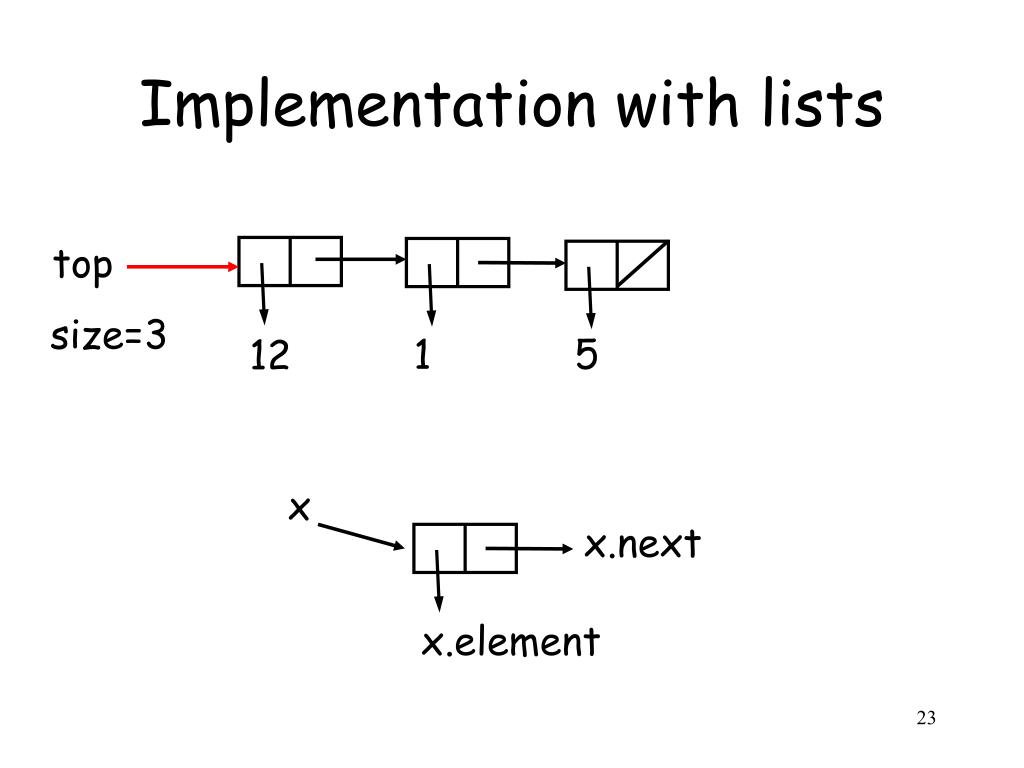

  23. x x.next x.element Implementation with lists top size=3 5 1 12

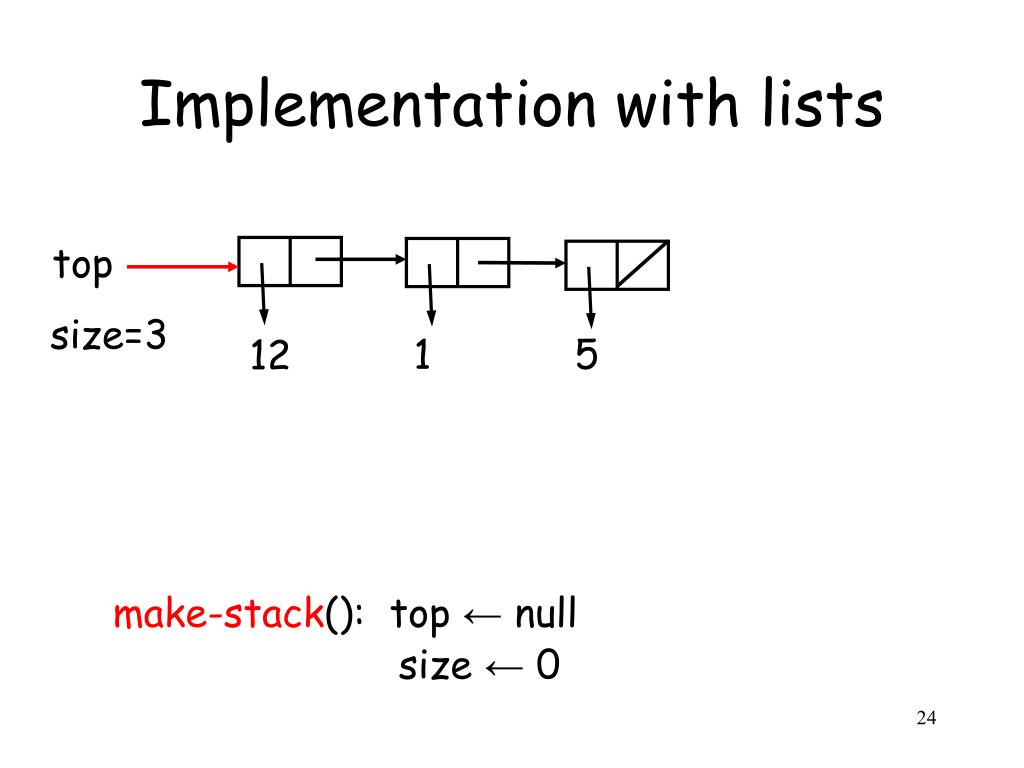

  24. Implementation with lists top size=3 5 1 12 make-stack(): top ← null size ← 0

  25. Operations top size=3 5 1 12 size(S): return (size) empty?(S): return (top = null) top(S): ifempty?(S) then error else return top.element

  26. Pop top size=3 5 1 12 pop(S): ifempty?(S) then error else e ←top.element top ← top.next size ← size-1 return (e) pop(S)

  27. Pop top size=2 5 1 12 pop(S): ifempty?(S) then error else e ←top.element top ← top.next size ← size-1 return (e) pop(S)

  28. Garbage collection top size=2 5 1 pop(S): ifempty?(S) then error else e ←top.element top ← top.next size ← size-1 return (e) pop(S)

  29. Push top size=2 5 1 push(x,S): n = new node n.element ←x n.next ← top top ← n size ← size + 1 push(5,S)

  30. Push top size=2 5 1 5 push(x,S): n = new node n.element ←x n.next ← top top ← n size ← size + 1 push(5,S)

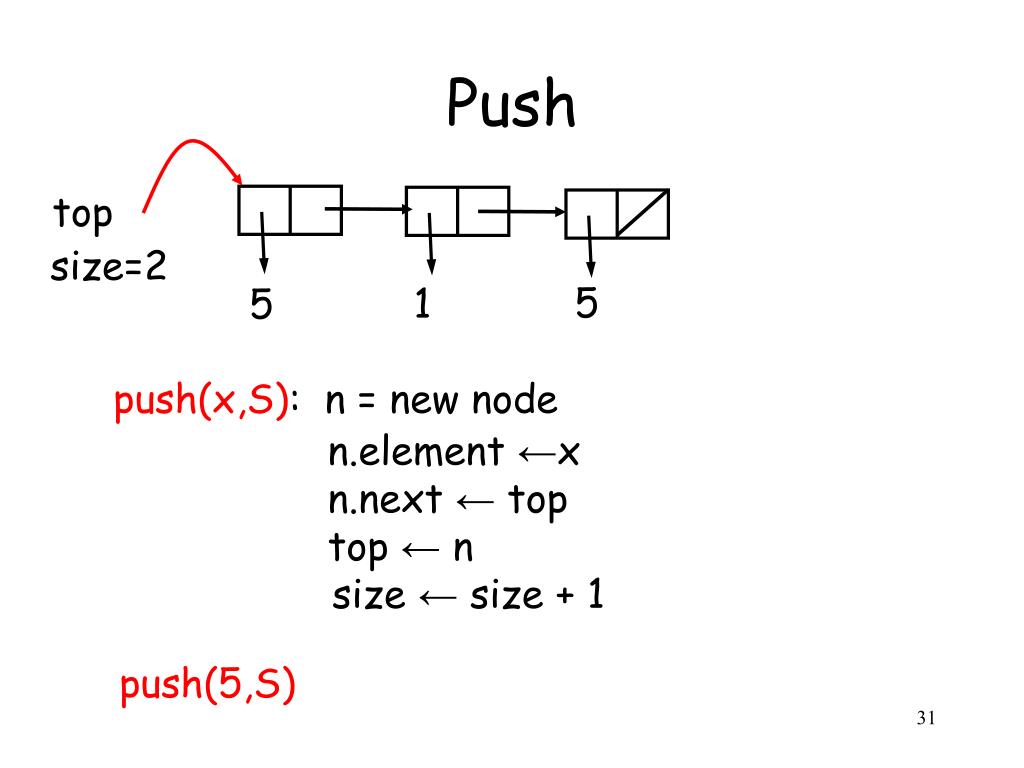

  31. Push top size=2 5 1 5 push(x,S): n = new node n.element ←x n.next ← top top ← n size ← size + 1 push(5,S)

  32. Push top size=3 5 1 5 push(x,S): n = new node n.element ←x n.next ← top top ← n size ← size + 1 push(5,S)

  33. Analysis • Bound the running time of an operation on the worst-case • As a function of the “size”, n, of the data structure • Example: T(n) < 4n+7 • Too detailed, most cases we are just interested in the order of growth

  34. Why order of growth • Precise cost can change from computer to computer • From Programmer to programmer • Anyhow MOORE  may go down by factor of 1.5 -2 next year

  35. Big-O - קיים cו- כך ש: דוגמא:

  36. cg(n) f(n) n0 Big-O

  37. The running time of our stack and queue operations • Each operation takes O(1) time

  38. Stacks via extendable arrays • Array implementation difficulties: • Pick large N: wasted space  • Pick small N: stack is limited  • Solution: • Pick moderate N, and: • When the array is full we will double its size (N) (DOUBLING)

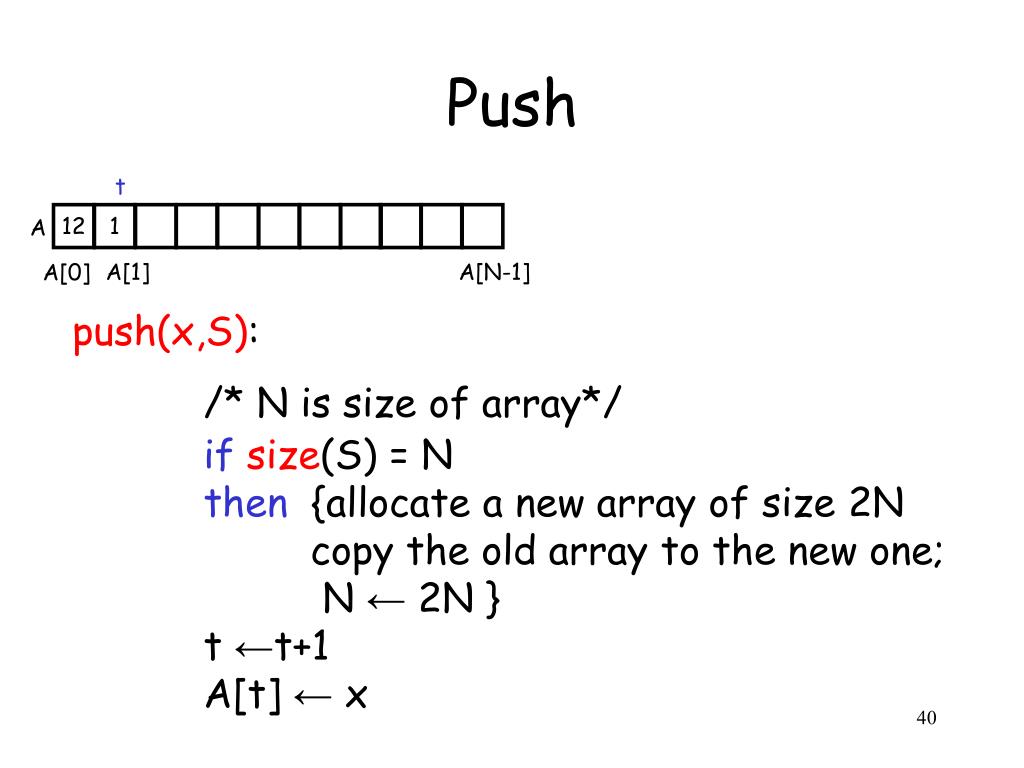

  39. Push t 12 1 A A[1] A[N-1] A[0] push(x,S): /* N is size of array*/ ifsize(S) = N then {allocate a new array of size 2N copy the old array to the new one; N ← 2N } t ←t+1 A[t] ← x

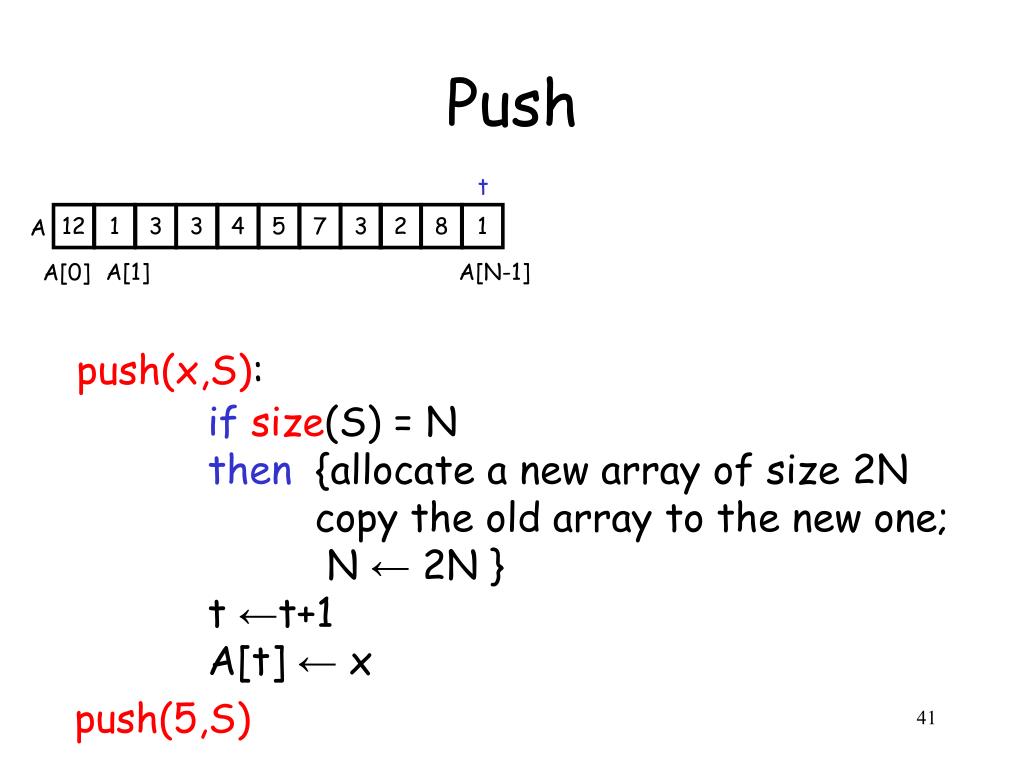

  40. Push t 12 1 3 3 4 5 7 3 2 8 1 A A[1] A[N-1] A[0] push(x,S): ifsize(S) = N then {allocate a new array of size 2N copy the old array to the new one; N ← 2N } t ←t+1 A[t] ← x push(5,S)

  41. Push t 12 1 3 3 4 5 7 3 2 8 1 A A[1] A[0] push(x,S): ifsize(S) = N then {allocate a new array of size 2N copy the old array to the new one; N ← 2N } t ←t+1 A[t] ← x push(5,S)

  42. Push 12 1 3 3 4 5 7 3 2 8 1 t 12 1 3 3 4 5 7 3 2 8 1 A A[1] A[0] push(x,S): ifsize(S) = N then {allocate a new array of size 2N copy the old array to the new one; N ← 2N } t ←t+1 A[t] ← x push(5,S)

  43. Push t 12 1 3 3 4 5 7 3 2 8 1 A A[1] A[2N-1] A[0] push(x,S): ifsize(S) = N then {allocate a new array of size 2N copy the old array to the new one; N ← 2N } t ←t+1 A[t] ← x push(5,S)

  44. Push t 12 1 3 3 4 5 7 3 2 8 1 5 A A[1] A[2N-1] A[0] push(x,S): /* N is array size */ ifsize(S) = N then {allocate a new array of size 2N copy the old array to the new one; N ← 2N } t ←t+1 A[t] ← x push(5,S)

  45. Analysis • An operation may take O(n) worst case time ! • But that cannot happen often..

  46. Amortized Analysis • How long it takes to do m operations in the worst case ? • Well, O(nm) • Yes, but can it really take that long ?

  47. x

  48. x x

  49. x x x x x
