  1. 8-Port Combo KVM Over IP Switch IKVM-8020

  2. Presentation Outline • Product Benefits • Product Overview • Product Features • Applications • Comparison

  3. Product Benefits • Save Your Cost, Time, Space and Energy • Control multiple servers from a single console (Keyboard, Mouse, and Monitor)

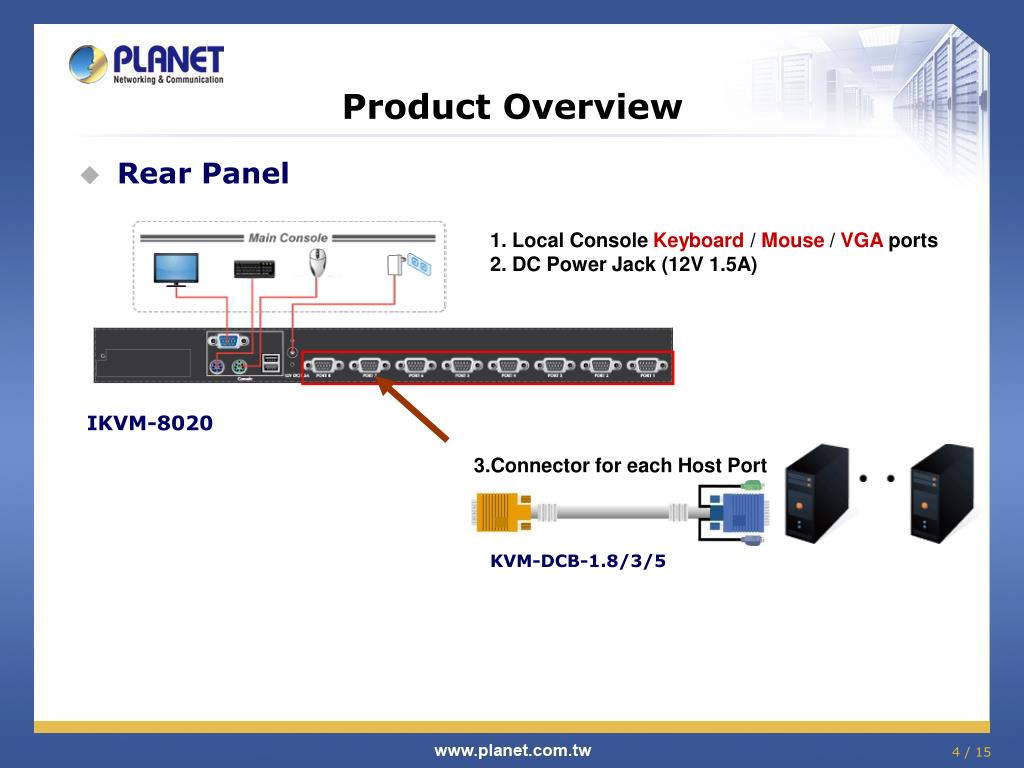

  4. Product Overview 3.Connector for each Host Port KVM-DCB-1.8/3/5 • Rear Panel 1. Local Console Keyboard / Mouse / VGA ports 2. DC Power Jack (12V 1.5A) IKVM-8020

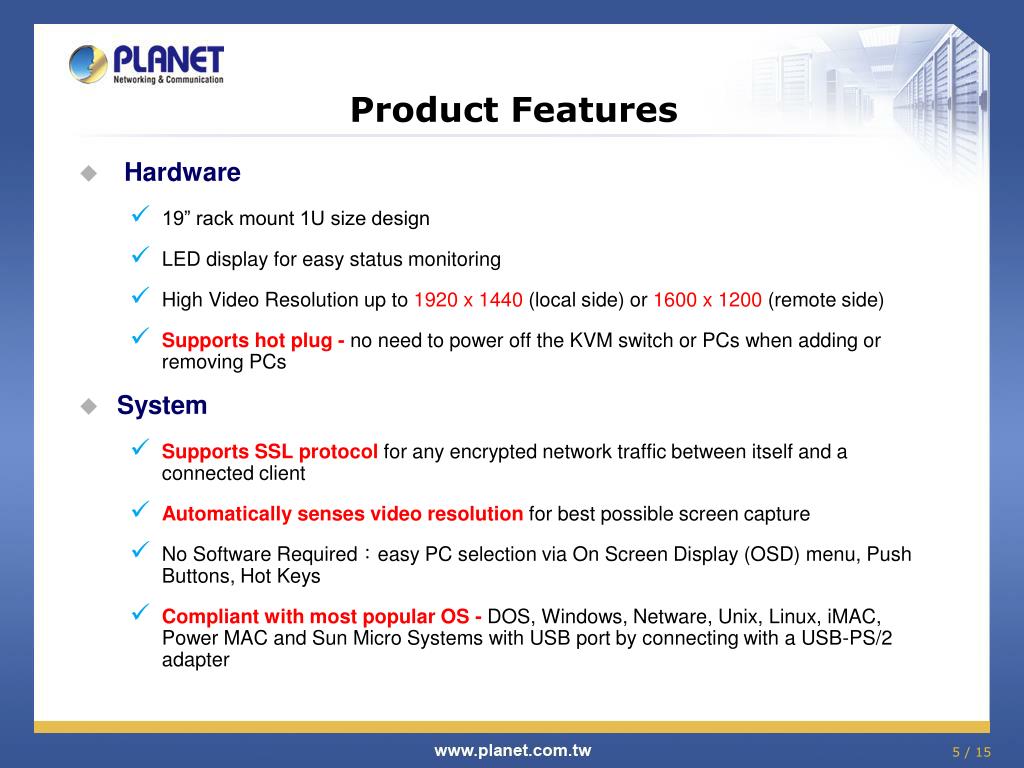

  5. Hardware 19” rack mount 1U size design LED display for easy status monitoring High Video Resolution up to 1920 x 1440 (local side) or 1600 x 1200 (remote side) Supports hot plug - no need to power off the KVM switch or PCs when adding or removing PCs System Supports SSL protocol for any encrypted network traffic between itself and a connected client Automatically senses video resolution for best possible screen capture No Software Required：easy PC selection via On Screen Display (OSD) menu, Push Buttons, Hot Keys Compliant with most popular OS - DOS, Windows, Netware, Unix, Linux, iMAC, Power MAC and Sun Micro Systems with USB port by connecting with a USB-PS/2 adapter Product Features

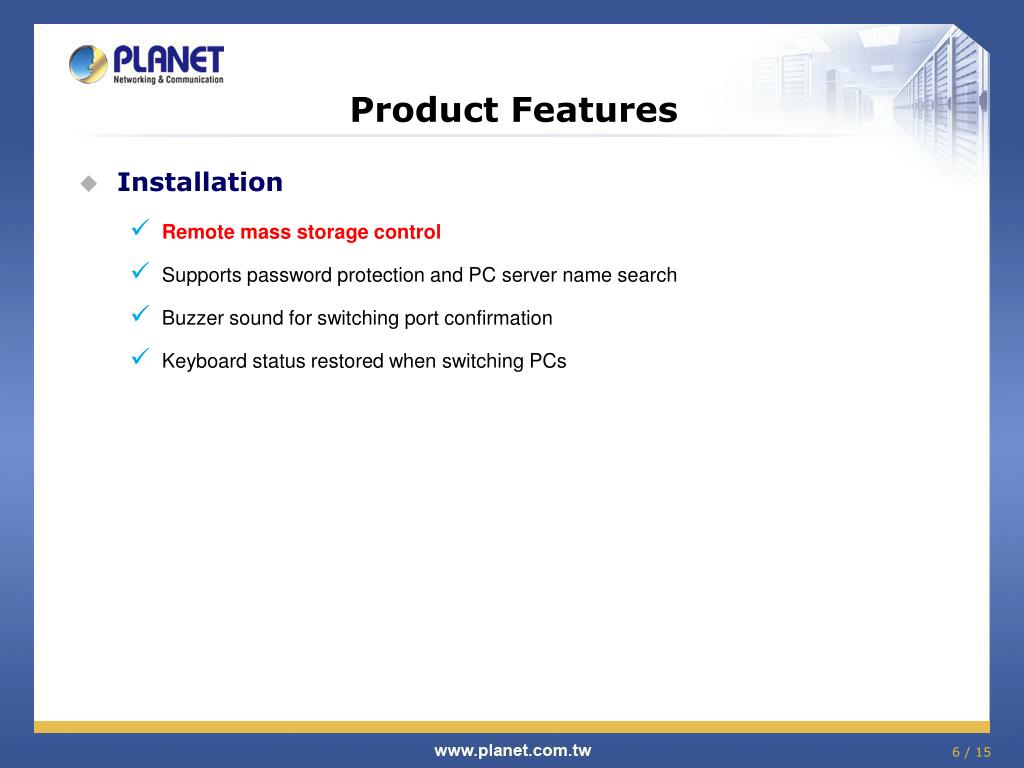

  6. Product Features • Installation • Remote mass storage control • Supports password protection and PC server name search • Buzzer sound for switching port confirmation • Keyboard status restored when switching PCs 6 / 15

  7. Applications • Standalone Operation Max. 8 PCs

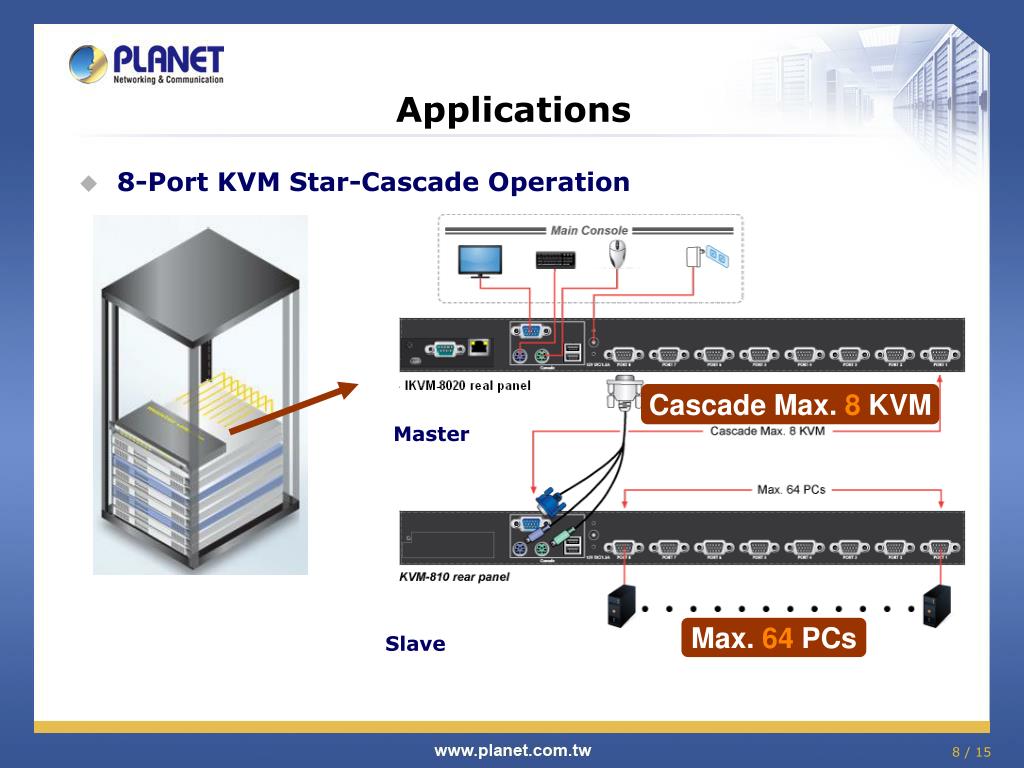

  8. Applications • 8-Port KVM Star-Cascade Operation Cascade Max. 8 KVM Master Max. 64 PCs Slave

  9. Applications • Easily Control Servers with Flexibility for Remote management via network

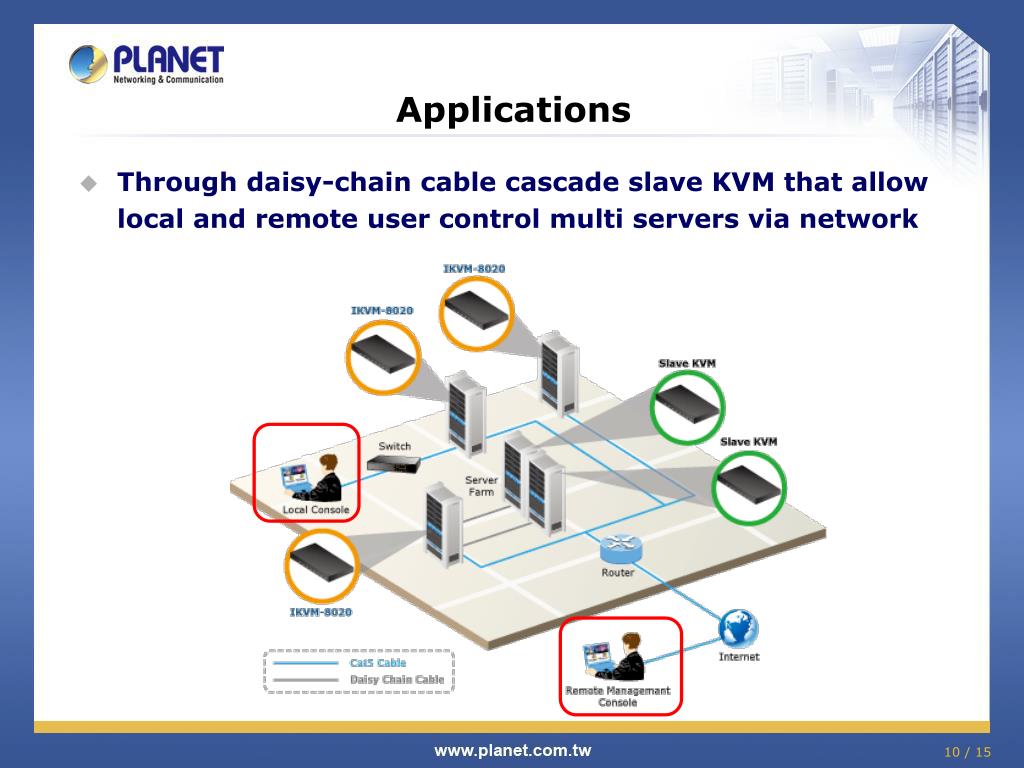

  10. Applications • Through daisy-chain cable cascade slave KVM that allow local and remote user control multi servers via network

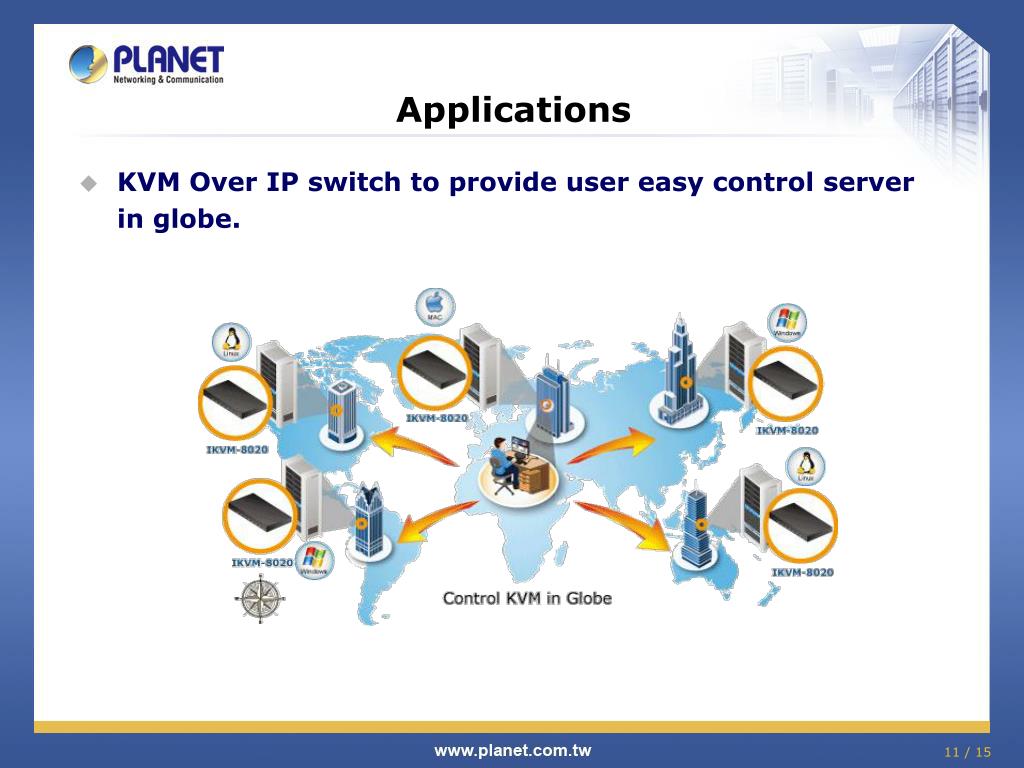

  11. Applications • KVM Over IP switch to provide user easy control server in globe.

  12. Product Comparison 12 / 15

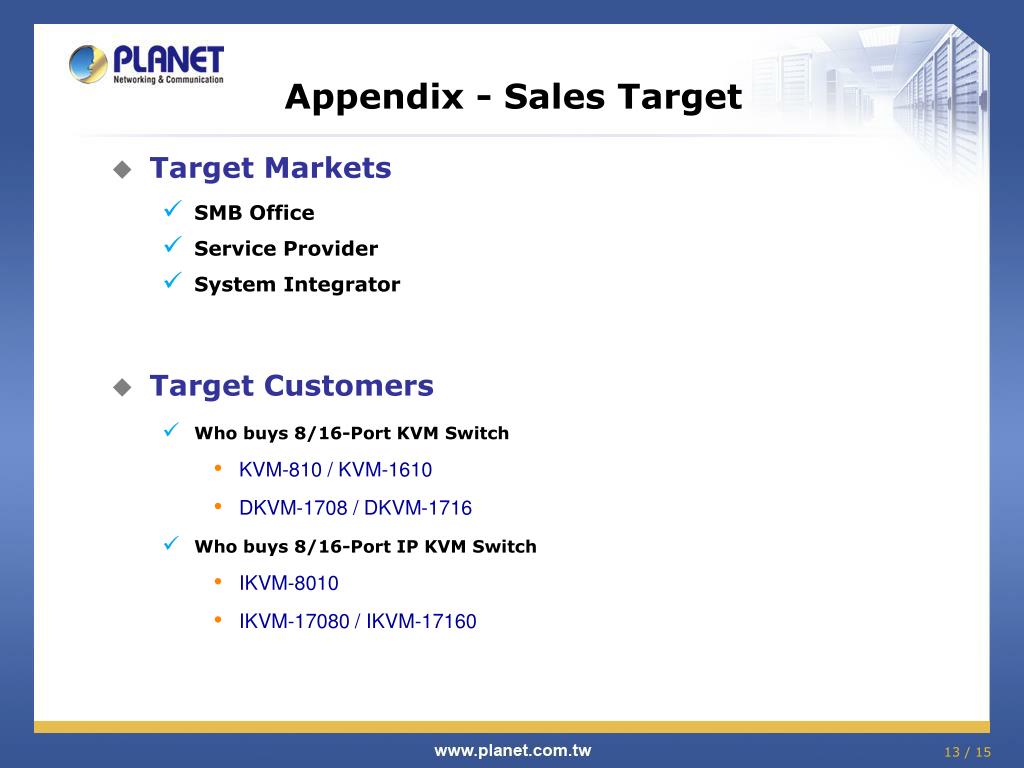

  13. Appendix - Sales Target • Target Markets • SMB Office • Service Provider • System Integrator • Target Customers • Who buys 8/16-Port KVM Switch • KVM-810 / KVM-1610 • DKVM-1708 / DKVM-1716 • Who buys 8/16-Port IP KVM Switch • IKVM-8010 • IKVM-17080 / IKVM-17160

  14. Appendix • Ordering Information • Related Products
