Anonymous Credentials on a Standard Java Card

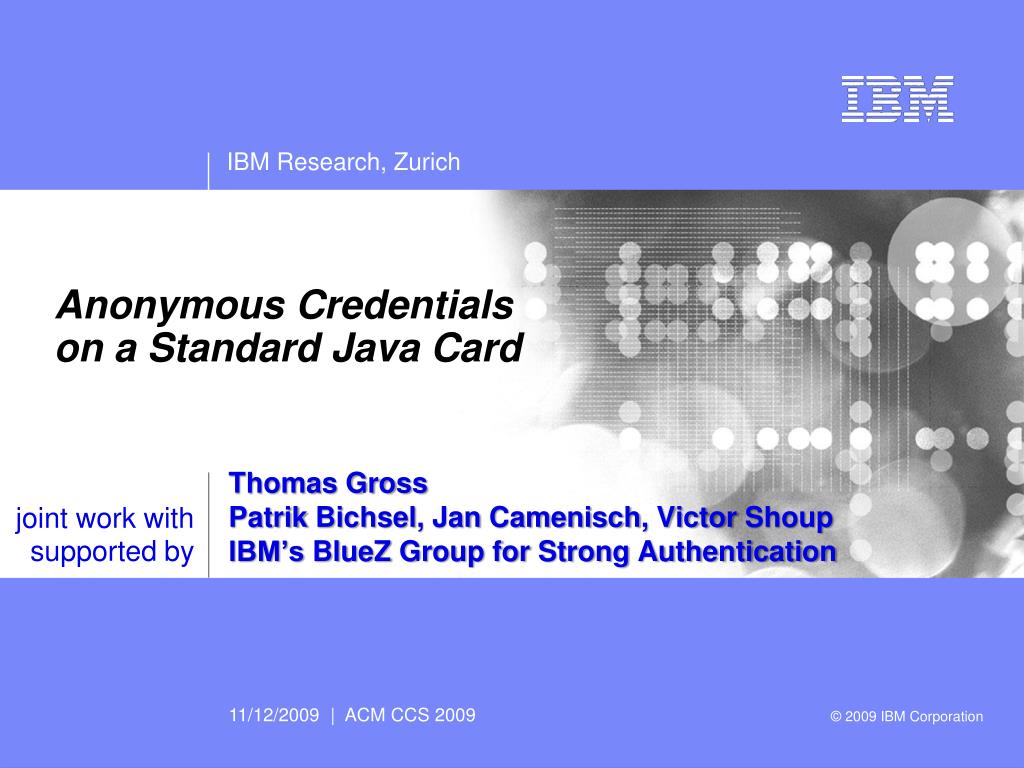

1. Anonymous Credentialson a Standard Java Card Thomas Gross PatrikBichsel, Jan Camenisch, Victor Shoup IBM’s BlueZ Group for Strong Authentication joint work with supported by

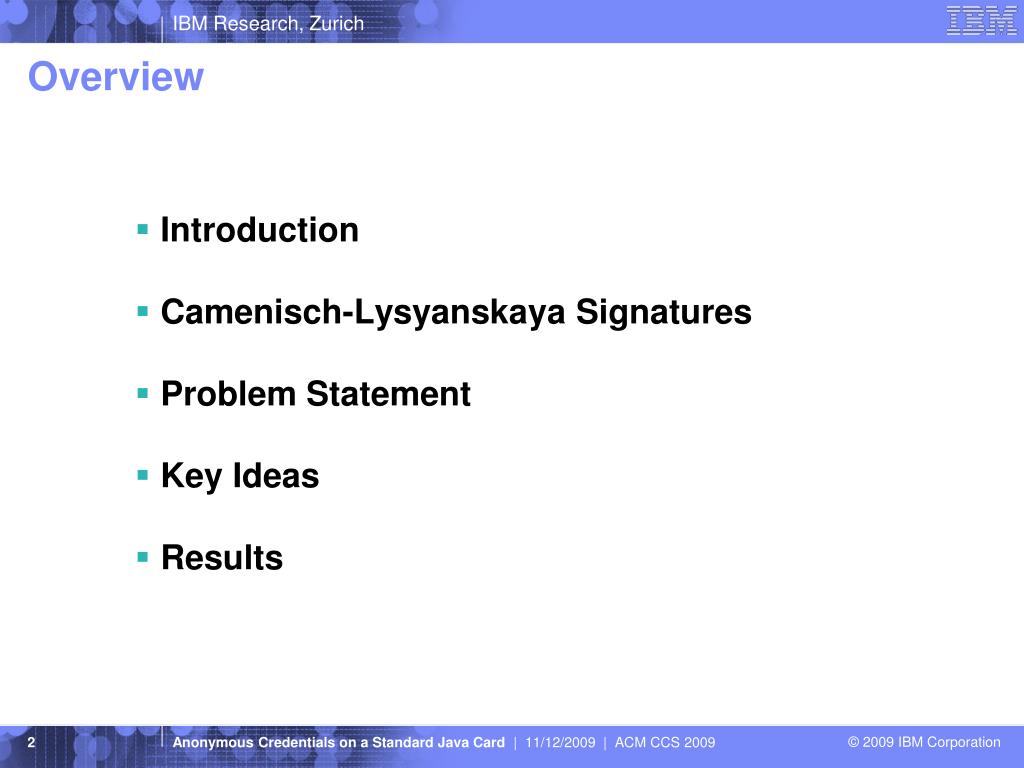

2. Overview • Introduction • Camenisch-Lysyanskaya Signatures • Problem Statement • Key Ideas • Results

3. Example: Age Proof with Strong Privacy Authorities Identity Mixer Certificate Address DoB = 1980/12/01 Nr = 123456… offline Citizen Service Policy: Have an EID card AND Be older than 18. Proof: “I’ve an EID card AND I’m older than 18.”

4. 8-bit CPU (3.57 MHz) Limited access to public key-CP (only standard RSA, DSA) Limited RAM (2K) Java Card*Limitations *: JCOP 41/v2.2

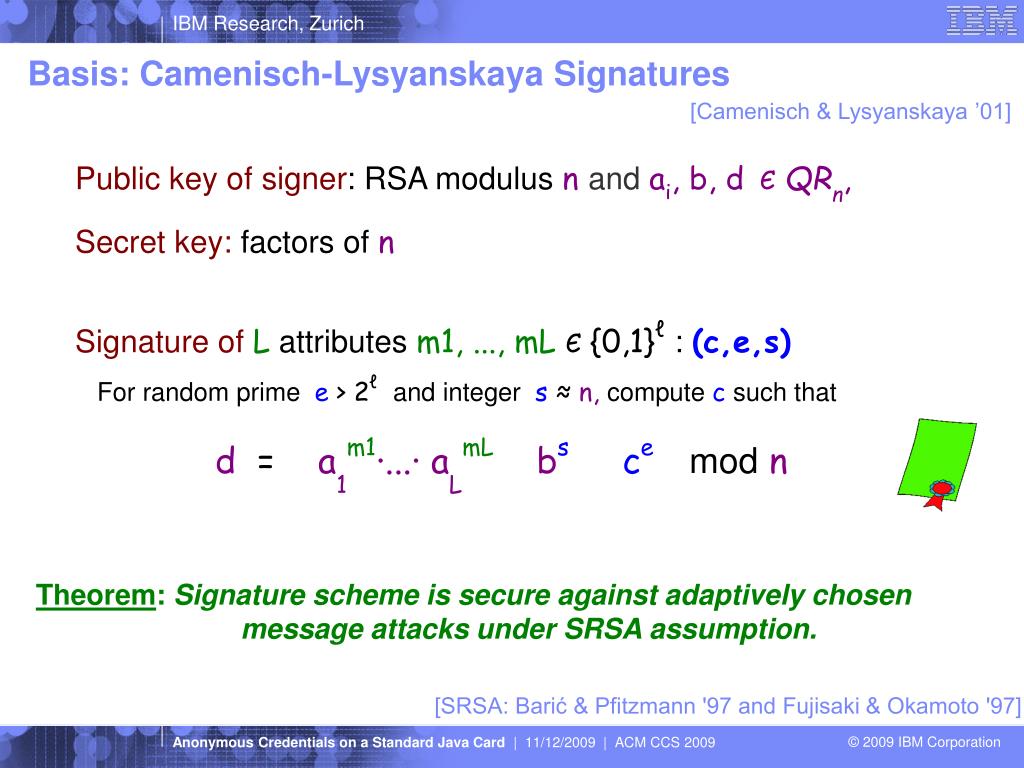

5. Basis: Camenisch-Lysyanskaya Signatures [Camenisch & Lysyanskaya ’01] Public key of signer: RSA modulus n andai, b, d ЄQRn, Secret key: factors of n Signature ofL attributes m1, ..., mL Є {0,1}ℓ: (c,e,s) For random prime e > 2ℓand integer s ≈n, compute csuch thatd= a1m1·...· aLmL bsce mod n Theorem: Signature scheme is secure against adaptively chosen message attacks under SRSA assumption. [SRSA: Barić & Pfitzmann '97 and Fujisaki & Okamoto '97]

6. Basis: Camenisch-Lysyanskaya Signatures [Camenisch & Lysyanskaya ’01] Public key of signer: RSA modulus n andai, b, d ЄQRn, Secret key: factors of n Signature ofL attributes m1, ..., mL Є {0,1}ℓ: (c,e,s) For random prime e > 2ℓand integer s ≈n, compute csuch thatd= a1m1·...· aLmL bsce mod n Theorem: Signature scheme is secure against adaptively chosen message attacks under SRSA assumption. [SRSA: Barić & Pfitzmann '97 and Fujisaki & Okamoto '97]

7. Basis: Camenisch-Lysyanskaya Signatures [Camenisch & Lysyanskaya ’01] Signature ofL attributes m1, ..., mL Є {0,1}ℓ: (c,e,s) For random prime e > 2ℓand integer s ≈n, compute csuch thatd= a1m1·...· aLmL bsce mod n Abstractly requires computation of: A1x1·...· Aixi ·...· ALxLmod n where xi correspond to attributes in the certificatesand potentially |xi| > |n|

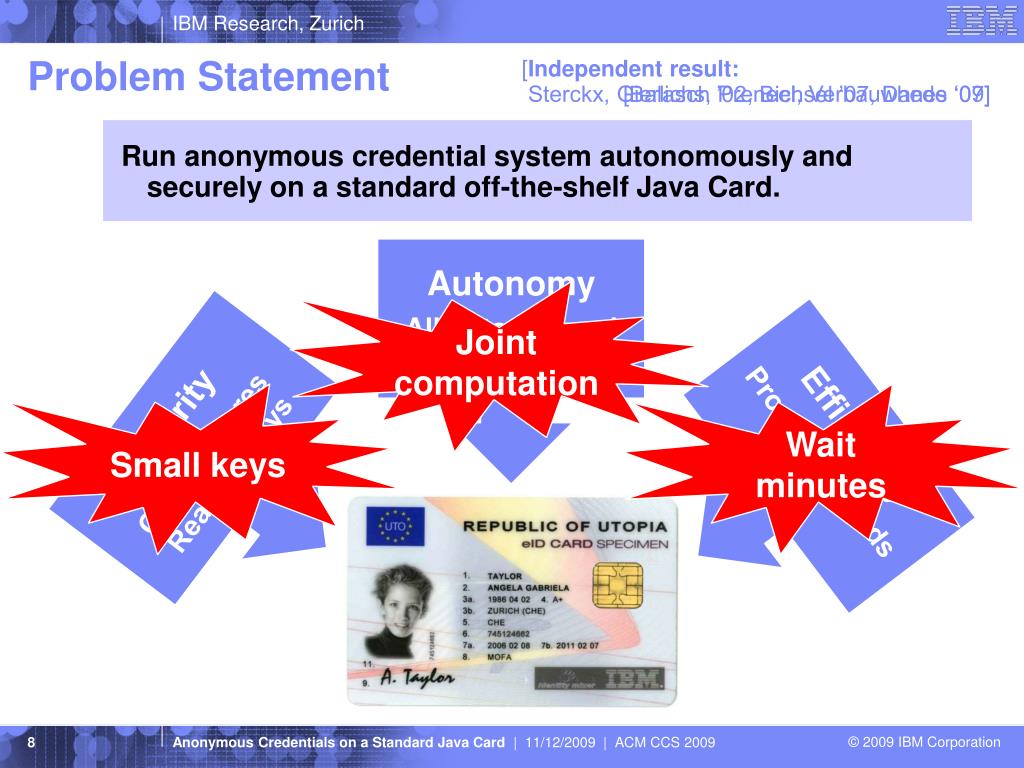

8. [Independent result: Sterckx, Gierlichs, Preneel, Verbauwhede ‘09] [Balasch ’02, Bichsel ’07, Danes ‘07] Problem Statement Run anonymous credential system autonomously and securely on a standard off-the-shelf Java Card. Autonomy All data on card Malicious terminal Joint computation Security CL-Signatures Realistic keys Efficiency Proof in seconds Small keys Wait minutes

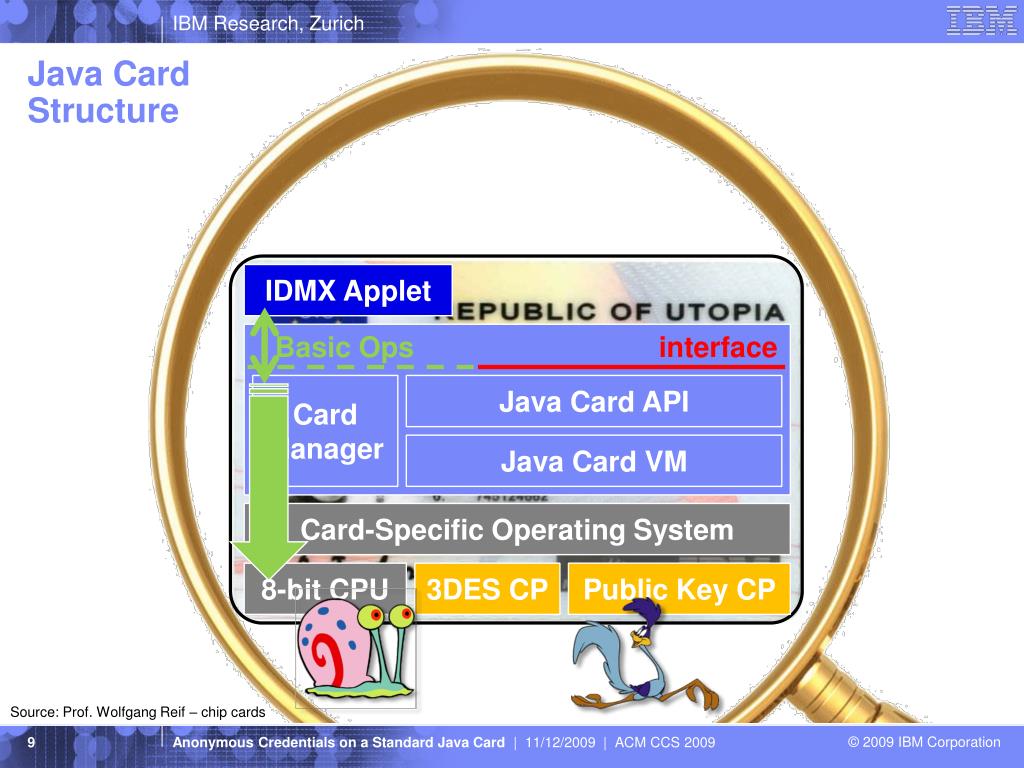

9. Java CardStructure IDMX Applet Basic Ops interface Card Manager Java Card API Java Card VM Card-Specific Operating System 8-bit CPU 3DES CP Public Key CP Source: Prof. Wolfgang Reif – chip cards

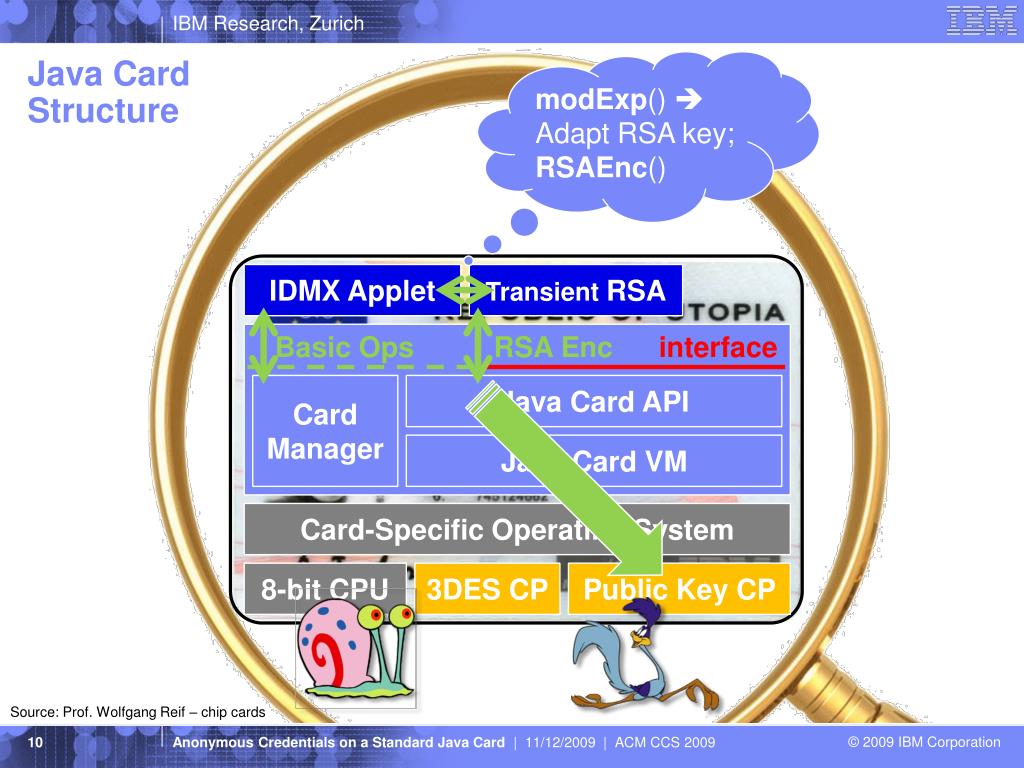

10. modExp()  Adapt RSA key; RSAEnc() Java CardStructure IDMX Applet Transient RSA Basic Ops RSA Enc interface Card Manager Java Card API Java Card VM Card-Specific Operating System 8-bit CPU 3DES CP Public Key CP Source: Prof. Wolfgang Reif – chip cards

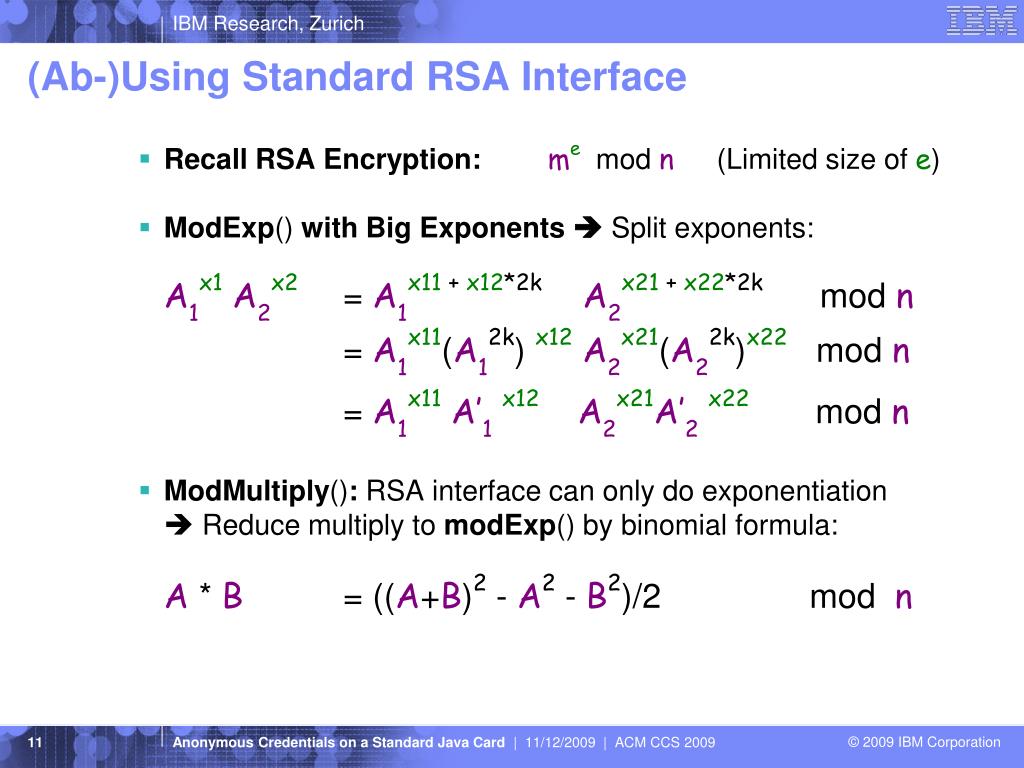

11. (Ab-)Using Standard RSA Interface • Recall RSA Encryption:me mod n (Limited size of e) • ModExp() with Big Exponents  Split exponents: A1x1A2x2 = A1x11 + x12*2kA2x21 + x22*2k mod n = A1x11(A12k) x12A2x21(A22k)x22 mod n = A1x11A’1x12A2x21A’2x22 mod n • ModMultiply(): RSA interface can only do exponentiation Reduce multiply to modExp() by binomial formula: A * B = ((A+B)2 - A2 - B2)/2 mod n

12. Results • Anonymous credential system on standard Java Card • JCOP 41/v2.2 • Future: Java Card 3.0 standard • Attributes: Focus on proof of possession • rely on hardware tamper resistance for statement, and • detect / revoke broken cards. • Autonomous: secure in face of untrusted terminal • Efficient: 10 sec (at 1536 bits) • 7.5 sec pre-computation / 2.5 sec on-line

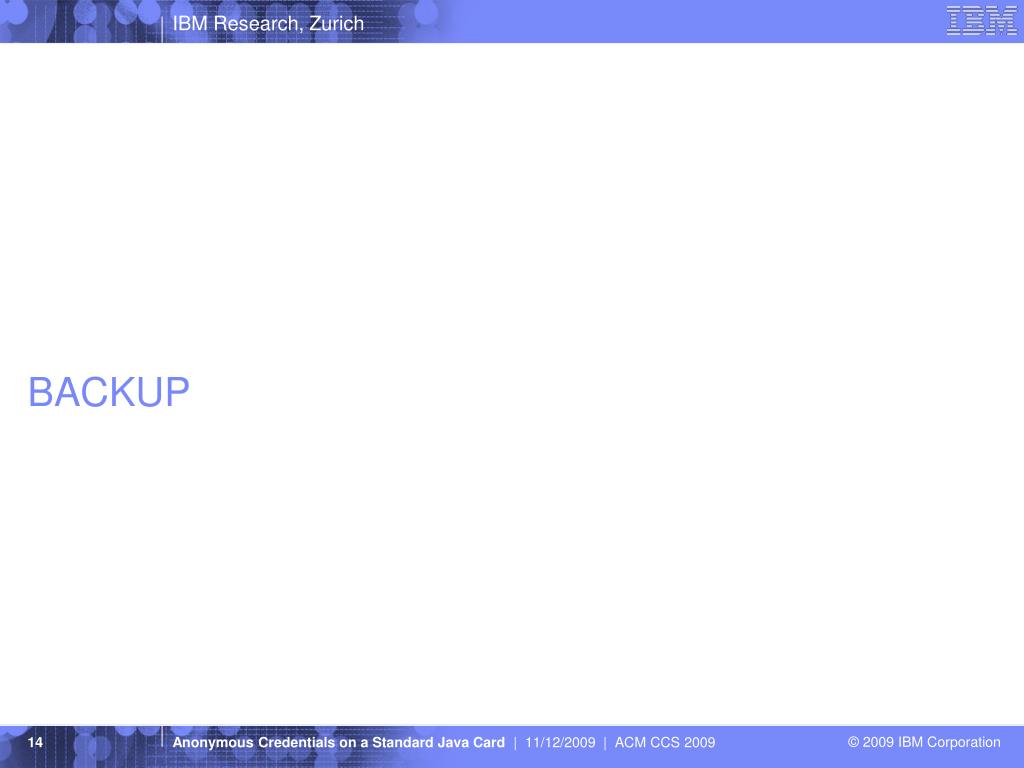

13. BACKUP

14. Detailed Performance Analysis: Modulus 1536 bitAmortized Estimates over 1000 Ops, Upper Bound on Parameter Length, Percent Rounded Down

15. Recall: The Strong RSA Assumption Flexible RSA Problem:Given RSA modulus n and zЄ QRn find integers e and u such that ue = z mod n (Recall:QRn= {x: exist ys.t. y2= x mod n } ) • Introduced by Barić & Pfitzmann '97 and Fujisaki & Okamoto '97 • Hard in generic algorithm model [Damgård & Koprowski '01]

16. Signature Scheme based on the SRSA I [Camenisch & Lysyanskaya ‘02] Public key of signer: RSA modulus n andai, b, d ЄQRn, Secret key: factors of n To signk messages m1, ..., mk Є {0,1}ℓ: • choose random prime e > 2ℓand integer s ≈n • compute csuch thatd= a1m1·...· akmk bsce mod n • signature is (c,e,s)

17. Signature Scheme based on the SRSA II A signature (c,e,s) on messages m1, ..., mk is valid iff: • m1, ..., mk Є {0,1}ℓ: • e > 2ℓ • d = a1m1·...· akmk bsce mod n Theorem: Signature scheme is secure against adaptively chosen message attacks under SRSA assumption.

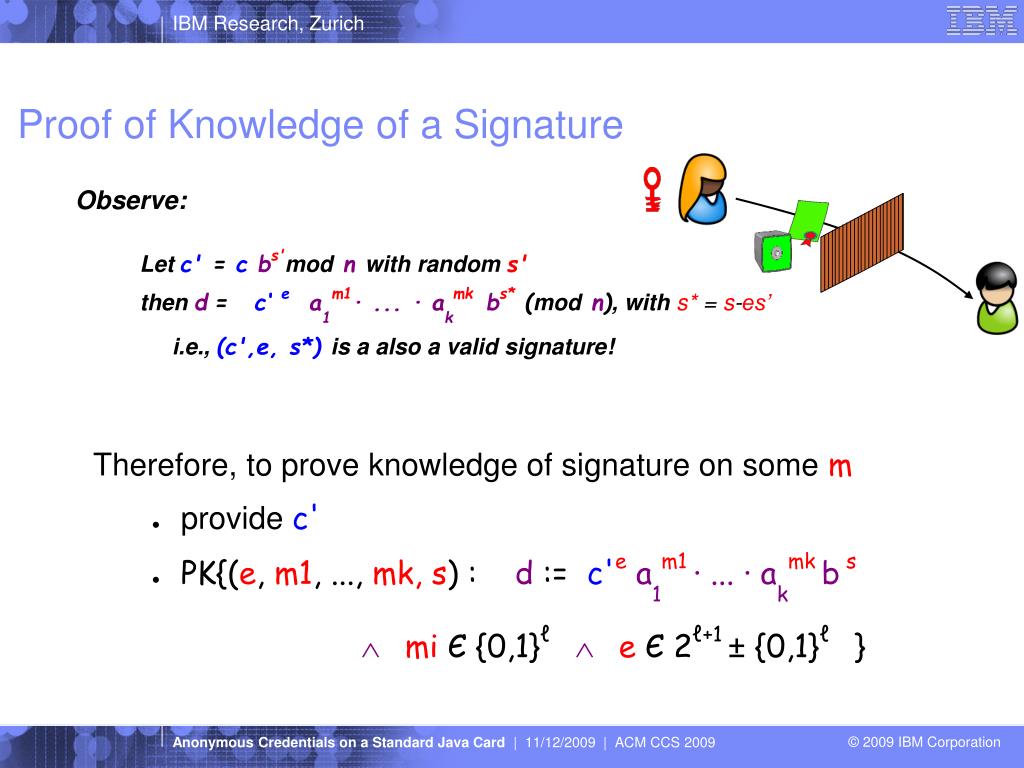

18. Proof of Knowledge of a Signature Observe: • Let c' = c bs'mod n with random s' • then d=c‘ e a1m1· ... · akmkbs*(mod n), with s* = s-es’i.e., (c',e, s*) is a also a valid signature! Therefore, to prove knowledge of signature on some m • provide c' • PK{(e, m1, ..., mk,s) : d := c'ea1m1 · ... · akmk b s ÙmiЄ {0,1}ℓ Ùe Є 2ℓ+1 ± {0,1}ℓ }

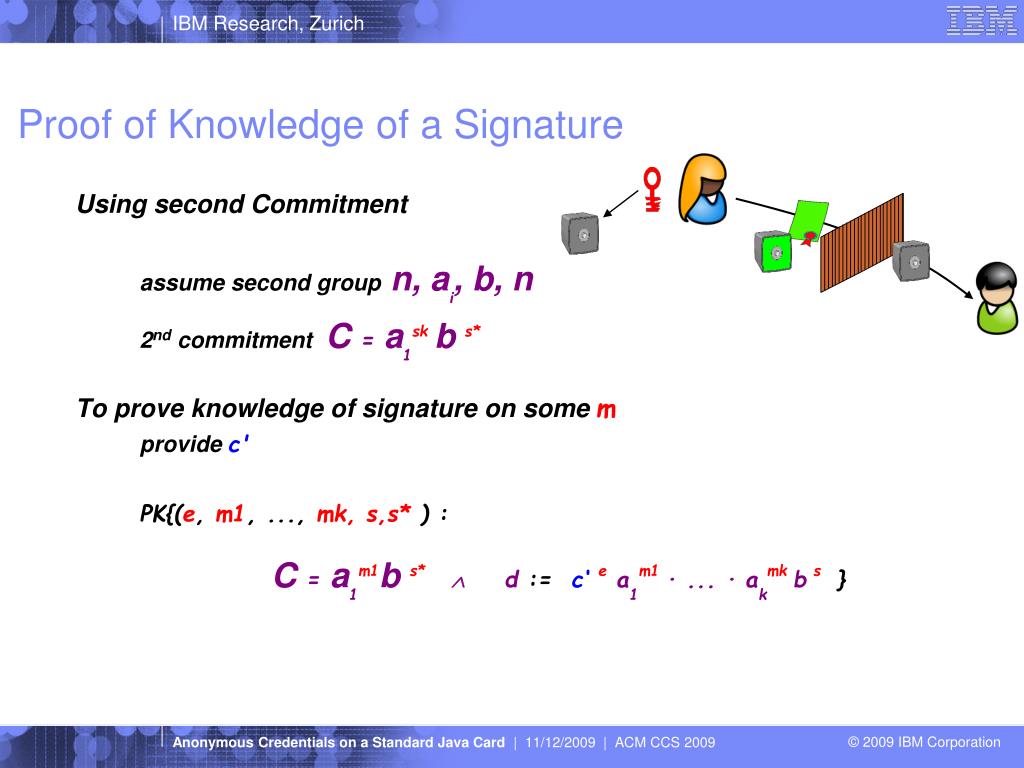

19. Proof of Knowledge of a Signature Using second Commitment • assume second group n, ai, b, n • 2nd commitment C = a1sk b s* To prove knowledge of signature on some m • provide c' • PK{(e, m1, ..., mk,s,s* ) : C = a1m1b s* Ùd := c‘ ea1m1 · ... · akmk b s }
