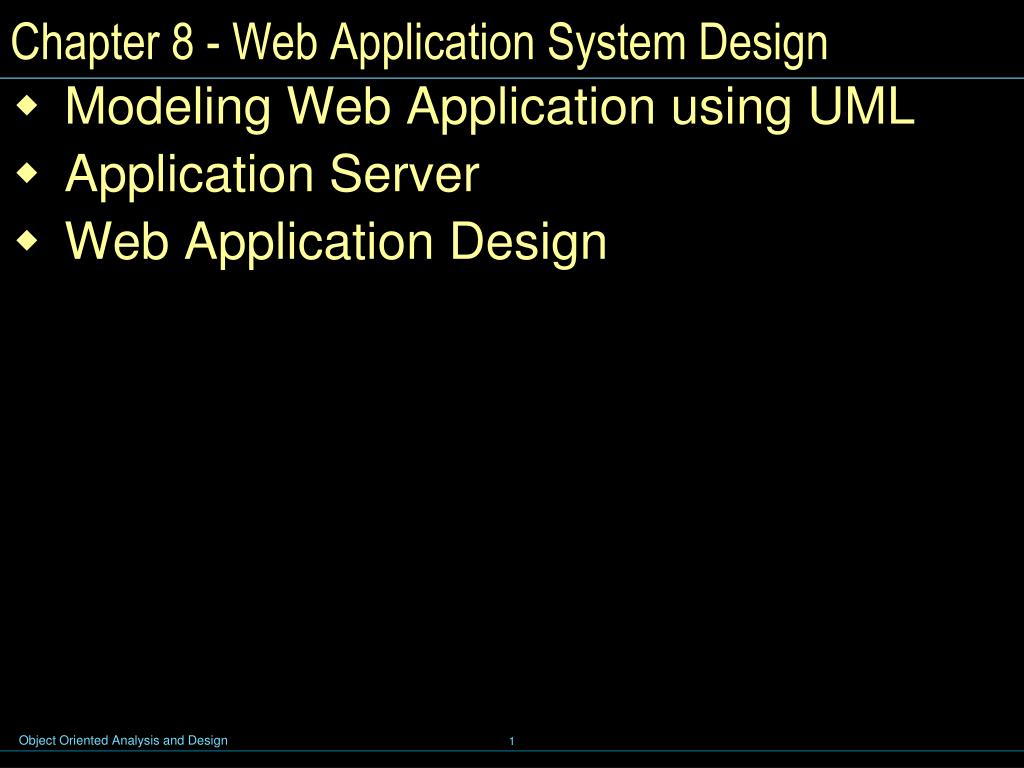

  1. Chapter 8 - Web Application System Design • Modeling Web Application using UML • Application Server • Web Application Design

  2. Modeling Web Application using UML

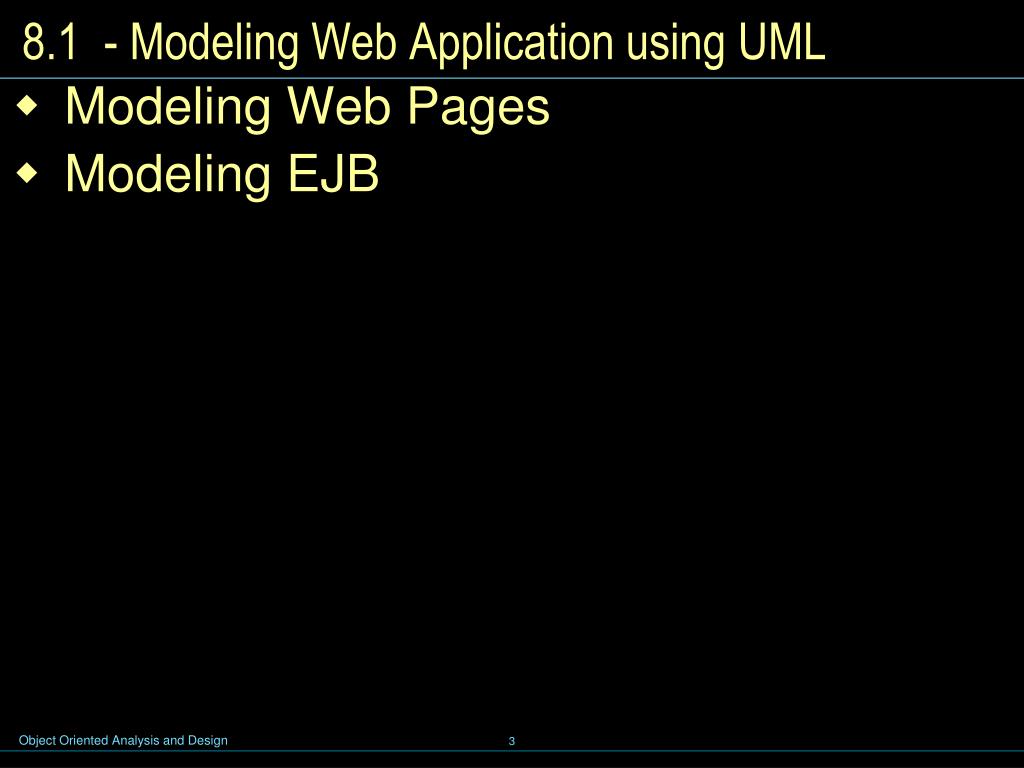

  3. 8.1 - Modeling Web Application using UML • Modeling Web Pages • Modeling EJB

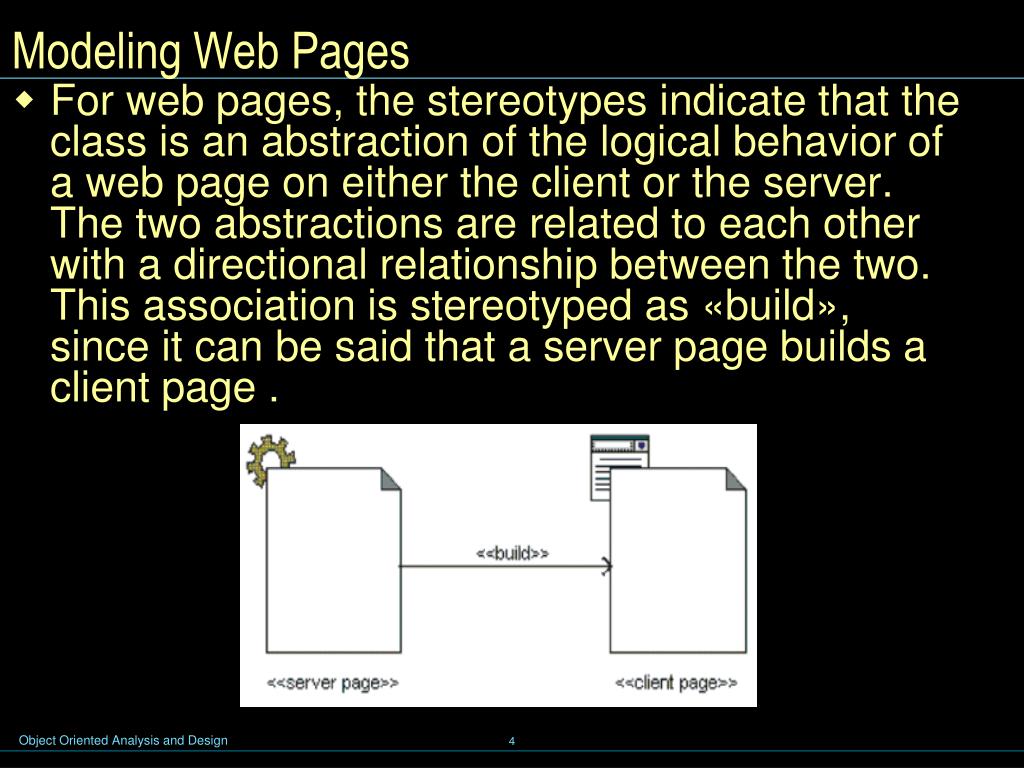

  4. Modeling Web Pages • For web pages, the stereotypes indicate that the class is an abstraction of the logical behavior of a web page on either theclient or the server. The two abstractions are related to each other with a directional relationship between the two. Thisassociation is stereotyped as «build», since it can be said that a server page builds a client page .

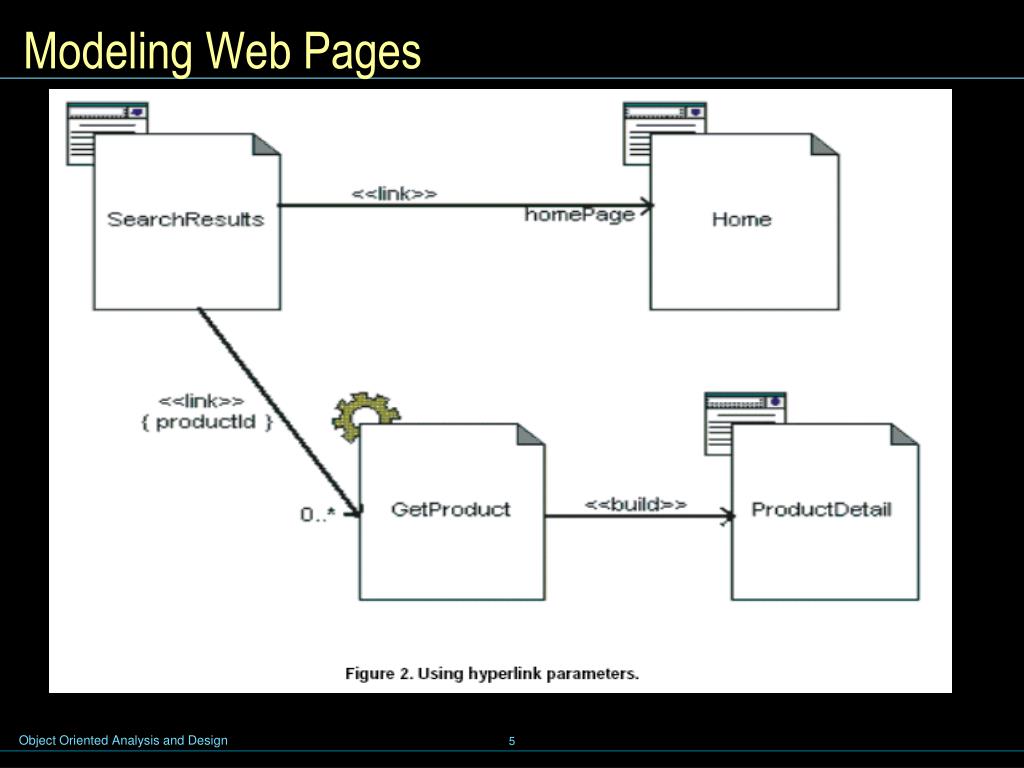

  5. Modeling Web Pages

  6. Modeling Web Pages

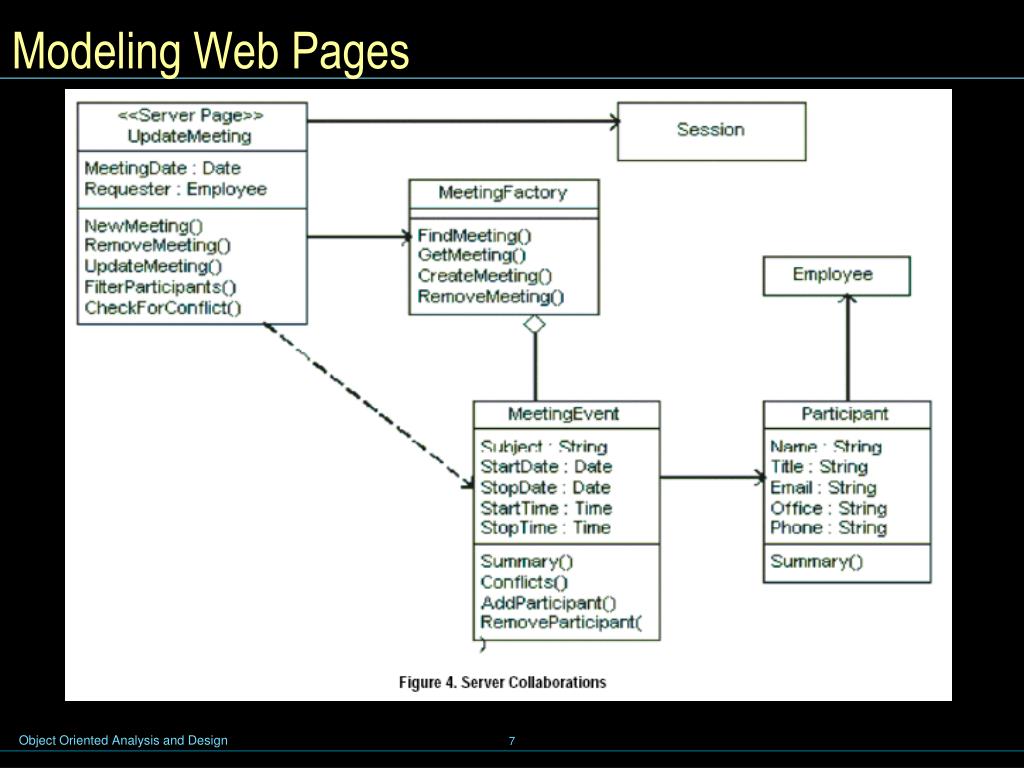

  7. Modeling Web Pages

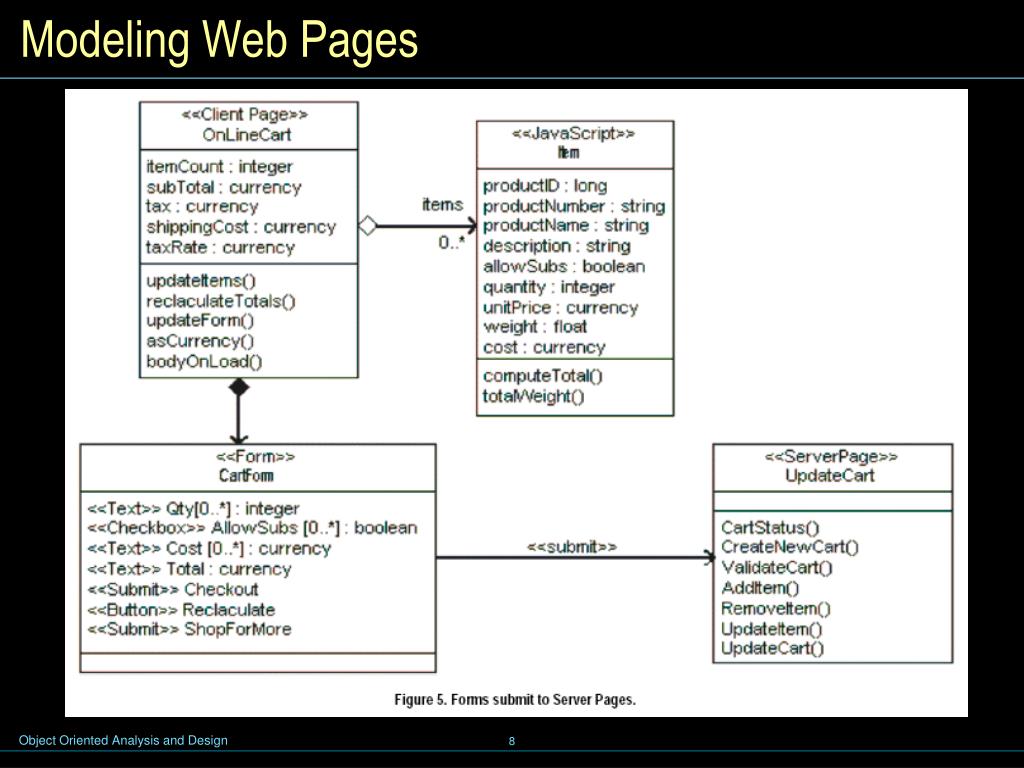

  8. Modeling Web Pages

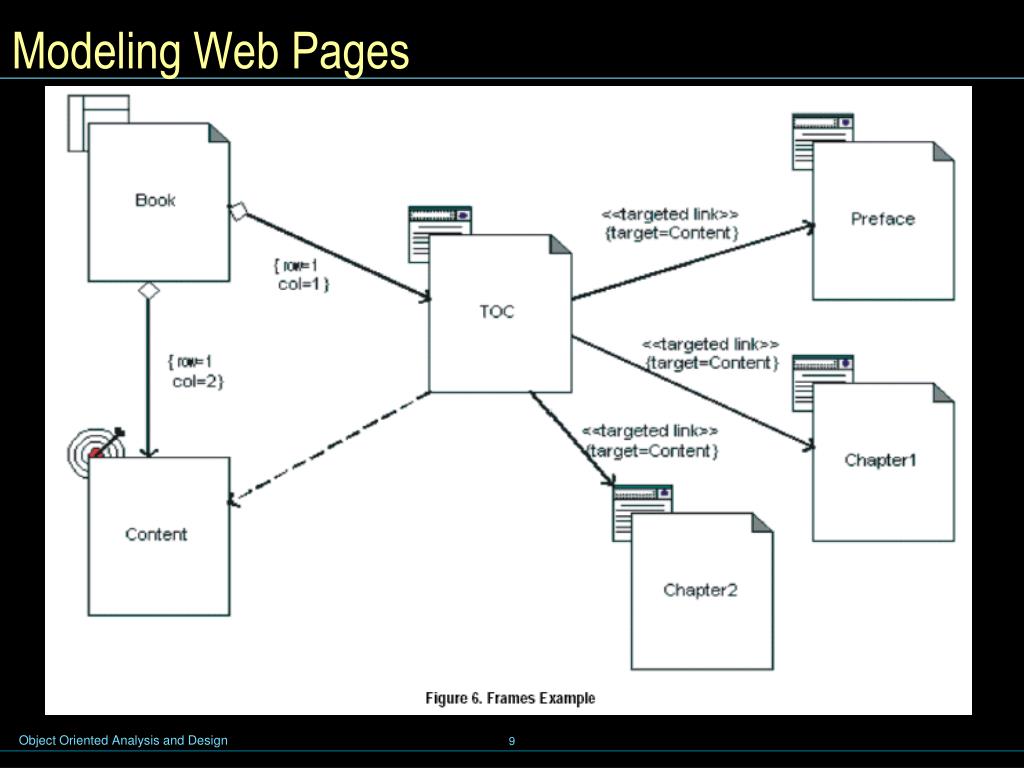

  9. Modeling Web Pages

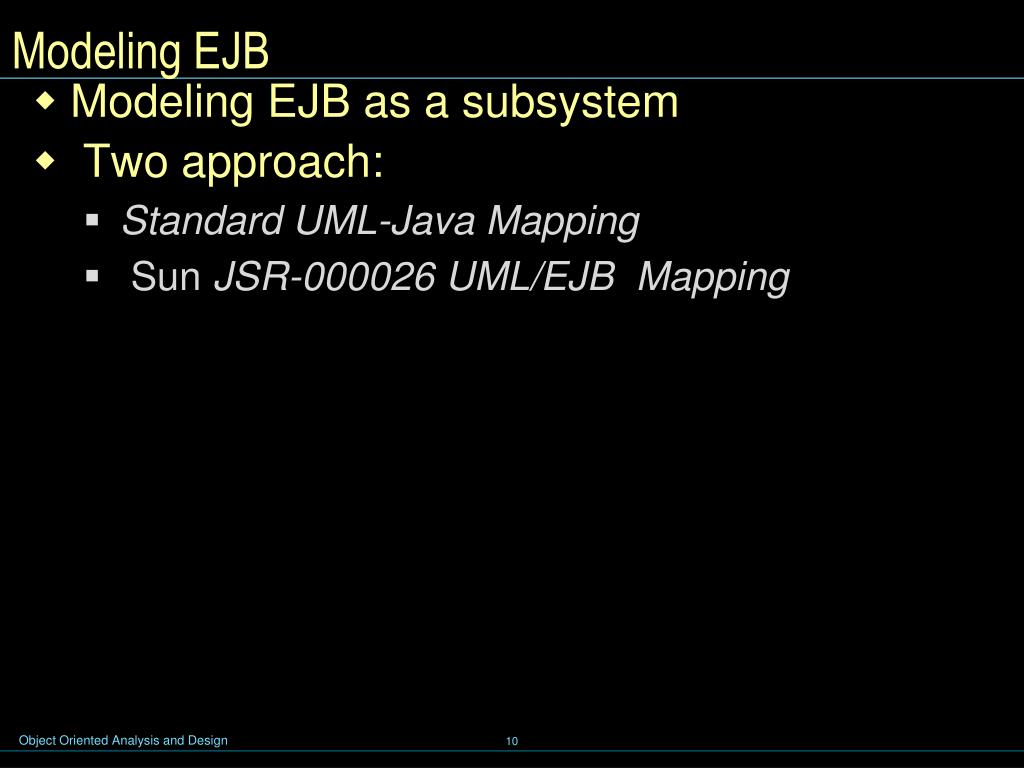

  10. Modeling EJB • Modeling EJB as a subsystem • Two approach: • Standard UML-Java Mapping • Sun JSR-000026 UML/EJB Mapping

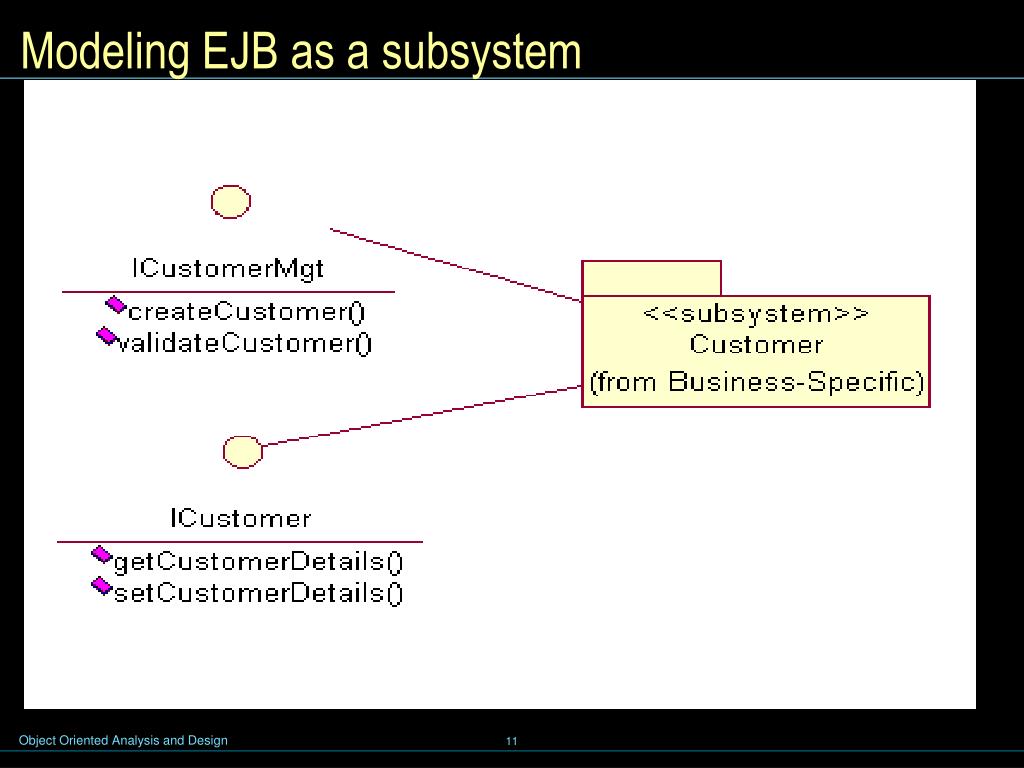

  11. Modeling EJB as a subsystem

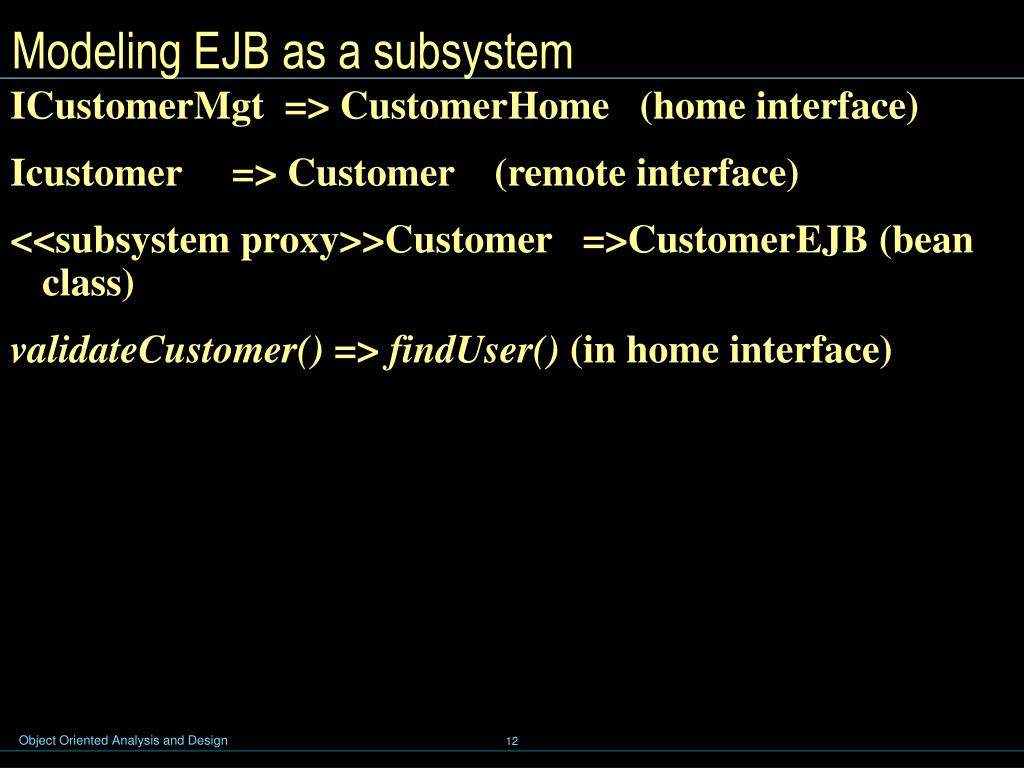

  12. Modeling EJB as a subsystem ICustomerMgt  => CustomerHome (home interface)  Icustomer    => Customer (remote interface) <<subsystem proxy>>Customer   =>CustomerEJB (bean class) validateCustomer() => findUser() (in home interface)

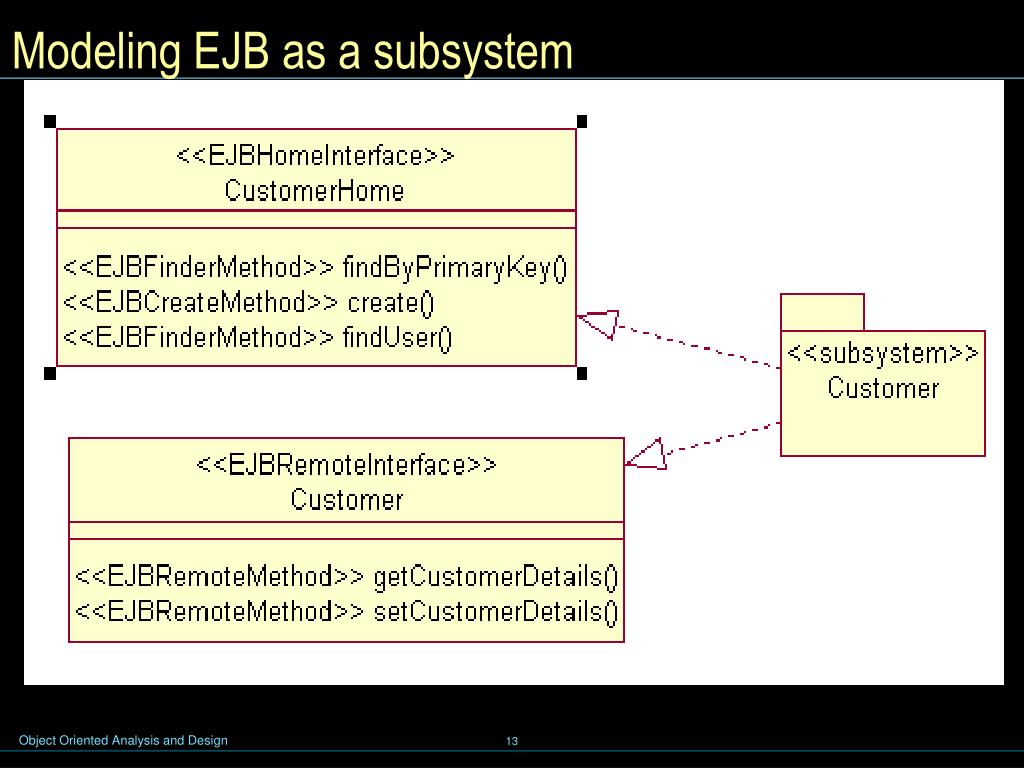

  13. Modeling EJB as a subsystem

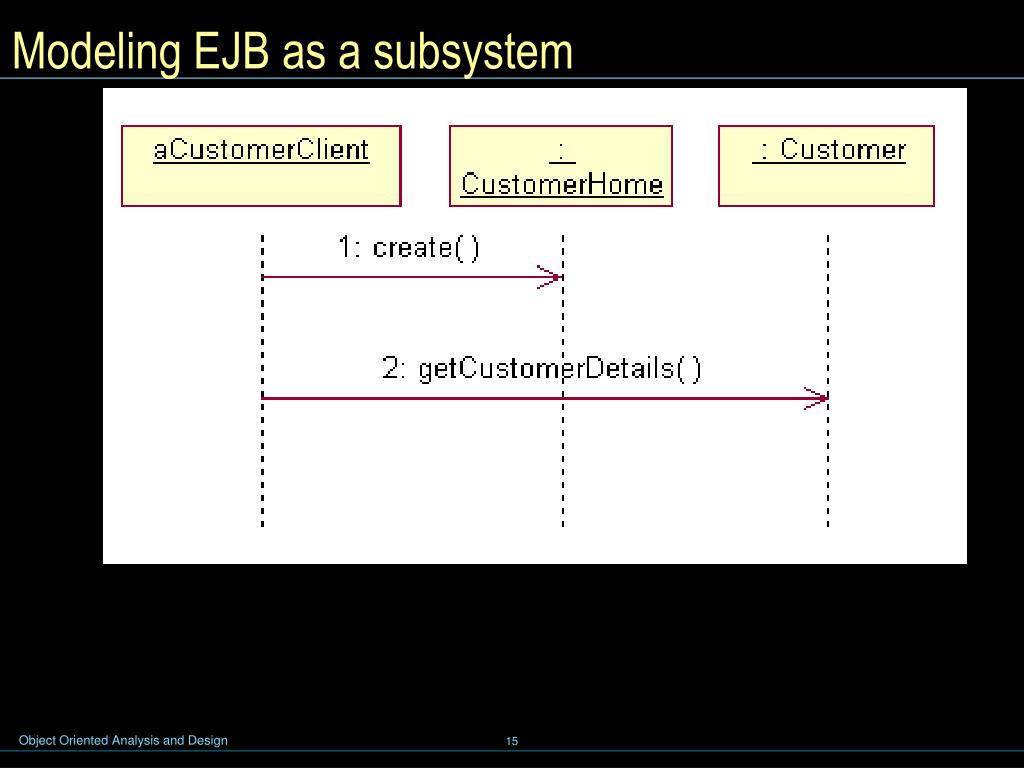

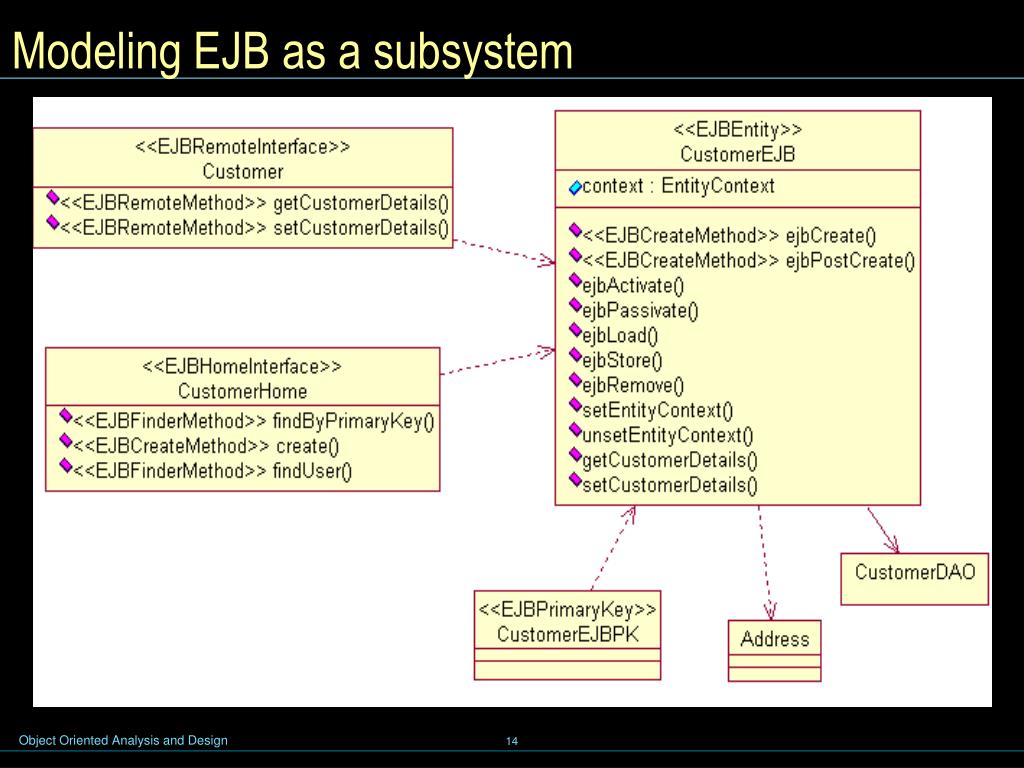

  14. Modeling EJB as a subsystem

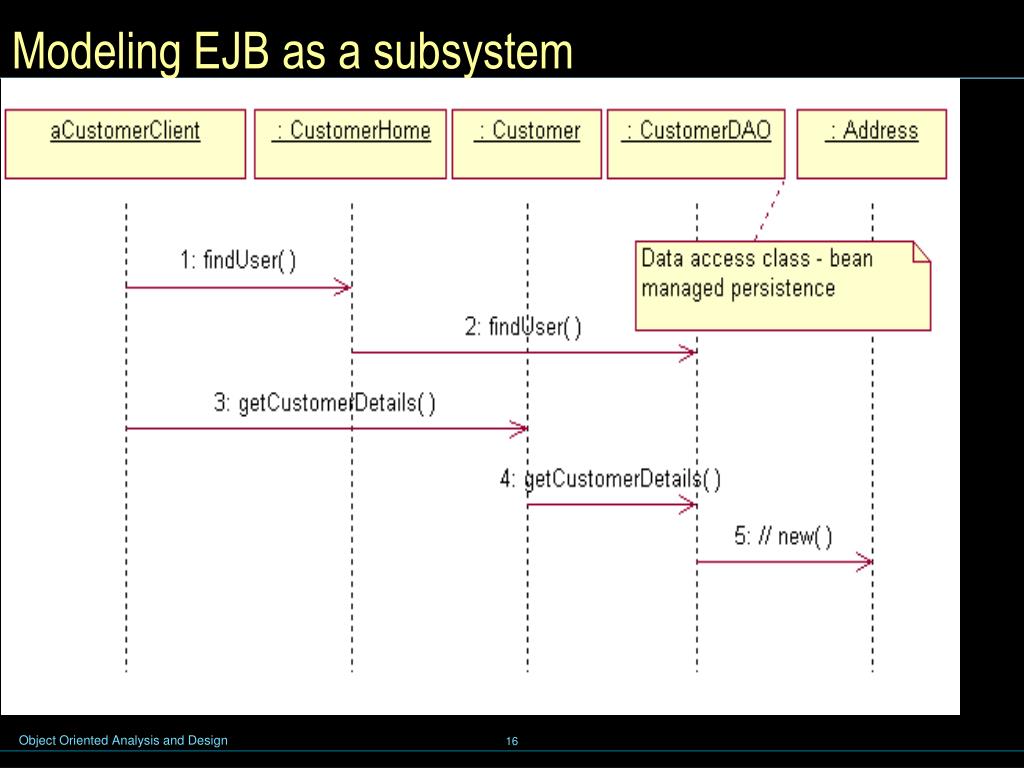

  15. Modeling EJB as a subsystem

  16. Modeling EJB as a subsystem

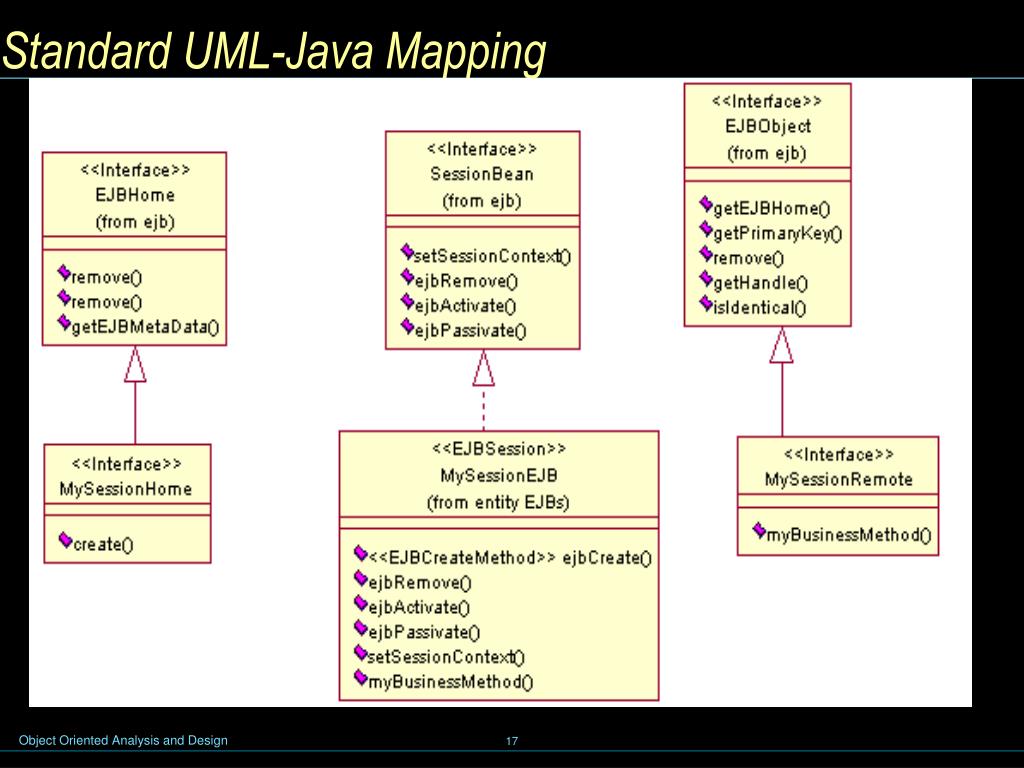

  17. Standard UML-Java Mapping

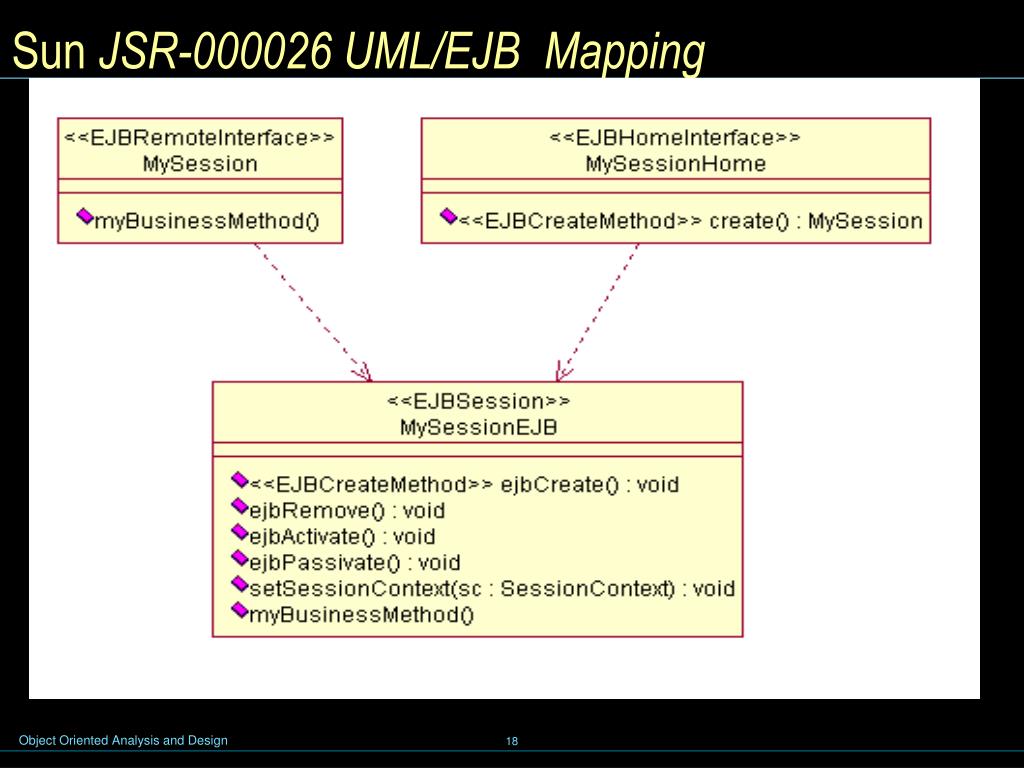

  18. Sun JSR-000026 UML/EJB Mapping

  19. Application Server

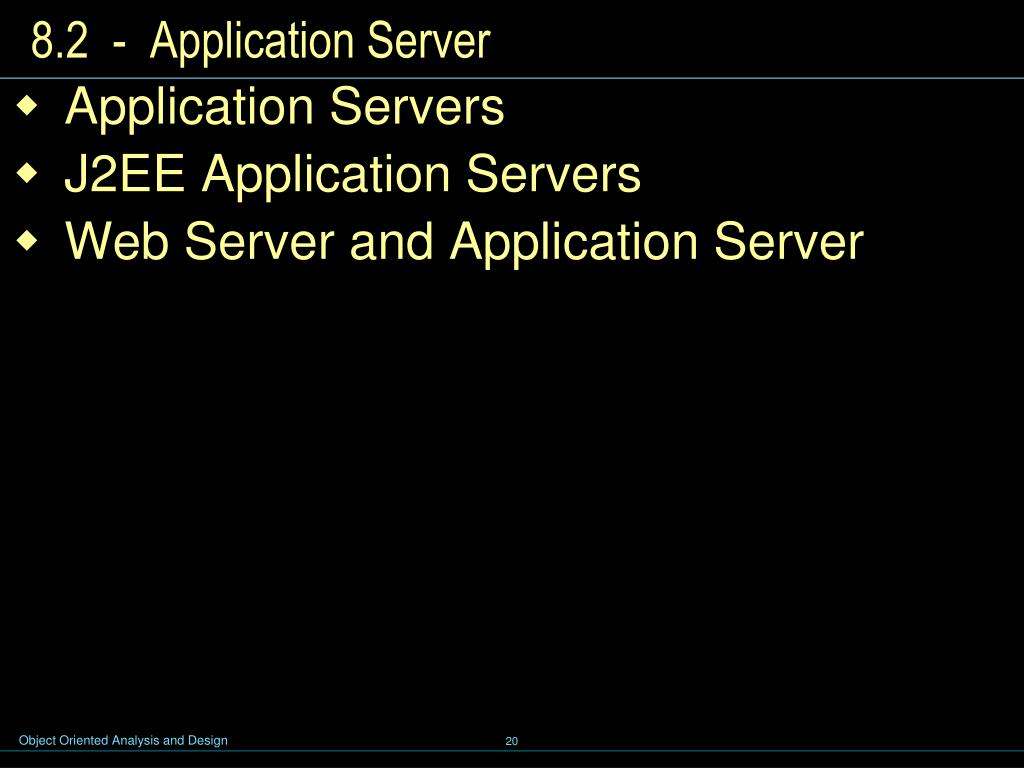

  20. 8.2 - Application Server • Application Servers • J2EE Application Servers • Web Server and Application Server

  21. mainframe terminals terminals Application Servers • In the beginning, there was darkness and cold. Then, … Centralized, non-distributed

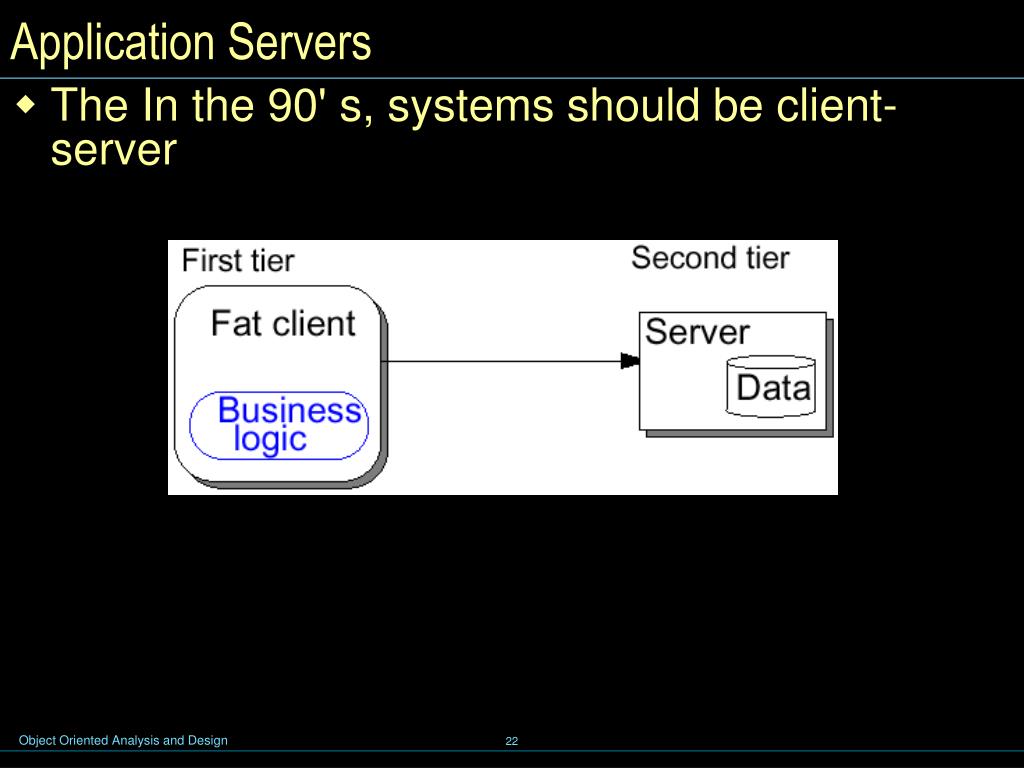

  22. Application Servers • The In the 90' s, systems should be client- server

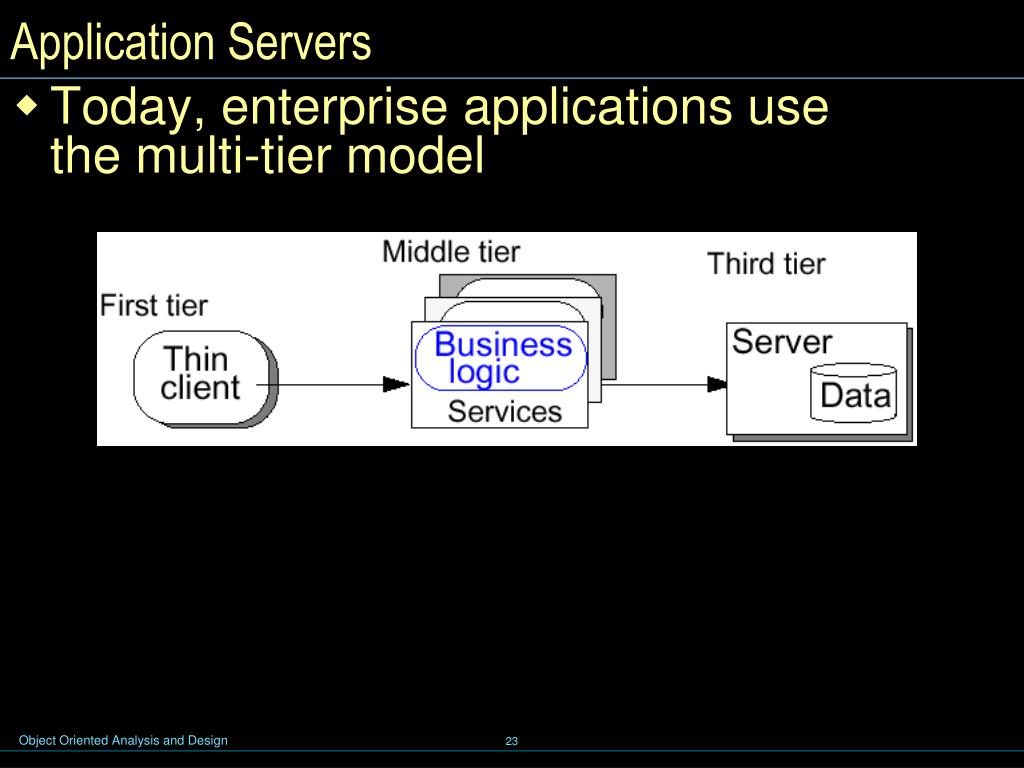

  23. Application Servers • Today, enterprise applications use the multi-tier model

  24. Application Servers • " The Multi- tier applications" have several independent components • An application server provides the infrastructure and services to run such applications

  25. Application Servers • Application server products can be separated into 3 categories: • J2EE-based solutions • Non-J2EE solutions (PHP, ColdFusion, Perl, etc.) • And the Microsoft solution (ASP/COM and now .NET with ASP.NET, VB.NET, C#, etc.)

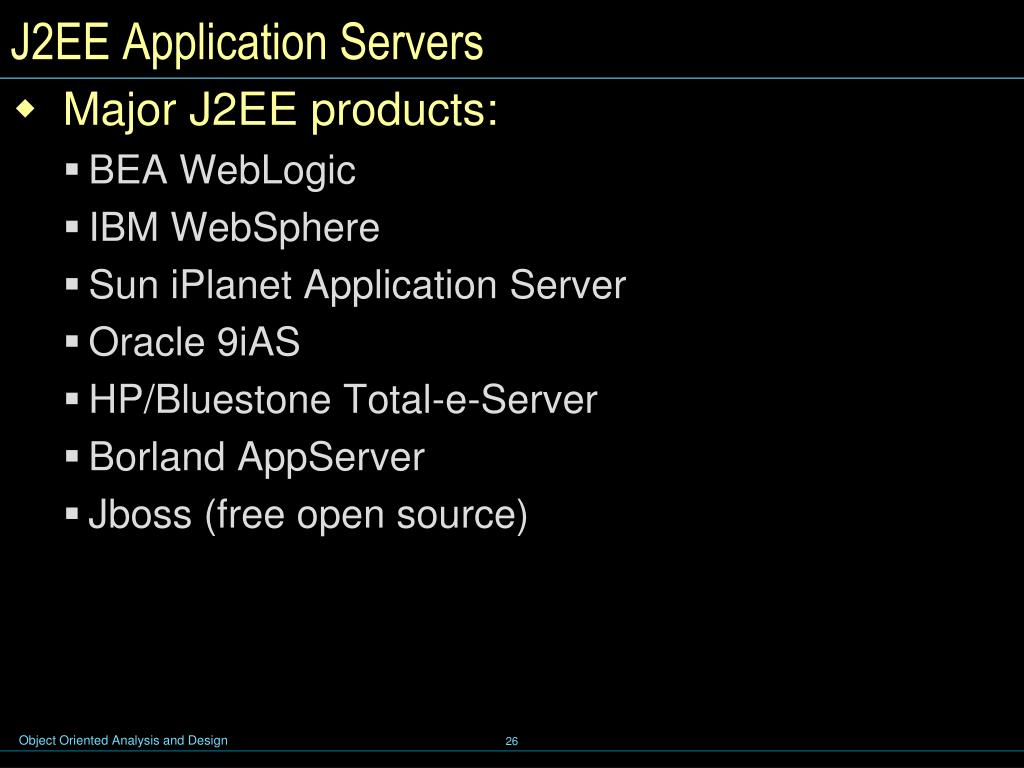

  26. J2EE Application Servers • Major J2EE products: • BEA WebLogic • IBM WebSphere • Sun iPlanet Application Server • Oracle 9iAS • HP/Bluestone Total-e-Server • Borland AppServer • Jboss (free open source)

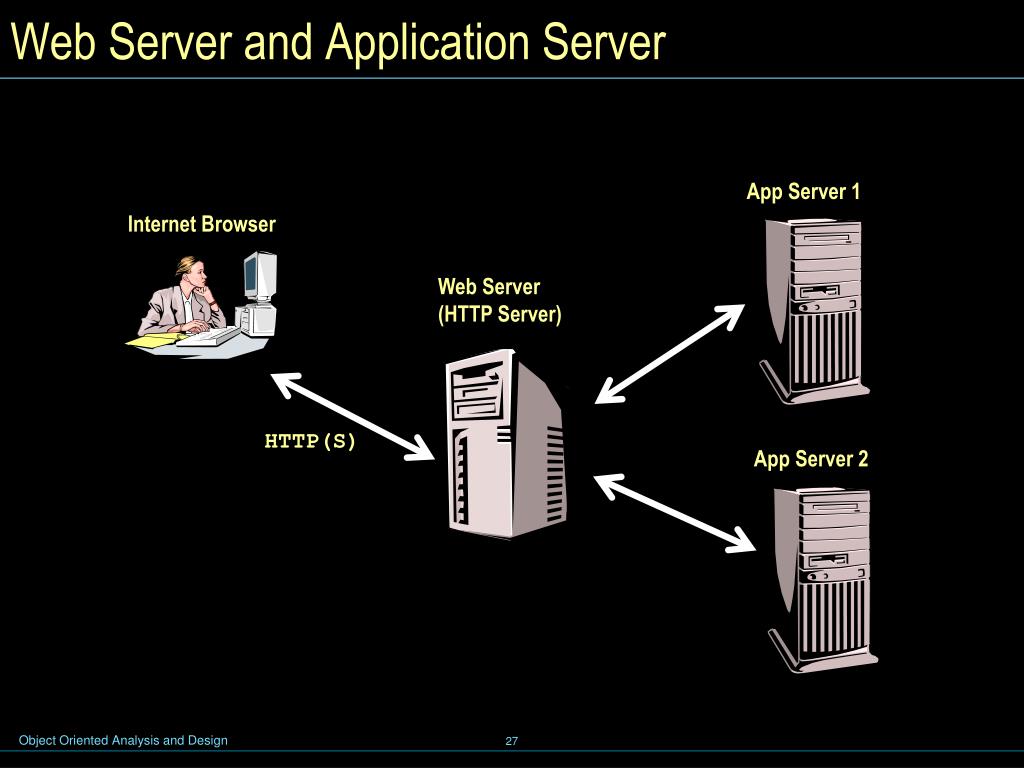

  27. Web Server and Application Server App Server 1 Internet Browser Web Server(HTTP Server) HTTP(S) App Server 2

  28. Web Application Design

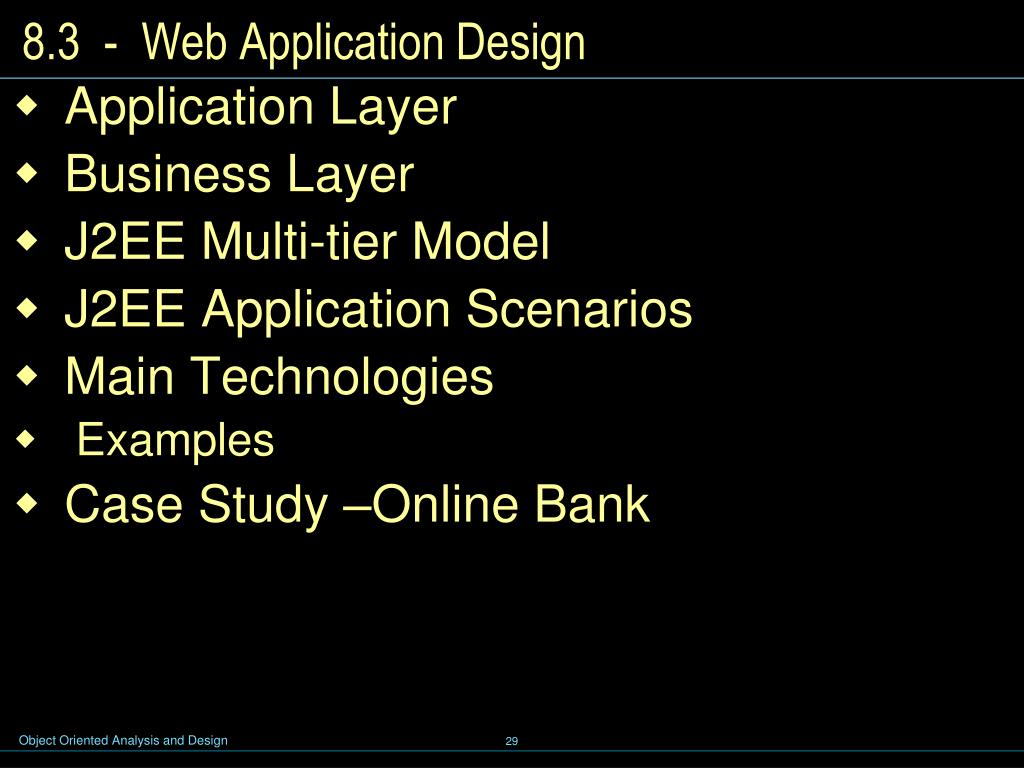

  29. 8.3 - Web Application Design • Application Layer • Business Layer • J2EE Multi-tier Model • J2EE Application Scenarios • Main Technologies • Examples • Case Study –Online Bank

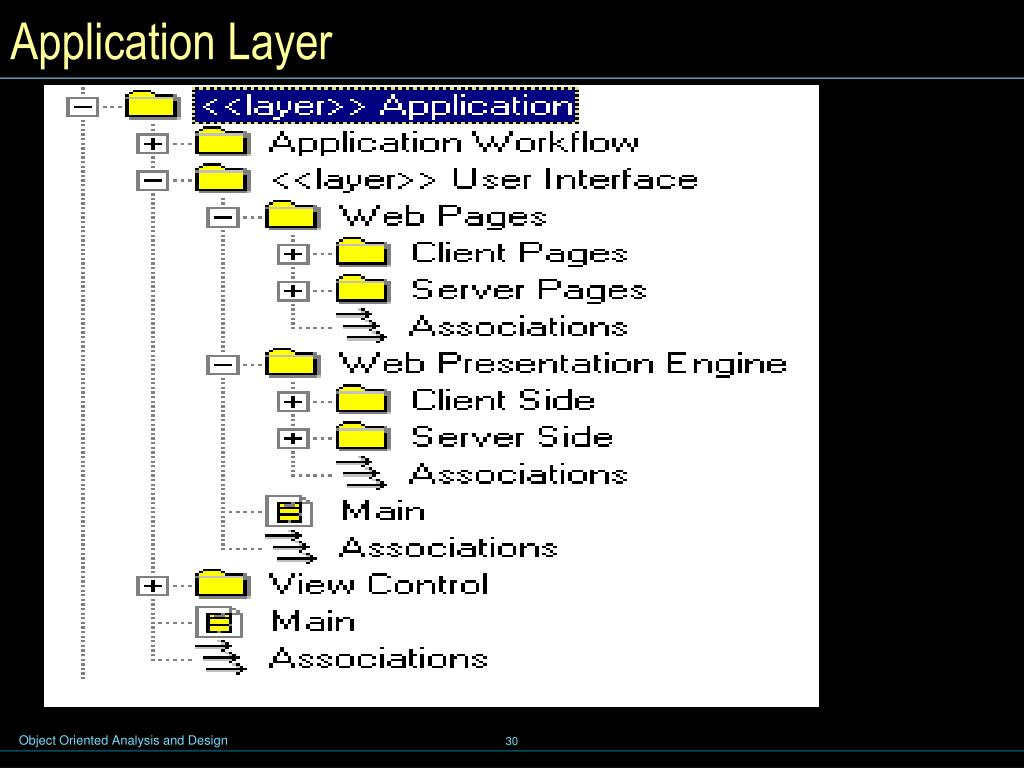

  30. Application Layer

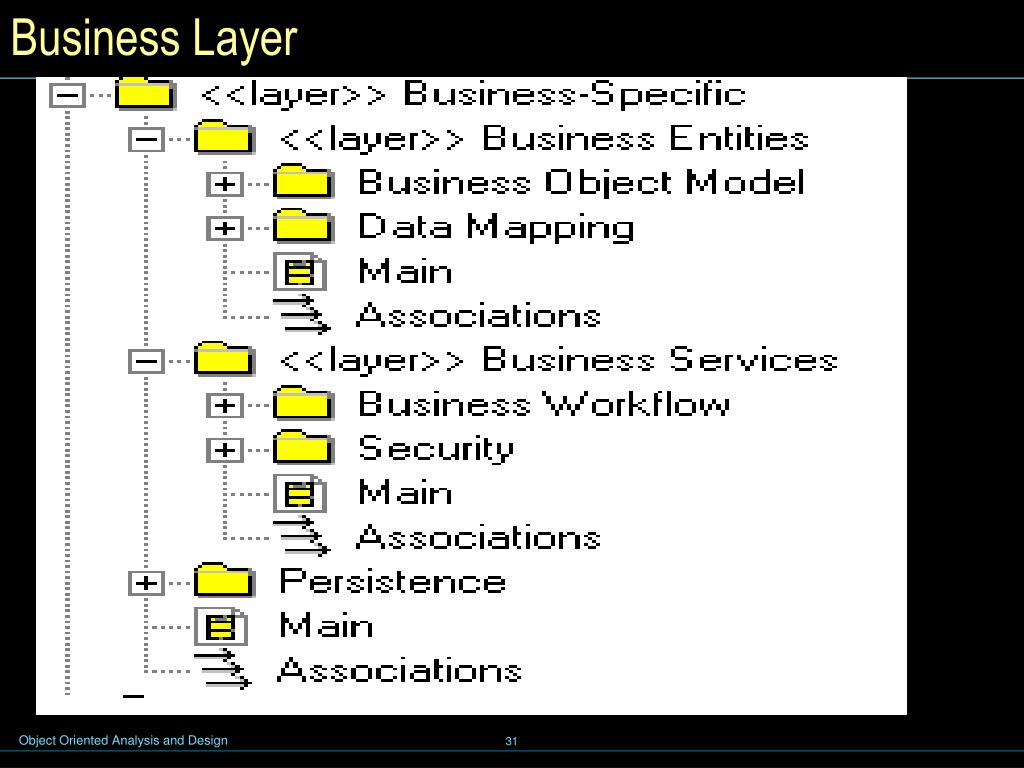

  31. Business Layer

  32. J2EE Multi-tier Model

  33. J2EE Application Scenarios • Multi-tier typical application

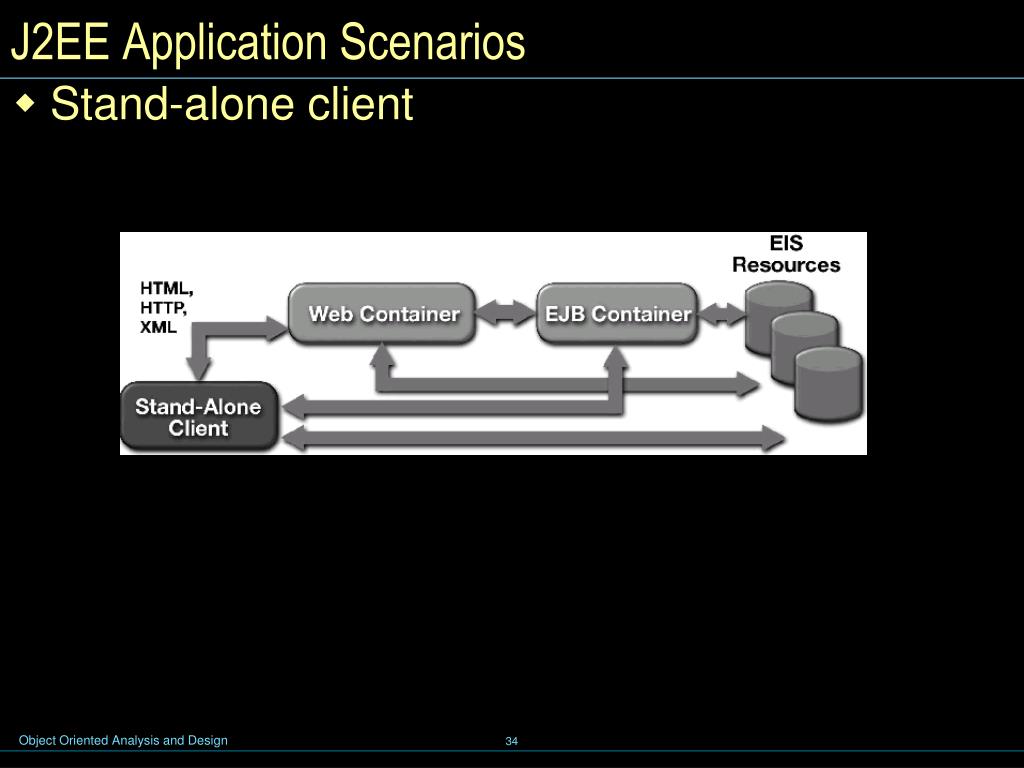

  34. J2EE Application Scenarios • Stand-alone client

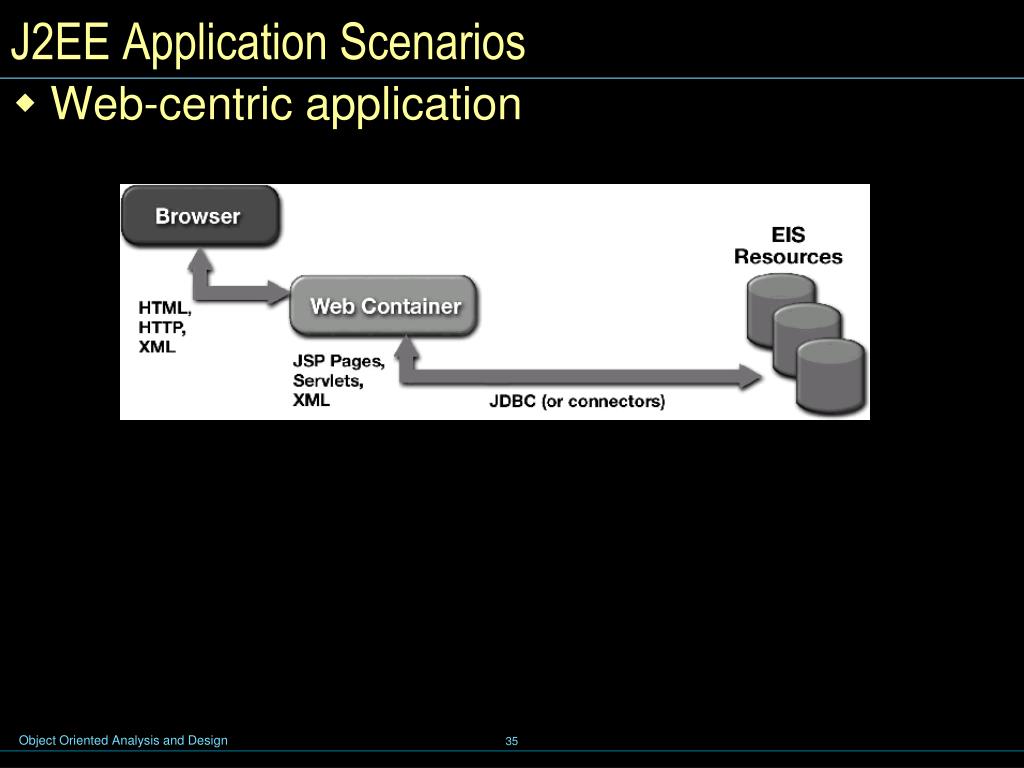

  35. J2EE Application Scenarios • Web-centric application

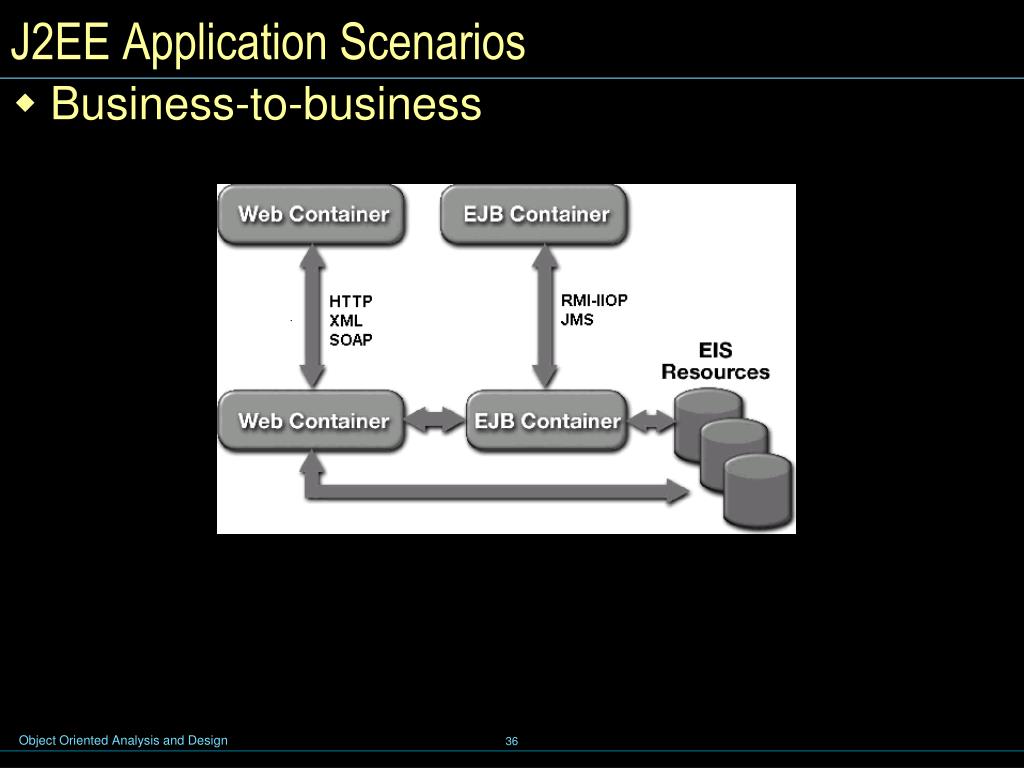

  36. J2EE Application Scenarios • Business-to-business

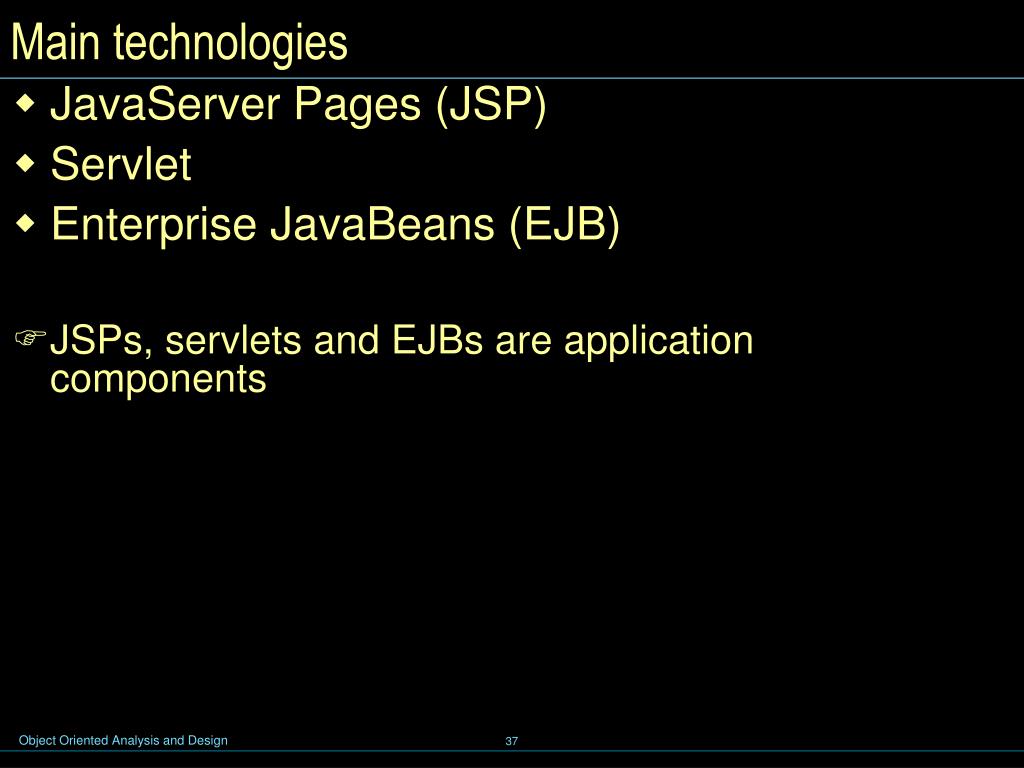

  37. Main technologies • JavaServer Pages (JSP) • Servlet • Enterprise JavaBeans (EJB) • JSPs, servlets and EJBs are application components

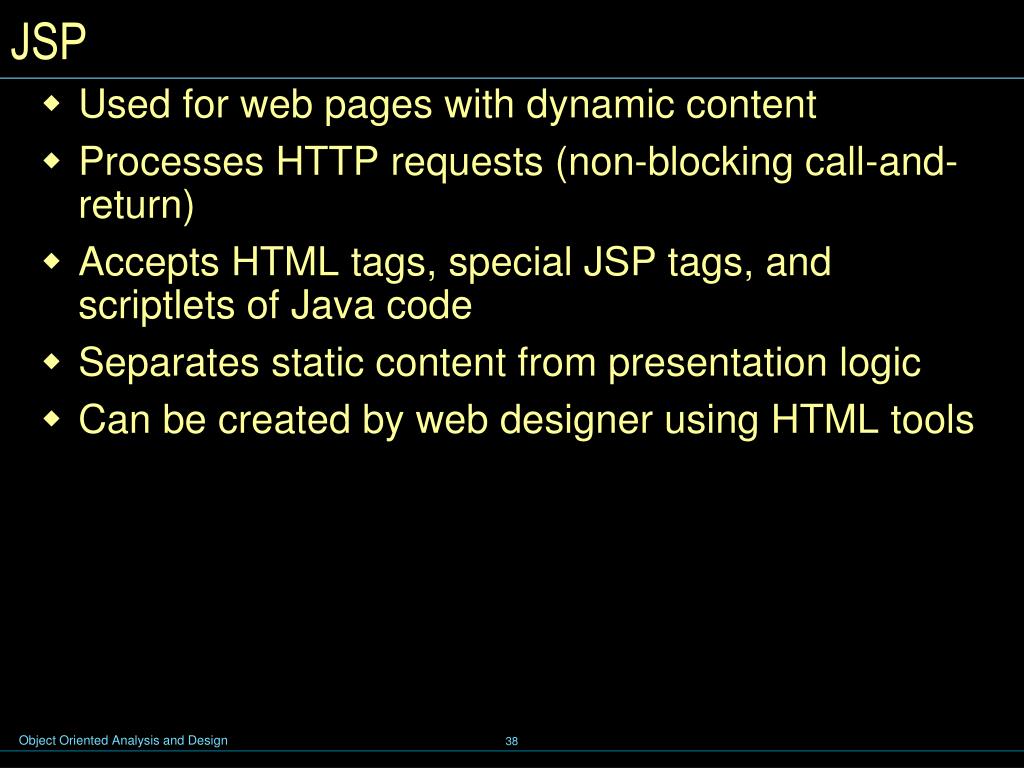

  38. JSP • Used for web pages with dynamic content • Processes HTTP requests (non-blocking call-and-return) • Accepts HTML tags, special JSP tags, and scriptlets of Java code • Separates static content from presentation logic • Can be created by web designer using HTML tools

  39. Servlet • Used for web pages with dynamic content • Processes HTTP requests (non-blocking call-and-return) • Written in Java; uses print statements to render HTML • Loaded into memory once and then called many times • Provides APIs for session management

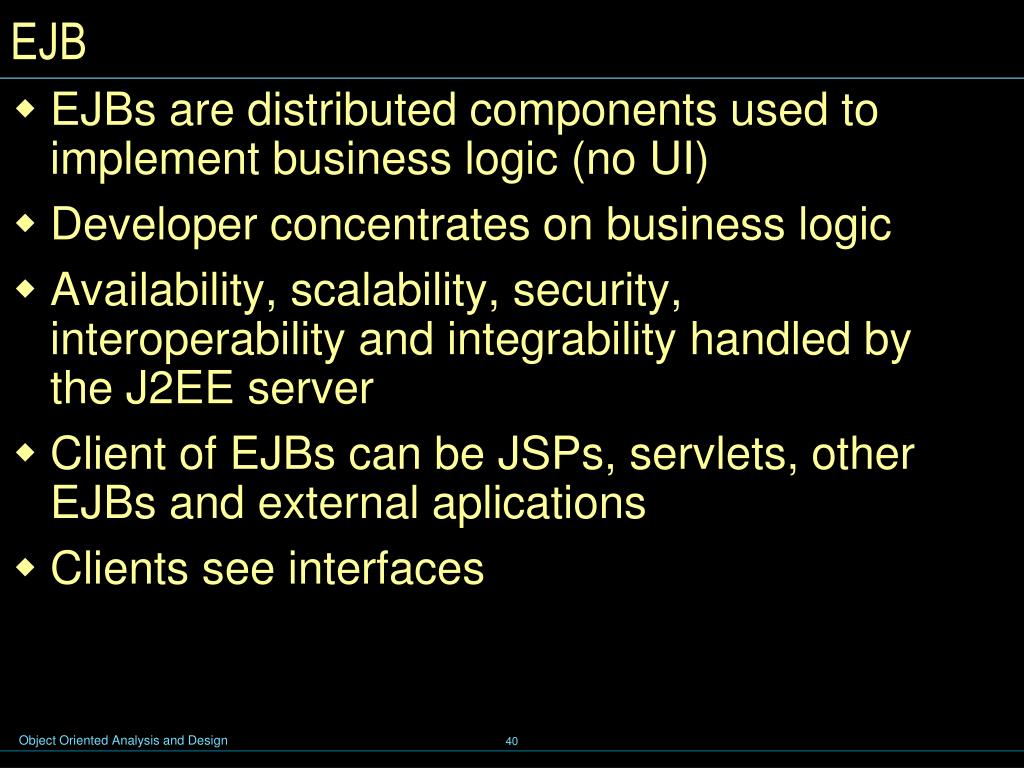

  40. EJB • EJBs are distributed components used to implement business logic (no UI) • Developer concentrates on business logic • Availability, scalability, security, interoperability and integrability handled by the J2EE server • Client of EJBs can be JSPs, servlets, other EJBs and external aplications • Clients see interfaces

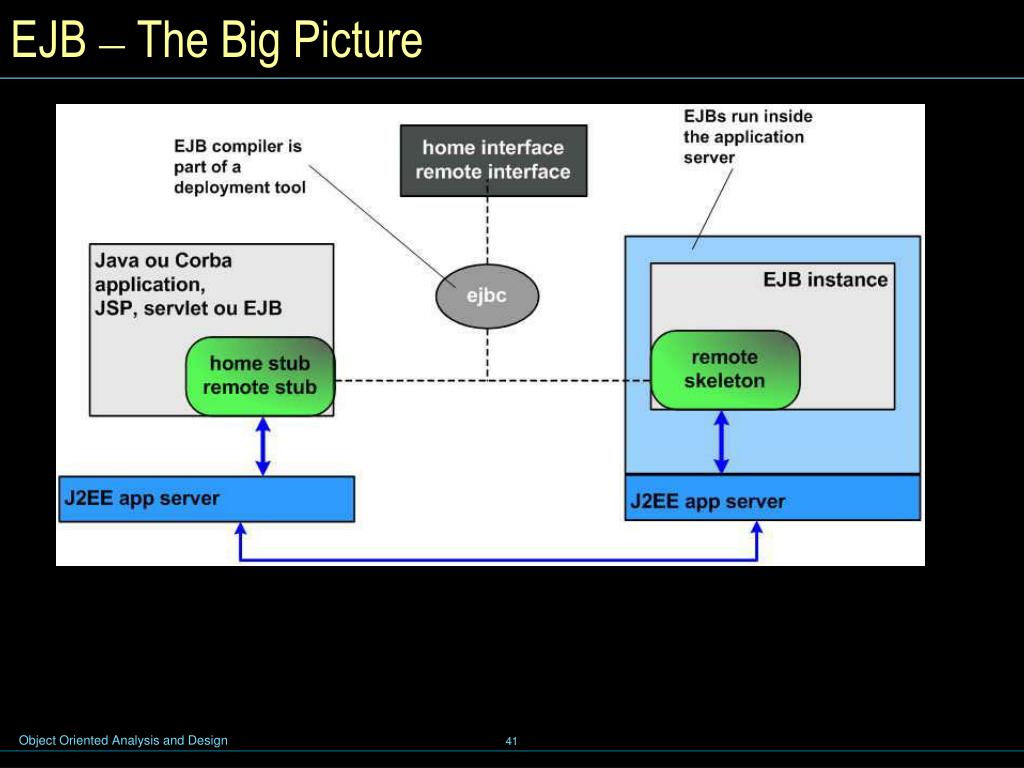

  41. EJB – The Big Picture

  42. EJB at runtime Client can be local or remote

  43. EJB at runtime

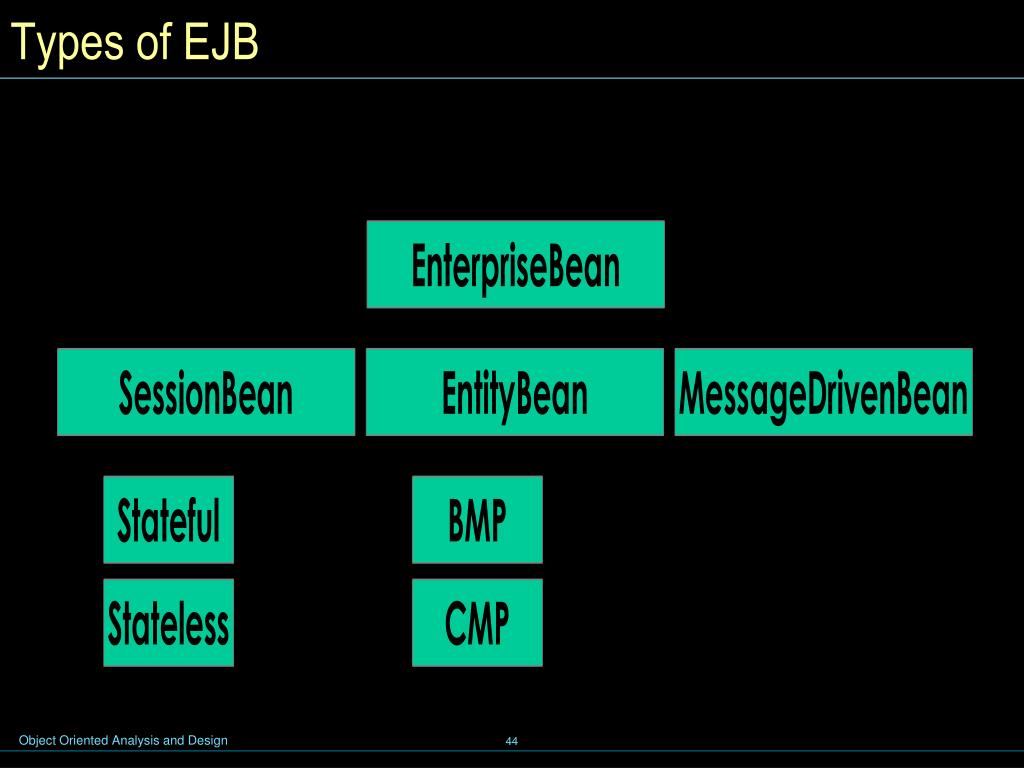

  44. Types of EJB

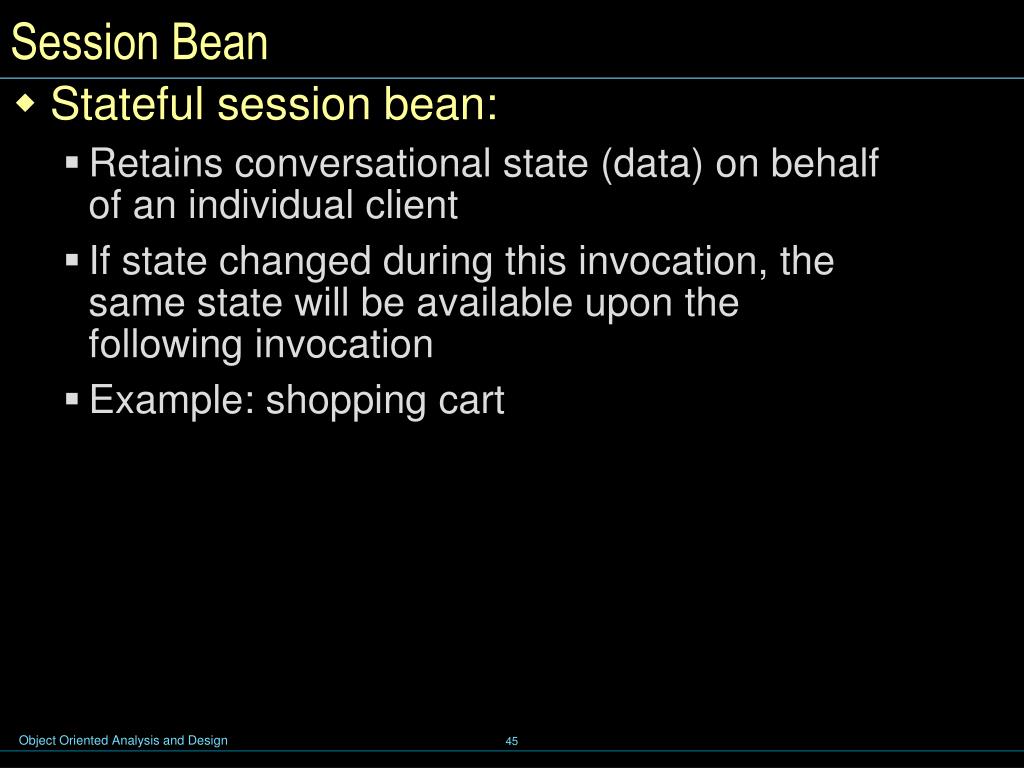

  45. Session Bean • Stateful session bean: • Retains conversational state (data) on behalf of an individual client • If state changed during this invocation, the same state will be available upon the following invocation • Example: shopping cart

  46. Session Bean • Stateless session bean: • Contains no user-specific data • Business process that provides a generic service • Container can pool stateless beans • Example: shopping catalog

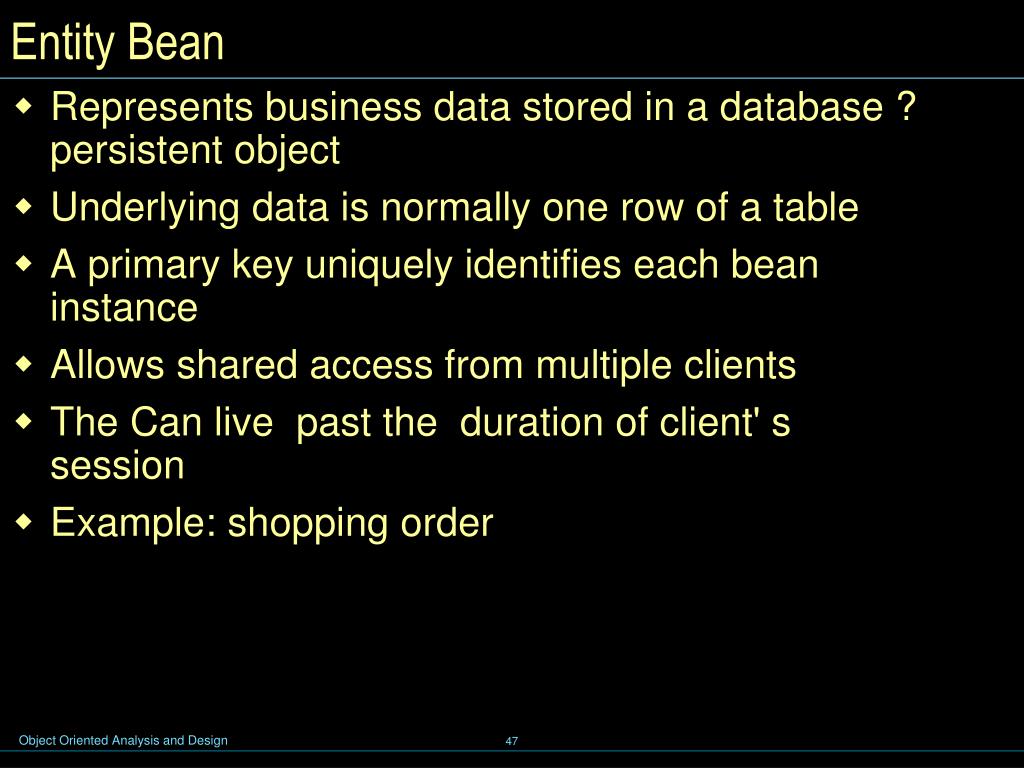

  47. Entity Bean • Represents business data stored in a database ? persistent object • Underlying data is normally one row of a table • A primary key uniquely identifies each bean instance • Allows shared access from multiple clients • The Can live past the duration of client' s session • Example: shopping order

  48. Entity Bean • Bean-managed persistence (BMP): bean developer writes JDBC code to access the database; allows better control for the developer • Container-managed persistence (CMP): container generates all JDBC code to access the database; developer has less code to write, but also less control

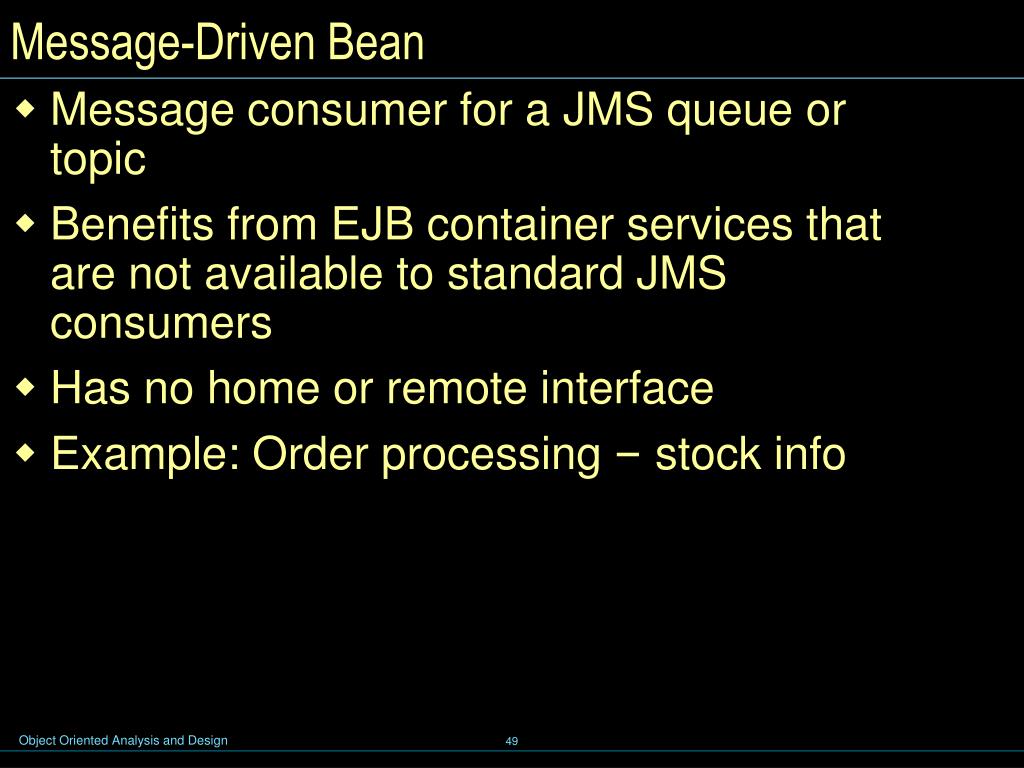

  49. Message-Driven Bean • Message consumer for a JMS queue or topic • Benefits from EJB container services that are not available to standard JMS consumers • Has no home or remote interface • Example: Order processing – stock info

  50. Examples • JSP example • Servlet example • EJB example
