  1. Final Project Presentation Mikael Krekola

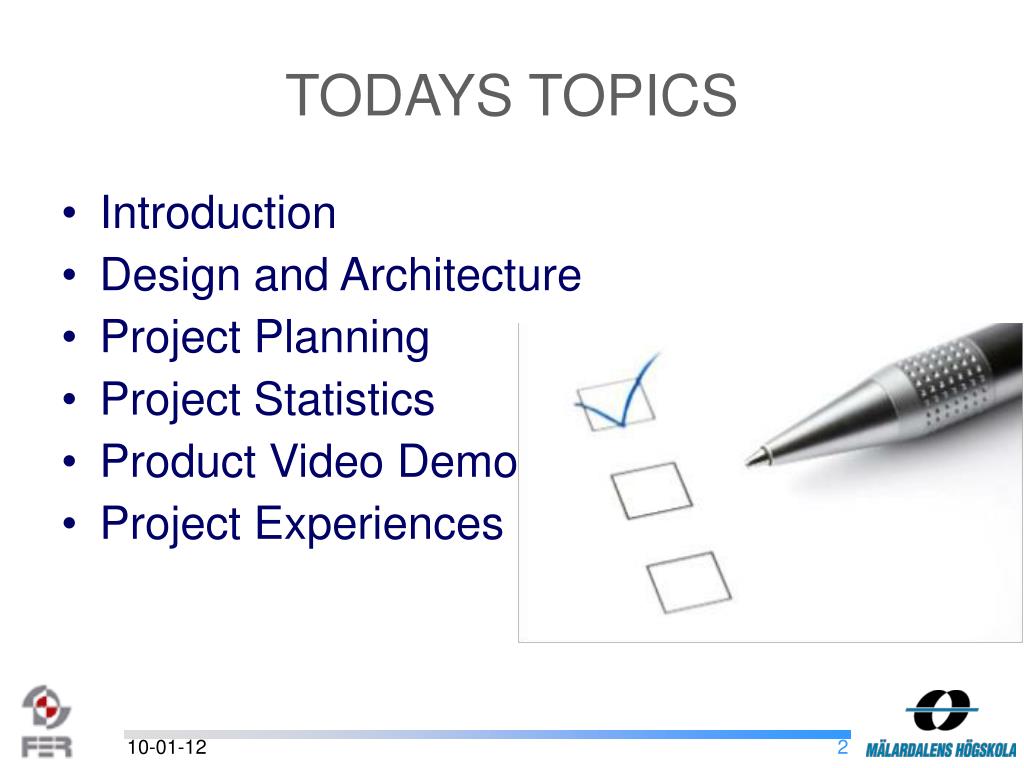

  2. TODAYS TOPICS • Introduction • Design and Architecture • Project Planning • Project Statistics • Product Video Demo • Project Experiences

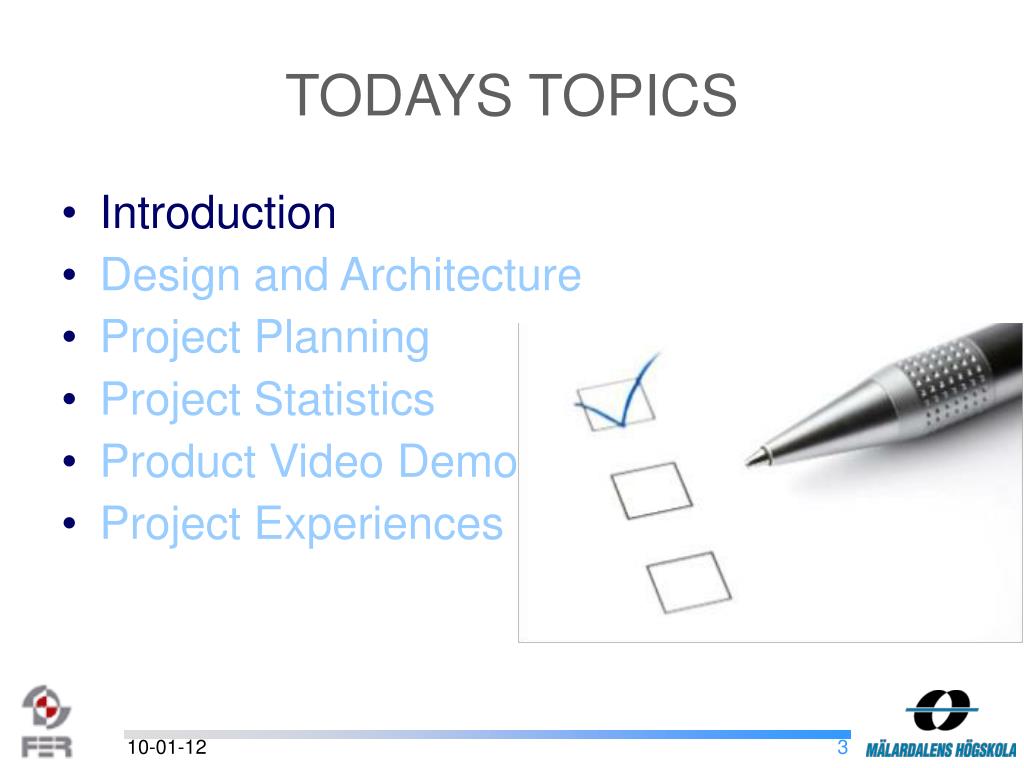

  3. TODAYS TOPICS • Introduction • Design and Architecture • Project Planning • Project Statistics • Product Video Demo • Project Experiences

  4. Railcab • A modern and novelway of transportation • Physical test-track • http://nbp-www.upb.de • Test and Verification!

  5. Scenario Simulation • Scenario-based Testing • Abstract Model • Events • Parallel Diagrams

  6. Visualization • Abstract to Physical Model • 3D Rendering of the Physical Model • Event Interaction with Simulator • Physics • Physical World Editor • Develop in parallel withthe Simulator

  7. Team Customer & Supervisors Project Manager & TL 2 Developers 2 Developers + TL 2 Developers + TL

  8. TODAYS TOPICS • Introduction • Design and Architecture • Project Planning • Project Statistics • Product Video Demo • Project Experiences

  9. Architecture

  10. EMF • Eclipse Modeling Framework • Graphical Modelling • Code Generation • Automatic Documentation • XMI Load/Export • Simulation model is EMF based • Visualizations Physical Model is EMF based

  11. Physics • Smooth movements • Realistic RailCab behaviour • PID controlling velocity • Air-resistance • PhysicsControllerprovides input to the simulation

  12. Simulation Interaction • Communication Visualisation Simulation simCont:ISimulation :Platform vis:Visualization getPluginExtensions getPluginExtensions getPluginExtensions getPluginExtensions getPluginExtensions addEventListener addController(this) notify(event) fireNotification(notification)

  13. World Editor • Physical Model is loaded using EMF support mechanisms • Object properties are easily updated • Fill in the value or • Drag & Drop with smart snapping! • Now possible to add Obstacles (Hazard)

  14. TODAYS TOPICS • Introduction • Design and Architecture • Project Planning • Project Statistics • Product Video Demo • Project Experiences

  15. Milestones

  16. Worked Hours Alpha RC Beta

  17. TODAYS TOPICS • Introduction • Design and Architecture • Project Planning • Project Statistics • Product Video Demo • Project Experiences

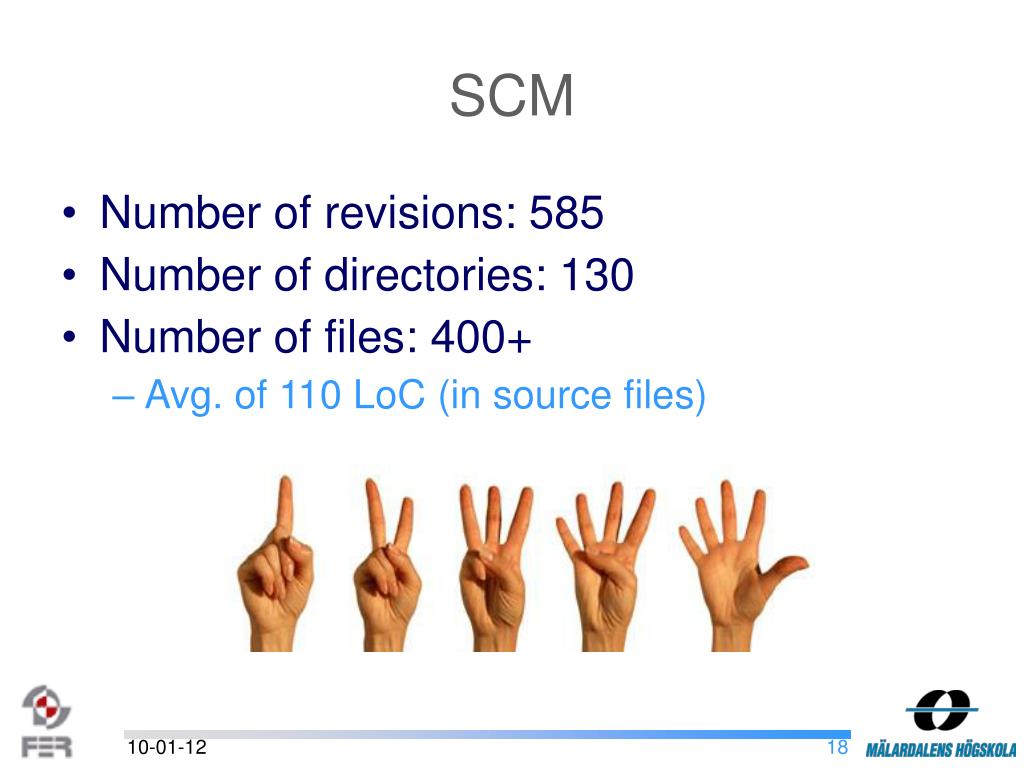

  18. SCM • Number of revisions: 585 • Number of directories: 130 • Number of files: 400+ • Avg. of 110 LoC (in source files)

  19. Lines of Code 30 696 LoC

  20. Communication • Google Group • Subjects: 100+ • Messages: 400+ • Shared files: 25 • Online Group Meetings • Weekly meetings on Skype: 25 hours

  21. TODAYS TOPICS • Introduction • Design and Architecture • Project Planning • Project Statistics • Product Video Demo • Project Experiences

  22. Demo

  23. TODAYS TOPICS • Introduction • Design and Architecture • Project Planning • Project Statistics • Product Video Demo • Project Experiences

  24. Some of the Problems • Different technical backgrounds • (Internal) training • Communication (technical) • Misunderstandings • Estimates

  25. Some of the Problems (cont') • Different business drivers • Three-way distribution • Meetings • External dependencies

  26. What was Good? • Team Spirit • Working for the team, not one self • Friendly atmosphere • Informal, direct and honest communication • Active and Pro-active members • Supervisor support

  27. Fin.

  28. No really, that was the end.

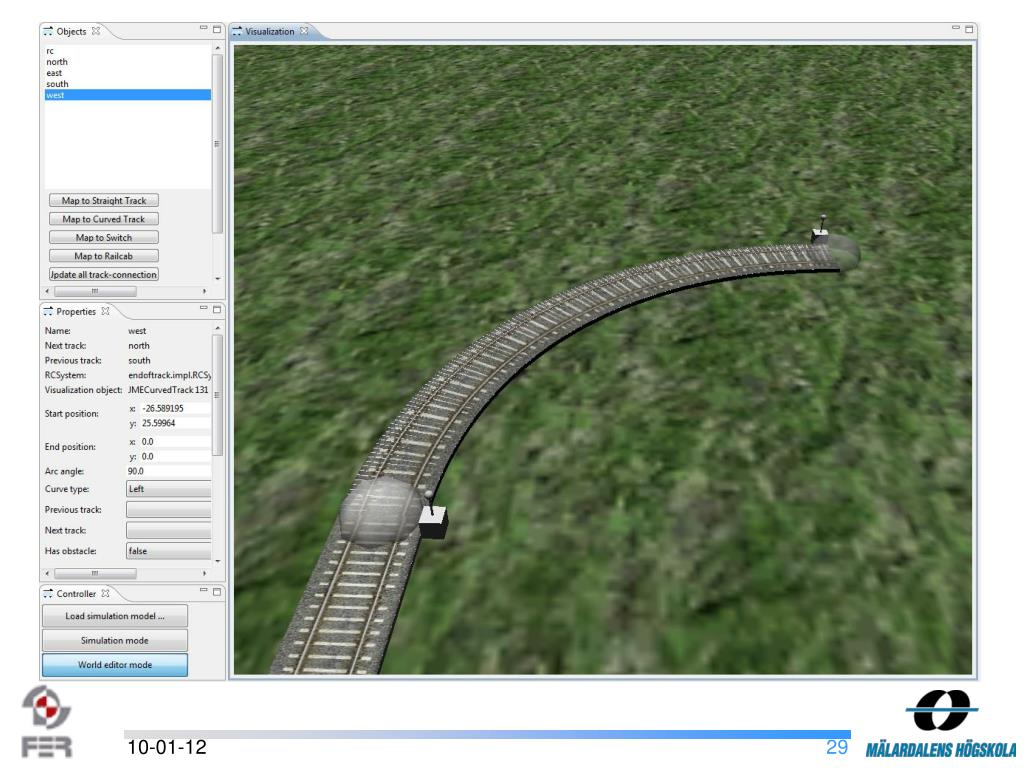

  29. Demo (plan B)

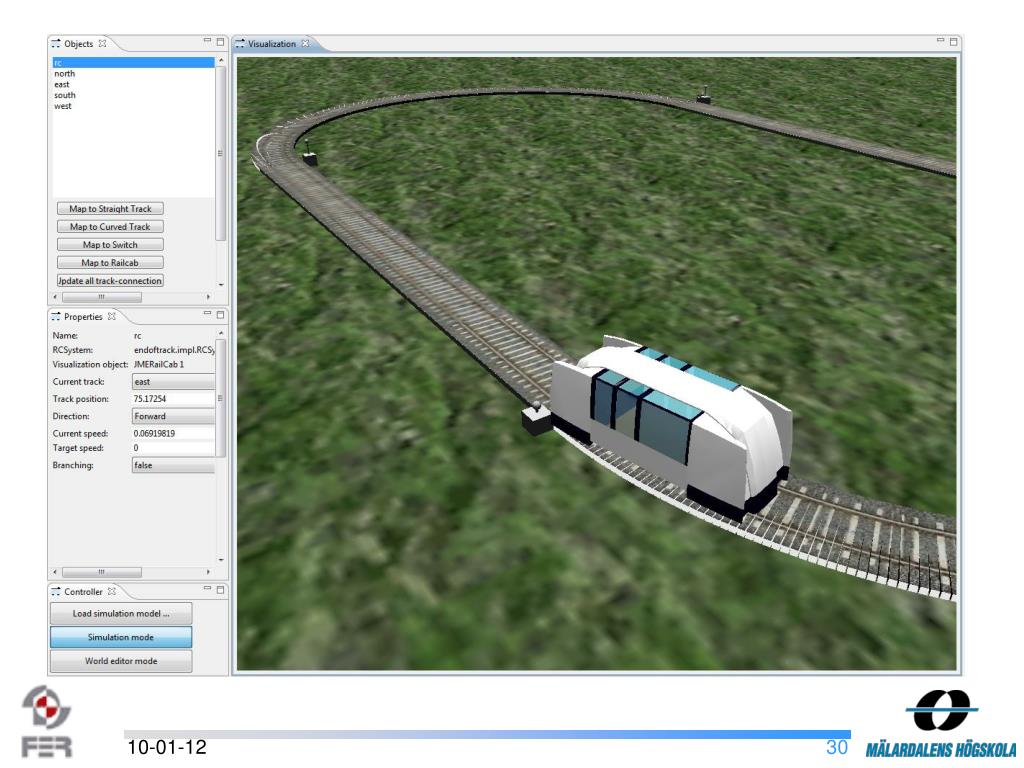

  30. Demo (plan B)

  31. Demo (plan B)
