  1. Managed Ethernet Switch

  2. Introduction • Product Features • WSD-800 • WSW-2401A • WGSW-2840 • WGSW-5240 • Feature Functions • Comparison

  3. FeaturesWSD-800 8-Port Intelligent Switch • IEEE standard compliant: • 802.3, 802.3u • 802.3x full-duplex flow control and backpressure for half duplex operation • 802.1p 4 priorities with Weight Round Robins • 802.1Q VLAN, up to 256 VLANs • 802.3ad LACP Link aggregation, 4 aggregation groups, per group up to 4 ports • 802.1x port-based authentication • 802.1D, 802.1w classic Spanning Tree Algorithm or Rapid Spanning Tree support • Web/Console/Telnet/SNMP management • Configuration backup & recovery • Per port 64Kbps~8Mbps Ingress/Egress bandwidth Restricting • Traffic Classification and Prioritization, based on 802.1p/ports/ MAC address • 4 Priority queues, support strict priority/Weighted Round Robin • Support IGMP Snooping v1, v2 for multicast • MAC address binding/filtering/learning, configurable aging time • Broadcast, Multicast and DLF storm control • Stack up to 8 units and manageable by single IP • SNMP v1, v2c, MIB II, RMON group 1.2.3.9 WSD-800 (8 Fast Ethernet ports)

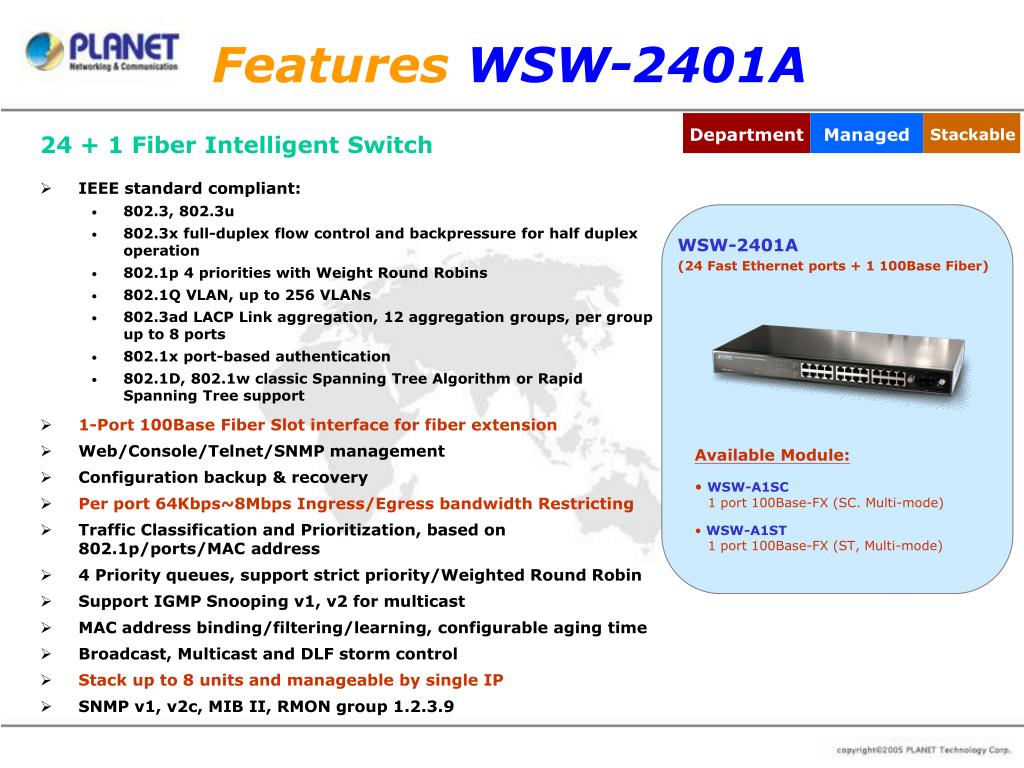

  4. Features WSW-2401A 24 + 1 Fiber Intelligent Switch • IEEE standard compliant: • 802.3, 802.3u • 802.3x full-duplex flow control and backpressure for half duplex operation • 802.1p 4 priorities with Weight Round Robins • 802.1Q VLAN, up to 256 VLANs • 802.3ad LACP Link aggregation, 12 aggregation groups, per group up to 8 ports • 802.1x port-based authentication • 802.1D, 802.1w classic Spanning Tree Algorithm or Rapid Spanning Tree support • 1-Port 100Base Fiber Slot interface for fiber extension • Web/Console/Telnet/SNMP management • Configuration backup & recovery • Per port 64Kbps~8Mbps Ingress/Egress bandwidth Restricting • Traffic Classification and Prioritization, based on 802.1p/ports/MAC address • 4 Priority queues, support strict priority/Weighted Round Robin • Support IGMP Snooping v1, v2 for multicast • MAC address binding/filtering/learning, configurable aging time • Broadcast, Multicast and DLF storm control • Stack up to 8 units and manageable by single IP • SNMP v1, v2c, MIB II, RMON group 1.2.3.9 WSW-2401A (24 Fast Ethernet ports + 1 100Base Fiber) • Available Module: • WSW-A1SC • 1 port 100Base-FX (SC. Multi-mode) • WSW-A1ST • 1 port 100Base-FX (ST, Multi-mode)

  5. Features WGSW-2840 24 + 4G Intelligent Switch • IEEE standard compliant: • 802.3, 802.3u, 802.3ab, 802.3z • 802.3x full-duplex flow control and backpressure for half duplex operation • 802.1p 4 priorities with Weight Round Robins • 802.1Q VLAN, up to 256 VLANs • 802.3ad LACP Link aggregation, 12 aggregation groups, per group up to 8 ports • 802.1x port-based authentication • 802.1D, 802.1w classic Spanning Tree Algorithm or Rapid Spanning Tree support • 4-Port SFP Mini-GBIC interface for fiber extension • Web/Console/Telnet/SNMP management • Configuration backup & recovery • Per port 64Kbps~8Mbps Ingress/Egress bandwidth Restricting • Traffic Classification and Prioritization, based on 802.1p/ports/MAC address • 4 Priority queues, support strict priority/Weighted Round Robin • Support IGMP Snooping v1, v2 for multicast • MAC address binding/filtering/learning, configurable aging time • Broadcast, Multicast and DLF storm control • Stack up to 8 units and manageable by single IP • SNMP v1, v2c, MIB II, RMON group 1.2.3.9 WGSW-2840 (24 Fast Ethernet ports + 4 Gigabit ports)

  6. FeaturesWGSW-5240 48 + 4G Intelligent Stackable Switch • IEEE standard compliant: • 802.3, 802.3u, 802.3ab, 802.3z • 802.3x full-duplex flow control and backpressure for half duplex operation • 802.1p 4 priorities with Weight Round Robins • 802.1Q VLAN, up to 256 VLANs • 802.3ad LACP Link aggregation, 12 aggregation groups, per group up to 8 ports • 802.1x port-based authentication • 802.1D, 802.1w classic Spanning Tree Algorithm or Rapid Spanning Tree support • 4-Port SFP Mini-GBIC interface • Web/Console/Telnet/SNMP management • Configuration backup & recovery • Per port 64Kbps~8Mbps Ingress/Egress bandwidth Restricting • Traffic Classification and Prioritization, based on 802.1p/ports/MAC address • 4 Priority queues, support strict priority/Weighted Round Robin • Support IGMP Snooping v1, v2 for multicast • MAC address binding/filtering/learning, configurable aging time • Broadcast, Multicast and DLF storm control • Stack up to 8 units and manageable by single IP • SNMP v1, v2c, MIB II, RMON group 1.2.3.9 WGSW-5240 (48 Fast Ethernet ports + 4 Gigabit ports)

  7. Feature Functions

  8. Full Featured Console Managements • CLI for Telnet/Console

  9. Friendly Web User Interface

  10. Traffic Classification and Prioritization • Enables to assign various grades of network service to different types of traffic E-Mail Voice over IP

  11. Ingress/Egress Bandwidth Restricting

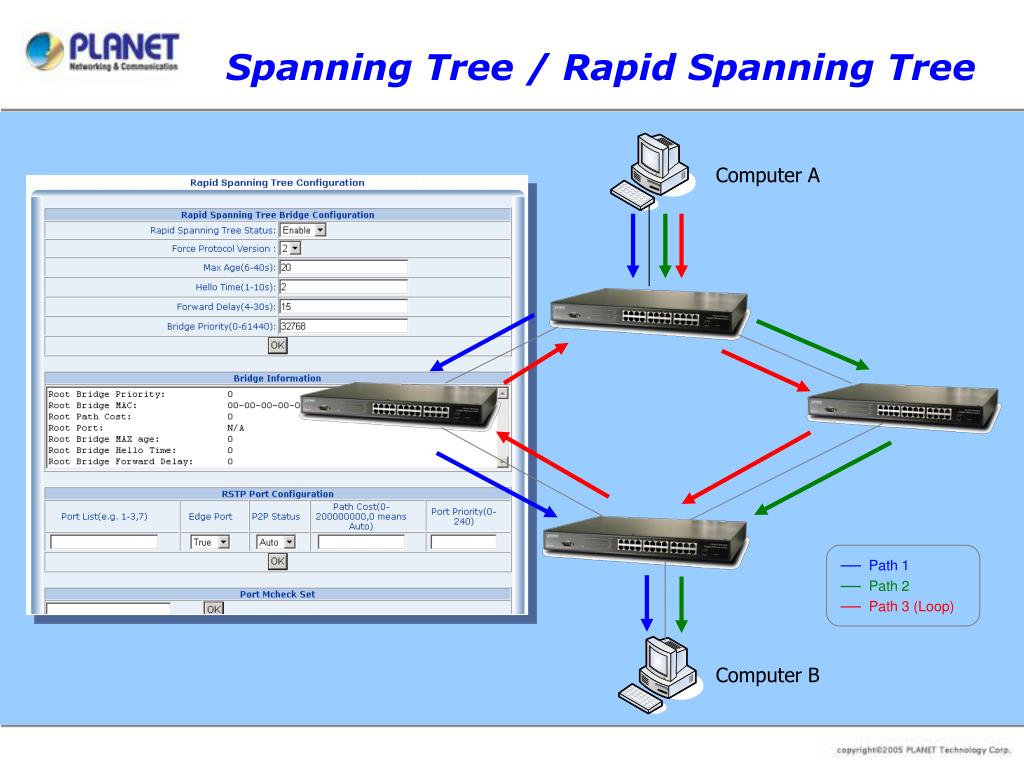

  12. Spanning Tree / Rapid Spanning Tree Computer A ── Path 1 ── Path 2 ── Path 3 (Loop) Computer B

  13. Port-Based VLAN Upper link or route to internet VLAN 1 VLAN 2 Public Server

  14. 802.1Q VLAN Packet with VLAN Tag VLAN ID=3 Packet with VLAN Tag VLAN ID=7 PVID = 6 PVID = 7 Packet with VLAN Tag VLAN ID=3 Packet without VLAN Tag

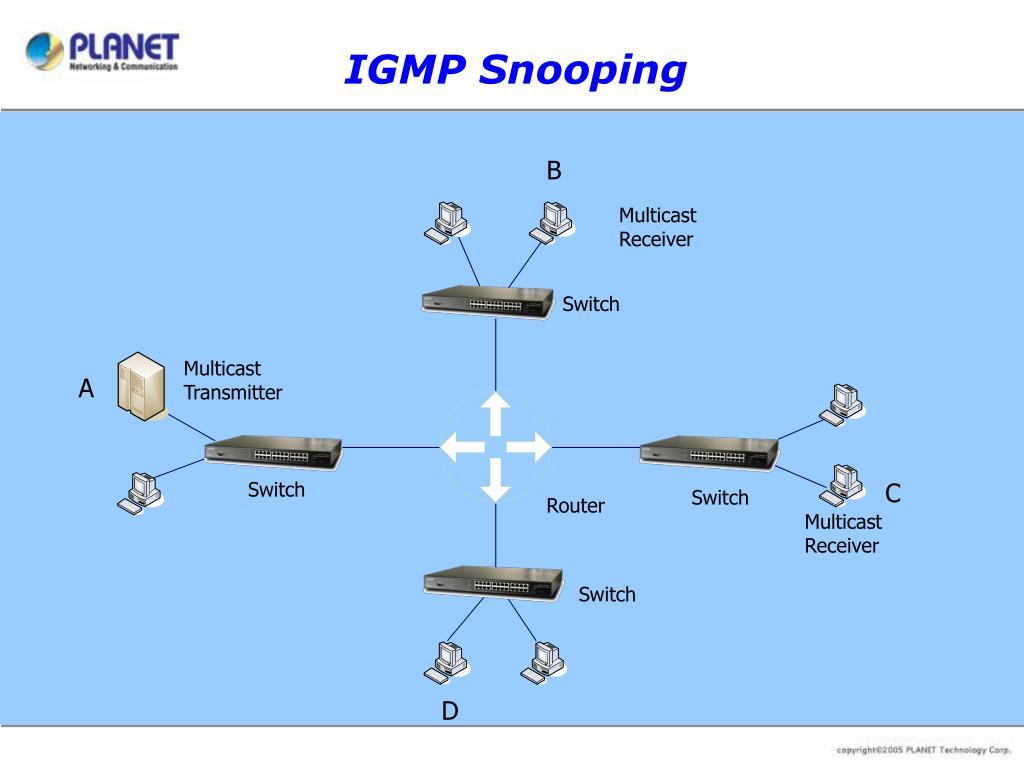

  15. IGMP Snooping B Multicast Receiver Switch Multicast Transmitter A Switch C Switch Router Multicast Receiver Switch D

  16. IGMP Snooping Broadcast without IGMP Snooping B Multicast Receiver Switch Multicast Transmitter A Switch C Switch Router Multicast Receiver Switch D

  17. IGMP Snooping IGMP Snooping prevented broadcast B Multicast Receiver Switch Multicast Transmitter A Switch C Switch Router Multicast Receiver Switch D

  18. SNMP Management RMON Groups 1, 2, 3, 9 RFC 1757 (statistics, history, alarm, events) Mgt. DB SNMP Agent SNMP Software

  19. ComparisonWSD-800

  20. Comparison WSW-2401A vs. WSW-2401

  21. Comparison WGSW-2840 vs. SGSW-2620

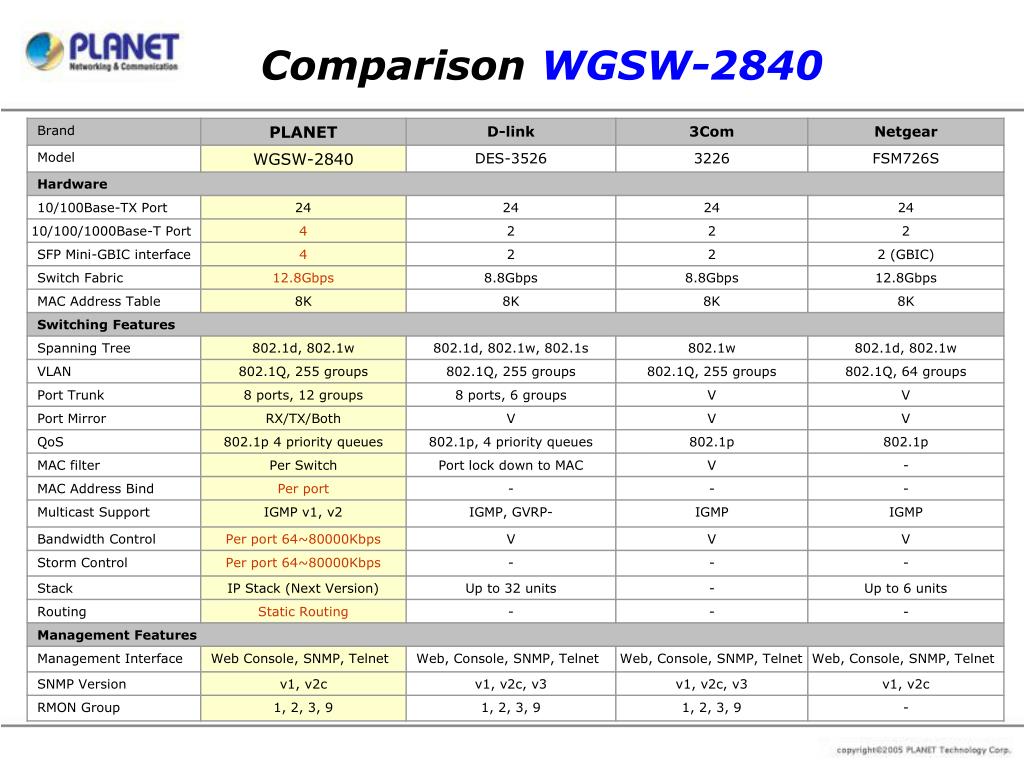

  22. ComparisonWGSW-2840

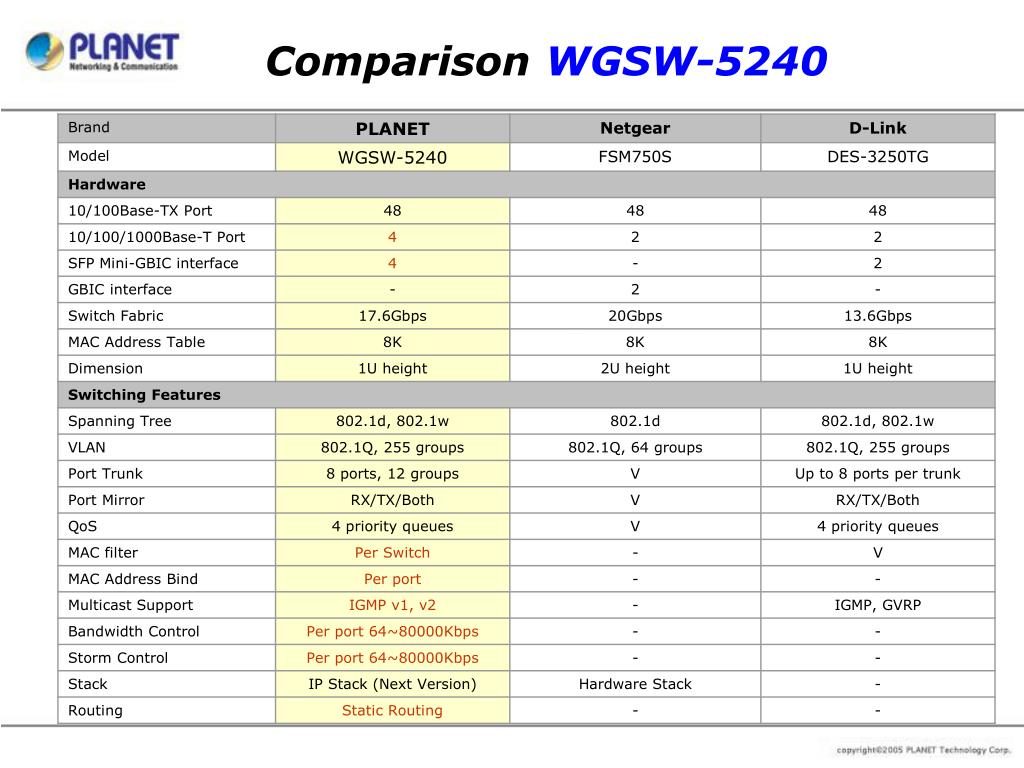

  23. ComparisonWGSW-5240

  24. ComparisonWGSW-5240

  25. Pioneer of IP Innovation www.planet.com.tw
