Part 25 Takeoff Profile. Final Segment. 3rd Segment. 2nd Segment. 1 st Segment. accelerate level at 400 AGL to V2 + 10 retract flaps. positive rate gear up accelerate to V2 cross departure end at 35 AGL. slight pitch increase to maintain V2 (no gear drag)

hanley
Télécharger la présentation

Vef

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

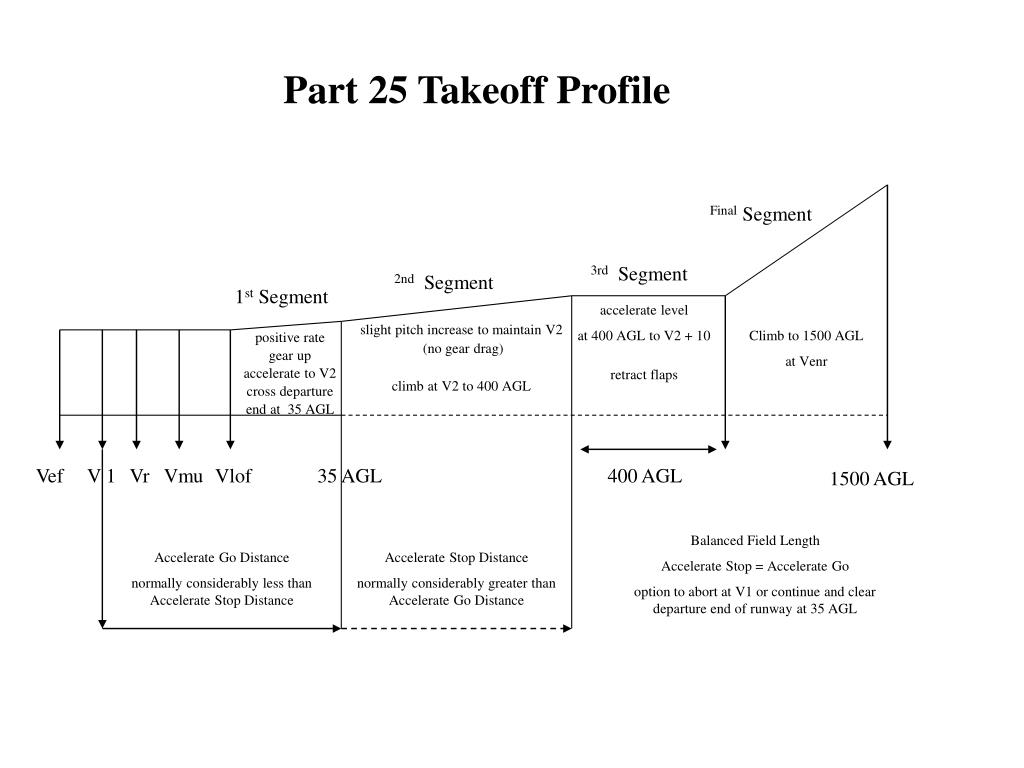

  1. Part 25 Takeoff Profile Final Segment 3rd Segment 2nd Segment 1st Segment accelerate level at 400 AGL to V2 + 10 retract flaps positive rate gear up accelerate to V2 cross departure end at 35 AGL slight pitch increase to maintain V2 (no gear drag) climb at V2 to 400 AGL Climb to 1500 AGL at Venr Vef V 1 Vr Vmu Vlof 35 AGL 400 AGL 1500 AGL Balanced Field Length Accelerate Stop = Accelerate Go option to abort at V1 or continue and clear departure end of runway at 35 AGL Accelerate Go Distance normally considerably less than Accelerate Stop Distance Accelerate Stop Distance normally considerably greater than Accelerate Go Distance
