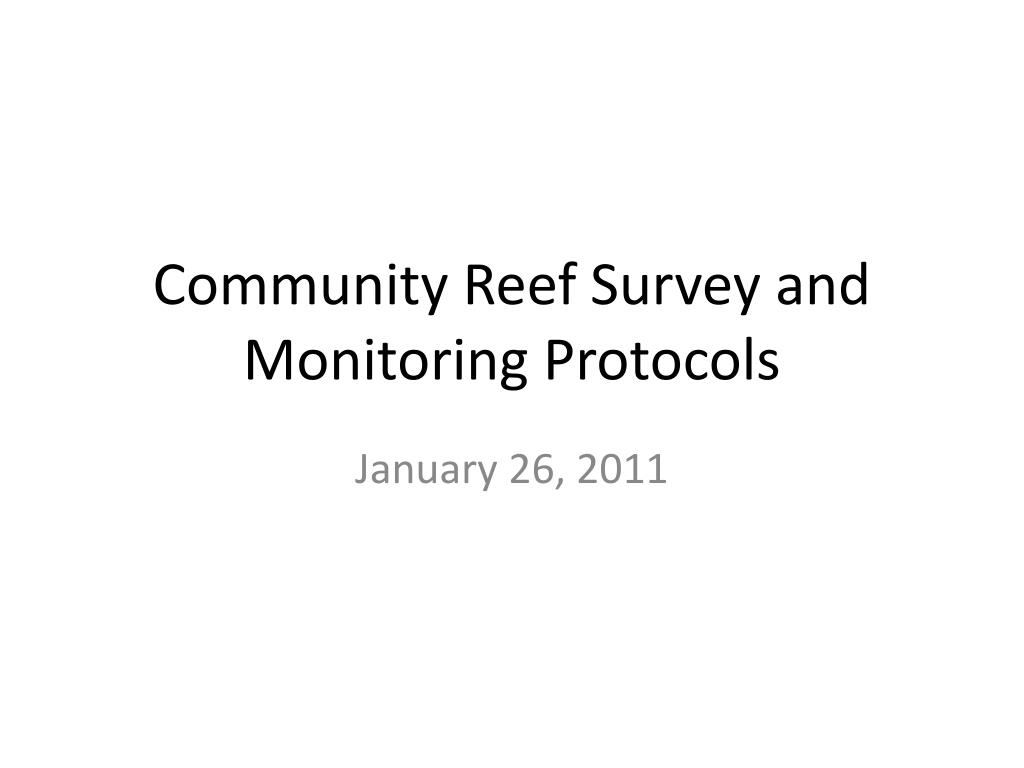

  1. Community Reef Survey and Monitoring Protocols January 26, 2011

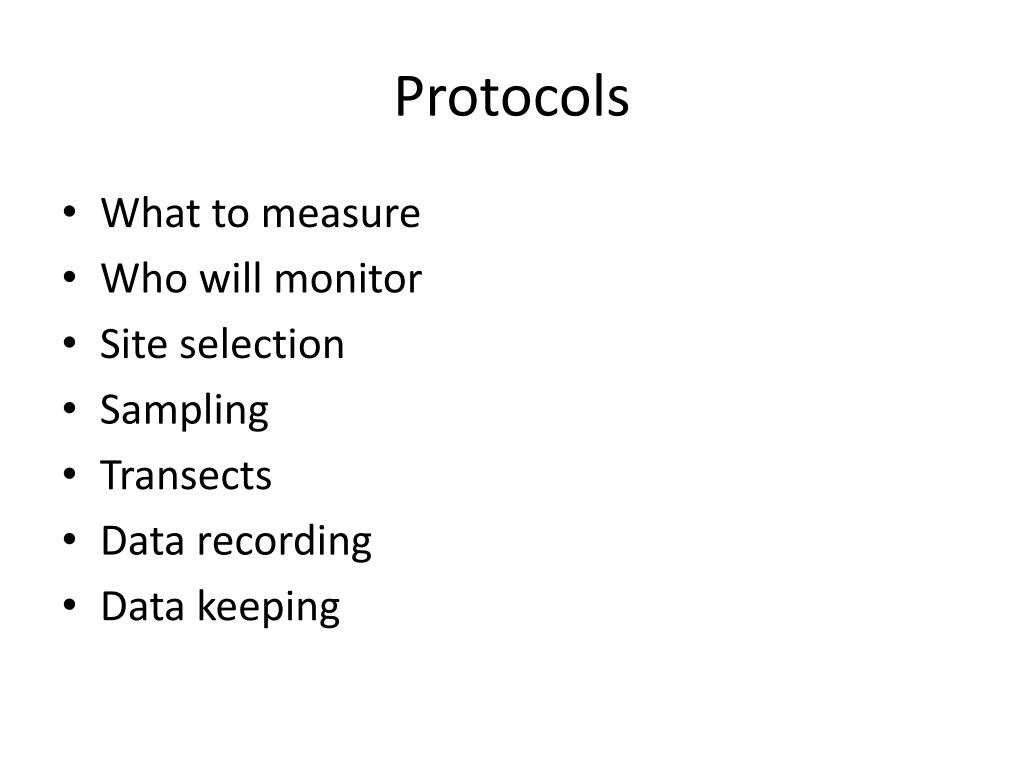

  2. Protocols • What to measure • Who will monitor • Site selection • Sampling • Transects • Data recording • Data keeping

  3. What to monitor? • Fish communities (10 major families) • Benthic communities • Invertebrates (10 species)

  4. Who will monitor? • Trained locals/recruit volunteers (fishers, youth) • Use the PCRA activity to identify individuals (8) that will form the monitoring team • Interested individuals • Willing to assist you • Recycle previously trained individuals (Uychiaoco’s Method) • Enhance training during PCRA-community survey • Identify expertise and comfort level of each individual depending on the tool

  5. Who will monitor? • Ensure someone from the MAO or MENRO will be capacitated (enhance practice) • Identify and assign roles of each individual-data gathering, data storage, equipment custodian • One office for data custody (MAO or MENRO) • Engage monitoring team in creative ways of data presentation

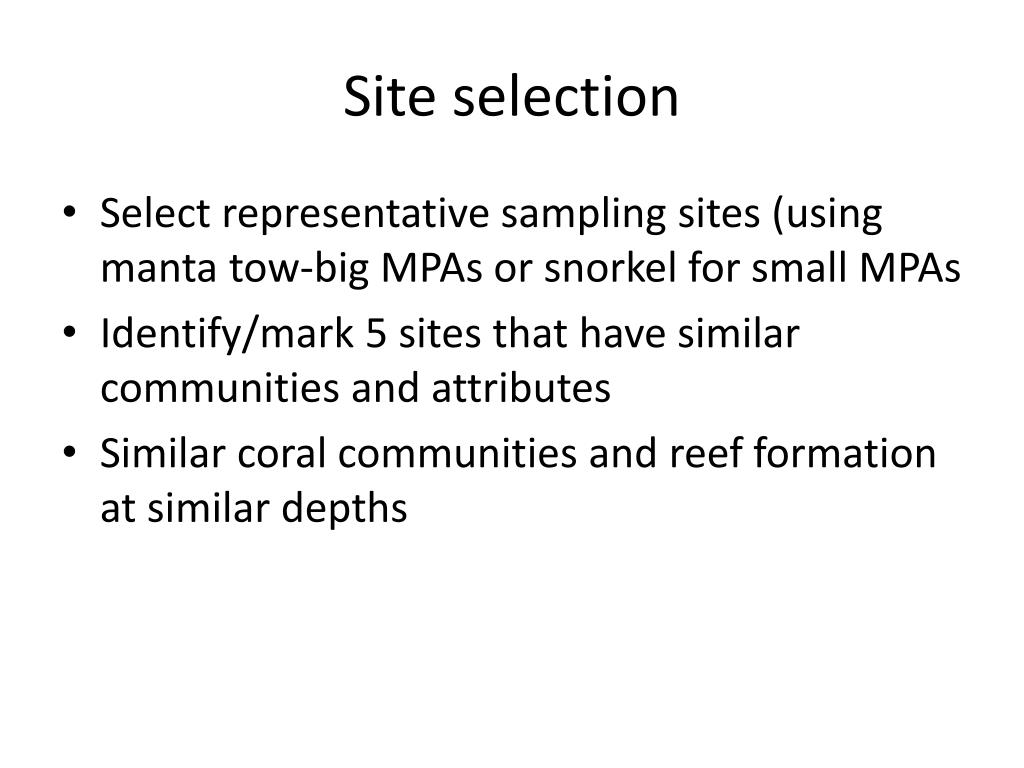

  6. Site selection • Select representative sampling sites (using manta tow-big MPAs or snorkel for small MPAs • Identify/mark 5 sites that have similar communities and attributes • Similar coral communities and reef formation at similar depths

  7. Sampling • Annual • The same time of the year-the same quarter/month • Survey fish between 10 to 2 pm (before fish communities change) • We will use the same benthic categories and coding across based on Uychiaoco et al. 2010 (HC, MA, TA)

  8. Transects • Establish permanent markers (use rebars or floats-mid water) • Distance between transects: 10 meters • Use calibrated rope (mark every 5 meters)

  9. Transect • Laid at 5-7 feet deep (fringing reef) • If quick drop off (lay transect right at the crest • Establish 5 transects in Core Zone and outside of MPA (for comparison)

  10. Transect • 5 x 50 meters (inside and outside)-ropes • Draped at corals communities of similar communities • 5 x 5 meter imaginary quadrat (using extra ropes)

  11. After survey • Transcribe data to paper and computer immediately after survey • Summarize data (subtotals and totals) • Creative ways of presenting data • Use available infrastructures (guardhouse, barangay halls, covered courts, schools) • Use set local gatherings when presenting (fiesta and assemblies) • Store all electronic data in one office (MAO or MENRO)
