  1. Lecture 3 Review of Internet ProtocolsTransport Layer

  2. Protocols: HW/SW Interface • Internetworking: allows computers on independent and incompatible networks to communicate reliably and efficiently; • Enabling technologies: SW standards that allow reliable communications without reliable networks • Hierarchy of SW layers, giving each layer responsibility for portion of overall communications task, calledprotocol families or protocol suites • Transmission Control Protocol/Internet Protocol (TCP/IP) • This protocol family is the basis of the Internet • IP makes best effort to deliver; TCP guarantees delivery • TCP/IP used even when communicating locally: NFS uses IP even though communicating across homogeneous LAN

  3. Services provided by layers • Each layer in protocol stack provides a “service” • Uses service from lower layers • Benefits of layering • Isolates complexity • Clearly defined interfaces • Protocols implement functionality within layer

  4. Layered Network Architecture (OSI) Network B A DATA 7 Application AH DATA Application 7 6 Pre. Pre. 6 PH DATA 5 Session SH DATA Session 5 4 Transport TH DATA Transport 4 3 Network NH DATA Network 3 2 Data Link DH DATA Data Link 2 1 Physical PH DATA Physical 1

  5. TCP/IP Model OSI TCP/IP 7 Application Application 6 Pre. 5 Session 4 Transport TCP 3 Network IP 2 Data Link Host-to-Net 1 Physical • ISO OSI (Open Systems Interconnection) not fully implemented • Presentation and Session layers not present in TCP/IP

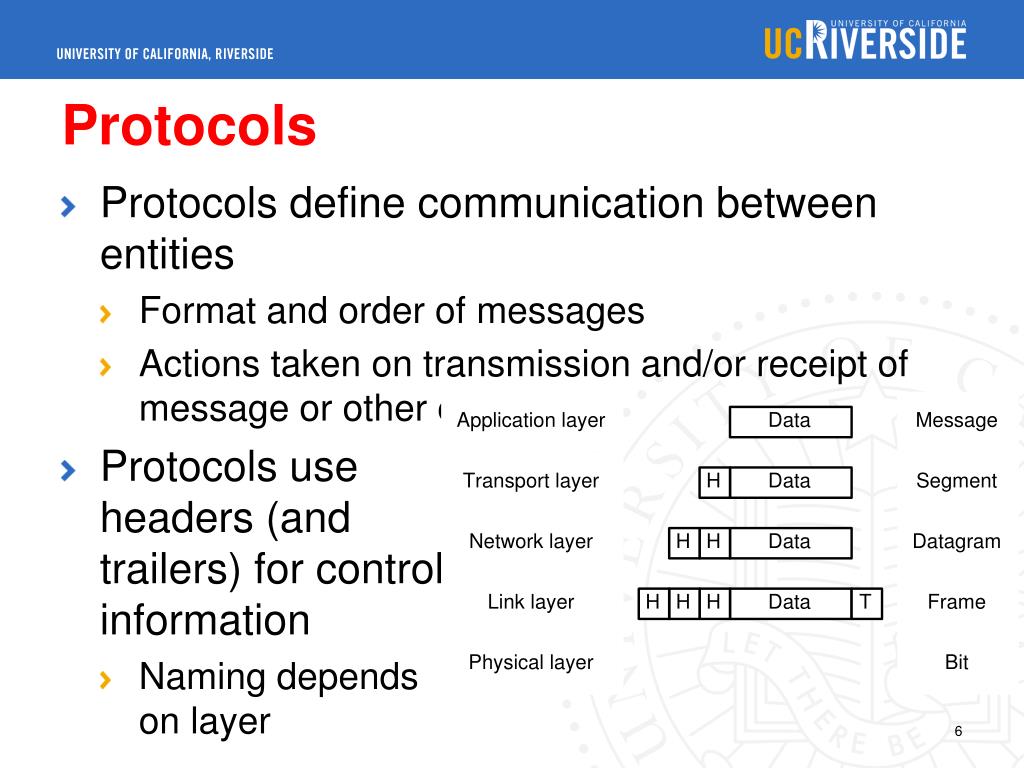

  6. Protocols • Protocols define communication between entities • Format and order of messages • Actions taken on transmission and/or receipt of message or other event • Protocols use headers (and trailers) for control information • Naming dependson layer

  7. Process-to-process communication • We have a network. How to get between programs?

  8. Process Communication • How do the end systems communicate?

  9. Interface-to-interface connectivity • We now have links. How to get across the network?

  10. Datagrams • Datagrams are forwarded independently

  11. TCP/IP packet • Application sends message • TCP breaks into 64KB segments, adds 20B header • IP adds 20B header, sends to network • If Ethernet, broken into 1500B packets with headers, trailers • Header, trailers have length field, destination, window number, version, ... Ethernet IP Header TCP Header IP Data TCP data (≤ 64KB)

  12. CPU PCI Bus NIC NIC User Kernel Communicating with the Server: The O/S Wall • Problems: • O/S overhead to move a packet between network and application level =>Protocol Stack (TCP/IP) • O/S interrupt • Data copying from kernel space to user space and vice versa • Oh, the PCI Bottleneck!

  13. The Send/Receive Operation • The application writes the transmit data to the TCP/IP sockets interface for transmission in payload sizes ranging from 4 KB to 64 KB. • The data is copied from the User space to the Kernel space • The OS segments the data into maximum transmission unit (MTU)–size packets, and then adds TCP/IP header information to each packet. • The OS copies the data onto the network interface card (NIC) send queue. • The NIC performs the direct memory access (DMA) transfer of each data packet from the TCP buffer space to the NIC, and interrupts CPU activities to indicate completion of the transfer.

  14. Transmitting data across the memory bus using a standard NIC http://www.dell.com/downloads/global/power/1q04-her.pdf

  15. TCP/IP Processing Path (RX)

  16. 100 40 10 Network I/O Processing 1000 TCP requirements Rule of thumb: 1GHz for 1Gbps 100 Network bandwidth outpaces Moore’s Law 10 GHzandGbps 1 0.1 Moore’s Law .01 1990 Time 1995 2000 2003 2005 2006/7 2010

  17. I/O Acceleration Techniques • Architectural Improvement • TCP Offload: Offload TCP/IP Checksum and Segmentation to Interface hardware or programmable device (Ex. TOEs) • O/S Bypass: User-level software techniques to bypass protocol stack – Zero Copy Protocol (Needs programmable device in the NIC for direct user level memory access – Virtual to Physical Memory Mapping. Ex. VIA) All the high bandwidth NICs today employ some kind of TCP Offload and O/S Bypass techniques

  18. Multiplexing/de-multiplexing • Multiple processes operate on one computer • Interface address alone is not sufficient to distinguish • Need to (de)multiplex traffic from different processes • 5-tuple used for unique identification of connection • IP source address • IP destination address • Transport layer source port • Transport layer destination port • Transport layer protocol

  19. Source Port Destination Port Sequence Number Acknowledgement Number Header Length and Options Window Size Checksum Urgent Pointer Options (0 or more 32-bit words) TCP/IP packet MAC IP TCP APP. DATA MAC

  20. Ver. IHL Service Type Total Length Identification Options and Fragment Offset Time to Live Protocol Header Checksum Source Address Destination Address Options (0 or more 32-bit words) TCP/IP packet MAC IP TCP APP. DATA MAC

  21. Preamble D. Add. S. Add. Leng. CRC TCP/IP packet MAC IP TCP APP. DATA MAC

  22. TCP Header: 5-tuple example • 5-tuple is reversed forreturn communication • Destination port isassociated with applicationlayer protocol (e.g., 80for HTTP) • Operating system pickssource port randomly

  23. TCP header • Port numbers • Sequence number • Position of data • ACK number • Next expected data • Checksum • Flags for connection setup and teardown

  24. What functionality does TCP provide? • Reliability • Recovery from errors in the network layer • Flow control • Limit transmission rate to not overwhelm receiver • Congestion control • Limit transmission rate to not overwhelm network

  25. Reliable data transfer • How can reliability be achieved? • Consider different assumptions for network layer • Case 1: completely reliable network layer • Send segment • Case 2: bit errors in network layer • Add error detection and ACK/NAK • Add sequence number to handle garbled ACK/NAK • Case 3: bit errors and packet loss in network layer • Timer to trigger retransmission • “Stop-and-wait” protocol

  26. Reliable data transfer • Stop-and-wait has low performance • How can we increase throughput? • Sliding window • Allow multiple segments “in-flight”

  27. Sliding window example

  28. UDP: bare bones protocol • Ports, length, checksum • Checksum is optional

  29. Internet Protocol • IP header • Source and destination address • Datagram length • Upper layer protocol • Identifies TCP, UDP, etc. • Time to live • Protection against accidental loops • Header checksum • Protection against bit errors • Fragmentation possible • Link layer limited to some datagram size (min. MTU is 576 bytes)

  30. Other IP aspects • Routing • Determines forwarding • ICMP • Error handling • Link layer • Address resolution (ARP) • Dynamic IP addresses (DHCP) • Application layer • Domain names (DNS) • Transport layer • Network address translation (NAT) • New IP version: IPv6

  31. Network systems • Data is switched between network stacks

  32. Classification of network systems • Network system differ by level of protocol processing

  33. Example network system: NIC • Network interface card / adapter connects to link • Block diagram:

  34. Example network system: switch • Switch connects multiple links • Block diagram:

  35. Example network system: switch • System may differ by system architecture • Example: share memory vs. distributed memory

  36. Application requirements • Different applications have different requirements:

  37. Throughput preservation • Throughput performance • Ensure network system can handle link rates at all points • Delay/jitter • Ensure network system processes traffic quickly • Packet loss • Ensure sufficient buffer space and fast processing • Most network system design focus on bandwidth

  38. Packet rate vs. data rate • Data rate states total number of bits per second • Each packet requires specific processing • Packet rate sometimes more meaningful • What is the packet rate for a 10Gbps link? • Distinguish small packets and large packets

  39. System design for throughput • What are the differences between these systems? • How do they affect throughput preservation?
