Introduction to Clustering Algorithms: K-Means and Structure Discovery

This lecture delves into clustering, a structure discovery algorithm for uncovering patterns within large datasets without prior knowledge. Using K-Means as a primary example, we explain how to determine clusters based on data point proximity to centroids. By iterating through classifications and centroid adjustments, we strive for convergence to finalize clusters. We'll also discuss the importance of choosing initial centroid values and the impact on clustering quality, including strategies for improving results. Engage in hands-on exercises to solidify your understanding of the concept.

harlow
Télécharger la présentation

Introduction to Clustering Algorithms: K-Means and Structure Discovery

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Week 7 Video 1 Clustering

  2. Clustering • A type of Structure Discovery algorithm

  3. Clustering • You have a large number of data points • You want to find what structure there is among the data points • You don’t know anything a priori about the structure • Clustering tries to find data points that “group together”

  4. Trivial Example • Let’s say your data has two variables • Probability the student knows the skill from BKT (Pknow) • Unitized Time • Note: clustering works for (and is effective in) large feature spaces

  5. +3 0 -3 time 0 1 pknow

  6. k-Means Clustering Algorithm +3 0 -3 time 0 1 pknow

  7. Not the only clustering algorithm • Just the simplest • We’ll discuss fancier ones as the week goes on

  8. How did we get these clusters? • First we decided how many clusters we wanted, 5 • How did we do that? More on this in the next lecture • We picked starting values for the “centroids” of the clusters… • Usually chosen randomly • Sometimes there are good reasons to start with specific initial values…

  9. +3 0 -3 time 0 1 pknow

  10. Then… • We classify every point as to which centroid it’s closest to • This defines the clusters • Typically visualized as a voronoi diagram

  11. +3 0 -3 time 0 1 pknow

  12. Then… • We re-fit the centroids as the center of the points in each cluster

  13. +3 0 -3 time 0 1 pknow

  14. Then… • Repeat the process until the centroids stop moving • “Convergence”

  15. +3 0 -3 time 0 1 pknow

  16. +3 0 -3 time 0 1 pknow

  17. +3 0 -3 time 0 1 pknow

  18. +3 0 -3 time 0 1 pknow

  19. +3 0 -3 time 0 1 pknow

  20. Note that there are some outliers +3 0 -3 time 0 1 pknow

  21. What if we start with these points? +3 0 -3 time 0 1 pknow

  22. Not very good clusters +3 0 -3 time 0 1 pknow

  23. What happens? • What happens if your starting points are in strange places? • Not trivial to avoid, considering the full span of possible data distributions

  24. One Solution • Run several times, involving different starting points • cf. Conati& Amershi (2009)

  25. Exercises • Take the following examples • (The slides will be available in course materials so you can work through them) • And execute k-means for them • Do this by hand… • Focus on getting the concept rather than the exact right answer… • (Solutions are by hand rather than actually using code, and are not guaranteed to be perfect)

  26. Exercise 7-1-1 +3 0 -3 time 0 1 pknow

  27. Pause Here with In-Video Quiz • Do this yourself if you want to • Only quiz option: go ahead

  28. Solution Step 1 +3 0 -3 time 0 1 pknow

  29. Solution Step 2 +3 0 -3 time 0 1 pknow

  30. Solution Step 3 +3 0 -3 time 0 1 pknow

  31. Solution Step 4 +3 0 -3 time 0 1 pknow

  32. Solution Step 5 +3 0 -3 time 0 1 pknow

  33. No points switched -- convergence +3 0 -3 time 0 1 pknow

  34. Notes • K-Means did pretty reasonable here

  35. Exercise 7-1-2 +3 0 -3 time 0 1 pknow

  36. Pause Here with In-Video Quiz • Do this yourself if you want to • Only quiz option: go ahead

  37. Solution Step 1 +3 0 -3 time 0 1 pknow

  38. Solution Step 2 +3 0 -3 time 0 1 pknow

  39. Solution Step 3 +3 0 -3 time 0 1 pknow

  40. Solution Step 4 +3 0 -3 time 0 1 pknow

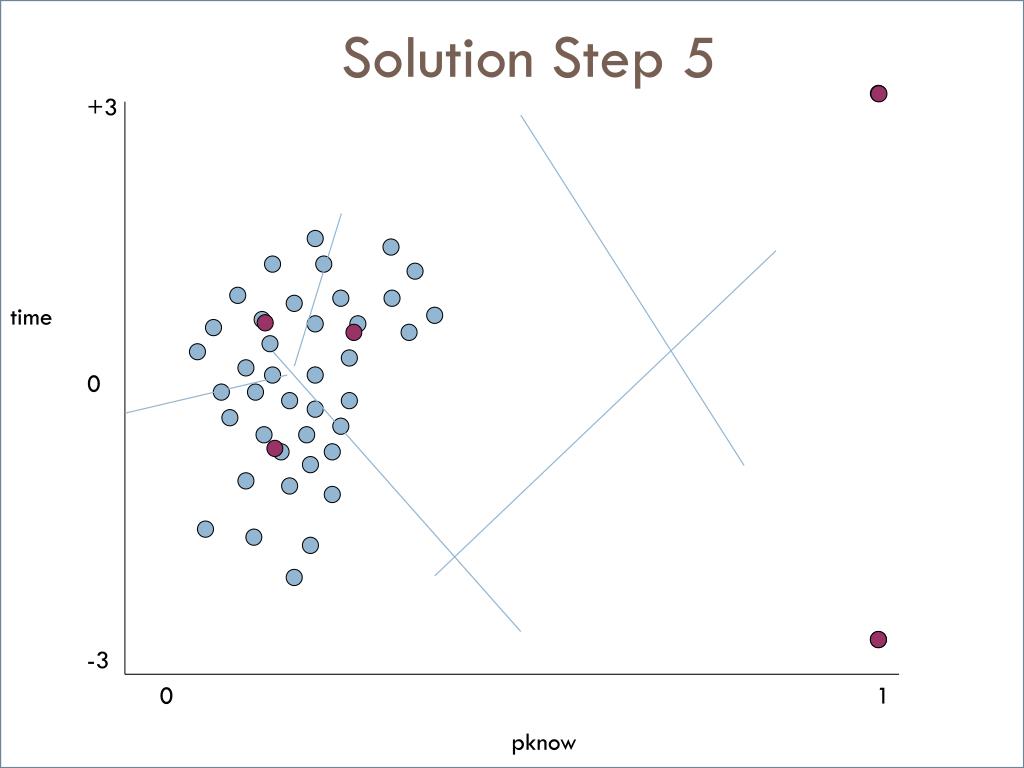

  41. Solution Step 5 +3 0 -3 time 0 1 pknow

  42. Notes • The three clusters in the same data lump might move around for a little while • But really, what we have here is one cluster and two outliers… • k should be 3 rather than 5 • See next lecture to learn more

  43. Exercise 7-1-3 +3 0 -3 time 0 1 pknow

  44. Pause Here with In-Video Quiz • Do this yourself if you want to • Only quiz option: go ahead

  45. Solution +3 0 -3 time 0 1 pknow

  46. Notes • The bottom-right cluster is actually empty! • There was never a point where that centroid was actually closest to any point

  47. Exercise 7-1-4 +3 0 -3 time 0 1 pknow

  48. Pause Here with In-Video Quiz • Do this yourself if you want to • Only quiz option: go ahead

  49. Solution Step 1 +3 0 -3 time 0 1 pknow

  50. Solution Step 2 +3 0 -3 time 0 1 pknow
