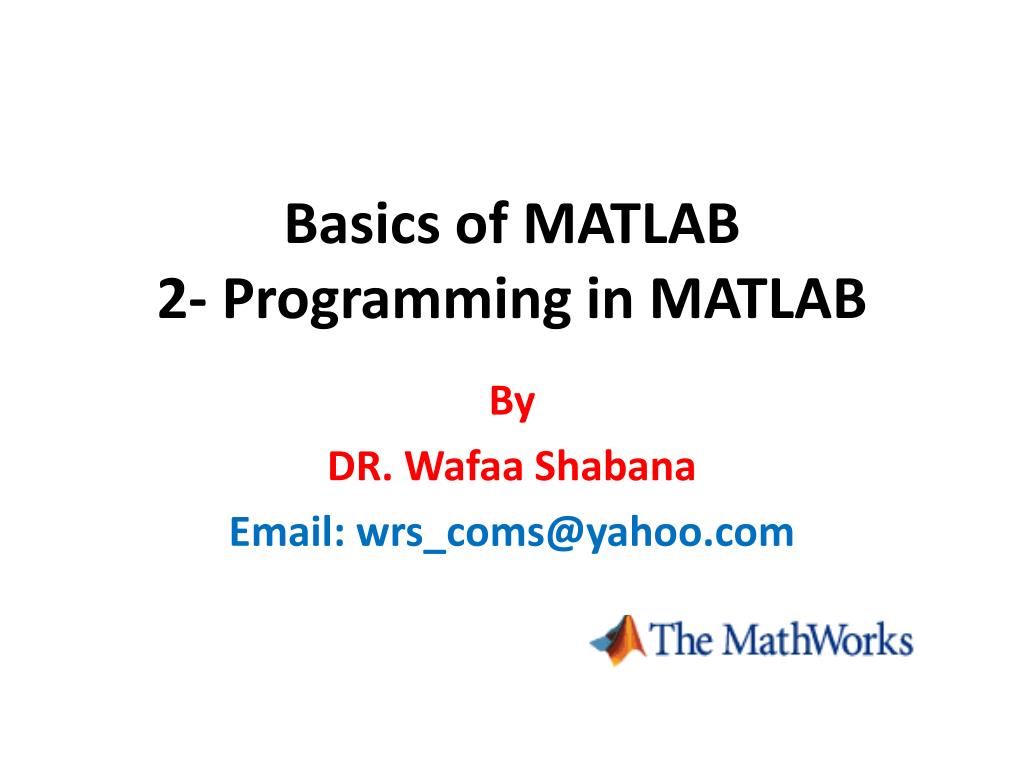

  1. Basics of MATLAB 2- Programming in MATLAB By DR. Wafaa Shabana Email: wrs_coms@yahoo.com

  2. Table of Contents: 1. Introduction 2. MATLAB m-files. 3. Flow control in MATLAB. 4. Image Processing using MATLAB 5. Questions? 6. References

  3. 1. Introduction: • Recall that: • Everything in MATLAB is a matrix ! • The MATLAB environment is command oriented somewhat like UNIX. • If a statement is terminated with a semicolon ( ; ), no results will be displayed. Otherwise results will appear before the next prompt. • ans Default variable name for results • % start comment which ends at end of line

  4. The colon operator ( : ) to specify range • MATLAB supports six relational operators. Less Than < Less Than or Equal <= Greater Than > Greater Than or Equal >= Equal To == Not Equal To ~=

  5. MATLAB supports three logical operators. not ~ % highest precedence and & % equal precedence with or or | % equal precedence with and

  6. MATLAB is case-sensitive Programming language. • Variable names can contain up to 63 characters (as of MATLAB 6.5 and newer) • Variable names must start with a letter followed by letters, digits, and underscores • Examples: my_name, day2 % valid variable names Invalid variable name: my-name %minus not allowed 2day %must start with letter %x % not allowed character @room %not allowed character

  7. Some of useful MATLAB commands • who List known variables • whos List known variables plus their size • help >> help sqrt Help on using sqrt • lookfor >> lookforsqrt Search for keyword sqrt in m-files • what >> what a: List MATLAB files in a: • clear Clear all variables from work space • clear x y Clear variables x and y from work space • clc Clear the command window (clear the screen) • save saves the workspace load loads a saved workspace or data file

  8. 2. MATLAB m-files: • There is no doubt that you can do a lot of work in the command window. However, when the amount of instructions needed to complete a task increases or you need to re-execute a block of instructions several times, the command window is a poor choice. The best choice is to write a MATLAB program.

  9. MATLAB programs are stored as text files. • The files can be loaded into the MATLAB command environment where they are then interpreted and executed. MATLAB supports two types of programs: 1- script files and 2- function files.

  10. Script files consist of sequences of instructions stored in text files. The files are commonly referred to as m-files because of the .m extension used. • An m-file can be created by any text editor or word processor. • If a word processor is used, make sure to save the file as a text file. • MATLAB has its own built-in text editor. • To launch it, type the command edit in the command window

  11. Example (1): %this is our first m.file %saved as first.m %plot a graph of a cos function clear t = 0: 0.001:10; y = cos (2*pi*t); plot(t,y) title(‘My first graph’) xlabel(‘time, sec’) ylabel(‘values of y’)

  12. Remark: 1- Before trying to run your program, make sure that its file is on the MATLAB path. 2- Use the which function to see if your program is on the path: which first 3-You have the choice of operating the debugger from the Editor window that displays your program, from the MATLAB command line, or both.

  13. Function files: • The main difference between a script and a function is that a function accepts input from and returns output to its caller, whereas scripts do not. • You define MATLAB functions in a file that begins with a line containing the function key word. • Question: Can we define a function within a script file or at the command window?

  14. * Functions always begin with a function definition line for example function y = average(x) • The function ends either with the first matching end statement, the occurrence of another function definition line, or the end of the file, whichever comes first.

  15. Example: • function y = area(x1,x2) • %this function computes the area of a rectangle • %input: length x1 and width x2 • %output: area y • x1 =input('Enter the width:'); • x2 =input('Enter the length:'); • y = x1 * x2; • disp(‘The area is %d’, y)

  16. input Request user input Syntax evalResponse = input(prompt) strResponse = input(prompt, 's') disp Display text or array Syntax disp(X)

  17. If the function is supposed to return more than one value, the syntax is: function [output_1,output_2,…]= function_name(input_1, input_2,…) Question: What is the difference between MATLAB functions and C-functions? Note that: • The use of the editor is pretty straight-forward. The advantage of using MATLAB’s editor is that color coding and formatting is built in.

  18. 3. Control flow in MATLAB: Decision in MATLAB: 1- if statement: if (logical statement) block of code to execute if logical statement is true end 2- if …………else statement: if (logical statement) block of code to execute if logical statement is true else block of code to execute if logical statement is false end

  19. 3- Nested if ------else statement: if (logical statement 1) block of code to execute if logical statement 1 is true elseif (logical statement 2) block of code to execute if logical statement 2 is true elseif(logical statement n) block of code to execute if logical statement n is true else block of code to execute if all logical statements are false end

  20. 4- switch statement: switch evaluative expression case value_1 block of code to execute if the evaluative expression is value_1 case value_2 block of code to execute if the evaluative expression is value_2 case value_n block of code to execute if the evaluative expression is value_n otherwise block of code to execute if the evaluative expression is not any of the values end

  21. 2- Iteration in MATLAB: 1- for statement: for i = 1:10 % execute these commands end 2- while statement: while x <= 10 % execute these commands end

  22. break statement: Terminate execution of for or while loop Syntax break return statement: Return to invoking function Syntax return continue statement: Pass control to next iteration of for or while loop Syntax continue

  23. 4. Image Processing in MATLAB: Image processing toolbox is one of the most useful toolboxes in MATLAB. This toolbox supports a wide range of image processing operations. There are five types of images in MATLAB: 1- Binary image : {0, 1}{black white} 2- Gray-scale image: [0,255] {shades of gray} 3- True color image: m x n x 3 4- Intensity image: [0, 1] or uint8 5- Indexed images: m x 3 color map

  24. 1- Reading an image: I = imread(‘image name’) It reads an image from an image file and store it In a matrix I 2- displaying an image: imshow(‘image_name’) 3- image size size(‘image_name’)

  25. Check the Image in Memory < Name, Size, Bytes, Class > whos Name Size Bytes Class ans 291x240 69840 uint8 array Grand total is 69840 elements using 69840 bytes • uint8[0, 255] • uint16 [0, 65535] • double[0, 1]

  26. Resizing Images • B = imresize(A, scale) • B = imresize(A, [mrowsncols])

  27. For example: clear close all y= imread('pic2.jpg'); I1 = imresize(y, 0.5); I2 = imresize(y,[256 256]); figure imshow(y) figure imshow(I1) figure imshow(I2)

  28. Some useful commands: im2bw Convert image to binary image, based on threshold Syntax BW = im2bw(I, level) BW = im2bw(X, map, level) BW = im2bw(RGB, level) rgb2gray Convert RGB image or colormap to grayscale

  29. image Display image object imwrite Write image to graphics file Syntax imwrite(A,filename,fmt) e.g. imwrite(I, ‘wafaa’, ‘gif’)

  30. 5. Questions? (Mini project in MATLAB): 1- Encoding step: Write a m-function that hides some information (e.g. : your name) into a given image. (watermarked image) 2- Decoding Step: Write an m-function that receives the watermarked image and extract the water mark from it.

  31. 6. References: You can read the following references: • 1- “The Basics of MATLAB” Jeffrey O. Bauer • 2- www.mathworks.com • 3. “MATLAB tutorial for beginners” JyotirmayGadewadikar http://arri.uta.edu/acs/ Need further help? Contact me 

  32. Thank you for your attendance and hope you have not wasted your time.
