  1. MS108 Computer System I Lecture 4 Single Cycle Machine Prof. Xiaoyao Liang 2014/3/7

  2. Notes

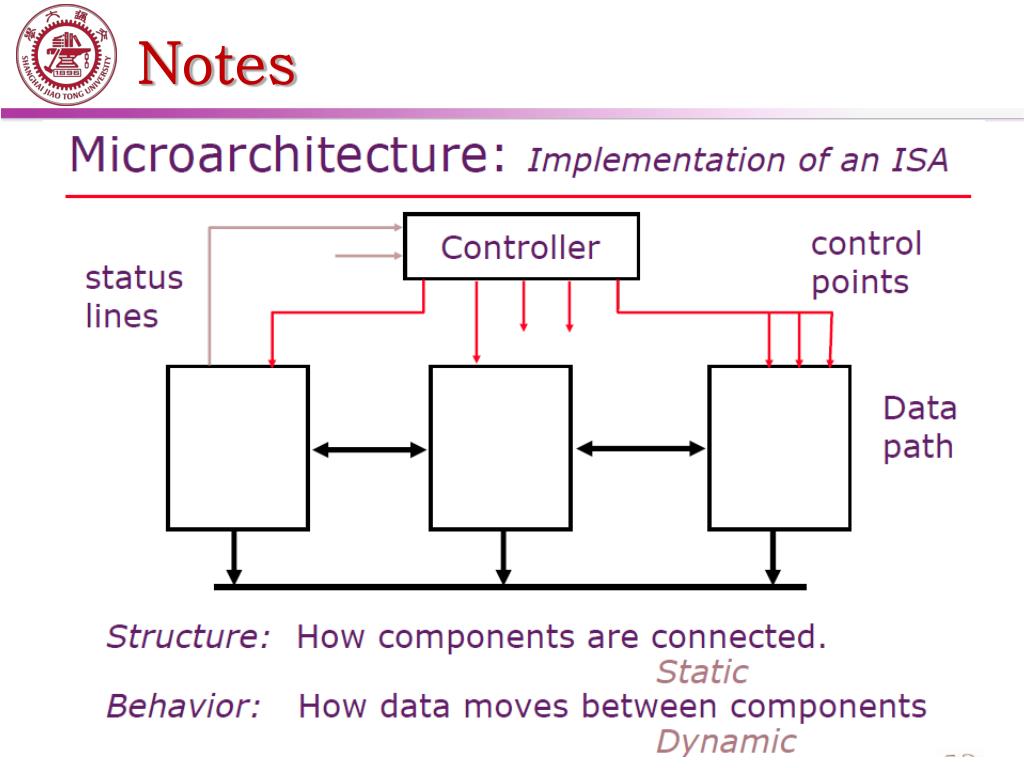

  3. Basic Hardware

  4. Register File

  5. Memory

  6. MIPS ISA

  7. Life of an Instruction

  8. Reg-Reg ALU

  9. Reg-Imm ALU

  10. Conflict in Merging Datapath

  11. ALU Datapath

  12. Memory Structure

  13. Load/Store

  14. MIPS Control

  15. Conditional Branch (BNEZ)

  16. Register Indirect Jump (JR)

  17. Jump and Link (JALR)

  18. Absolute Jump (J, JAL)

  19. Single Cycle MIPS Datapath

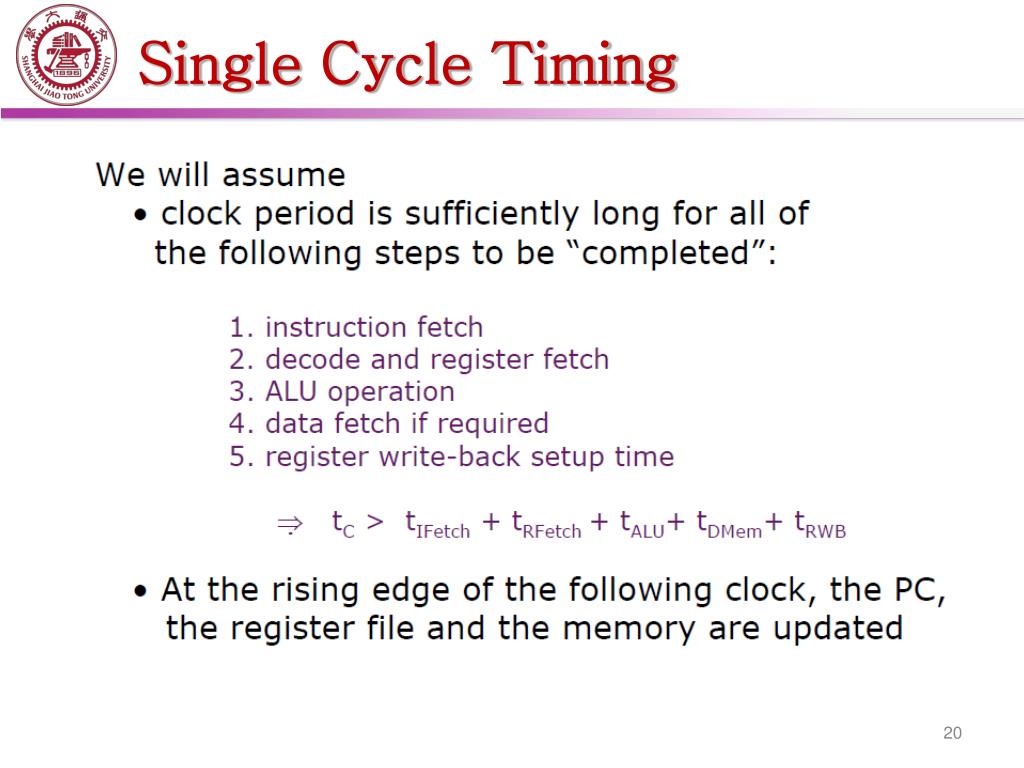

  20. Single Cycle Timing

  21. Control Generation

  22. Control Table
