  1. Noyce, 7/07/11 Fractions: Equivalence and Representation

  2. Warm-up: What approaches to fractions have You seen and/or used? • Conceptual approaches • What is the unit? • Part to whole relationships • Ratios and proportions • Decimals, percents, and connections to fractions • Comparison of fractions • Connections with division • Representation • Pattern blocks • Fraction circles • Fraction rectangles • Fraction bars • Number line

  3. Representation of Fractions as points in the coordinate plane • On graph paper, create a coordinate plane with the origin in the middle of the page. • Plot the following points, so that the • Numerator is the y-coordinate, and • Denominator is the x-coordinate • What do you notice?

  4. More fractions represented on this line? • Find another 2 fractions that are represented on this line. Plot their points. • Find another 2 points on this line, which do not have positive coordinates. What fractions do they represent? • Find another 2 points on this line which do not have integer coordinates. What fractions do they represent?

  5. What about the origin?? • Did you choose the origin as one of your points? Why or why not? • Does the origin also represent a fraction as the other points do? Why or why not?

  6. Some more lines • Now plot (on the same coordinate plane) the representations of the following fractions: • Connect the points in each set with a line. Let’s call the lines L1, L2, and L3. • What relationships do you see between the lines? What is similar and what is different?

  7. We now have…

  8. Connections: Fractions and slope of lines through the origin • What can we say about the relationships between the fractions represented by points on one line? • What can we say about the relationships between fractions and slope? • What can we say about the relationships between fractions represented on different lines?

  9. Connections: Fractions and slope of lines through the origin • What can we say about the relationships between the fractions represented by points on one line? • All fractions represented by points on one line through the origin are equivalent. • What can we say about the relationships between fractions and slope? • Any fraction represented by a point on a line is the slope of the line. • All the slopes thus noted are equivalent, since all fractions represented on the same line are equivalent. • What can we say about the relationships between fractions represented on different lines? • These fractions are not equivalent.

  10. simplfiying fractions to lowest terms • Use the fraction-line connection to simplify the following fractions

  11. simplifying fractions to lowest terms • Use the fraction-line connection to simplify the following fractions

  12. Comparing Fractions • Take a new sheet of graph paper, and create a coordinate plane. • Use the ideas we’ve just discussed to compare the values of the following pairs of fractions:

  13. Connection to right triangles and THE Tangent function • y • 8 10 • x 4 1 5

  14. Connection to right triangles and THE Tangent function -5 • -1 -4 x • -10 -8 • y

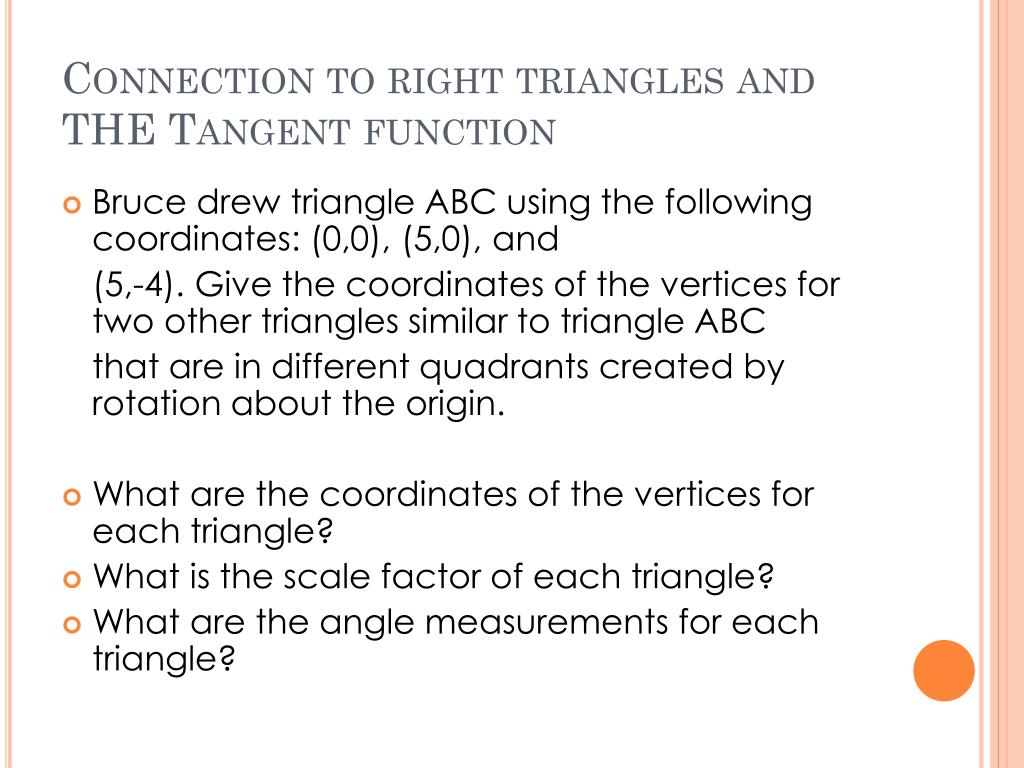

  15. Connection to right triangles and THE Tangent function • Bruce drew triangle ABC using the following coordinates: (0,0), (5,0), and (5,-4). Give the coordinates of the vertices for two other triangles similar to triangle ABC that are in different quadrants created by rotation about the origin. • What are the coordinates of the vertices for each triangle? • What is the scale factor of each triangle? • What are the angle measurements for each triangle?

  16. Tangent table

  17. Debrief • In what ways does this approach to the relationship between fractions and lines enhance your students’ understanding of one or the other or both? • What standards at your grade level can be addressed either by this approach? • Where might you include this kind of activity in your teaching?

  18. resources • Lombard, B. and Fulton, B. Simply Great Math Activities; Fractions Decimals, and Percents. • Schuster, L. and Anderson, N. Good Questions for Math Teaching. • Additional material using graph paper can be found at https://docs.google.com/viewer?url=http://www.tttpress.com/pdf/CAMT-2004-Fraction-Finder-Handout.pdf
