Sparse Coding and Automatic Relevance Determination for Multi-way models

Sparse Coding and Automatic Relevance Determination for Multi-way models. Morten Mørup DTU Informatics Intelligent Signal Processing Technical University of Denmark. Joint work with Lars Kai Hansen DTU Informatics Intelligent Signal Processing Technical University of Denmark.

hayden
Télécharger la présentation

Sparse Coding and Automatic Relevance Determination for Multi-way models

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Sparse Coding and Automatic Relevance Determination for Multi-way models Morten Mørup DTU Informatics Intelligent Signal Processing Technical University of Denmark Joint work with Lars Kai Hansen DTU Informatics Intelligent Signal Processing Technical University of Denmark Sparse’09 8 April 2009

  2. Multi-way modeling has become an important tool for Unsupervised Learning and are in frequent use today in a variety of fields including Vector: 1-way array/ 1st order tensor, Matrix: 2-way array/ 2nd order tensor, 3-way array/3rd order tensor • Psychometrics (Subject x Task x Time) • Chemometrics (Sample x Emission x Absorption) • NeuroImaging (Channel x Time x Trial) • Textmining (Term x Document x Time/User) • Signal Processing (ICA, i.e. diagonalization of Cummulants) Sparse’09 8 April 2009

  3. I x JK Matrix J x KI Matrix K x IJ Matrix Some Tensor algebra XI x J x K • Matricizing X  X(n) • N-mode multiplication i.e. for matrix multiplication CA=A x1C , ABT=A x2B X(1) X(2) X(3) Sparse’09 8 April 2009

  4. Tensor Decomposition The two most commonly used tensor decomposition models are the CandeComp/PARAFAC (CP) model and the Tucker model Sparse’09 8 April 2009

  5. CP-model unique • Tucker model not unique • What constitutes an adequate number of components, i.e. determining J for CP and J1,J2,…,JN for Tucker is an open problem, particularly difficult for the Tucker model as the number of components are specified for each modality separately Sparse’09 8 April 2009

  6. Agenda • To use sparse coding to Simplify the Tucker core forming a unique representation as well as enable interpolation between the Tucker (full core) and CP (diagonal core) model • To use sparse coding to turn off excess components in the CP and Tucker model and thereby select the model order. • To tune the pruning strength from data by Automatic Relevance Determination (ARD). Sparse’09 8 April 2009

  7. Nature, 1996 Sparse Coding Bruno A. Olshausen David J. Field Preserve Information Preserve Sparsity (Simplicity) Tradeoff parameter Sparse’09 8 April 2009

  8. Sparse Coding (cont.) Image patch 1 to N … Patch image Vectorize patches  A corresponds to Gaborlike features resemblingsimple cell behavior inV1 of the brain! Sparse coding attempts to both learn dictionary and encoding at the same time (This problem is not convex!) Sparse’09 8 April 2009

  9. Automatic Relevance Determination (ARD) • Automatic Relevance Determination (ARD) is a hierarchical Bayesian approach widely used for model selection • In ARD hyper-parameters explicitly represents the relevance of different features by defining the range of variation. (i.e., Range of variation0  Feature removed) Sparse’09 8 April 2009

  10. A Bayesian formulation of the Lasso / BPD problem Sparse’09 8 April 2009

  11. ARD in reality a L0-norm optimization scheme. As such ARD based on Laplace prior corresponds to L0-norm optimization by re-weighted L1-norm L0 norm by re-weighted L2 follows by imposing Gaussian prior instead of Laplace Sparse’09 8 April 2009

  12. Sparse Tucker decomposition by ARD Brakes into standard Lasso/BPD sub-problems of the form Sparse’09 8 April 2009

  13. Solving efficiently the Lasso/BPD sub-problems Notice, in general the alternating sub-problems for Tucker estimation have J<I! Sparse’09 8 April 2009

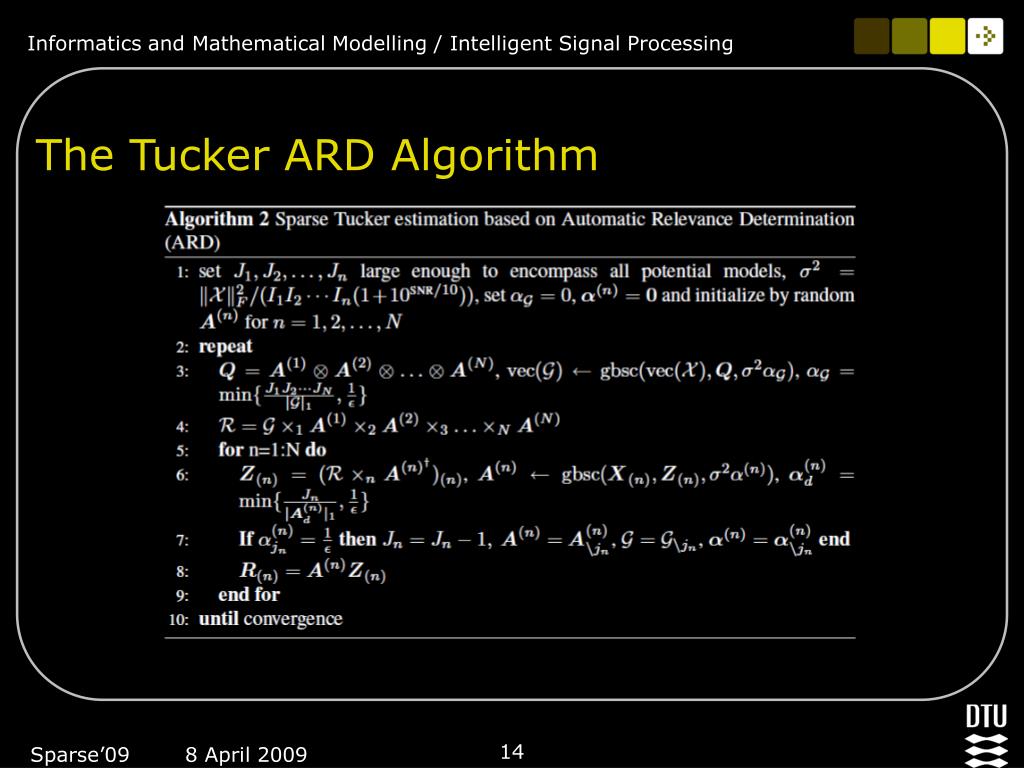

  14. The Tucker ARD Algorithm Sparse’09 8 April 2009

  15. Results Fluorescene data: emission x excitation x samples Tucker(10,10,10) models were fitted to the data, given are below the extracted cores Synthetic Tucker(3,4,5) Tucker(3,6,4) Tucker(?,4,4) Tucker(4,4,4) Tucker(3,3,3) Sparse’09 8 April 2009

  16. Sparse Coding in fact 2-way case of Tucker model • The presented ARD framework extracts a 20 component model when trained on the natural image data of (Olshausen and Field, Nature 1996) Image patch 1 to N … Patch image Vectorize patches  Sparse’09 8 April 2009

  17. Conclusion • Imposing sparseness on the core enable to interpolate between Tucker and CP model • ARD based on MAP estimation form a simple framework to tune the pruning in sparse coding models giving the model order. • ARD framework especially useful for the Tucker model where the order is specified for each mode separately which makes exhaustive evaluation of all potential models expensive. • ARD-estimation based on MAP is closely related to L0 norm estimation based on reweighted L1 and L2 norm. Thus, ARD form a principled framework for learning the sparsity pattern in CS. Sparse’09 8 April 2009

  18. http://mmds.imm.dtu.dk Sparse’09 8 April 2009
