Axiomatic Analysis and Optimization of Information Retrieval Models SIGIR 2014 Tutorial

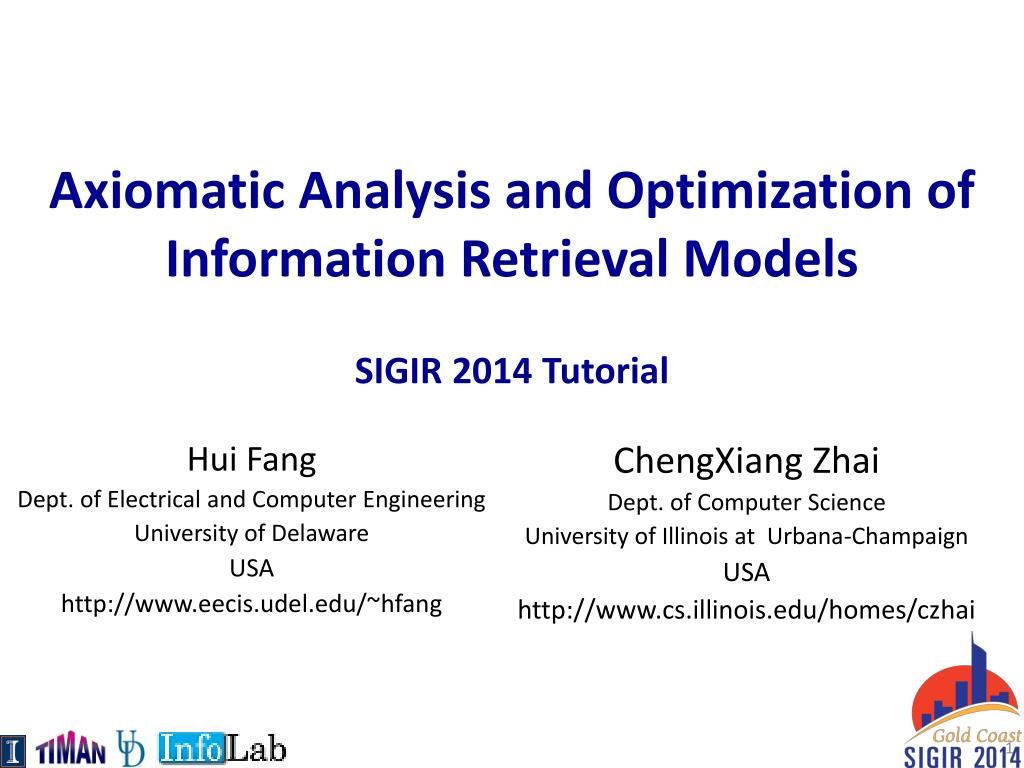

1. Axiomatic Analysis and Optimization of InformationRetrieval ModelsSIGIR 2014 Tutorial Hui Fang Dept. of Electrical and Computer Engineering University of Delaware USA http://www.eecis.udel.edu/~hfang ChengXiangZhai Dept. of Computer Science University of Illinois at Urbana-Champaign USA http://www.cs.illinois.edu/homes/czhai

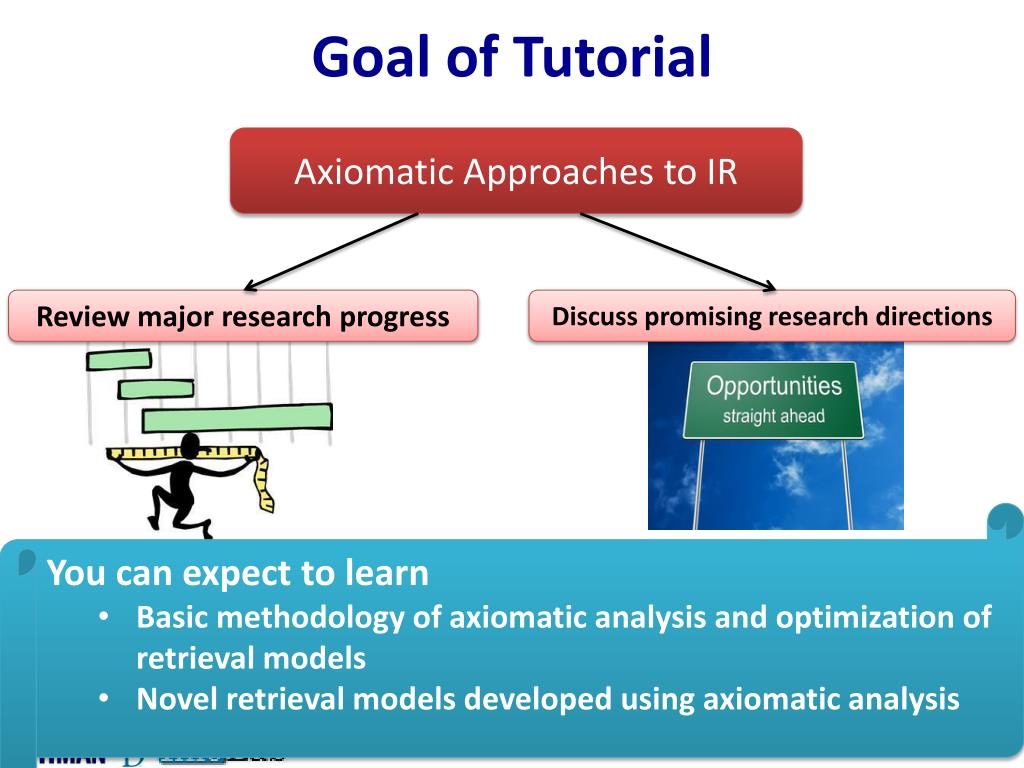

2. Goal of Tutorial Axiomatic Approaches to IR Review major research progress Discuss promising research directions • You can expect to learn • Basic methodology of axiomatic analysis and optimization of retrieval models • Novel retrieval models developed using axiomatic analysis

3. Organization of Tutorial Motivation Axiomatic Analysis and Optimization: Early Work Axiomatic Analysis and Optimization: Recent Work Summary

4. Organization of Tutorial Motivation Axiomatic Analysis and Optimization: Early Work Axiomatic Analysis and Optimization: Recent Work Summary

5. Search is everywhere, and part of everyone’s life Web Search Desk Search Enterprise Search Social Media Search Site Search … …

6. Search accuracy matters! # Queries /Day X 1 sec X 10 sec 4,700,000,000 ~13,000,000 hrs ~1,300,000 hrs 1,600,000,000 ~4,400,000 hrs ~440,000 hrs … … ~5,500 hrs 2,000,000 ~550 hrs How can we improve all search engines in a general way? Sources: Google, Twitter: http://www.statisticbrain.com/ PubMed: http://www.ncbi.nlm.nih.gov/About/tools/restable_stat_pubmed.html

7. Behind all the search boxes… Document collection k number of queries search engines Queryq d Ranked list Machine Learning How can we optimize a retrieval model? Retrieval Model Score(q,d) Natural Language Processing

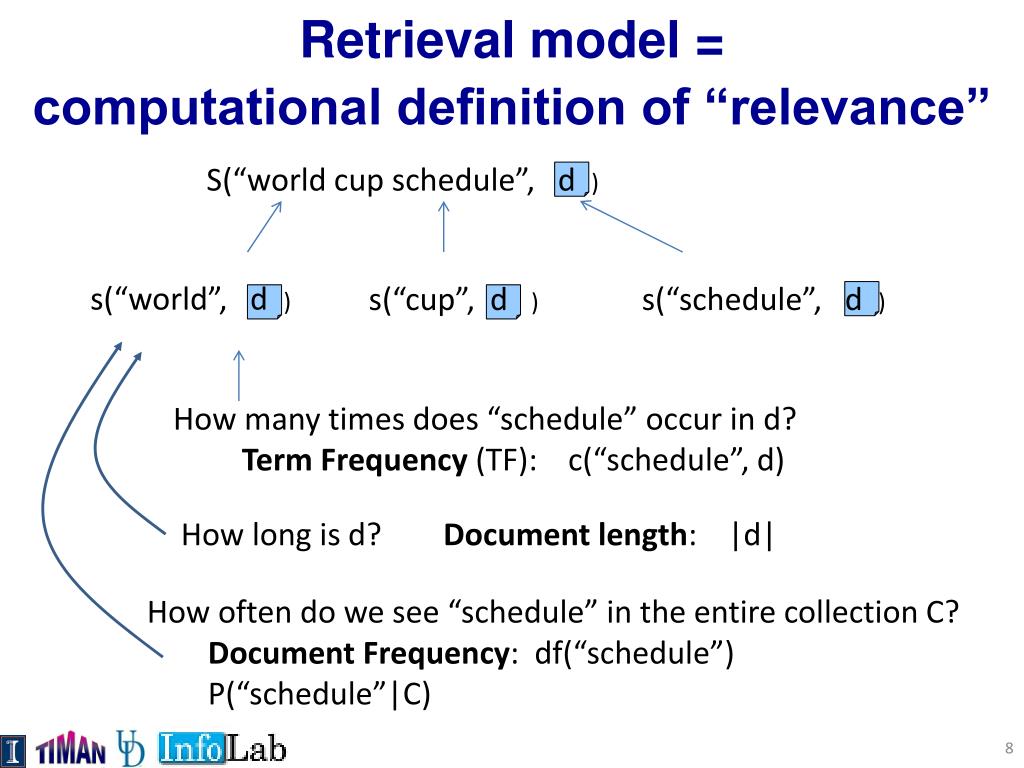

8. Retrieval model = computational definition of “relevance” S(“world cup schedule”, d ) s(“world”, d ) s(“cup”, d ) s(“schedule”, d ) How many times does “schedule” occur in d? Term Frequency (TF): c(“schedule”, d) How long is d? Document length: |d| How often do we see “schedule” in the entire collection C? Document Frequency: df(“schedule”) P(“schedule”|C)

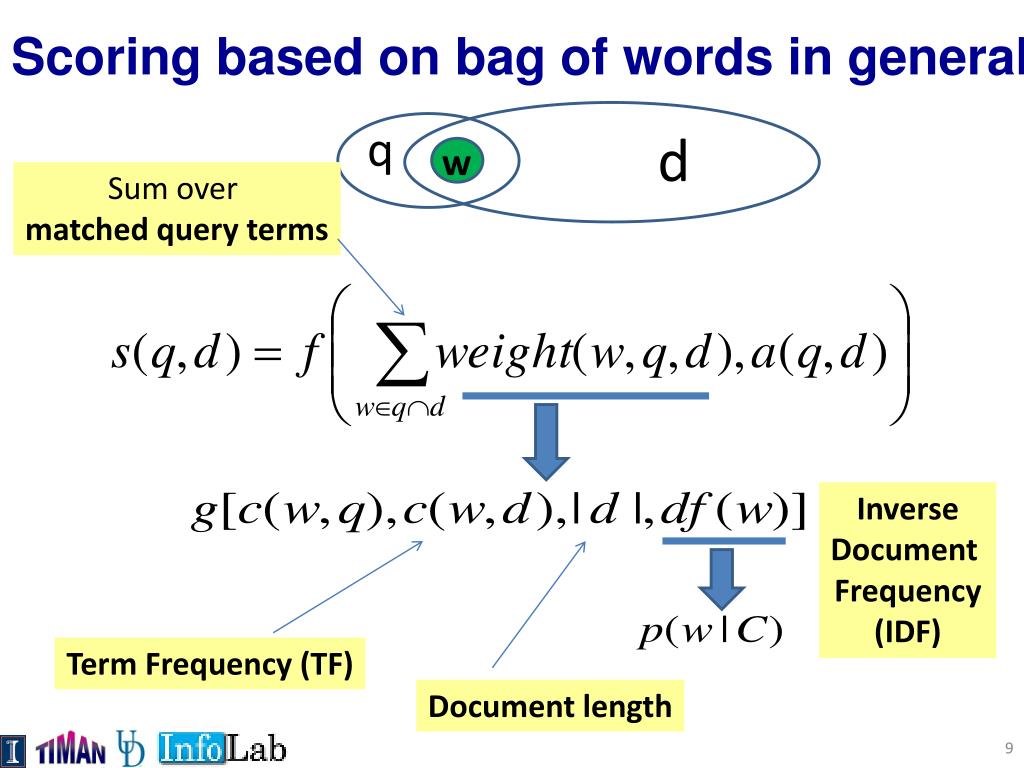

9. Scoring based on bag of words in general q d w Sum over matched query terms Inverse Document Frequency (IDF) Term Frequency (TF) Document length

10. Improving retrieval models is a long-standing challenge. • Vector Space Models: [Salton et al. 1975], [Singhal et al. 1996], … • Classic Probabilistic Models: [Maron & Kuhn 1960], [Harter 1975], [Robertson & Sparck Jones 1976], [van Rijsbergen 1977], [Robertson 1977], [Robertson et al. 1981], [Robertson & Walker 1994], … • Language Models:[Ponte & Croft 1998], [Hiemstra & Kraaij 1998], [Zhai & Lafferty 2001], [Lavrenko & Croft 2001], [Kurland & Lee 2004], … • Non-Classic Logic Models: [van Rijsbergen 1986], [Wong & Yao 1995], … • Divergence from Randomness: [Amati & van Rijsbergen 2002], [He & Ounis 2005], … • Learning to Rank: [Fuhr 1989], [Gey 1994], ... • … Many different models were proposed and tested.

11. Some are working very well (equally well) • Pivoted length normalization (PIV) [Singhal et al. 1996] • BM25[Robertson & Walker 1994] • PL2[Amati & van Rijsbergen 2002] • Query likelihood with Dirichlet prior (DIR)[Ponte & Croft 1998], [Zhai & Lafferty 2001] but many others failed to work well…

12. Some state of the art retrieval models • PIV (vector space model) • DIR (language modeling approach) • BM25 (classic probabilistic model) • PL2 (divergence from randomness)

13. PIV, DIR, BM25 and PL2 tend to perform similarly. Performance Comparison (MAP) Why do they tend to perform similarly even though they were derived in very different ways?

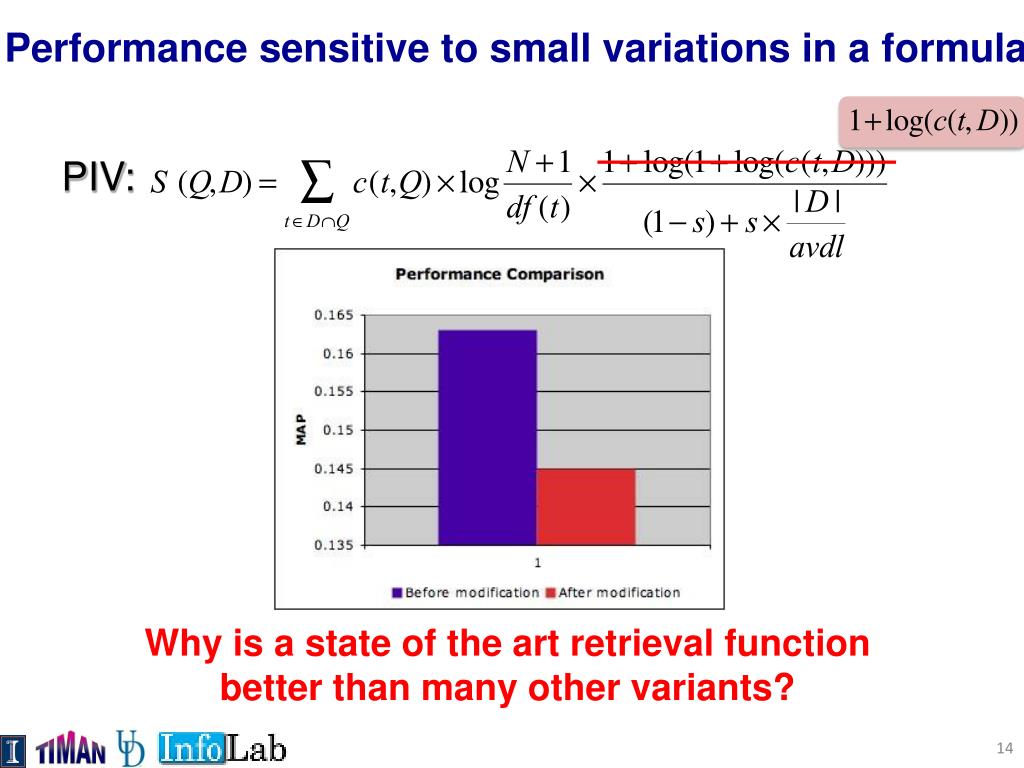

14. Performance sensitive to small variations in a formula PIV: Why is a state of the art retrieval function better than many other variants?

15. Additional Observations • PIV (vector space model) 1996 • DIR (language modeling approach) 2001 • BM25 (classic probabilistic model) 1994 • PL2 (divergence from randomness) 2002 Why does it seem to be hard to beat these strong baseline methods? • “Ad Hoc IR – Not Much Room for Improvement”[Trotman & Keeler 2011] • “Has Adhoc Retrieval Improved Since 1994?” [Armstrong et al. 2009] • Are they hitting the ceiling of bag-of-words assumption? • If yes, how can we prove it? • If not, how can we find a more effective one?

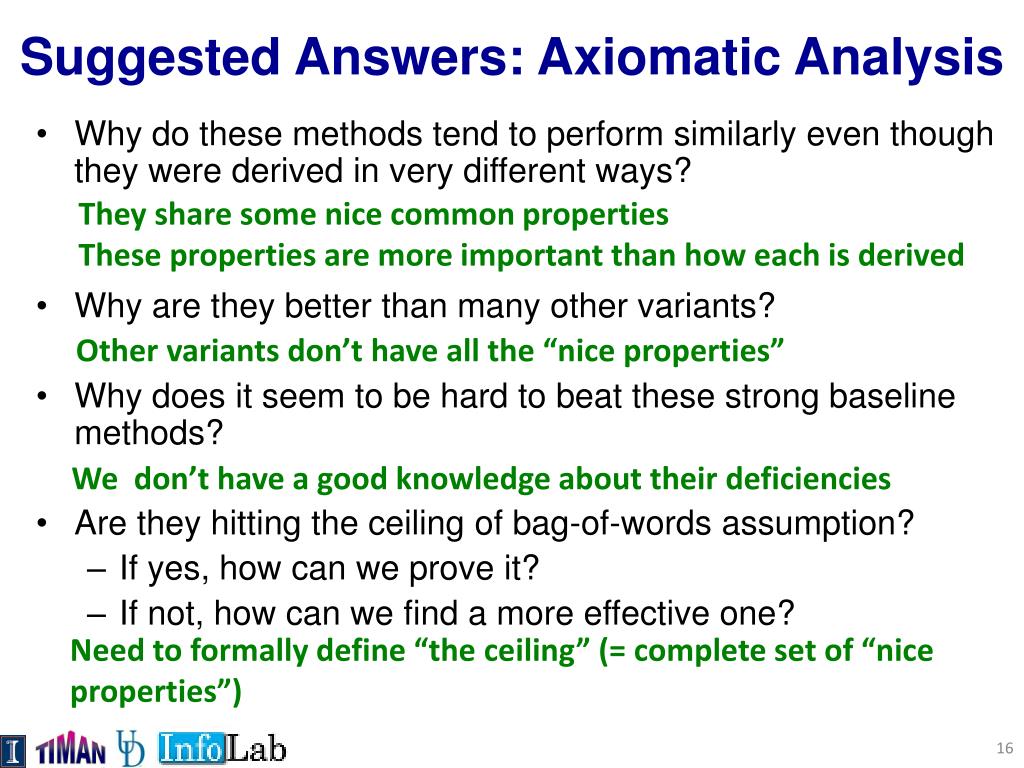

16. Suggested Answers: Axiomatic Analysis • Why do these methods tend to perform similarly even though they were derived in very different ways? • Why are they better than many other variants? • Why does it seem to be hard to beat these strong baseline methods? • Are they hitting the ceiling of bag-of-words assumption? • If yes, how can we prove it? • If not, how can we find a more effective one? They share some nice common properties These properties are more important than how each is derived Other variants don’t have all the “nice properties” We don’t have a good knowledge about their deficiencies Need to formally define “the ceiling” (= complete set of “nice properties”)

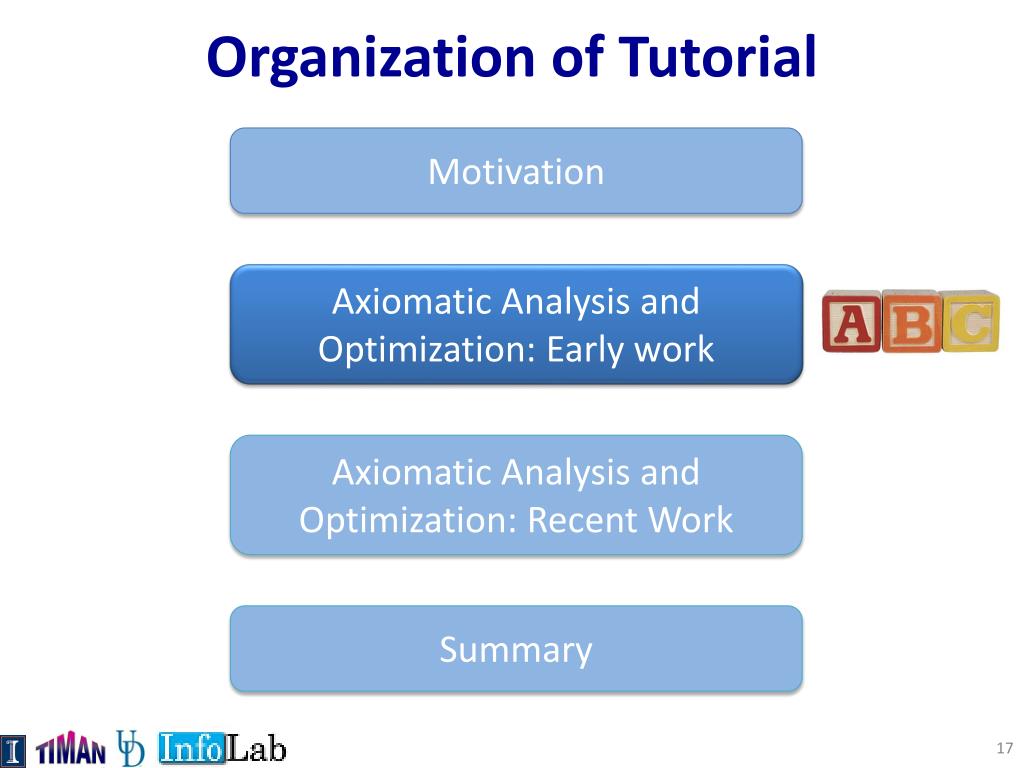

17. Organization of Tutorial Motivation Axiomatic Analysis and Optimization: Early work Axiomatic Analysis and Optimization: Recent Work Summary

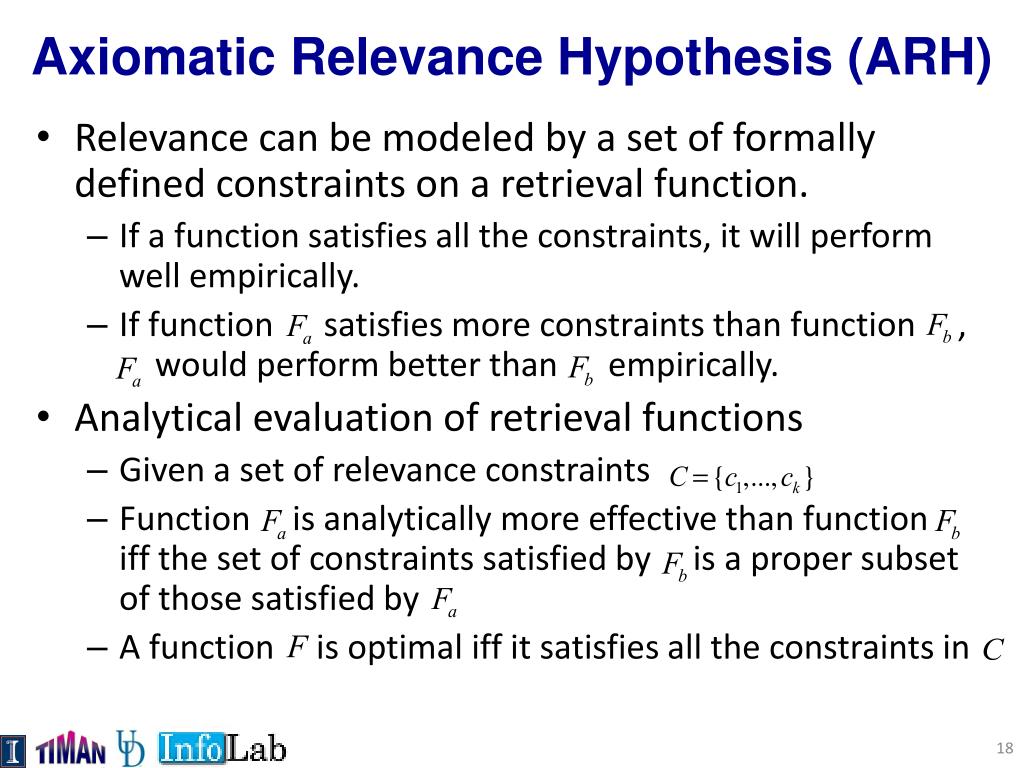

18. Axiomatic Relevance Hypothesis (ARH) • Relevance can be modeled by a set of formally defined constraints on a retrieval function. • If a function satisfies all the constraints, it will perform well empirically. • If function satisfies more constraints than function , would perform better than empirically. • Analytical evaluation of retrieval functions • Given a set of relevance constraints • Function is analytically more effective than function iff the set of constraints satisfied by is a proper subset of those satisfied by • A function is optimal iff it satisfies all the constraints in

19. C2 C3 S1 S2 S3 C1 Retrieval constraints Axiomatic Analysis and Optimization Function space

20. Axiomatic Analysis and Optimization: Early Work – Outline C2 C3 C1 • Formalization of Information Retrieval Heuristics • Analysis of Retrieval Functions with Constraints • Development of Novel Retrieval Functions

21. Different functions, but similar heuristics • PIV (vector space model) • DIR (language modeling approach) • BM25 (classic probabilistic model) • PL2 (divergence from randomness) TF weighting IDF weighting Length Norm.

22. Are they performing well because they implement similar retrieval heuristics? Can we formally capture these necessary retrieval heuristics? • For details, see • Hui Fang, Tao Tao and ChengXiangZhai: A Formal Study of Information Retrieval Heuristics, SIGIR’04. • Hui Fang, Tao Tao and ChengXiangZhai: Diagnostic Evaluation of Information Retrieval Models. ACM Transaction of Information Systems, 29(2), 2011.

23. q Q: D: q t D2: D1: Term Frequency Constraints (TFC1) TF weighting heuristic I: Give a higher score to a document with more occurrences of a query term. • TFC1 Let Q be a query and D be a document. If and , then

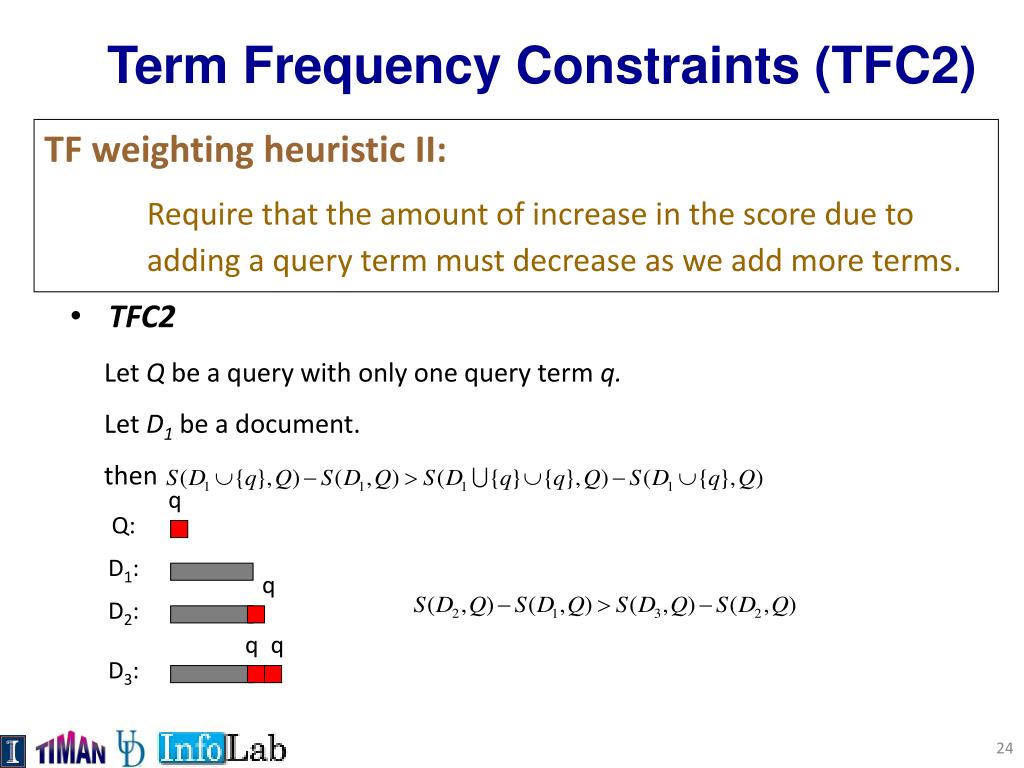

24. Term Frequency Constraints (TFC2) q Q: D1: q D2: q q D3: TF weighting heuristic II: Require that the amount of increase in the score due to adding a query term must decrease as we add more terms. • TFC2 Let Q be a query with only one query term q. Let D1 be a document. then

25. Let q be a query and w1, w2be two query terms. w1 w2 q: Assume and d1: If and d2: then Term Frequency Constraints (TFC3) TF weighting heuristic III: Favor a document with more distinct query terms. • TFC3

26. Length Normalization Constraints (LNCs) Q: D: t D’: • LNC2 Q: Let Q be a query and D be a document. If , and Dk is constructed by concatenating D with itself k times, D: Dk: then Document length normalization heuristic:Penalize long documents(LNC1); Avoid over-penalizing long documents (LNC2) . • LNC1 Let Q be a query and D be a document. If t is a non-query term, then

27. TF & Length normalization Constraint (TF-LNC) D’: q Q: D: q • TF-LNC TF-LN heuristic: Regularize the interaction of TF and document length. Let Q be a query and D be a document. If q is a query term, then

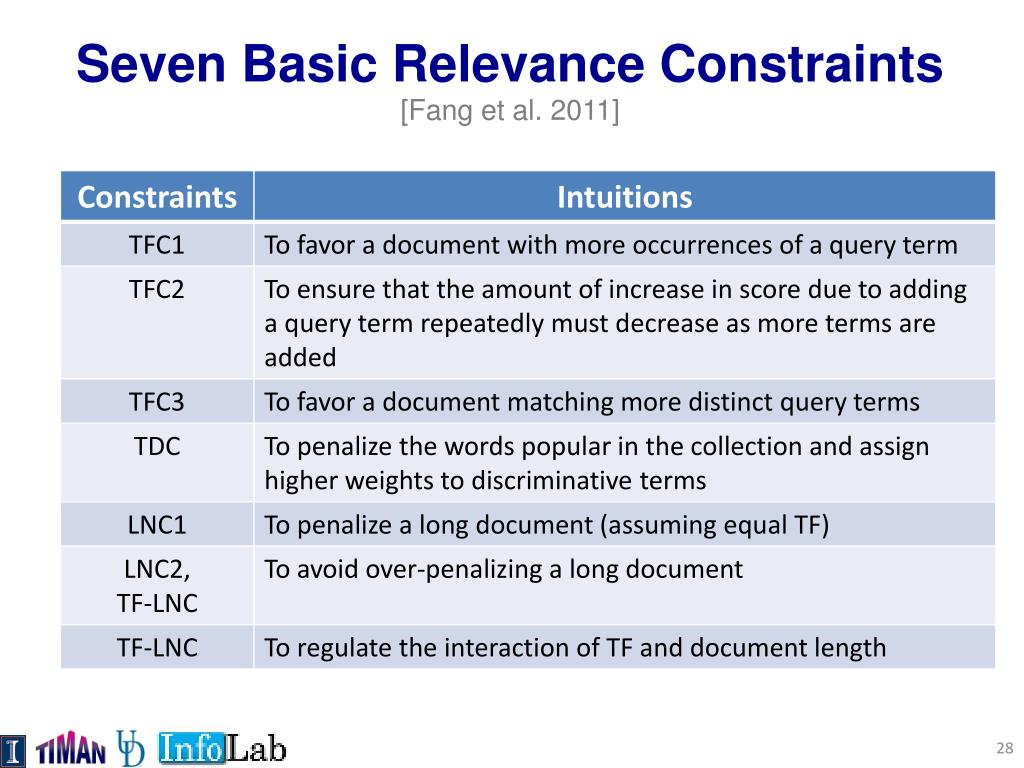

28. Seven Basic Relevance Constraints[Fang et al. 2011]

29. Disclaimers • Given a retrieval heuristic, there could be multiple ways of formalizing it as constraints. • When formalizing a retrieval constraint, it is necessary to check its dependency on other constraints.

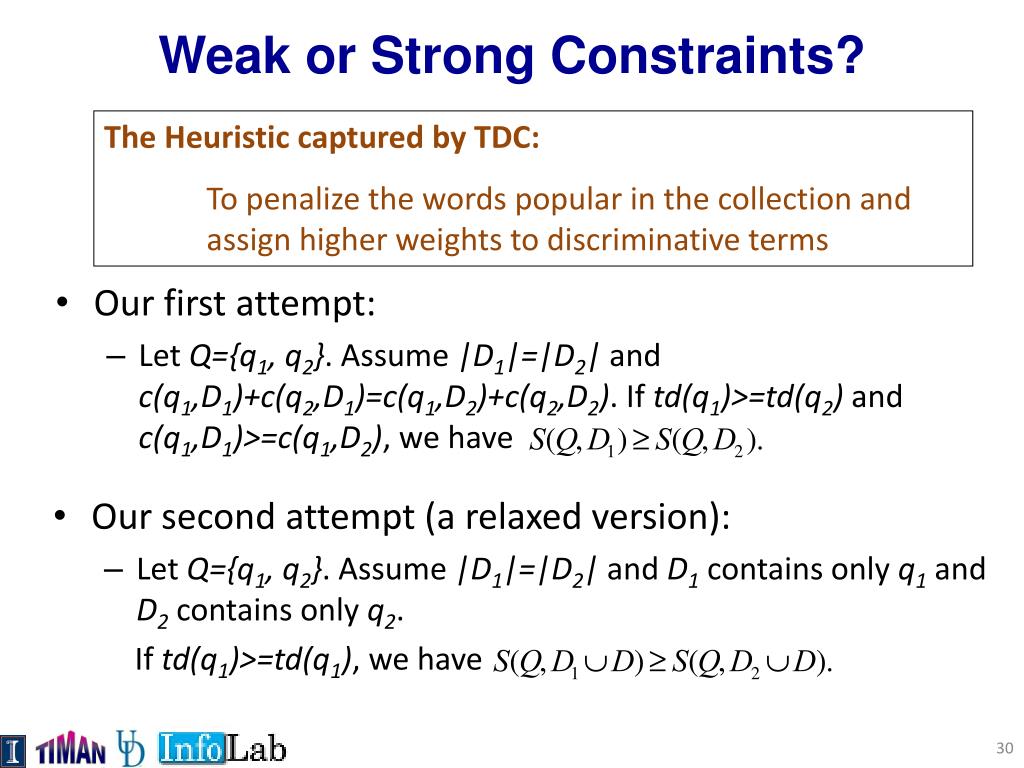

30. Weak or Strong Constraints? The Heuristic captured by TDC: To penalize the words popular in the collection and assign higher weights to discriminative terms • Our first attempt: • Let Q={q1, q2}. Assume |D1|=|D2| and c(q1,D1)+c(q2,D1)=c(q1,D2)+c(q2,D2). If td(q1)>=td(q2) and c(q1,D1)>=c(q1,D2), we have • Our second attempt (a relaxed version): • Let Q={q1, q2}. Assume |D1|=|D2| and D1 contains only q1 and D2 contains only q2. If td(q1)>=td(q1), we have

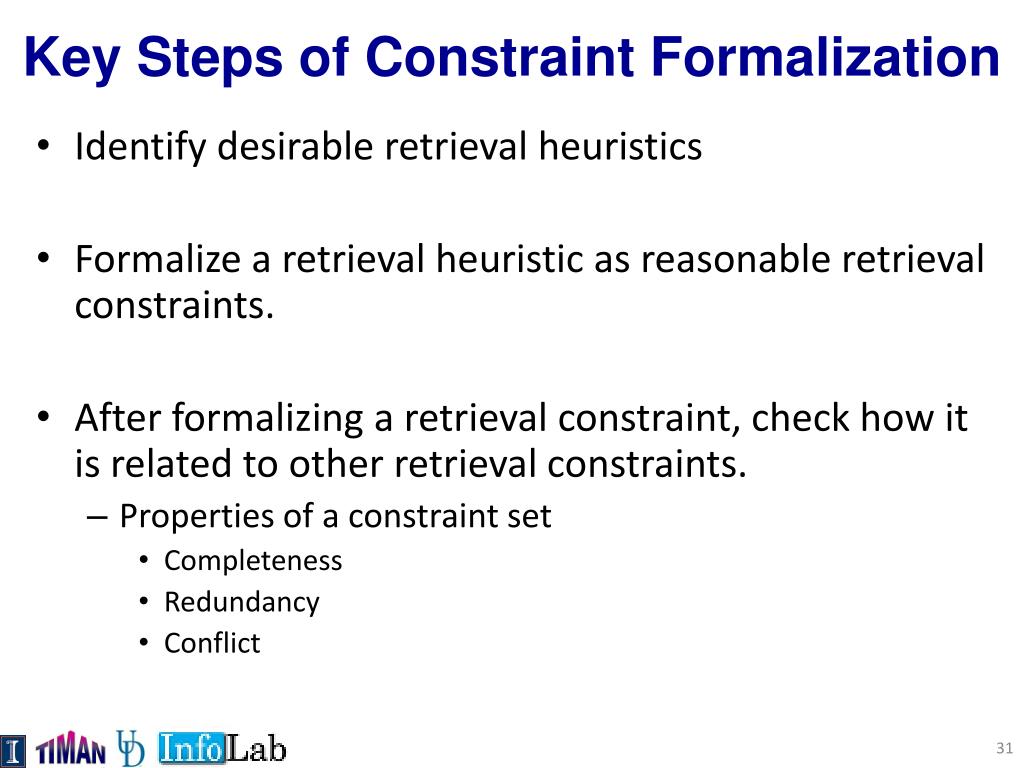

31. Key Steps of Constraint Formalization • Identify desirable retrieval heuristics • Formalize a retrieval heuristic as reasonable retrieval constraints. • After formalizing a retrieval constraint, check how it is related to other retrieval constraints. • Properties of a constraint set • Completeness • Redundancy • Conflict

32. Axiomatic Analysis and Optimization: Early Work – Outline C2 C3 C1 • Formalization of Information Retrieval Heuristics • Analysis of Retrieval Functions with Constraints • Development of Novel Retrieval Functions a retrieval function

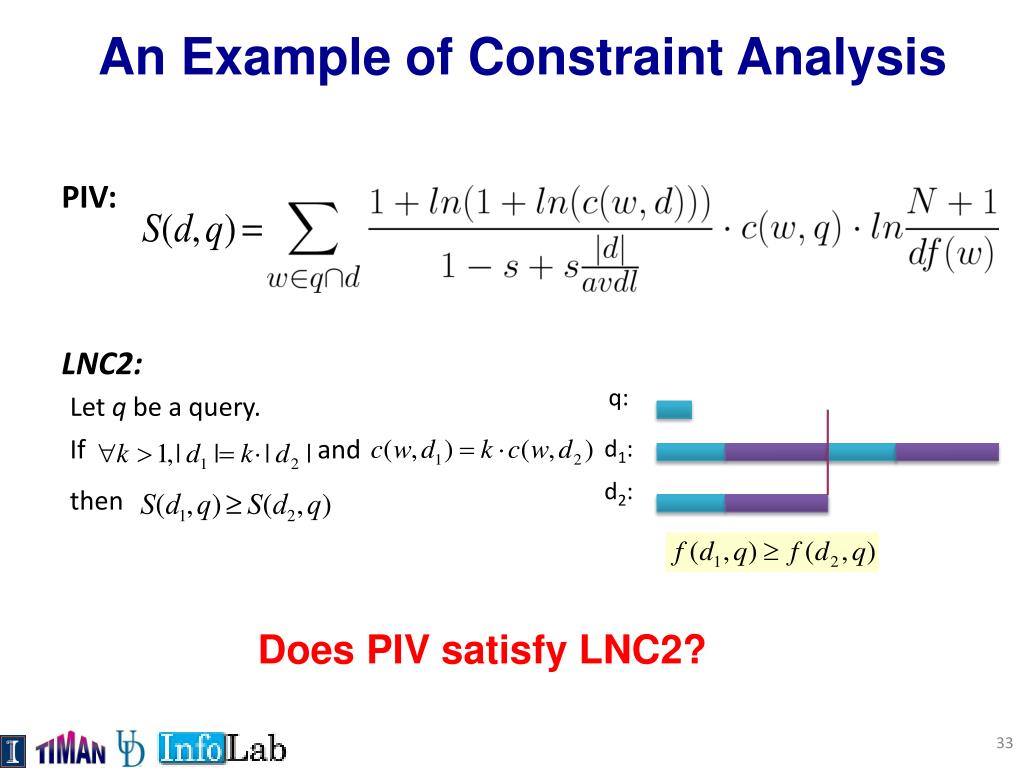

33. LNC2: q: Let q be a query. If and d1: d2: then An Example of Constraint Analysis PIV: Does PIV satisfy LNC2?

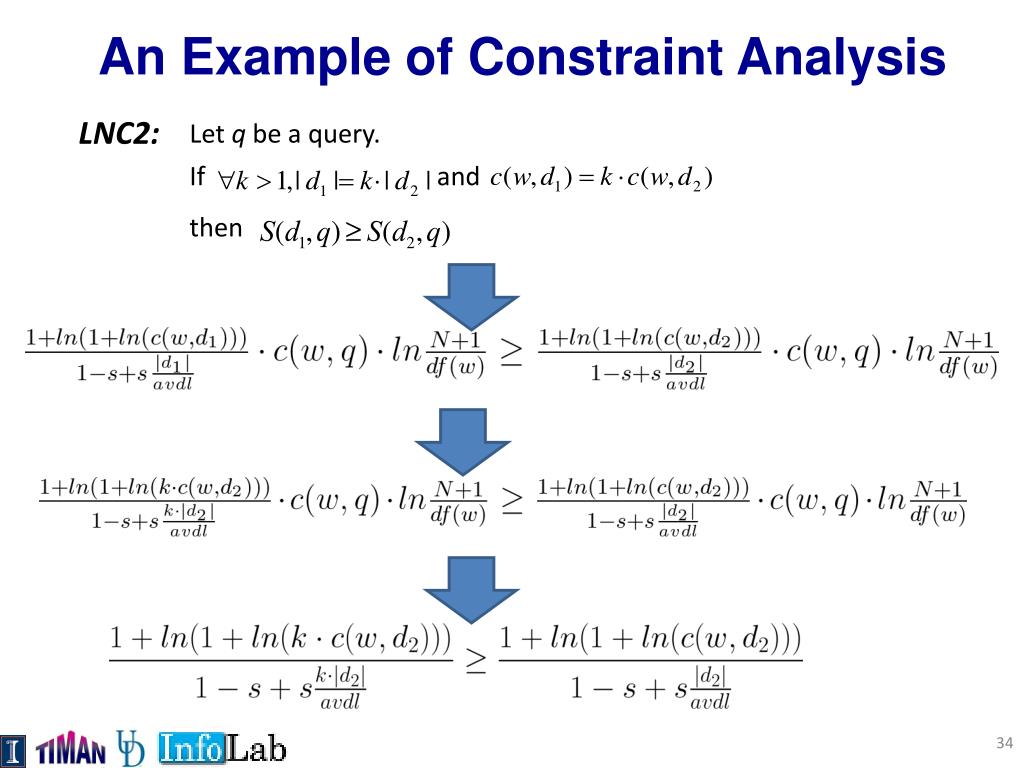

34. LNC2: Let q be a query. If and then An Example of Constraint Analysis

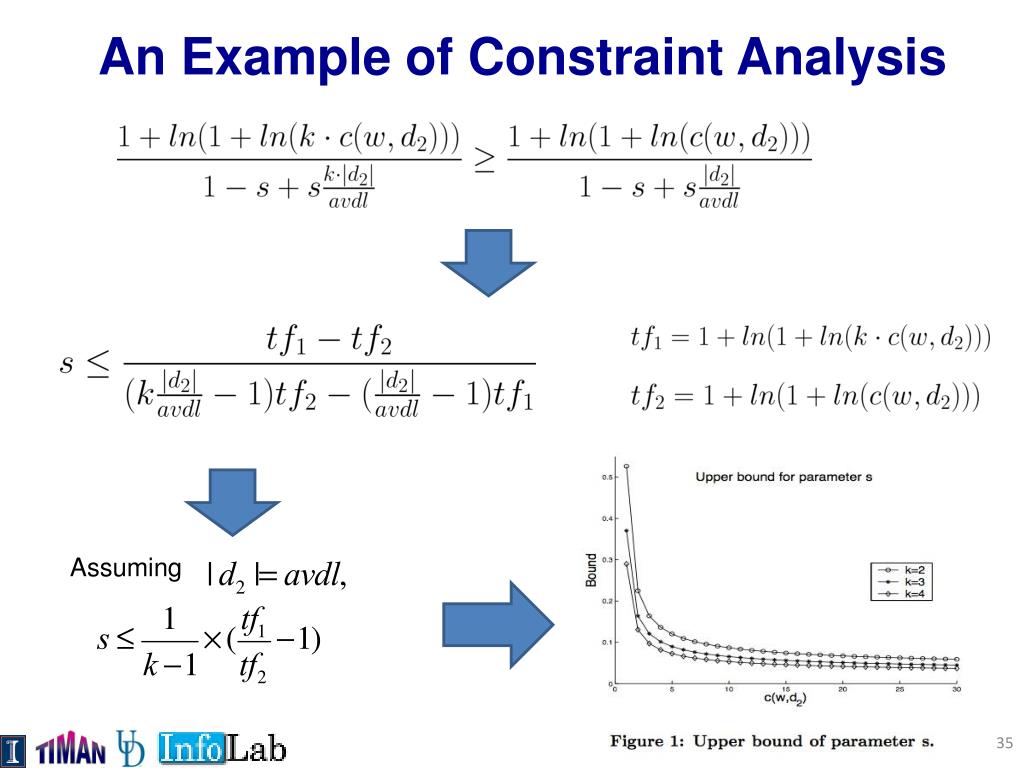

35. An Example of Constraint Analysis Assuming

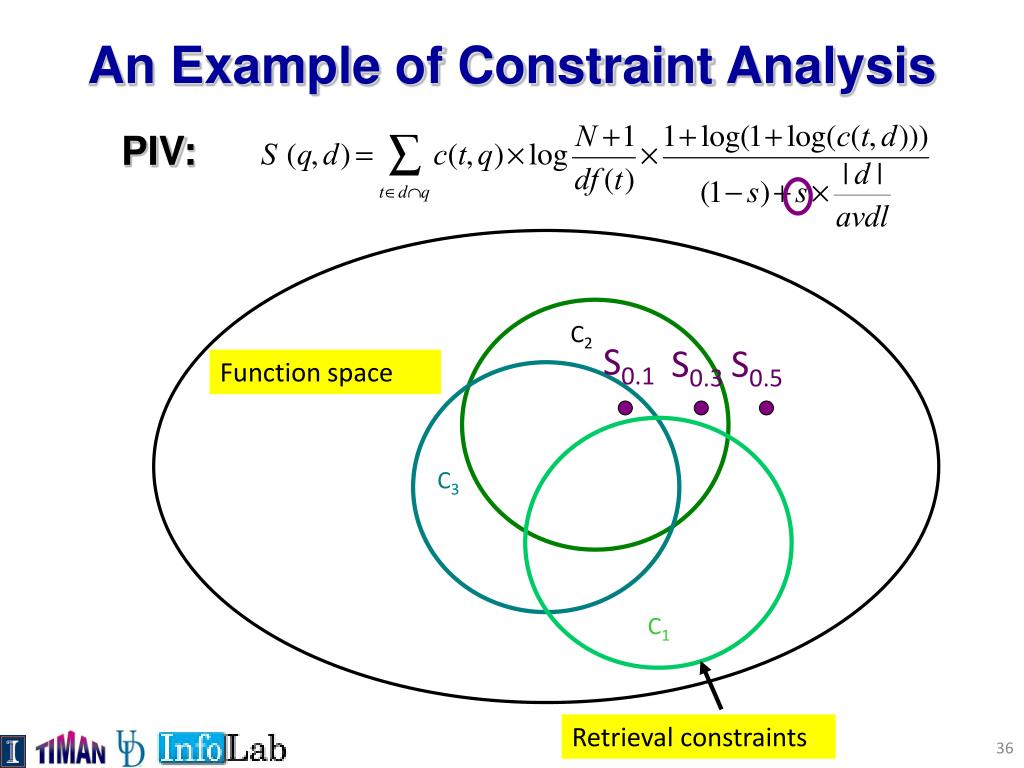

36. An Example of Constraint Analysis C2 S0.1 S0.3 S0.5 C3 C1 Retrieval constraints PIV: Function space

37. Review: Axiomatic Relevance Hypothesis • Relevance can be modeled by a set of formally defined constraints on a retrieval function. • If a function satisfies all the constraints, it will perform well empirically. • If function satisfies more constraints than function , would perform better than empirically. • Analytical evaluation of retrieval functions • Given a set of relevance constraints • Function is analytically more effective than function iff the set of constraints satisfied by is a proper subset of those satisfied by • A function is optimal iff it satisfies all the constraints in

38. Testing the Axiomatic Relevance Hypothesis • Is the satisfaction of these constraints correlated with good empirical performance of a retrieval function? • Can we use these constraints to analytically compare retrieval functions without experimentation? • “Yes!” to both questions • When a formula does not satisfy the constraint, it often indicates non-optimality of the formula. • Violation of constraints may pinpoint where a formula needs to be improved. • Constraint analysis reveals optimal ranges of parameter values

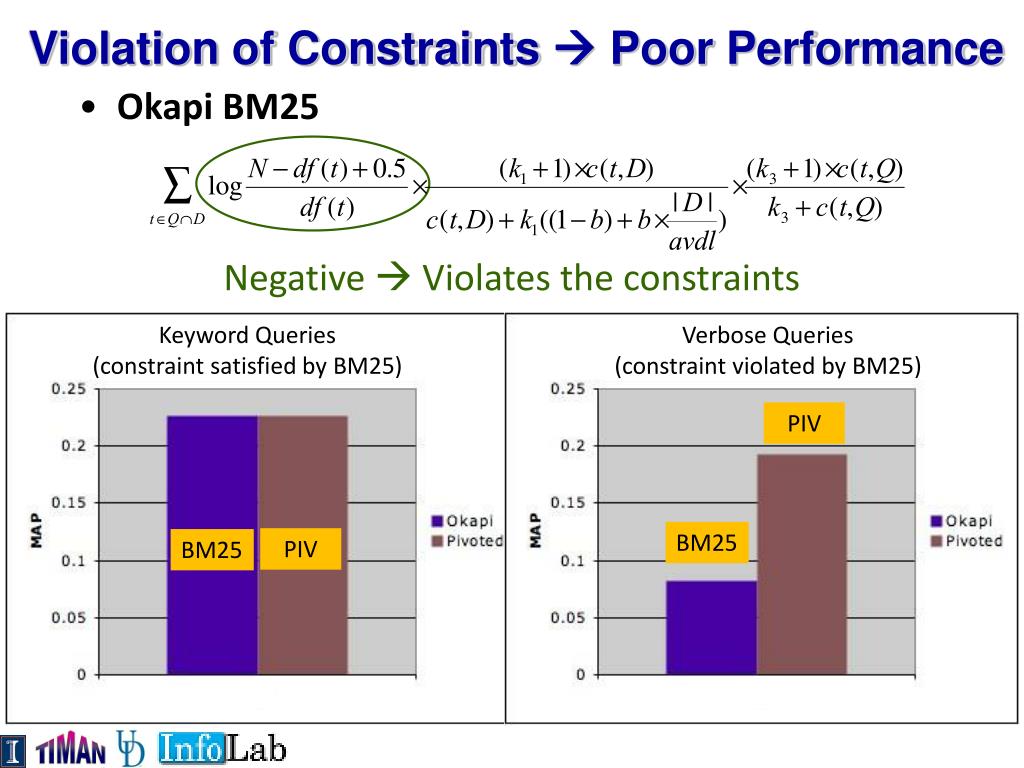

39. Violation of Constraints  Poor Performance • Okapi BM25 Negative  Violates the constraints Keyword Queries (constraint satisfied by BM25) Verbose Queries (constraint violated by BM25) PIV BM25 PIV BM25

40. Constraints Analysis  Guidance for Improving an Existing Retrieval Function • Modified Okapi BM25 Make it satisfy constraints; expected to improve performance Keyword Queries (constraint satisfied by BM25) Verbose Queries (constraint violated by BM25) Modified BM25 BM25 PIV PIV BM25

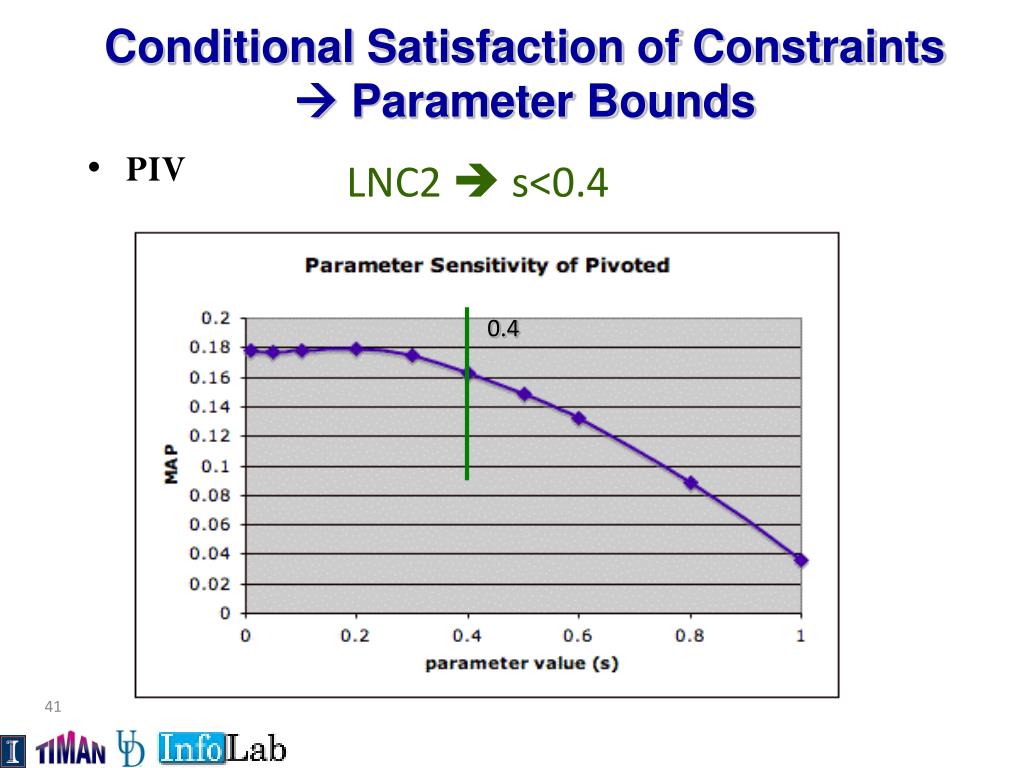

41. 0.4 Conditional Satisfaction of Constraints  Parameter Bounds LNC2  s<0.4 • PIV

42. Systematic Analysis of 4 State of the Art Models [Fang et al. 2011] Parameter s must be small Problematic when a query term occurs less frequently in a doc than expected Negative IDF Problematic with common terms; parameter c must be large

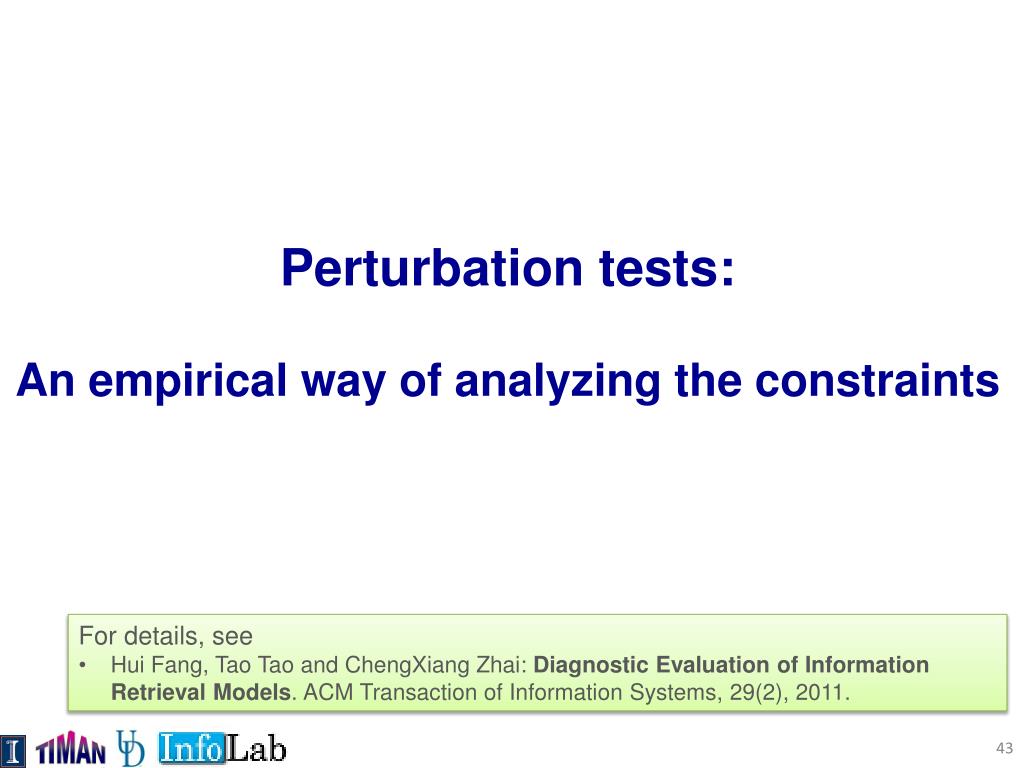

43. Perturbation tests:An empirical way of analyzing the constraints • For details, see • Hui Fang, Tao Tao and ChengXiangZhai: Diagnostic Evaluation of Information Retrieval Models. ACM Transaction of Information Systems, 29(2), 2011.

44. What if constraint analysis is NOT sufficient? S5 S4

45. Medical Diagnosis Analogy Design tests with available instruments observe symptoms provide treatments Non-optimal retrieval function Better performed retrieval function How to find available instruments? How to design diagnostic tests?

46. Relevance-Preserving Perturbations • Perturb term statistics • Keep relevance status Document scaling perturbation: cD(d,d,K) concatenate every document with itself K times

47. Relevance-Preserving Perturbations

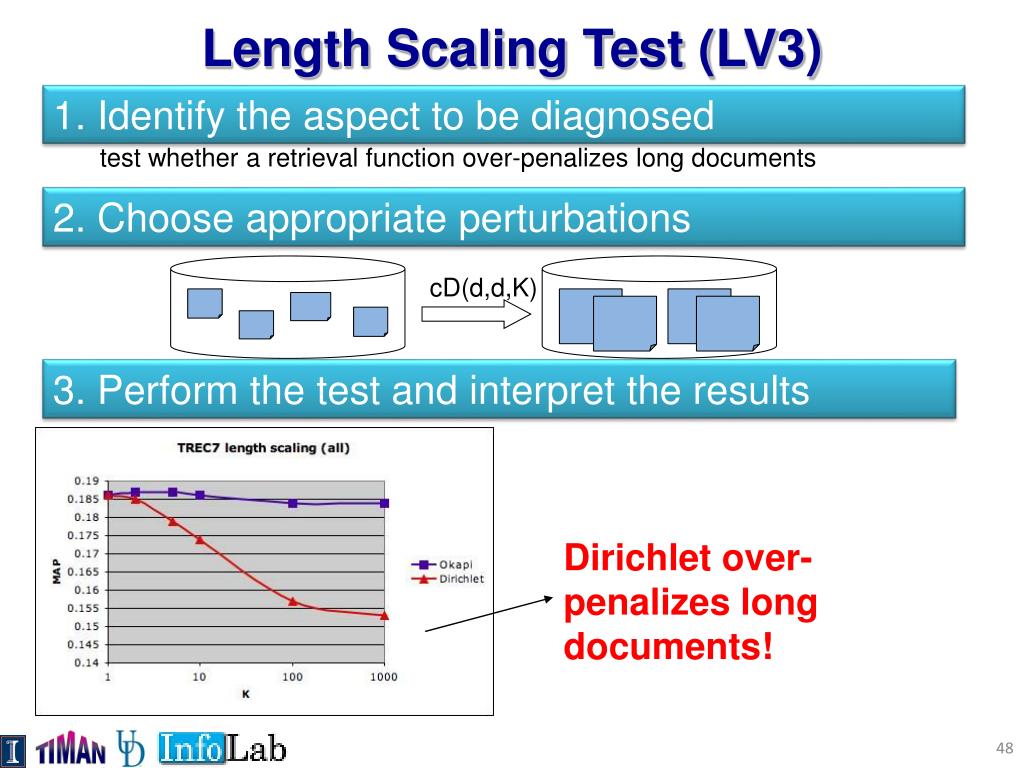

48. Length Scaling Test (LV3) cD(d,d,K) Dirichlet over-penalizes long documents! 1. Identify the aspect to be diagnosed test whether a retrieval function over-penalizes long documents 2. Choose appropriate perturbations 3. Perform the test and interpret the results

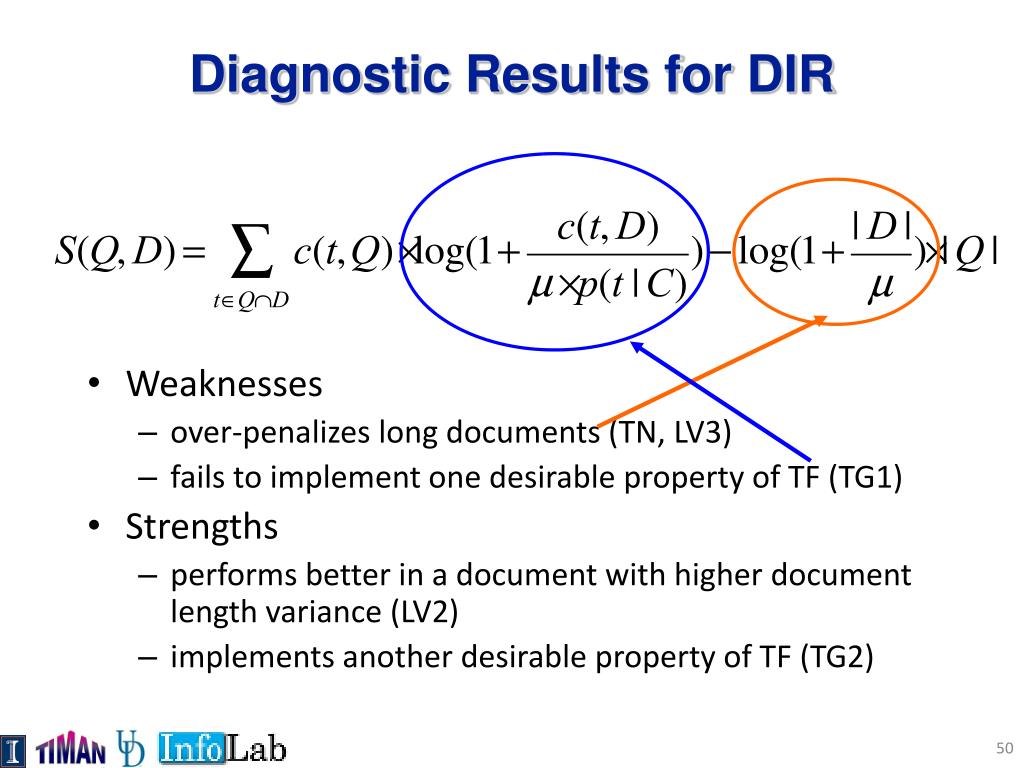

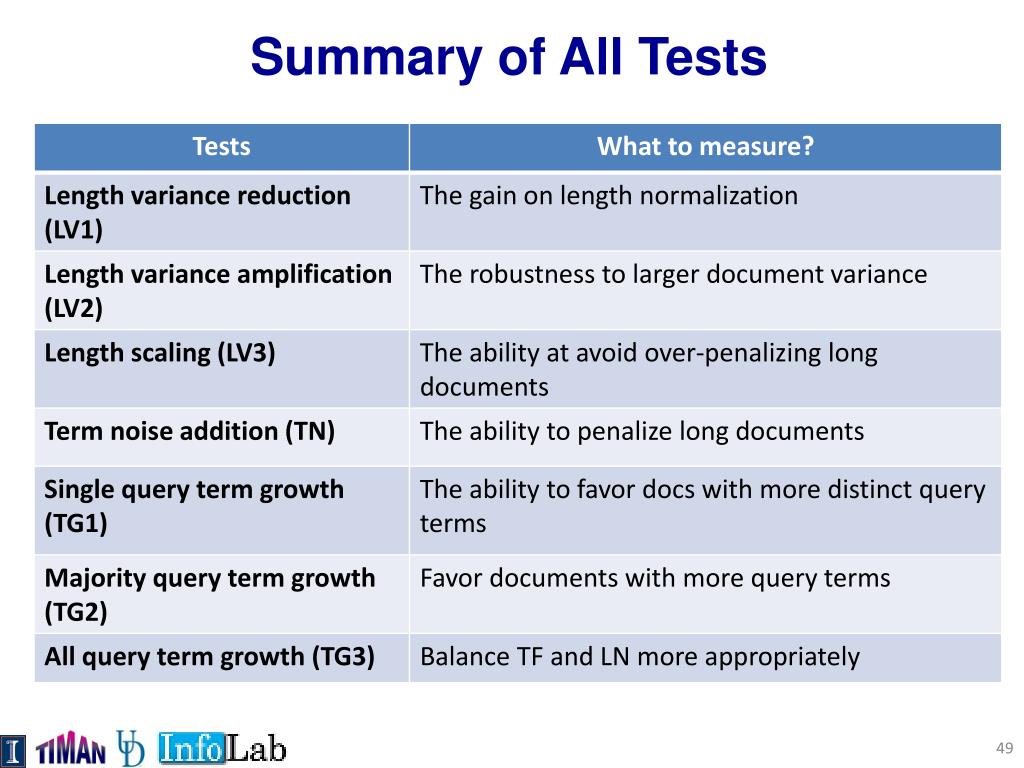

49. Summary of All Tests
