  1. CS 851Wireless Sensor NetworksIntroductory Lecture Professor Jack Stankovic Department of Computer Science University of Virginia September 2003

  2. Purpose of this Lecture • Get you to think differently • Regardless of whether you are new to WSN or have been working with them • Introduce the basic key issues and their implications • Reduce work to its essence

  3. The field is exploding

  4. Smart Spaces Smart School Smart Factory Smart City • Other Applications • Battlefields/Surveillance • Earthquake areas • Environmental Monitoring • Airport security • Emergency Response • Location Services

  5. More Applications • Interface with the Internet • Handheld PDAs/laptops • Element in pervasive computing From your reading did you find interesting applications or ideas about applications that were Surprising?

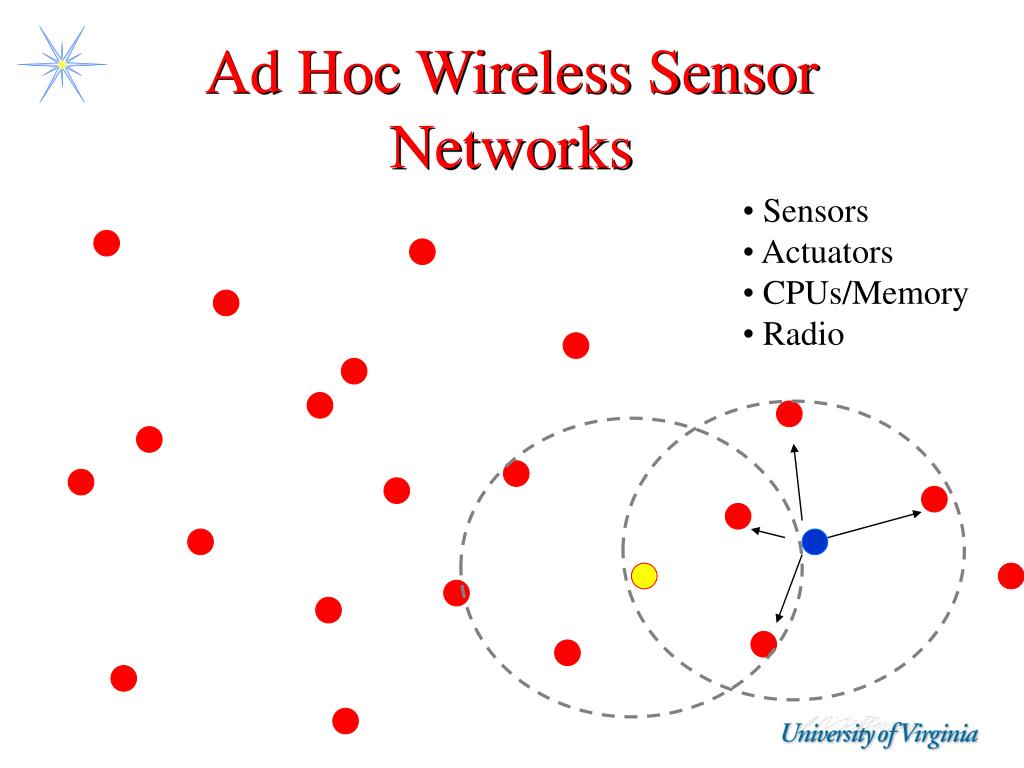

  6. Ad Hoc Wireless Sensor Networks • Sensors • Actuators • CPUs/Memory • Radio

  7. Research Questions • What are the correct HW elements to make solutions at the OS/middleware/application levels easier? • Current motes are only 1 possible platform • How about DSPs? Special security HW? • What capacities (cpu speed, memory, bandwidth, power, etc.) and their fundamental limitations, have if any, on solutions

  8. Sensor/Actuator Clouds Resource management, team formation, networking, … Heterogeneous Homogeneous • Severe constraints • power, memory, bandwidth, cpu, cost, ...

  9. Background: Challenge fundamental assumptions underlying distributed systems technology • How the problems change • Key Areas to be Addressed • Routing • Power Management • Localization • Security • Paradigms • Theory • Other Issues • Examples: key research problems/solutions • Spatial-Temporal Routing • Application Independent Data Aggregation • Localization Realities

  10. How the Problems Change • Environment • connect to physical environment (large numbers, dense, real-time) • massively parallel interfaces (sometimes) • faulty, highly dynamic, non-deterministic • wireless (indirect impact on remote entity) • power management critical • Network • structure is dynamically changing • sporadic connectivity • new resources entering/leaving • large amounts of redundancy • self-configure/re-configure • individual nodes are unimportant - route/query to AREA

  11. How the Problems Change • OS/Middleware • manage aggregate performance • control the system to achieve required emerging behavior • How do we know it works? • self-organizing (self-*) • fuzzy membership and team formation • manage power/mobility/real-time/security tradeoffs • geographical/location based (spatial) • real-time/real world (temporal) • data centric

  12. Examples • Can you give me examples of simple decentralized algorithms that exhibit aggregate behavior?

  13. Implications • Fundamental Assumptions underlying distributed systems technology has changed • wired => wireless (limited range, high error rates) • unlimited power => minimize power • Non-real-time => real-time • fixed set of resources => resources being added/deleted • each node important => aggregate performance • New solutions necessary

  14. Example: Resource Management • Measure communication errors • if too many • increase communication power or if a mobile node it might move closer to the destination

  15. Example: Consensus • Classical consensus: all correct processes agree on one value • No power constraints • No real-time constraints • Does not scale well to dense networks • Approximate agreement (some work here) - on sets of values (physical quantities) • New Solutions ?

  16. Termination: every correct processor eventually decides some value Uniform Agreement: no two processors decide differently Group Membership: join/leave - everyone knows who is in the group Termination: “at least n” correct processors decide some value by time t Group Agreement: at least n processors decide the same value within epsilon Area/Function Membership: join/leave an area or by function New Concept of Consensus Classical New Definitions

  17. Example: Group Management (Tracking) Base Station

  18. Group Management - API • Create_Group(name,function,criterion,atleast,accuracy) - implicit and explicit • Destroy_Group(name) • Join() • Leave() • Move_COG() • Expand() -- to gain sensing confidence • Shrink() -- to save power • Commit(grp_ID) - to synchronize group re-configurations

  19. What’s Hard • Multiple targets • Crossing targets • False Alarms • Depends on (changing) environment, sensors, confidence tradeoffs, noise, lost messages, …) • Speed of targets • Uniqueness of targets • Classify targets • Proper abstractions • Save power/min. commun.

  20. The Essence • Power • Other limited resources (BW, CPU, …) • Extreme Scale • Changing “everything” / uncertainty • Aggregation • unimportant individual nodes • decentralized, very simple algorithms • What I do impacts you (collisions) – mutual exclusion

  21. Six Themes • Routing • Power • Localization • Security • Paradigms • Theory • Are there others? Yes…..

  22. Routing • Solutions must be • Power aware • Robust to lost messages, dead motes, voids • Real-time • Communication range variations • Moving end points • Amount of state information • Extreme Scale • Secure

  23. Power • Example Algorithms • AFECA – power up and power down with time proportional to the number of neighbors • GAF – create grid and keep at least one mote alive in each grid (rotate among them in the grid) • SBPM – no grids; non-deterministic; minimize connectivity; decentralized; complete sensing coverage (60% savings over no power management) • Differentiated Surveillance • 50% less energy than “best” other solution

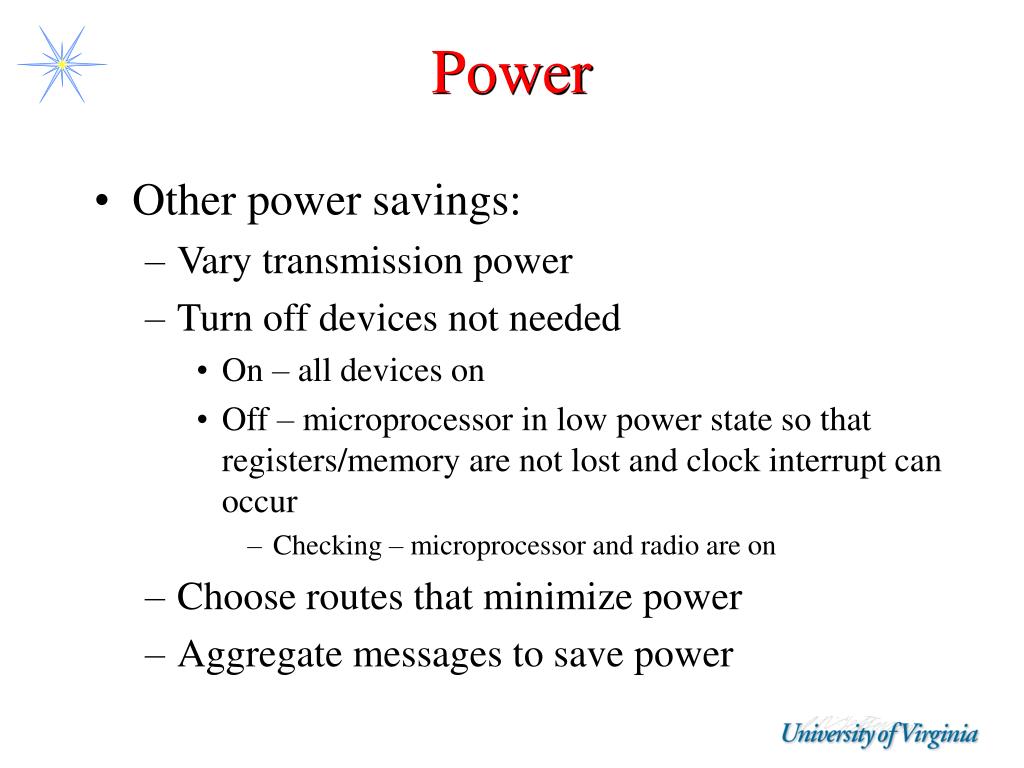

  24. Power • Other power savings: • Vary transmission power • Turn off devices not needed • On – all devices on • Off – microprocessor in low power state so that registers/memory are not lost and clock interrupt can occur • Checking – microprocessor and radio are on • Choose routes that minimize power • Aggregate messages to save power

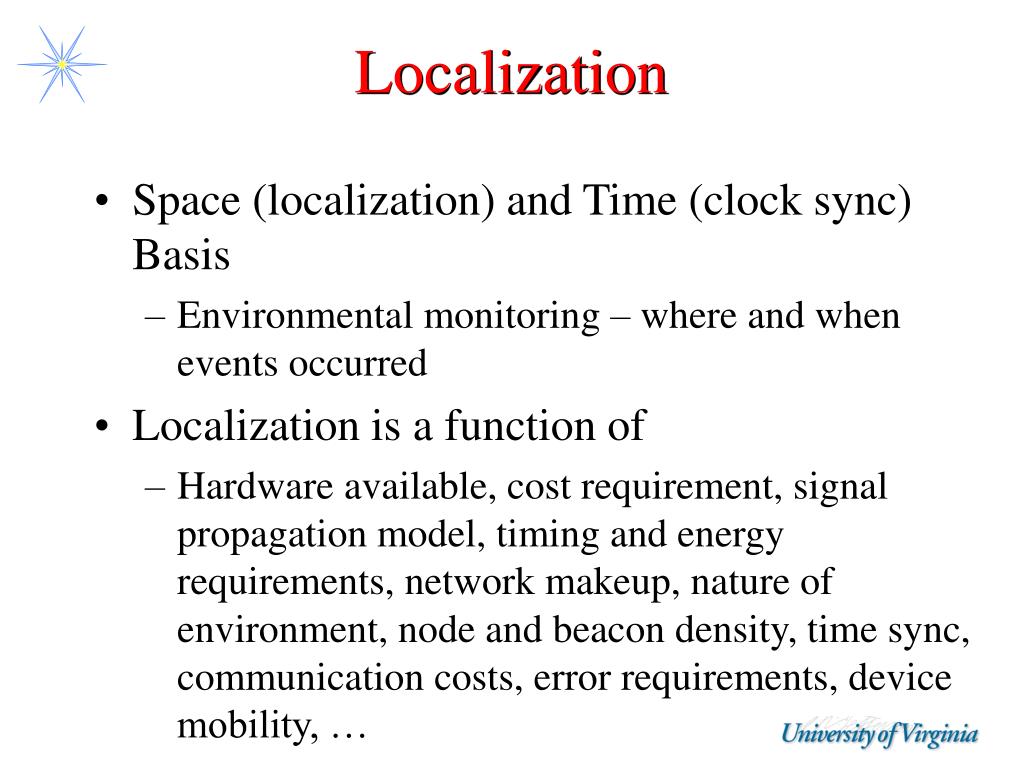

  25. Localization • Space (localization) and Time (clock sync) Basis • Environmental monitoring – where and when events occurred • Localization is a function of • Hardware available, cost requirement, signal propagation model, timing and energy requirements, network makeup, nature of environment, node and beacon density, time sync, communication costs, error requirements, device mobility, …

  26. Security • What is the single most important issue that could prevent WSNs from wide scale deployment? • Security • 2nd issue -> Privacy • At application level • Authenticity and integrity • Security of each service (examples) • Routing: • non-secure if a single node is captured! • Eavesdrop or change message • Flood • Insidious unintended consequences of collecting data • Monitor oceans for fish migration (data mine location of submarine fleet)

  27. Security • Localization • Attacker can report he is close to everyone • Chirp then wait then transmit to give false location (normally chirp and transmit simultaneously – measure signals difference) • Network Discovery • Provide false messages to create false topology • Prevent convergence

  28. Paradigms • Virtual Machines • SQL and data services models • EnviroTrack • Tie to physical systems/physics • Swarm computing • Biological metaphors

  29. Theory • Theory of computation for WSN • Emerging behavior of local/decentralized algorithms • New graph theory • New spatial-temporal analysis • Aggregate control theory • Utilization Equivalent Bounds • Modeling and Analysis • What are the fundamental scientific questions

  30. Other Key Issues (1) • Sensing/communication range ratio • Sensing/communication/power tradeoffs Communication Range Sensing Range What if the opposite?

  31. Other Key Issues (2) • Reality programming • Robust to faults • Sensor realities • Don’t believe one reading • Hysteresis • Sensor fusion • Activation delays • Avoid false alarms • Self-Calibration

  32. Other Key Issues (3) • Limited capacities • Rapid dynamics • Scaling factors and implications on behaviors • Extreme scaling • Insidious interactions • High density with many motes off to enable long system lifetime; turn on when activity happens then too many with many collisions and poor response

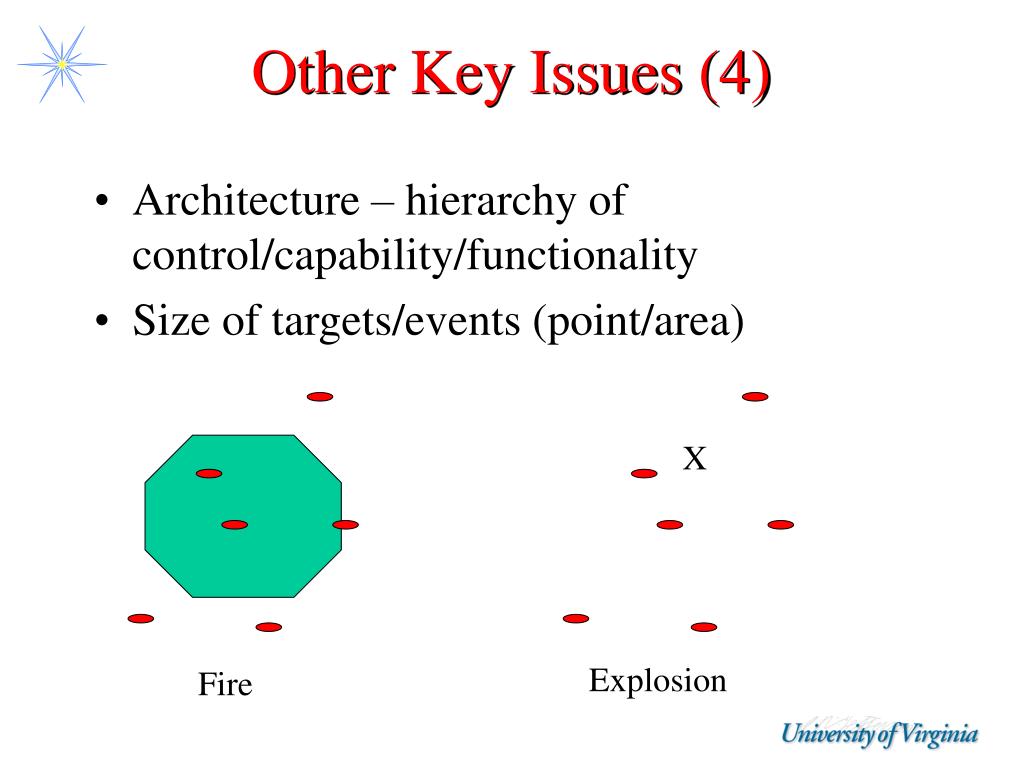

  33. Other Key Issues (4) • Architecture – hierarchy of control/capability/functionality • Size of targets/events (point/area) X Explosion Fire

  34. Middleware Services • Non-traditional • Configuration service • Automatic calibration • Network programming • Reset services • Management services

  35. Middleware Services • Real-Time Routing • SPEED – spatial-temporal concept • Application Independent Data Aggregation • AIDA – feedback control • Localization • APIT – realities of wireless world

  36. Sensor Net Routing • End-to-end • Real-time • Collisions • Congestion Destination Source Assumption: Nodes know location

  37. SPEED USE VELOCITY

  38. Application Independent Data Aggregation • Expensive to acquire the “channel” • Small data packets • Group data packets into 1 MAC packet • Works in additionto other data aggregation techniques which are based on semantics

  39. Major Architectural Difference

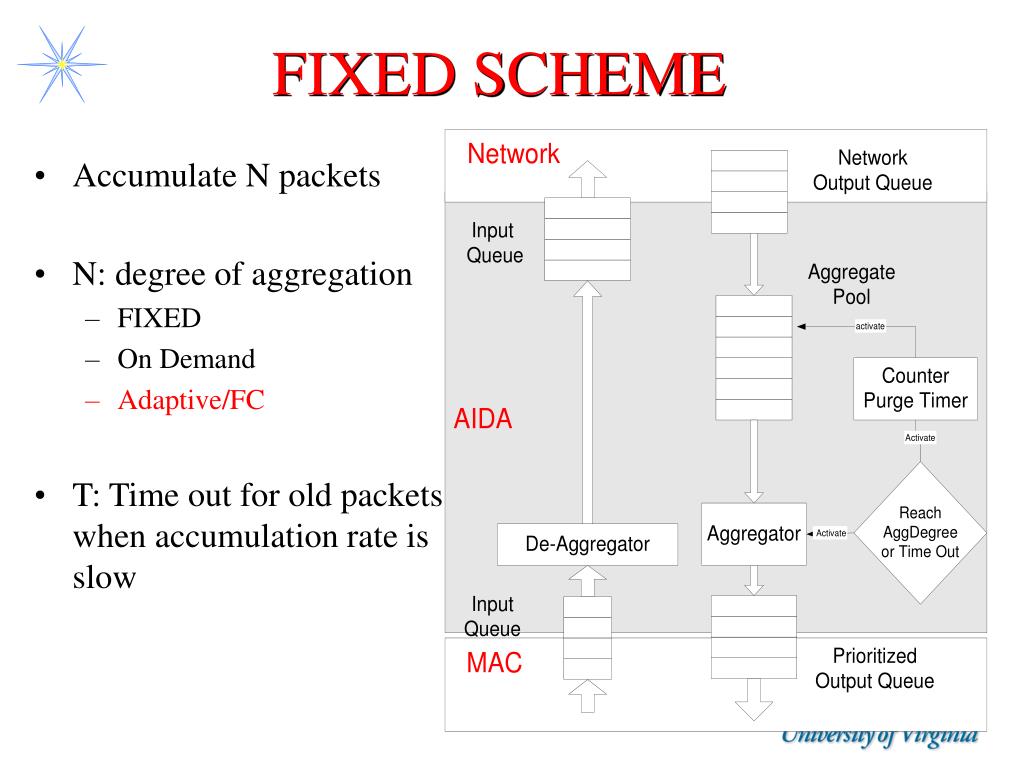

  40. FIXED SCHEME • Accumulate N packets • N: degree of aggregation • FIXED • On Demand • Adaptive/FC • T: Time out for old packets when accumulation rate is slow

  41. DYNAMIC/Adaptive FC • Adaptive choice of N • Take into account the output Queue delay • Delay is used to adjust the output queue push rate and degree of aggregation

  42. Localization • Determine the geographic location of each node with a high degree of accuracy (necessary for application) • Applications • search and rescue • disaster relief • target tracking • Protocols • location aware routing • guaranteeing sensing coverage • location directory services • Fundamental and Enabling Service

  43. Radio Model in Evaluation DOI = 0.2 DOI = 0.05 Radio Model DOI = Degree of Irregularity

  44. Known: Signal strength is not good indicator of distance over the entire region Hypothesis: Signal strength IS accurate enough for nodes very close to each other! X

  45. Testing Hypothesis

  46. Summary • (Much) Current Distributed Systems Technology • wired networks, powerful nodes, highly reliable nodes, interaction with users, fixed numbers of resources/team members, unlimited power, ... • Embedded (Large Scale) Distributed Systems • wireless, simple nodes, unreliable nodes, interaction with the environment, resources being added and deleted continuously, power management needed, …
