Intermediate representation

Intermediate representation. Goals: encode knowledge about the program facilitate analysis facilitate retargeting facilitate optimization. HIR. semantic analysis. HIR. intermediate code gen. scanning parsing. LIR. LIR. code gen. optim. Intermediate representation. Components

hea
Télécharger la présentation

Intermediate representation

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

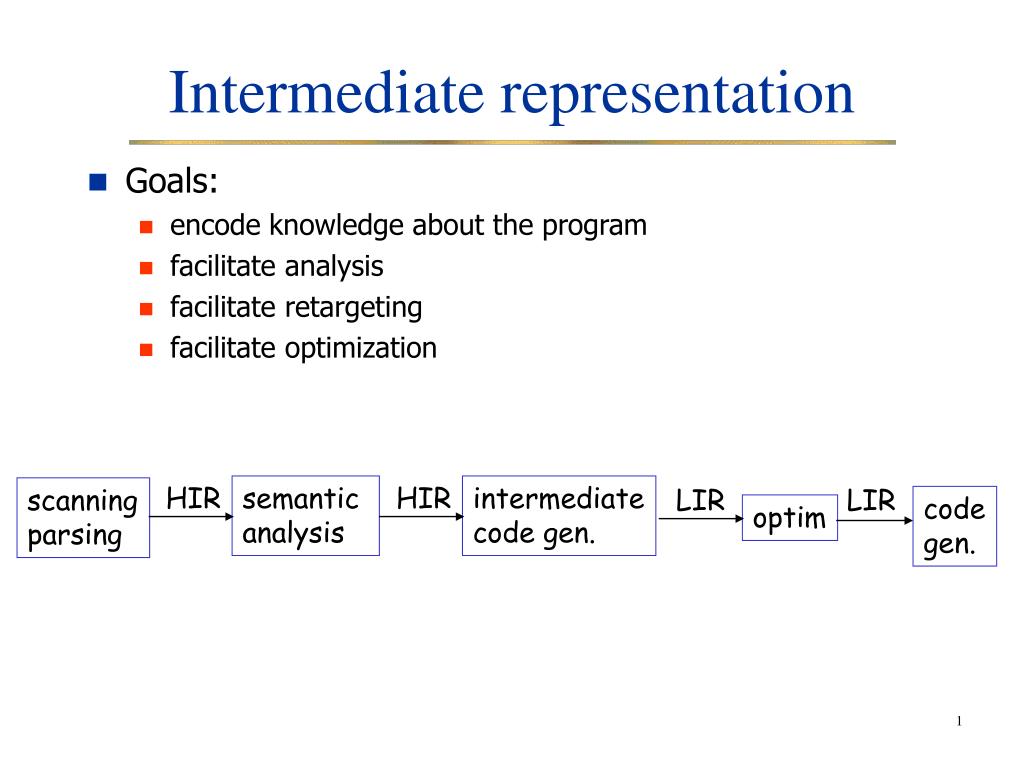

  1. Intermediate representation • Goals: • encode knowledge about the program • facilitate analysis • facilitate retargeting • facilitate optimization HIR semantic analysis HIR intermediate code gen. scanning parsing LIR LIR code gen. optim

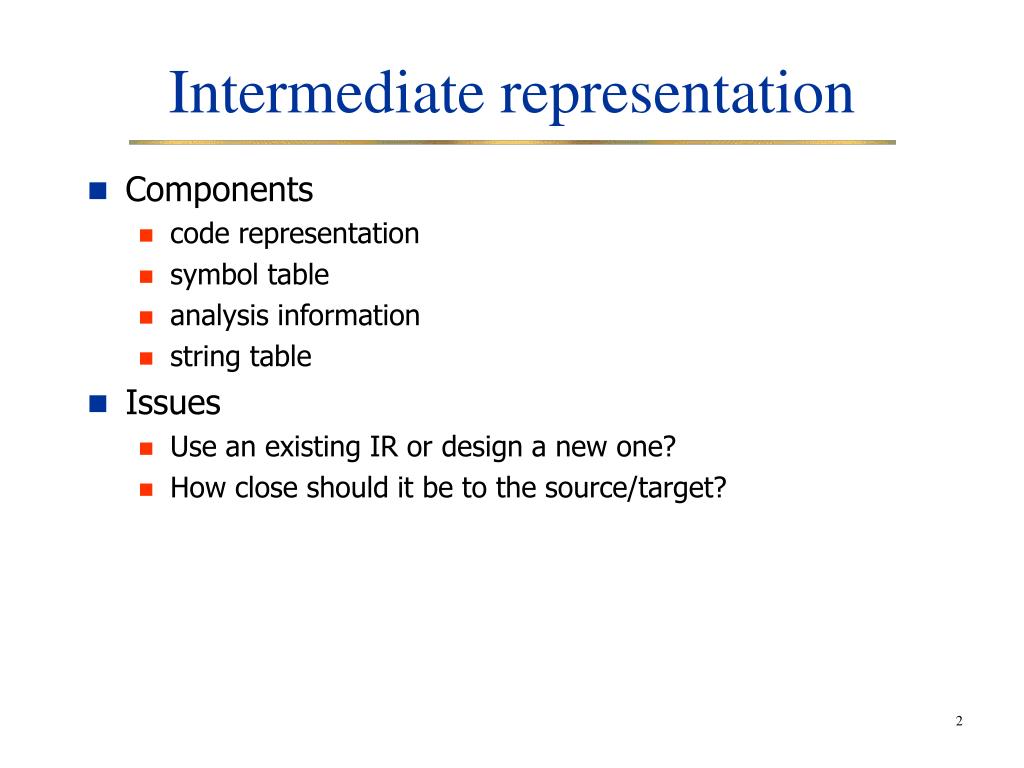

  2. Intermediate representation • Components • code representation • symbol table • analysis information • string table • Issues • Use an existing IR or design a new one? • How close should it be to the source/target?

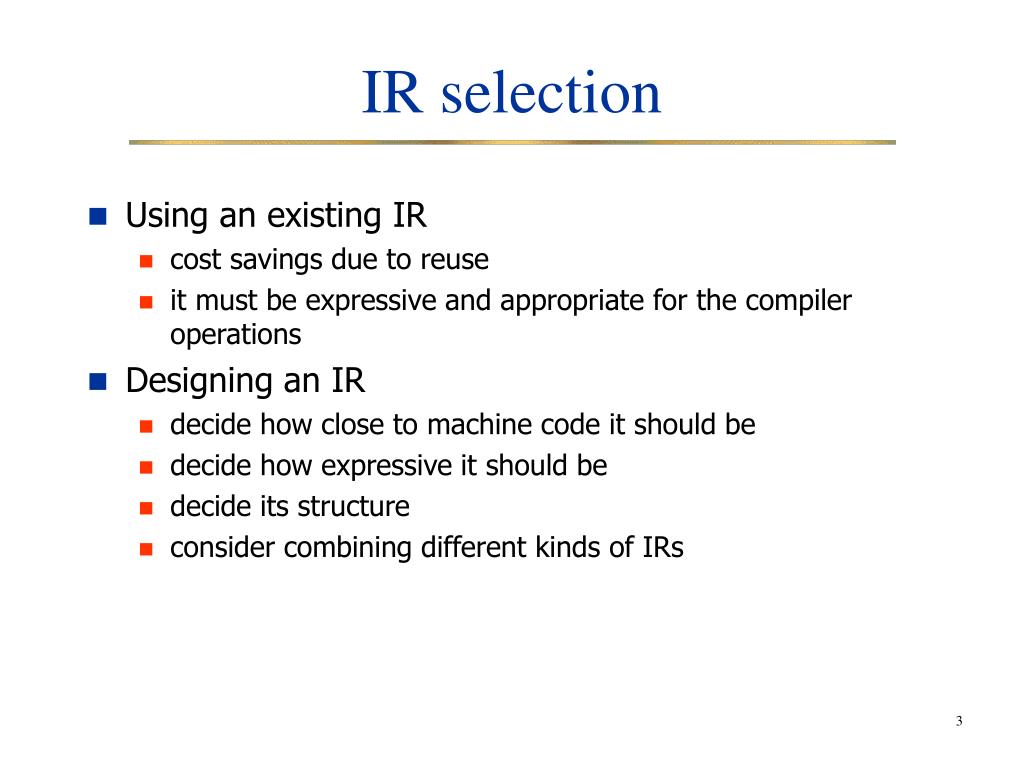

  3. IR selection • Using an existing IR • cost savings due to reuse • it must be expressive and appropriate for the compiler operations • Designing an IR • decide how close to machine code it should be • decide how expressive it should be • decide its structure • consider combining different kinds of IRs

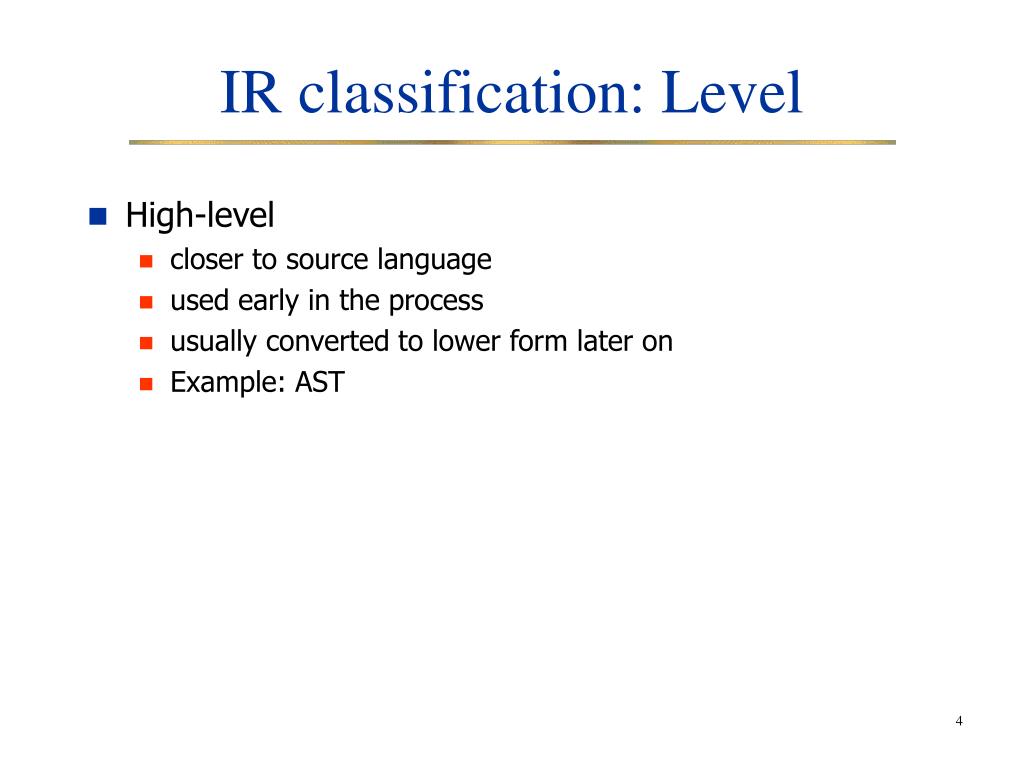

  4. IR classification: Level • High-level • closer to source language • used early in the process • usually converted to lower form later on • Example: AST

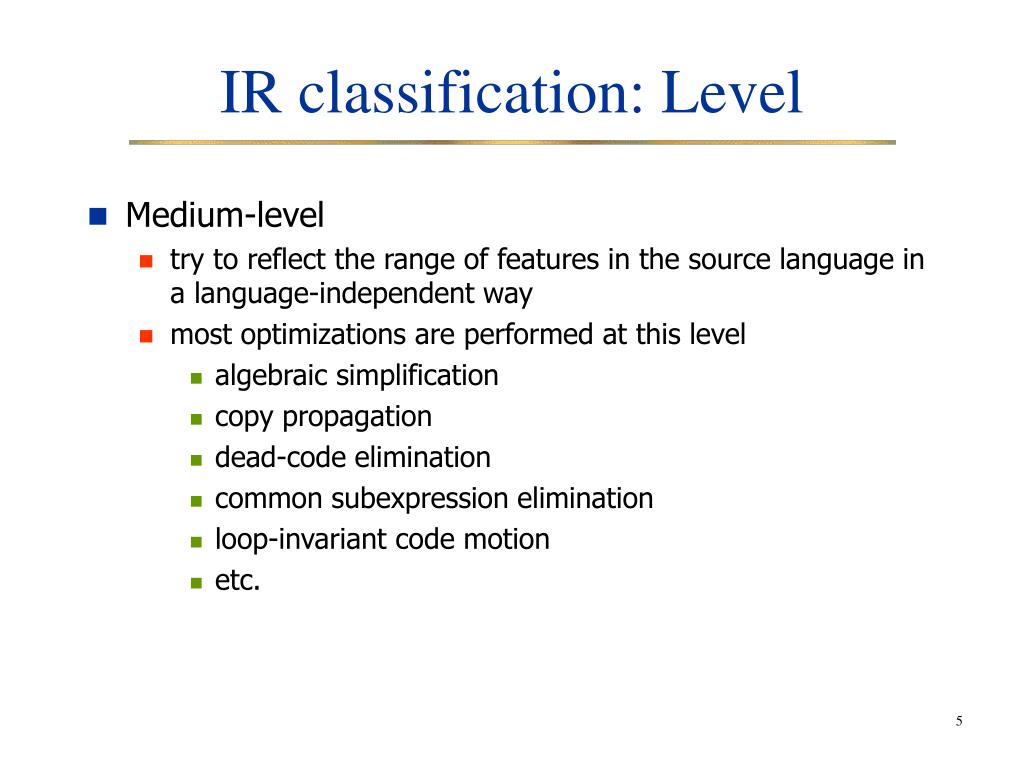

  5. IR classification: Level • Medium-level • try to reflect the range of features in the source language in a language-independent way • most optimizations are performed at this level • algebraic simplification • copy propagation • dead-code elimination • common subexpression elimination • loop-invariant code motion • etc.

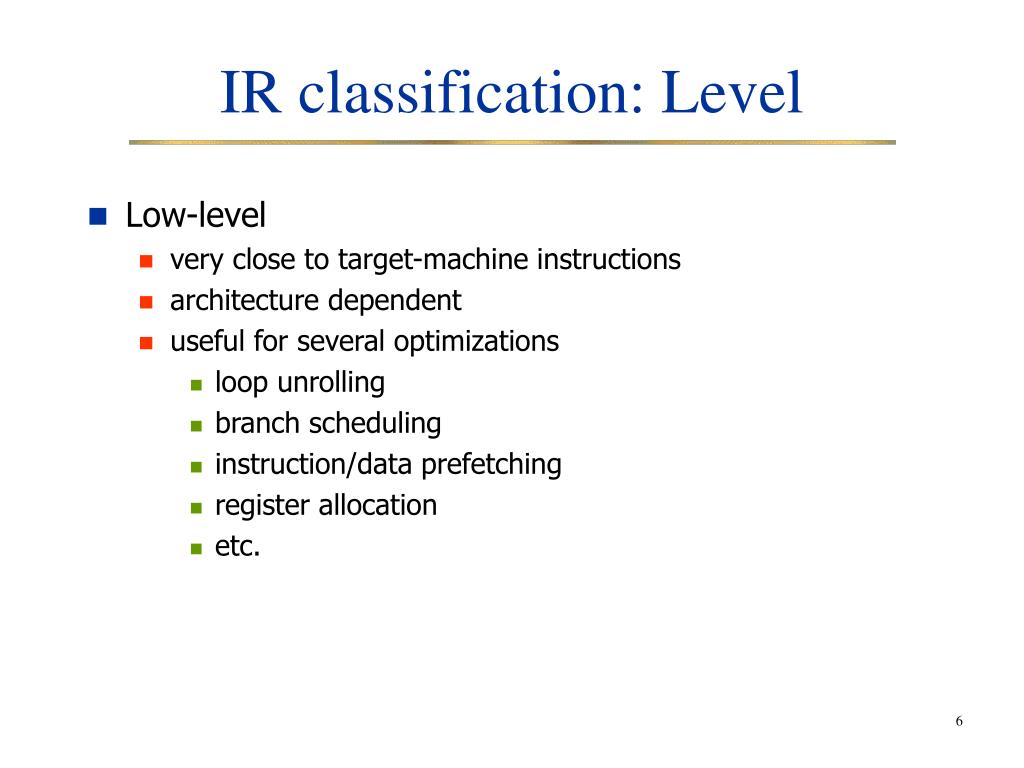

  6. IR classification: Level • Low-level • very close to target-machine instructions • architecture dependent • useful for several optimizations • loop unrolling • branch scheduling • instruction/data prefetching • register allocation • etc.

  7. IR classification: Level i := op1 if step < 0 goto L2 L1: if i > op2 goto L3 instructions i := i + step goto L1 L2: if i < op2 goto L3 instructions i := i + step goto L2 L3: for i := op1 to op2 step op3 instructions endfor High-level Medium-level

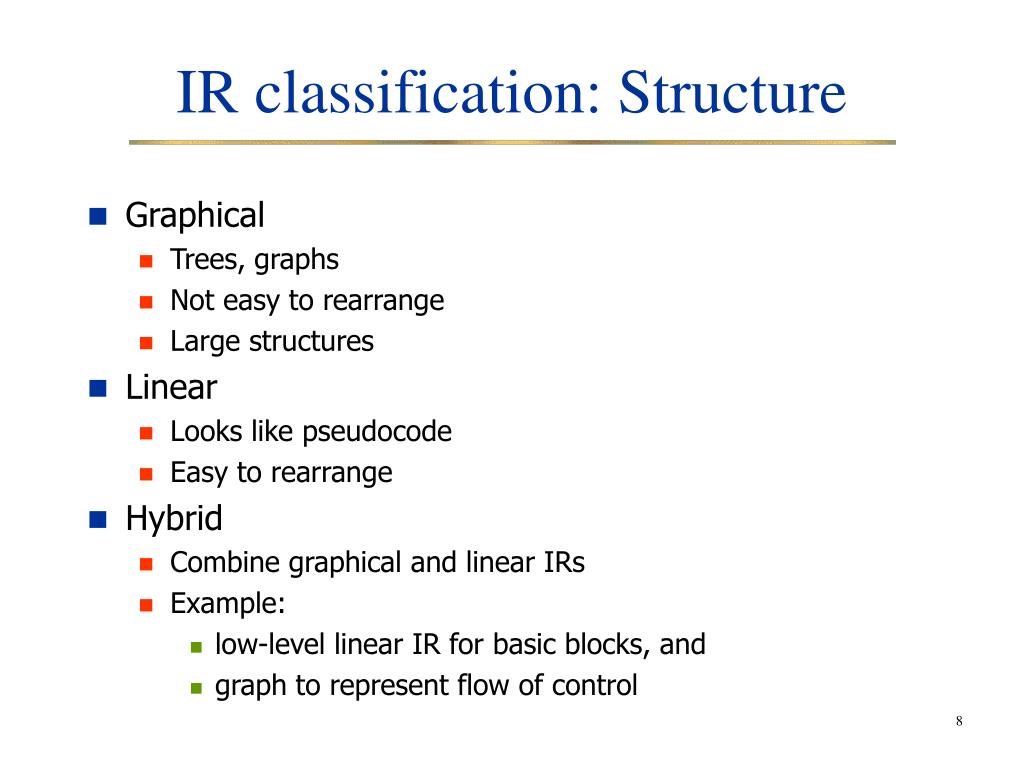

  8. IR classification: Structure • Graphical • Trees, graphs • Not easy to rearrange • Large structures • Linear • Looks like pseudocode • Easy to rearrange • Hybrid • Combine graphical and linear IRs • Example: • low-level linear IR for basic blocks, and • graph to represent flow of control

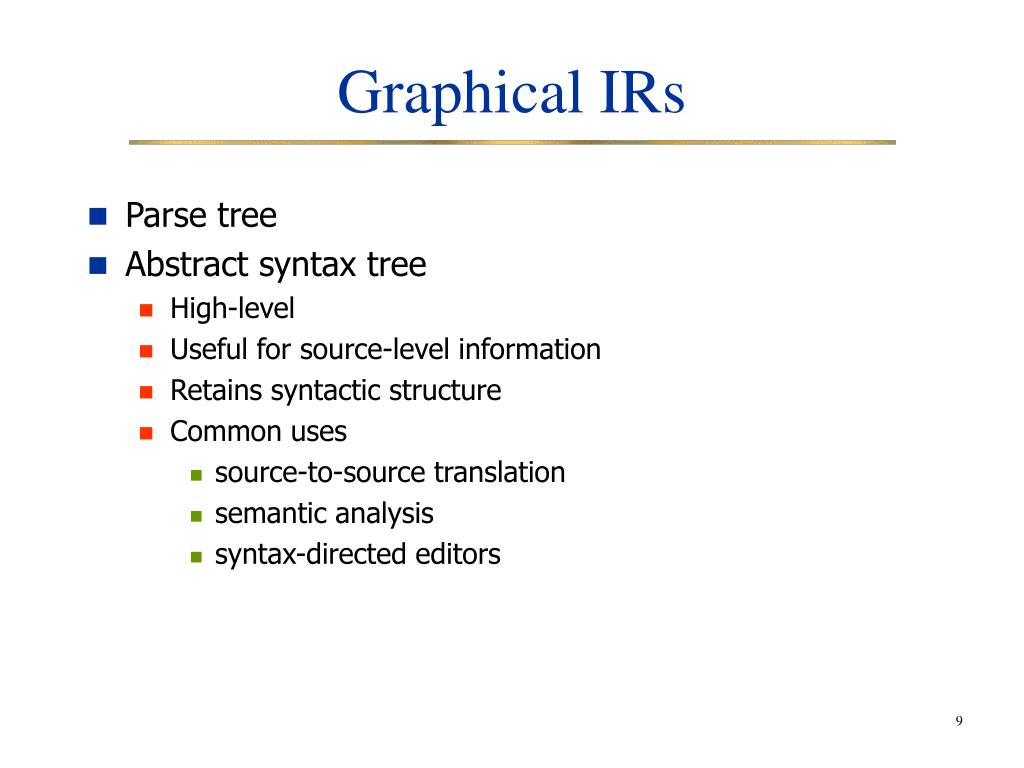

  9. Graphical IRs • Parse tree • Abstract syntax tree • High-level • Useful for source-level information • Retains syntactic structure • Common uses • source-to-source translation • semantic analysis • syntax-directed editors

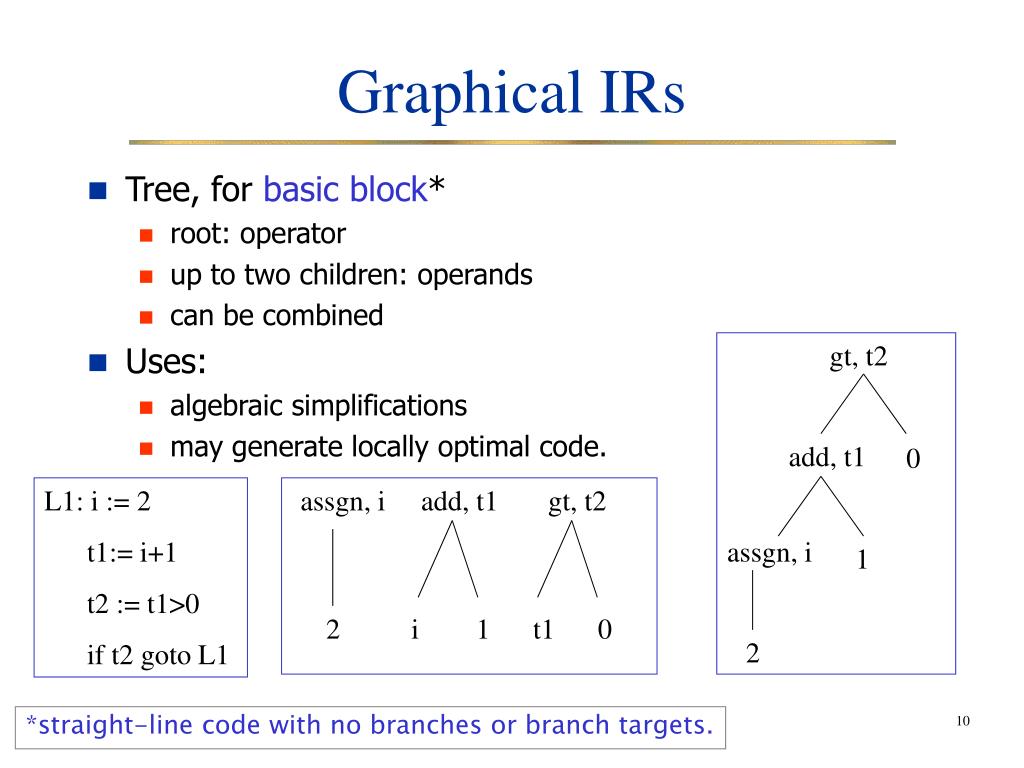

  10. Graphical IRs • Tree, for basic block* • root: operator • up to two children: operands • can be combined • Uses: • algebraic simplifications • may generate locally optimal code. gt, t2 add, t1 0 L1: i := 2 t1:= i+1 t2 := t1>0 if t2 goto L1 assgn, i add, t1 gt, t2 assgn, i 1 2 i 1 t1 0 2 *straight-line code with no branches or branch targets.

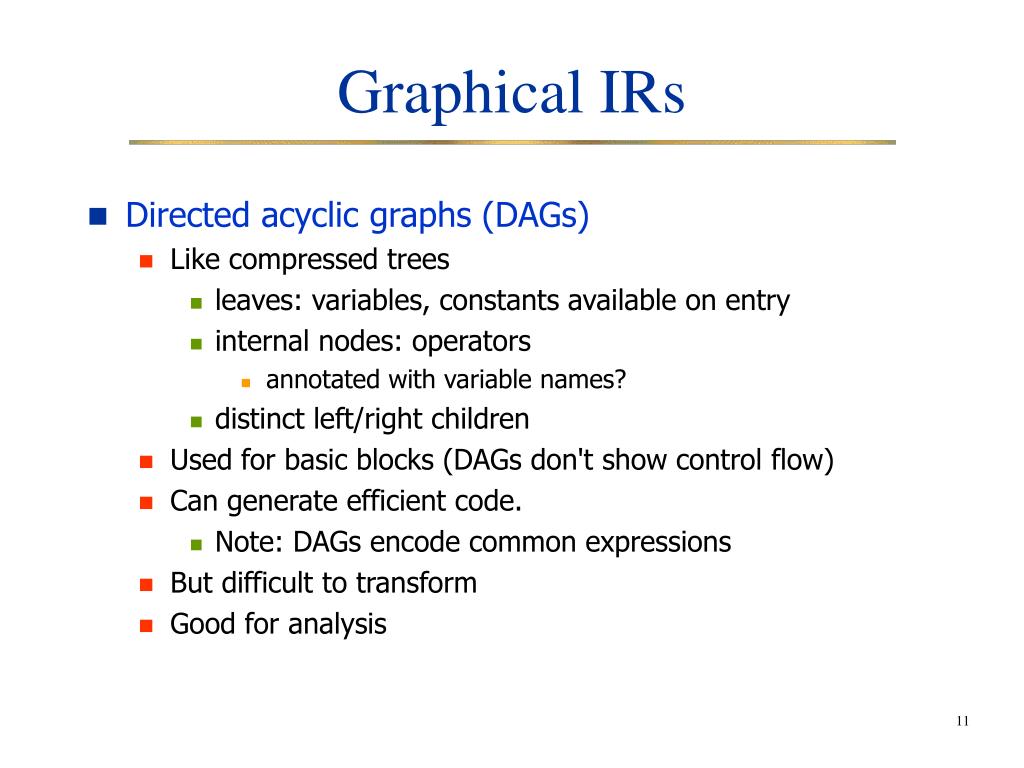

  11. Graphical IRs • Directed acyclic graphs (DAGs) • Like compressed trees • leaves: variables, constants available on entry • internal nodes: operators • annotated with variable names? • distinct left/right children • Used for basic blocks (DAGs don't show control flow) • Can generate efficient code. • Note: DAGs encode common expressions • But difficult to transform • Good for analysis

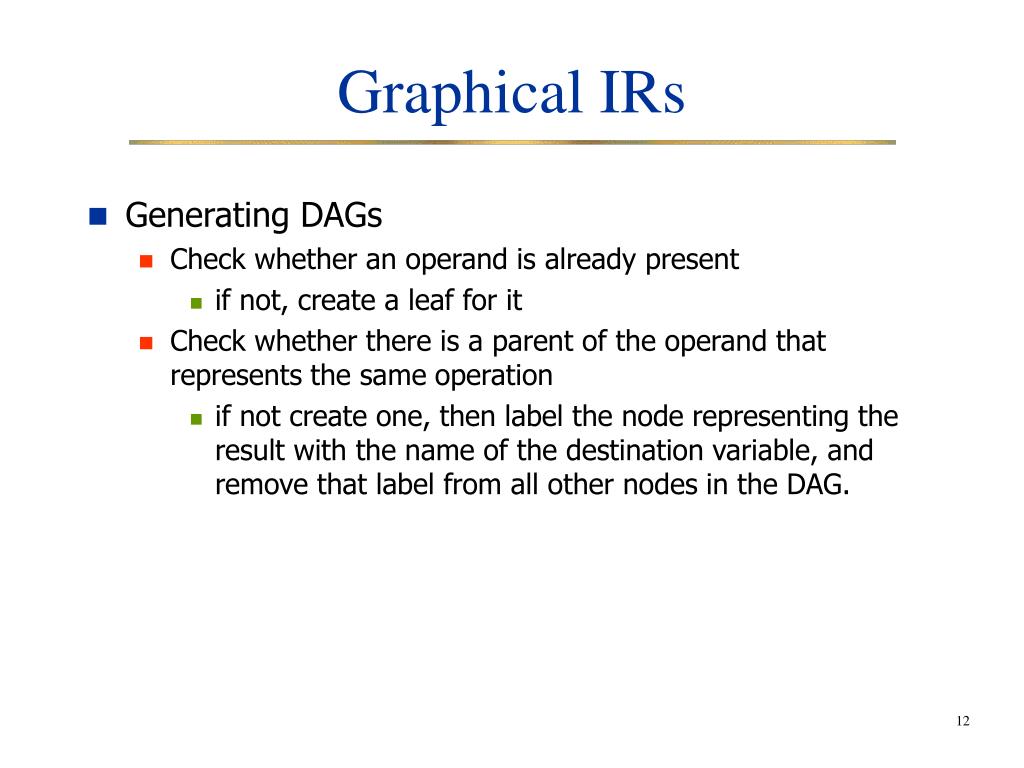

  12. Graphical IRs • Generating DAGs • Check whether an operand is already present • if not, create a leaf for it • Check whether there is a parent of the operand that represents the same operation • if not create one, then label the node representing the result with the name of the destination variable, and remove that label from all other nodes in the DAG.

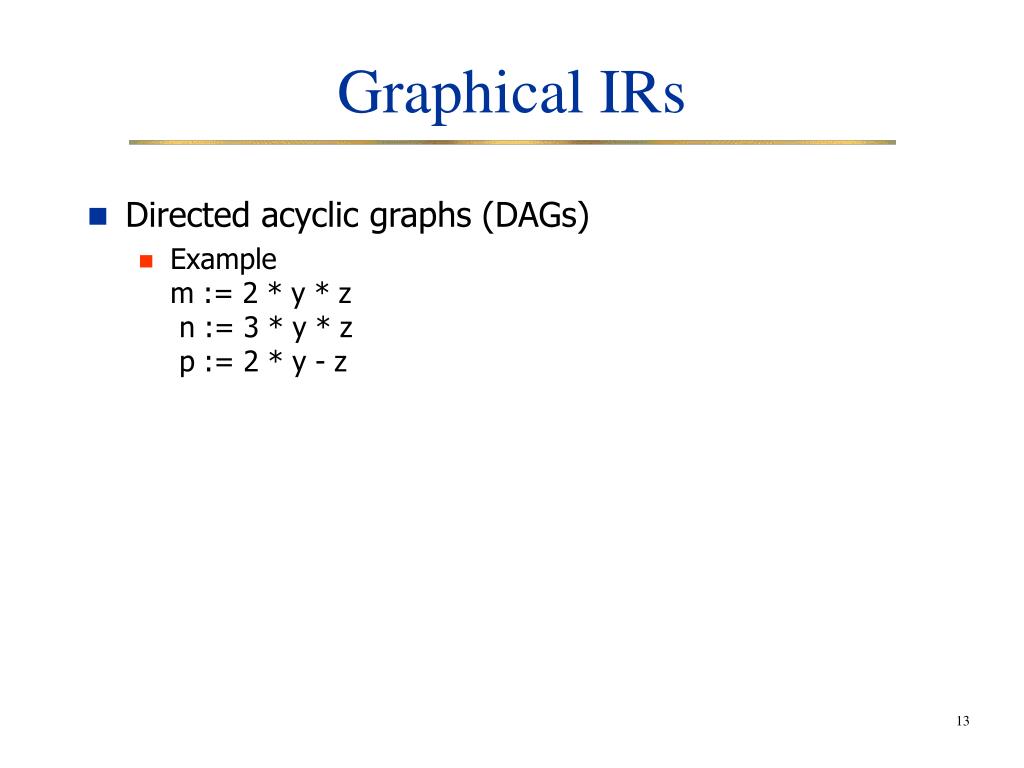

  13. Graphical IRs • Directed acyclic graphs (DAGs) • Examplem := 2 * y * z n := 3 * y * z p := 2 * y - z

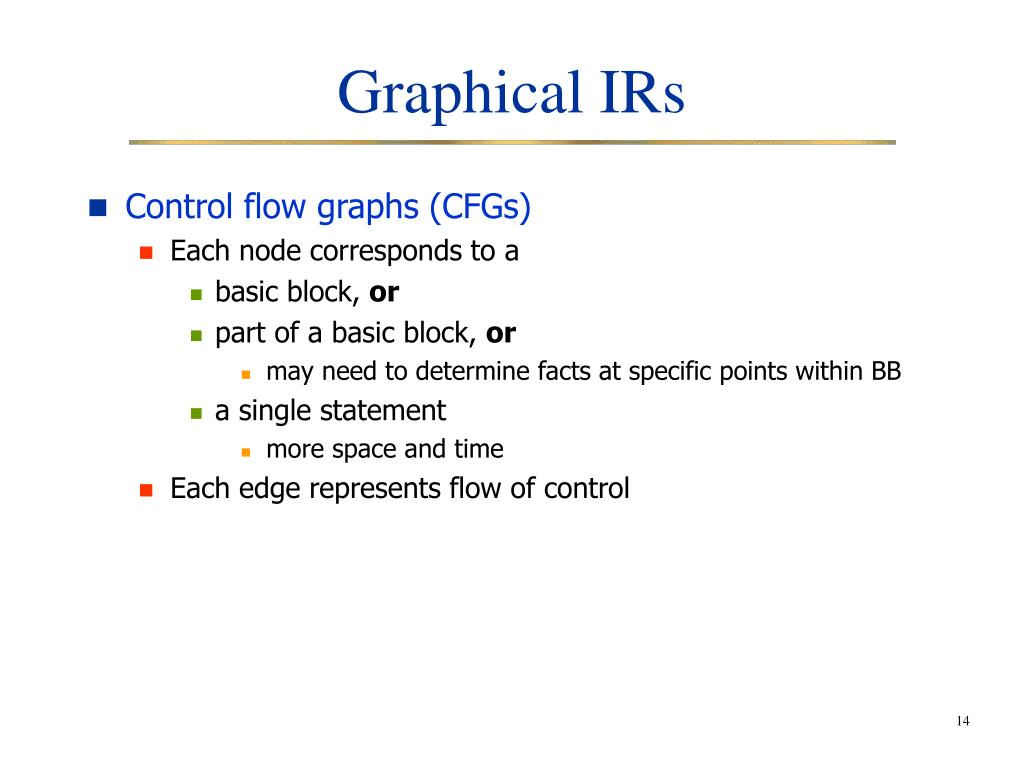

  14. Graphical IRs • Control flow graphs (CFGs) • Each node corresponds to a • basic block, or • part of a basic block, or • may need to determine facts at specific points within BB • a single statement • more space and time • Each edge represents flow of control

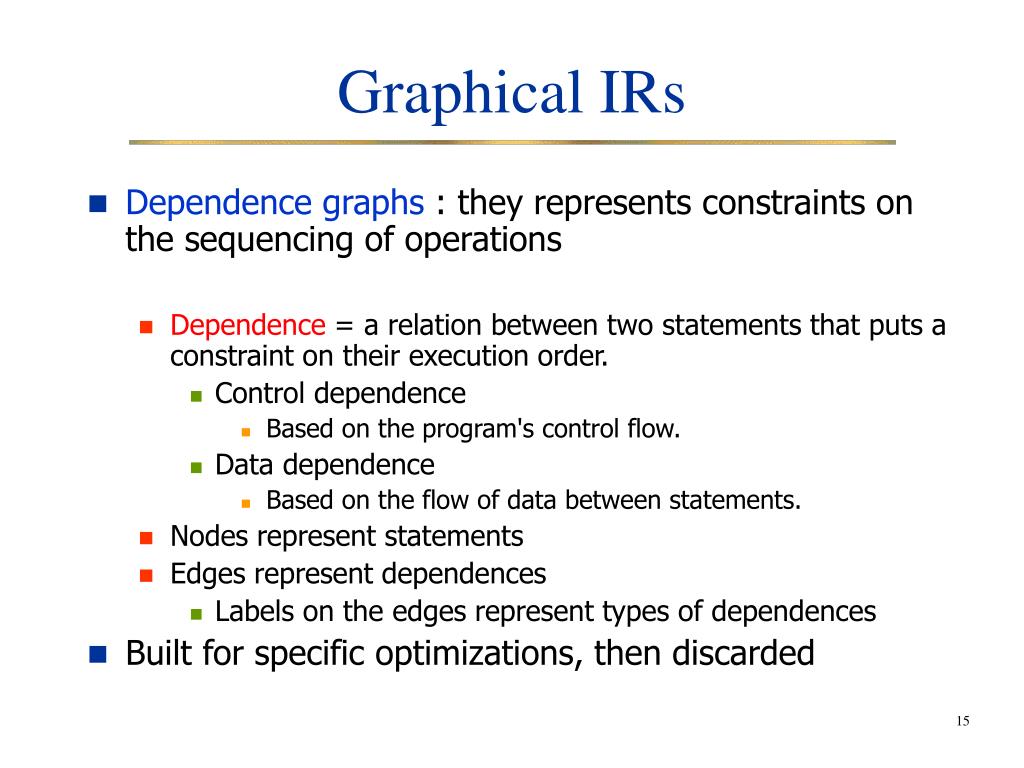

  15. Graphical IRs • Dependence graphs : they represents constraints on the sequencing of operations • Dependence = a relation between two statements that puts a constraint on their execution order. • Control dependence • Based on the program's control flow. • Data dependence • Based on the flow of data between statements. • Nodes represent statements • Edges represent dependences • Labels on the edges represent types of dependences • Built for specific optimizations, then discarded

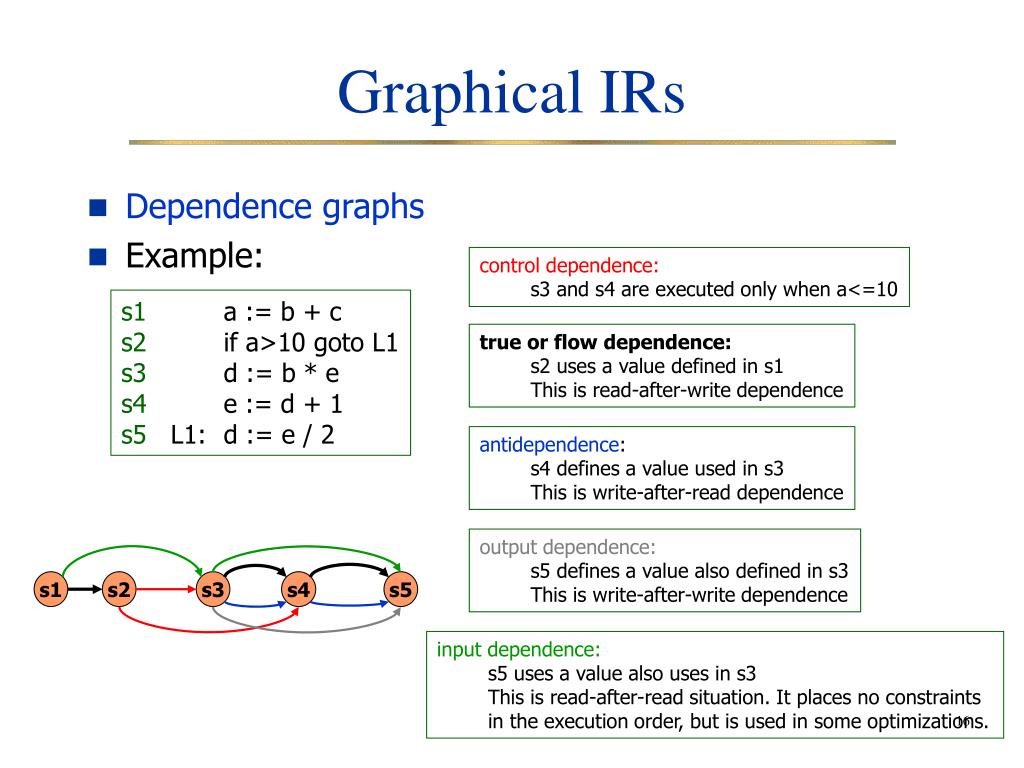

  16. s1 s2 s3 s4 s5 Graphical IRs • Dependence graphs • Example: control dependence: s3 and s4 are executed only when a<=10 s1 a := b + c s2 if a>10 goto L1 s3 d := b * e s4 e := d + 1 s5 L1: d := e / 2 true or flow dependence: s2 uses a value defined in s1 This is read-after-write dependence antidependence: s4 defines a value used in s3 This is write-after-read dependence output dependence: s5 defines a value also defined in s3 This is write-after-write dependence input dependence: s5 uses a value also uses in s3 This is read-after-read situation. It places no constraints in the execution order, but is used in some optimizations.

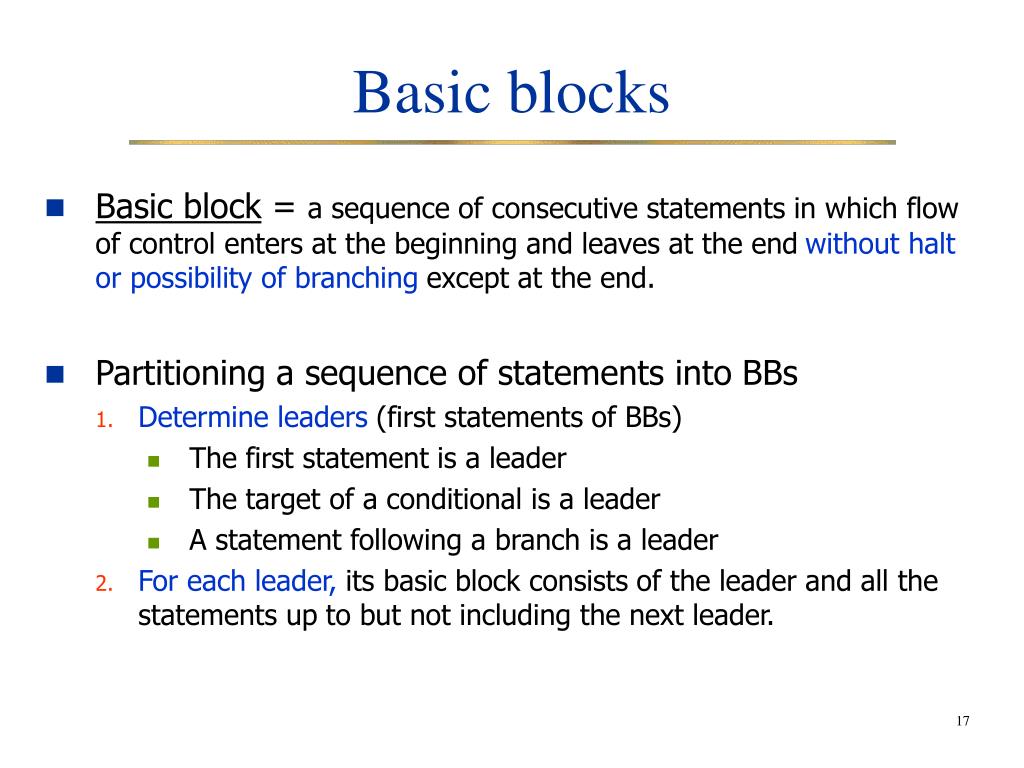

  17. Basic blocks • Basic block = a sequence of consecutive statements in which flow of control enters at the beginning and leaves at the end without halt or possibility of branching except at the end. • Partitioning a sequence of statements into BBs • Determine leaders (first statements of BBs) • The first statement is a leader • The target of a conditional is a leader • A statement following a branch is a leader • For each leader, its basic block consists of the leader and all the statements up to but not including the next leader.

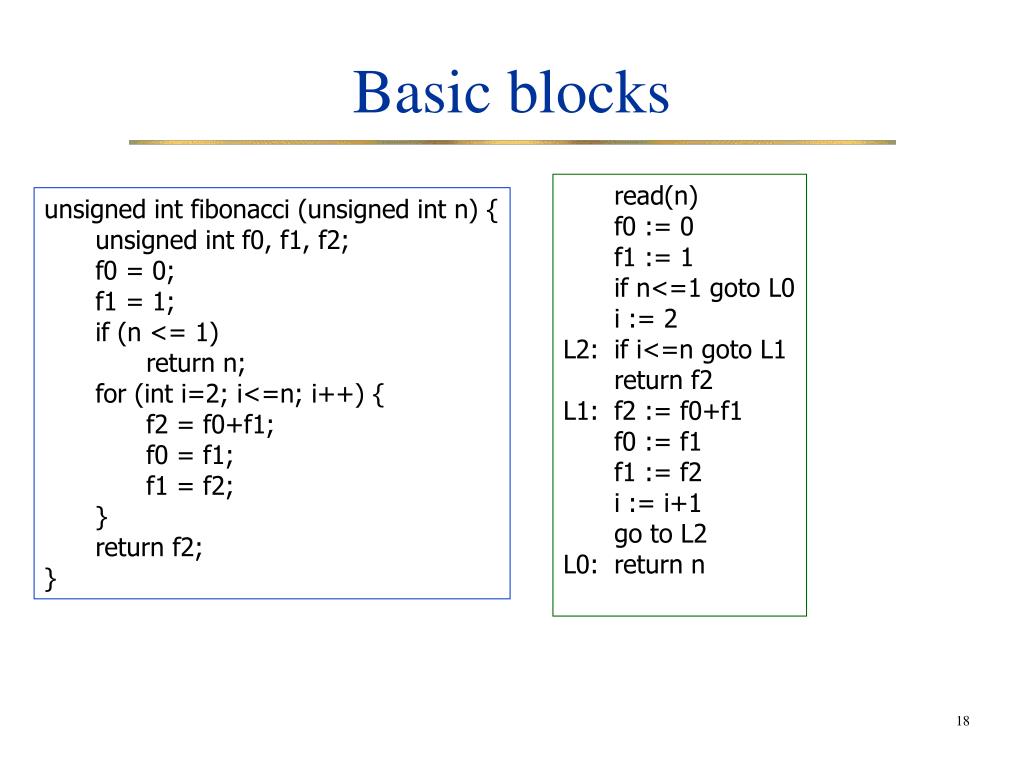

  18. Basic blocks read(n) f0 := 0 f1 := 1 if n<=1 goto L0 i := 2 L2: if i<=n goto L1 return f2 L1: f2 := f0+f1 f0 := f1 f1 := f2 i := i+1 go to L2 L0: return n unsigned int fibonacci (unsigned int n) { unsigned int f0, f1, f2; f0 = 0; f1 = 1; if (n <= 1) return n; for (int i=2; i<=n; i++) { f2 = f0+f1; f0 = f1; f1 = f2; } return f2; }

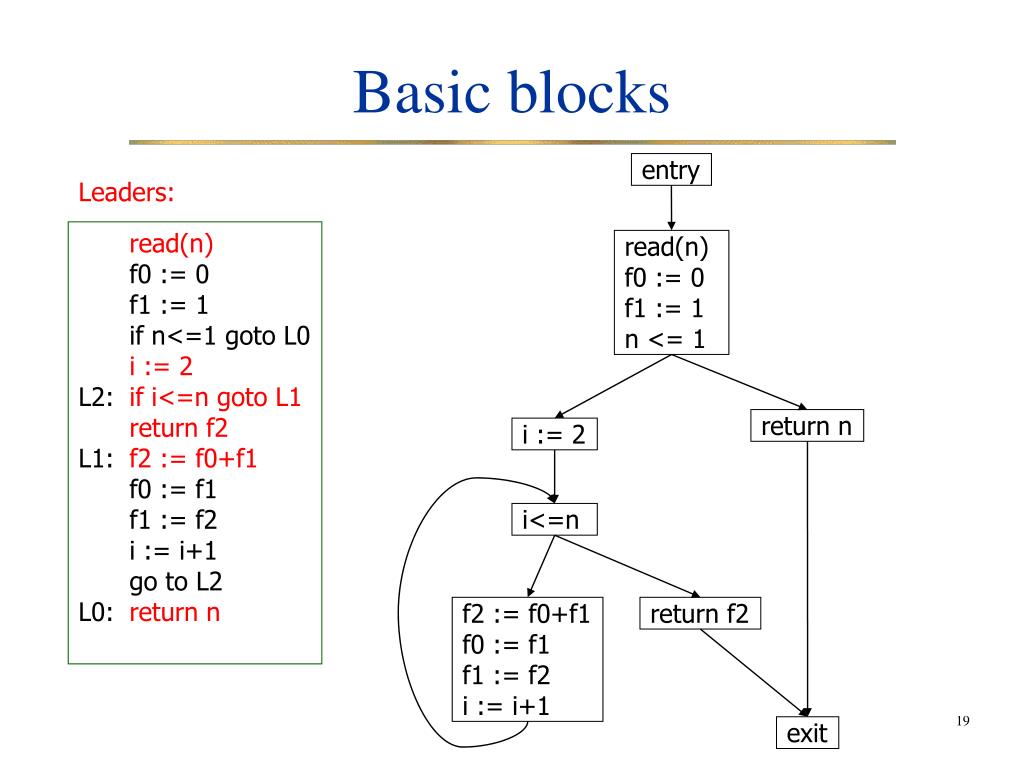

  19. Basic blocks entry Leaders: read(n) f0 := 0 f1 := 1 if n<=1 goto L0 i := 2 L2: if i<=n goto L1 return f2 L1: f2 := f0+f1 f0 := f1 f1 := f2 i := i+1 go to L2 L0: return n read(n) f0 := 0 f1 := 1 n <= 1 return n i := 2 i<=n f2 := f0+f1 f0 := f1 f1 := f2 i := i+1 return f2 exit

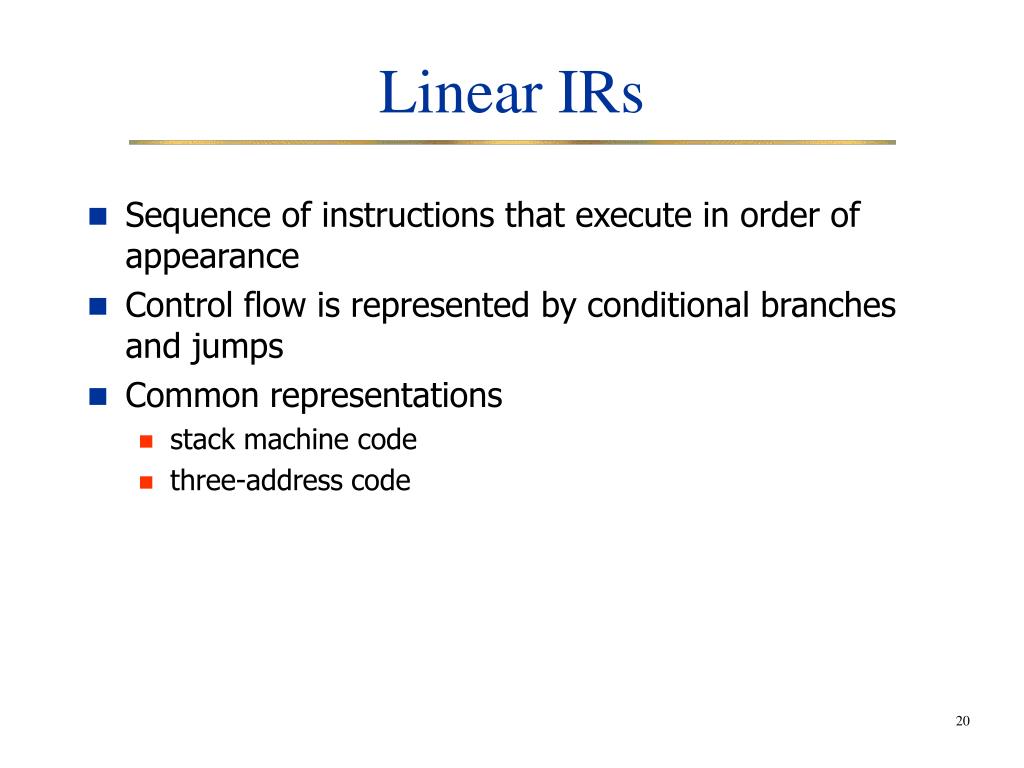

  20. Linear IRs • Sequence of instructions that execute in order of appearance • Control flow is represented by conditional branches and jumps • Common representations • stack machine code • three-address code

  21. Linear IRs • Stack machine code • Assumes presence of operand stack • Useful for stack architectures, JVM • Operations typically pop operands and push results. • Advantages • Easy code generation • Compact form • Disadvantages • Difficult to rearrange • Difficult to reuse expressions

  22. Linear IRs • Three-address code • Compact • Generates temp variables • Level of abstraction may vary • Loses syntactic structure • Quadruples • operator • up to two operands • destination • Triples • similar to quadruples but the results are not named explicitly (index of operation is implicit name) • Implement as table, array of pointers, or list

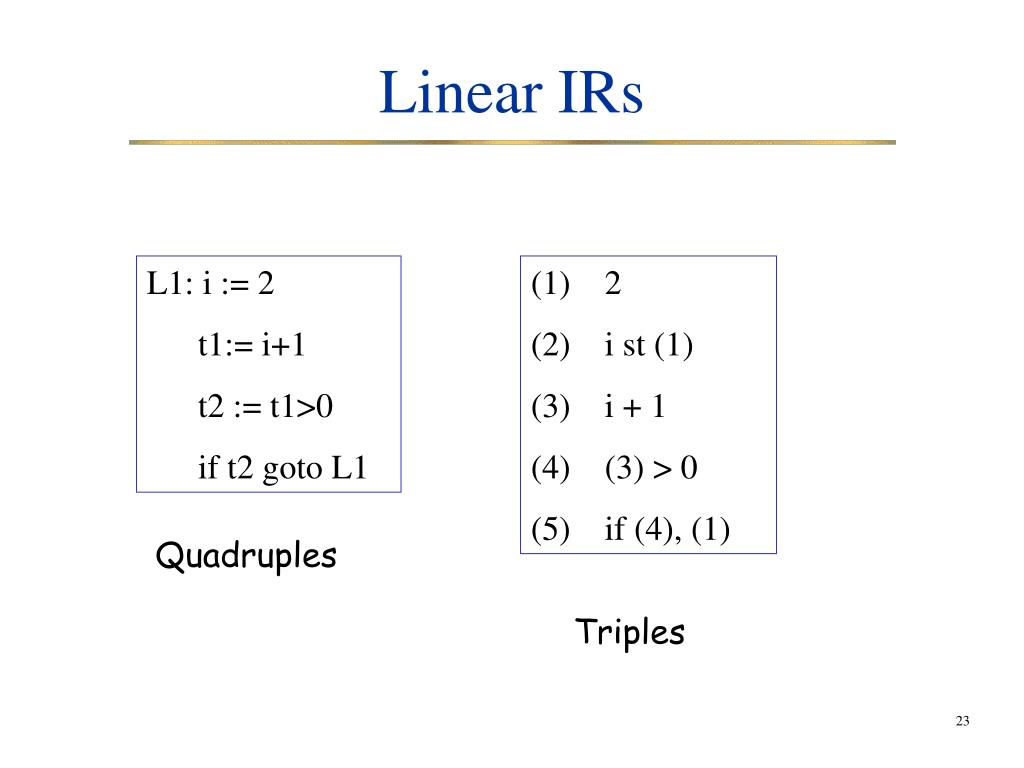

  23. Linear IRs L1: i := 2 t1:= i+1 t2 := t1>0 if t2 goto L1 (1) 2 (2) i st (1) (3) i + 1 (4) (3) > 0 (5) if (4), (1) Quadruples Triples

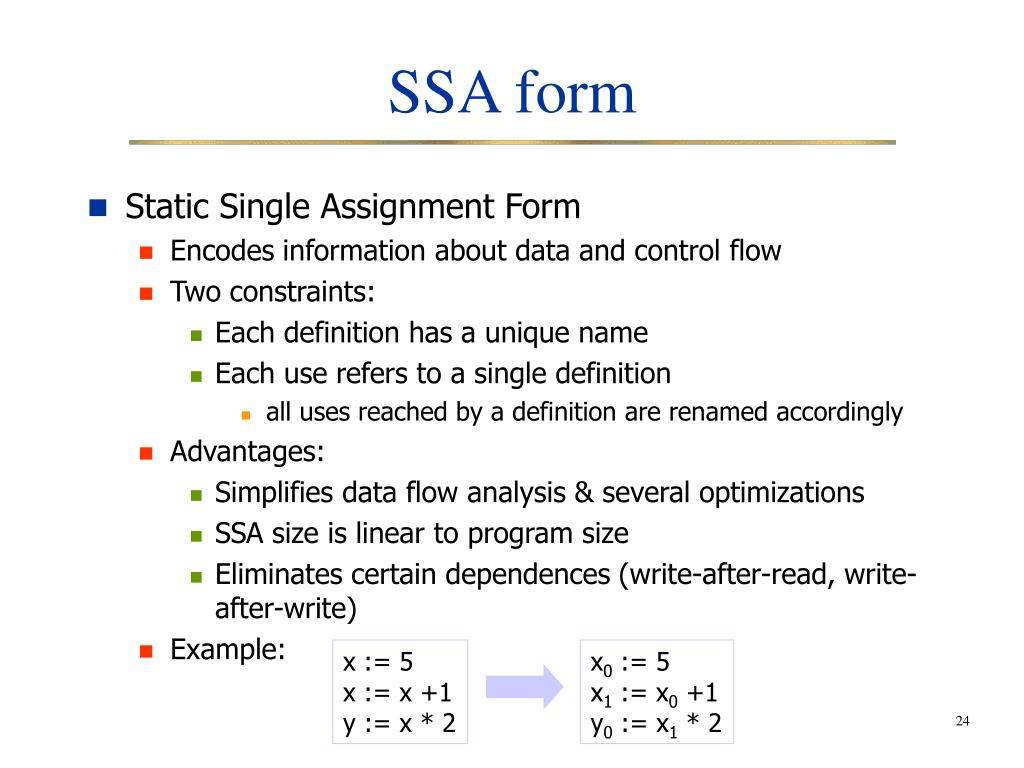

  24. SSA form • Static Single Assignment Form • Encodes information about data and control flow • Two constraints: • Each definition has a unique name • Each use refers to a single definition • all uses reached by a definition are renamed accordingly • Advantages: • Simplifies data flow analysis & several optimizations • SSA size is linear to program size • Eliminates certain dependences (write-after-read, write-after-write) • Example: x := 5 x := x +1 y := x * 2 x0 := 5 x1 := x0 +1 y0 := x1 * 2

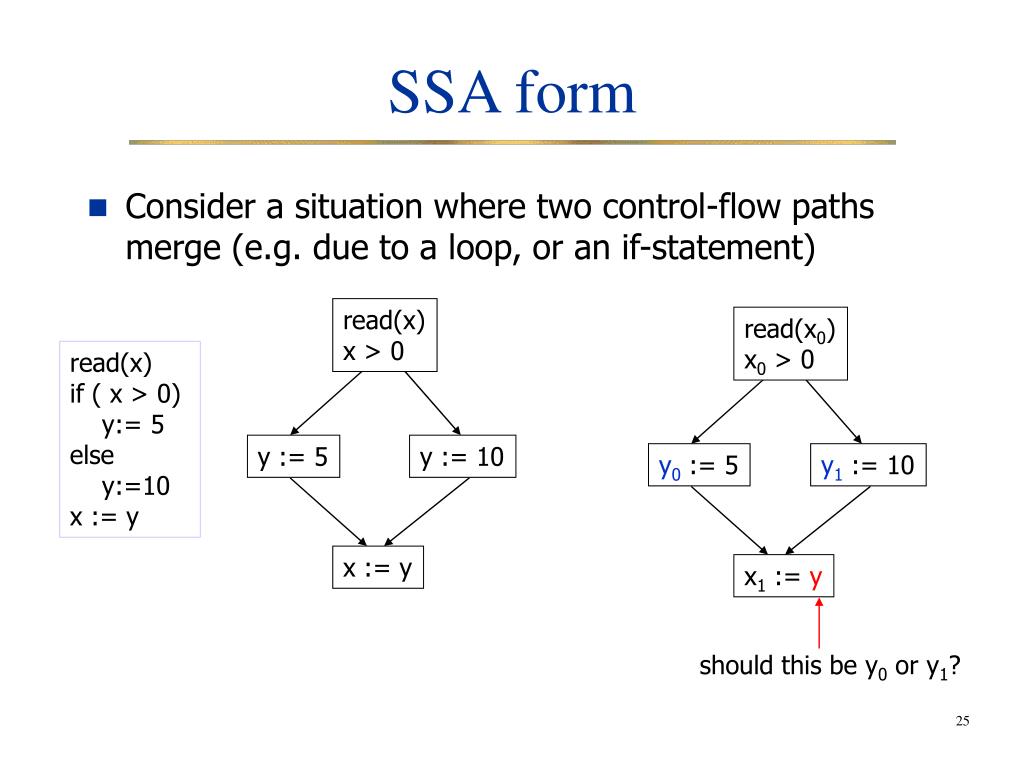

  25. SSA form • Consider a situation where two control-flow paths merge (e.g. due to a loop, or an if-statement) read(x) x > 0 read(x0) x0 > 0 read(x) if ( x > 0) y:= 5 else y:=10 x := y y := 5 y := 10 y0:= 5 y1 := 10 x := y x1 := y should this be y0 or y1?

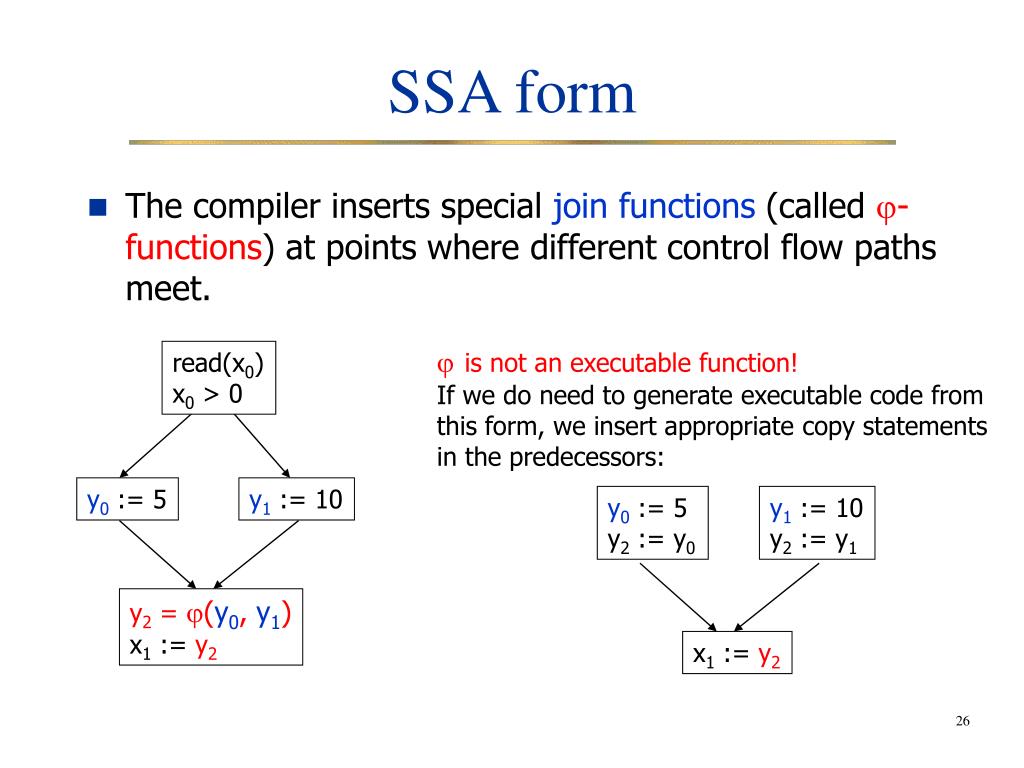

  26. SSA form • The compiler inserts special join functions (called -functions) at points where different control flow paths meet. is not an executable function! If we do need to generate executable code from this form, we insert appropriate copy statements in the predecessors: read(x0) x0 > 0 y0:= 5 y1 := 10 y0:= 5 y2 := y0 y1 := 10 y2 := y1 y2 = (y0, y1) x1 := y2 x1 := y2

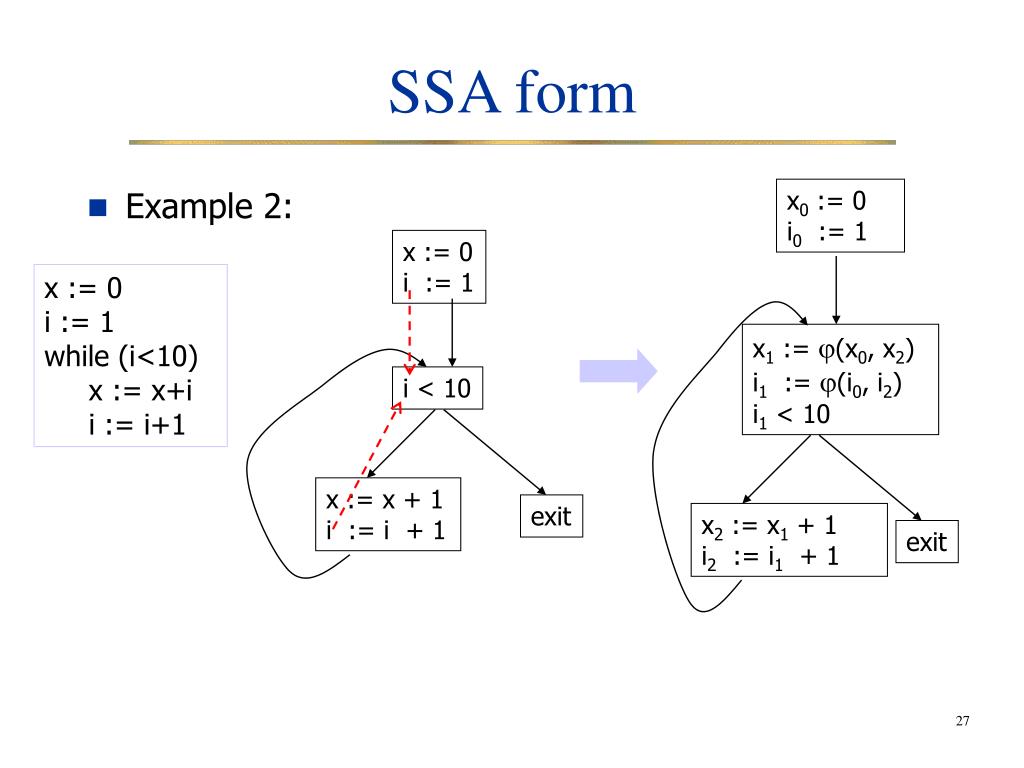

  27. x0 := 0 i0 := 1 x1 := (x0, x2) i1 := (i0, i2) i1 < 10 x2 := x1 + 1 i2 := i1 + 1 exit SSA form • Example 2: x := 0 i := 1 x := 0 i := 1 while (i<10) x := x+i i := i+1 i < 10 x := x + 1 i := i + 1 exit

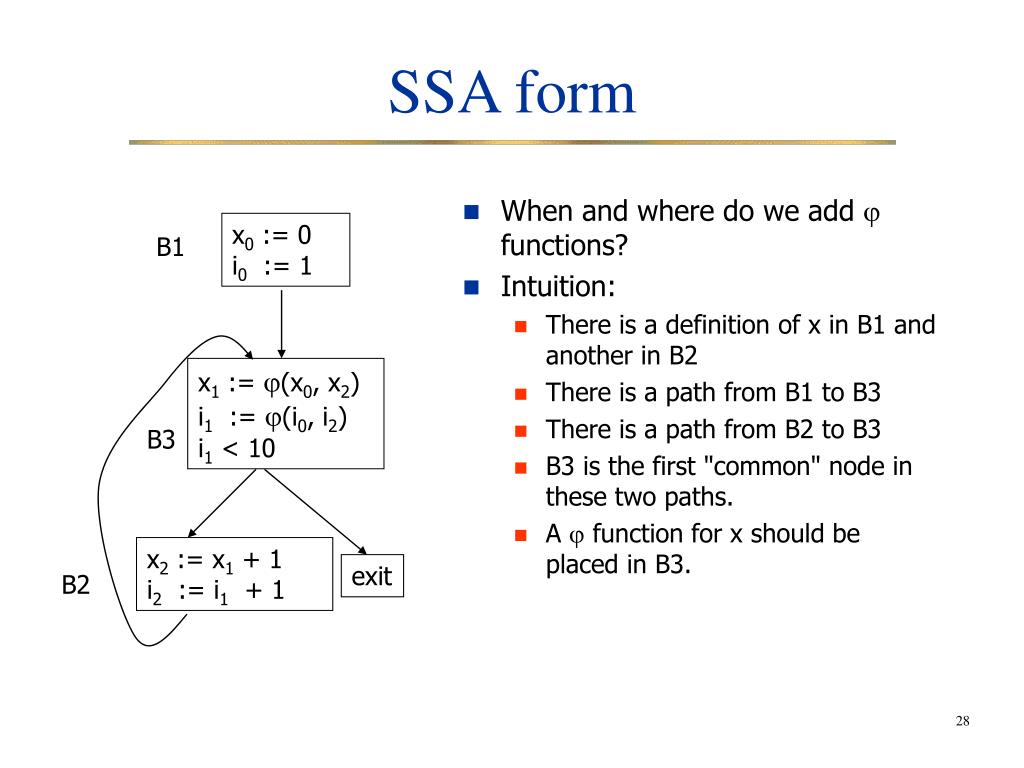

  28. When and where do we add  functions? Intuition: There is a definition of x in B1 and another in B2 There is a path from B1 to B3 There is a path from B2 to B3 B3 is the first "common" node in these two paths. A  function for x should be placed in B3. SSA form x0 := 0 i0 := 1 B1 x1 := (x0, x2) i1 := (i0, i2) i1 < 10 B3 x2 := x1 + 1 i2 := i1 + 1 exit B2

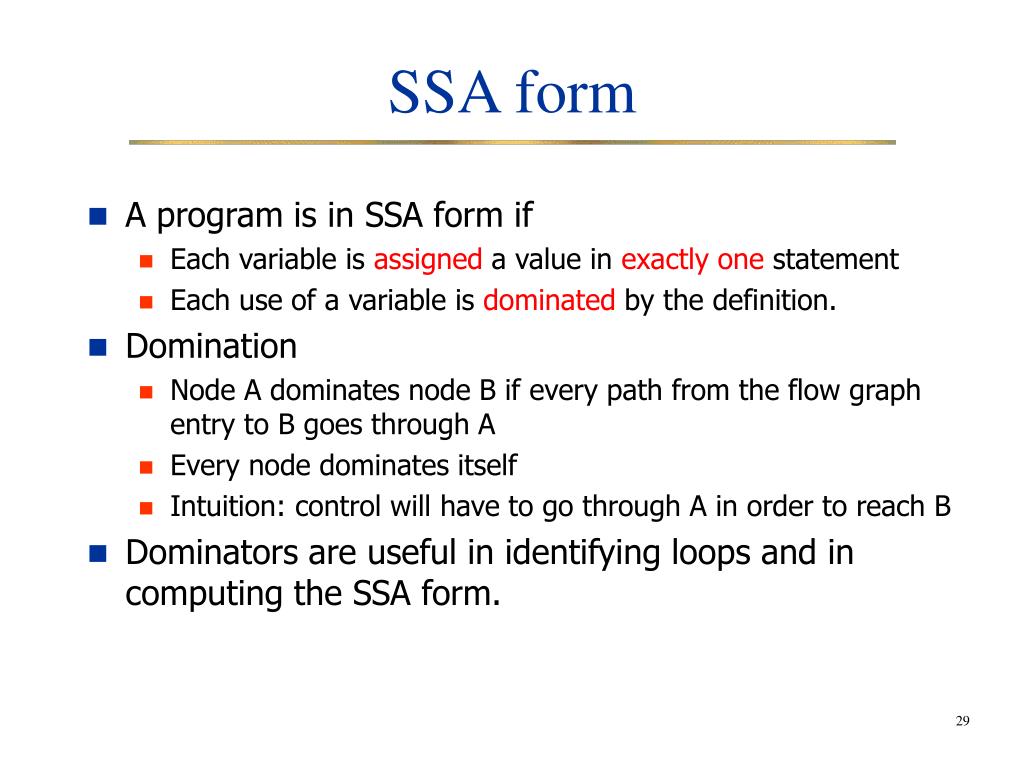

  29. SSA form • A program is in SSA form if • Each variable is assigned a value in exactly one statement • Each use of a variable is dominated by the definition. • Domination • Node A dominates node B if every path from the flow graph entry to B goes through A • Every node dominates itself • Intuition: control will have to go through A in order to reach B • Dominators are useful in identifying loops and in computing the SSA form.

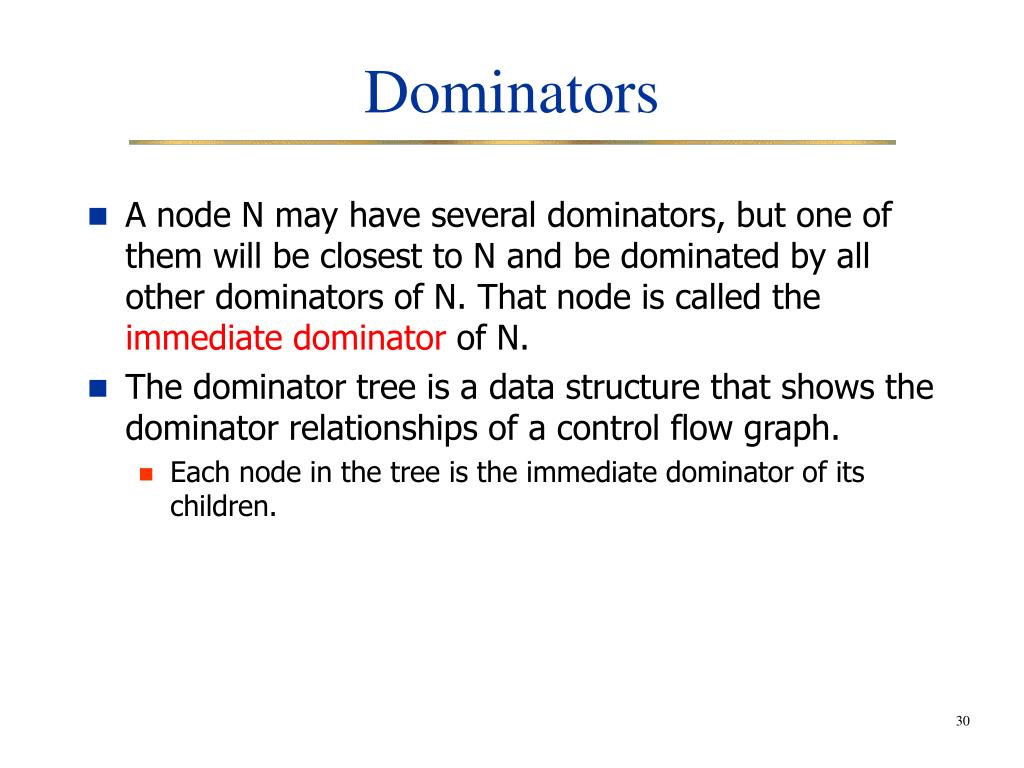

  30. Dominators • A node N may have several dominators, but one of them will be closest to N and be dominated by all other dominators of N. That node is called the immediate dominator of N. • The dominator tree is a data structure that shows the dominator relationships of a control flow graph. • Each node in the tree is the immediate dominator of its children.

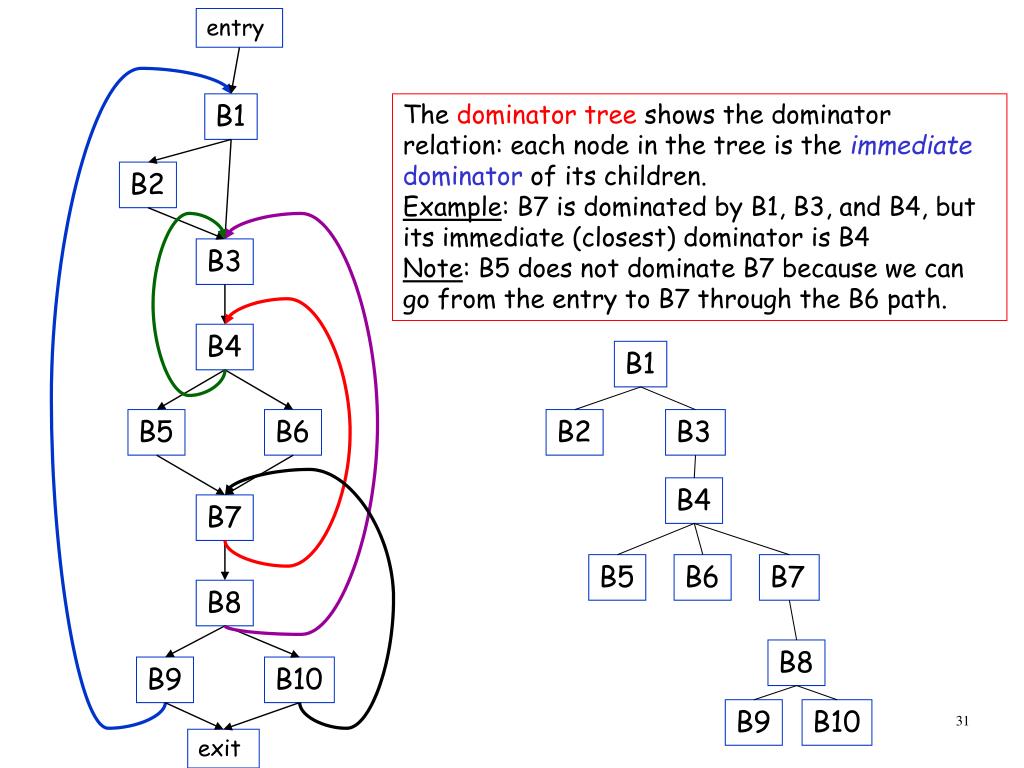

  31. B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 entry B1 The dominator tree shows the dominator relation: each node in the tree is the immediate dominator of its children. Example: B7 is dominated by B1, B3, and B4, but its immediate (closest) dominator is B4 Note: B5 does not dominate B7 because we can go from the entry to B7 through the B6 path. B2 B3 B4 B5 B6 B7 B8 B9 B10 exit

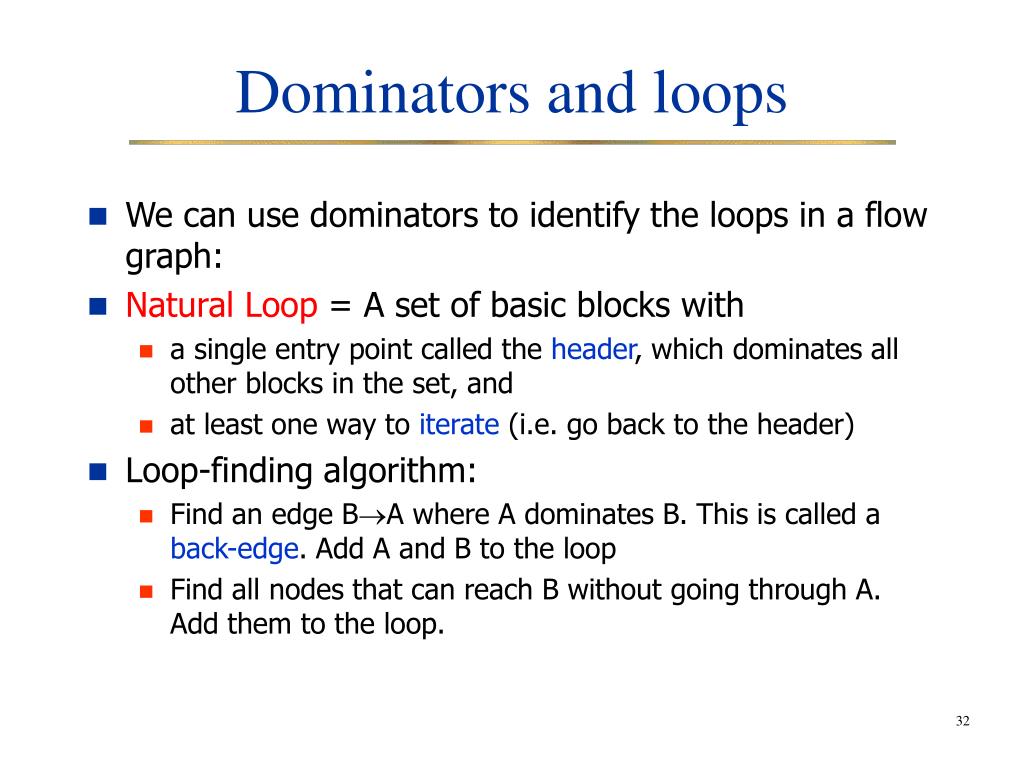

  32. Dominators and loops • We can use dominators to identify the loops in a flow graph: • Natural Loop = A set of basic blocks with • a single entry point called the header, which dominates all other blocks in the set, and • at least one way to iterate (i.e. go back to the header) • Loop-finding algorithm: • Find an edge BA where A dominates B. This is called a back-edge. Add A and B to the loop • Find all nodes that can reach B without going through A. Add them to the loop.

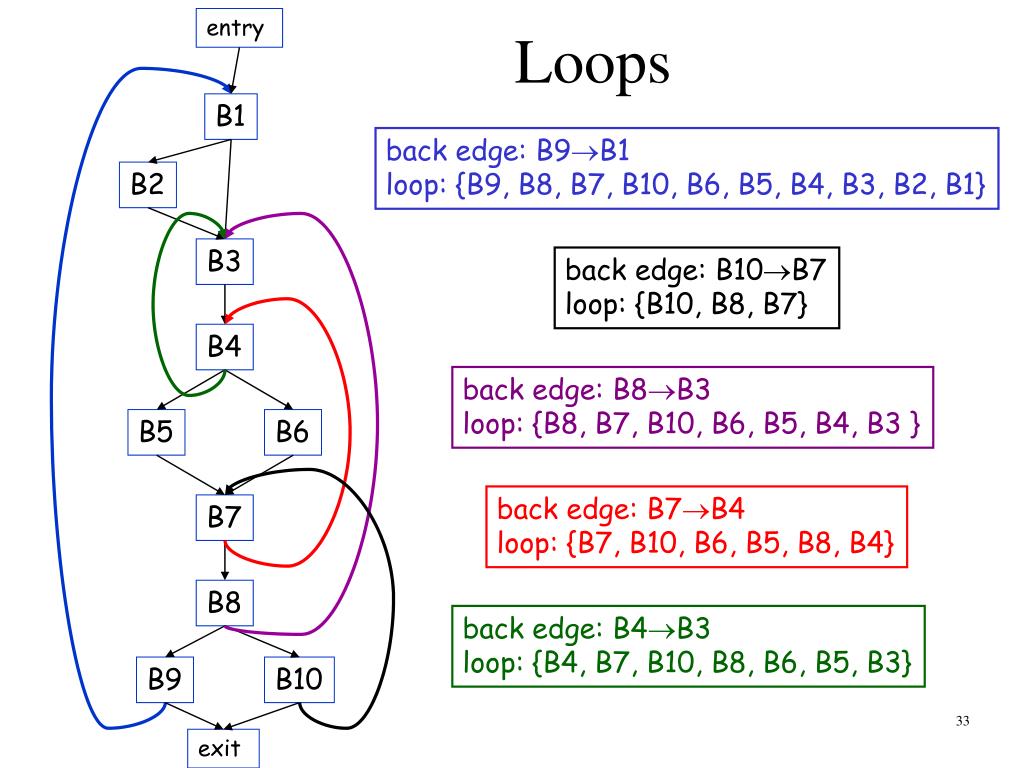

  33. entry Loops B1 back edge: B9B1 loop: {B9, B8, B7, B10, B6, B5, B4, B3, B2, B1} B2 B3 back edge: B10B7 loop: {B10, B8, B7} B4 back edge: B8B3 loop: {B8, B7, B10, B6, B5, B4, B3 } B5 B6 back edge: B7B4 loop: {B7, B10, B6, B5, B8, B4} B7 B8 back edge: B4B3 loop: {B4, B7, B10, B8, B6, B5, B3} B9 B10 exit

  34. Nested Loops • Loop K is nested within loop L if • L and K have different headers,  and  respectively, and •  is dominated by 

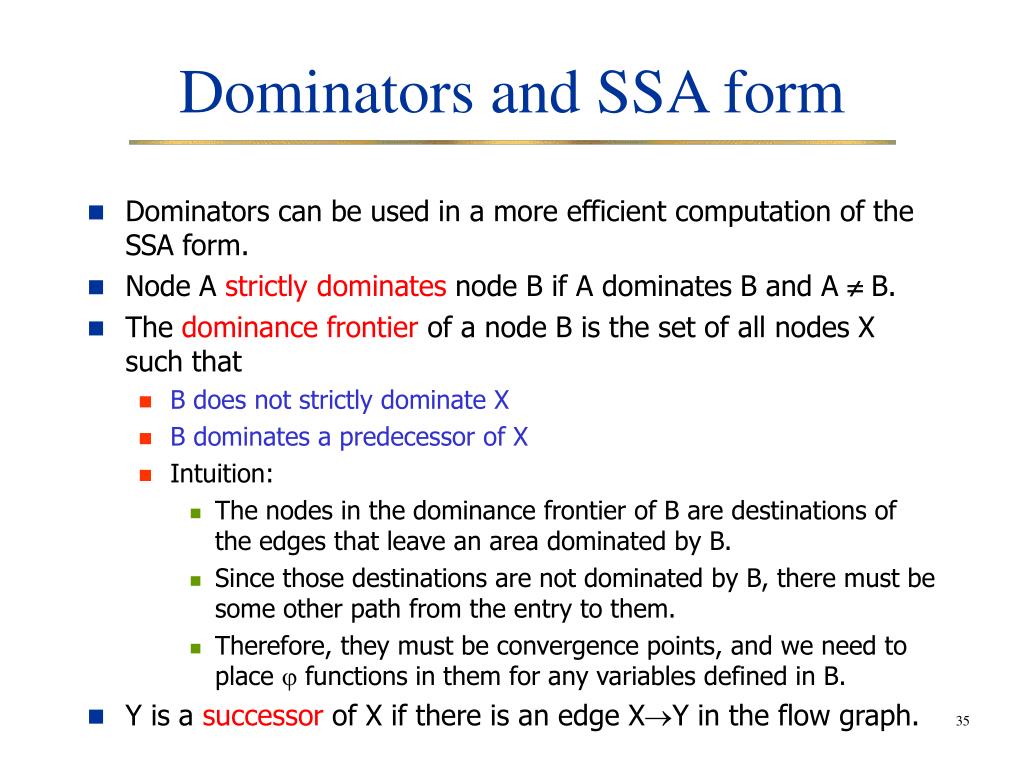

  35. Dominators and SSA form • Dominators can be used in a more efficient computation of the SSA form. • Node A strictly dominates node B if A dominates B and A  B. • The dominance frontier of a node B is the set of all nodes X such that • B does not strictly dominate X • B dominates a predecessor of X • Intuition: • The nodes in the dominance frontier of B are destinations of the edges that leave an area dominated by B. • Since those destinations are not dominated by B, there must be some other path from the entry to them. • Therefore, they must be convergence points, and we need to place  functions in them for any variables defined in B. • Y is a successor of X if there is an edge XY in the flow graph.

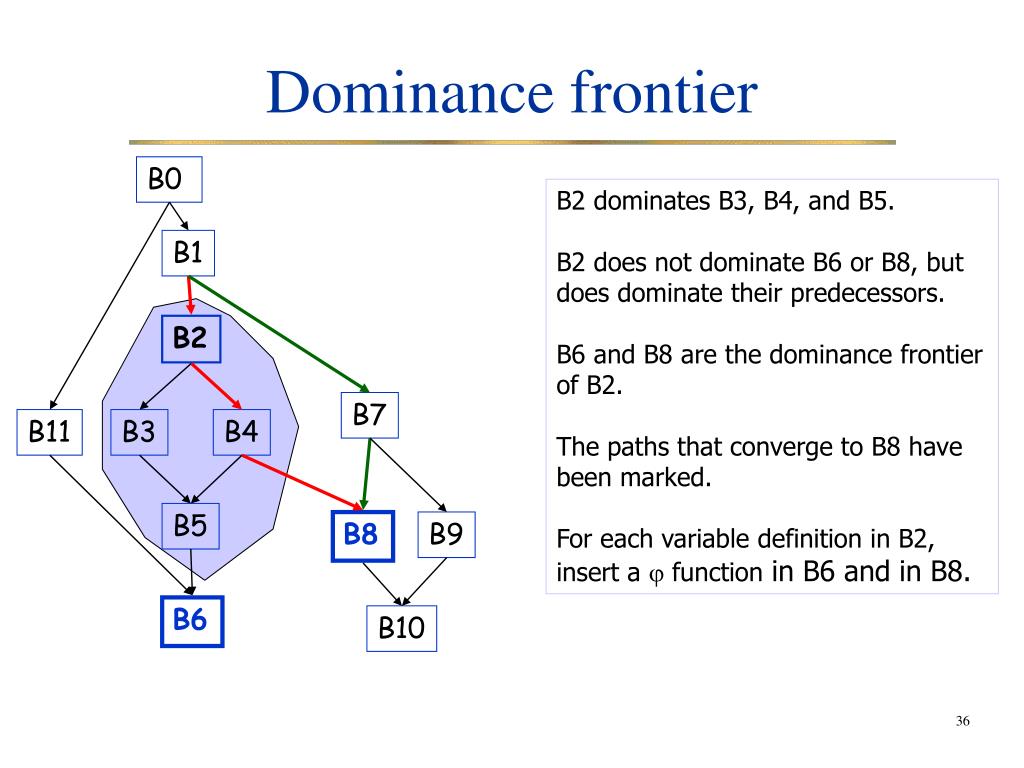

  36. Dominance frontier B0 B2 dominates B3, B4, and B5. B2 does not dominate B6 or B8, but does dominate their predecessors. B6 and B8 are the dominance frontier of B2. The paths that converge to B8 have been marked. For each variable definition in B2, insert a  function in B6 and in B8. B1 B2 B7 B11 B3 B4 B5 B8 B9 B6 B10

  37. Dominance frontier • The dominance frontier of a node B can be computed as follows: • DF(B) = DFlocal(B) U DFup(C) • where: • C is the set of children of B in the dominator tree • DFup(C) is the set of nodes in the dominance frontier of C, that are not strictly dominated by C's immediate dominator • DFlocal(B) are the successors of B that are not strictly dominated by B. U C

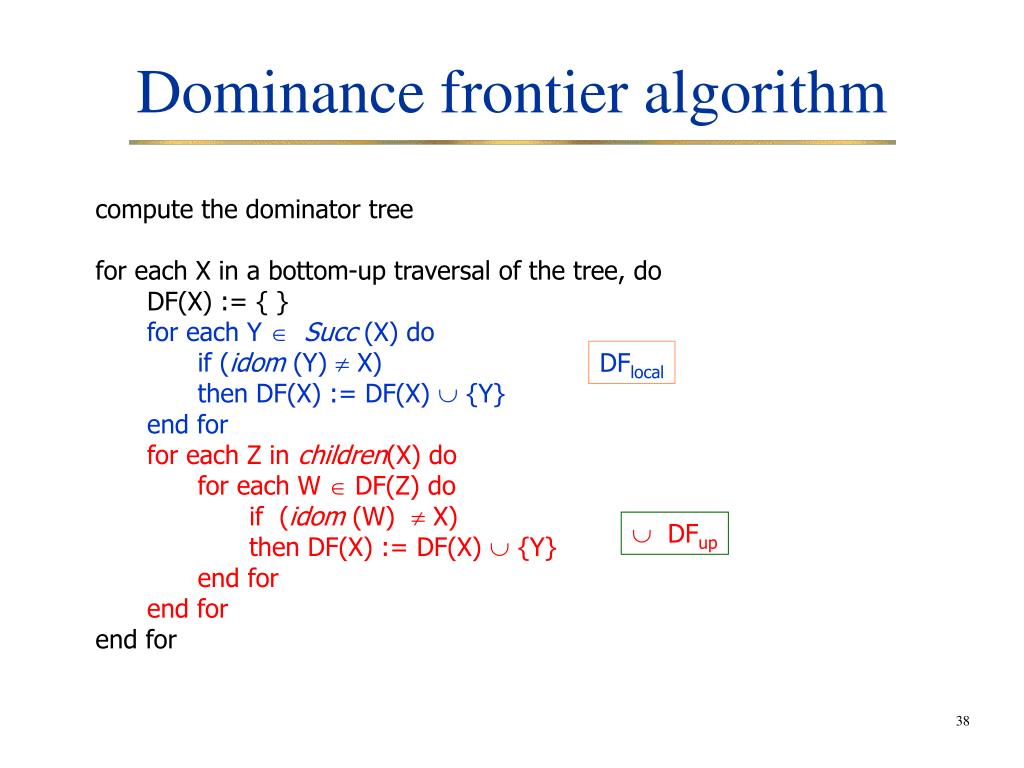

  38. Dominance frontier algorithm compute the dominator tree for each X in a bottom-up traversal of the tree, do DF(X) := { } for each Y  Succ (X) do if (idom (Y)  X) then DF(X) := DF(X)  {Y} end for for each Z in children(X) do for each W  DF(Z) do if (idom (W)  X) then DF(X) := DF(X)  {Y} end for end for end for DFlocal  DFup

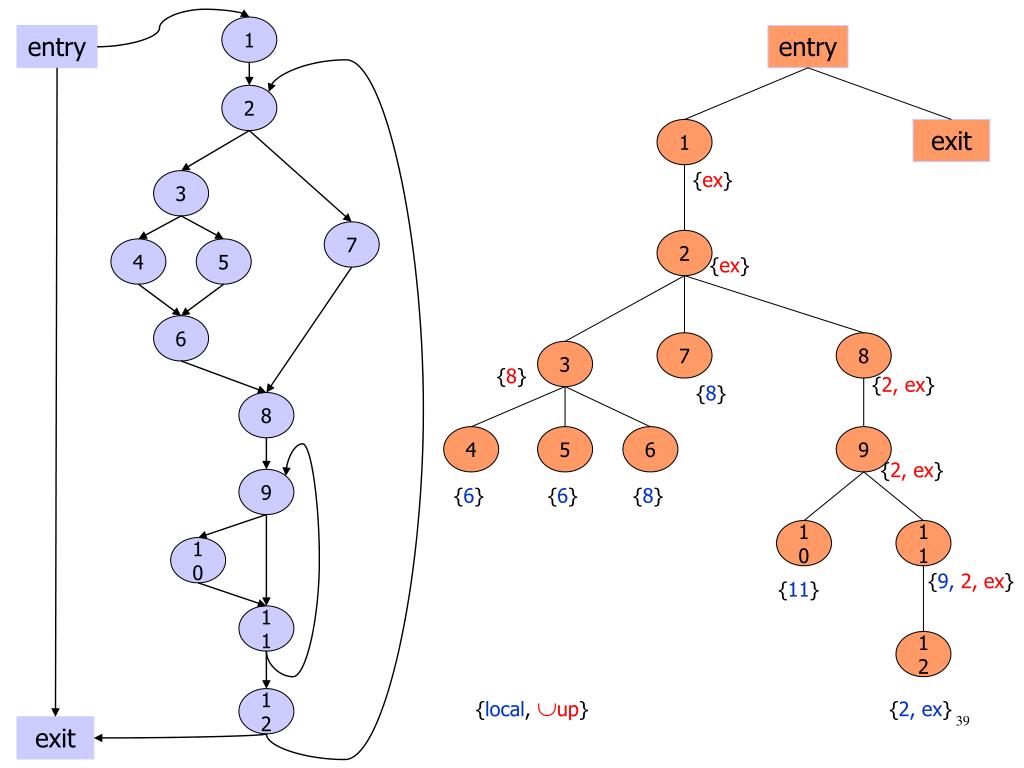

  39. entry 1 exit {ex} 2 {ex} 7 8 3 {8} {2, ex} {8} 4 5 6 9 {2, ex} {6} {6} {8} 10 11 {9, 2, ex} {11} 12 {local, up} {2, ex} 1 entry 2 3 7 4 5 6 8 9 10 11 12 exit

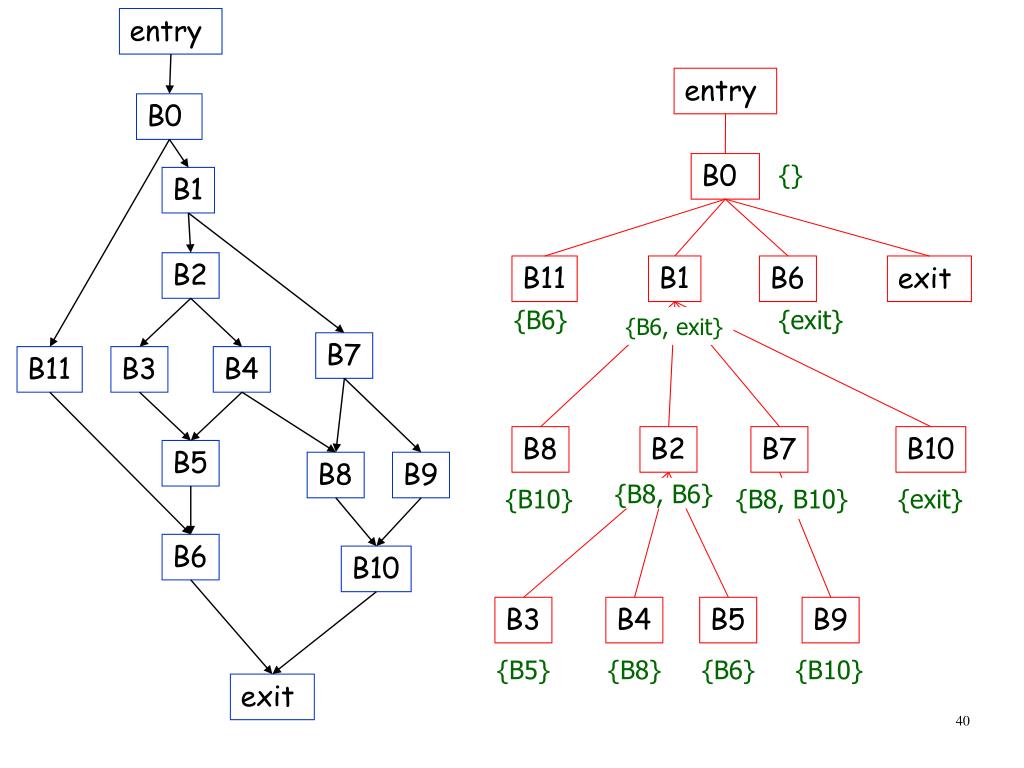

  40. entry B0 {} B11 B1 B6 exit {B6} {exit} {B6, exit} B8 B2 B7 B10 {B10} {B8, B6} {B8, B10} {exit} B3 B4 B5 B9 {B5} {B8} {B6} {B10} entry B0 B1 B2 B7 B11 B3 B4 B5 B8 B9 B6 B10 exit
