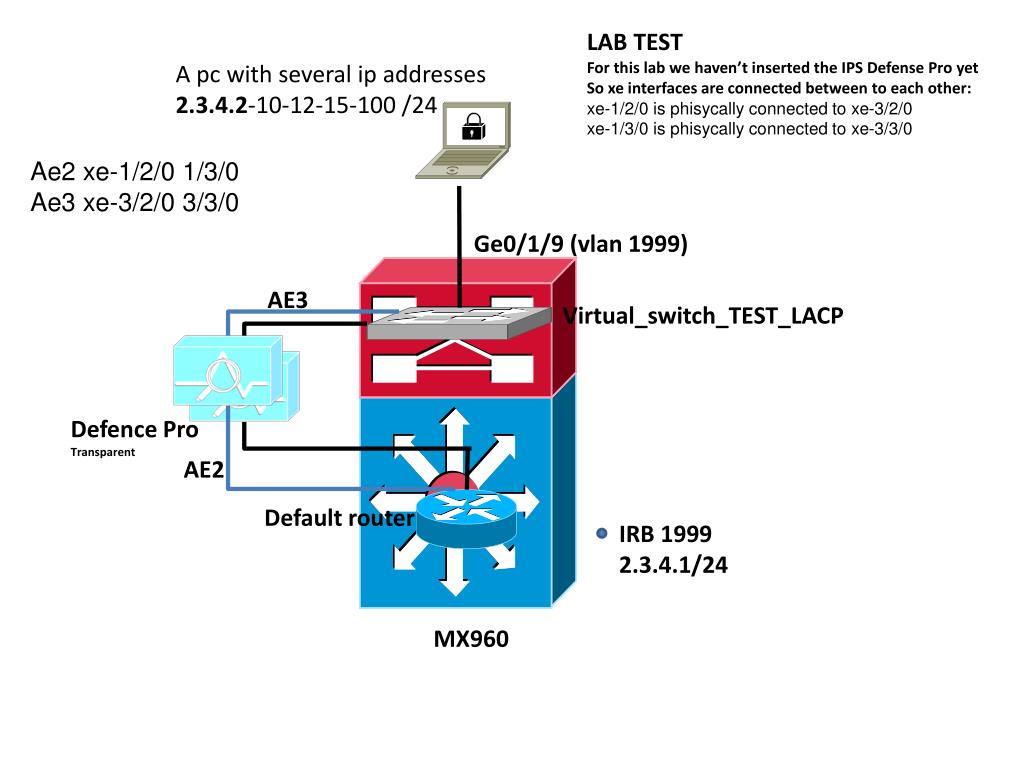

LAB TEST For this lab we haven’t inserted the IPS Defense Pro yet So xe interfaces are connected between to each other: xe-1/2/0 is phisycally connected to xe-3/2/0 xe-1/3/0 is phisycally connected to xe-3/3/0. A pc with several ip addresses 2.3.4.2 -10-12-15-100 /24. Ae2 xe-1/2/0 1/3/0

hea
Télécharger la présentation

MX960

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. LAB TEST For this lab we haven’t inserted the IPS Defense Pro yet So xe interfaces are connected between to each other: xe-1/2/0 is phisycally connected to xe-3/2/0 xe-1/3/0 is phisycally connected to xe-3/3/0 A pc with several ip addresses 2.3.4.2-10-12-15-100 /24 Ae2 xe-1/2/0 1/3/0 Ae3 xe-3/2/0 3/3/0 Ge0/1/9 (vlan 1999) AE3 Virtual_switch_TEST_LACP Defence Pro Transparent AE2 Default router IRB 1999 2.3.4.1/24 MX960

  2. Symmetrical load bancing configuration noc@OR-MX960-EASYVAS-01-re1> show configuration chassis | display set set chassis fpc 1 pic 2 hash-key family inet layer-3 set chassis fpc 1 pic 2 hash-key family inet symmetric-hash set chassis fpc 1 pic 2 hash-key family multiservice payload ip layer-3 set chassis fpc 1 pic 2 hash-key family multiservice symmetric-hash ! set chassis fpc 1 pic 3 hash-key family inet layer-3 set chassis fpc 1 pic 3 hash-key family inet symmetric-hash set chassis fpc 1 pic 3 hash-key family multiservice payload ip layer-3 set chassis fpc 1 pic 3 hash-key family multiservice symmetric-hash ! set chassis fpc 3 pic 2 hash-key family inet layer-3 set chassis fpc 3 pic 2 hash-key family inet symmetric-hash complement set chassis fpc 3 pic 2 hash-key family multiservice payload ip layer-3 set chassis fpc 3 pic 2 hash-key family multiservice symmetric-hash complement ! set chassis fpc 3 pic 3 hash-key family inet layer-3 set chassis fpc 3 pic 3 hash-key family inet symmetric-hash complement set chassis fpc 3 pic 3 hash-key family multiservice payload ip layer-3 set chassis fpc 3 pic 3 hash-key family multiservice symmetric-hash complement

  3. AE2 on default router noc@OR-MX960-EASYVAS-01-re1> show configuration | match ae2 | display set set interfaces xe-1/2/0 gigether-options 802.3ad ae2 set interfaces xe-1/3/0 gigether-options 802.3ad ae2 set interfaces ae2 aggregated-ether-options lacp active set interfaces ae2 unit 0 family bridge interface-mode trunk set interfaces ae2 unit 0 family bridge vlan-id-list 1999 AE3 on virtual switch noc@OR-MX960-EASYVAS-01-re1> show configuration | match ae3 | display set    set interfaces xe-3/2/0 gigether-options 802.3ad ae3 set interfaces xe-3/3/0 gigether-options 802.3ad ae3 set interfaces ae3 aggregated-ether-options lacp active set interfaces ae3 unit 0 family bridge interface-mode trunk set interfaces ae3 unit 0 family bridge vlan-id-list 1999 set routing-instances VSWITCH-TEST-LACP interface ae3.0 Xe-1/2/0 is phisycally conected to xe-3/2/0 Xe-1/3/0 is phisycally conected to xe-3/3/0

  4. Configuration on default-router (the vlan is 1999 - irb.1999 ip address 2.3.4.1/24) noc@OR-MX960-EASYVAS-01-re1> show configuration | match 1999 | display set    set interfaces ge-0/1/9 unit 0 family bridge vlan-id 1999 set interfaces ae2 unit 0 family bridge vlan-id-list 1999 set interfaces ae3 unit 0 family bridge vlan-id-list 1999 set interfaces irb unit 1999 family inet address 2.3.4.1/24 set protocols ospf area 0.0.0.0 interface irb.1999 set bridge-domains TEST_LACP_bd vlan-id 1999 set bridge-domains TEST_LACP_bd routing-interface irb.1999 Configuration on virtual switch VSWITCH-TEST-LACP noc@OR-MX960-EASYVAS-01-re1> show configuration routing-instances VSWITCH-TEST-LACP | display set set routing-instances VSWITCH-TEST-LACP instance-type virtual-switch set routing-instances VSWITCH-TEST-LACP interface ge-0/1/9.0 set routing-instances VSWITCH-TEST-LACP interface ae3.0 set routing-instances VSWITCH-TEST-LACP bridge-domains TEST_LACP_vSwitch domain-type bridge set routing-instances VSWITCH-TEST-LACP bridge-domains TEST_LACP_vSwitch vlan-id 1999
