  1. Fast Crash Recovery in RAMCloud

  2. Motivation • The role of DRAM has been increasing • Facebook used 150TB of DRAM • For 200TB of disk storage • However, there are limitations • DRAM is typically used as cache • Need to worry about consistency and cache misses

  3. RAMCloud • Keeps all data in RAM at all times • Designed to scale to thousands of servers • To host terabytes of data • Provides low-latency (5-10 µs) for small reads • Design goals • High durability and availability • Without compromising performance

  4. Alternatives • 3x RAM replications • 3x cost and energy • Power failure • RAMCloud keeps one copy in RAM • Two copies on disks • To achieve good availability • Fast crash recovery (64GB in 1-2 seconds)

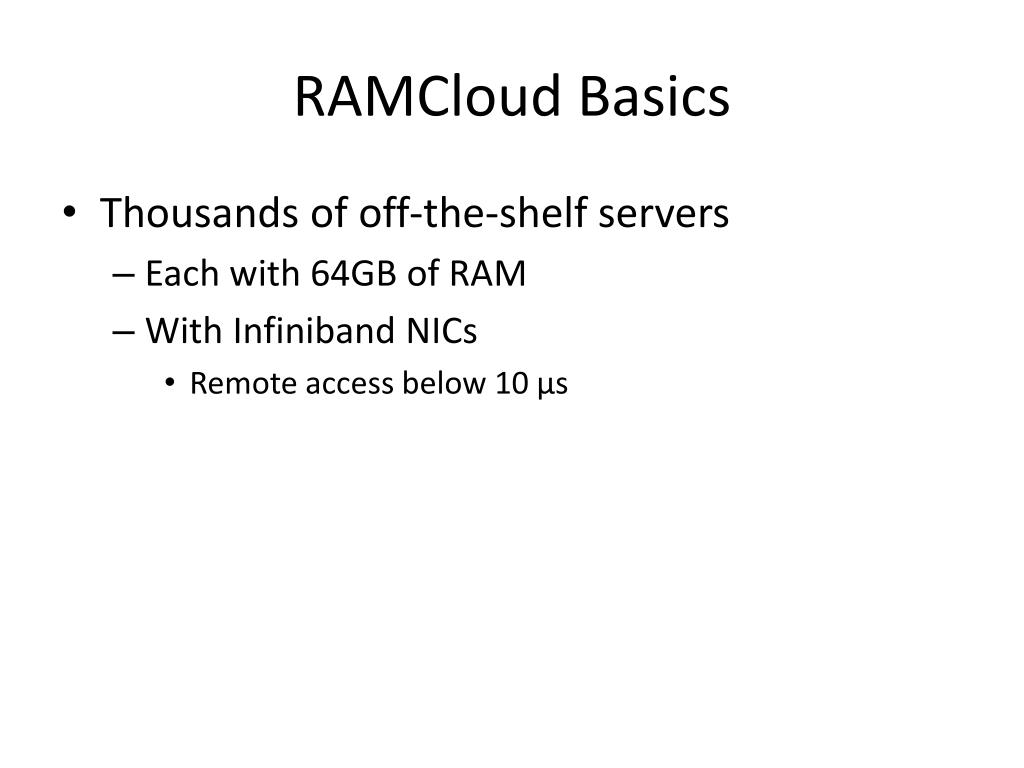

  5. RAMCloud Basics • Thousands of off-the-shelf servers • Each with 64GB of RAM • With InfinibandNICs • Remote access below 10 µs

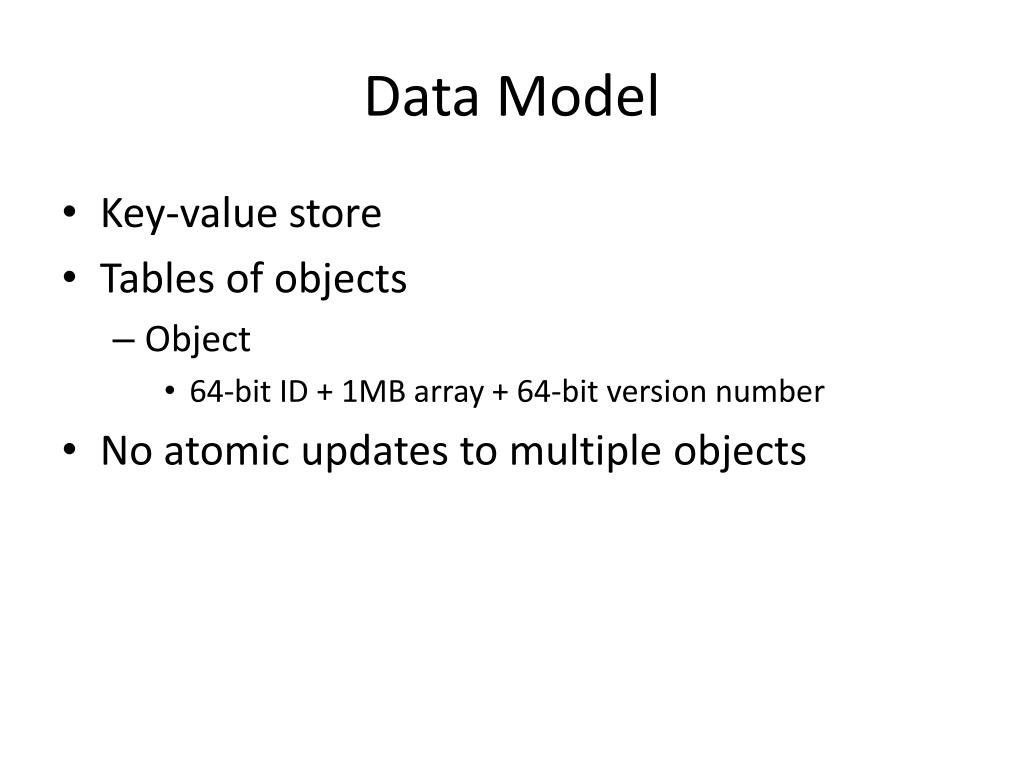

  6. Data Model • Key-value store • Tables of objects • Object • 64-bit ID + 1MB array + 64-bit version number • No atomic updates to multiple objects

  7. System Structure • A large number of storage servers • Each server hosts • A master, which manages local DRAM objects and service requests • A backup, which stores copies of objects from other masters on storage • A coordinator • Manages config info and object locations • Not involved in most requests

  8. RAMCloud Cluster Architecture client coordinator master backup

  9. More on the Coordinator • Maps objects to servers in units of tablets • Hold consecutive key ranges within a single table • For locality reasons • Small tables are stored on a single server • Large tables are split across servers • Clients can cache tablets to access servers directly

  10. Log-structured Storage • Logging approach • Each master logs data in memory • Log entries are forwarded to backup servers • Backup servers buffer log entries • Battery-backed • Writes complete once all backup servers acknowledge • A backup server flushes its buffer when full • 8MB segment for logging, buffering, and Ios • Each server can handle 300K 100-byte writes/sec

  11. Recovery • When a server crashes, its DRAM content must be reconstructed • 1-2 second recovery time is good enough

  12. Using Scale • Simple 3 replica approach • Recovery based on the speed of three disks • 3.5 minutes to read 64GB of data • Scattered over 1,000 disks • Takes 0.6 seconds to read 64GB • Centralized recovery master becomes a bottleneck • 10 Gbps network means 1 min to transfer 64GB of data to the centralized master

  13. RAMCloud • Uses 100 recovery masters • Cuts the time down to 1 second

  14. Scattering Log Segments • Ideally uniform, but with more details • Need to avoid correlated failures • Need to account for heterogeneity of hardware • Need to coordinate machines not to overflow buffers on individual machines • Need to account for changing memberships of servers due to failures

  15. Failure Detection • Periodic pings to random servers • With 99% chance to detect failed servers within 5 rounds • Recovery • Setup • Replay • Cleanup

  16. Setup • Coordinator finds log segment replicas • By querying all backup servers • Detecting incomplete logs • Logs are self describing • Starting Partition Recoveries • Each master uploads a will periodically to the coordinator in the event of its demise • Coordinator carries out the will accordingly

  17. Replay • Parallel recovery • Six stages of pipelining • At segment granularity • Same ordering of operations on segments to avoid pipeline stalls • Only the primary replicas is involved in recovery

  18. Cleanup • Get master online • Free up segments from the previous crash

  19. Consistency • Exactly-once semantics • Implementation not yet complete • ZooKeeper handles coordinator failures • Distributed configuration service • With its own replication

  20. Additional Failure Modes • Current focus • Recover DRAM content for a single master failure • Failed backup server • Need to know what segments are lost from the server • Rereplicate those lost segments across remaining disks

  21. Multiple Failures • Multiple servers fail simultaneously • Recover each failure independently • Some will involve secondary replicas • Based on projection • With 5,000 servers, recovering 40 masters within a rack will take about 2 seconds • Can’t do much when many racks are blacked out

  22. Cold Start • Complete power outage • Backups will contact the coordinate as they reboot • Need to quorum of backups before starting reconstructing masters • Current implementation does not perform cold starts

  23. Evaluation • 60-node cluster • Each node • 16GB RAM, 1 disk • Infiniband (25 Gbps) • User level apps can talk to NICs bypassing the kernel

  24. Results • Can recover lost data at 22 GB/s • A crashed server with 35 GB storage • Can be recovered in 1.6 seconds • Recovery time stays nearly flat from 1 to 20 recovery masters, each talks to 6 disks • 60 recovery masters adds only 10 ms recovery time

  25. Results • Fast recovery significantly reduces the risk of data loss • Assume recovery time of 1 sec • The risk of data loss for 100K node is 10-5 in one year • 10x improvement in recovery time, improves reliability by 1,000x • Assumes independent failures

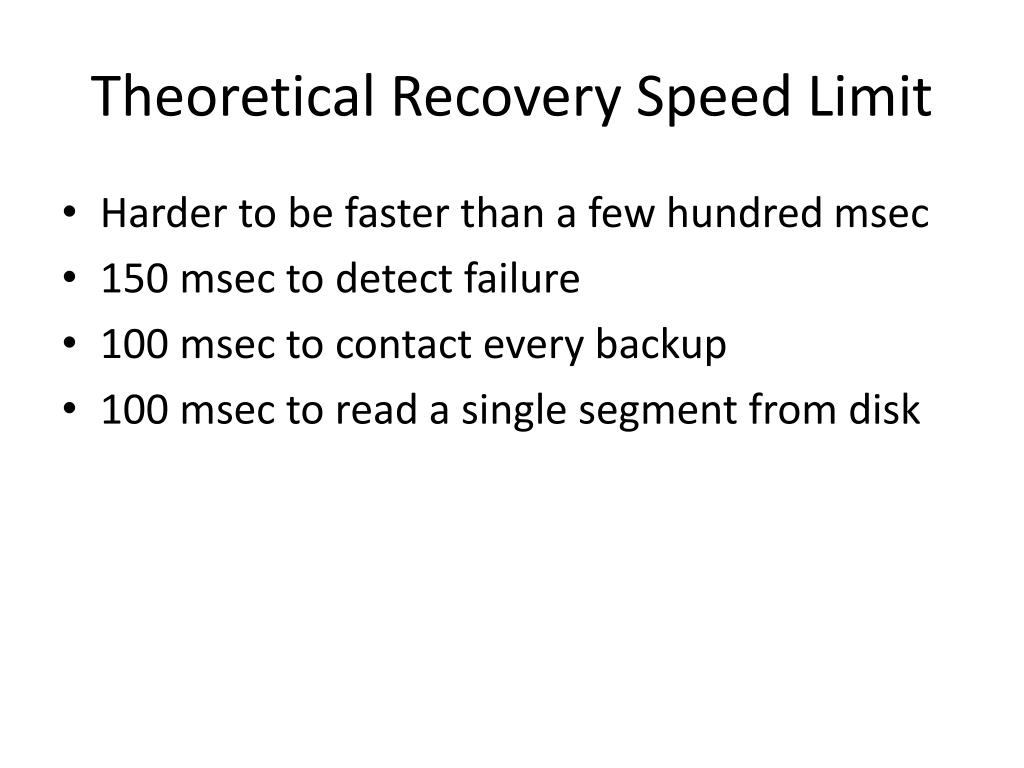

  26. Theoretical Recovery Speed Limit • Harder to be faster than a few hundred msec • 150 msec to detect failure • 100 msec to contact every backup • 100 msec to read a single segment from disk

  27. Risks • Scalability study based on a small cluster • Can treat performance glitches as failures • Trigger unnecessary recovery • Access patterns can change dynamically • May lead to unbalanced load
