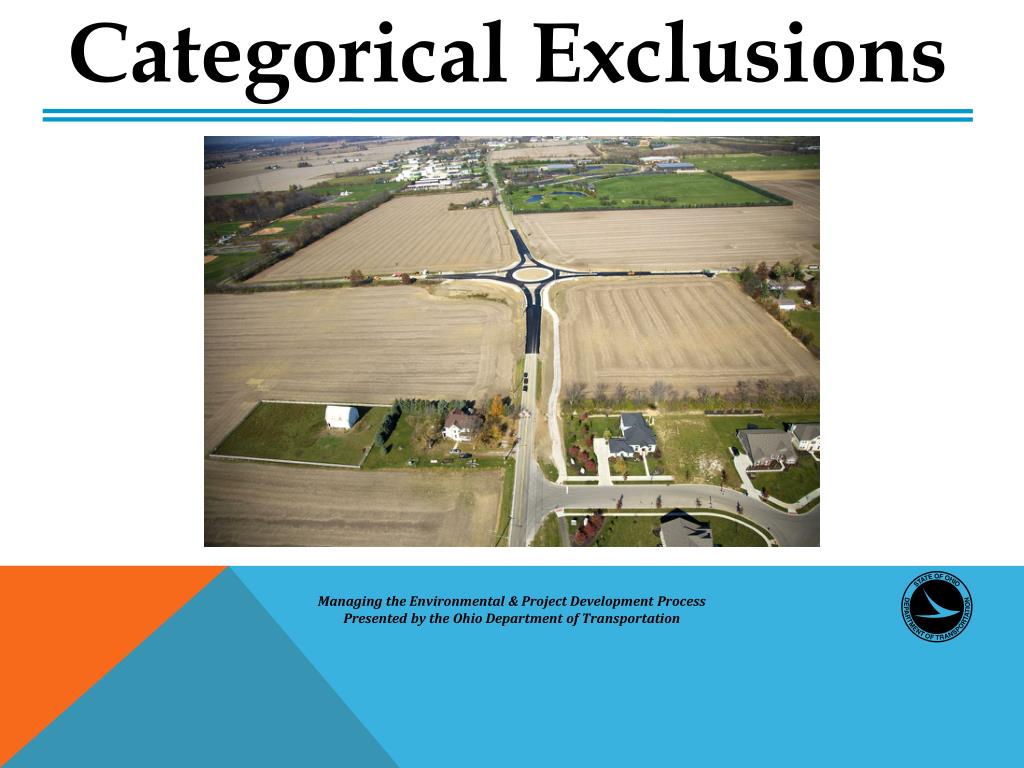

  1. Categorical Exclusions Managing the Environmental & Project Development Process Presented by the Ohio Department of Transportation

  2. Federal Law and Regulations • National Environmental Policy Act of 1969 • 40 CFR 1508.4 • Council on Environmental Quality (CEQ) • 23 CFR 771.117 • Federal Highway Adminstration (FHWA) Managing the Environmental & Project Development Process Presented by the Ohio Department of Transportation

  3. NEPA • Requires federal agencies within USDOT to assess and determine if a proposed action will result in significant environmental impacts • Established CEQ Managing the Environmental & Project Development Process Presented by the Ohio Department of Transportation

  4. NEPA & CE Relationship • Actions that do not individually or cumulatively have a significant impact upon the human and/or natural environment • Specific conditions and criteria are met • Level of analysis commensurate with the project’s potential for adverse impacts Managing the Environmental & Project Development Process Presented by the Ohio Department of Transportation

  5. NEPA & CE Relationship Any project that creates SIGNIFICANTimpacts cannot be considered for CE classification Managing the Environmental & Project Development Process Presented by the Ohio Department of Transportation

  6. CEQ Regulations “…a category of actions which do not individually or cumulatively have a significant effect on the human environment and which have been found to have no such effect in procedures adopted by a Federal agency in implementation of these regulations and for which, therefore, neither an environmental assessment nor an environmental impact statement is required.” ~40 CFR 1508.4~ Managing the Environmental & Project Development Process Presented by the Ohio Department of Transportation

  7. FHWA Regulations • Title 23 - Highways • Part 771 - Environmental Impact • 771.115 – Classes of Action • 771.117 – FHWA Categorical Exclusions Managing the Environmental & Project Development Process Presented by the Ohio Department of Transportation

  8. 23 CFR 771.117(a) • Actions that meet 40 CFR 1508.4 • Do not require significant relocations • No significant impacts to: • Planned growth or land use • Natural environment • Cultural or recreational properties • Air, noise, and water quality • Travel patterns Managing the Environmental & Project Development Process Presented by the Ohio Department of Transportation

  9. 23 CFR 771.117(b) • Projects with unusual circumstances require appropriate environmental studies to determine if CE classification can be met • Significant environmental impacts • Substantial environmental controversy • Significant 4(f)/6(f) impacts • Inconsistencies with Federal, State, or local environmental laws, regulations or administrative determinations Managing the Environmental & Project Development Process Presented by the Ohio Department of Transportation

  10. 23 CFR 771.117(c) • Actions that meet CE criteria per 40 CFR 1508.4 and 23 CFR 771.117(a) • Exempt Projects Managing the Environmental & Project Development Process Presented by the Ohio Department of Transportation

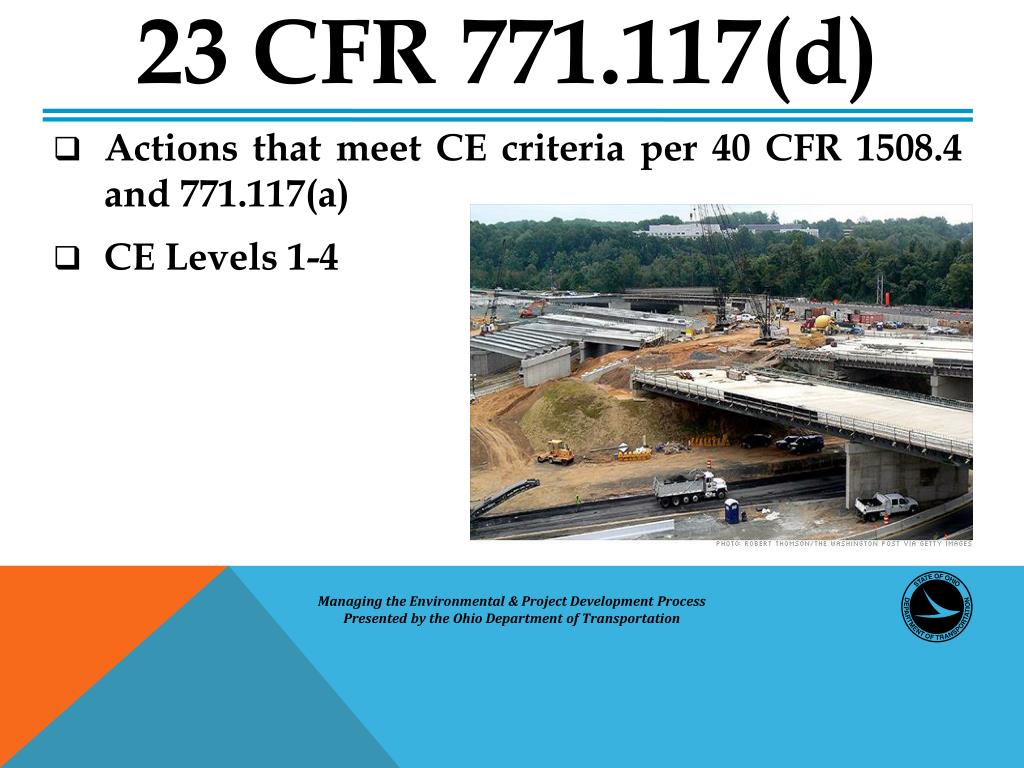

  11. 23 CFR 771.117(d) • Actions that meet CE criteria per 40 CFR 1508.4 and 771.117(a) • CE Levels 1-4 Managing the Environmental & Project Development Process Presented by the Ohio Department of Transportation

  12. Ohio’sProgrammaticCE Agreement Managing the Environmental & Project Development Process Presented by the Ohio Department of Transportation

  13. CE PA • Between FHWA/ODOT/ORDC • Executed September 13, 2010 • Assures compliance with all applicable federal environmental laws & regulations • Consistent documentation process • Legally defensible • Concise and easy procedure to follow Managing the Environmental & Project Development Process Presented by the Ohio Department of Transportation

  14. Five Documentation Levels • Exempt • Level 1 • Level 2 • Level 3 • Level 4 Managing the Environmental & Project Development Process Presented by the Ohio Department of Transportation

  15. CE Signature Authority • District Environmental Coordinator (DEC) and ORDC Environmental Coordinator • All CE Levels • District Planning and Engineering Administrator (P&EA) and ORDC Executive Director • CE Levels 2, 3, and 4 Managing the Environmental & Project Development Process Presented by the Ohio Department of Transportation

  16. CE Signature Authority • OES Administrator or Policy Assistant Environmental Administrator (AEA) • CE Levels 3 and 4 • FHWA • CE Level 4 Managing the Environmental & Project Development Process Presented by the Ohio Department of Transportation

  17. ExemptProject Types Managing the Environmental & Project Development Process Presented by the Ohio Department of Transportation

  18. Definition • Standard stand-alone transportation activities • Do not result in significantimpacts to the human or natural environment • Meet the intent of 23 CFR 771.117(c) • Approved by DEC or ORDC EC Managing the Environmental & Project Development Process Presented by the Ohio Department of Transportation

  19. Exempt 1. Guardrail installation and replacement • Median Cable Barriers • No relocation of ditches or backslopes 2. Replacement or installation of: • Existing or new traffic signals • Flashing beacons/railroad warning devices • ITS system components 3. General pavement marking or "line painting" Managing the Environmental & Project Development Process Presented by the Ohio Department of Transportation

  20. Exempt 4. Herbicidal spraying 5. Mowing or brush removal/trimming 6. Installation or maintenance of: • Signs • Pavement markings, pavement markers • Traffic calming activities • Fencing 7. Study type projects (i.e. feasibility studies) Managing the Environmental & Project Development Process Presented by the Ohio Department of Transportation

  21. Exempt 8. Bridges: • Deck overlays and deck replacements • Superstructure replacement • Bridge painting • Maintenance activities Managing the Environmental & Project Development Process Presented by the Ohio Department of Transportation

  22. Exempt • 9. General highway maintenance: • Potholes, crack sealing, mill and resurfacing • Full pavement rehabilitation, grinding and milling • Shoulder reconstruction • Minor slide stabilization/erosion control • Grading, parking lot pavement and repair Managing the Environmental & Project Development Process Presented by the Ohio Department of Transportation

  23. Exempt 10. Disposal of excess ROW parcels • No environmental resources present • Environmental ROW checklist completed 11. Improvements to existing ODOT maintenance facilities • 12. Improvements to existing rest areas and weigh stations for minor maintenance • Mill/resurfacing of existing parking areas Managing the Environmental & Project Development Process Presented by the Ohio Department of Transportation

  24. Exempt 13. Beautification/facility improvement projects: • Landscaping • Curb and gutter replacement • Installation of park benches, decorative lighting 14. Permits to use or occupy highway ROW • No longer used • If permit is for temporary access, no NEPA documentation required Managing the Environmental & Project Development Process Presented by the Ohio Department of Transportation

  25. Exempt • 15. ODOT culvert maintenance or replacement • Up to 60” in diameter • Highway maintenance ditching activities • 16. Construction of: • Bicycle lanes and pedestrian walkways • Sidewalks, shared-use paths, and facilities • Small passenger shelters and alterations to facilities or vehicles Managing the Environmental & Project Development Process Presented by the Ohio Department of Transportation

  26. Exempt 17. Upgrade of existing tower lighting to new technologies that ensure a lesser impact than the current system • 18. Approval of utility installations along or across a transportation facility • No drainage of wetlands 19. Acquisition of scenic easements Managing the Environmental & Project Development Process Presented by the Ohio Department of Transportation

  27. Exempt • 20. Transportation corridor fringe parking facilities • Bus pull-ins and pull-outs • Park-and-ride lots and ridesharing activities • 21. Maintenance and/or replacement of existing noise wall panels and/or posts • Includes alterations to existing publicly-owned buildings to provide noise reduction • 22. Track and rail-bed maintenance activities • Rail improvements Managing the Environmental & Project Development Process Presented by the Ohio Department of Transportation

  28. Exempt 23. Bus and rail car rehabilitation • 24. Determination of payback under 23 USC 156 • Property previously acquired with federal-aid participation • 25. Transfer of federal lands • Pursuant to 23 USC 317 • Subsequent action is not an FHWA action Managing the Environmental & Project Development Process Presented by the Ohio Department of Transportation

  29. Exempt • 26. Program administration, technical and operating assistance to transit authorities • Continues existing service or increases service to meet routine changes in demand • 27. Purchase and installation of operating or maintenance equipment to be located within the transit facility • 28. Purchase or conversion of vehicles to alternative fuel Managing the Environmental & Project Development Process Presented by the Ohio Department of Transportation

  30. New C-List CEs • (c)(9) Transportation facilities damaged by an incident resulting in an emergency declared by the Governor of the State or a disaster or emergency declared by the President • (c)(22) Projects that take place entirely within existing operational right-of-way Managing the Environmental & Project Development Process Presented by the Ohio Department of Transportation

  31. New C-List CEs • (c)(23) Federally funded projects that receive less than $5,000,000 of Federal funds or with a total estimated cost of not more than $30,000,000 and Federal funds comprising less than 15 percent of the total estimated project cost Managing the Environmental & Project Development Process Presented by the Ohio Department of Transportation

  32. Not Exempt When… • Projects involve the following: • Acquisition of new ROW • Scenic River Corridors • Waterway Permits • Threatened & Endangered Species • Wetlands • Historic Properties or Historic Districts • Section 4(f) and/or Section 6(f) • Substantial traffic disruption • Minor public controversy Managing the Environmental & Project Development Process Presented by the Ohio Department of Transportation

  33. CE Level 1Project Types Managing the Environmental & Project Development Process Presented by the Ohio Department of Transportation

  34. Definition • Type of undertakings with little or no impacts • No relocations or significantimpacts • ODOT Districts responsible for confirming that proposed actions meet CE Level 1 criteria • DEC or ORDC Signature • Actions that do not meet CE Level 1 shall be processed at the next appropriate higher level Managing the Environmental & Project Development Process Presented by the Ohio Department of Transportation

  35. Level 1 • 1. Culvert and bridge replacement/reconstruction • No more than minimal additional ROW necessary for grading purposes • Includes necessary channel work • All permits and coordination required 2. Modernization of a highway by resurfacing, restoration, rehabilitation and reconstruction 3. Modernization of a highway by the addition of turn lanes and/or the addition of shoulders Managing the Environmental & Project Development Process Presented by the Ohio Department of Transportation

  36. Level 1 4. Environmental mitigation activities 5. Tower and street lighting projects 6. Major reconstruction to existing rest areas and truck weigh stations Managing the Environmental & Project Development Process Presented by the Ohio Department of Transportation

  37. Level 1 7. Track and rail-bed improvements or acquisition 8. Installation of new fencing, signs, small passenger shelters 9. Emergency repairs under 23 USC 125 • Necessary work to restore essential travel within 180 days of the event • Includes mine collapses, flood damage, etc. Managing the Environmental & Project Development Process Presented by the Ohio Department of Transportation

  38. Level 1 • 10. Joint/limited use of ROW with minimal or no adverse social, economic or environmental impacts 11. Approvals for changes in access control that involve Interstates and Interstate look-alikes Managing the Environmental & Project Development Process Presented by the Ohio Department of Transportation

  39. Level 1 12. Land acquisition for hardship or protective purposes • Advance loans under the UMT Act Section 3(b) • Hardship/protective buying permitted only for a particular parcel or a limited number of parcels • Only a CE when acquisition will not limit the evaluation of alternatives, including shifts in alignment, which may be required under NEPA • Project development may not proceed on such land until the NEPA process has been completed Managing the Environmental & Project Development Process Presented by the Ohio Department of Transportation

  40. Level 1 • Installation of new noise walls • Includes new noise mitigation projects 14. Highway safety and truck escape ramps 15. Construction of bicycle lanes and pedestrian walkways, sidewalks, shared-use paths, or facilities and trailhead parking 16. ROW acquisition for bikeway/pedestrian facilities • No construction Managing the Environmental & Project Development Process Presented by the Ohio Department of Transportation

  41. Level 1 17. Beautification or facility improvement projects • Landscaping • Curb and gutter installation and replacement • Installation of park benches • Decorative lighting • ADA ramps/curb ramps 18. Land donations to ODOT associated with ROW permits • Non-NHS/non-Limited Access Managing the Environmental & Project Development Process Presented by the Ohio Department of Transportation

  42. Level 1 19. Construction of alternative energy facilities • CNG, electrification, solar, wind turbines 20. Lane reductions - traffic analysis completed 21. Land acquisition by a public agency/public park entity for passive recreational use Managing the Environmental & Project Development Process Presented by the Ohio Department of Transportation

  43. Level 1 • 22. Geotechnical activities • Grouting, rock fall barriers/netting • 23. Transportation corridor parking facilities, park-and-ride lots, and ridesharing activities • 24. Rail projects that • close at-grade crossings Managing the Environmental & Project Development Process Presented by the Ohio Department of Transportation

  44. Level 1 25. Other project types • New category • Must be approved by OES and/or FHWA • Use for: • Project types that are not listed • Project types that are listed under a lower level of documentation but have risen to a higher CE level due to impacts Managing the Environmental & Project Development Process Presented by the Ohio Department of Transportation

  45. Not Level 1 When… Projects involve two or moreof the following: • Section 106 finding of “No Adverse Effect” • Programmatic or de minimis 4(f) • Up to 3 acres of Category 1 and 2 wetlands • Scenic River Corridor • Individual 404/401 • Substantial traffic disruption • Minor public controversy - all issues addressed • Threatened/ & Endangered species Managing the Environmental & Project Development Process Presented by the Ohio Department of Transportation

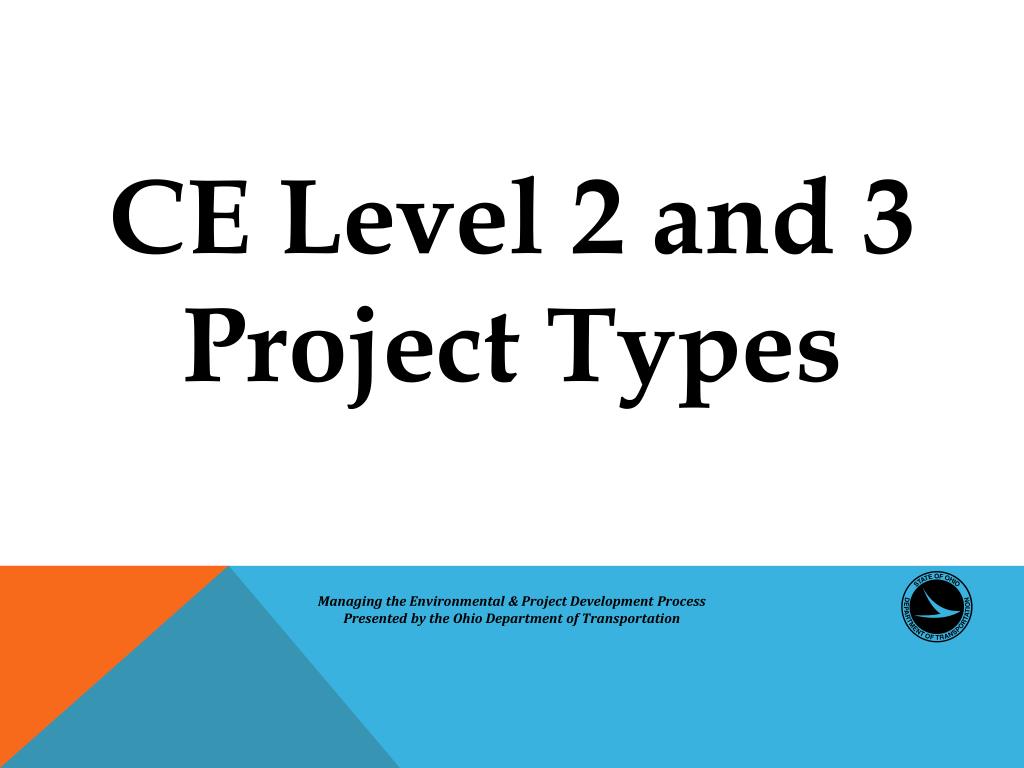

  46. CE Level 2 and 3Project Types Managing the Environmental & Project Development Process Presented by the Ohio Department of Transportation

  47. Definition • Involve a combination of impacts or have higher thresholds based on context and intensity compared to a CE Level 1 • Exempt or CE Level 1 project types can be elevated to a higher level based on impacts Managing the Environmental & Project Development Process Presented by the Ohio Department of Transportation

  48. Level 2 and 3 1. Addition of auxiliary lanes or through lanes • Parking, weaving, turning, climbing • Major reconstruction work on Interstate or “Interstate-look-alikes” is considered on a case-by-case basis with OES 2. Bridge rehabilitation, reconstruction, or replacement 3.Realignments on new location • Not to exceed two miles in length Managing the Environmental & Project Development Process Presented by the Ohio Department of Transportation

  49. Level 2 and 3 4.Minor new highway facility on new location • With the exception of the Interstate or “Interstate-look-alikes” 5. Modification of a non-interstate interchange or grade separating an at-grade intersection 6. Construction of a new interchange • With the exception of the Interstate or “Interstate-look-alikes” Managing the Environmental & Project Development Process Presented by the Ohio Department of Transportation

  50. Level 2 and 3 7. Minor modification of an interstate interchange including, but not limited to, addition/deletion of turn lanes, minor lane shifts or access to decel/accel ramps 8. New truck weigh stations or rest areas 9. Construction of a grade separation to replace at-grade rail crossings or the removal of existing grade separation structures Managing the Environmental & Project Development Process Presented by the Ohio Department of Transportation
