  1. ASP.NET Controls

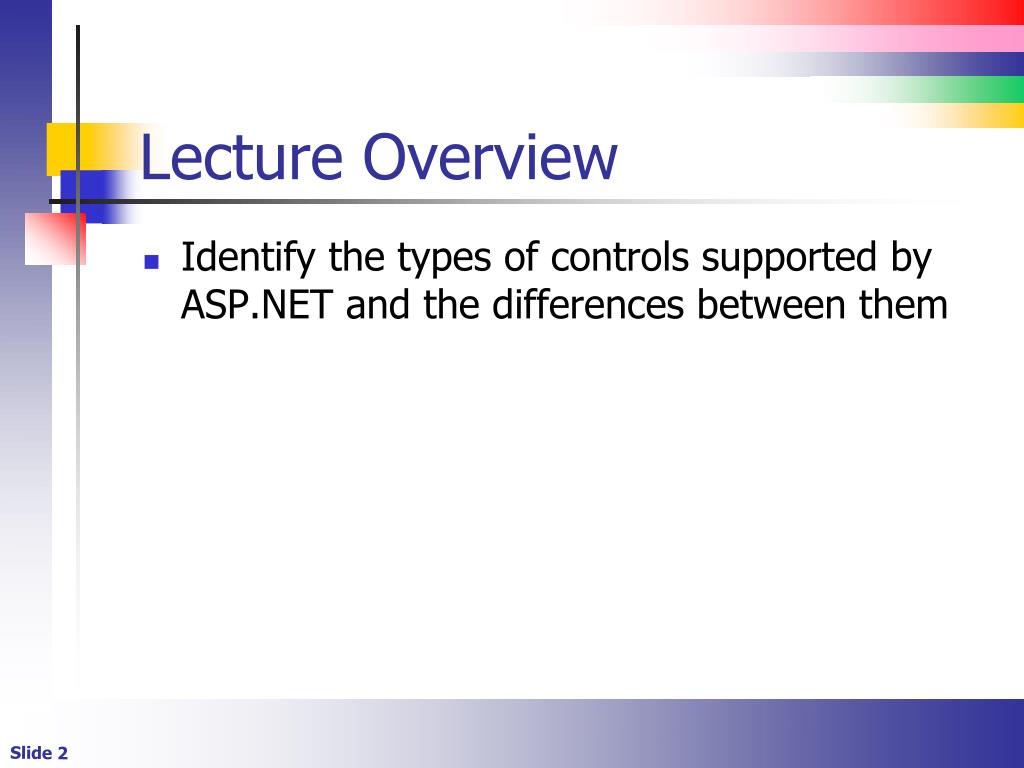

  2. Lecture Overview • Identify the types of controls supported by ASP.NET and the differences between them

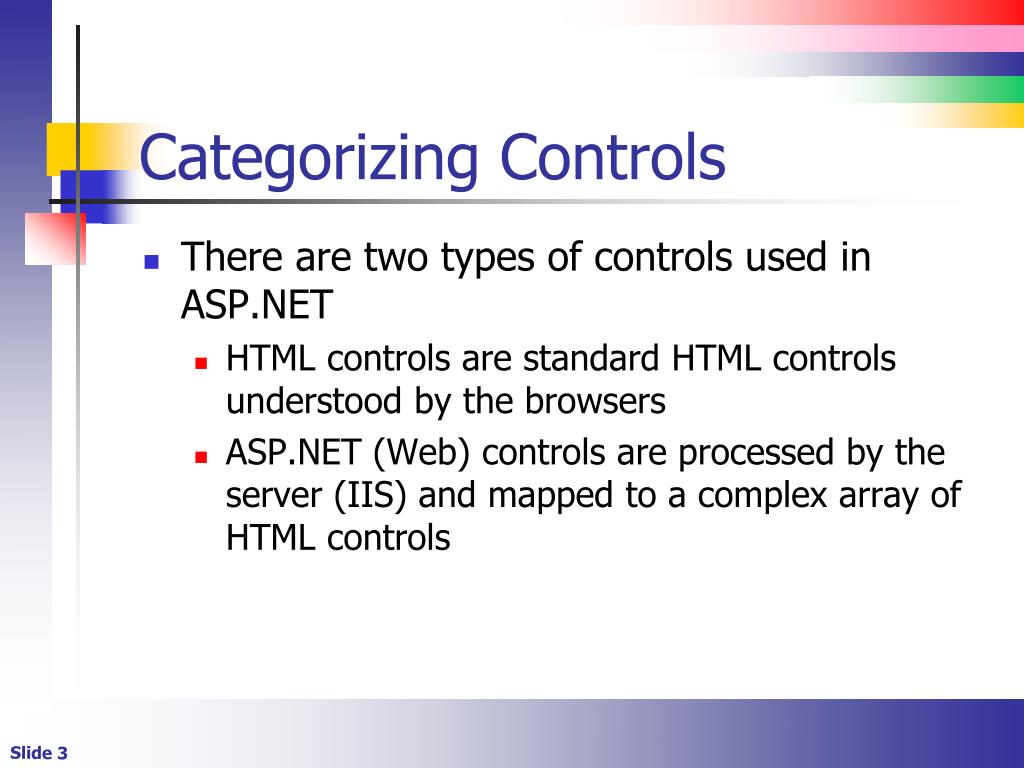

  3. Categorizing Controls • There are two types of controls used in ASP.NET • HTML controls are standard HTML controls understood by the browsers • ASP.NET (Web) controls are processed by the server (IIS) and mapped to a complex array of HTML controls

  4. HTML Controls • Always map directly to HTML tags • All attributes are strictly compatible with HTML • They allow you to perform ‘some’ server side processing

  5. Web Server Controls • Are implemented by the ASP server as .NET Framework classes having a common .NET programming interface • It works very similar to the desktop applications • Web Server controls often have a richer programming interface

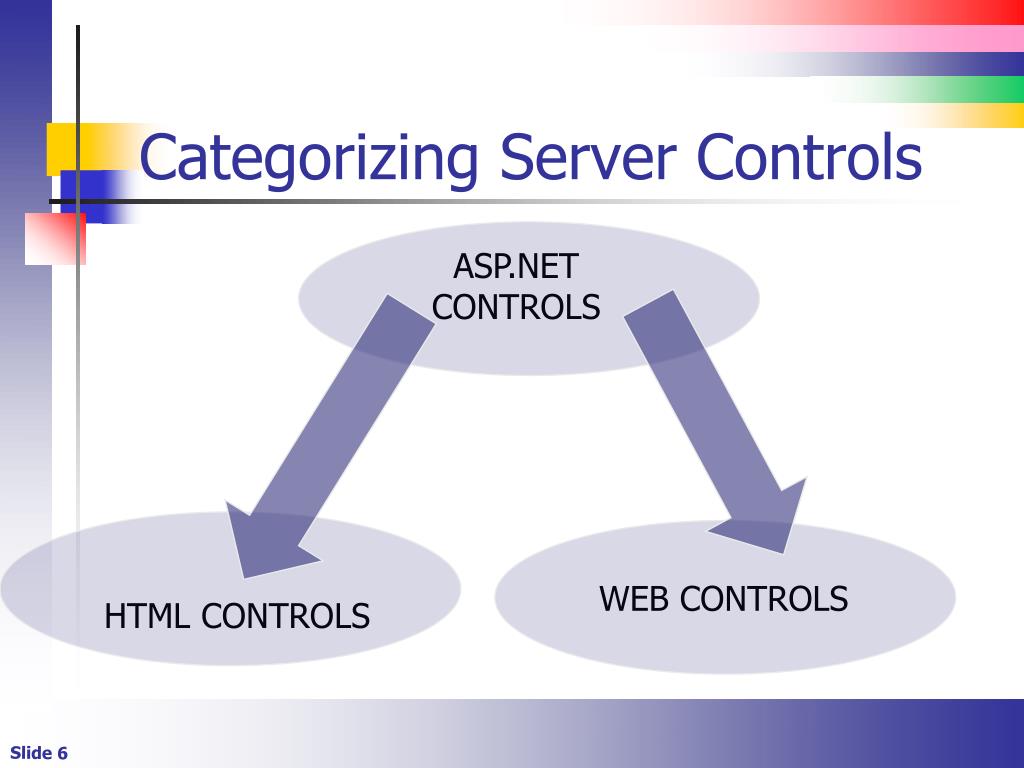

  6. Categorizing Server Controls ASP.NET CONTROLS WEB CONTROLS HTML CONTROLS

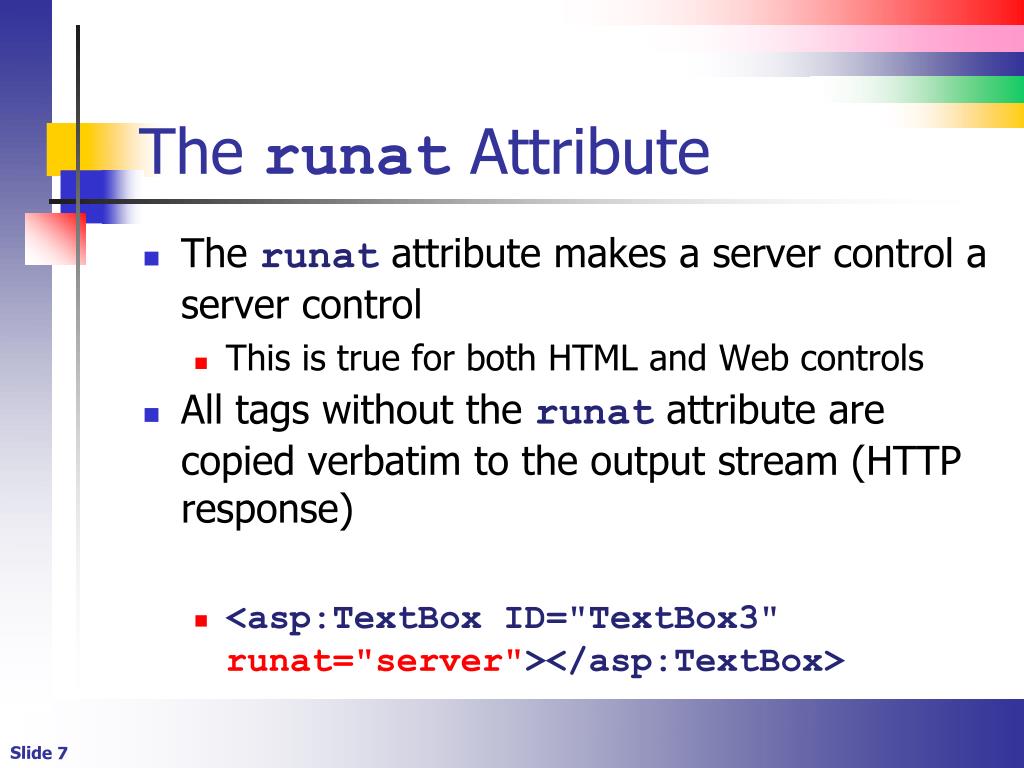

  7. The runat Attribute • The runat attribute makes a server control a server control • This is true for both HTML and Web controls • All tags without the runat attribute are copied verbatim to the output stream (HTTP response) • <asp:TextBox ID="TextBox3" runat="server"></asp:TextBox>

  8. Generalities • HTML controls and Web controls can sometimes to do the same thing • HTML controls can be used to conditionally create client-side script • Web controls generally provide a ‘richer’ programmatic interface • We often use a mix of both

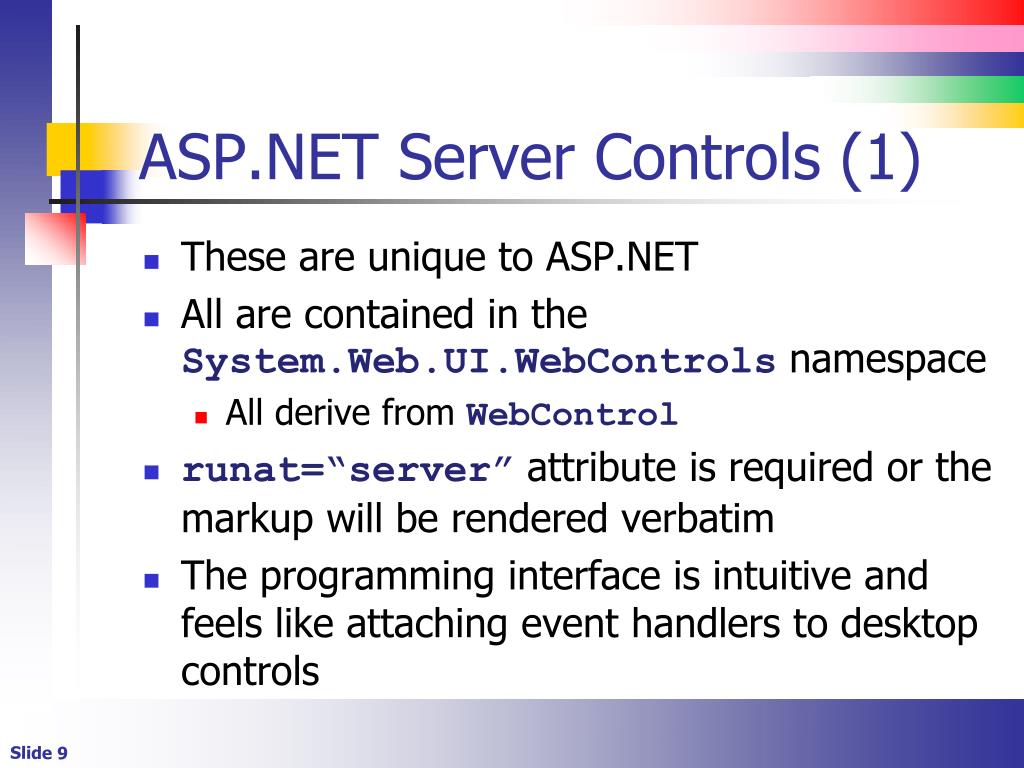

  9. ASP.NET Server Controls (1) • These are unique to ASP.NET • All are contained in the System.Web.UI.WebControls namespace • All derive from WebControl • runat=“server” attribute is required or the markup will be rendered verbatim • The programming interface is intuitive and feels like attaching event handlers to desktop controls

  10. ASP.NET Server Controls (2) • Controls are object having methods, properties and events • Buttons are clicked • SelectedIndexChanged fires for list boxes and combo boxes • The wiring is a bit different

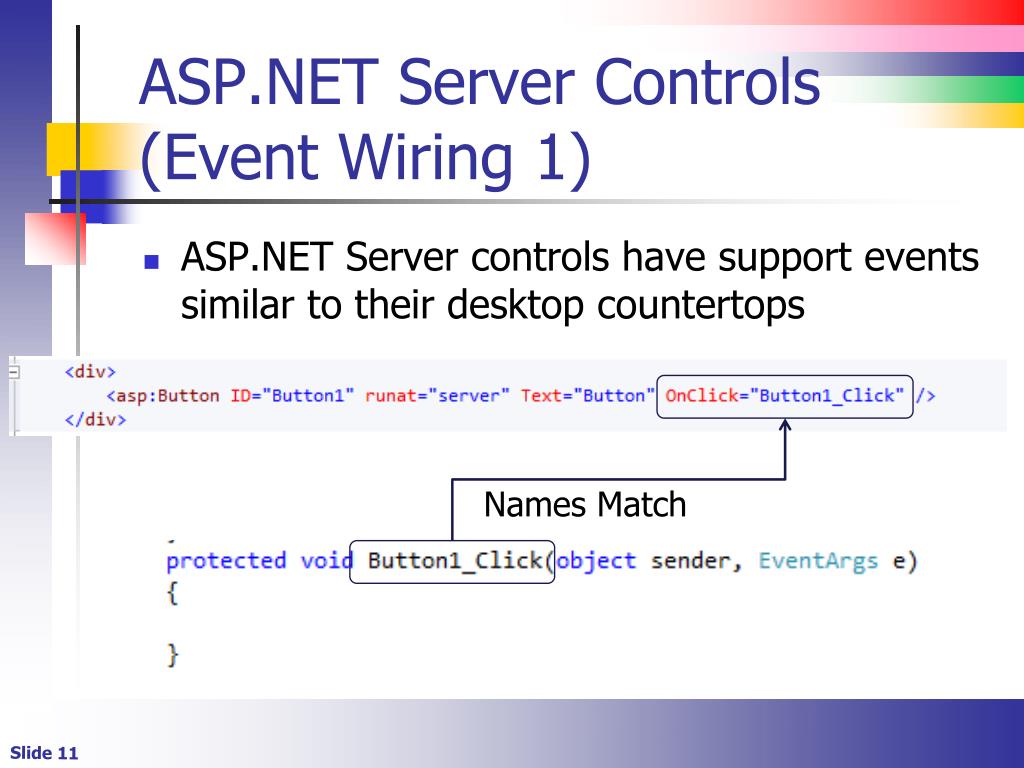

  11. ASP.NET Server Controls(Event Wiring 1) • ASP.NET Server controls have support events similar to their desktop countertops Names Match

  12. ASP.NET Server Controls (Properties 1) • ID – Name that will be used to reference the control instance programmatically (It’s the Name property that you are used to in VB) • Page – Page object on which the control resides • Parent – parent control instance • Use for container controls • Visible – Make the control instance visible or invisible • EnableViewState defines whether contents are persisted through view state

  13. ASP.Net Server Controls (Properties 2) • The Style property contains references to a collection of CSS style MyControl.Style[“border-color”] = blue; • The CssClass property contains the name of a defined CSS class • txtStyleDemo1.CssClass = "TextBox"

  14. ASP.NET Server Controls(Methods) • Focus – sets input focus to the control instance when it is rendered • HasControls – denotes whether this control instance has child controls • Controls – a collection of child controls • DataBind – binds the control instance to a data source

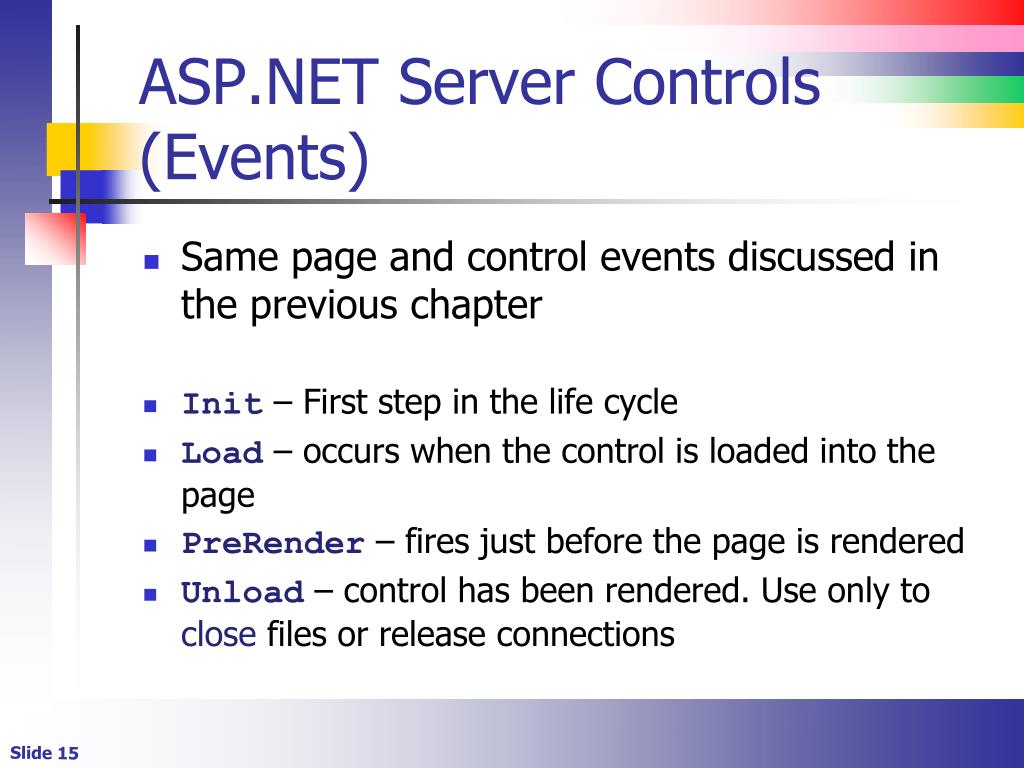

  15. ASP.NET Server Controls (Events) • Same page and control events discussed in the previous chapter • Init – First step in the life cycle • Load – occurs when the control is loaded into the page • PreRender – fires just before the page is rendered • Unload – control has been rendered. Use only to close files or release connections

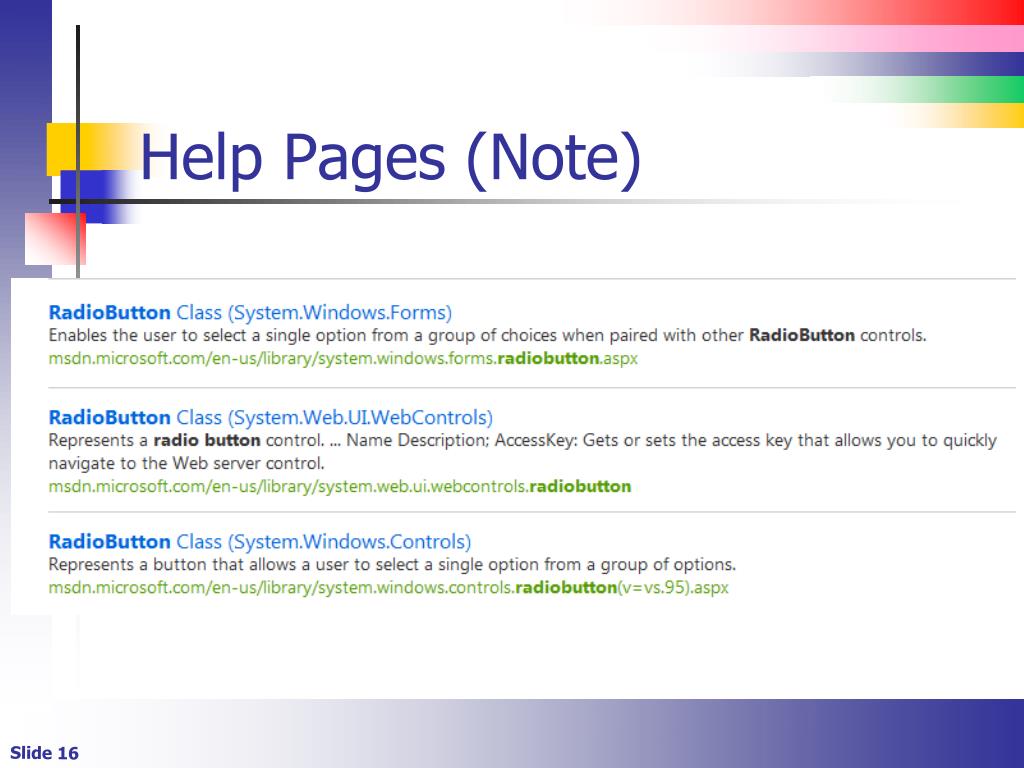

  16. Help Pages (Note)

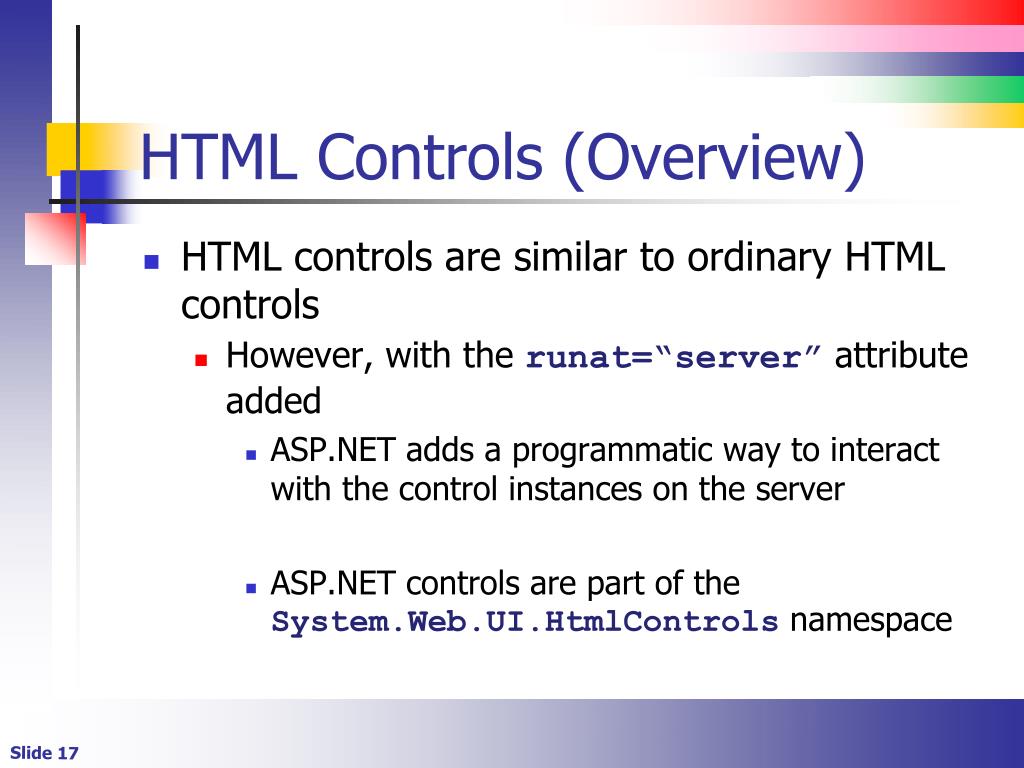

  17. HTML Controls (Overview) • HTML controls are similar to ordinary HTML controls • However, with the runat=“server” attribute added • ASP.NET adds a programmatic way to interact with the control instances on the server • ASP.NET controls are part of the System.Web.UI.HtmlControls namespace

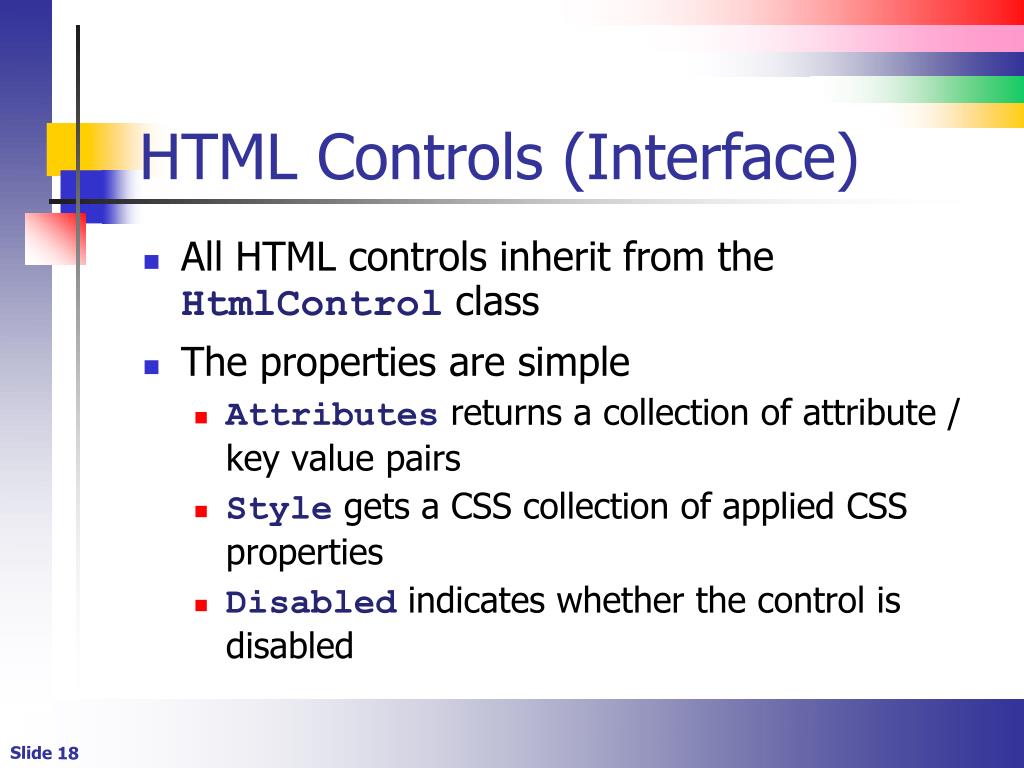

  18. HTML Controls (Interface) • All HTML controls inherit from the HtmlControl class • The properties are simple • Attributes returns a collection of attribute / key value pairs • Style gets a CSS collection of applied CSS properties • Disabled indicates whether the control is disabled

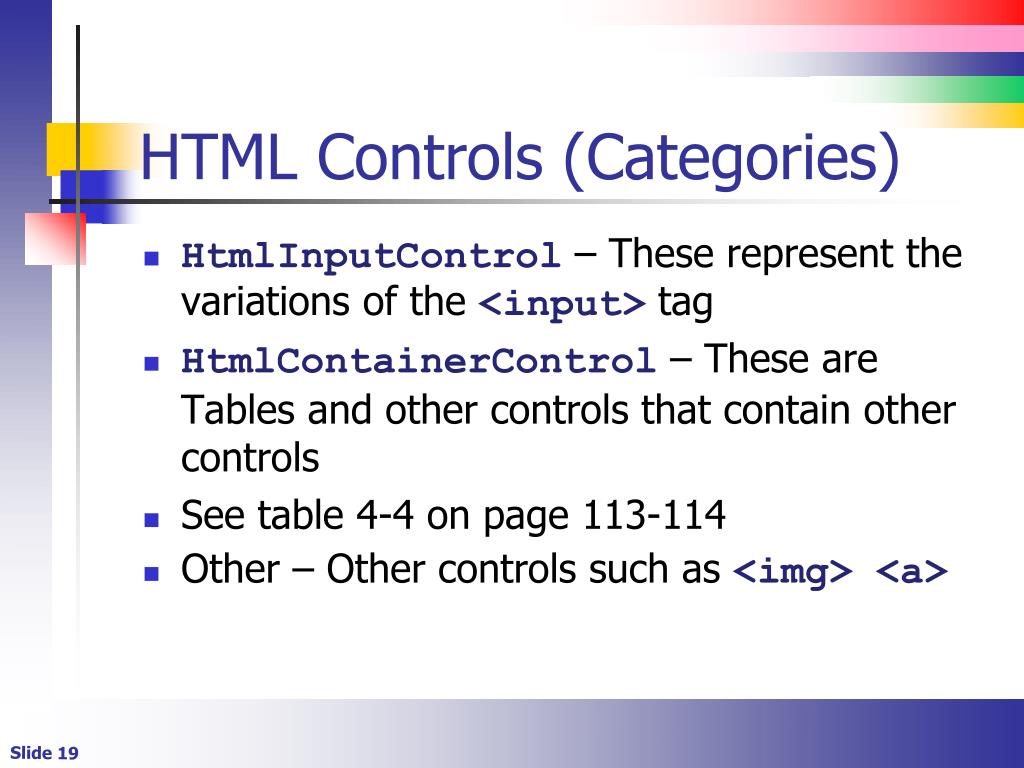

  19. HTML Controls (Categories) • HtmlInputControl – These represent the variations of the <input> tag • HtmlContainerControl – These are Tables and other controls that contain other controls • See table 4-4 on page 113-114 • Other – Other controls such as <img> <a>

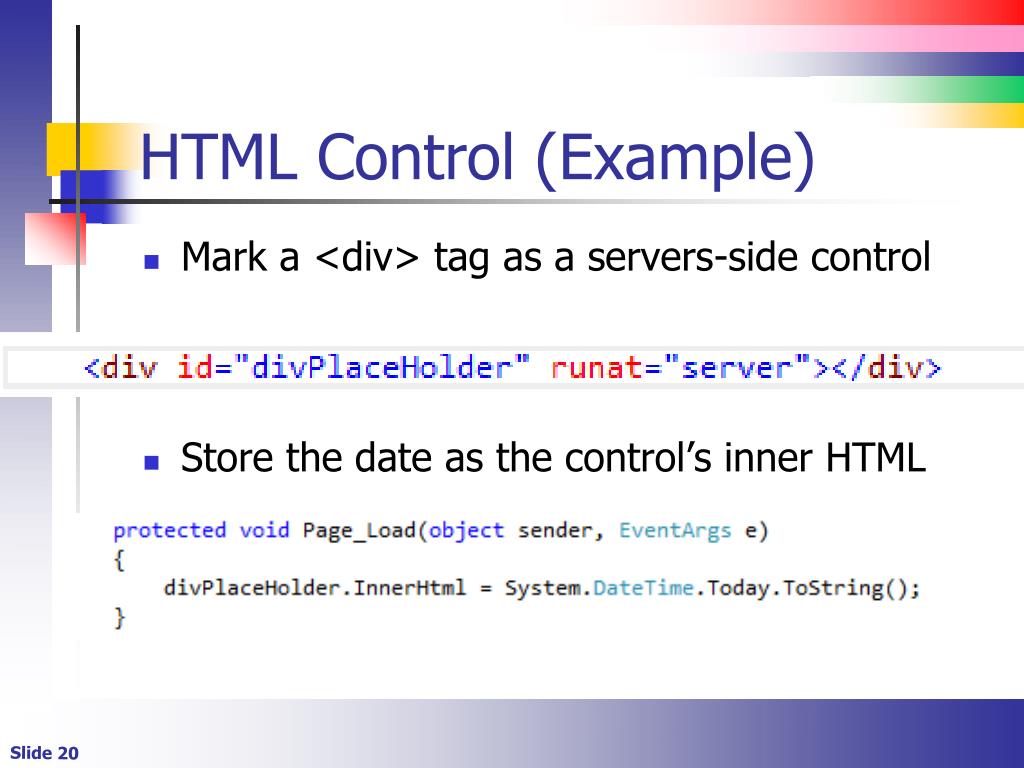

  20. HTML Control (Example) • Mark a <div> tag as a servers-side control • Store the date as the control’s inner HTML

  21. Using Server Controlswith JavaScript • So far, we have seen both client and server controls • But how do we get client-side JavaScript into our ASP.NET pages and call that code from the client? • Include client-side script into script blocks • Create dynamically with RegisterClientScriptBlock and RegisterStartupScript • As you will see, some controls rely on JavaScript to operate (LinkButton) ASP generates the code

  22. RegisterClientScriptBlock • Code is placed at the top of the page • Thus, the code executes “before” the page has completely loaded • Good to register functions but bad for referencing controls

  23. RegisterStartupScript • Code is placed at the end of the page • Use when you want to reference other page controls • Remember that HTML pages rendered and the DOM is processed sequentially

  24. RegisterClientScriptInclude • Again, the code appears at the beginning of the page • Use to grab a bunch of JavaScript from a file

  25. HTML Controls <a> • The HTMLAnchorclass implements <a> tags • <a> tags designated runat=“server” and having an id will be seen by the server <a id="BusinessNews" runat="server"></a>

  26. HTML Controls <a> • The href property contains the link • Store the text in InnerHtml or InnerText BusinessNews.HRef= "http://bloomberg.com"; BusinessNews.Title = Business news channel"; BusinessNews.InnerHtml = "<b>BusinessNews</b>";

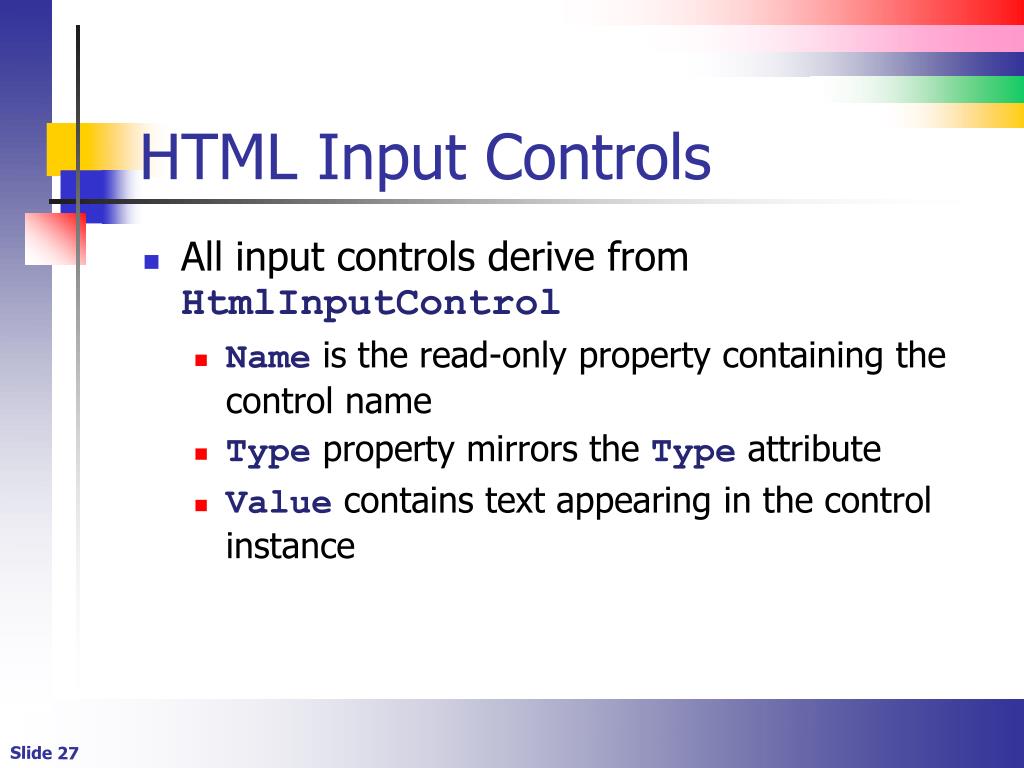

  27. HTML Input Controls • All input controls derive from HtmlInputControl • Name is the read-only property containing the control name • Type property mirrors the Type attribute • Value contains text appearing in the control instance

  28. The ServerChange event • It fires for most HTML controls to denote that the control’s contents have changed from one postback to the next • Use for check boxes, radio buttons, text boxes, etc.
