Form-Oriented Analysis in Client-Server Architecture: A Focus on Editable Method Calls

This document presents Figures from Chapter 11 of "Form-Oriented Analysis" by Dirk Draheim and Gerald Weber, detailing the architecture and functionality of CPDS and CPTS forms in a client-server setup. It explores server-side code generation for page descriptions and the mechanics of request handling via Java Servlets. The figures illustrate examples of registration flows and error handling in higher-order server page designs, emphasizing the interaction between client and server-side objects. This work was published by Springer in October 2004.

helki
Télécharger la présentation

Form-Oriented Analysis in Client-Server Architecture: A Focus on Editable Method Calls

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

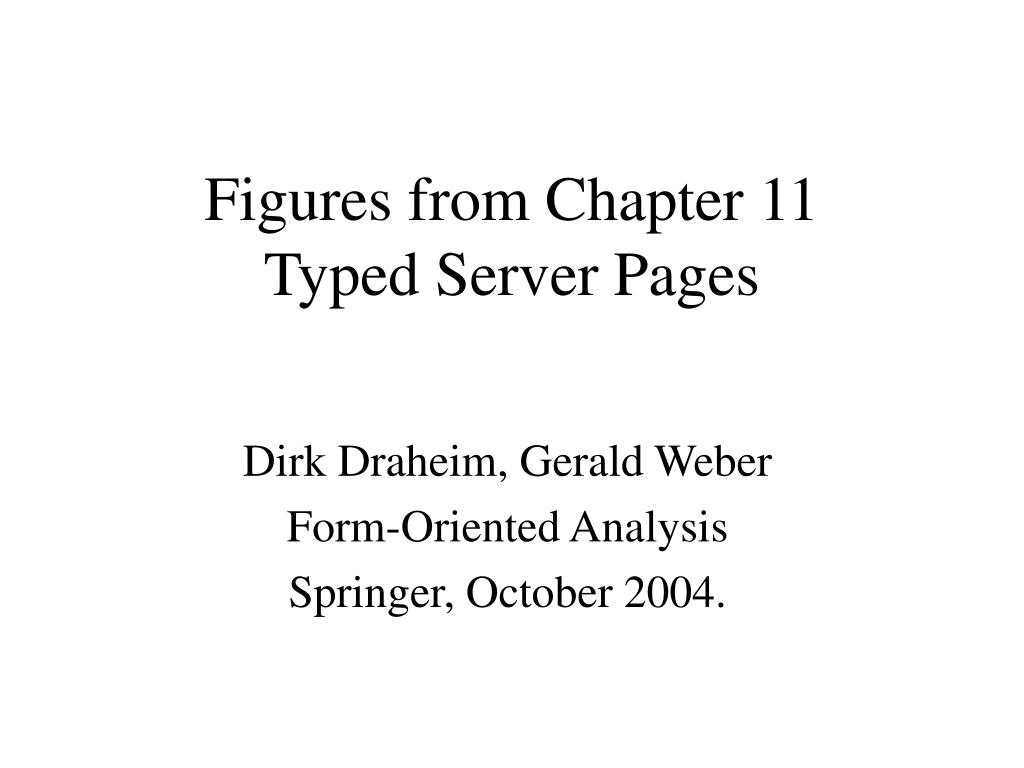

  1. Figures from Chapter 11Typed Server Pages Dirk Draheim, Gerald Weber Form-Oriented Analysis Springer, October 2004.

  2. Fig.11.1. CPDS and CPTS forms are editable method calls client page CPTS CPDS page description is interpreted page targets server side code Browser Server code unit that produces page descriptions (e.g. server page) code unit that produces page descriptions (e.g. server page) code unit that produces page descriptions (e.g. server page) Springer Verlag 2004

  3. Fig.11.2. Model 2 architecture C front M request Java Servlet create/update request dispatching client server-side objects Java Server Page access response V presentation Springer Verlag 2004

  4. Fig.11.5. Higher-order server pages design example registration A error and registrationAalong registration B registration B error and registrationBalong new Customer registration C error and registrationCalong somewhere not error Springer Verlag 2004
