Module 19: Lesson 4 Segment Relationships in Circles

Chord-Chord Product Theorem. Module 19: Lesson 4 Segment Relationships in Circles. If 2 chords intersect inside a circle, then the products of the lengths of the segments of the chords are equal. B. A. AC · CE = BC · DC. C. See example 1 page 1043. E. D. Secant-Secant Product Theorem.

henrymaria
Télécharger la présentation

Module 19: Lesson 4 Segment Relationships in Circles

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

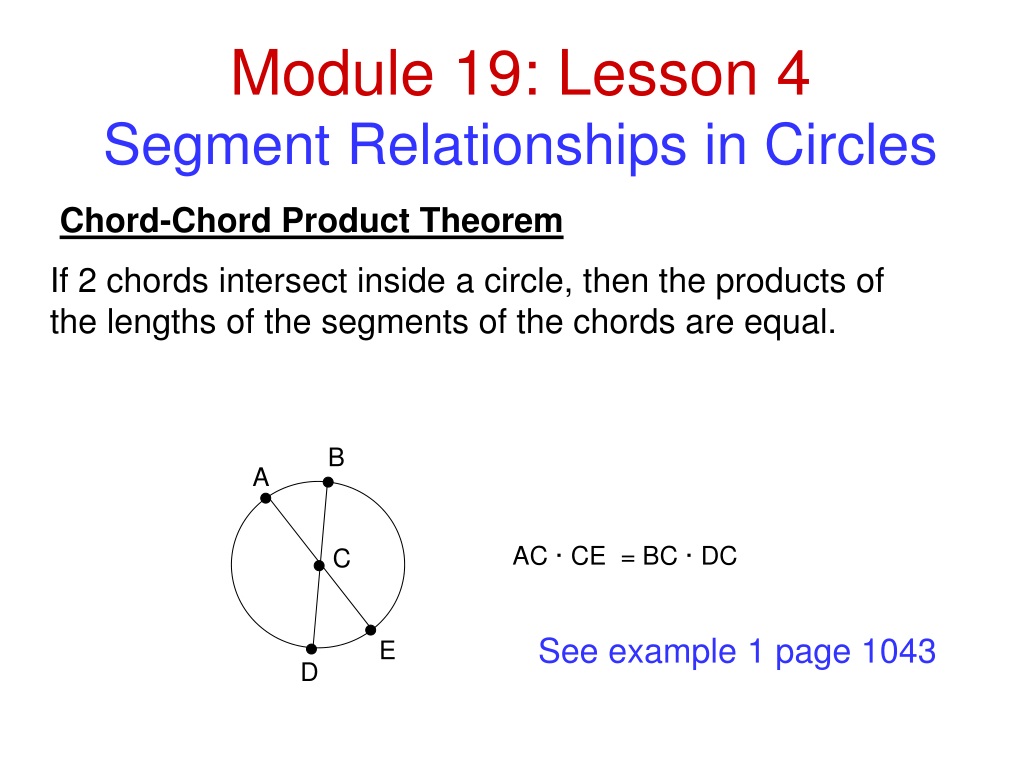

  1. Chord-Chord Product Theorem Module 19: Lesson 4Segment Relationships in Circles If 2 chords intersect inside a circle, then the products of the lengths of the segments of the chords are equal. B A AC · CE = BC · DC C See example 1 page 1043 E D

  2. Secant-Secant Product Theorem If 2 secants intersect in the exterior of a circle, then the products of the lengths of one secant segment and its external segment equals the product of the lengths of the other secant segment and its external segment. BC · AC = CE · CD A B C D E See example 3 page 1045

  3. Secant-Tangent Product Theorem If a secant and a tangent intersect in the exterior of a circle, then the product of the lengths of one secant segment and its external segment equals the length of the tangent segment squared. A See example 4 page 1046 B C D

  4. Homework pages 1049-1053 #’s 5-20 (all)
