Presentation Transcript

  1. HW-238T Connecting printing devices to Windows using v4 printer drivers Justin Hutchings Program Manager Frank Gorgenyi Software Development Engineer Microsoft Corporation

  2. Agenda • Using a v4 print driver to customize the print experience • v4 print drivers in the enterprise • Developing a v4 print driver • You’ll leave with examples of how to: • Use a v4 print driver to showcase the unique value of your device • Build a high quality v4 print driver

  3. V4 print drivers provide the best print experience on Windows 8.

  4. Building a Metro style printer experience v4 app + + Metro style printer app A great device! v4 print driver Device Metadata

  5. Building a desktop printer experience v4 app + + printer extension A great device! v4 print driver

  6. demo Printer extension

  7. What you just saw • NET 4.0 application supporting printer preferences • Uses PrintTicket/PrintCapabilities for features • Uses Bidi for ink status • .

  8. V4 print drivers in the enterprise

  9. V4 print drivers make it easier and faster to manage print servers.

  10. V4 print drivers reduce IT management costs • IT admins spend less time managing print servers • v4 print drivers share to all supported Windows clients • No cross-architecture driver management • Printer extensions distributed like any other software • Uses familiar tools for print queue management • Print Management Console • PowerShell

  11. V4 print driver performance improvements • Reduced installation time • Reduced file I/O • Reduced disk footprint • Eliminated driver file name collisions • Faster sharing with enhanced Point and Print

  12. demo Enhanced Point and Print Server: Windows Developer Preview Client: Windows 7 SP1

  13. Developing a v4 print driver

  14. V4 print drivers are easier to build.

  15. Architecture of a v4 print driver App that prints Spooler Printer UI Configuration Rendering Device Connectivity

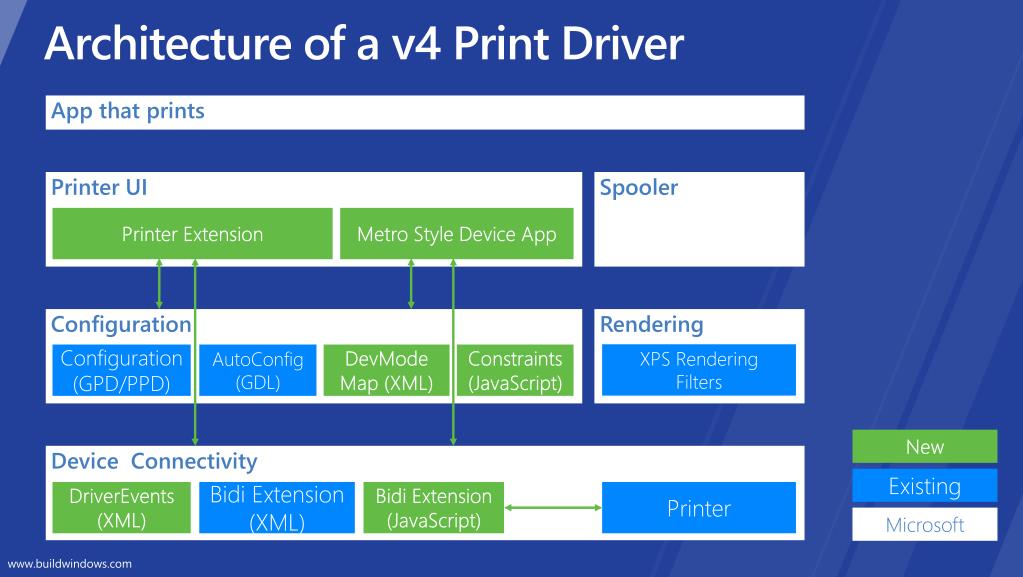

  16. Architecture of a v4 Print Driver App that prints Spooler Printer UI Printer Extension Metro Style Device App Configuration Rendering XPS Rendering Filters Configuration (GPD/PPD) AutoConfig (GDL) DevMode Map (XML) Constraints (JavaScript) New Device Connectivity Existing DriverEvents (XML) Bidi Extension (XML) Bidi Extension (JavaScript) Printer Microsoft

  17. Benefits of the v4 architecture • Interfaces use XML at all layers simplifying development • PrintTicket/PrintCapabilities • Bidi • XPS • Printer UI is built using standard, app toolkits minimizing specialized knowledge • Data-driven configuration allows printer sharing without cross-architecture driver management

  18. Simplified driver rendering • Metro style apps generate XPS • Built-in rendering support for PCL6 and PostScript • Improved rendering performance and fidelity with XPS Rasterization Service • GPU Acceleration • High precision color formats

  19. 3 simple steps to building a v4 print driver Setup • INF • V4 Manifest.INI Configuration • GPD or PPD file Rendering • Print Filter Pipeline Configuration • XPS Rendering Filter • Print Filter Pipeline Configuration

  20. Visual Studio 11 Developer Preview integration • Tight VS11 integration makes it easy to write v4 drivers • Printer Driver Wizard walks you through the process • Templates help you get started • XPS rendering filters • JavaScript constraints • Bidi extension files

  21. Recap

  22. Summary • V4 print drivers provide the best print experience on Windows 8 • V4 print drivers enable enhanced point and print, eliminate cross-architecture management and reduce IT management costs • Developing v4 print drivers is easy with a simplified architecture and Visual Studio support

  23. Related sessions • [Hands on Lab] Developing v4 print drivers • [HW-652T] Building a great Metro style device app for your printer • [PLAT-679T] Building Metro style apps that print • [HW-980P] How to retrieve configuration and status information from USB printers in Windows 8

  24. Further reading and documentation • Developing v4 Print Drivers • MSDN: V4 Print Driver Interfaces and Enumerations • Windows Hardware Development • Authoring a Metro style Device App for Printing • The Device Software Lifecycle – Deployment, Acquisition, Uninstall and Update Process • Windows Dev Center home   • Contact info – prninfo@microsoft.com

  25. thank you Feedback and questions http://forums.dev.windows.com Session feedbackhttp://bldw.in/SessionFeedback
