Lecture 27 4/4/07

Lecture 27 4/4/07. Complex ions and Coordination complexes. Central metal and ligands Complex ions vs. Coordination complexes. Complex formation can change physical and chemical properties. Ag + (aq) + e -  Ag (s) E ° = 0.799 V

hera
Télécharger la présentation

Lecture 27 4/4/07

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Lecture 27 4/4/07

  2. Complex ions and Coordination complexes • Central metal and ligands • Complex ions vs. Coordination complexes

  3. Complex formation can change physical and chemical properties Ag+ (aq) + e- Ag (s) E° = 0.799 V [Ag(CN)2]- + e-  Ag (s) + 2CN- (aq) E° = - 0.31 V

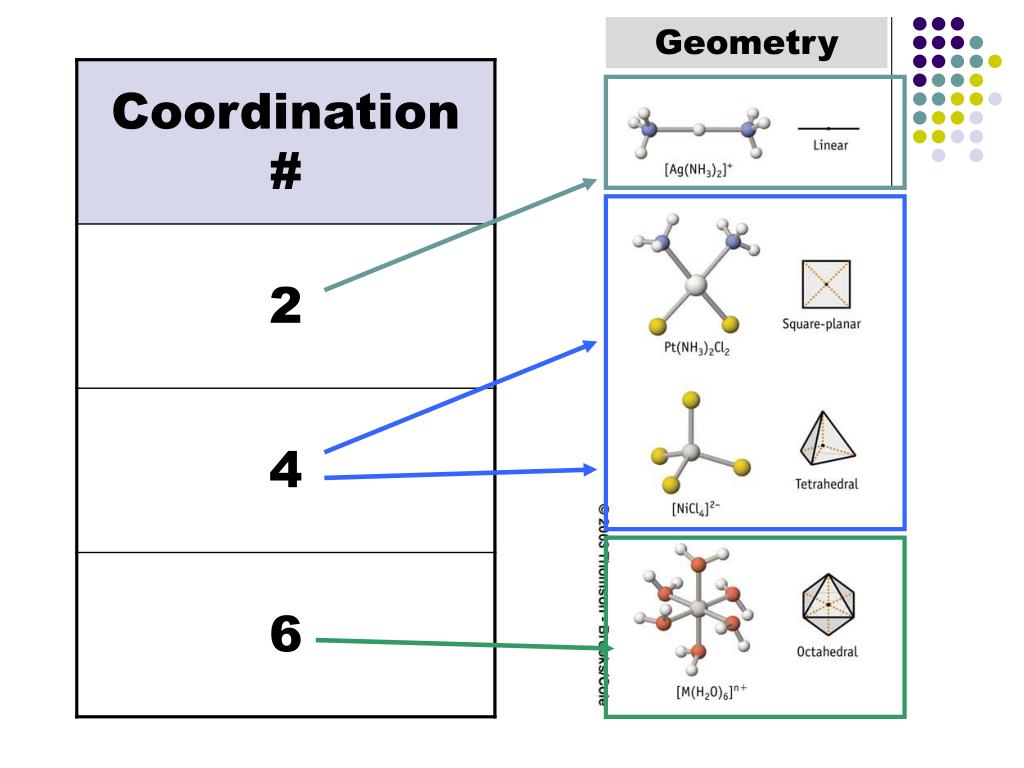

  4. Geometry

  5. Naming complex compounds

  6. Name, coordination number, and geometry? [Co(NH3)3(OH)3] K[Cr(NH3)2(C2O4)2] diamminetriaquahydroxochromium (III) nitrate Potassium tetrachloroplatinate (II)

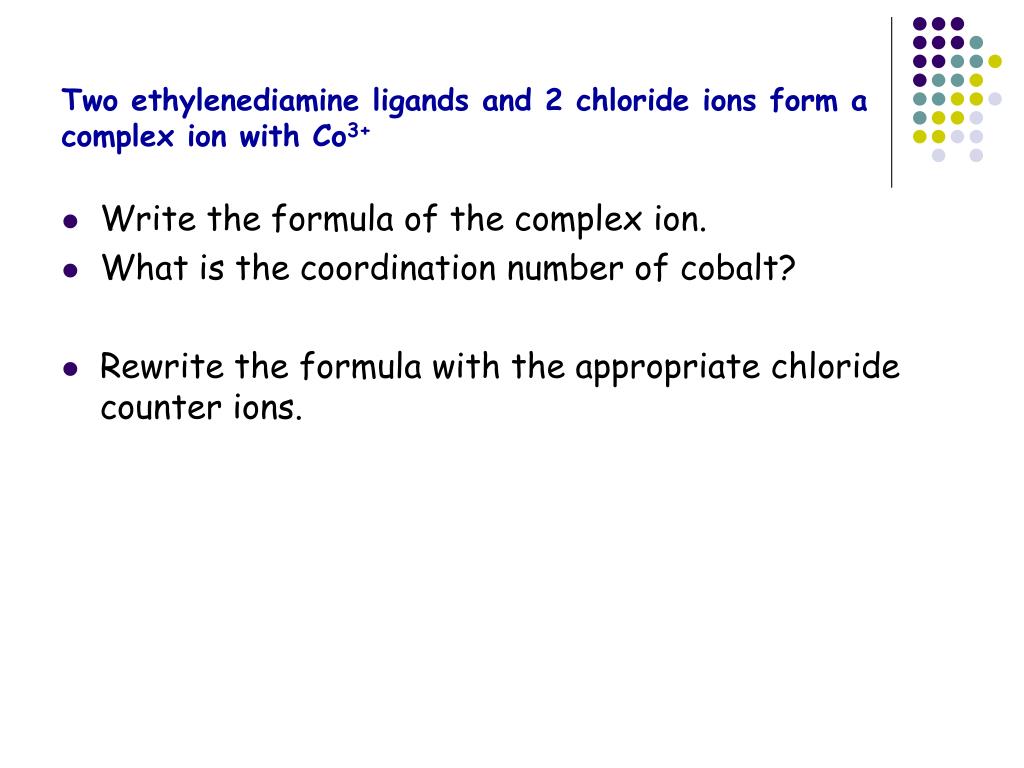

  7. Two ethylenediamine ligands and 2 chloride ions form a complex ion with Co3+ • Write the formula of the complex ion. • What is the coordination number of cobalt? • Rewrite the formula with the appropriate chloride counter ions.

  8. Isomers: Structural Same molecular formula, different bonding arrangement • Coordination isomerism: • Linkage isomerism:

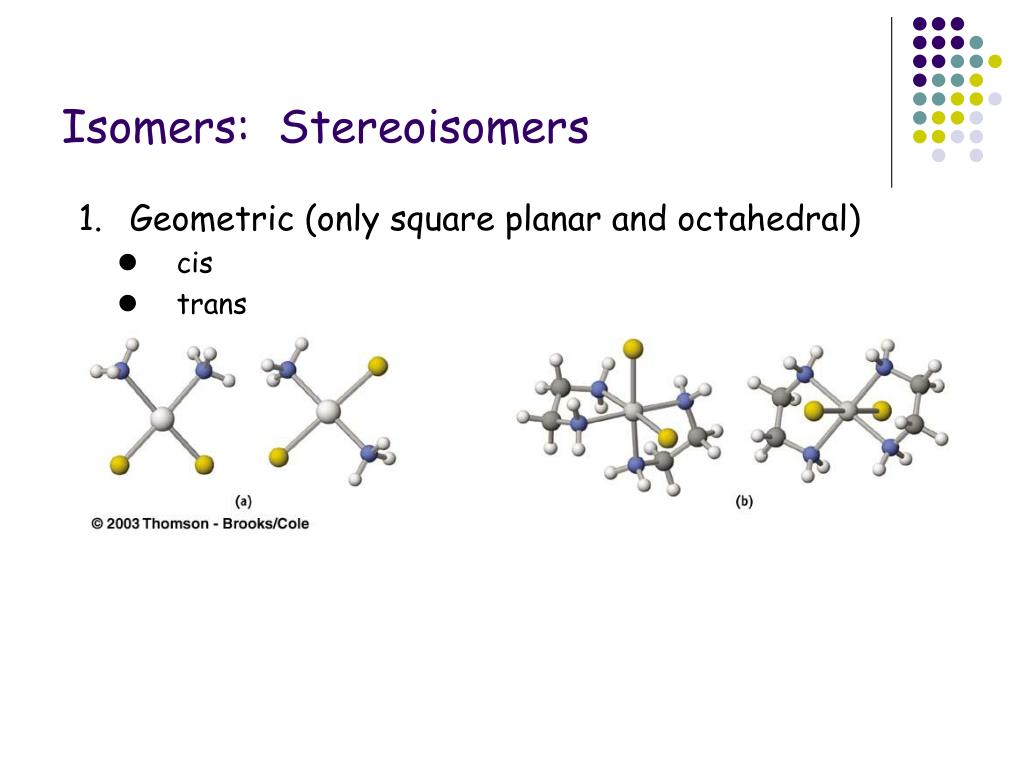

  9. Isomers: Stereoisomers • Geometric (only square planar and octahedral) • cis • trans

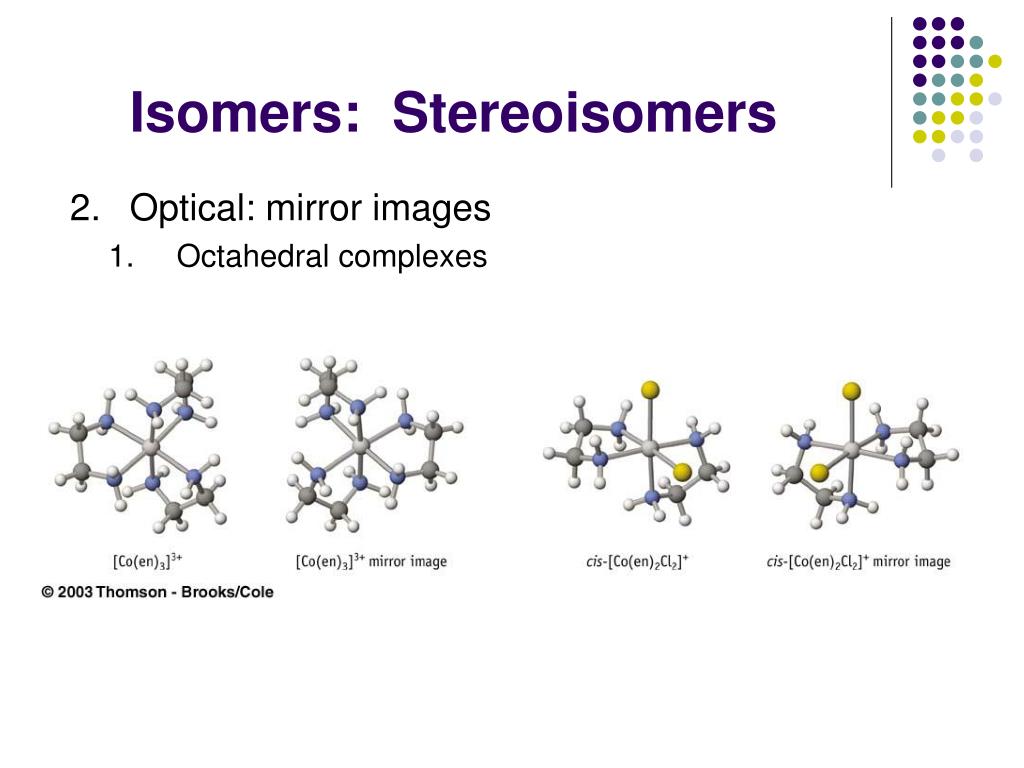

  10. Isomers: Stereoisomers • Optical: mirror images • Octahedral complexes

  11. 19-97 • A student wanted to measure the copper (II) concentration in an aqueous solution. For the cathode half-cell she used a silver electrode with a 1.00 M solution of AgNO3. For the anode half-cell she used a copper electrode dipped into the aqueous sample. If the cell gave a Ecell = 0.62 V at 25ºC, what was he copper (II) concentration of the solution?
