  1. Web Technologies Creating a Navigation Bar in Adobe Fireworks CS4

  2. Pop up Menus • Adobe Fireworks CS4 has a popup generator which automatically generates CSS code and JavaScript code. • Each drop down menu item appears as an HTML or image cell, which has an Up state, an Over state, and text in both states. IT: Web Technologies - Creating a Navigation Bar

  3. Creating a Button Create a new Fireworks document with the dimensions: 312 x 100 pixels. Draw a rectangle with the dimensions of 75x25 pixels using the Rectangle Tool . Set the Fill Color as #FFFFCC, a Light Yellow. Set the Stroke Color as #CC0066, a Deep Pink. IT: Web Technologies - Creating a Navigation Bar

  4. Enhancing the appearance of the button • Select the rectangle using the Pointer tool and apply the Inner Bevel filter. • On the Properties panel click the next to Filters and point to Bevel and Emboss and choose Inner Bevel. IT: Web Technologies - Creating a Navigation Bar

  5. Applying a Filter • Set the following values for the filter: Bevel edge shape – SmoothWidth - 6Contrast – 75% Softness – 3Angle – 135 Button preset - Raised IT: Web Technologies - Creating a Navigation Bar

  6. Putting text on the button • Click on the Text Tool and put a name on the button. • Make the following selections on the Properties panel: • Font Family – Times New Roman • Size – 14 pts • Font Style – Bold • Align - Center IT: Web Technologies - Creating a Navigation Bar

  7. Converting to a button • With the Pointer tool select the rectangle and the text (Contact Us). • In the Align Panel select Align Horizontal Center and Align Vertical Center(to center the text on the rectangle). • With both items still selected chooseModify on the Application bar and point to Symbol and select Convert to Symbol. IT: Web Technologies - Creating a Navigation Bar

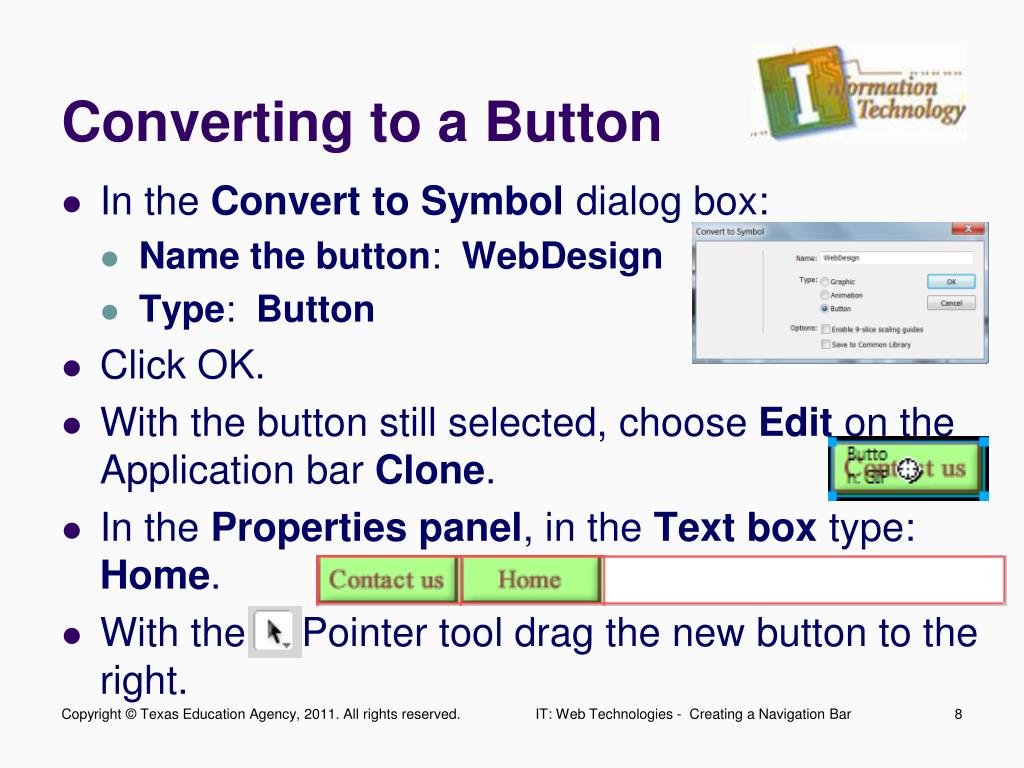

  8. Converting to a Button • In the Convert to Symbol dialog box: • Name the button: WebDesign • Type: Button • Click OK. • With the button still selected, choose Edit on the Application bar Clone. • In the Properties panel, in the Text box type: Home. • With the Pointer tool drag the new button to the right. IT: Web Technologies - Creating a Navigation Bar

  9. Cloning additional buttons • Clone the button two more times and name the buttons: Services and About Us. • Rearrange the buttons in an order that makes more sense: IT: Web Technologies - Creating a Navigation Bar

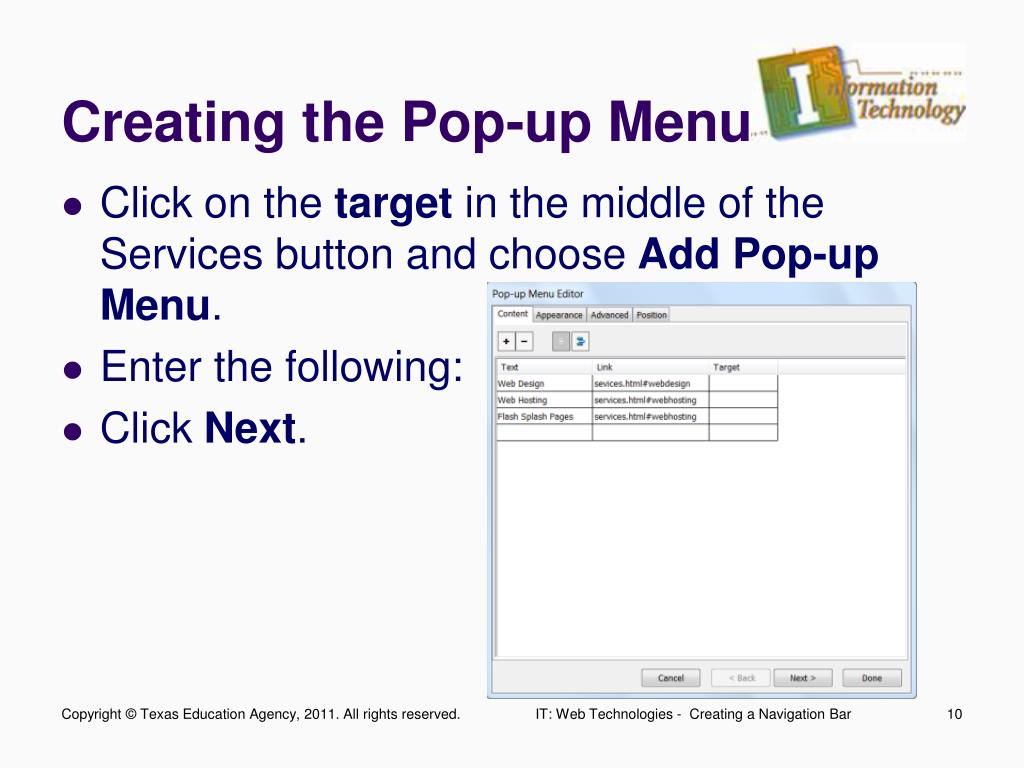

  10. Creating the Pop-up Menu • Click on the target in the middle of the Services button and choose Add Pop-up Menu. • Enter the following: • Click Next. IT: Web Technologies - Creating a Navigation Bar

  11. The Appearance • Cells: Image • Font: Verdana … • Up state: • Text Color: FFFFCC • Cell Color:CC0066 • Over state: • Text Color: FFFFCC • Cell Color:FFFF99 • Click Next, Next,Done IT: Web Technologies - Creating a Navigation Bar

  12. About Us • Repeat this same process for the About Us button creating the following menu items: • Background • Meet our Team • Testimonials IT: Web Technologies - Creating a Navigation Bar

  13. Previewing the Navigation • Select File on the Application bar and point to Preview in Browser and choose Preview in IExplore (your browser may vary) • Shortcut key: [F12] IT: Web Technologies - Creating a Navigation Bar

  14. Fixing the buttons • Double-click on one of the buttons. • Select the text and the rectangle. • In the States panel, click the buttonand choose Copy to States. • Copy selection to All states and clickOK. • Click the at the top of the document window IT: Web Technologies - Creating a Navigation Bar

  15. Adjusting the Pop-up Menu • Click on the Services button target and choose Edit Pop-up Menu • Click the Position tab andchange the X value to 0and the Y value to 28. • Click Done. • Complete the same processwith the Contact Us button • Preview again. IT: Web Technologies - Creating a Navigation Bar

  16. Exporting the Navigation Bar • Select File on the Application bar and choose Export Wizard. • The Export Wizard activates. • Click Continue, under Choose Destination select Dreamweaver and click Continue. • On the Analysis Results dialog box click Exit. • The Image Preview dialog box opens. IT: Web Technologies - Creating a Navigation Bar

  17. Exporting the Navigation Bar • Click the Export Button • Navigate to where your assets are being save. • Click Save. IT: Web Technologies - Creating a Navigation Bar

  18. Viewing your Exported files • Fireworks creates a subfolder titled “images” to save the necessary files for your navigation bar, a JavaScript file and a CSS style sheet to be viewed correctly. IT: Web Technologies - Creating a Navigation Bar

  19. Previewing your Navigation Bar • Navigate to the folder where you exported your navigation bar. • Open the html file that has been created to preview your file in a browser. IT: Web Technologies - Creating a Navigation Bar

  20. On Your Own • Create a navigation bar in Fireworks for a school club or organization website of your choice. • Your navigation bar should have at least four buttons and two of the buttons should have drop-down menus with a minimum of three choices. IT: Web Technologies - Creating a Navigation Bar
