  1. OmniVistaScreenshots Versions 1.0 & 1.1

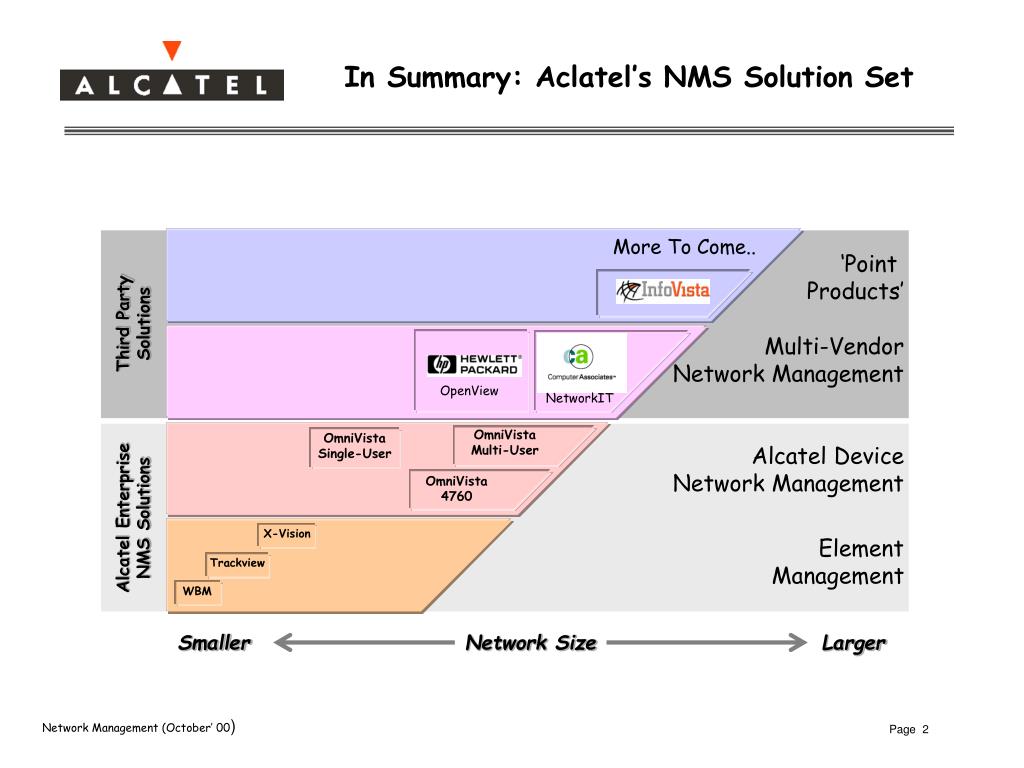

  2. NetworkIT Third Party Solutions X-Vision Trackview OmniVista Multi-User WBM OmniVista 4760 Alcatel Enterprise NMS Solutions OmniVista Single-User Smaller Network Size Larger In Summary: Aclatel’s NMS Solution Set More To Come.. ‘Point Products’ Multi-Vendor Network Management OpenView Alcatel Device Network Management Element Management

  3. OmniVista 1.0Applications & Screenshots

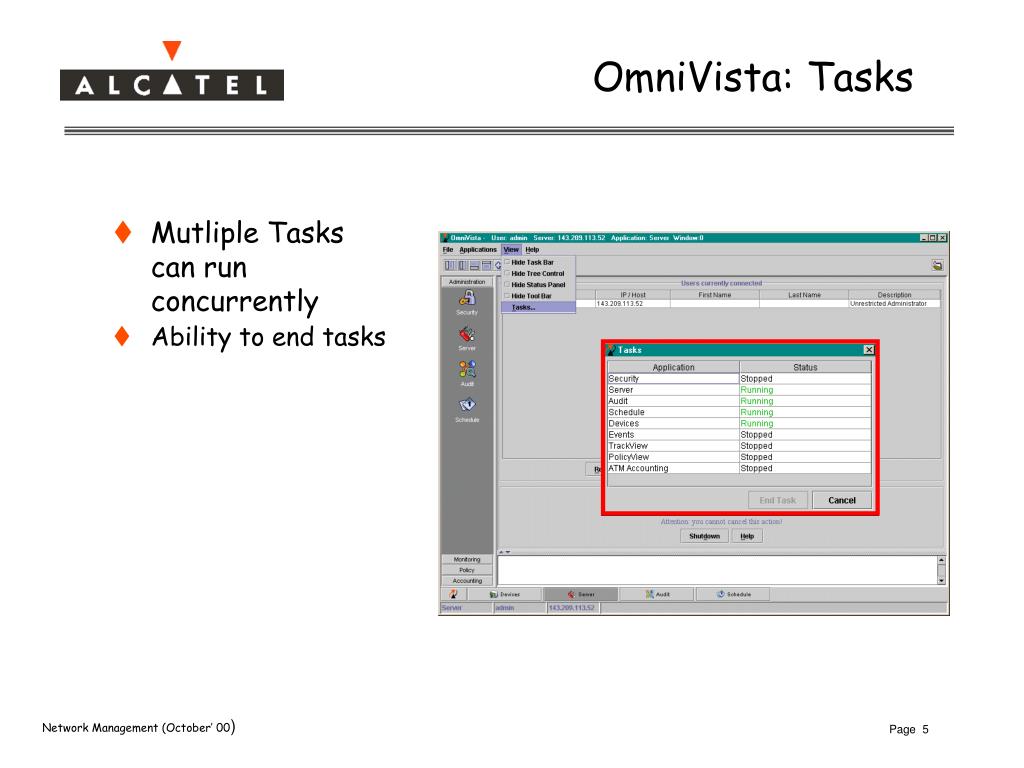

  4. OmniVista: Tasks • Mutliple Tasks can run concurrently • Can view and end tasks • Task Examples: Devices, Security, etc.

  5. OmniVista: Tasks • Mutliple Tasks can run concurrently • Ability to end tasks

  6. Admin: Security • Set Up User Access • Administrative • Read Only • Read/Write

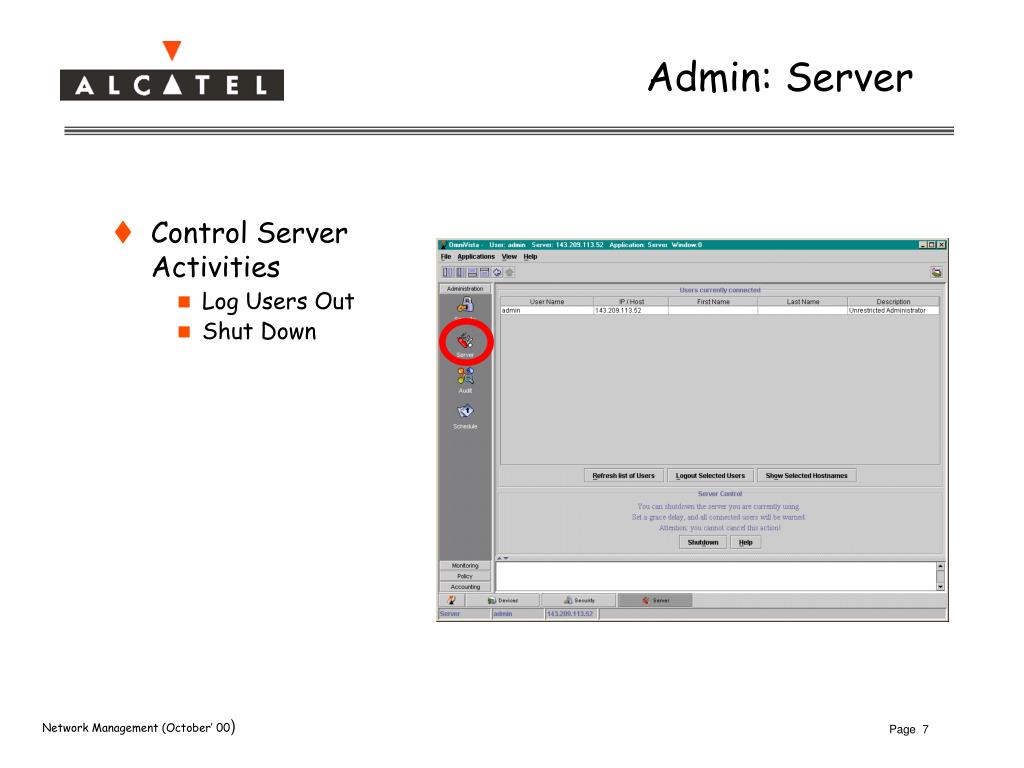

  7. Admin: Server • Control Server Activities • Log Users Out • Shut Down

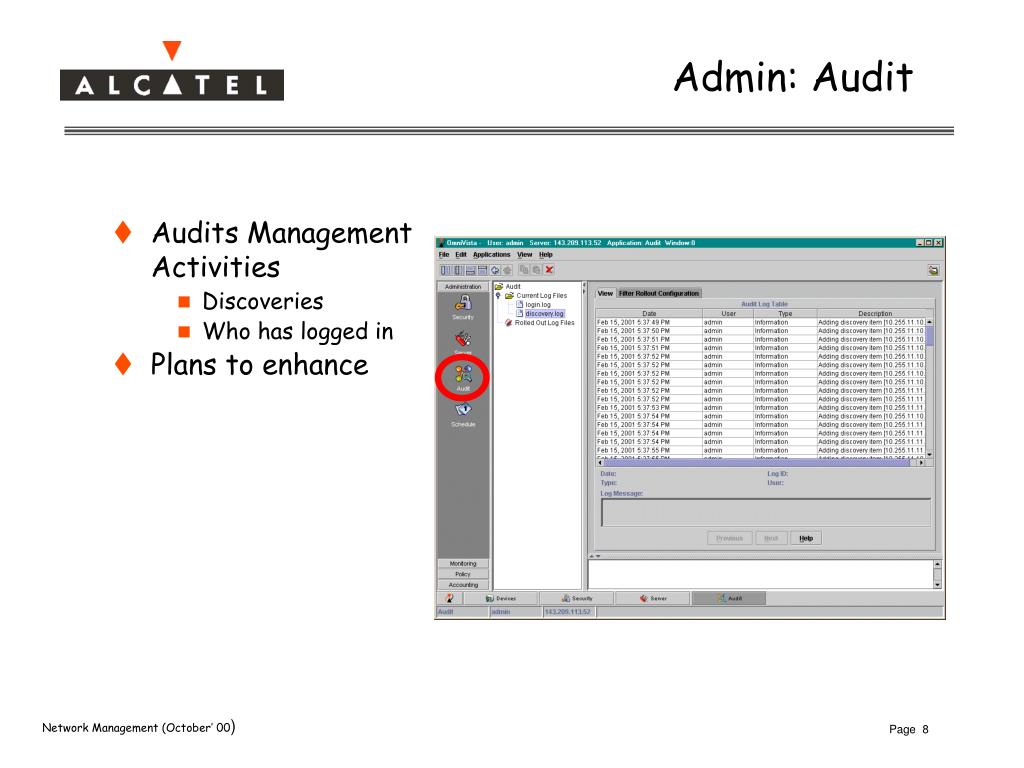

  8. Admin: Audit • Audits Management Activities • Discoveries • Who has logged in • Plans to enhance

  9. Admin: Scheduler • Ability to Schedule Activities • AccountingView only App that currently uses this feature • Plans to enhance

  10. Autodiscovery • Autodiscover Network • XOS, OmniCore, OEM devices

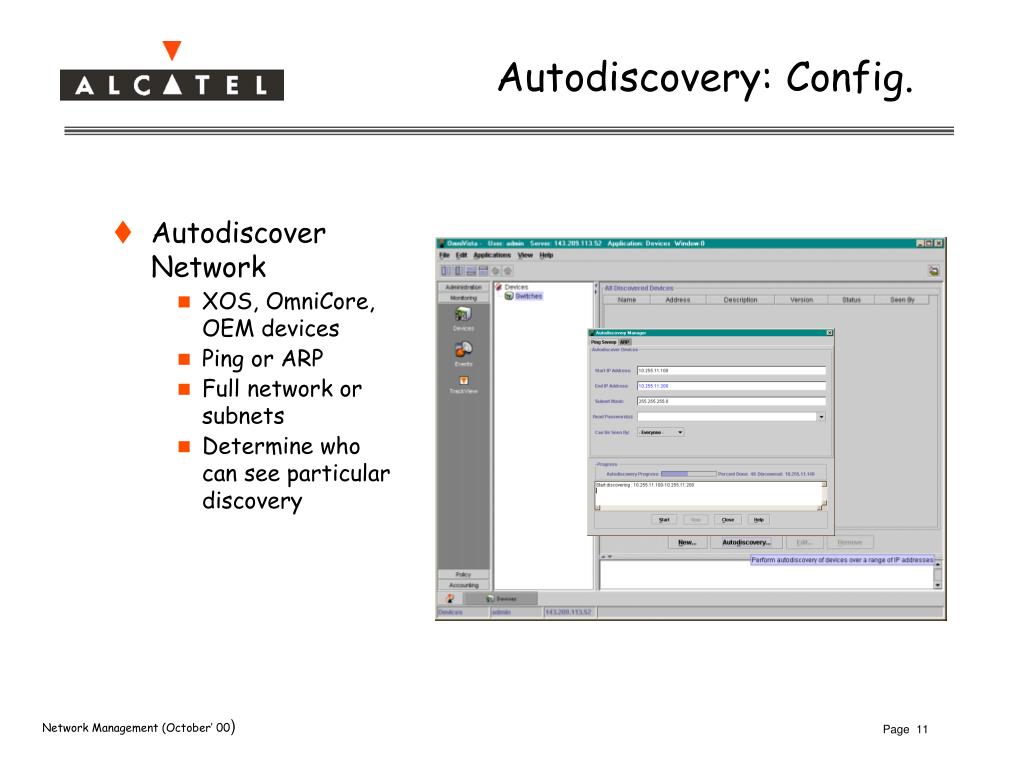

  11. Autodiscovery: Config. • Autodiscover Network • XOS, OmniCore, OEM devices • Ping or ARP • Full network or subnets • Determine who can see particular discovery

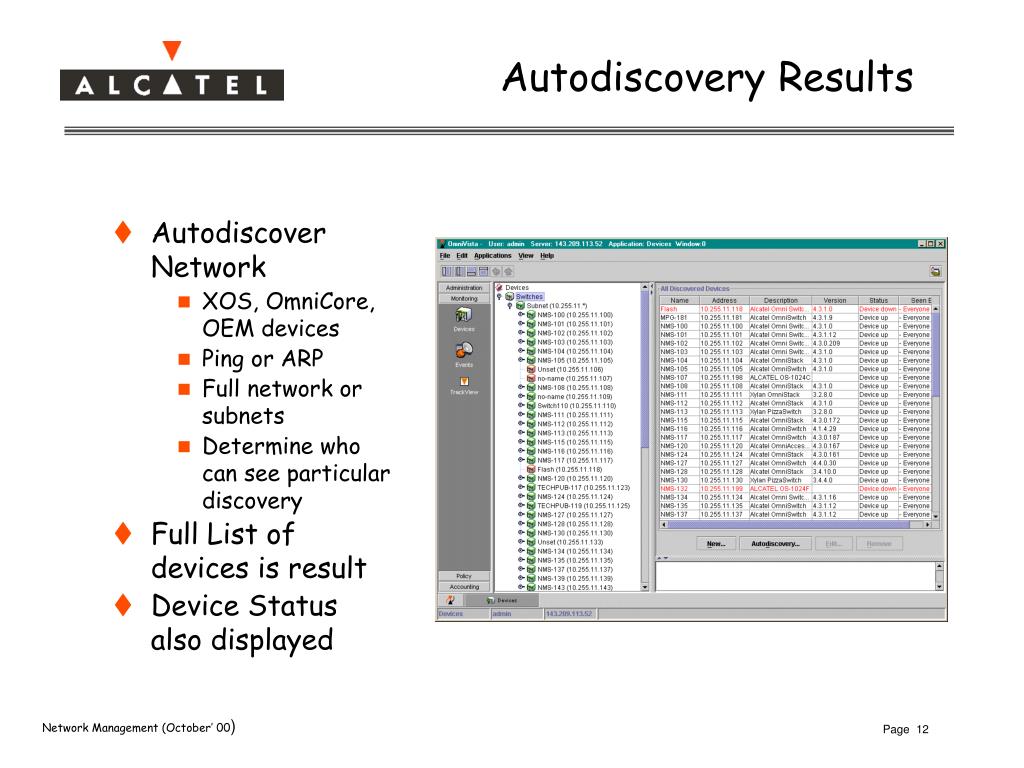

  12. Autodiscovery Results • Autodiscover Network • XOS, OmniCore, OEM devices • Ping or ARP • Full network or subnets • Determine who can see particular discovery • Full List of devices is result • Device Status also displayed

  13. Devices: Device View • Device Information Display • Includes • Modules • Firmware • Chassis Info • More • For XOS devices • Also opens tasks for particular devices types

  14. Devices: Health • Health MIB • Define Thresholds • View dynamic health stats • Port Stats in 1.0 • Module & Port Stats available in 1.1

  15. Devices: Utilization • Utilization • XOS and OmniCore • Graphical or Tabular XOS Device (Graphical Form)

  16. Devices: Utilization • Utilization • XOS and OmniCore • Graphical or Tabular OmniCore Device (Tabular Form)

  17. Devices: Report • Generates Manifest • Single XOS Device • Exportable • Plan to Enhance

  18. Devices: Telnet • Telnet into any switch

  19. Devices: Switch Manager • XOS Element Manager • Launch Switch Manager

  20. Devices: Switch Manager • XOS Element Manager • Launch Switch Manager • Same Interface as within X-Vision

  21. Devices: WBM • OEM devices • I.e. OS 6024, 8008. • Launch native Web Based Manager

  22. Devices: WBM • OEM devices • I.e. OS 6024, 8008. • Launch native Web Based Manager OmniStack 8008 WBM Launched via Web Browser from within OmniVista

  23. TrackView • Launch TrackView • Integrated into Infrastructure TrackView Window

  24. Events • Events for all devices • Must Configure each device to receive traps • Two Panels • List of traps • Explanation of selected trap

  25. PolicyView • Optional Package • Installed with separate CD • Provides Policy for • QoS • IPMS • HREX Filtering • Plans for Major Enhancements

  26. AccountingView • For ATM Accounting • Optional Package • Own CD • Priced Separately • Collects and distributes ATM CDR info.

  27. OmniVista 1.1Enhancements Overview

  28. OmniVista 1.1 Features • Single User Version • Manual Topology Map • Upload/Download CLI and Firmware files to switches • Navigation enhancements between applications • Events Enhancements • Devices Enhancements

  29. Device View Enhancements (1.1) Organized to show more switch information… • Per Switch Basis • General Info. • Environment • Physical Ports • Virtual Ports • Interfaces • Statistics

  30. Event Mgmt. Enhancements (1.1) Configure Multiple Switches to send traps To Management Station • Select Switches

  31. Event Mgmt. Enhancements (1.1) Configure Multiple Switches to send traps To Management Station • Select Switches • Select Option

  32. Event Mgmt. Enhancements (1.1) Configure Multiple Switches to send traps To Management Station • Select Switches • Select Option • OmniVista configures all switches switches to send traps to NMS

  33. Event Mgmt. Enhancements (1.1) Enhanced Alarm Definitions Alarm Definitions are more informative and complete

  34. Health Enhancements Full Health Support for: OmniSwitch, OS/R, OmniAccess, OmniStacks: 2000, 3000, 5000 • Modules

  35. Health Enhancements Full Health Support for: OmniSwitch, OS/R, OmniAccess, OmniStacks: 2000, 3000, 5000 • Modules • Ports

  36. Select Switches • Choose Config Option • Select Save Configuration Management Ability to obtain and restore firmware and CLI File onto multiple switches Getting Files from Switches Files are saved on Server Can Schedule this for a defined data/time

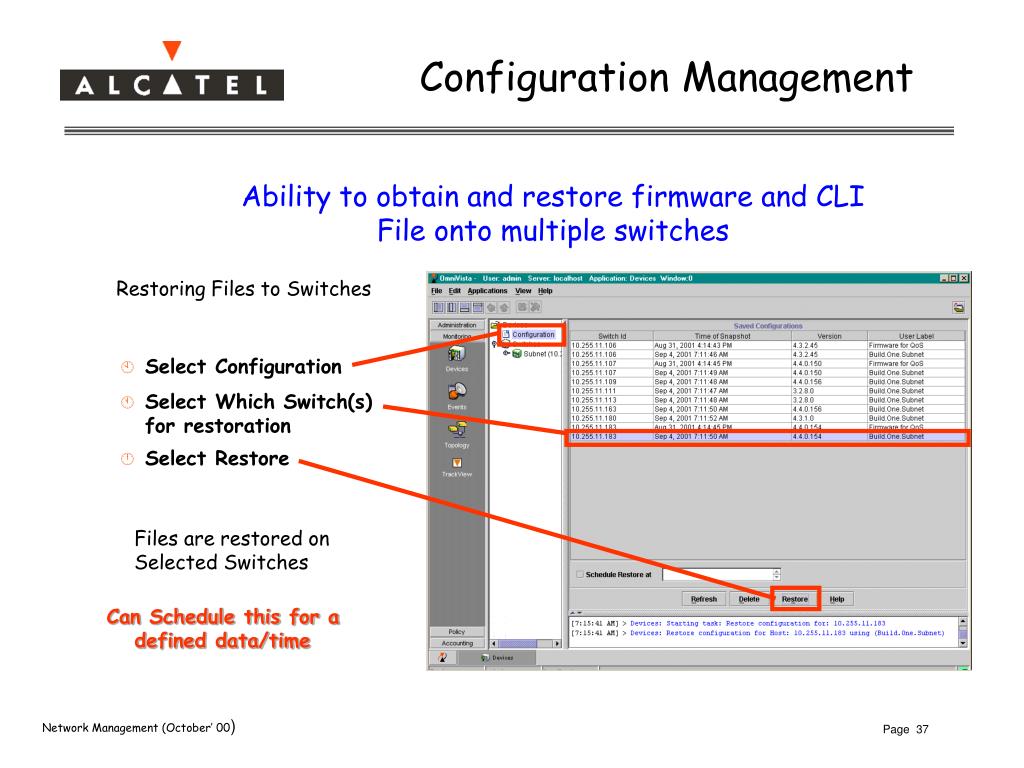

  37. Select Configuration • Select Which Switch(s) for restoration • Select Restore Configuration Management Ability to obtain and restore firmware and CLI File onto multiple switches Restoring Files to Switches Files are restored on Selected Switches Can Schedule this for a defined data/time

  38. Topology Manual Topology Mapping • Name region

  39. Topology Manual Topology Mapping • Name region • Select logical set of switches

  40. Topology Manual Topology Mapping • Manually define links

  41. Topology Manual Topology Mapping • Manually define links • Import and Export Link Info to ‘CSV’ Files

  42. Topology Manual Topology Mapping • Manually define links • Import and Export Link Info to ‘CSV’ Files Exported Link file

  43. Topology Manual Topology Mapping • Topology Map with defined Links • Can navigate to selected switches Note: OmniVista 2.0 will make much of this Dynamic.

  44. Navigation Ability to navigate between applications • Select Device in Discovery list, Right Click Mouse and navigate to device in Tree, Ping Node or Poll Node for updated information Note: Ping will simply ping the node to see if its alive. Poll will update info in database with current device info.

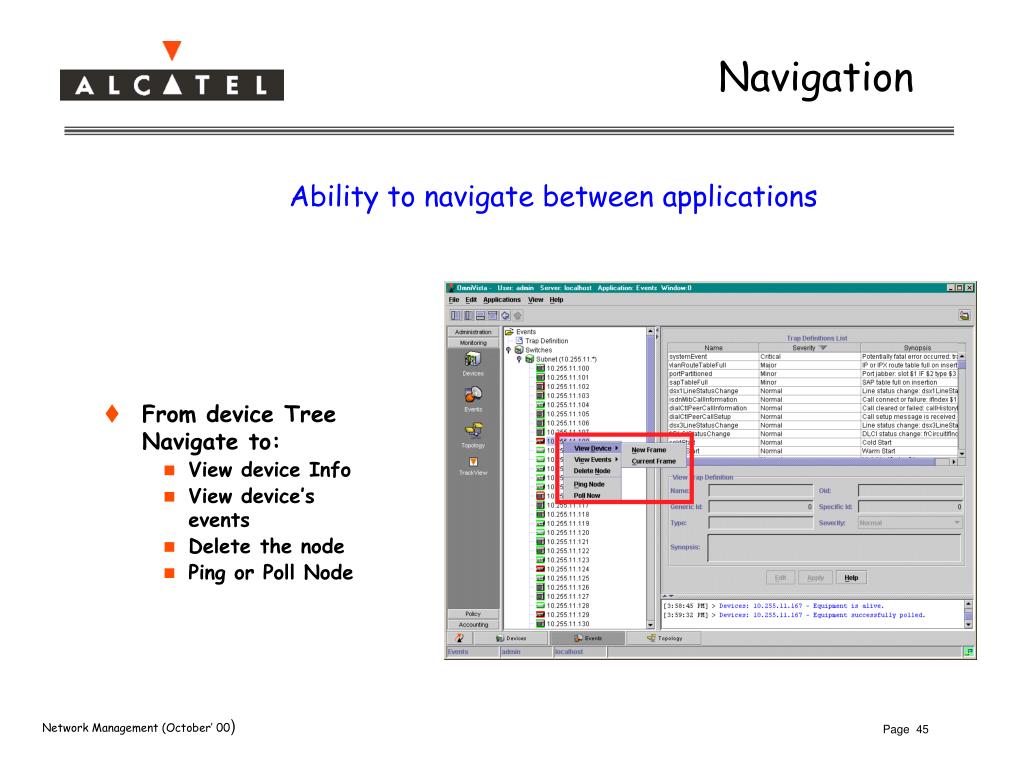

  45. Navigation Ability to navigate between applications • From device Tree Navigate to: • View device Info • View device’s events • Delete the node • Ping or Poll Node

  46. Finis
