Overview of VHDL in Reconfigurable Computing

This course, instructed by Dr. Phillip Jones at Iowa State University, provides an in-depth introduction to VHDL (VHSIC Hardware Description Language) and its applications in reconfigurable computing. Unlike traditional programming languages like C or C++, VHDL allows for inherently parallel design, making it suitable for modeling complex hardware. Students will learn key differences between VHDL and sequential programming languages, explore VHDL syntax, and examine how to implement hardware behavior through simulation.

herman
Télécharger la présentation

Overview of VHDL in Reconfigurable Computing

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. CPRE 583Reconfigurable Computing(VHDL Overview ) Instructor: Dr. Phillip Jones (phjones@iastate.edu) Reconfigurable Computing Laboratory Iowa State University Ames, Iowa, USA http://class.ece.iastate.edu/cpre583/

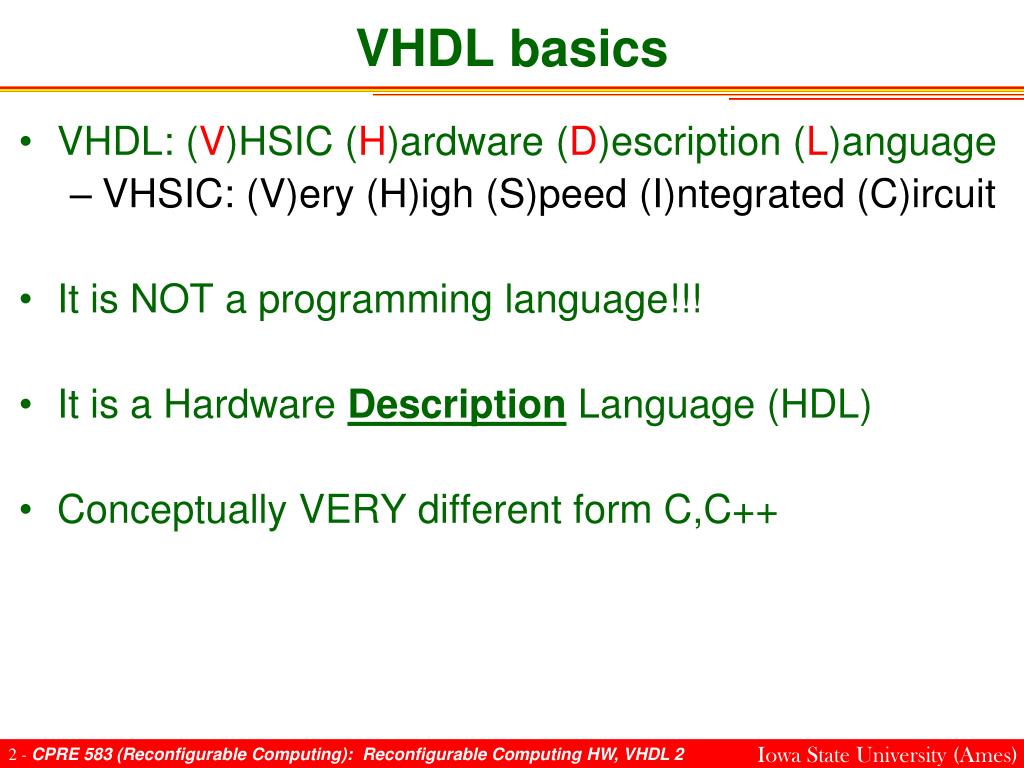

  2. VHDL basics • VHDL: (V)HSIC (H)ardware (D)escription (L)anguage • VHSIC: (V)ery (H)igh (S)peed (I)ntegrated (C)ircuit • It is NOT a programming language!!! • It is a Hardware Description Language (HDL) • Conceptually VERY different form C,C++

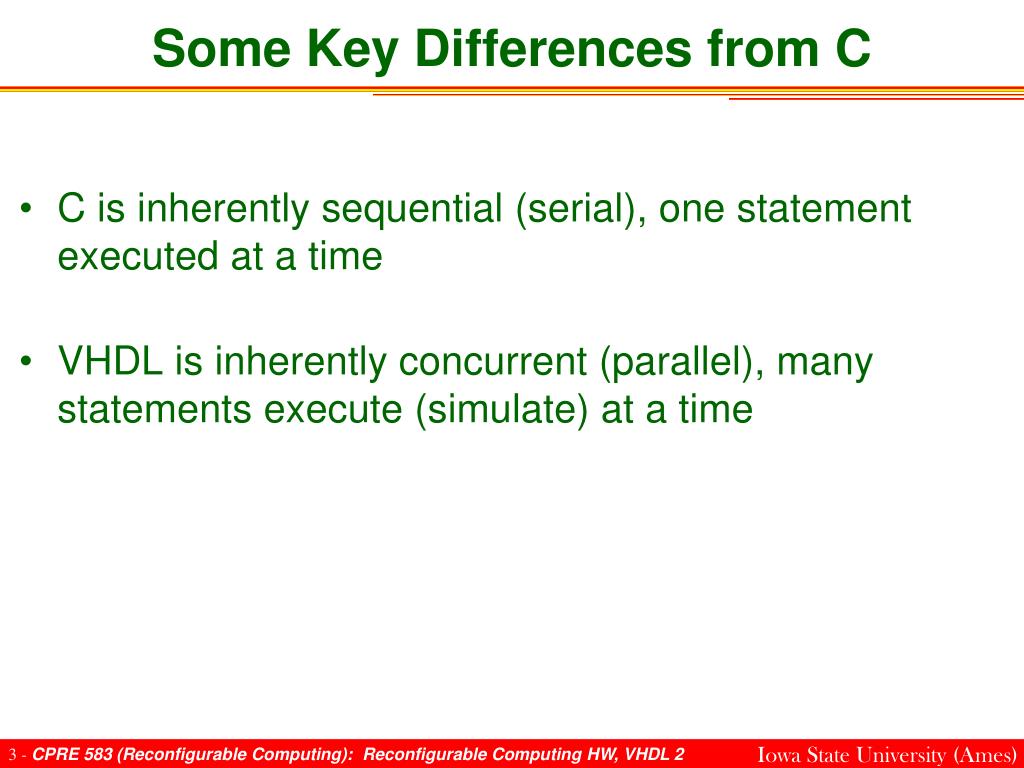

  3. Some Key Differences from C • C is inherently sequential (serial), one statement executed at a time • VHDL is inherently concurrent (parallel), many statements execute (simulate) at a time

  4. Some Key Differences from C VHDL example C example Initially: A,B,C,X,Y,Z,Ans =1 A = B + C X = Y + Z Ans = A + X A <= B + C X <= Y + Z Ans <= A + X Current Values: A = 1 B = 1 C = 1 X = 1 Y = 1 Z = 1 Ans = 1 Current Values: A = 1 B = 1 C = 1 X = 1 Y = 1 Z = 1 Ans = 1

  5. Some Key Differences from C VHDL example C example Initially: A,B,C,X,Y,Z,Ans =1 A = B + C X = Y + Z Ans = A + X A <= B + C X <= Y + Z Ans <= A + X Current Values: A = 2 B = 1 C = 1 X = 1 Y = 1 Z = 1 Ans = 1 Current Values: A = 1 B = 1 C = 1 X = 1 Y = 1 Z = 1 Ans = 1

  6. Some Key Differences from C VHDL example C example Initially: A,B,C,X,Y,Z,Ans =1 A = B + C X = Y + Z Ans = A + X A <= B + C X <= Y + Z Ans <= A + X Current Values: A = 2 B = 1 C = 1 X = 2 Y = 1 Z = 1 Ans = 1 Current Values: A = 1 B = 1 C = 1 X = 1 Y = 1 Z = 1 Ans = 1

  7. Some Key Differences from C VHDL example C example Initially: A,B,C,X,Y,Z,Ans =1 A = B + C X = Y + Z Ans = A + X A <= B + C X <= Y + Z Ans <= A + X Current Values: A = 2 B = 1 C = 1 X = 2 Y = 1 Z = 1 Ans = 4 Current Values: A = 1 B = 1 C = 1 X = 1 Y = 1 Z = 1 Ans = 1

  8. Some Key Differences from C VHDL example C example Initially: A,B,C,X,Y,Z,Ans =1 A = B + C X = Y + Z Ans = A + X A <= B + C X <= Y + Z Ans <= A + X “Simulates in parallel ever delta time step” Current Values: A = 2 B = 1 C = 1 X = 2 Y = 1 Z = 1 Ans = 4 Current Values: A = 1 B = 1 C = 1 X = 1 Y = 1 Z = 1 Ans = 1 Show impact Of changing Order of statements

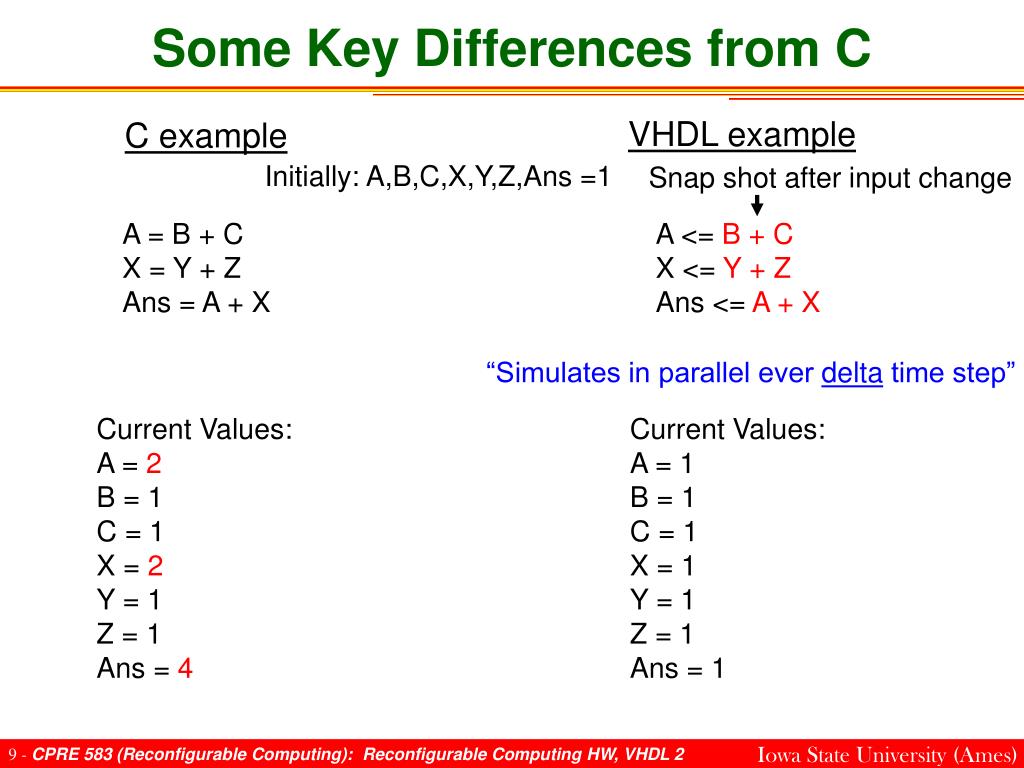

  9. Some Key Differences from C VHDL example C example Initially: A,B,C,X,Y,Z,Ans =1 Snap shot after input change A = B + C X = Y + Z Ans = A + X A <= B + C X <= Y + Z Ans <= A + X “Simulates in parallel ever delta time step” Current Values: A = 2 B = 1 C = 1 X = 2 Y = 1 Z = 1 Ans = 4 Current Values: A = 1 B = 1 C = 1 X = 1 Y = 1 Z = 1 Ans = 1

  10. Some Key Differences from C VHDL example C example Initially: A,B,C,X,Y,Z,Ans =1 A = B + C X = Y + Z Ans = A + X A <= B + C X <= Y + Z Ans <= A + X “Simulates in parallel ever delta time step” Current Values: A = 2 B = 1 C = 1 X = 2 Y = 1 Z = 1 Ans = 4 Current Values: A = 2 B = 1 C = 1 X = 2 Y = 1 Z = 1 Ans = 2

  11. Some Key Differences from C VHDL example C example Initially: A,B,C,X,Y,Z,Ans =1 A = B + C X = Y + Z Ans = A + X A <= B + C X <= Y + Z Ans <= A + X “Simulates in parallel ever delta time step” Current Values: A = 2 B = 1 C = 1 X = 2 Y = 1 Z = 1 Ans = 4 Current Values: A = 2 B = 1 C = 1 X = 2 Y = 1 Z = 1 Ans = 2 Different

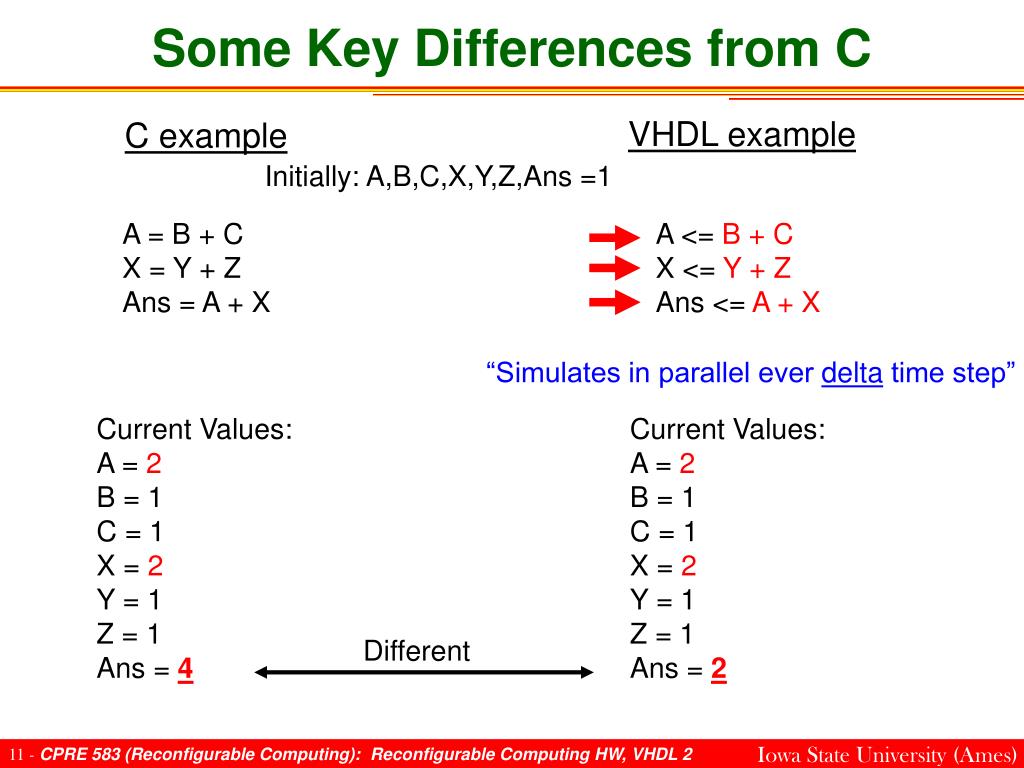

  12. Some Key Differences from C VHDL example C example Initially: A,B,C,X,Y,Z,Ans =1 Snap shot after input change A = B + C X = Y + Z Ans = A + X A <= B + C X <= Y + Z Ans <= A + X “Simulates in parallel ever delta time step” Current Values: A = 2 B = 1 C = 1 X = 2 Y = 1 Z = 1 Ans = 4 Current Values: A = 2 B = 1 C = 1 X = 2 Y = 1 Z = 1 Ans = 2

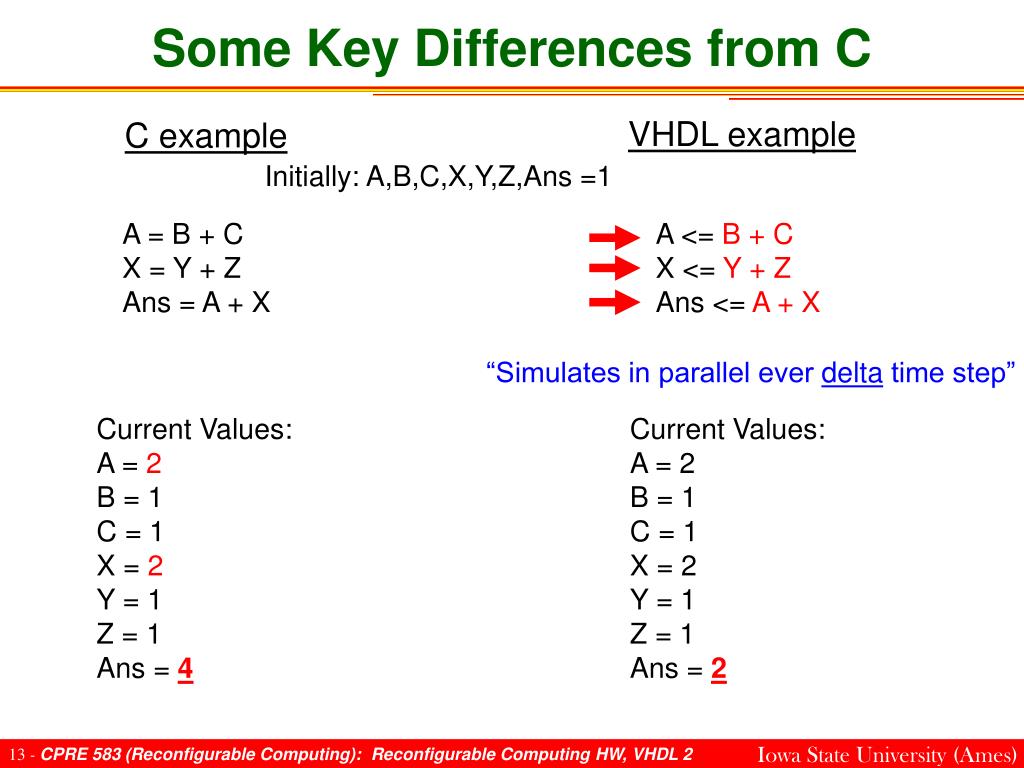

  13. Some Key Differences from C VHDL example C example Initially: A,B,C,X,Y,Z,Ans =1 A = B + C X = Y + Z Ans = A + X A <= B + C X <= Y + Z Ans <= A + X “Simulates in parallel ever delta time step” Current Values: A = 2 B = 1 C = 1 X = 2 Y = 1 Z = 1 Ans = 4 Current Values: A = 2 B = 1 C = 1 X = 2 Y = 1 Z = 1 Ans = 2

  14. Some Key Differences from C VHDL example C example Initially: A,B,C,X,Y,Z,Ans =1 A = B + C X = Y + Z Ans = A + X A <= B + C X <= Y + Z Ans <= A + X “Simulates in parallel ever delta time step” Current Values: A = 2 B = 1 C = 1 X = 2 Y = 1 Z = 1 Ans = 4 Current Values: A = 2 B = 1 C = 1 X = 2 Y = 1 Z = 1 Ans = 4

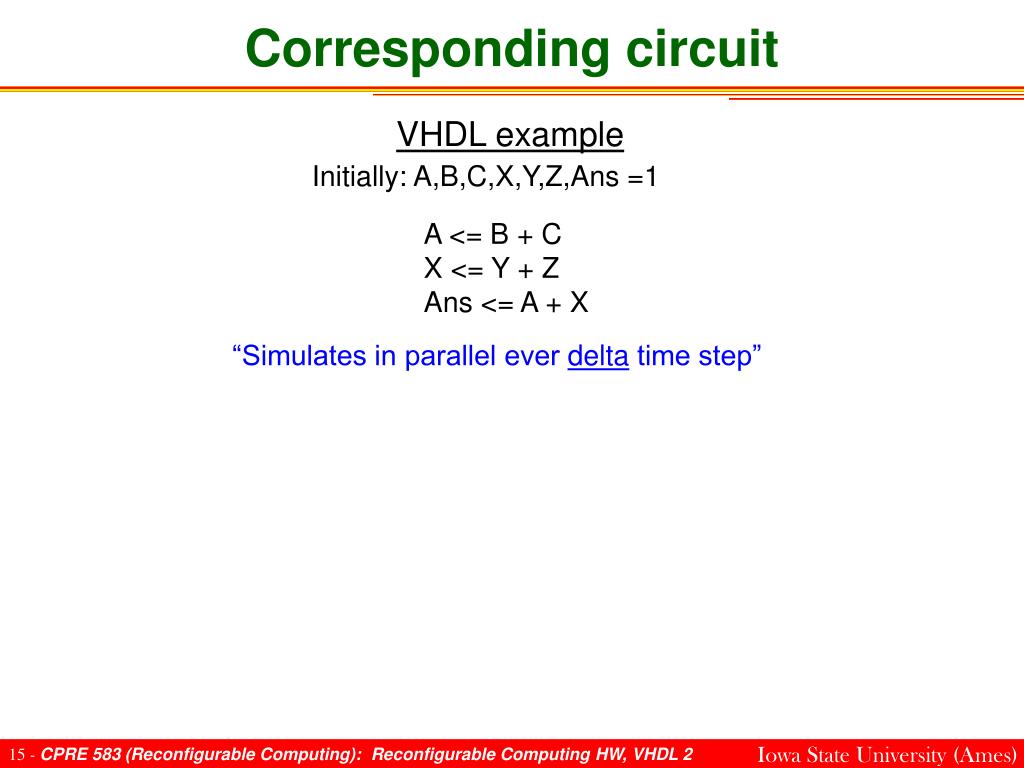

  15. Corresponding circuit VHDL example Initially: A,B,C,X,Y,Z,Ans =1 A <= B + C X <= Y + Z Ans <= A + X “Simulates in parallel ever delta time step”

  16. Corresponding circuit VHDL example Initially: A,B,C,X,Y,Z,Ans =1 A <= B + C X <= Y + Z Ans <= A + X “Simulates in parallel ever delta time step” B(1) + A(1) C(1) + Ans(1) Y(1) + X(1) Z(1)

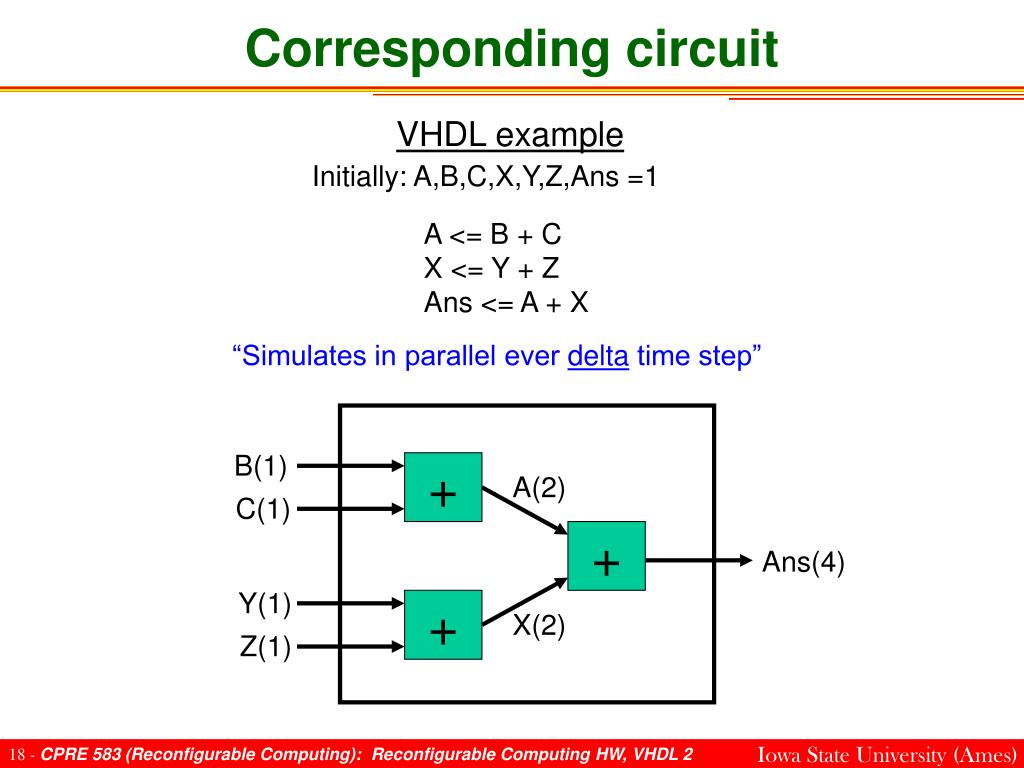

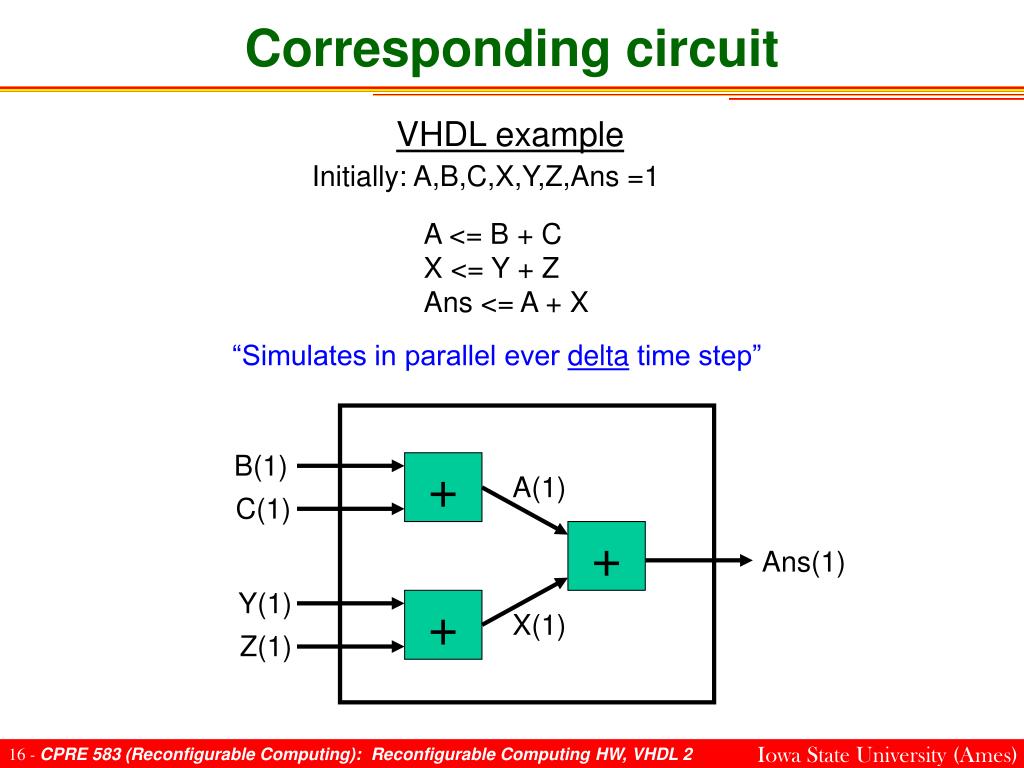

  17. Corresponding circuit VHDL example Initially: A,B,C,X,Y,Z,Ans =1 A <= B + C X <= Y + Z Ans <= A + X “Simulates in parallel ever delta time step” B(1) + A(2) C(1) + Ans(2) Y(1) + X(2) Z(1)

  18. Corresponding circuit VHDL example Initially: A,B,C,X,Y,Z,Ans =1 A <= B + C X <= Y + Z Ans <= A + X “Simulates in parallel ever delta time step” B(1) + A(2) C(1) + Ans(4) Y(1) + X(2) Z(1)

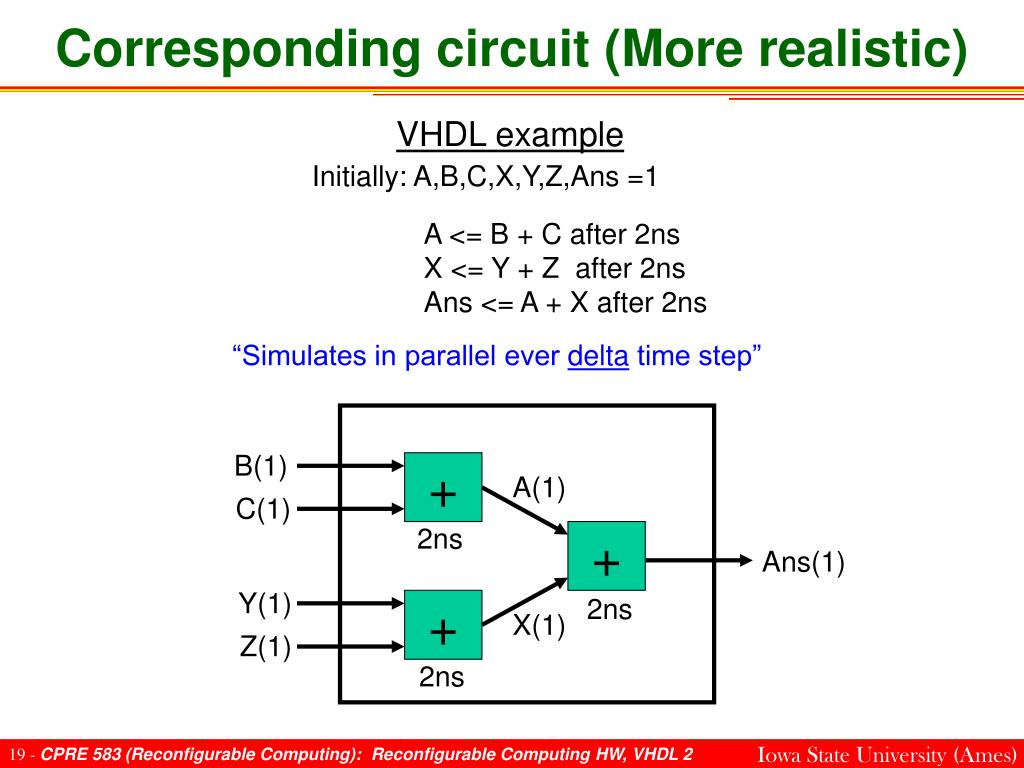

  19. Corresponding circuit (More realistic) VHDL example Initially: A,B,C,X,Y,Z,Ans =1 A <= B + C after 2ns X <= Y + Z after 2ns Ans <= A + X after 2ns “Simulates in parallel ever delta time step” B(1) + A(1) C(1) 2ns + Ans(1) Y(1) 2ns + X(1) Z(1) 2ns

  20. Corresponding circuit (More realistic) VHDL example Initially: A,B,C,X,Y,Z,Ans =1 A <= B + C after 2ns X <= Y + Z after 2ns Ans <= A + X after 2ns “Simulates in parallel ever delta time step” B(1) + A(2) C(1) 2ns + Ans(2) Y(1) 2ns + X(2) Z(1) 2ns

  21. Corresponding circuit (More realistic) VHDL example Initially: A,B,C,X,Y,Z,Ans =1 A <= B + C after 2ns X <= Y + Z after 2ns Ans <= A + X after 2ns “Simulates in parallel ever delta time step” B(1) + A(2) C(1) 2ns + Ans(4) Y(1) 2ns + X(2) Z(1) 2ns

  22. Typical Structure of a VHDL File Include Libraries LIBRARY ieee; ENTITY test_circuit IS PORT(B,C,Y,Z,Ans); END test_circuit; ARCHITECTURE structure OF test_circuit IS signal A : std_logic_vector(7 downto 0); signal X : std_logic_vector(7 downto 0); BEGIN A <= B + C; X <= Y + Z; Ans <= A + X; END Define component name and Input/output ports Declare internal signals, components Implement components functionality

  23. Process • Process provide a level serialization in VHDL (e.g. variables, clocked processes) • Help separate and add structure to VHDL design

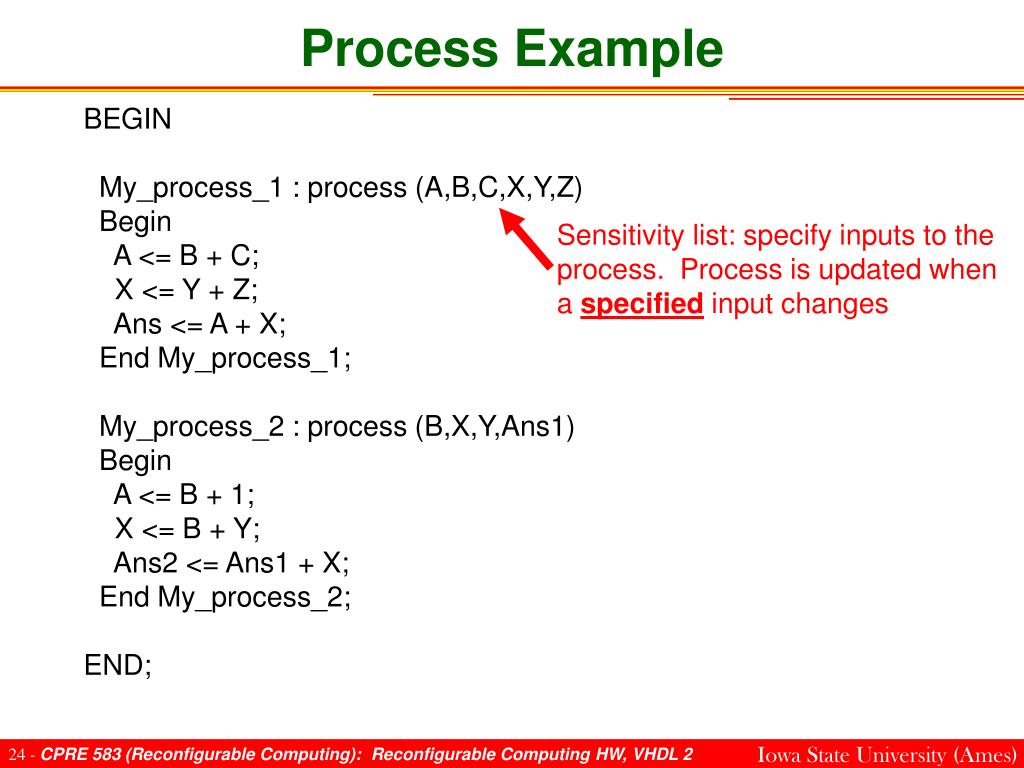

  24. Process Example BEGIN My_process_1 : process (A,B,C,X,Y,Z) Begin A <= B + C; X <= Y + Z; Ans <= A + X; End My_process_1; My_process_2 : process (B,X,Y,Ans1) Begin A <= B + 1; X <= B + Y; Ans2 <= Ans1 + X; End My_process_2; END; Sensitivity list: specify inputs to the process. Process is updated when a specified input changes

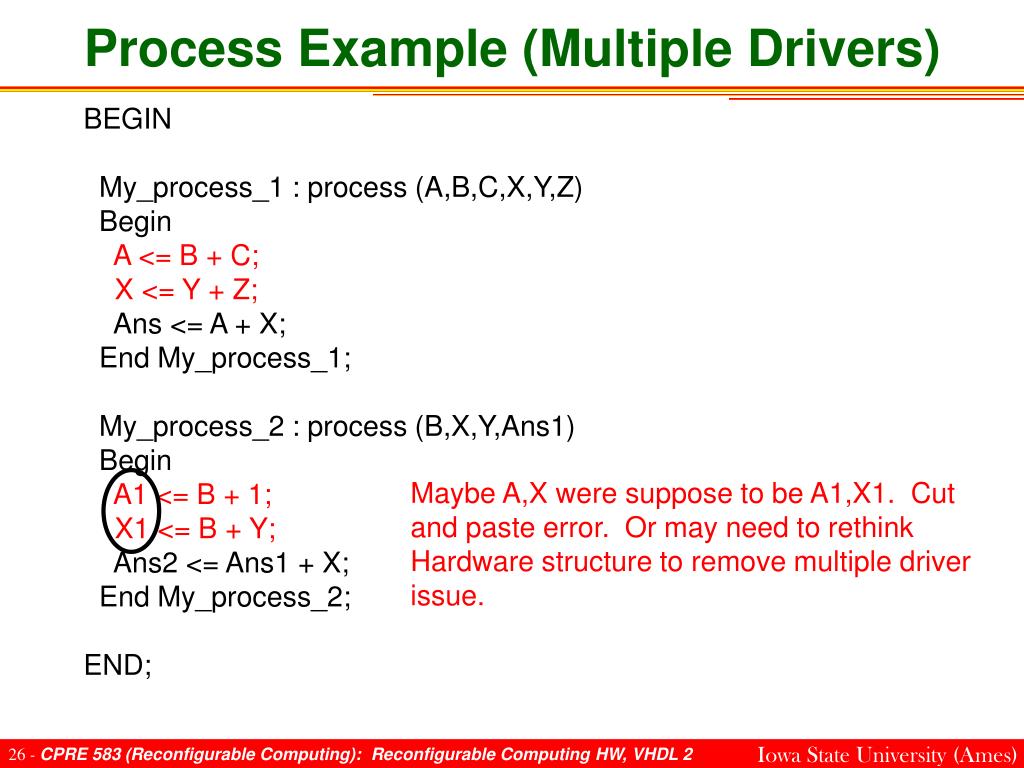

  25. Process Example (Multiple Drivers) BEGIN My_process_1 : process (A,B,C,X,Y,Z) Begin A <= B + C; X <= Y + Z; Ans <= A + X; End My_process_1; My_process_2 : process (B,X,Y,Ans1) Begin A <= B + 1; X <= B + Y; Ans2 <= Ans1 + X; End My_process_2; END; A signal can only be Driven (written) by one process. But can be read by many Compile or simulator may give a “multiple driver” Error or Warning message

  26. Process Example (Multiple Drivers) BEGIN My_process_1 : process (A,B,C,X,Y,Z) Begin A <= B + C; X <= Y + Z; Ans <= A + X; End My_process_1; My_process_2 : process (B,X,Y,Ans1) Begin A1 <= B + 1; X1 <= B + Y; Ans2 <= Ans1 + X; End My_process_2; END; Maybe A,X were suppose to be A1,X1. Cut and paste error. Or may need to rethink Hardware structure to remove multiple driver issue.

  27. Process Example (if-statement) BEGIN My_process_1 : process (A,B,C,X,Y,Z) Begin if (B = 0) then C <= A + B; Z <= X + Y; Ans1 <= A + X; else C <= 1; Z <= 0; Ans1 <= 1; end if; End My_process_1; END; Add circuit

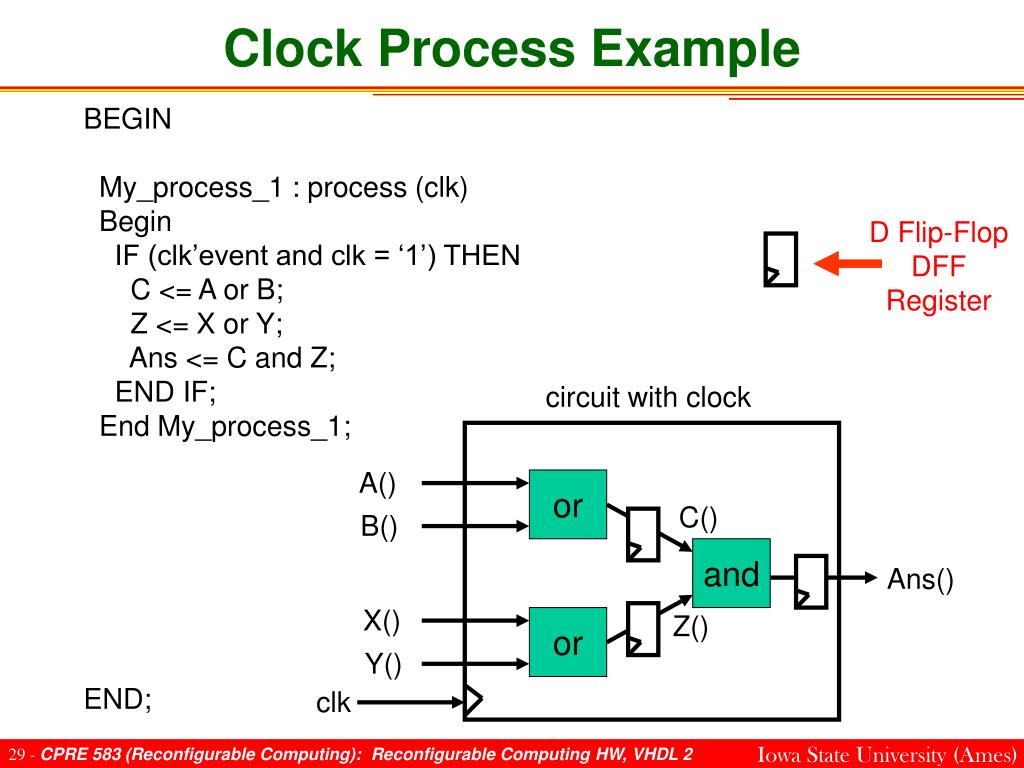

  28. Clock Process Example BEGIN My_process_1 : process (clk) Begin IF (clk’event and clk = ‘1’) THEN C <= A or B; Z <= X or Y; Ans <= C and Z; END IF; End My_process_1; END; circuit not clocked A() or C() B() and Ans() X() or Z() Y()

  29. Clock Process Example BEGIN My_process_1 : process (clk) Begin IF (clk’event and clk = ‘1’) THEN C <= A or B; Z <= X or Y; Ans <= C and Z; END IF; End My_process_1; END; D Flip-Flop DFF Register circuit with clock A() or C() B() and Ans() X() Z() or Y() clk

  30. Clock Process Example BEGIN My_process_1 : process (clk) Begin IF (clk’event and clk = ‘1’) THEN C <= A or B; Z <= X or Y; Ans <= C and Z; END IF; End My_process_1; END; circuit with clock A() or C() B() Ans() and X() Z() or Y() clk

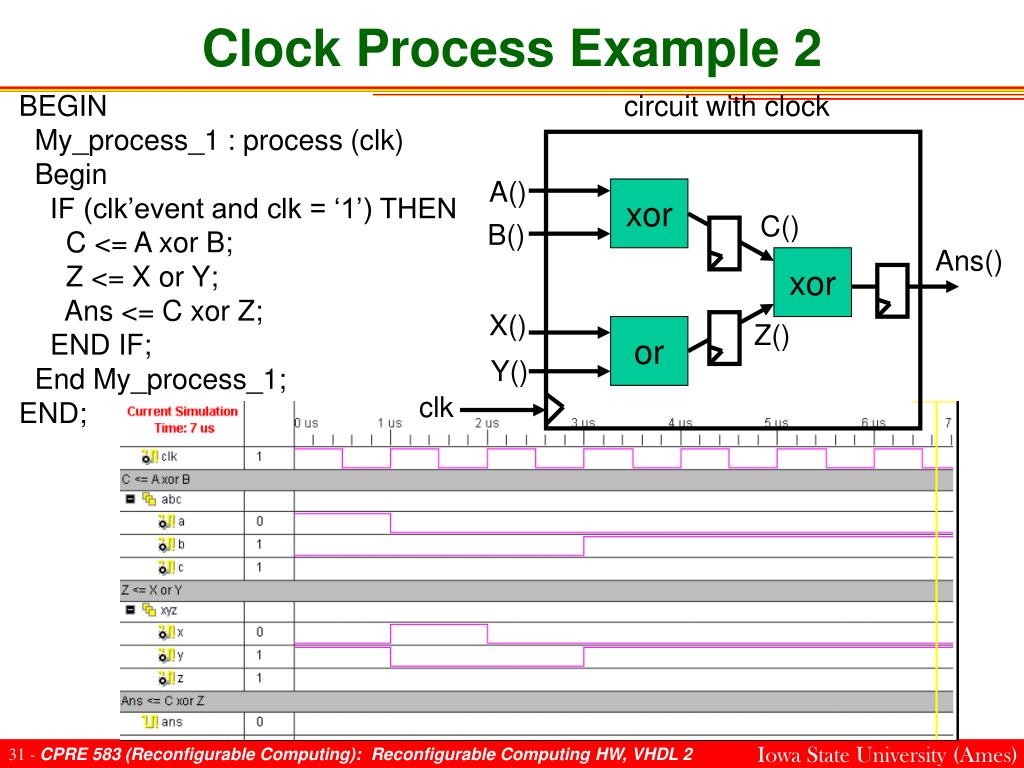

  31. Clock Process Example 2 BEGIN My_process_1 : process (clk) Begin IF (clk’event and clk = ‘1’) THEN C <= A xor B; Z <= X or Y; Ans <= C xor Z; END IF; End My_process_1; END; circuit with clock A() xor C() B() Ans() xor X() Z() or Y() clk

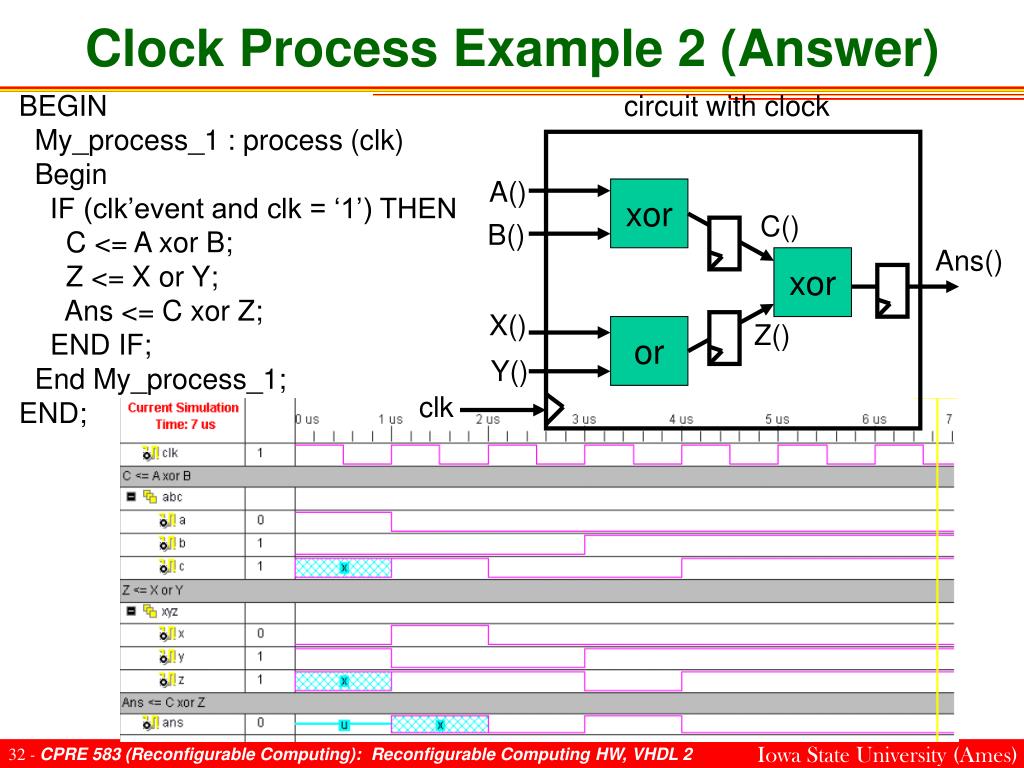

  32. Clock Process Example 2 (Answer) BEGIN My_process_1 : process (clk) Begin IF (clk’event and clk = ‘1’) THEN C <= A xor B; Z <= X or Y; Ans <= C xor Z; END IF; End My_process_1; END; circuit with clock A() xor C() B() Ans() xor X() Z() or Y() clk

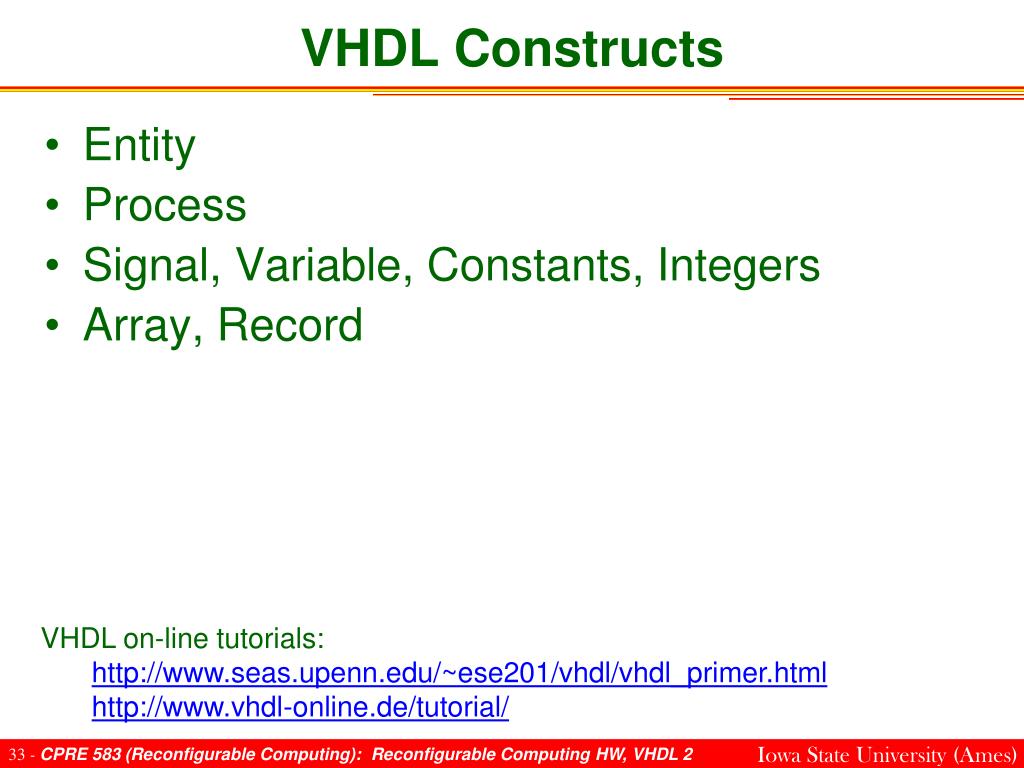

  33. VHDL Constructs • Entity • Process • Signal, Variable, Constants, Integers • Array, Record • VHDL on-line tutorials: • http://www.seas.upenn.edu/~ese201/vhdl/vhdl_primer.html • http://www.vhdl-online.de/tutorial/

  34. Signals and Variables • Signals • Updated at the end of a process • Have file scope • Variables • Updated instantaneously • Have process scope • VHDL on-line tutorials: • http://www.seas.upenn.edu/~ese201/vhdl/vhdl_primer.html • http://www.vhdl-online.de/tutorial/

  35. std_logic, std_logic_vector • Very common data types • std_logic • Single bit value • Values: U, X, 0, 1, Z, W, H, L, - • Example: signal A : std_logic; • A <= ‘1’; • Std_logic_vector: is an array of std_logic • Example: signal A : std_logic_vector (4 downto 0); • A <= x“00Z001” • VHDL on-line tutorials: • http://www.seas.upenn.edu/~ese201/vhdl/vhdl_primer.html • http://www.vhdl-online.de/tutorial/

  36. Std_logic values • Std_logic values • U : Uninitialized (signal has not been assigned a value yet) • X : Unknow (2 drivers one ‘0’ one ‘1’) • H : weak ‘1’ (example: model pull-up resister) • I have never used this value • L : weak ‘0’ Time step 0

  37. Std_logic values • Std_logic values • U : Uninitialized (signal has not been assigned a value yet) • X : Unknow (2 drivers one ‘0’ one ‘1’) • H : weak ‘1’ (example: model pull-up resister) • I have never used this value • L : weak ‘0’ 1 U U U Time step 0

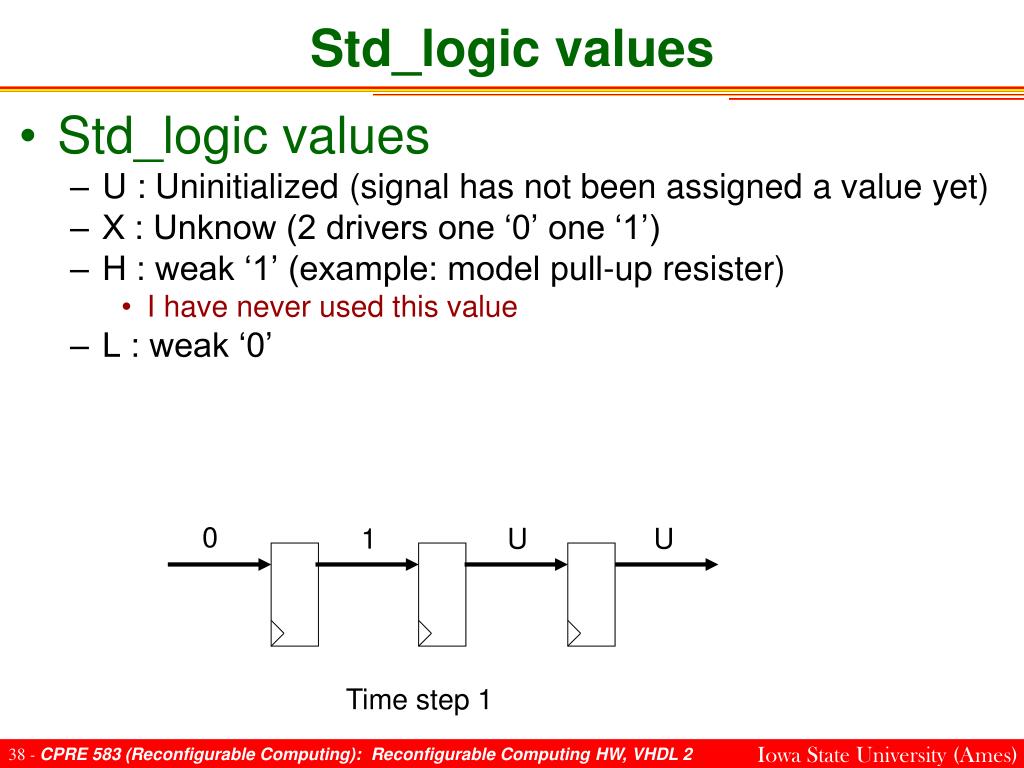

  38. Std_logic values • Std_logic values • U : Uninitialized (signal has not been assigned a value yet) • X : Unknow (2 drivers one ‘0’ one ‘1’) • H : weak ‘1’ (example: model pull-up resister) • I have never used this value • L : weak ‘0’ 0 1 U U Time step 1

  39. Std_logic values • Std_logic values • U : Uninitialized (signal has not been assigned a value yet) • X : Unknow (2 drivers one ‘0’ one ‘1’) • H : weak ‘1’ (example: model pull-up resister) • I have never used this value • L : weak ‘0’ 1 0 1 U Time step 2

  40. Std_logic values • Std_logic values • U : Uninitialized (signal has not been assigned a value yet) • X : Unknow (2 drivers one ‘0’ one ‘1’) • H : weak ‘1’ (example: model pull-up resister) • I have never used this value • L : weak ‘0’ 1 1 0 1 Time step 3

  41. Std_logic values • Std_logic values • U : Uninitialized (signal has not been assigned a value yet) • X : Unknow (2 drivers one ‘0’ one ‘1’) • H : weak ‘1’ (example: model pull-up resister) • I have never used this value • L : weak ‘0’ 0 1 1 1 0 X 1 Time step 3

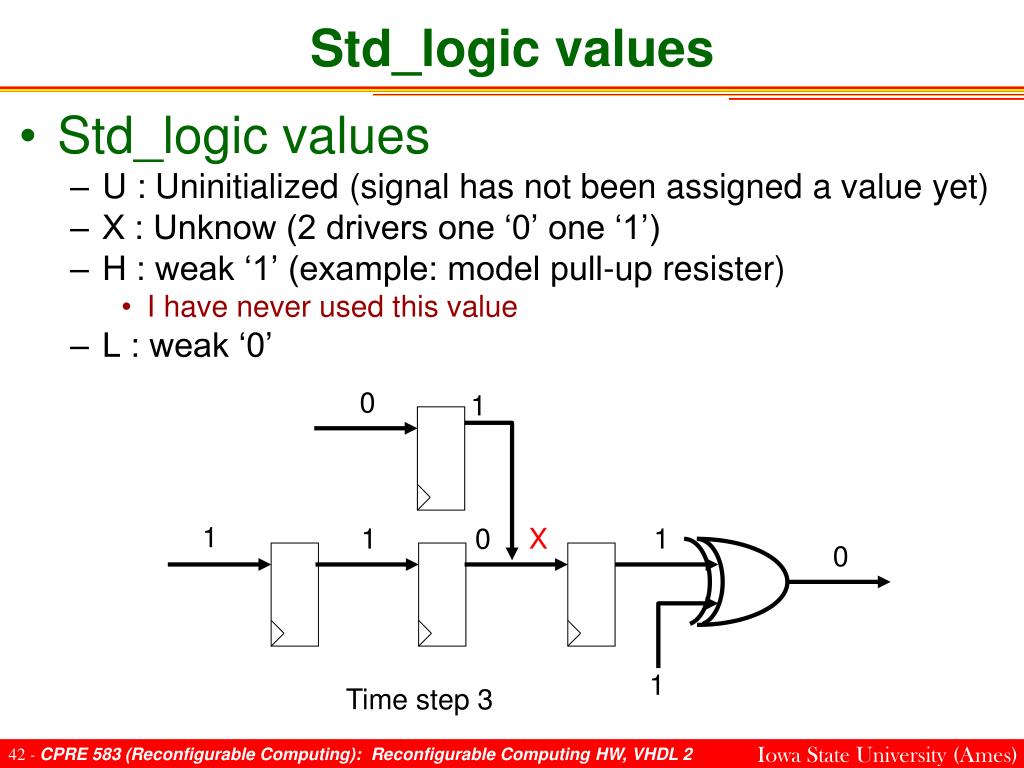

  42. Std_logic values • Std_logic values • U : Uninitialized (signal has not been assigned a value yet) • X : Unknow (2 drivers one ‘0’ one ‘1’) • H : weak ‘1’ (example: model pull-up resister) • I have never used this value • L : weak ‘0’ 0 1 1 1 0 X 1 0 1 Time step 3

  43. Std_logic values • Std_logic values • U : Uninitialized (signal has not been assigned a value yet) • X : Unknow (2 drivers one ‘0’ one ‘1’) • H : weak ‘1’ (example: model pull-up resister) • I have never used this value • L : weak ‘0’ 0 0 1 1 1 X X X 1 Time step 3

  44. Std_logic values • Std_logic values • U : Uninitialized (signal has not been assigned a value yet) • X : Unknow (2 drivers one ‘0’ one ‘1’) • H : weak ‘1’ (example: model pull-up resister) • I have never used this value • L : weak ‘0’ Pull-up resistor ‘1’ Time step 0

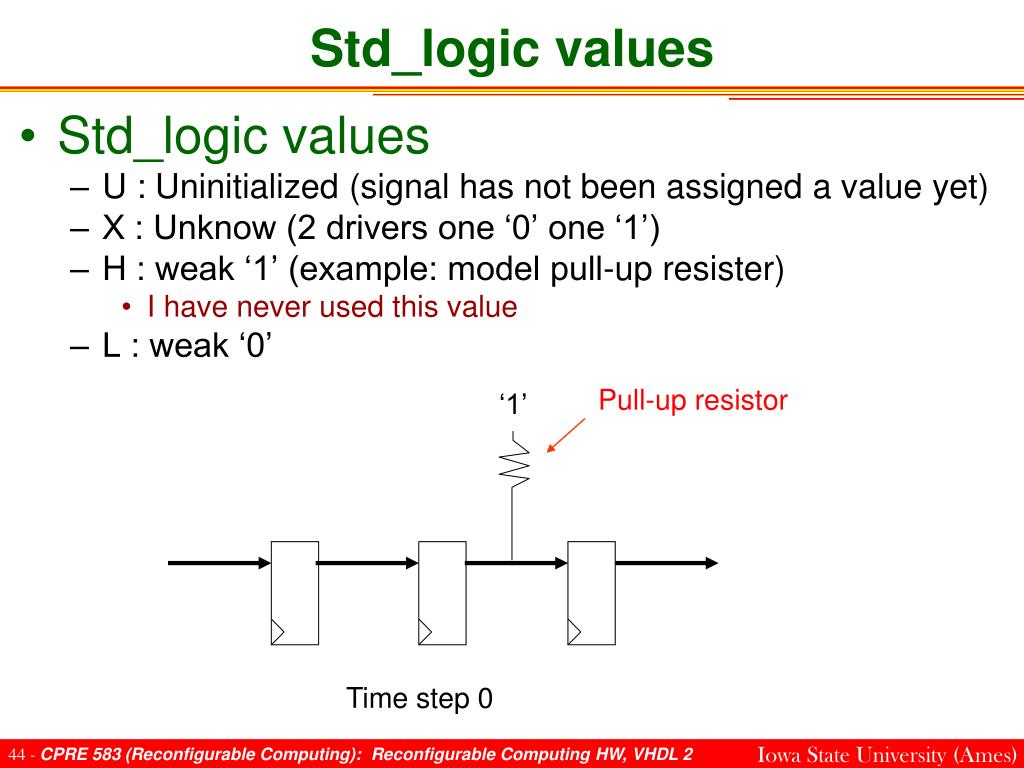

  45. Std_logic values • Std_logic values • U : Uninitialized (signal has not been assigned a value yet) • X : Unknow (2 drivers one ‘0’ one ‘1’) • H : weak ‘1’ (example: model pull-up resister) • I have never used this value • L : weak ‘0’ Pull-up resistor ‘1’ 0 U H U Time step 0

  46. Std_logic values • Std_logic values • U : Uninitialized (signal has not been assigned a value yet) • X : Unknow (2 drivers one ‘0’ one ‘1’) • H : weak ‘1’ (example: model pull-up resister) • I have never used this value • L : weak ‘0’ Pull-up resistor ‘1’ 1 0 H 1 Time step 1

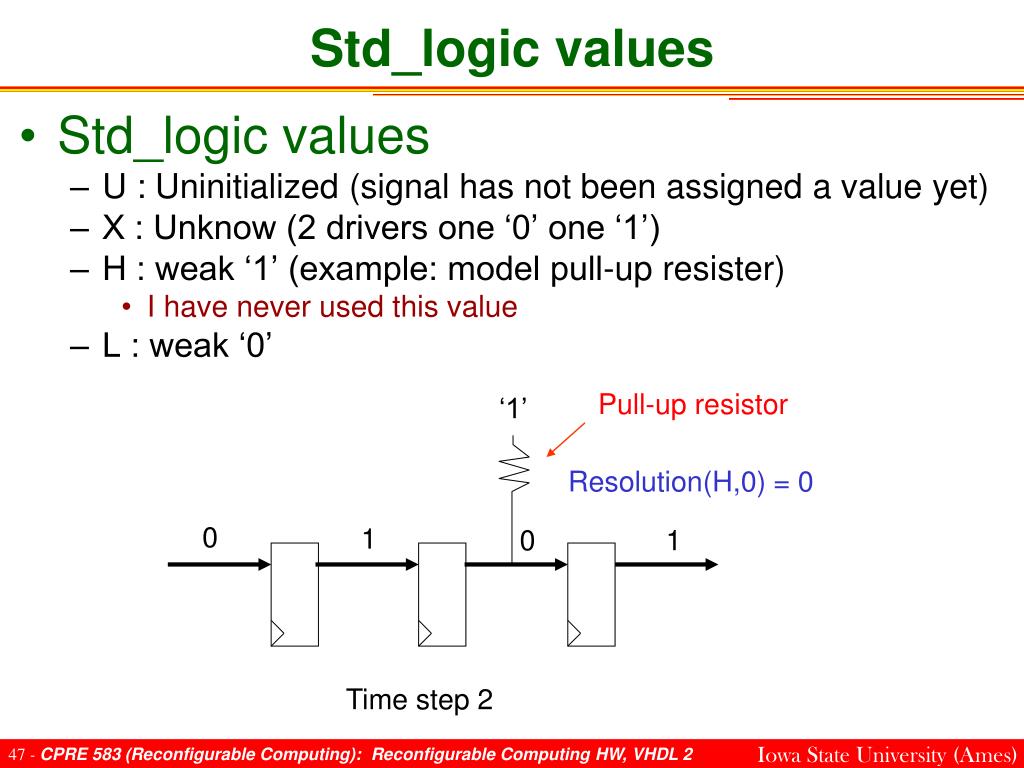

  47. Std_logic values • Std_logic values • U : Uninitialized (signal has not been assigned a value yet) • X : Unknow (2 drivers one ‘0’ one ‘1’) • H : weak ‘1’ (example: model pull-up resister) • I have never used this value • L : weak ‘0’ Pull-up resistor ‘1’ Resolution(H,0) = 0 0 1 0 1 Time step 2

  48. Pre-defined VHDL attributes • mysignal’event (mysignal changed value) • mysignal’high (highest value of mysignal’s type) • mysignal’low • Many other attributes • http://www.cs.umbc.edu/help/VHDL/summary.html

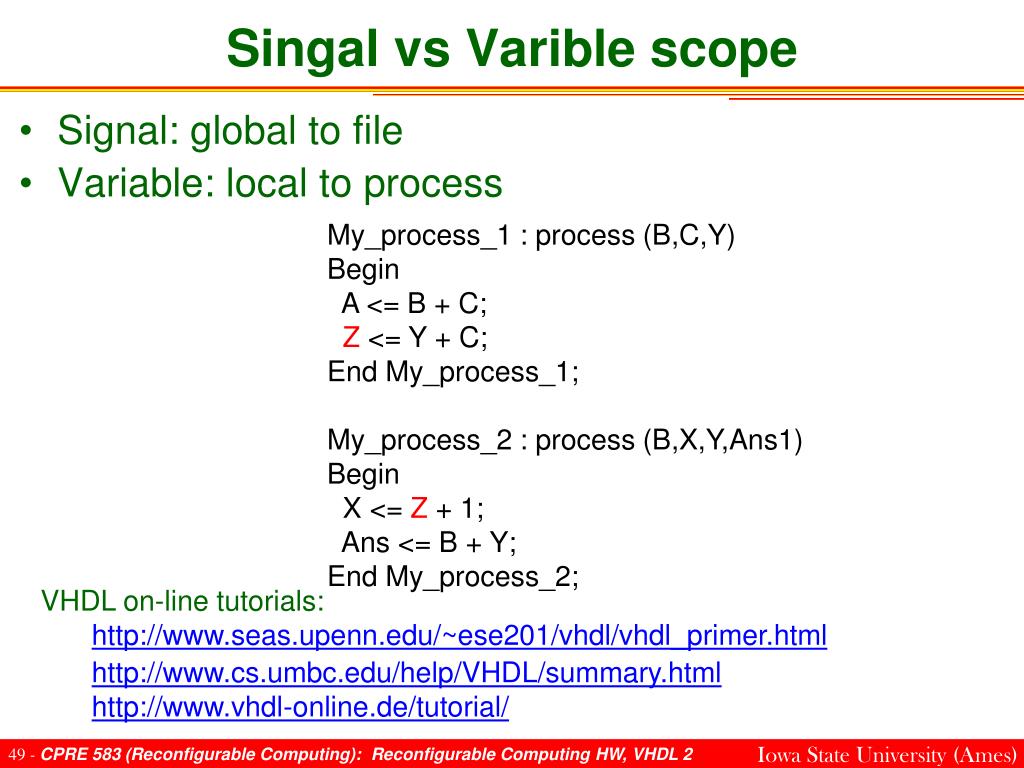

  49. Singal vs Varible scope • Signal: global to file • Variable: local to process My_process_1 : process (B,C,Y) Begin A <= B + C; Z <= Y + C; End My_process_1; My_process_2 : process (B,X,Y,Ans1) Begin X <= Z + 1; Ans <= B + Y; End My_process_2; • VHDL on-line tutorials: • http://www.seas.upenn.edu/~ese201/vhdl/vhdl_primer.html • http://www.cs.umbc.edu/help/VHDL/summary.html • http://www.vhdl-online.de/tutorial/

  50. Singal vs Varible scope • Signal: global to file • Variable: local to process My_process_1 : process (B,C,Y) Begin A <= B + C; varZ <= Y + C; End My_process_1; My_process_2 : process (B,X,Y,Ans1) Begin X <= varZ + 1; Ans <= B + Y; End My_process_2; Each varZ are local to their process. Completely independent • VHDL on-line tutorials: • http://www.seas.upenn.edu/~ese201/vhdl/vhdl_primer.html • http://www.cs.umbc.edu/help/VHDL/summary.html • http://www.vhdl-online.de/tutorial/
