Domain Specific Language for Medical Laboratory

1. Domain Specific Language for Medical Laboratory Team#6 Vikram Sriram Venkat Narasimha Bhyravabotla Haritha Rani Jadcherla Saloti Annapurna Mentor Mr. Ravi Ganta Instructor Dr. Kwok-Bun Yue

2. Agenda • Background • Problems with current system • Solution • Architecture diagram • Implementation of Solution • Demo • Website • Conclusion • References CSCI 6838: Team#6 Language for Array Data Processing

3. Background • Medical laboratory • Microplate • Laboratory specific operations on microplate • Problems CSCI 6838: Team#6 Language for Array Data Processing

4. Medical Laboratory • Physicians • Tests • Immunoassay • Results • Observations • Photons emitted from the test sample • Different tools exist to read results from microplate CSCI 6838: Team#6 Language for Array Data Processing

5. Microplate A Microtiter plate (spelled Microtitre in Europe) or microplate is a flat plate with multiple "wells" used as small test tubes. [1] Figure 1: Microplate [2]

6. Operations on Microplate • Shaking • Light projecting • Adding chemicals/catalysts • Reading the number of photons CSCI 6838: Team#6 Language for Array Data Processing

7. Immunoassay • An immunoassay is a biochemical test that measures the concentration of a substance in a biological liquid, typically serum or urine, using the reaction of an antibody or antibodies to its antigen. [3] CSCI 6838: Team#6 Language for Array Data Processing

8. Patient “A” test results with two tests for D1, D2 as Tags CSCI 6838: Team#6 Language for Array Data Processing

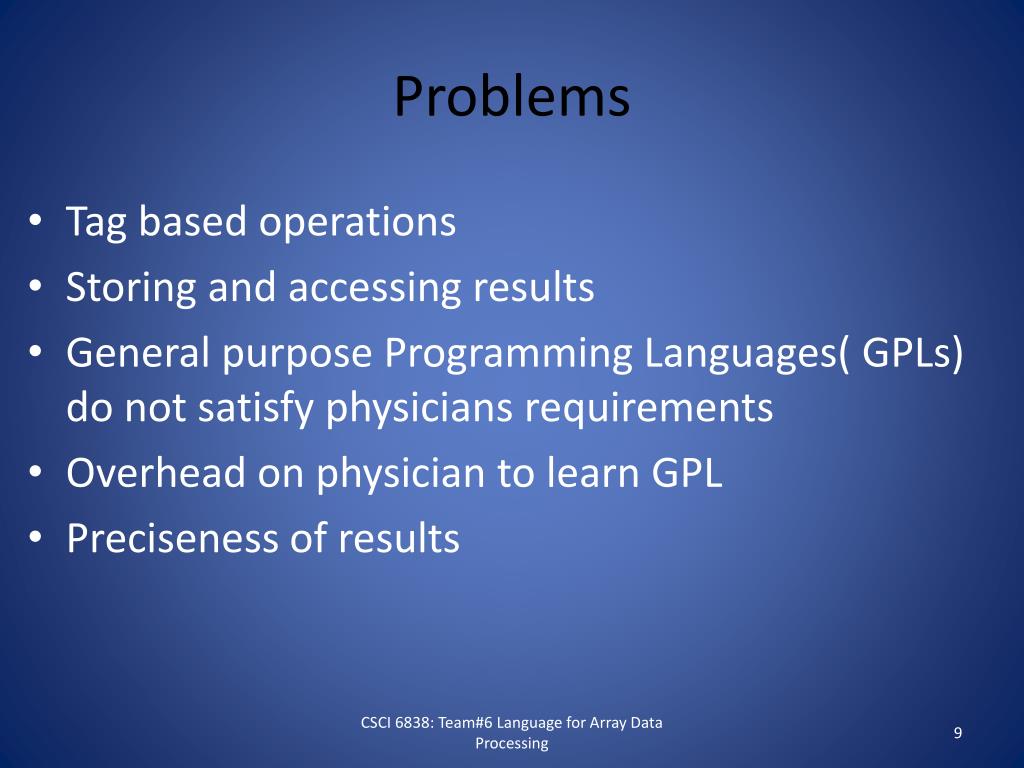

9. Problems • Tag based operations • Storing and accessing results • General purpose Programming Languages( GPLs) do not satisfy physicians requirements • Overhead on physician to learn GPL • Preciseness of results CSCI 6838: Team#6 Language for Array Data Processing

10. Storing and accessing results 1.Paper Based[4] 2.Table Based [5] CSCI 6838: Team#6 Language for Array Data Processing

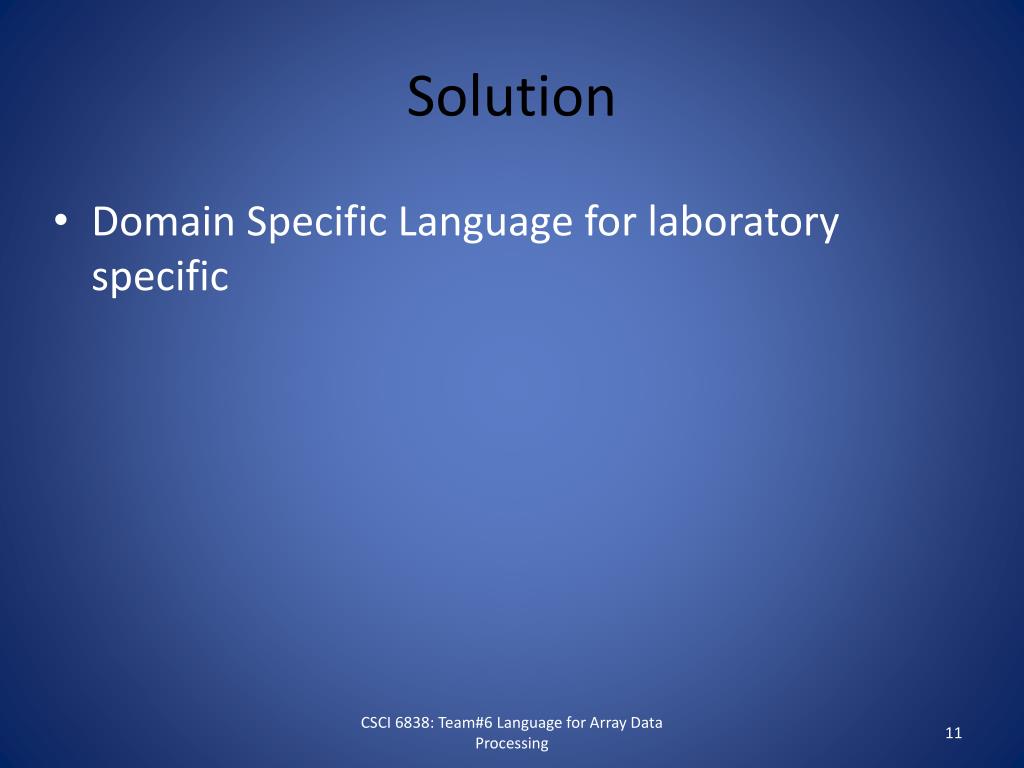

11. Solution • Domain Specific Language for laboratory specific CSCI 6838: Team#6 Language for Array Data Processing

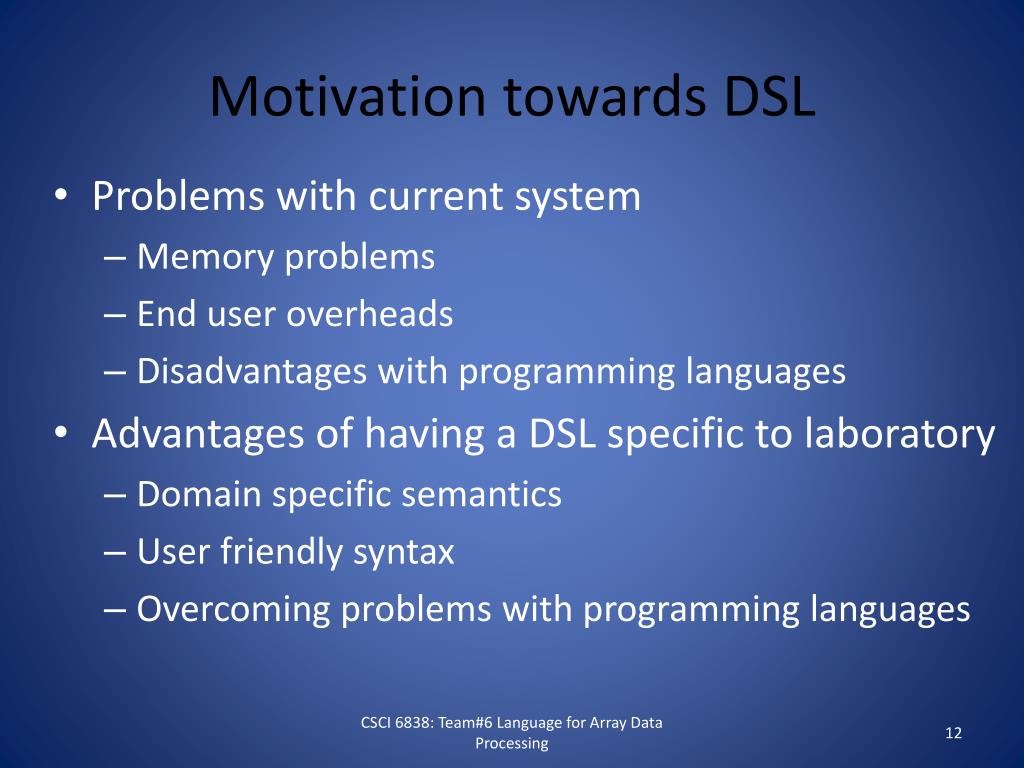

12. Motivation towards DSL • Problems with current system • Memory problems • End user overheads • Disadvantages with programming languages • Advantages of having a DSL specific to laboratory • Domain specific semantics • User friendly syntax • Overcoming problems with programming languages CSCI 6838: Team#6 Language for Array Data Processing

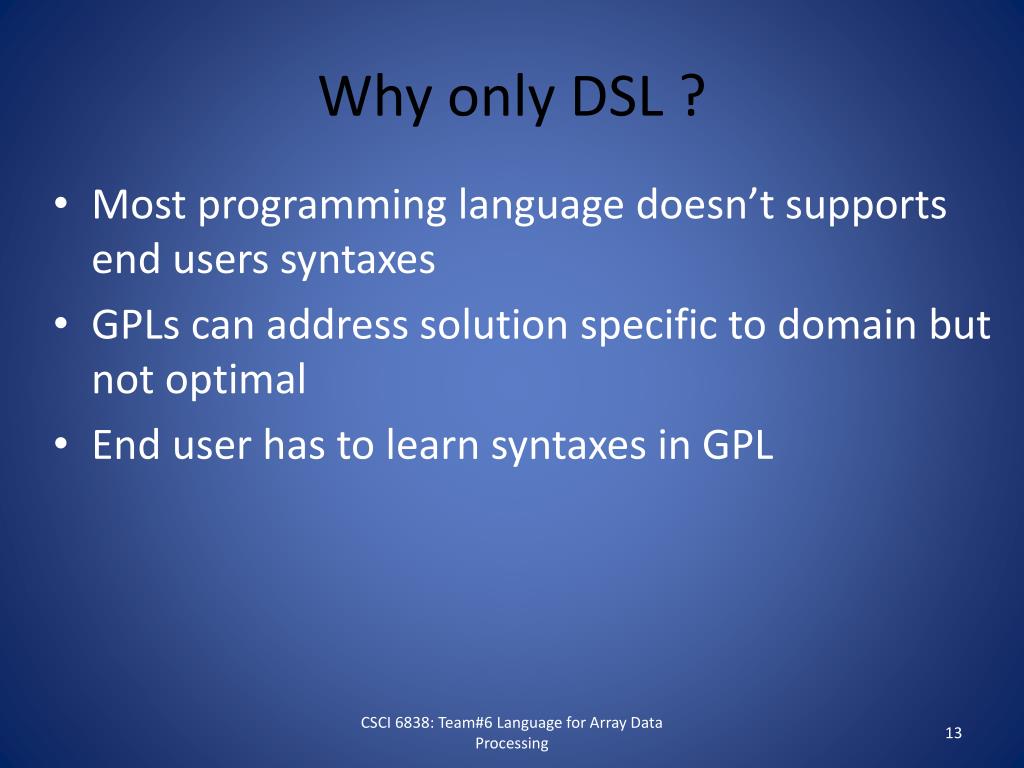

13. Why only DSL ? • Most programming language doesn’t supports end users syntaxes • GPLs can address solution specific to domain but not optimal • End user has to learn syntaxes in GPL CSCI 6838: Team#6 Language for Array Data Processing

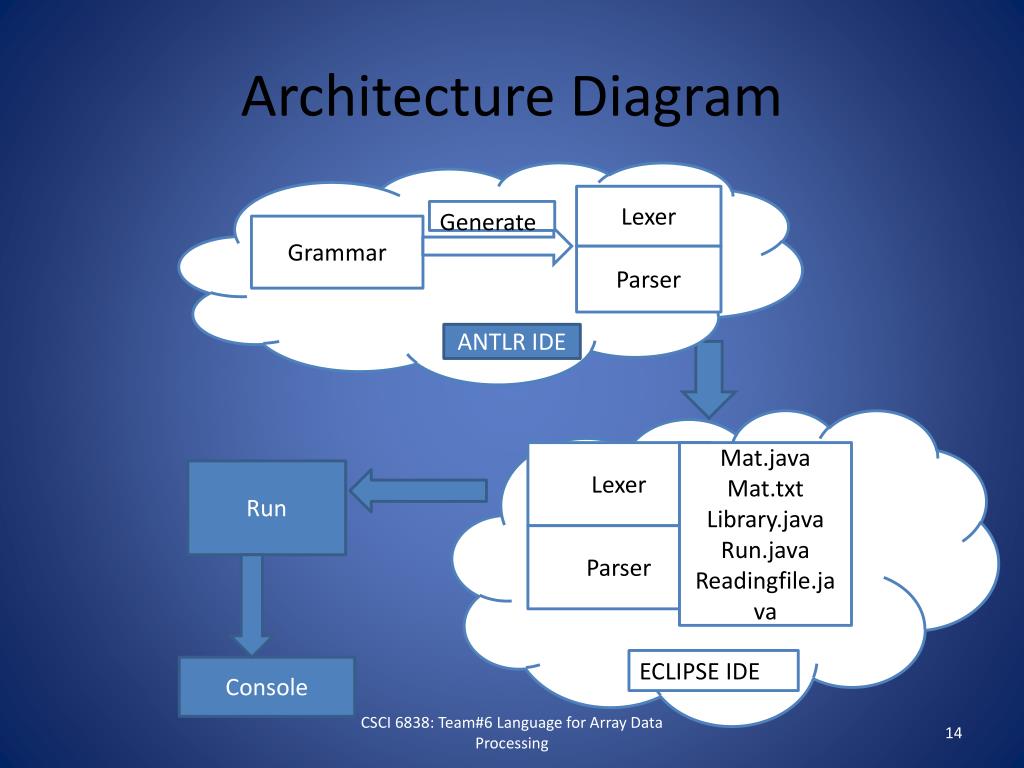

14. Architecture Diagram Lexer Generate Grammar Parser Lexer ANTLR IDE Mat.java Mat.txt Library.java Run.java Readingfile.java Parser Run ECLIPSE IDE Console CSCI 6838: Team#6 Language for Array Data Processing

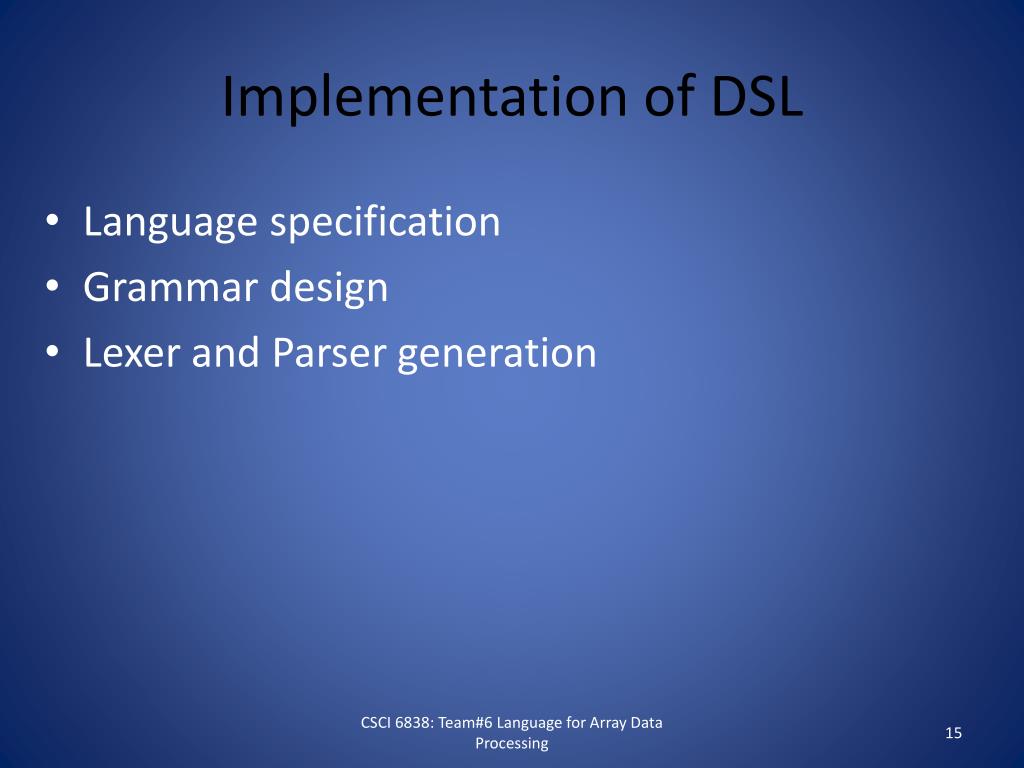

15. Implementation of DSL • Language specification • Grammar design • Lexer and Parser generation CSCI 6838: Team#6 Language for Array Data Processing

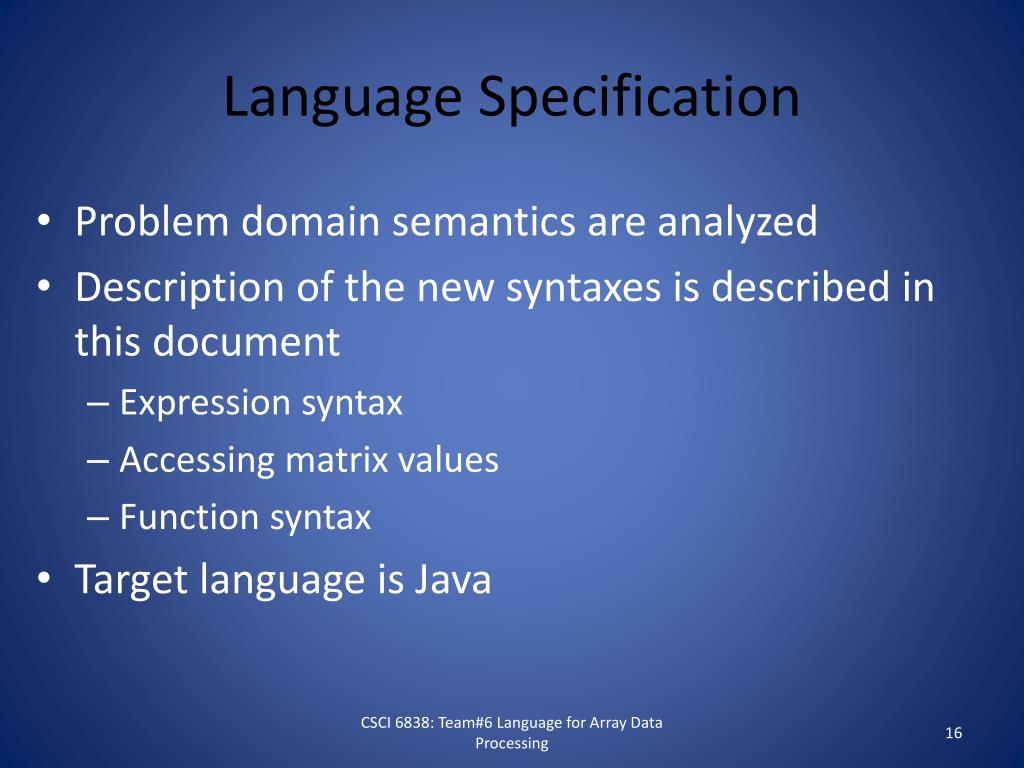

16. Language Specification • Problem domain semantics are analyzed • Description of the new syntaxes is described in this document • Expression syntax • Accessing matrix values • Function syntax • Target language is Java CSCI 6838: Team#6 Language for Array Data Processing

17. Example • For example the following syntax will return a set of values stored in a matrix with row index 1,2, and column index as 2,3. M1[{1,2},{2,3}] • Following example will assign a value to matrix M1 whose tag is value with 32.12 M1[1,2].value=32.12 CSCI 6838: Team#6 Language for Array Data Processing

18. Grammar Design • Automated tools are used for generating Lexer and parser code • Example: • ANTLR ( Another Tool for Language Recognizer) • Eclipse • ANTLR plug-in for Eclipse CSCI 6838: Team#6 Language for Array Data Processing

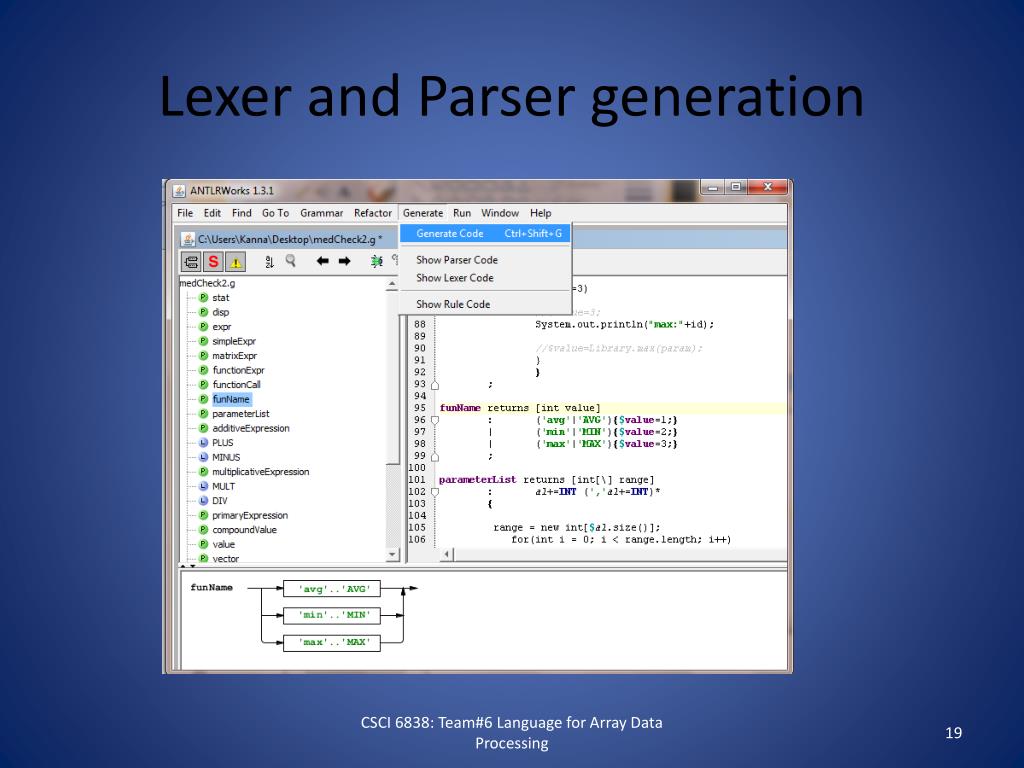

19. Lexer and Parser generation CSCI 6838: Team#6 Language for Array Data Processing

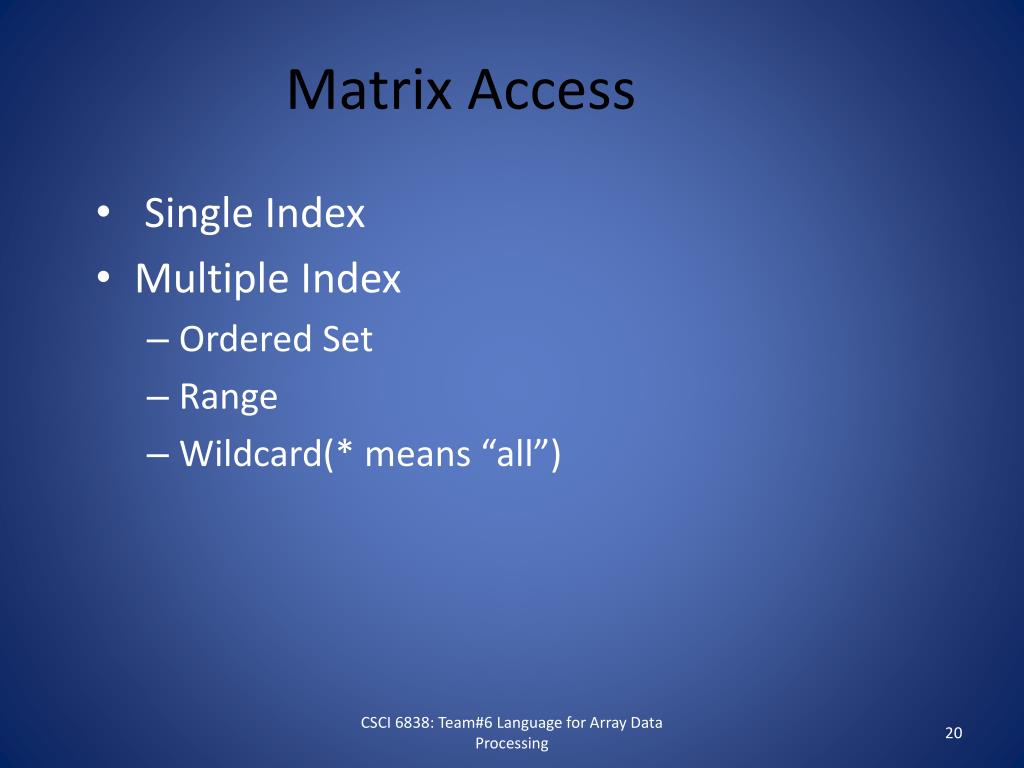

20. Matrix Access • Single Index • Multiple Index • Ordered Set • Range • Wildcard(* means “all”) CSCI 6838: Team#6 Language for Array Data Processing

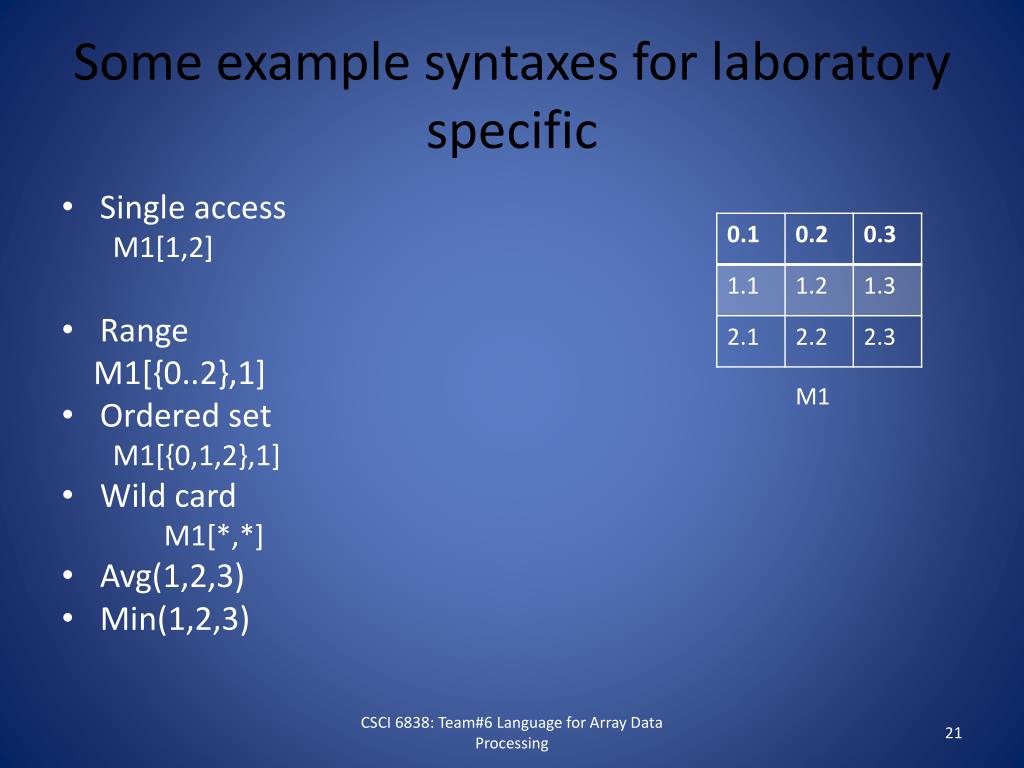

21. Some example syntaxes for laboratory specific • Single access M1[1,2] • Range M1[{0..2},1] • Ordered set M1[{0,1,2},1] • Wild card M1[*,*] • Avg(1,2,3) • Min(1,2,3) M1 CSCI 6838: Team#6 Language for Array Data Processing

22. Tags Properties of tags Name Value Operations on tags Add Delete Set

23. More about our website http://dcm.uhcl.edu/c423008fasalotia/caps10g6/default.htm CSCI 6838: Team#6 Language for Array Data Processing

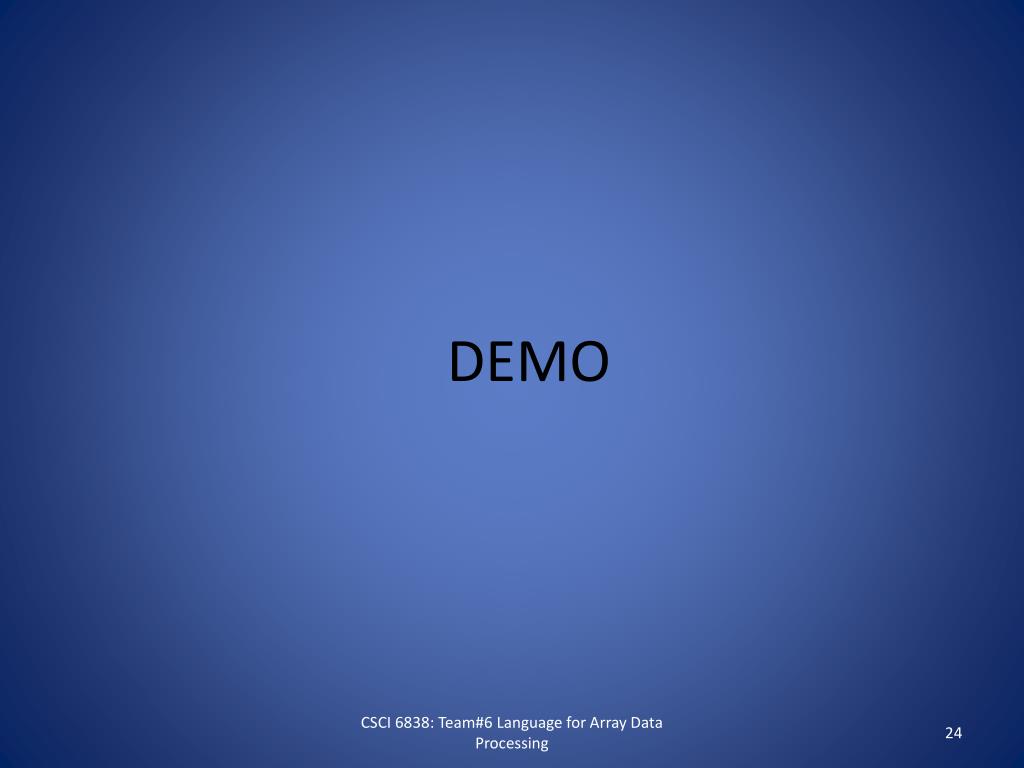

24. DEMO CSCI 6838: Team#6 Language for Array Data Processing

25. Conclusion • There are many possible solutions • One good solution • DSL (Domain Specification Language) • Satisfy all requirements • User Friendly • Accuracy CSCI 6838: Team#6 Language for Array Data Processing
