TCP Trace の読み方

TCP Trace の読み方. 120. Window ライン. 110. 100. 20. 10. 88. 90. 10. 78. 80. 20. 10. 68. 10. 68. 70. 20. ACK ライン. 10. 60. 20. 58. 6. 再送要求. 52. 50. 01:00:00. 01:00:20. 01:00:40. 01:01:00. 01:01:20.

herne
Télécharger la présentation

TCP Trace の読み方

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

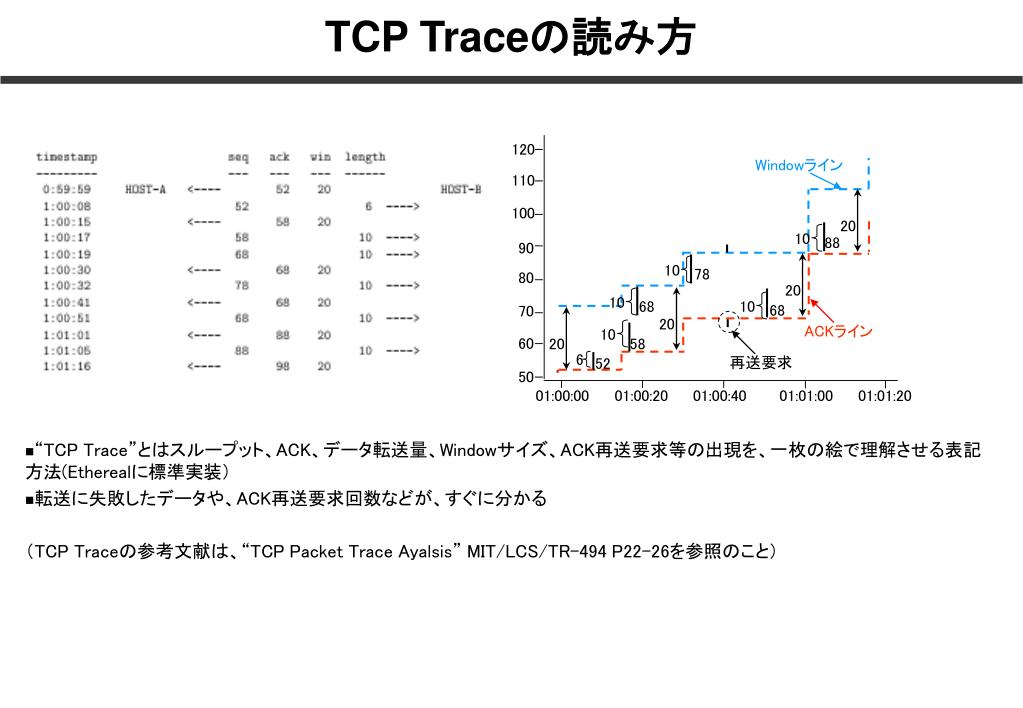

  1. TCP Traceの読み方 120 Windowライン 110 100 20 10 88 90 10 78 80 20 10 68 10 68 70 20 ACKライン 10 60 20 58 6 再送要求 52 50 01:00:00 01:00:20 01:00:40 01:01:00 01:01:20 • “TCP Trace”とはスループット、ACK、データ転送量、Windowサイズ、ACK再送要求等の出現を、一枚の絵で理解させる表記方法(Etherealに標準実装） • 転送に失敗したデータや、ACK再送要求回数などが、すぐに分かる • （TCP Traceの参考文献は、“TCP Packet Trace Ayalsis” MIT/LCS/TR-494 P22-26を参照のこと）
