  1. Overview of Transport Sector Development of Nepal and Regional InfrastructureDhruba Raj RegmiJoint SecretaryMinistry of Physical Planning and Works

  2. Structure of Presentation • Transport Background • Roads • Railways • Dry ports • Integrated check posts • Vehicle Fleet • Trade Volume • Infrastructures of Regional Importance

  3. Transport Background • Area: 147,181 sq. km.(56,136 sq. mi.) • Population: 25.9 million (2006) • Road-Dominating mode of Transport • Total length : aprox. 17000km • Strategic Roads: 7000km • Local Roads: 10000km

  4. Transport Background… • Air Services is the second popular mode of Transport. (43 Airports) • Rail mode of Transport—very limited • Dry ports 3 +1+1(planned) • Integrated Check posts - 4

  5. Roads • The average road density is 11.4 km/100 square km. In terms of serving the population, the average density is 7.5 km/10,000 populations.

  6. Growth in the Overall Road Network, 1970-2004

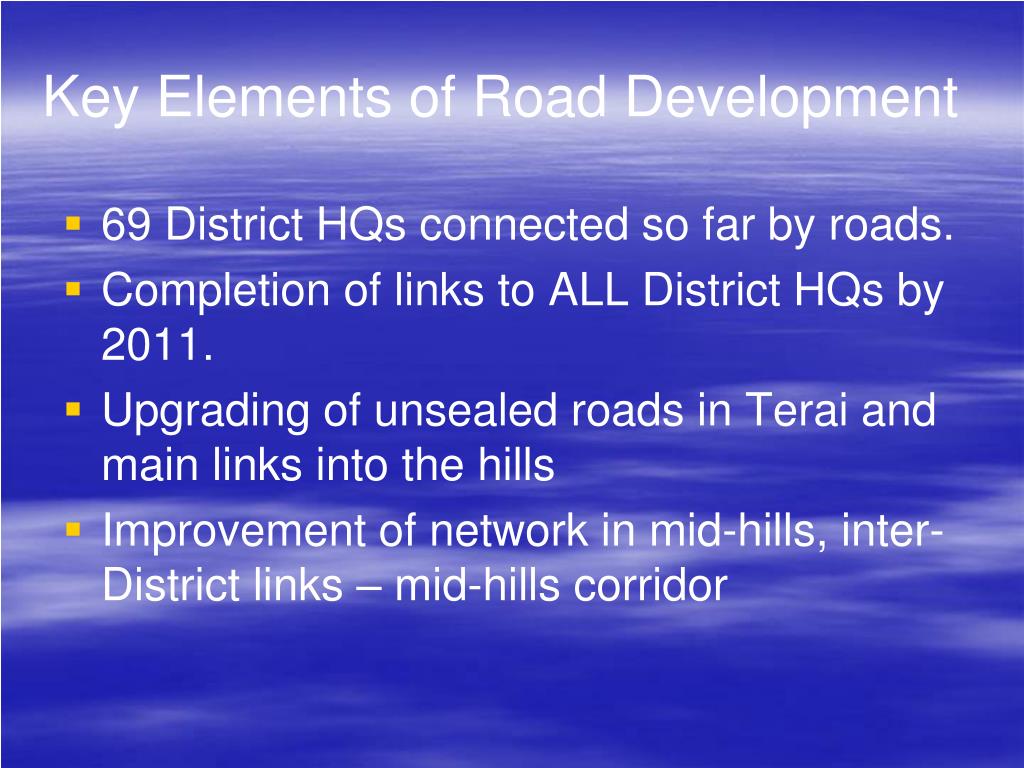

  7. Key Elements of Road Development • 69 District HQs connected so far by roads. • Completion of links to ALL District HQs by 2011. • Upgrading of unsealed roads in Terai and main links into the hills • Improvement of network in mid-hills, inter-District links – mid-hills corridor

  8. Key Elements of Road…… • Enhancement of access to Kathmandu – including Fast Track • Capacity enhancement of key Kathmandu Valley roads – incl RR, Bhaktapur-Dhulikhel, etc

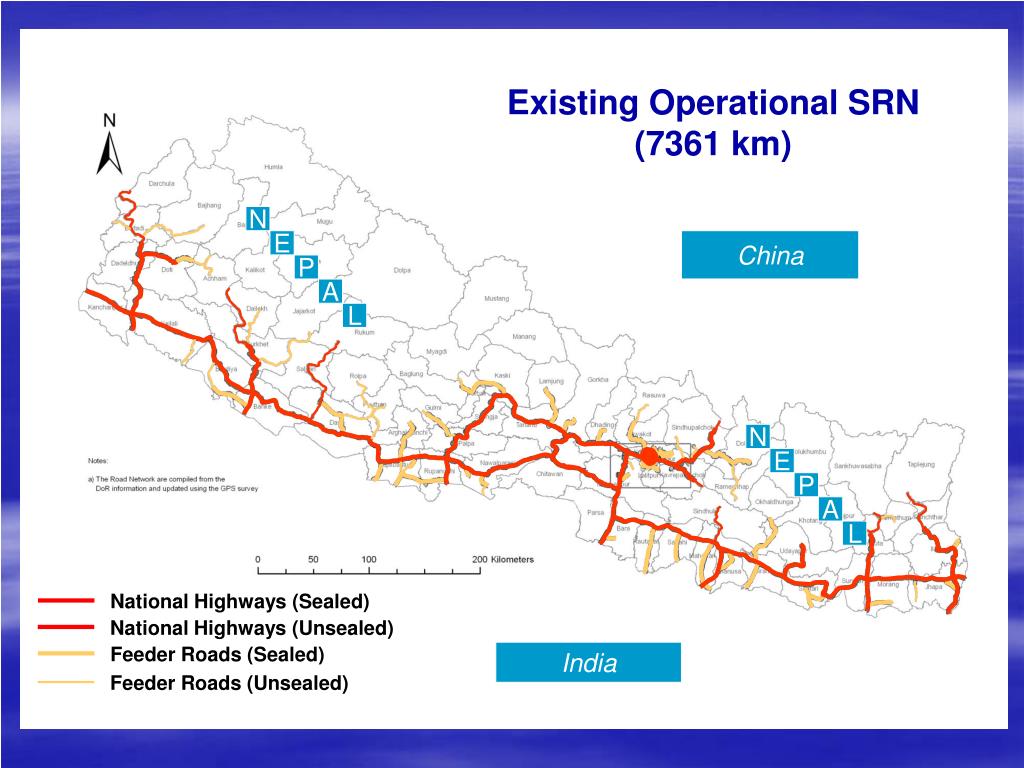

  9. National Highways (Sealed) National Highways (Unsealed) Feeder Roads (Sealed) Feeder Roads (Unsealed) Existing Operational SRN (7361 km) N E China P A L N E P A L India

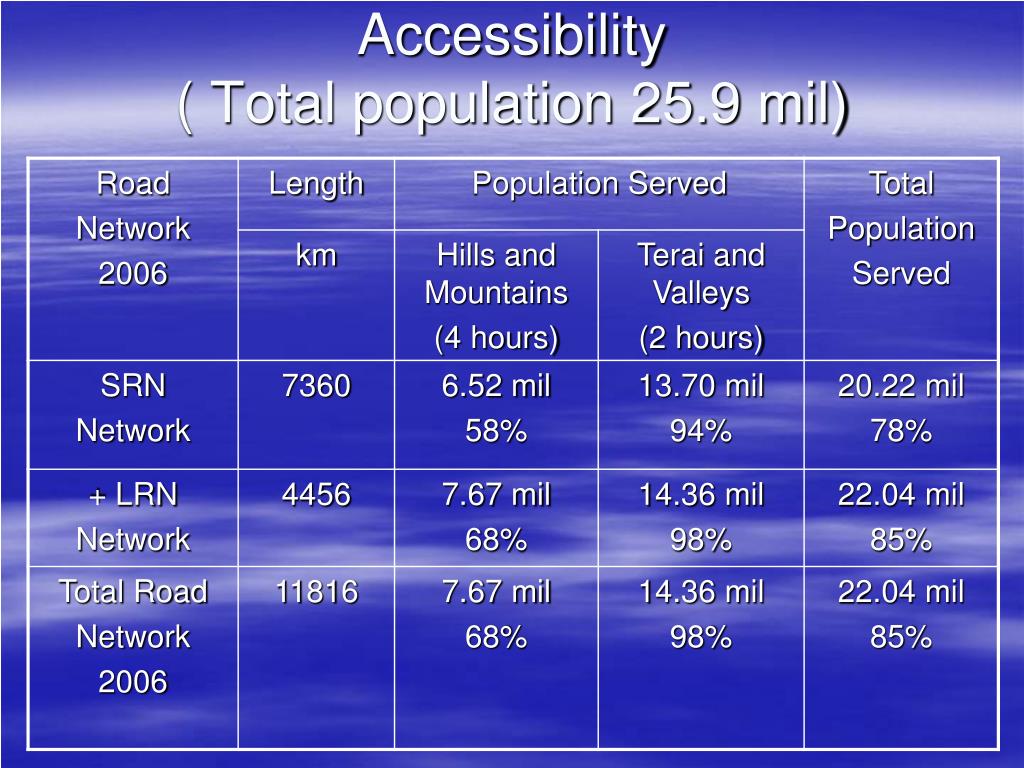

  10. Accessibility( Total population 25.9 mil)

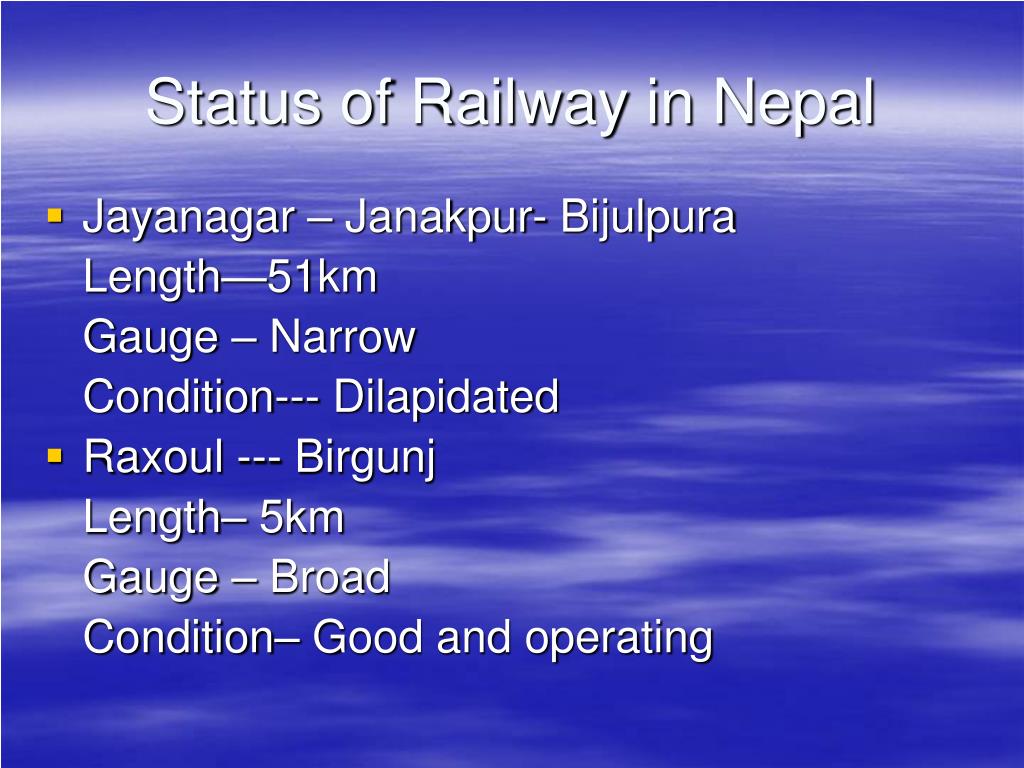

  11. Status of Railway in Nepal • Jayanagar – Janakpur- Bijulpura Length—51km Gauge – Narrow Condition--- Dilapidated • Raxoul --- Birgunj Length– 5km Gauge – Broad Condition– Good and operating

  12. Recent Initiatives • Technical Assistance from GOI • Preliminary Survey • New Jalpaiguri (India) to Kakadvitta (Nepal) • Jogabani (India) to Biratnagar (Nepal) • Nautanwa (India) to Bhairahwa (Nepal) • Nepalganj Road ( India) to Nepalganj (Nepal) • Jayanagar and Janakpur with extension to Bardibas • RITES carying out above works

  13. Program of GON in F/Y 065/066Budget Speech • Budget Nrs. 150,000,000/- • Construction of Electrical Railway in Tarai from Mechi to Mahakali • upgrade and extension of Jaynagar-Janakpur-Bardibas • Feasibility Study of Railway Extension from Pokhara to Kathmandu.

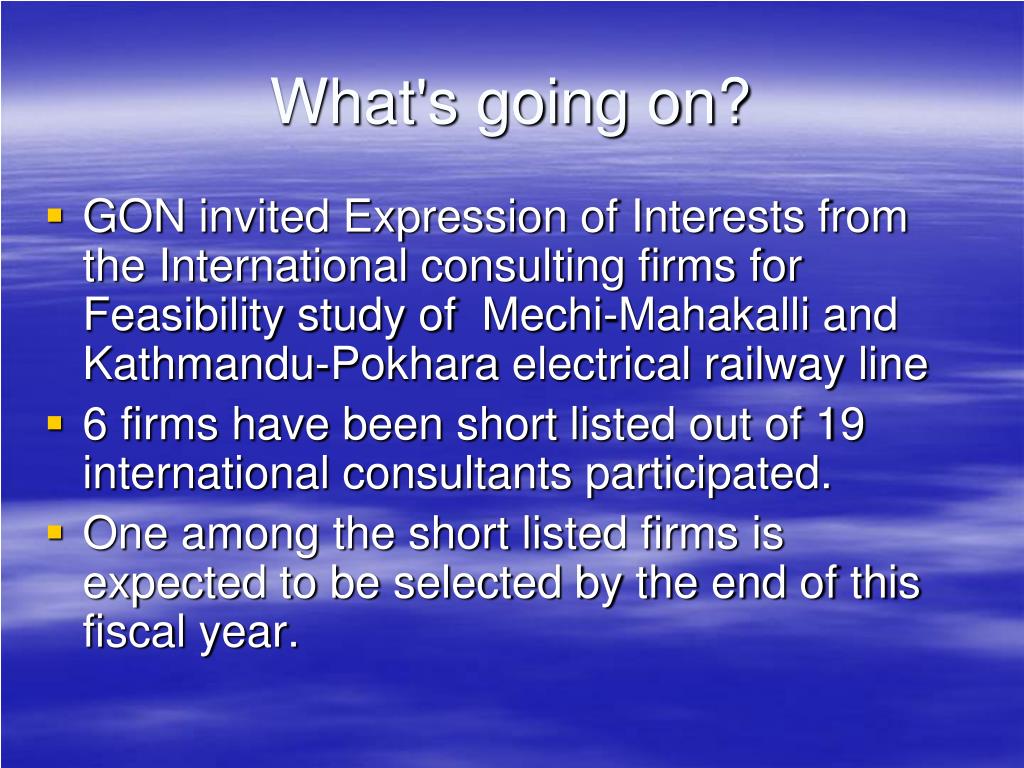

  14. What's going on? • GON invited Expression of Interests from the International consulting firms for Feasibility study of Mechi-Mahakalli and Kathmandu-Pokhara electrical railway line • 6 firms have been short listed out of 19 international consultants participated. • One among the short listed firms is expected to be selected by the end of this fiscal year.

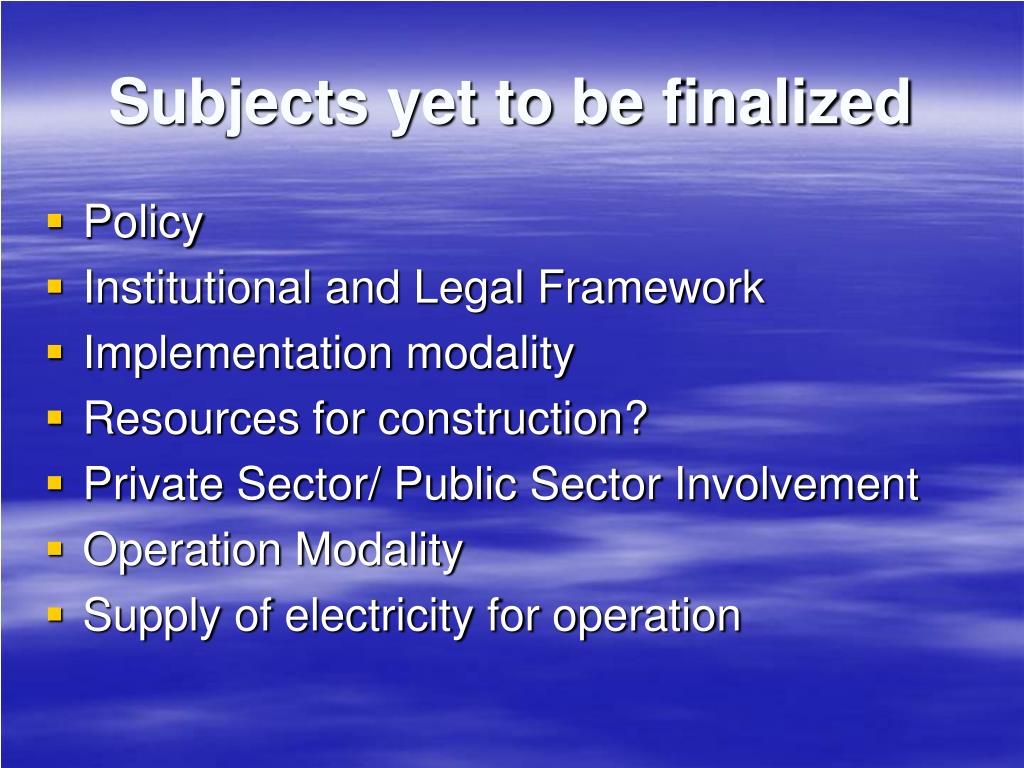

  15. Subjects yet to be finalized • Policy • Institutional and Legal Framework • Implementation modality • Resources for construction? • Private Sector/ Public Sector Involvement • Operation Modality • Supply of electricity for operation

  16. Policy • No policy formed yet on Railway Development • Should be in line with the National Transport Policy. • Integrated Approach. • Advanced Technology and system be adopted. • Commercially viable. • Active Private Participation

  17. Institutional and Legal Frame work • GON planning to establish a Railway Department. • Necessary legal documents (Act, Regulations )will be prepared in F/Y 09/10.

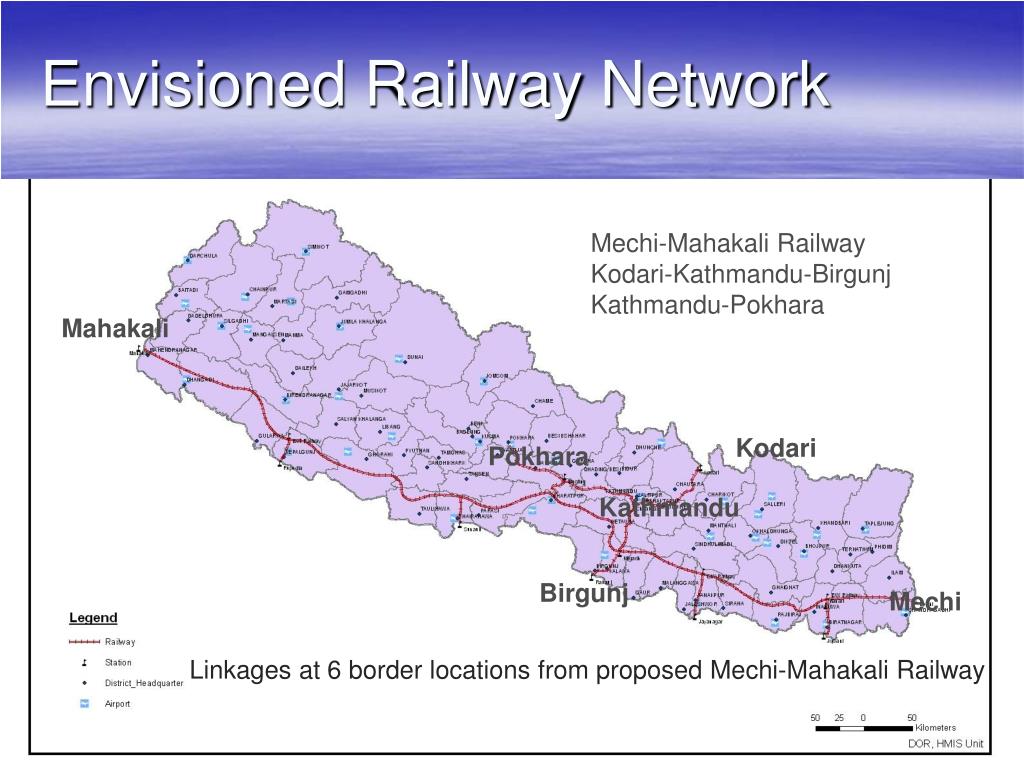

  18. Envisioned Railway Network Mechi-Mahakali Railway Kodari-Kathmandu-Birgunj Kathmandu-Pokhara Mahakali Kodari Pokhara Kathmandu Birgunj Mechi Linkages at 6 border locations from proposed Mechi-Mahakali Railway

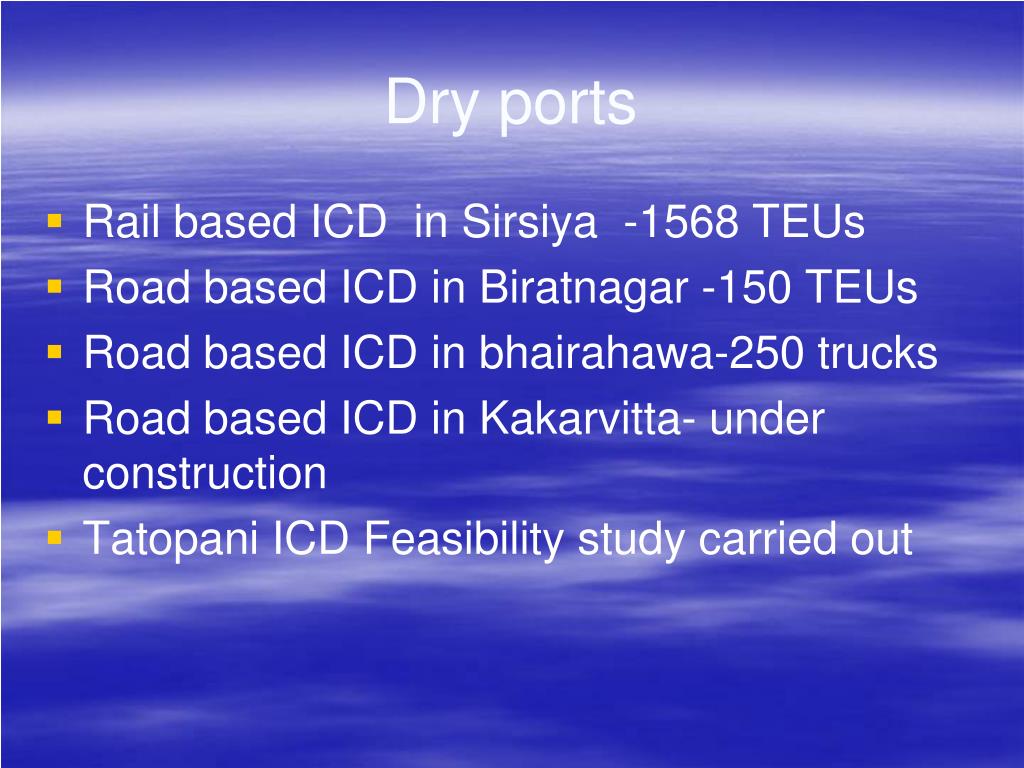

  19. Dry ports • Rail based ICD in Sirsiya -1568 TEUs • Road based ICD in Biratnagar -150 TEUs • Road based ICD in bhairahawa-250 trucks • Road based ICD in Kakarvitta- under construction • Tatopani ICD Feasibility study carried out

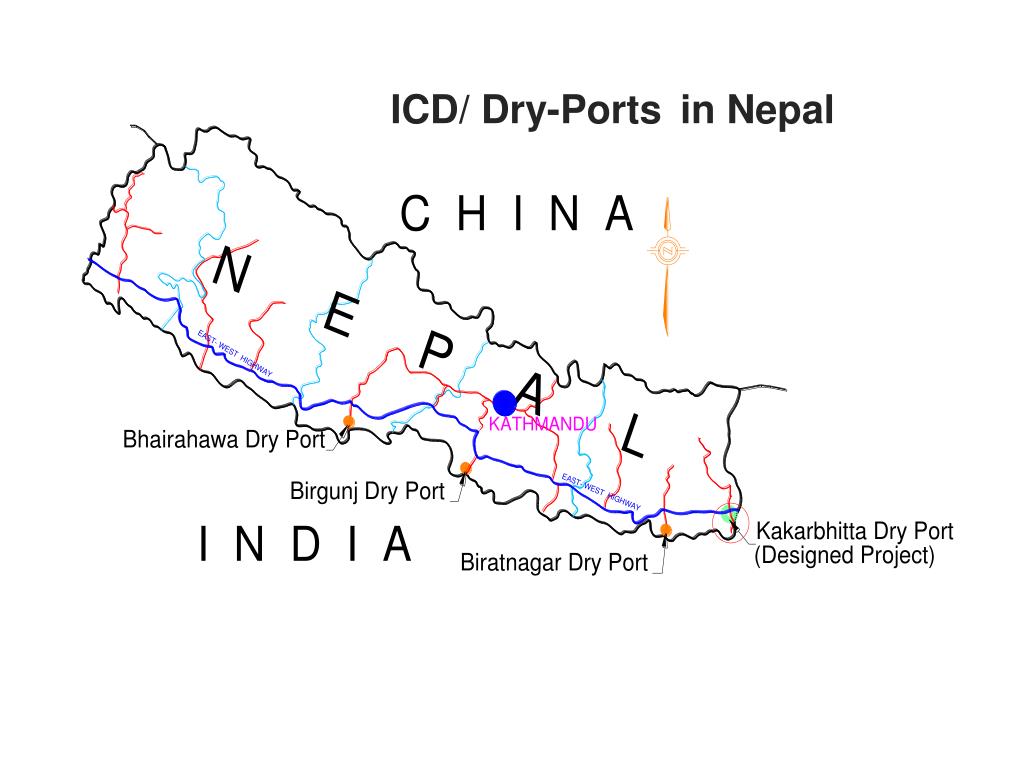

  20. ICD/ Dry-Portsin Nepal

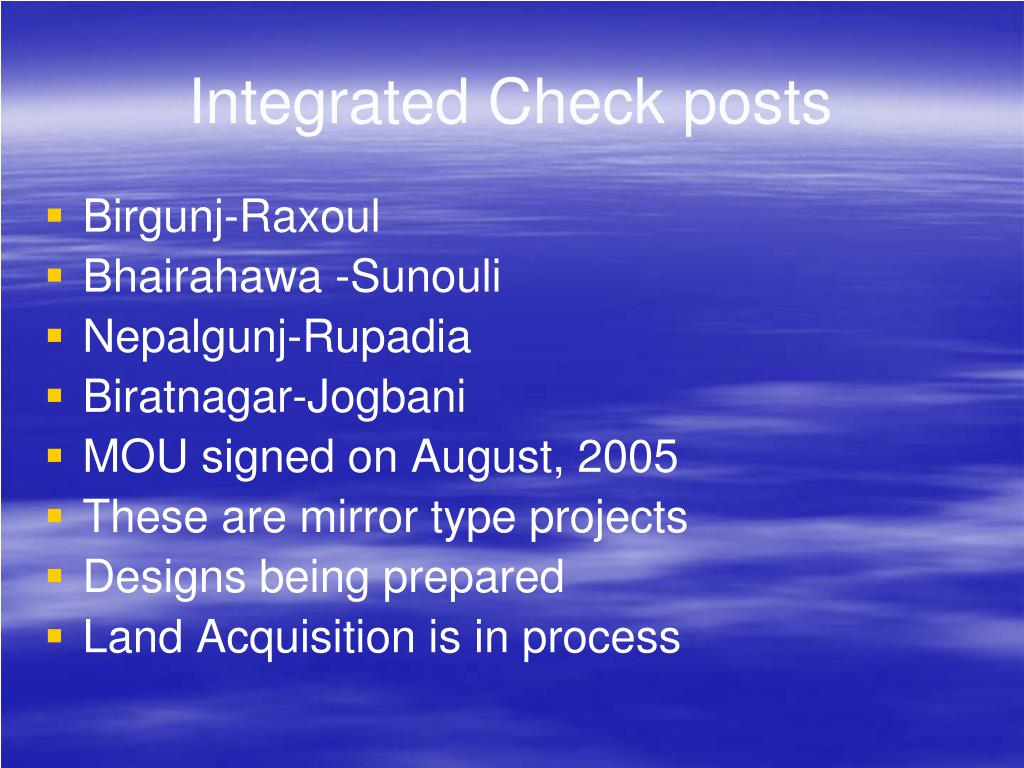

  21. Integrated Check posts • Birgunj-Raxoul • Bhairahawa -Sunouli • Nepalgunj-Rupadia • Biratnagar-Jogbani • MOU signed on August, 2005 • These are mirror type projects • Designs being prepared • Land Acquisition is in process

  22. Vehicle Fleet: 617,306 in 2007

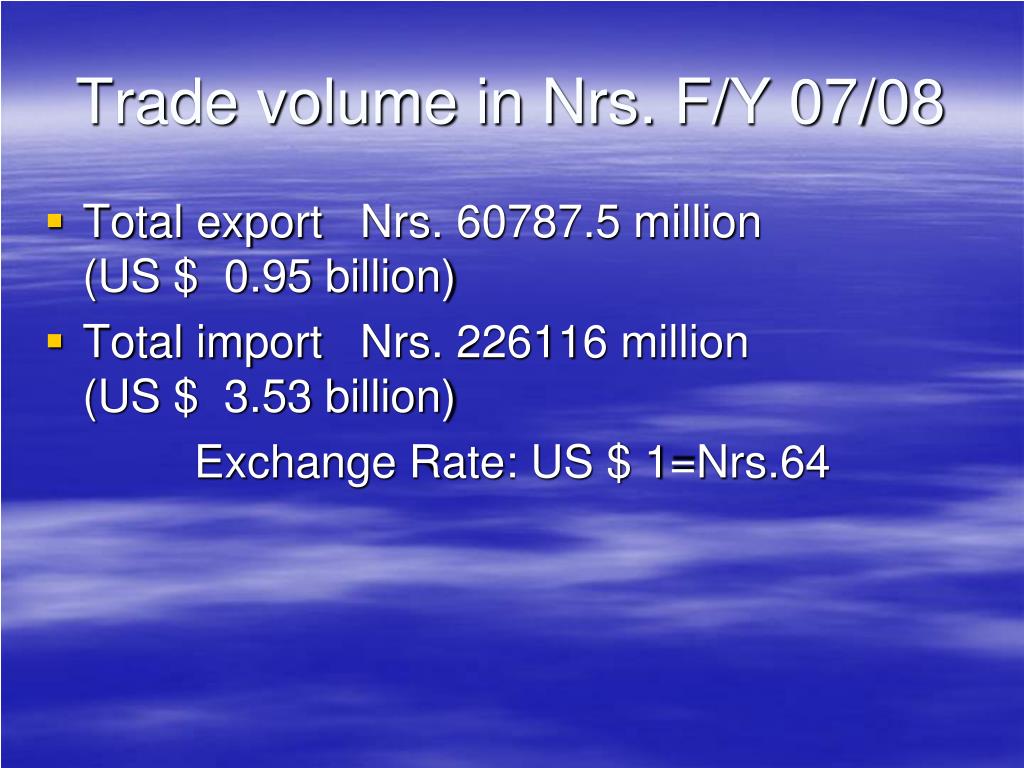

  23. Trade volume in Nrs. F/Y 07/08 Total export Nrs. 60787.5 million (US $ 0.95 billion) Total import Nrs. 226116 million (US $ 3.53 billion) Exchange Rate: US $ 1=Nrs.64

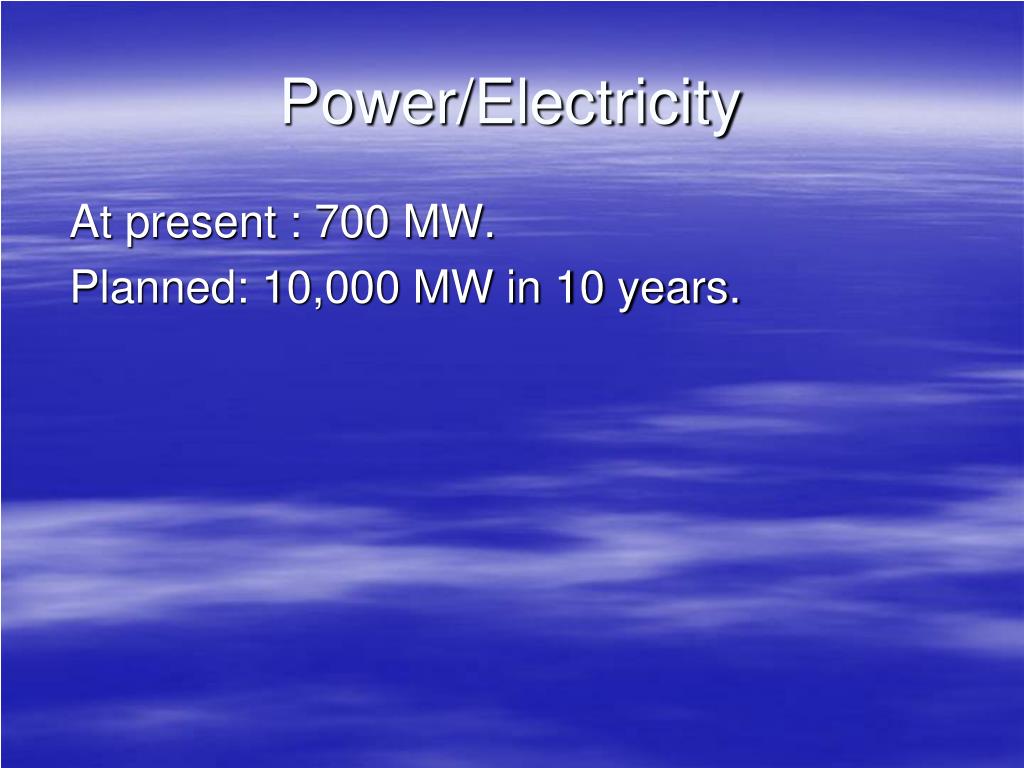

  24. Power/Electricity At present : 700 MW. Planned: 10,000 MW in 10 years.

  25. Infrastructures of Regional Importance • Roads/Asian highway • Railways • Dry ports • Integrated Check post

  26. Roads • North south Roads • 5 roads identified • One(Kodari -Birgunj) -operating, • Second (Syafrubesi-Birgunj) -under construction • Kathmandu-Fast Track consideration under BOT.

  27. Roads.. • Mid east-west highway • Chyangthapu of Taplejung to Jhulaghat of Baitadi Total length-1700km missing part-700km • Construction on going from GON resources

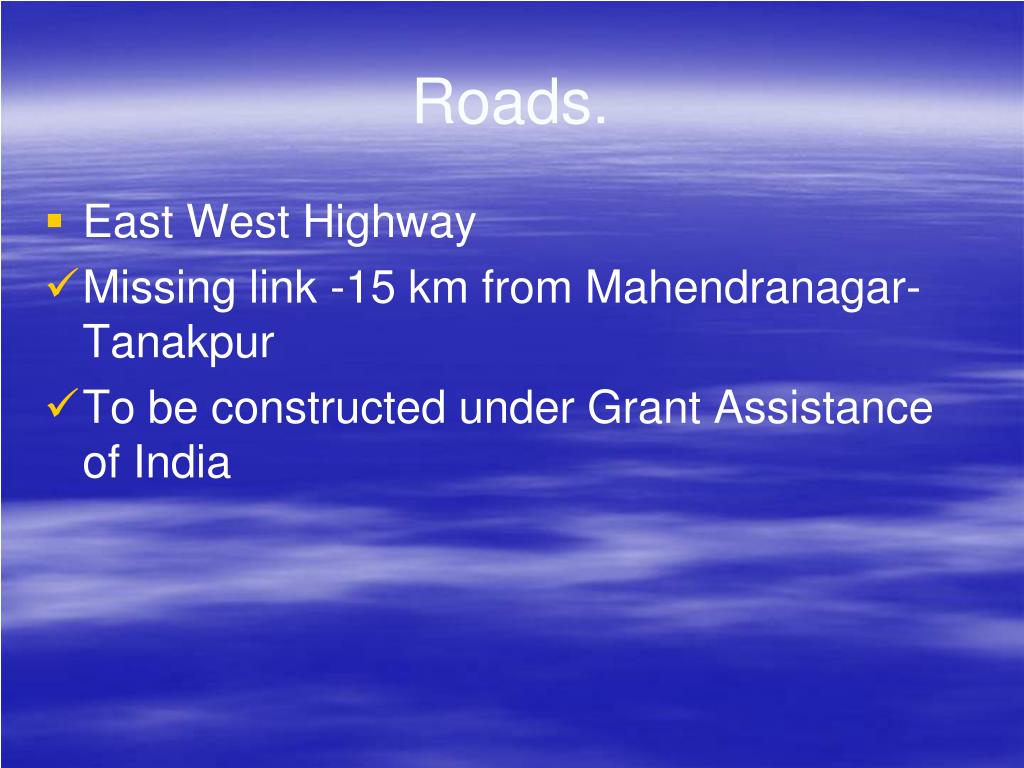

  28. Roads. • East West Highway • Missing link -15 km from Mahendranagar-Tanakpur • To be constructed under Grant Assistance of India

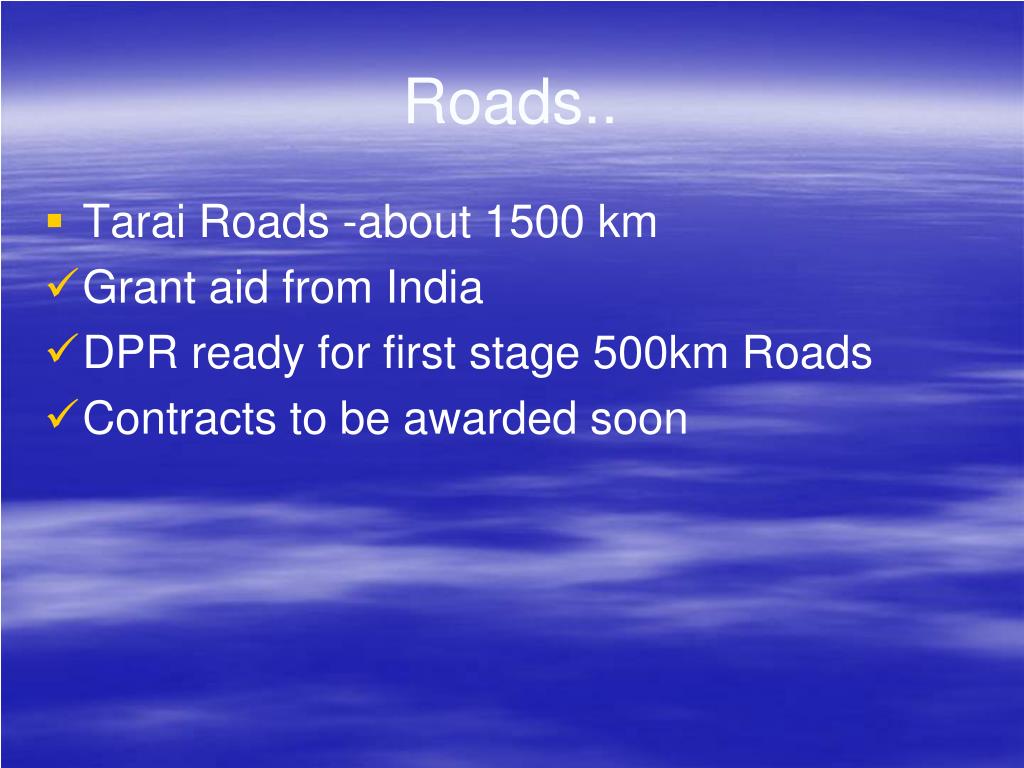

  29. Roads.. • Tarai Roads -about 1500 km • Grant aid from India • DPR ready for first stage 500km Roads • Contracts to be awarded soon

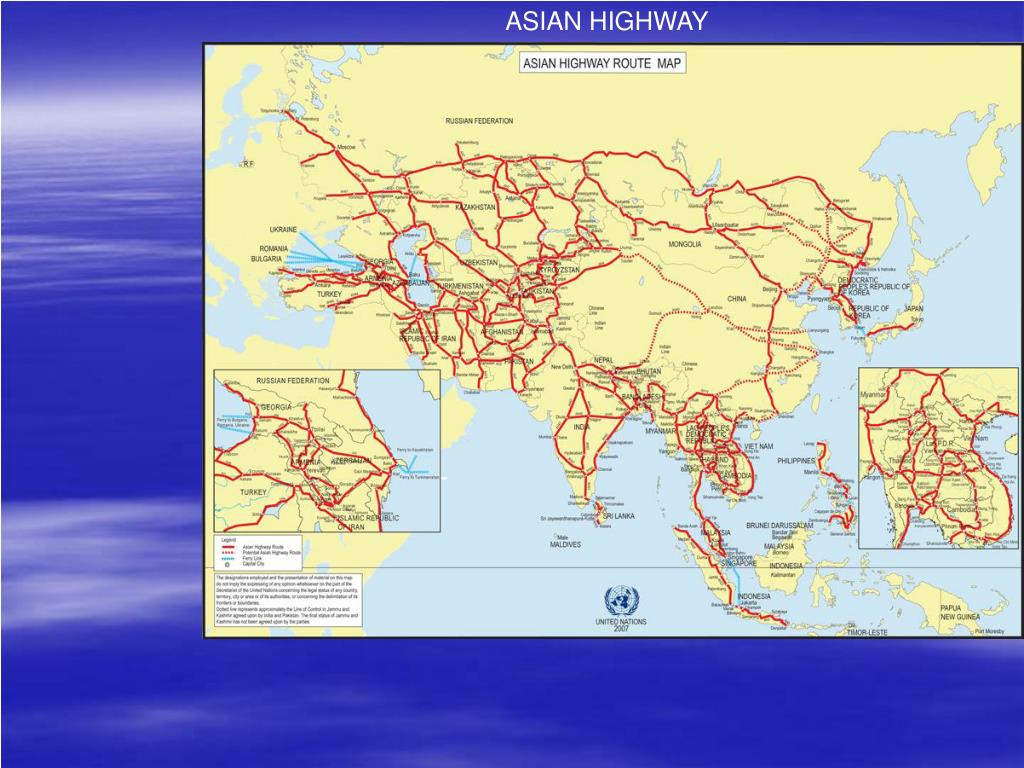

  30. ASIAN HIGHWAY

  31. Asian Highway • Asian highway network in the region has reached about 140,000 km •  AH-2 from Kakarbhitta-Bramhadev Mandi-1027km • AH-42 from Kodari to Birgunj 297 km

  32. Asian Highway Corridors

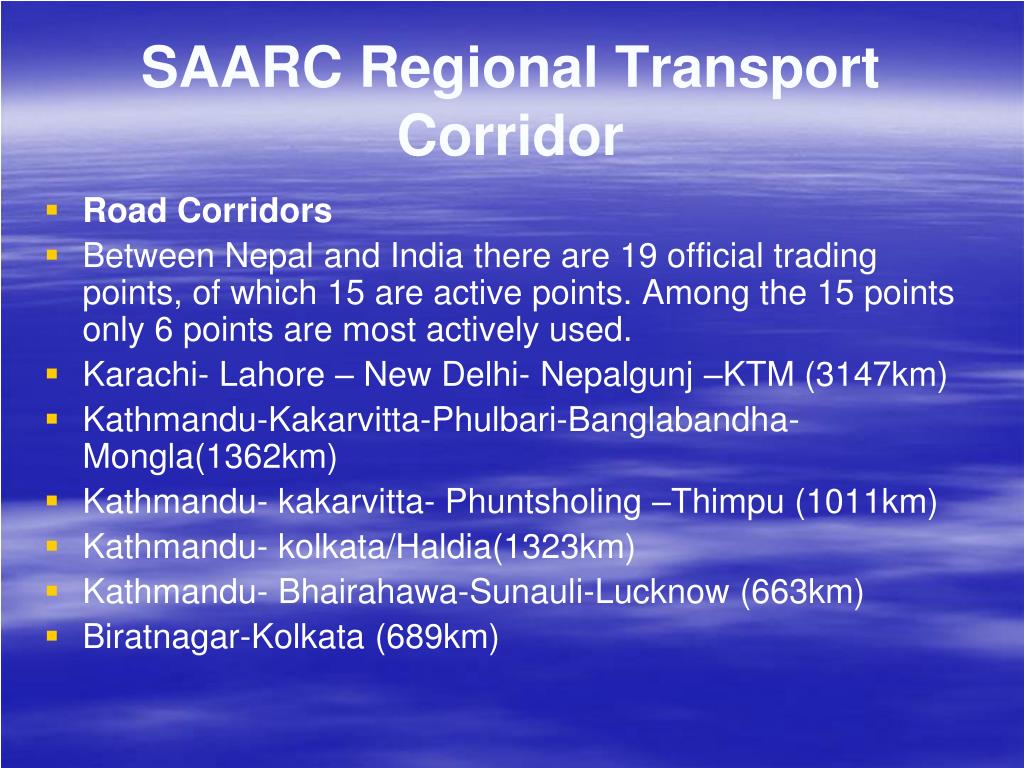

  33. SAARC Regional Transport Corridor • Road Corridors • Between Nepal and India there are 19 official trading points, of which 15 are active points. Among the 15 points only 6 points are most actively used. • Karachi- Lahore – New Delhi- Nepalgunj –KTM (3147km) • Kathmandu-Kakarvitta-Phulbari-Banglabandha-Mongla(1362km) • Kathmandu- kakarvitta- Phuntsholing –Thimpu (1011km) • Kathmandu- kolkata/Haldia(1323km) • Kathmandu- Bhairahawa-Sunauli-Lucknow (663km) • Biratnagar-Kolkata (689km)

  34. SAARC Regional.. • Selected road corridors for prioritization • KTM-Birgunj/raxaul-Kolkata/haldia • KTM-Kakarvitta-Phulbari-Banglabandha-Mongla/Chittagong • KTM-Nepalgunj-New Delhi-lahore-Karachi • KTM-Bhairahawa-Sunauli-Lucknow

  35. SAARC Regional.. • List of selected Rail Corridors • Birgunj-raxaul- Haldia/Kolkata • Birgunj-raxaul-Katihar- Rohanpur-Chittagong with links to Jogbani

  36. SASEC / SUBREGIONAL TRANSPORT • Construction of 29 km black top road with 7m carriageway from Bhairahawa to Bhumahi • Birgunj(ICD)-Jeetpur (TRP) -12km by pass road • Road based new Kakarbhitta ICD in an area of 7.5 ha • All these projects to be completed by June 2010

  37. BIMSTEC Transport Infrastructure • Identification of Transport infrastructure and logistics bottlenecks in BIMSTEC Region • Policies and strategies on physical and non-physical barriers

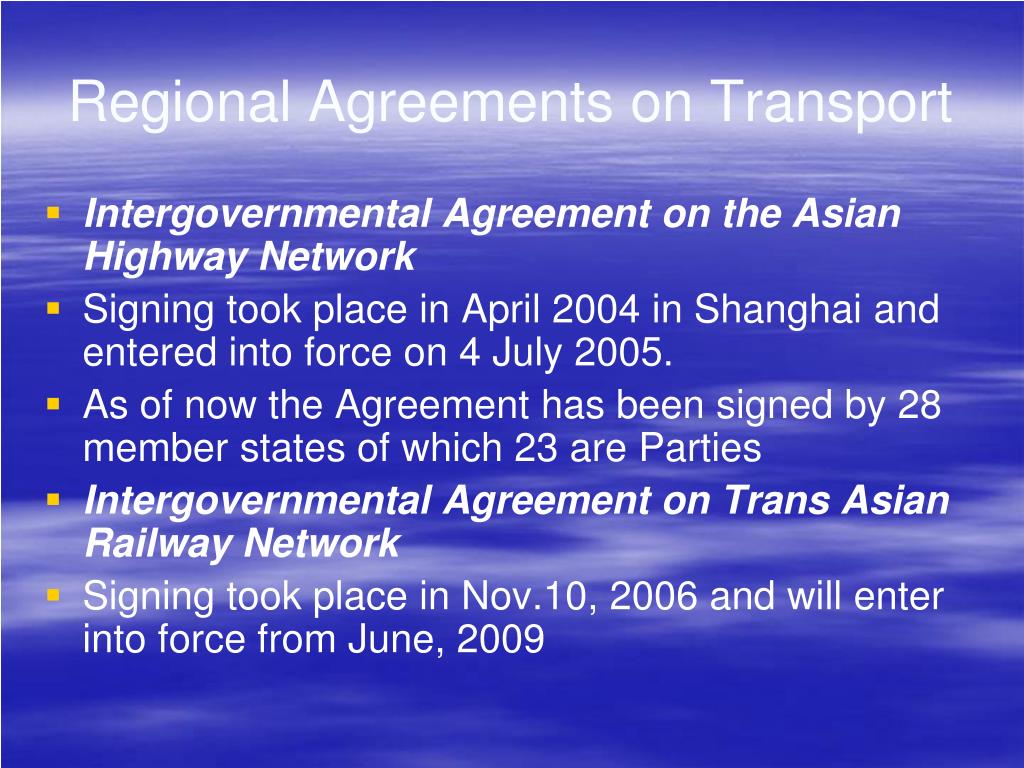

  38. Regional Agreements on Transport • Intergovernmental Agreement on the Asian Highway Network • Signing took place in April 2004 in Shanghai and entered into force on 4 July 2005. • As of now the Agreement has been signed by 28 member states of which 23 are Parties • Intergovernmental Agreement on Trans Asian Railway Network • Signing took place in Nov.10, 2006 and will enter into force from June, 2009

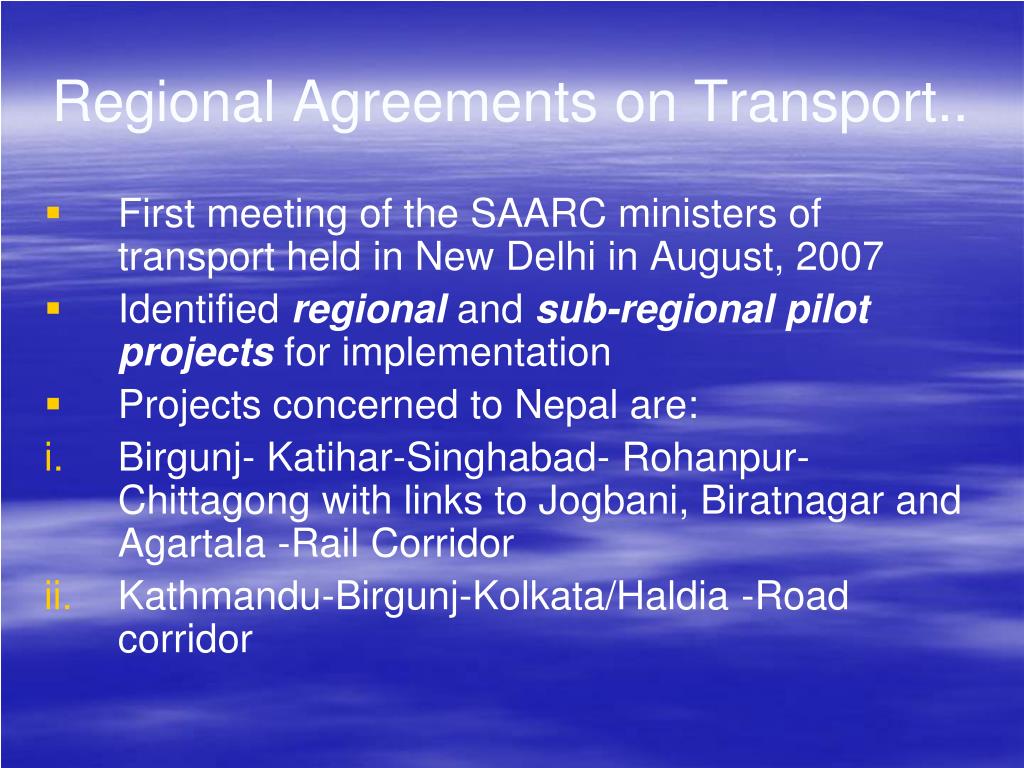

  39. Regional Agreements on Transport.. • First meeting of the SAARC ministers of transport held in New Delhi in August, 2007 • Identified regional and sub-regional pilot projects for implementation • Projects concerned to Nepal are: • Birgunj- Katihar-Singhabad- Rohanpur-Chittagong with links to Jogbani, Biratnagar and Agartala -Rail Corridor • Kathmandu-Birgunj-Kolkata/Haldia -Road corridor

  40. THANK YOU
