OASIS SDD TC File Content Proposal

This proposal aims to replace the term "File" with "Content" in the PackageDescriptor schema, addressing potential confusion associated with the term "File" as interpreted in file systems and executable code. By aligning with definitions used in OGF-ACS, this change promotes clearer communication and understanding of the components of the PackageDescriptor. The proposal includes detailed schema revisions that will enhance accuracy and consistency in representing various types of content, improving usability for all stakeholders involved.

hestia
Télécharger la présentation

OASIS SDD TC File Content Proposal

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. OASIS SDD TC FileContent Proposal Brent Miller, IBM

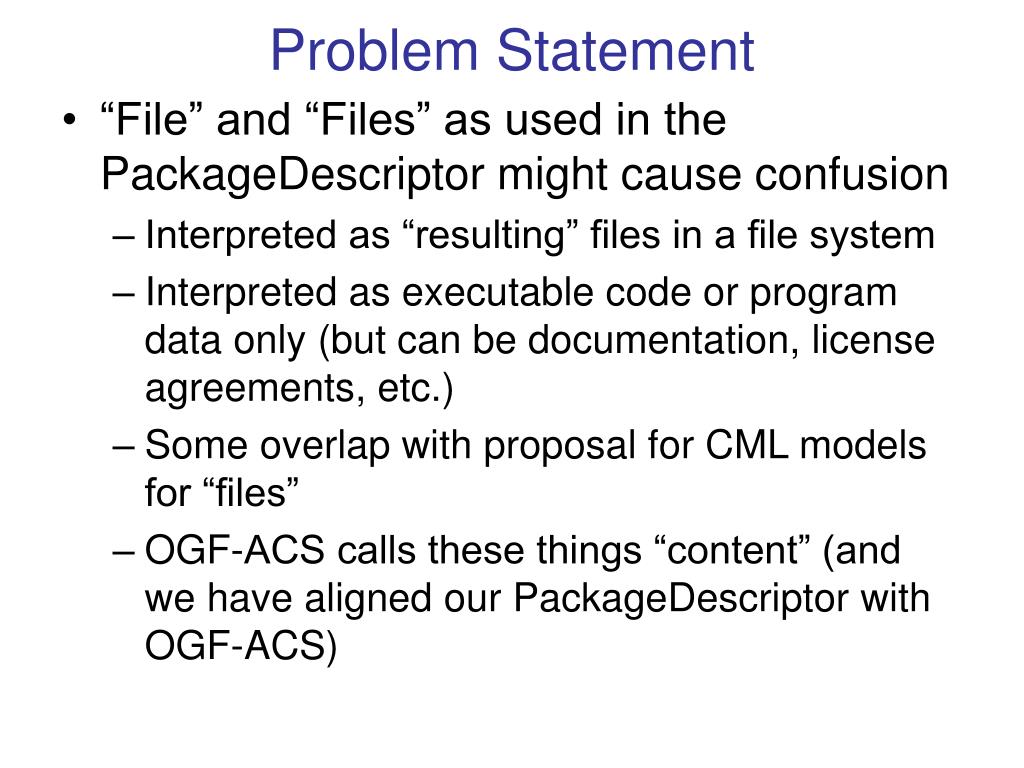

  2. Problem Statement • “File” and “Files” as used in the PackageDescriptor might cause confusion • Interpreted as “resulting” files in a file system • Interpreted as executable code or program data only (but can be documentation, license agreements, etc.) • Some overlap with proposal for CML models for “files” • OGF-ACS calls these things “content” (and we have aligned our PackageDescriptor with OGF-ACS)

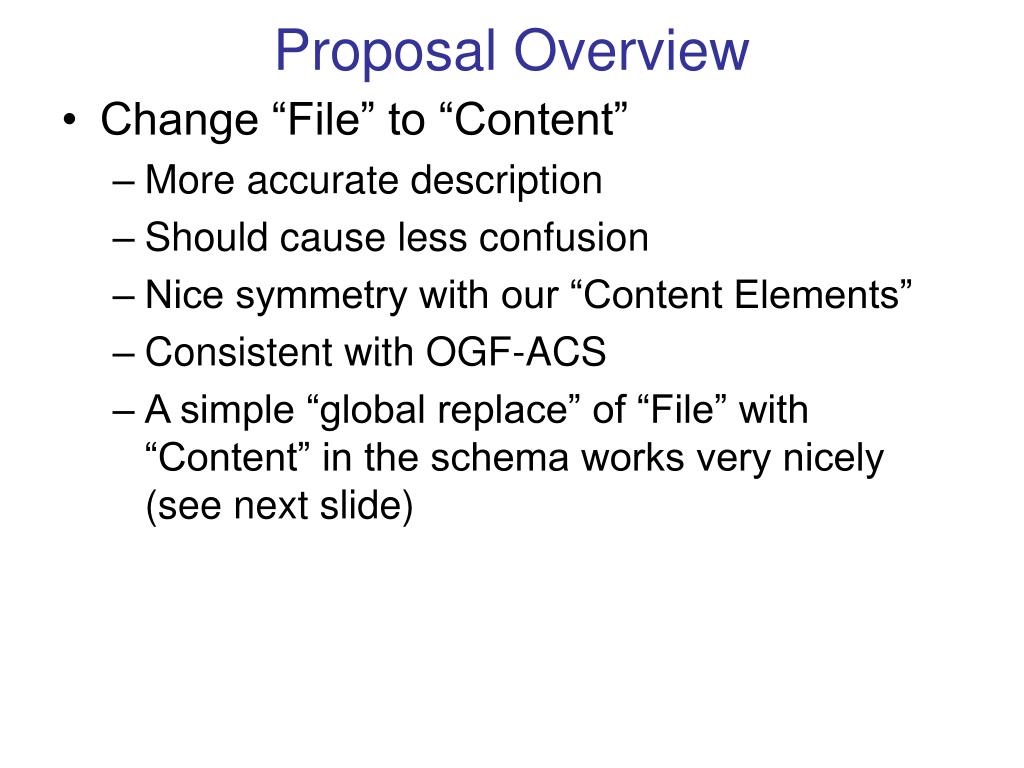

  3. Proposal Overview • Change “File” to “Content” • More accurate description • Should cause less confusion • Nice symmetry with our “Content Elements” • Consistent with OGF-ACS • A simple “global replace” of “File” with “Content” in the schema works very nicely (see next slide)

  4. Proposal Details – Schema (1) Package Descriptor <complexType name="PackageDescriptorType"> <sequence> <element name="PackageIdentity" type="sdd-pd:PackageIdentityType"/> <element name=“Contents" type="sdd-pd:ContentsType"/> <element ref="ds:Signature" minOccurs="0"/> </sequence> <attributeGroup ref="sdd-common:DescriptorInfoGroup"/> </complexType>

  5. Proposal Details – Schema (2) Package Descriptor <complexType name=“ContentsType"> <sequence> <element name=“Content" type="sdd-pd:ContentType" maxOccurs="unbounded"/> </sequence> </complexType> <complexType name=“ContentType"> <sequence> <group ref="sdd-pd:DigestInfoGroup" minOccurs="0"/> </sequence> <attribute name="id" type="ID" use="required"/> <attribute name="pathname" type="anyURI" use="required"/> <attribute name="purpose" type="sdd-pd:ContentPurposeType" default="content" use="optional"/> <attribute name="charEncoding" type="string" use="optional"/> <attribute name="length" type="nonNegativeInteger" use="optional"/> <anyAttribute namespace="##other" processContents="lax"/> </complexType>

  6. Proposal Details – Schema (3) Package Descriptor <simpleType name=“ContentPurposeType"> <union memberTypes="sdd-pd:SDDContentPurposeType NCName"/> </simpleType> <simpleType name="SDDContentPurposeType"> <restriction base="NCName"> <enumeration value="readMe"/> <enumeration value="endUserLicenseAgreement"/> <enumeration value="responseFile"/> <enumeration value="deploymentDescriptor"/> <enumeration value="packageDescriptor"/> <enumeration value="descriptorLanguageBundle"/> <enumeration value="content"/> </restriction> </simpleType> Unchanged

  7. Proposal Details – Schema (4) Deployment Descriptor <complexType name="ArtifactType"> <sequence> <element name="Arguments" type="sdd-dd:ArgumentListType" minOccurs="0"/> <element name="OutputVariables" type="sdd-dd:OutputVariableListType" minOccurs="0"/> <element name="AdditionalContent" type="sdd-dd:AdditionalContentType" minOccurs="0" maxOccurs="unbounded"/> <any namespace="##other" processContents="lax" minOccurs="0" maxOccurs="unbounded"/> </sequence> <attribute name=“contentRef" type="token" use="optional"/> <attribute name="resourceRef" type="IDREF" use="optional"/> <attribute name="type" type="sdd-dd:ArtifactTypeNameType" use="optional"/> <attribute name="weight" type="positiveInteger" use="optional"/> <anyAttribute namespace="##other" processContents="lax"/> </complexType> <complexType name="AdditionalContentType"> <sequence> <element name="Substitution" type="sdd-dd:SubstitutionType" minOccurs="0" maxOccurs="unbounded"/> <any namespace="##other" processContents="lax" minOccurs="0" maxOccurs="unbounded"/> </sequence> <attribute name=“contentRef" type="token" use="required"/> <attribute name="type" type="sdd-dd:ArtifactTypeNameType" use="optional"/> <anyAttribute namespace="##other" processContents="lax"/> </complexType>

  8. Proposal Details – Schema (5) Deployment Descriptor <complexType name="ReferencedPackageType"> <sequence> <element name="RequiredContentSelection" type="sdd-dd:ReferencedPackageRequiredContentSelectionType" minOccurs="0"/> <element name="Arguments" type="sdd-dd:ArgumentListType" minOccurs="0"/> <element name="OutputVariables" type="sdd-dd:ReferencedPackageOutputVariableListType" minOccurs="0"/> <element name="Requirements" type="sdd-dd:ReferencedPackageRequirementsType" minOccurs="0"/> <element name="ResultingResourceMap" type="sdd-dd:ReferencedPackageResultingResourceMapType" minOccurs="0" maxOccurs="unbounded"/> <element name="ResultingChangeMap" type="sdd-dd:ReferencedPackageResultingChangeMapType" minOccurs="0" maxOccurs="unbounded"/> <element name="RequiredResourceMap" type="sdd-dd:ResourceMapType" minOccurs="0" maxOccurs="unbounded"/> <element name="SupportedLanguages" type="sdd-dd:LanguageSetType" minOccurs="0"/> <any namespace="##other" processContents="lax" minOccurs="0" maxOccurs="unbounded"/> </sequence> <attribute name="id" type="ID" use="required"/> <attribute name=“contentRef" type="token" use="required"/> <attribute name="descriptorID" type="sdd-common:UUIDType" use="optional"/> <attribute name="weight" type="positiveInteger" use="optional"/> <anyAttribute namespace="##other" processContents="lax"/> </complexType>

  9. Proposal Details – Schema (6) Deployment Descriptor <complexType name="InternalDependencyType"> <sequence> <group ref="sdd-dd:DescriptionGroup" minOccurs="0"/> </sequence> <attribute name="type" type="sdd-dd:DependencyType" use="optional" default="pre-req"/> <attribute name="contentElementRef" type="IDREF" use="required"/> <attribute name="contentElementRefOperation" type="sdd-dd:OperationApplicabilityType" use="optional"/> <anyAttribute namespace="##other" processContents="lax"/> </complexType> … <complexType name="ContentReferenceType"> <attribute name="contentElementRef" type="IDREF" use="required"/> <attribute name="packageFeatureRef" type="NCName" use="optional"/> <anyAttribute namespace="##other" processContents="lax"/> </complexType> Side effect of changing fileRef  contentRef – these already were called contentRef; change to contentElementRef to distinguish

  10. Proposal Details – Specification • Specification updates to match these new property names should be straightforward • If adopted by the TC, this needs to be reviewed with Fukui-san for GGF-ACS
