  1. CSC 774 Advanced Network Security Topic 2.5 Secret Handshake Slides by Tong Zhou Dr. Peng Ning

  2. Goals • Authenticate without revealing credentials • Consider two groups G1 and G2, two parties AG1 and B G2. A and B wants to authenticate each other. • If G1 ≠ G2: A and B only know they are not in the same group. • If G1 = G2: A and B can authenticate to each other. • A third party learns nothing by observing conversations between A and B. Dr. Peng Ning

  3. Preliminaries: Pairing-based Cryptography • Bilinear Maps: • Two cyclic groups of large prime order q: G1 and G2 • is a bilinear map if • ê should be computable, non-degenerate and satisfies Bilinear Diffie-Hellman assumption, i.e., given P, aP, bP, cP, it is hard to compute Dr. Peng Ning

  4. Protocol Sketch • Equipped with bilinear map ê and one-way hash function H1 • CA has a master key t. • Assume a drivers and cops scenario. Dr. Peng Ning

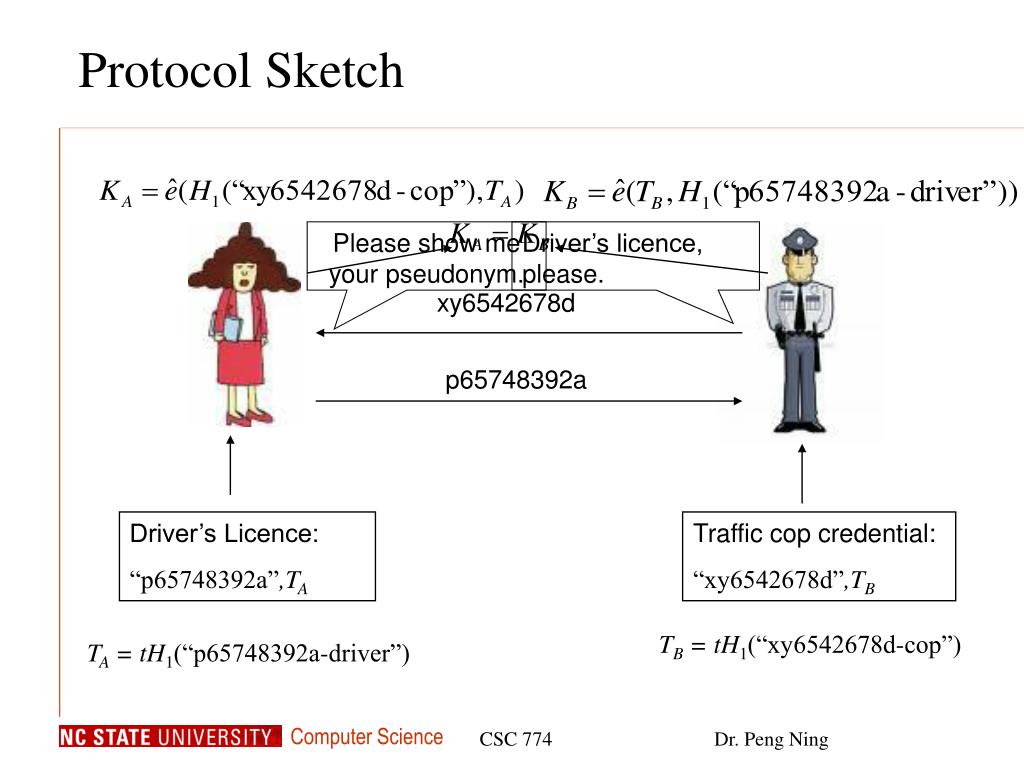

  5. xy6542678d p65748392a Protocol Sketch Please show me your pseudonym. Driver’s licence, please. Driver’s Licence: “p65748392a”,TA Traffic cop credential: “xy6542678d”,TB TB = tH1(“xy6542678d-cop”) TA = tH1(“p65748392a-driver”) Dr. Peng Ning

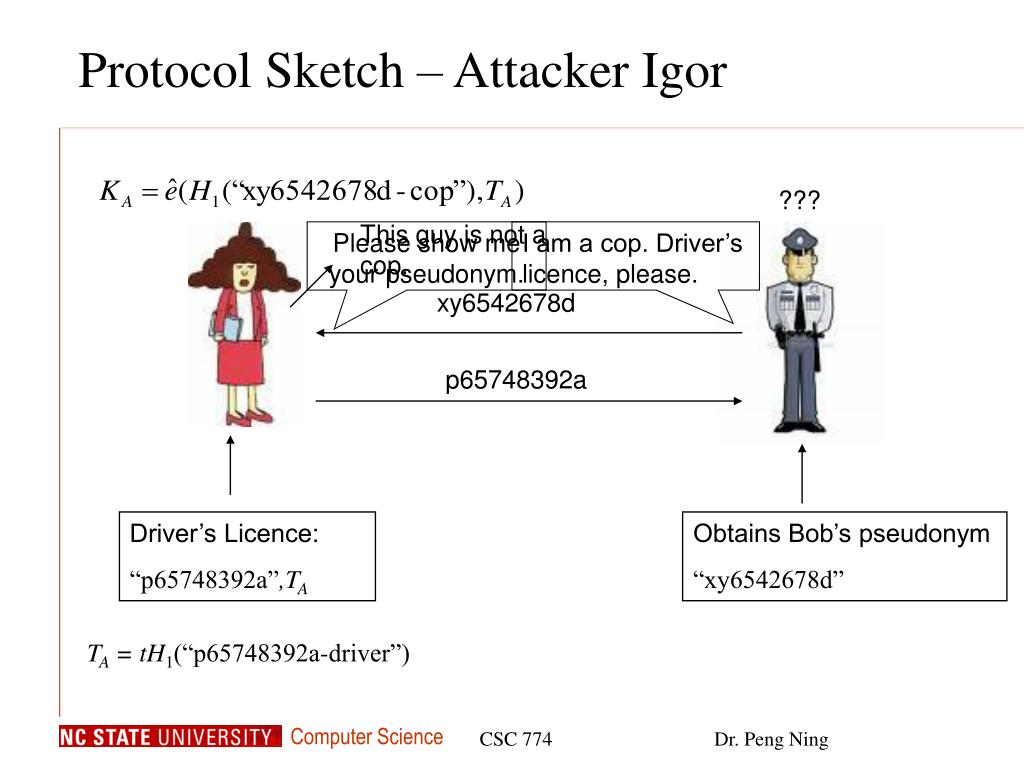

  6. This guy is not a cop. xy6542678d p65748392a Protocol Sketch – Attacker Igor ??? Please show me your pseudonym. I am a cop. Driver’s licence, please. Driver’s Licence: “p65748392a”,TA Obtains Bob’s pseudonym “xy6542678d” TA = tH1(“p65748392a-driver”) Dr. Peng Ning

  7. Secret-Handshake Scheme (SHS) • SHS.CreateGroup(G): executed by an administrator, generates the group secret GroupSecretG for G. • SHS.AddUser(U,G,GroupSecretG): creates user secret UserSecretU,G for new user U. • SHS.HandShake(A,B): Users A and B authenticates each other. B discovers A G if and only if Adiscovers BG. • SHS.TraceUser:Administrator tells the user from a transcript T generated during conversation between A and B. • SHS.RemoveUser: Administrator revokes user U Dr. Peng Ning

  8. Pairing-Based Handshake (PBH) • PBH.CreateGroup: Administrator sets GroupSecretG as a random number • PBH.AddUser: Administrator generates a pseudonyms for user U: and then generates the corresponding secret points: where H1 is a one-way hash function. Dr. Peng Ning

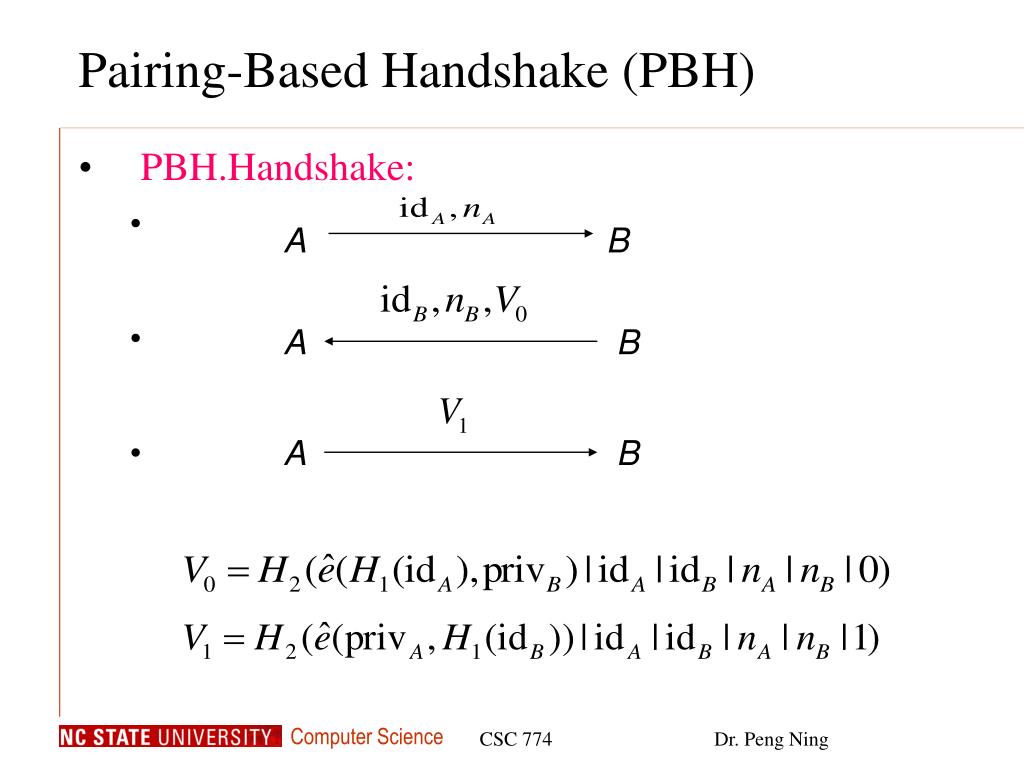

  9. A A A B B B Pairing-Based Handshake (PBH) • PBH.Handshake: Dr. Peng Ning

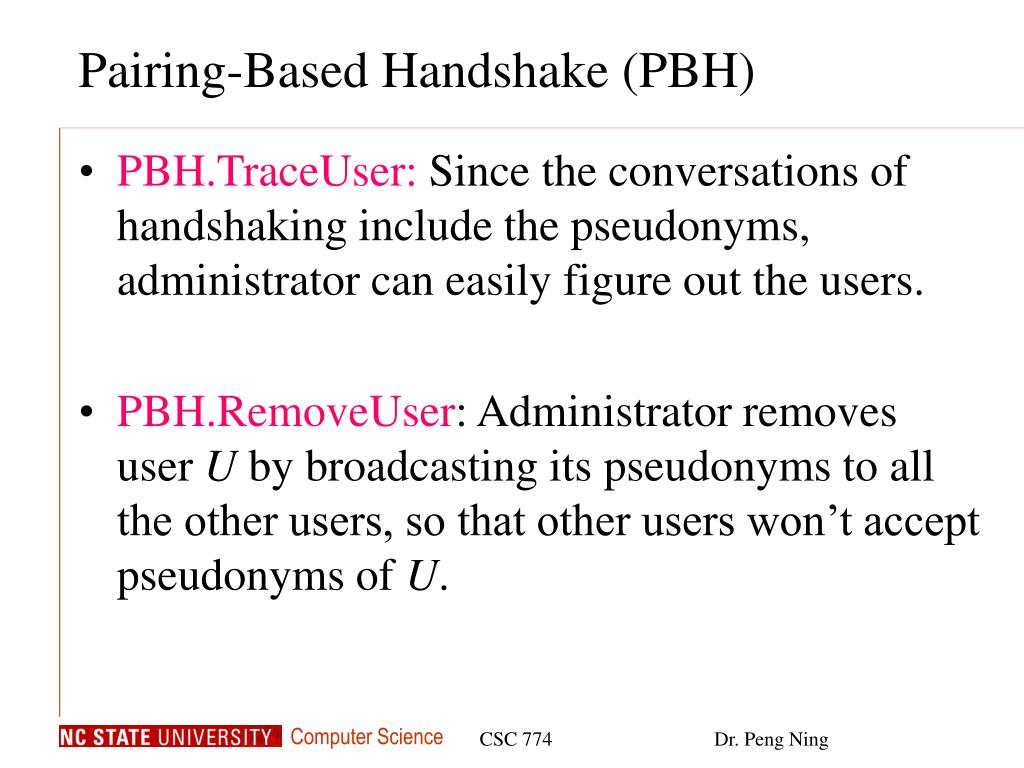

  10. Pairing-Based Handshake (PBH) • PBH.TraceUser: Since the conversations of handshaking include the pseudonyms, administrator can easily figure out the users. • PBH.RemoveUser: Administrator removes user U by broadcasting its pseudonyms to all the other users, so that other users won’t accept pseudonyms of U. Dr. Peng Ning

  11. Computational Diffie-Hellman Instead of Bilinear Diffie-Hellman • CreateGroup: Administrator picks (p,q,g). p and q are primes, g is a generator of a subgroup inof order q. Also, picks up a private key x, and computes the public key y=gx mod p • AddUser: For user U, administrator generates idU, then generates a pair so that idU, w, t will be given to the user. Dr. Peng Ning

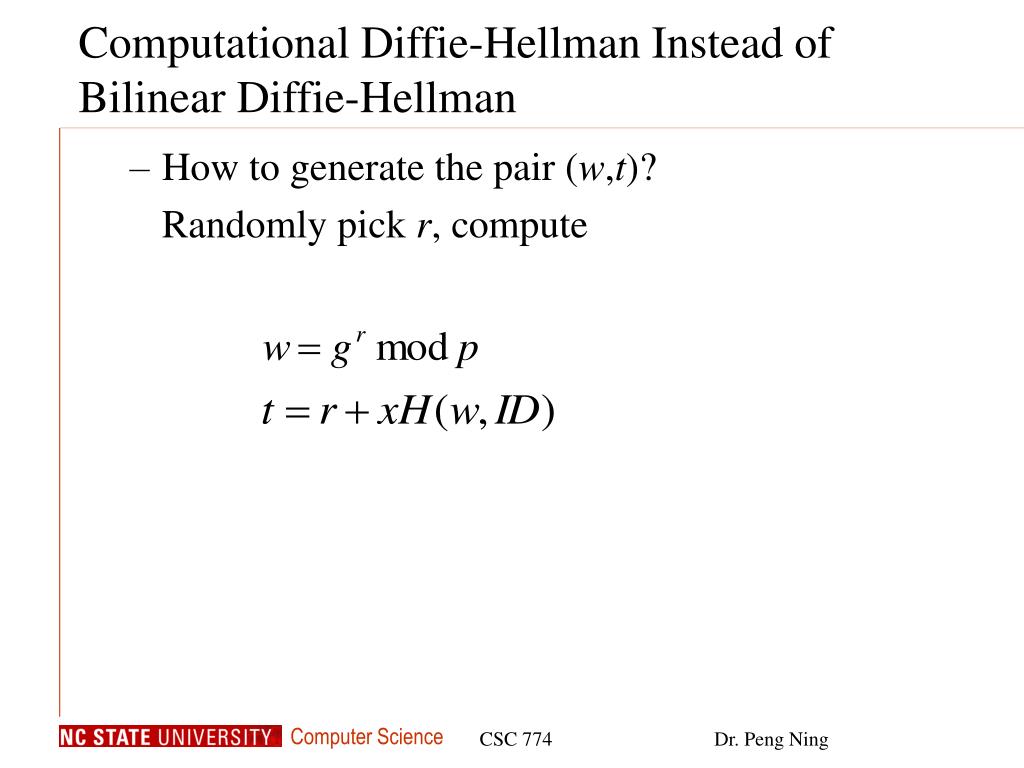

  12. Computational Diffie-Hellman Instead of Bilinear Diffie-Hellman • How to generate the pair (w,t)? Randomly pick r, compute Dr. Peng Ning

  13. Computational Diffie-Hellman Instead of Bilinear Diffie-Hellman • Handshake: Assume user A has (idA, wA, tA) and user B has (idB, wB, tB). Define several marks (ElGamal Encryption): Dr. Peng Ning

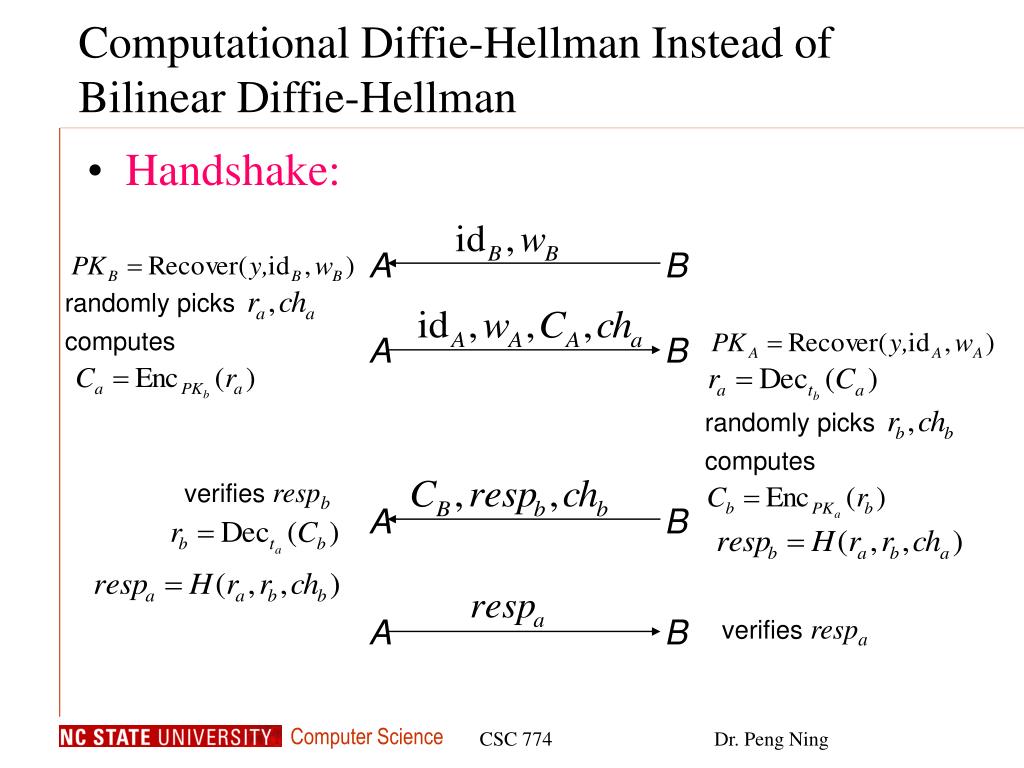

  14. A A A A B B B B randomly picks computes randomly picks computes Computational Diffie-Hellman Instead of Bilinear Diffie-Hellman • Handshake: verifies respb verifies respa Dr. Peng Ning
