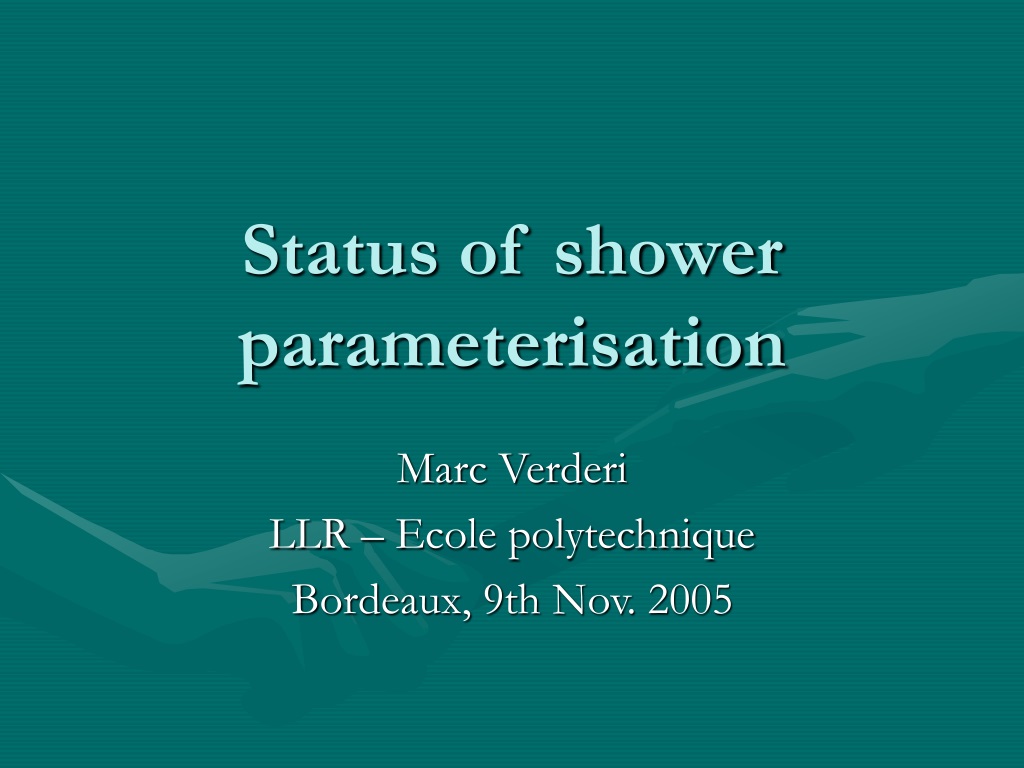

  1. Status of shower parameterisation Marc Verderi LLR – Ecole polytechnique Bordeaux, 9th Nov. 2005

  2. Recent past/current news • ATLAS discovered a problem in stepping • Made the “exclusive force” flag not working properly in some situations • Now fixed and released • Migration to region • Fast simulation code migrated to G4Region • Fast simulation models are now attached to the G4Region (through a G4FastSimulationManager), thanks to Makoto. • They used to be attached to an “envelope” (a G4LogicalVolume, root of a volume hierarchy tree) • Envelope and region are close/same concept • Still, example N05 needs to be updated • Must be done quickly • Migration to region implies some changes of the user code: • For what concerns informations related to the “envelope” • Change of G4LogicalVolume → G4Region • GFlash code migrated to G4Region as well, by Joanna

  3. About gflash in G4 • Work undertaken by Joanna Weng • Motivated by CMS needs • Concrete EM shower parameterisation • H1 fortran code, re-engineered to G4 • Up to 2 order of magnitudes speed-up in “block” geometries  • But only factor ~<5 in realistic geometries  • Many parts left to detailed tracking • Many calls to trigger methods of fast simulation • returning “false” : ie no parameterisation • Case of low energy particles in shower • Investigate what optimization could be done on fast simulation code side • Like “forget” a track • Or “forget track and daughters” • Limited gain expected ?

  4. Future developments • The “ghost volumes” capability was part of the requirements for the “parallel geometry” development • “ghost volumes” are used to define regions in which a fast simulation can be triggered, having this ghost volumes independent of the tracking geometry • These geometry are “flavored” : ie defined for given particle types • A parallel navigation is provided currently by the fast simulation process • But complications arise in case of a presence of a magnetic field • The general parallel navigation capability should solve this • Fast simulation will be migrated to this general framework when available • Will/should consist mainly of changes in the fast simulation process. • Informal parallel session on this topic this afternoon 17:00 – 18:15
