  1. FX1N-40M

  2. FX1N-40M

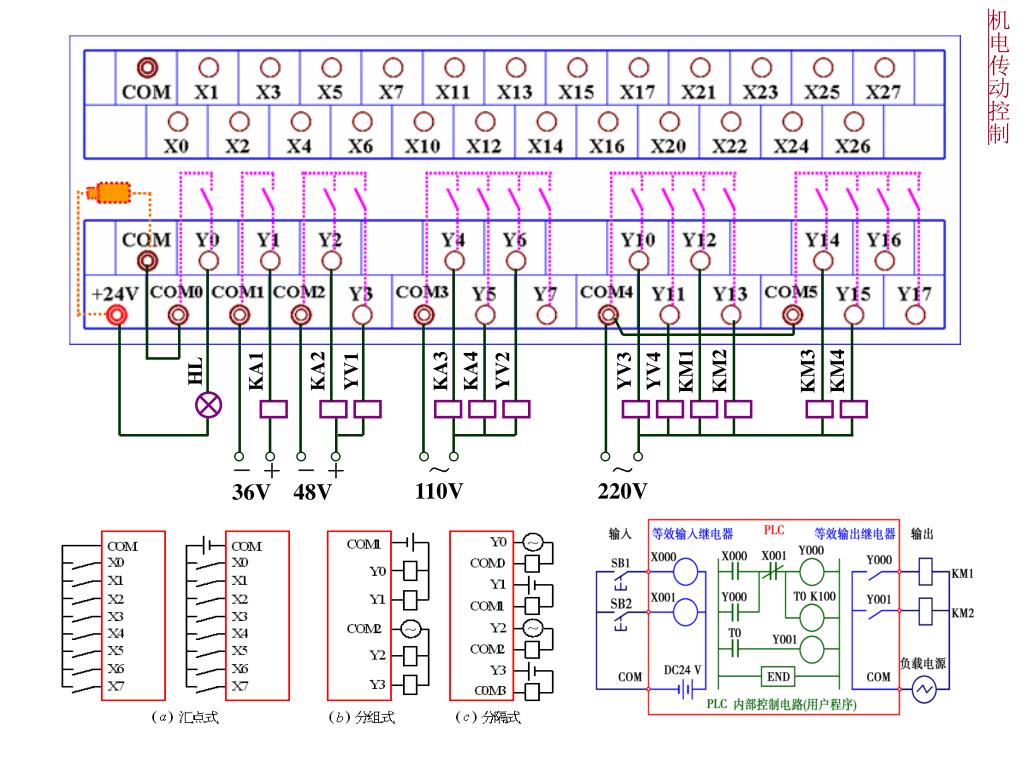

  3. 等效电路 开关量I/O模块的外部接线

  4. FX1N-40M 开关量I/O模块的外部接线

  5. KA3 KA4 YV2 YV3 YV4 KM1 KM2 KM3 KM4 HL KA1 KA2 YV1 ～ 110V ～ 220V － ＋－ ＋ 36V 48V

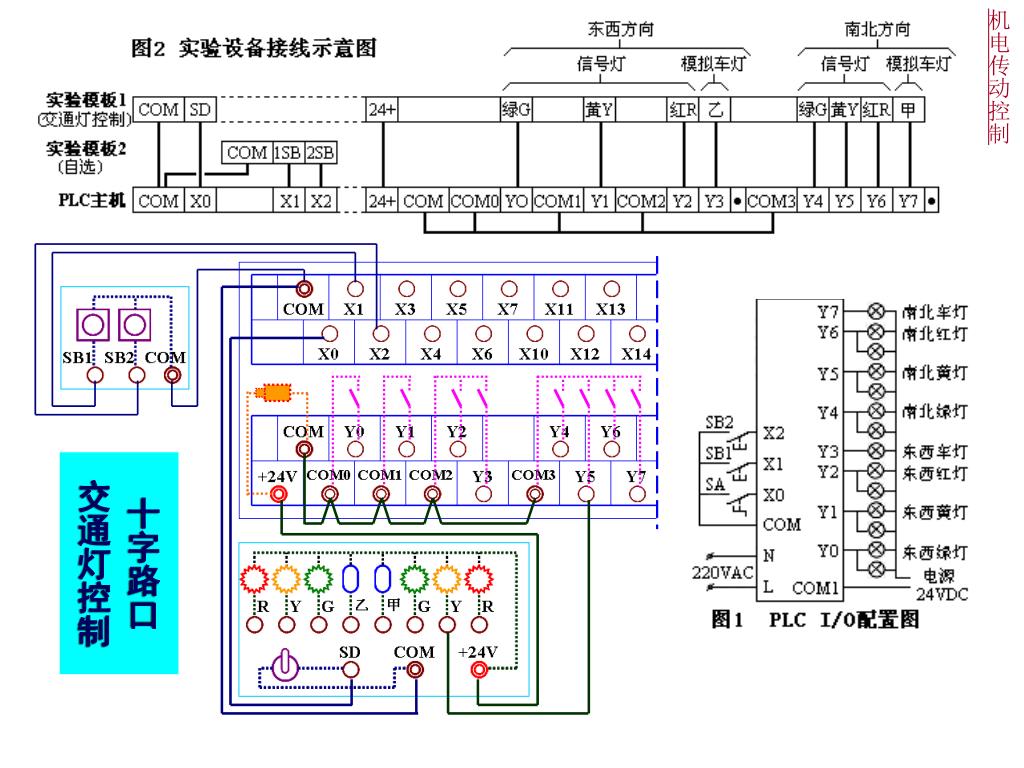

  6. 十字路口 交通灯控制
