  1. The Complete Guide to Reporting Tools Available in SAP NetWeaver and the SAP BusinessObjects Portfolio Bjarne Berg Director SAP BI Comerit Inc.

  2. Learning Points This is a comprehensive guide to SAP NetWeaver Business Intelligence presentation tools We will take an overview tour of the Analysis Process Designer (APD), SAP NetWeaver Visual Composer (VC), Web Application Designer (WAD), Report Designer, Web publishing, Java Server pages (JSP) and the new SAP NetWeaver BI Query Designer & BEx Analyzer. We will look at the strengths and limitations of each tool and see how they can be used independently or collectively in a SAP BI environment. Leave this session with a good understanding of how to use SAP NetWeaver BI tools to make your system more flexible and adaptive to the needs of end users.

  3. Agenda • The SAP BI Tool Revolution • SAP NetWeaver BI Query Designer & BEx Analyzer • Analysis Process Designer (APD), • SAP NetWeaver Visual Composer (VC) • Web Application Designer (WAD) • Report Designer • Web publishing • Java Server pages (JSP) and the old Business Server Pages (BSP) • Administrative tools • The BOBJ Roadmap for front-end tools • Empowering the users – a mind shift • Who Should get access • Wrap-up • Bonus material: All SAP BOBJ tools 3

  4. The SAP BI Core Toolset SAP BI is an enterprise-wide comprehensive decision support (DSS) system for analytical needs of an enterprise. BI can also support some degree of operational reporting The SAP BI tool set has many presentation tools and options for companies to leverage.

  5. Agenda • The SAP BI Tool Revolution • SAP NetWeaver BI Query Designer & BEx Analyzer • Analysis Process Designer (APD), • SAP NetWeaver Visual Composer (VC) • Web Application Designer (WAD) • Report Designer • Web publishing • Java Server pages (JSP) and the old Business Server Pages (BSP) • Administrative tools • The BOBJ Roadmap for front-end tools • Empowering the users – a mind shift • Who Should get access • Wrap-up • Bonus material: All SAP BOBJ tools

  6. The BEx Query Designer in BW 3.5 The BEx query designer is a simple tool that you use to develop queries for users. While the Query Designer defined the query, you have many options on how you deploy the queries You can deploy the queries through web templates, broadcasted emails, portals, Excel and more.

  7. BEx Query Designer gets a ‘facelift’ in BI 7.x The new 7.x Query designer was totally re-developed in MS-Visual Basic .NET This new property pane makes it easier to format and control displays than in the past. The 3.5x BEx Query Designer BEx Ad-Hoc Query Designer functionality is replaced by BEx Web Analyzer in BI 7.0 The NWBI 7.0 BEx Query Designer

  8. BEx – Analyzer (Excel Workbooks) 1. BEx Workbooks is Excel 'on steroids'. 2. BW queries can be opened in Excel 3. Queries can be refreshed and standard Excel functions can be used This is a great tool for financial analysts and power users. • To use this tool you need BEx installed

  9. BEx web Analyzer integrates Excel The Excel integration in the BEx analyzer is far better. Unlike the old days of dynamic HTML, you can now use the BEx analyzer more like a real application without refreshing the whole page every time you click on something (this is due to the Java component in BI 7.0) Source: SAP AG, 2008 Important: BEx browser goes away in SAP BI 7.0 (so does BEx Download Scheduler)

  10. BEx – Analyzer Design Mode Application building in Excel (similar to WAD) New options for queries with two structures Excel formulas allow access to any cell of the result set Excel formatting options can be fully leveraged for BEx workbooks (e.g., blank lines, fonts, etc.) Combining Excel formulas and Excel formatting allows the design of complex formatted workbooks Integration of Business Planning is available • To use this tool you need BEx installed Source: SAP, Zane Connally 2008

  11. Agenda • The SAP BI Tool Revolution • SAP NetWeaver BI Query Designer & BEx Analyzer • Analysis Process Designer (APD), • SAP NetWeaver Visual Composer (VC) • Web Application Designer (WAD) • Report Designer • Web publishing • Java Server pages (JSP) and the old Business Server Pages (BSP) • Administrative tools • The BOBJ Roadmap for front-end tools • Empowering the users – a mind shift • Who Should get access • Wrap-up • Bonus material: All SAP BOBJ tools

  12. APD – Analysis Process Designer and data mining • SAP BW Analysis Process Designer (APD) is for Knowledge discovery and exploration of large sets of data. • APD has been available in BW since version 3.0 and can be used to do complex analysis without having to restructure the data and create hundreds of specialized data marts. • You can read from a variety of sources such as • Flat files • Database tables • Data Store Objects (new name for ODS) • Infocubes • BW queries • Since BW 3.5, APD has been integrated with the Data Mining Workbench. You can access it though the transaction code “RSDMWB” Image: SAP, UK

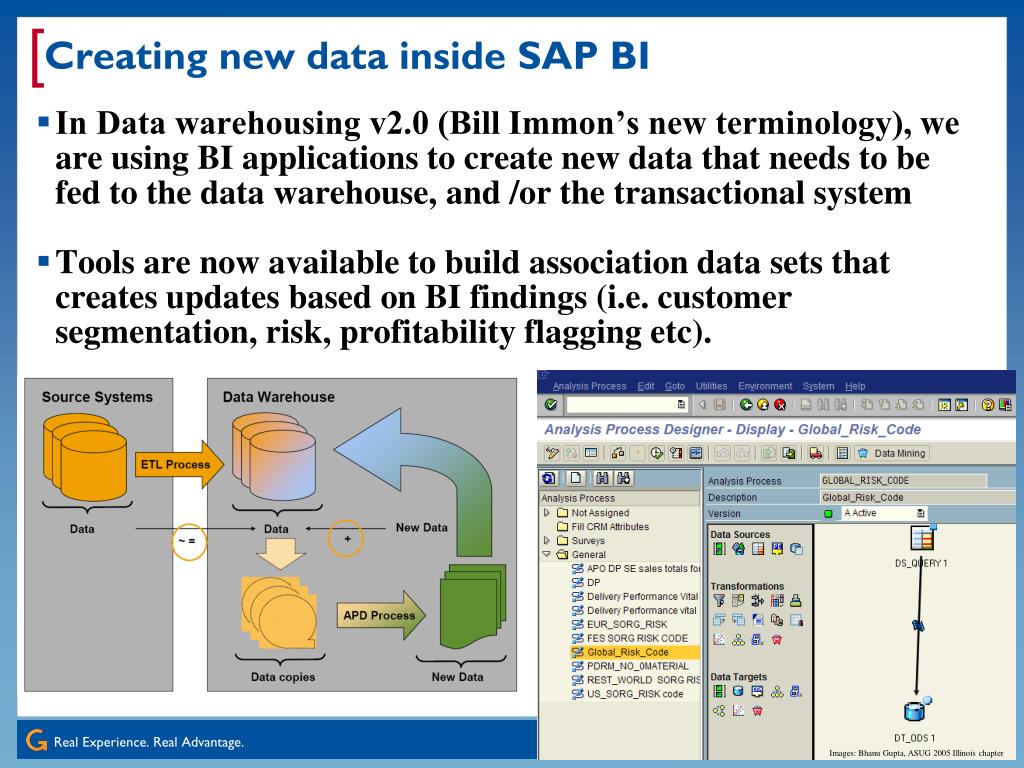

  13. Creating new data inside SAP BI • In Data warehousing v2.0 (Bill Immon’s new terminology), we are using BI applications to create new data that needs to be fed to the data warehouse, and /or the transactional system • Tools are now available to build association data sets that creates updates based on BI findings (i.e. customer segmentation, risk, profitability flagging etc). Images: Bhanu Gupta, ASUG 2005 Illinois chapter

  14. Complex scenarios can be built for structured analysis such as risk modeling, customer segmentation, market basket analysis, predictive modeling and much more APD – Analysis Process Designer and data mining “New data” based on the findings can be loaded back into data targets and used by others for reporting i.e. CRM analysis.

  15. Agenda • The SAP BI Tool Revolution • SAP NetWeaver BI Query Designer & BEx Analyzer • Analysis Process Designer (APD) • SAP NetWeaver Visual Composer (VC) • Web Application Designer (WAD) • Report Designer • Web publishing • Java Server pages (JSP) and the old Business Server Pages (BSP) • Administrative tools • The BOBJ Roadmap for front-end tools • Empowering the users – a mind shift • Who Should get access • Wrap-up • Bonus material: All SAP BOBJ tools 15

  16. Visual Composer A Visual Composer is a tool to visualize the data. It is a browser-based modeling and design tool for rapid application development & prototyping in a code-free development environment.

  17. Visual Composer for Complex cockpits Modeling of BI applications using the BI kit of the Visual Composer allows business users to create analytical content for SAP portal. It offers the integration with BI infoproviders, views, BEx web applications, PDF and more via WEB API as access to other data sources such as OLAP and relational data sources) via Java connectors Image source: Cubeserv

  18. Details about Visual Composer Cockpits • Delivered as part of Enterprise Portal in SAP NetWeaver BI 7.0 Usage Type (SPS8 and higher) • Different options available for rendering Visual Composer output • Flash • Web Dynpro (HTML) • Flash provides high-end visualization of Visual Composer models Since a cockpit may have many different sources (queries), it can take quite some time to execute them if the memory cache is not used consistently

  19. Visual Composer Data Methods • Can integrate data from multiple data sources, including SAP and non-SAP systems, into one model • Different options available for data access include: • BI Extension Kit • Remote Function Call (RFC) • Web services • BI Extension Kit allows access to the following DataSources • SAP NetWeaver 2004 BI (BW 3.5 Support Package 14) • SAP NetWeaver BI 7.0 • JDBC • XMLA

  20. Visual Composer DataProviders • You can use BI queries and views as DataProviders for Visual Composer models • You also can use BI query functionalities for exceptions and variables along with Visual Composer models Visual Composer allows access to BI history, favorites, and roles

  21. Visual Composer is Easy for Power Users to Learn Visual Composer is a power user tool that is simple to learn for someone with a little bit of technical background (i.e. controllers, report writers, analysts). No coding required to create great-looking Web-based cockpits Source: SAP Take advantage of prebuilt analytic business packages

  22. The future of Visual Composer Composition Environment including Visual Composer “continues to be the go-to product for creating composite applications” (SAP, 2008) Source: SAP, July 2008

  23. Agenda • The SAP BI Tool Revolution • SAP NetWeaver BI Query Designer & BEx Analyzer • Analysis Process Designer (APD), • SAP NetWeaver Visual Composer (VC) • Web Application Designer (WAD) • Report Designer • Web publishing • Java Server pages (JSP) and the old Business Server Pages (BSP) • Administrative tools • The BOBJ Roadmap for front-end tools • Empowering the users – a mind shift • Who Should get access • Wrap-up Bonus material: All SAP BOBJ tools

  24. BEx Web Application Designer (WAD) BEx Analyzer/ Query Designer Web Browser BEx Web Application Designer WAD is an intuitive tool to build powerful web applications and to interact with portals and custom templates. BW queries can be manipulated in WAD for better display OLAP Processor Web Service HTLM Templates Charting Engine InfoProvider

  25. New Features of SAP NetWeaver SAP BI 7.0 Web AD • Web Items: Tab Pages, Button, Script Item (in SAP BI 7.0 Support Package Stack 7) • Drag and drop using Analysis item • New chart types (heat map, Gantt, milestone trend analysis) • Export BI Web applications in PDF format • Command Wizard for generating Web API commands • Integration with SAP NetWeaver BI 7.0 BEx Report Designer for formatted reports NEW: User can change the XHTML source code of any web template either directly, or the ABAP program RS_TEMPLATE_MAINTAIN_70, or in any external XHTML editor.

  26. Command Wizard and JavaScript • You can use Command Wizard for generating JavaScript code for the Script Item to use in custom cockpit applications

  27. Product Directions for BI Solutions And Much More… Web App Designer Xcelsius Dashboards,Visualization Polestar Report Designer Crystal Reports EnterpriseReporting BI Widgets Web Intelligence Ad-hocQuery &Reporting Mobile BI Predictive SAP BEx Analyzer Voyager Advanced Analysis Web Services SAP NetWeaver BW and BWA BusinessObjects Enterprise Enterprise Data Warehousing & BI Platform Source: SAP 20009

  28. Product Directions for BI Solutions And Much More… Web App Designer Xcelsius Dashboards,Visualization Polestar Report Designer Crystal Reports EnterpriseReporting BI Widgets Web Intelligence Ad-hocQuery &Reporting Mobile BI Predictive SAP BEx Analyzer Voyager Advanced Analysis Web Services SAP NetWeaver BW and BWA BusinessObjects Enterprise Enterprise Data Warehousing & BI Platform Source: SAP 20009

  29. BI Web Application Designer Roadmap future planned 2010 InfoView /SAP NetWeaver Portal InfoView /SAP NetWeaver Portal Pioneer Web Client Pioneer Web Client Workspace Workspace PIO Web Tab BEx Web Tab … PIO Web Tab BEx Web Tab … SAP BOE Platform SAP BOE Platform Pioneer Designer/ SDK • Pioneer Web • Server • Pioneer Web Server • BI Consumer Services • BI Consumer Services BEx Web App Designer BEx Web App Designer Migration options via Pioneer SDK BEx Web Templates BEx Queries/ InfoProviders BEx Web Templates BEx Queries/ InfoProviders SAP NW BW SAP NW BW

  30. Agenda • The SAP BI Tool Revolution • SAP NetWeaver BI Query Designer & BEx Analyzer • Analysis Process Designer (APD), • SAP NetWeaver Visual Composer (VC) • Web Application Designer (WAD) • Report Designer • Web publishing • Java Server pages (JSP) and the old Business Server Pages (BSP) • Administrative tools • The BOBJ Roadmap for front-end tools • Empowering the users – a mind shift • Who Should get access • Wrap-up • Bonus material: All SAP BOBJ tools 30

  31. The BEx Report Designer This new tool was created to simplify the formatting of reports and fix many of the printing issues in previous versions of BW. Source: SAP AG We now get color control, header-footer control and many new features such as location control of cells and integration of pictures, charts and fixed text.

  32. BEx Report Designer is new in BI 7.0 • Customizable font styles (i.e. bold, italic), colors, etc. • Group-level changes with individual formatting • Layout options, e.g.: Height of rows, width of columns • Multi-line column headers • Flexible field positioning • Merging cells • Support for hierarchies • Rules for the presentation of special characteristic values • Integration of text, pictures, and charts • Header & footer for reports News: BEx Report Designer 7.1, (last release in 2008) will be available under maximum maintenance until 2016 and will be replaced with the Crystal Base product.

  33. Crystal Report is still available (also in SAP BW 3.x) • With BW you get access to Crystal reports. In fact you have many pre-developed reports that comes with SAP-BW. Currently, you can modify, or develop and deploy a few Crystal reports without additional licensing cost. • Crystal is a great tool for batch reporting of "pixel controlled' formatted reports.

  34. Agenda • The SAP BI Tool Revolution • SAP NetWeaver BI Query Designer & BEx Analyzer • Analysis Process Designer (APD), • SAP NetWeaver Visual Composer (VC) • Web Application Designer (WAD) • Report Designer • Web publishing • Java Server pages (JSP) and the old Business Server Pages (BSP) • Administrative tools • The BOBJ Roadmap for front-end tools • Empowering the users – a mind shift • Who Should get access • Wrap-up • Bonus material: All SAP BOBJ tools 34

  35. Web Cockpits in the Portal You can integrate queries and Web applications into the portal through publishing, broadcasting, or Web calls The portal can either receive designed pages passively or actively create communities, Web pages, collaboration rooms, or cockpits Publishing Broadcasting

  36. Agenda • The SAP BI Tool Revolution • SAP NetWeaver BI Query Designer & BEx Analyzer • Analysis Process Designer (APD), • SAP NetWeaver Visual Composer (VC) • Web Application Designer (WAD) • Report Designer • Web publishing • Java Server pages (JSP) and the old Business Server Pages (BSP) • Administrative tools • The BOBJ Roadmap for front-end tools • Empowering the users – a mind shift • Who Should get access • Wrap-up • Bonus material: All SAP BOBJ tools 36

  37. BI Java SDK-Based Applications in SAP BI 7.x • BI Java SDK can be used for custom applications based on SAP BI and non-SAP data. • BI Java SDK provides access to relational and OLAP data sources using JDBC, XMLA, ODBO etc. • Access to 200+ data sources using the JDBC drivers. Java programmers will recognize the standard development kit's (SDK) main libraries such as the abstract windowing toolkit (AWT) and the GUI-oriented Swing object library as well Source: SAP AG, 2008

  38. BI Java SDK-Based Cockpits (cont.) • SAP NetWeaver Developer Studio can develop BI Java SDK-based applications • Can use along with SAP Java Web Dynpro Interested developers should familiarize themselves with SAP NetWeaver Developer Studio

  39. Agenda • The SAP BI Tool Revolution • SAP NetWeaver BI Query Designer & BEx Analyzer • Analysis Process Designer (APD), • SAP NetWeaver Visual Composer (VC) • Web Application Designer (WAD) • Report Designer • Web publishing • Java Server pages (JSP) and the old Business Server Pages (BSP) • Administrative tools • The BOBJ Roadmap for front-end tools • Empowering the users – a mind shift • Who Should get access • Wrap-up • Bonus material: All SAP BOBJ tools

  40. More Administrative tools for management & development • Enhanced Dataflow control (split delta) • Administrator Cockpit (Web-based) • BI Accelerator (high performance BIA) • Enhanced InfoSets with InfoCubes • Re-modeling and repartitioning of InfoCubes • New Data Transfer Process (DTP) • Write-optimized DataStore objects • New Admin Workbench SAP BI 7.0 have many improved tools for developers and system administrators

  41. Agenda • The SAP BI Tool Revolution • SAP NetWeaver BI Query Designer & BEx Analyzer • Analysis Process Designer (APD), • SAP NetWeaver Visual Composer (VC) • Web Application Designer (WAD) • Report Designer • Web publishing • Java Server pages (JSP) and the old Business Server Pages (BSP) • Administrative tools • The BOBJ Roadmap for front-end tools • Empowering the users – a mind shift • Who Should get access • Wrap-up • Bonus material: All SAP BOBJ tools

  42. SAP’s Premium Offerings SAP Acquired Business Objects in 2007/2008 and is working on integrating BOBJ into the core SAP BI offerings.

  43. BOBJ capabilities – Dashboards and Reports • Dashboards can be built using Xcelsius. • Xcelsius+ will be launched in 2009, and will be “the flagship product for data visualization & dashboards” Crystal Reports for pixel formatted reports has been available with SAP BI/BW since 2002. This tool can be integrated into your tool portfolio using existing SAP NetWeaver BI queries (NOTE: Crystal & Crystal Base will be the core tools for formatted reports starting 2010) Source SAP AG, 2009

  44. BOBJ capabilities – Analysis, Ad-hoc & Widgets TheWeb Intelligence tool from BOBJ is a tool for ad-hoc web based reporting, query & analysis. It is intended for end users and can leverage queries to both relational and OLAP sources. It will be the core offering for ad-hoc end user analysis starting 2009. With the current offering of BOBJ you can also use Desktop Widgets to place BI content direct onto a PC desktop and monitor reports and KPIs. Source SAP AG, June 2008

  45. New Tools Roadmap Source SAP

  46. The Move towards Pioneer • Pioneer (for 1st Quarter 2010 release) provides a superset of the capabilities in BEx Analyzer (Excel), BEx Analyzer (Web), and Business Objects Voyager. • Voyager customers migrate to Pioneer. • BEx Analyzer & BEx Web Analyzer customers migrate to Pioneer. (Note: BEx is planned to go into regular maintenance) Web based Excel based Source SAP, April, 2009

  47. What can be Done in 2009- Implementations Visual Composer BI Accelerator Widgets Web Intelligence (webi)

  48. The two types of Universes • There are currently 2 ways to get at the SAP BI data. • If you implement this year, you need to make conscious decisions about which method you select. There are pros and cons of each

  49. Overview: Options for Universe-Based Access to BW 7.0 WebI Xcelsius QaaWS Universes QT ODA SQL Access MDX Access Data Federator XMLA OLAP BAPI ODBO RDBMS BW Analytic Engine BIA

  50. Overview: Options for Universe-Based Access to BW 7.01 WebI Xcelsius QaaWS Universes QT ODA SQL Access MDX Access Data Federator XMLA OLAP BAPI ODBO RDBMS BW DF Fascade Analytic Engine BWA
