Global Dioxin Inventory and Modeling Project – Preliminary Results

Global Dioxin Inventory and Modeling Project – Preliminary Results. Anita Wong, Environment Canada Sources and Measurements Workshop CEC North American Strategy for Catalyzing Cooperation on Dioxins, Furans and HCB October 28th, 2010 Mexico City, Mexico.

hilde
Télécharger la présentation

Global Dioxin Inventory and Modeling Project – Preliminary Results

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

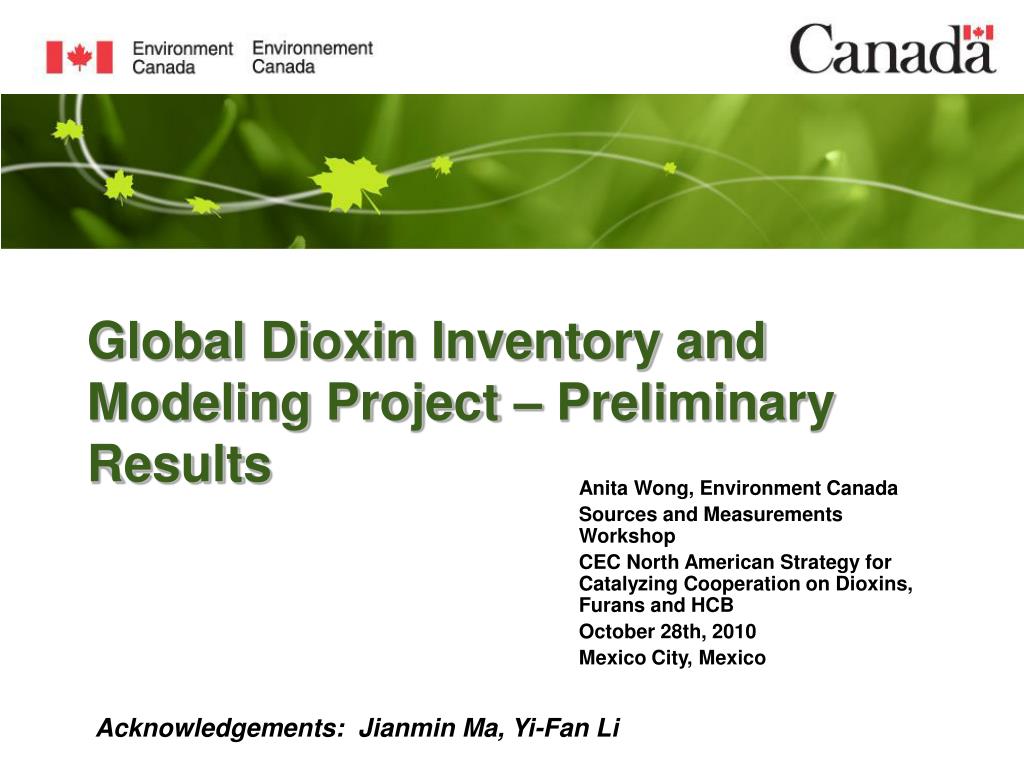

  1. Global Dioxin Inventory and Modeling Project – Preliminary Results Anita Wong, Environment Canada Sources and Measurements Workshop CEC North American Strategy for Catalyzing Cooperation on Dioxins, Furans and HCB October 28th, 2010 Mexico City, Mexico Acknowledgements: Jianmin Ma, Yi-Fan Li

  2. Purpose of Study • EC initiative to address a knowledge gap in dioxins/furans • To help guide policy decision on Canada’s domestic and international activities related to dioxins/furans • The study will: • extend our knowledge on the dioxins/furans global budget • examine pathways to the various compartments in the Canadian environment • enhance our understanding on the transboundary impact of dioxins/furans in Canada

  3. Scope of Study Two parts: • Emissions Inventory • Develop a comprehensive dioxin atmospheric emission inventory on a global scale • Regional and Global Modeling • Upgrade Environment Canada’s atmospheric transport model for persistent organic pollutants: Canadian Model for Environmental Transport of Organochlorine Pesticides (CanMETOP) to predict the atmospheric level and global transport of dioxins/furans • Collect data for input into model eg. met. data • Perform scenario runs to track major emission sources impacting Canada

  4. Emissions Inventory Preliminary results: • Based on release data publicly available (eg. Stockholm Convention) • Countries without available data are estimated by interpolation • Given that most data was collected from 2000 through 2006, the year of 2004 was set as the reference year • Estimated world total release of dioxins/furans in the reference year of 2004 is 77,400 g TEQ in which 38,200 has been emitted into air. • The gridded emission inventory has been interpolated into regional-scale (horizontal resolution 24 km  24 km) and global-scale (resolution 1o 1o latitude/longitude) atmospheric transport model grids.

  5. Total PCDD/Fs Emissions by Regions

  6. Global air emissions of dioxin in 2004

  7. CanMETOP Model

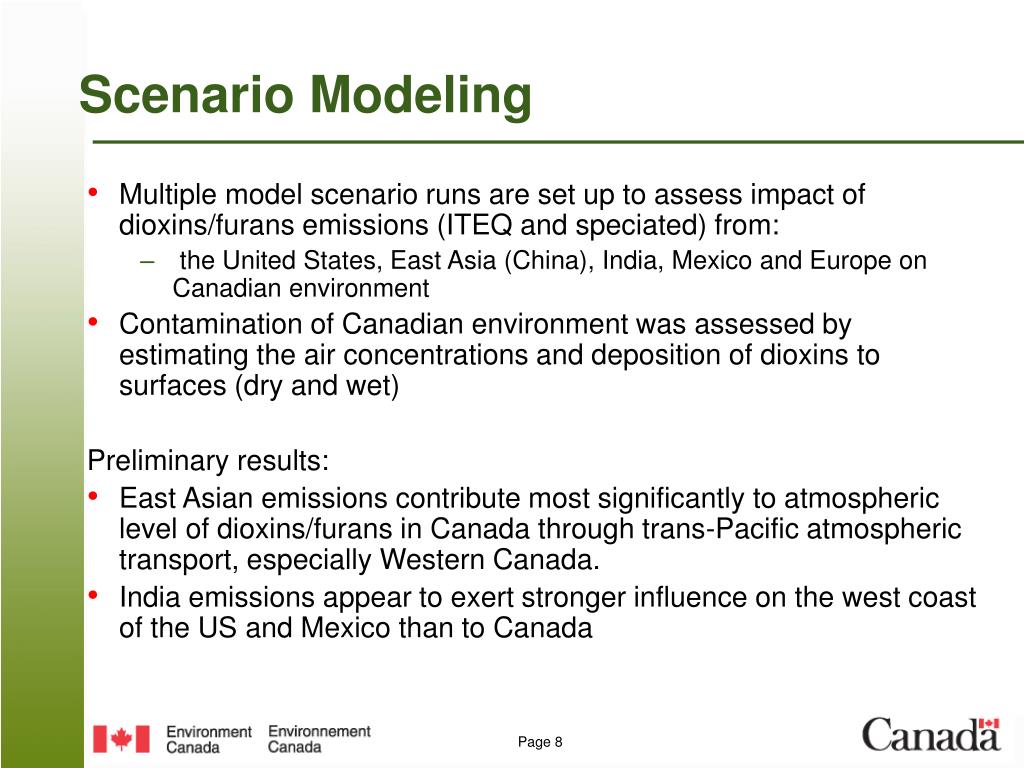

  8. Scenario Modeling • Multiple model scenario runs are set up to assess impact of dioxins/furans emissions (ITEQ and speciated) from: • the United States, East Asia (China), India, Mexico and Europe on Canadian environment • Contamination of Canadian environment was assessed by estimating the air concentrations and deposition of dioxins to surfaces (dry and wet) Preliminary results: • East Asian emissions contribute most significantly to atmospheric level of dioxins/furans in Canada through trans-Pacific atmospheric transport, especially Western Canada. • India emissions appear to exert stronger influence on the west coast of the US and Mexico than to Canada

  9. CanMETOP modeled ratios of lindane (-HCH) total (wet +dry) deposition in North America in 2005 emitted from different continental sources verses global emissions Model scenarios S1: Global emi S2: China emi only S3: India emi only S4: Europe emi only S5: Russia emi only Ratios show contribution (input) from continental sources to North America a. S2/S1 – China; b. S3/S1 – India; c. S4/S1 – Europe; d. S5/S1 – Russia

  10. Total Deposition of PCDD/Fs in Canada (pgTEQ/M2/year)

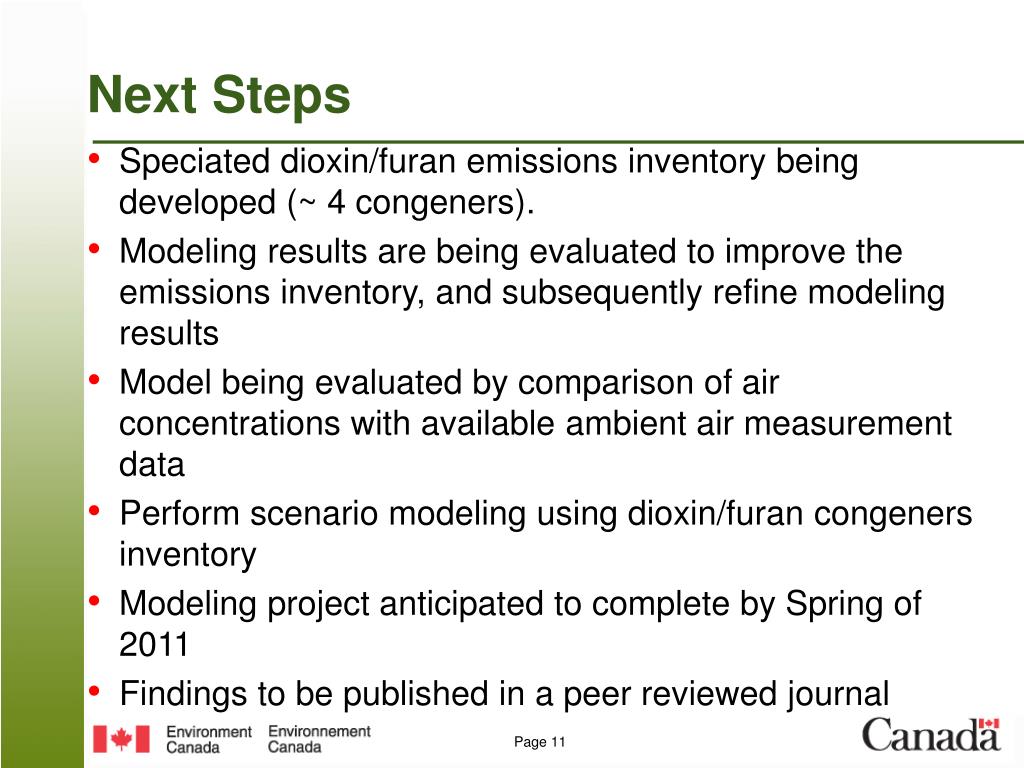

  11. Next Steps • Speciated dioxin/furan emissions inventory being developed (~ 4 congeners). • Modeling results are being evaluated to improve the emissions inventory, and subsequently refine modeling results • Model being evaluated by comparison of air concentrations with available ambient air measurement data • Perform scenario modeling using dioxin/furan congeners inventory • Modeling project anticipated to complete by Spring of 2011 • Findings to be published in a peer reviewed journal

  12. Modeling: Dr. Jianmin Ma Environment Canada Air Quality Research Division Science and Technology Branch jianmin.ma@ec.gc.ca 4905 Dufferin Street Toronto, Ontario M3H 5T4 Canada Emissions Inventory: Dr. Yi-Fan Li Environment Canada Air Quality Research Division Science and Technology Branch yi-fan.li@ec.gc.ca 4905 Dufferin Street Toronto, Ontario M3H 5T4 Canada Acknowledgements
