Environmentally Affected Tree Growth using L-Systems and Voxels

This study explores the hypothesis that computer-simulated plant development impacted by environmental factors can be effectively achieved using L-systems within a 3D voxel environment. The methodology involves generating L-systems to simulate tree growth behaviors, such as phototropism and collision avoidance. Results indicate success in modeling realistic growth patterns influenced by luminosity and competition. The discussion covers the implications and potential improvements for future work, including more advanced stochastic algorithms and enhanced phototropic responses.

hoai
Télécharger la présentation

Environmentally Affected Tree Growth using L-Systems and Voxels

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Andrew Leeuwenberg Environmentally Affected Tree Growth using L-Systems and Voxels

  2. Content • Hypothesis & Aim • Methodology summary • Result • Discussion and Future work • Conclusion

  3. Aim

  4. Hypothesis H1 is that computer simulated plant development that is affected by their environment can be achieved by generating L-systems in a 3D voxel environment

  5. Null Hypothesis H0is that computer simulated plant development that is affected by their environment cannot be achieved by generating L-systemsin a 3D voxel environment.

  6. Collision avoidance

  7. Phototropism

  8. Competition

  9. Methodologysummary

  10. Grow L-System

  11. Grow L-system F…

  12. Grow L-System F[+…

  13. Grow L-system F[+F…

  14. Grow L-System F[+F][-F…

  15. Grow L-System F[+F[+F][-F]][-F[+F][-F]]…

  16. Collision avoidance

  17. Collision avoidance

  18. Luminosity

  19. Luminosity • E = 4/7 ≈ 0.57

  20. Luminosity • Adjust • Growth rate • Growth direction • Leaf growth • Leaf surface area

  21. Original development FF[+F[+X][-X]FX[-F[+X][-X]FX] FFF[+X][-X]FX

  22. New development FF[+F[+X][-X]FX[-F[+X][-X]FX] FFF[+X][-X]FX

  23. Multiple trees

  24. Multiple trees

  25. Result

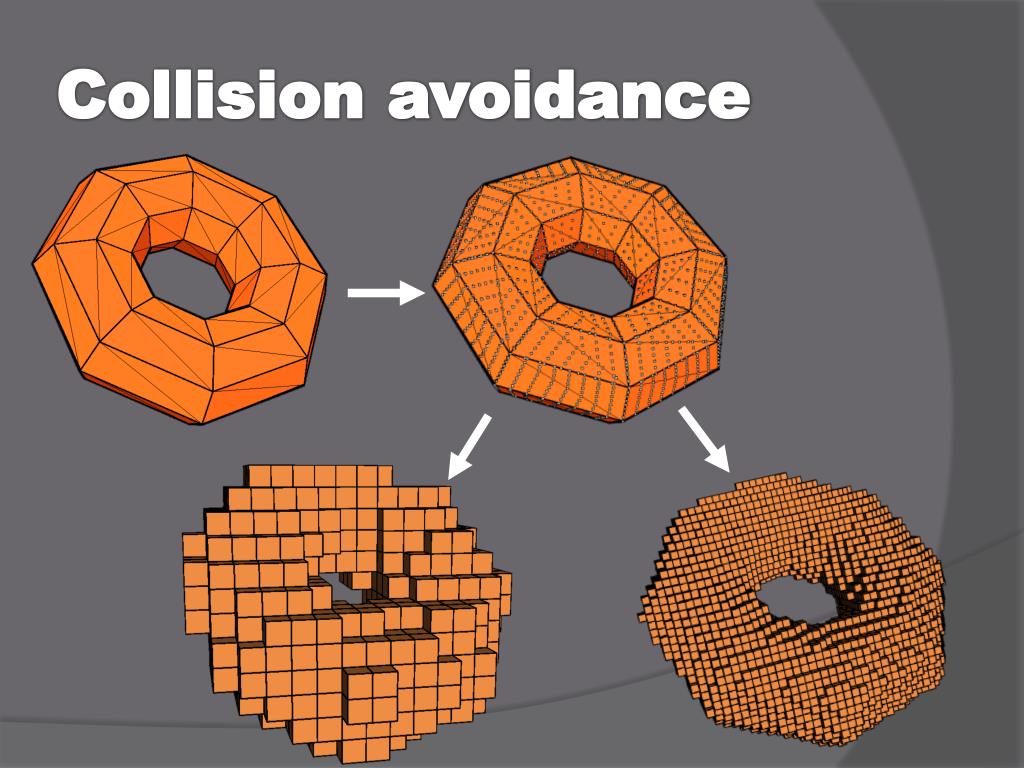

  26. Collision avoidance

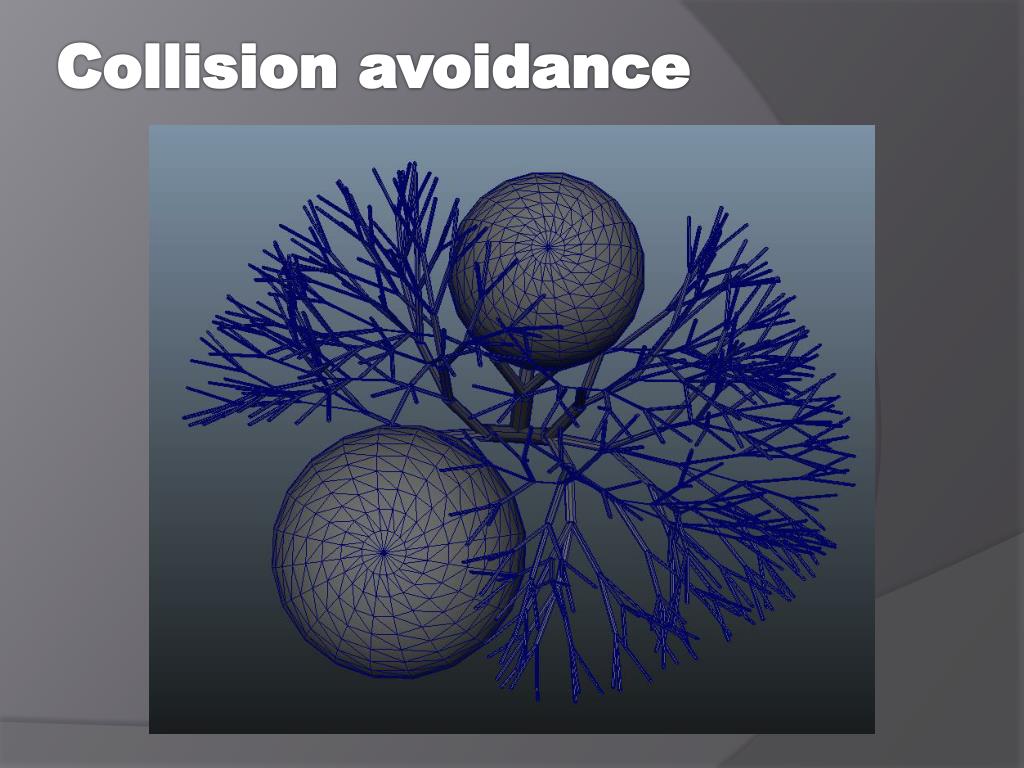

  27. Collision avoidance

  28. Phototropism

  29. Competition

  30. Discussionand Future Work

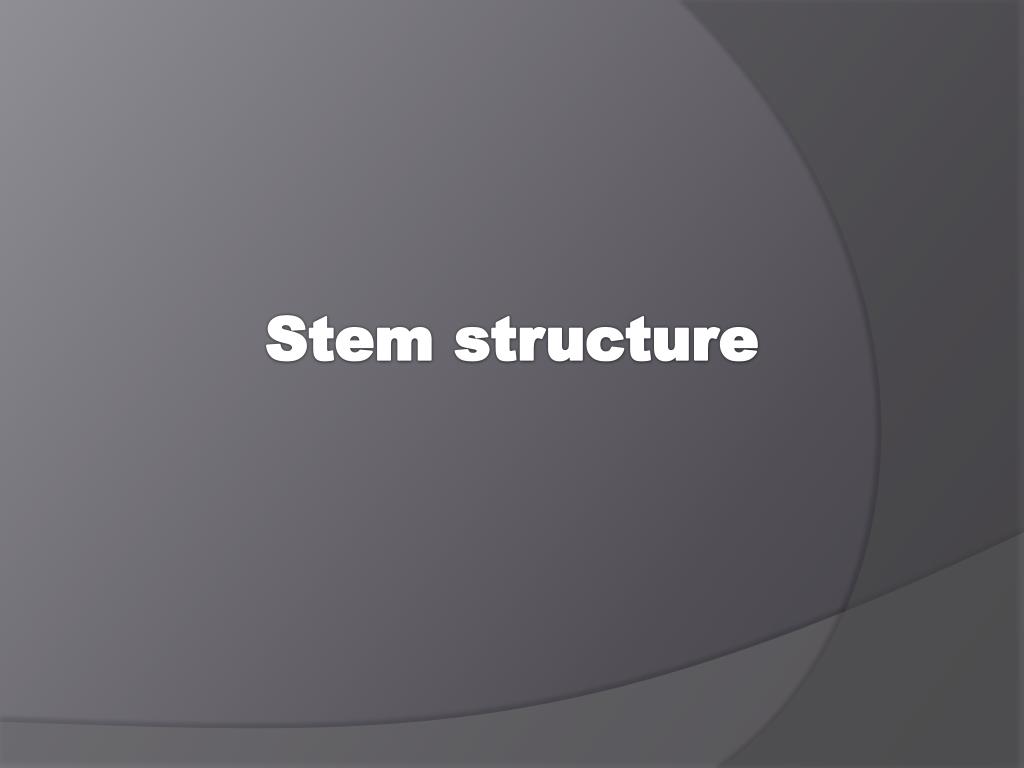

  31. Stem structure

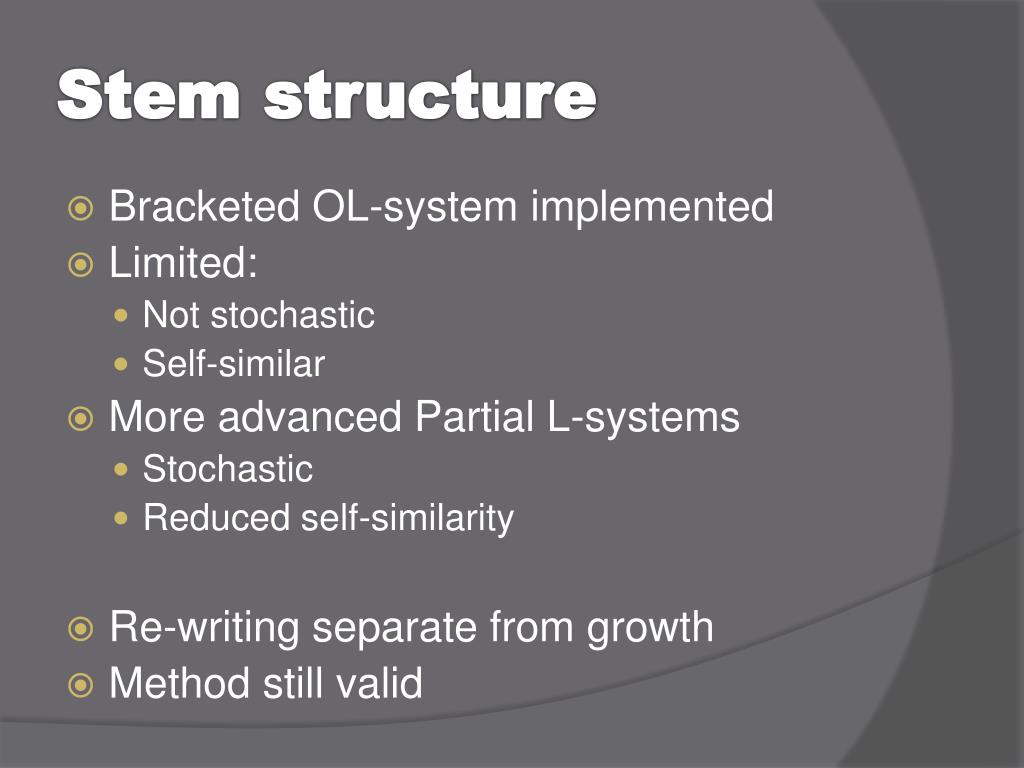

  32. Stem structure • Bracketed OL-system implemented • Limited: • Not stochastic • Self-similar • More advanced Partial L-systems • Stochastic • Reduced self-similarity • Re-writing separate from growth • Method still valid

  33. Phototropism(Rotations)

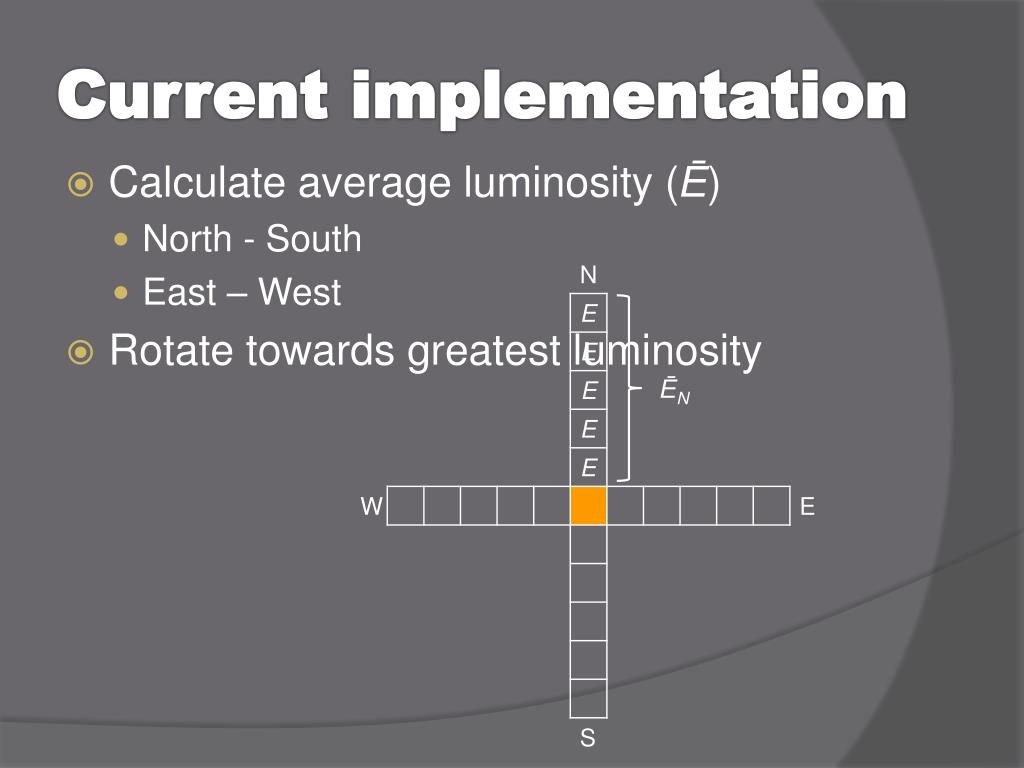

  34. Current implementation • Calculate average luminosity (Ē) • North - South • East – West • Rotate towards greatest luminosity ĒN

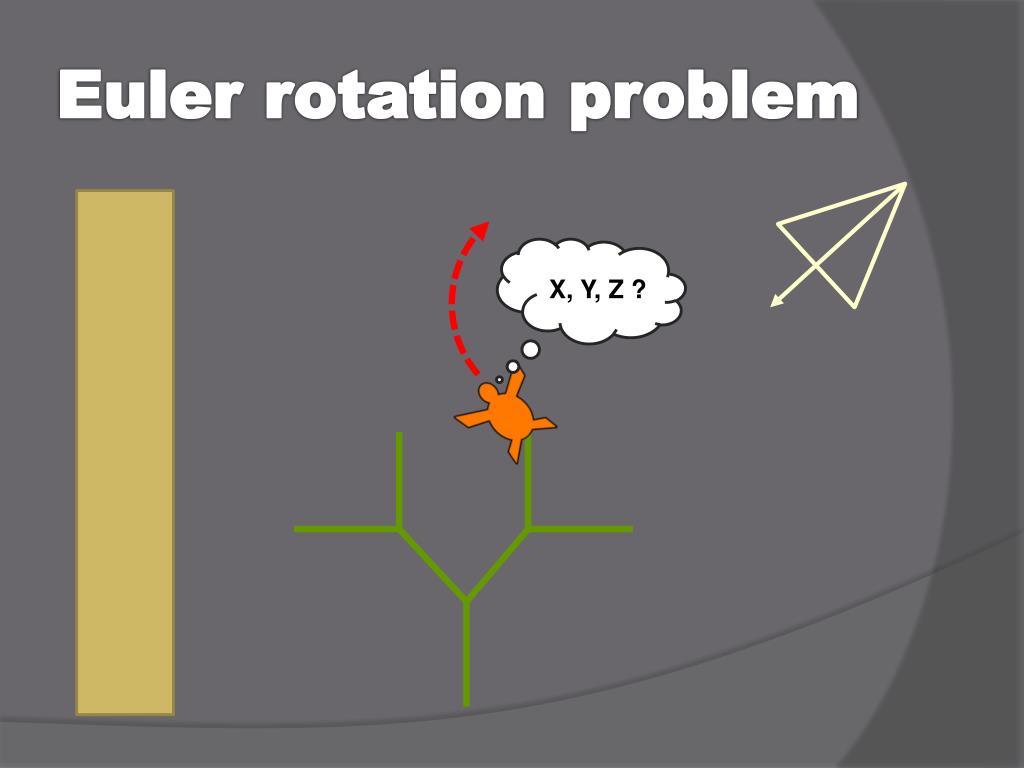

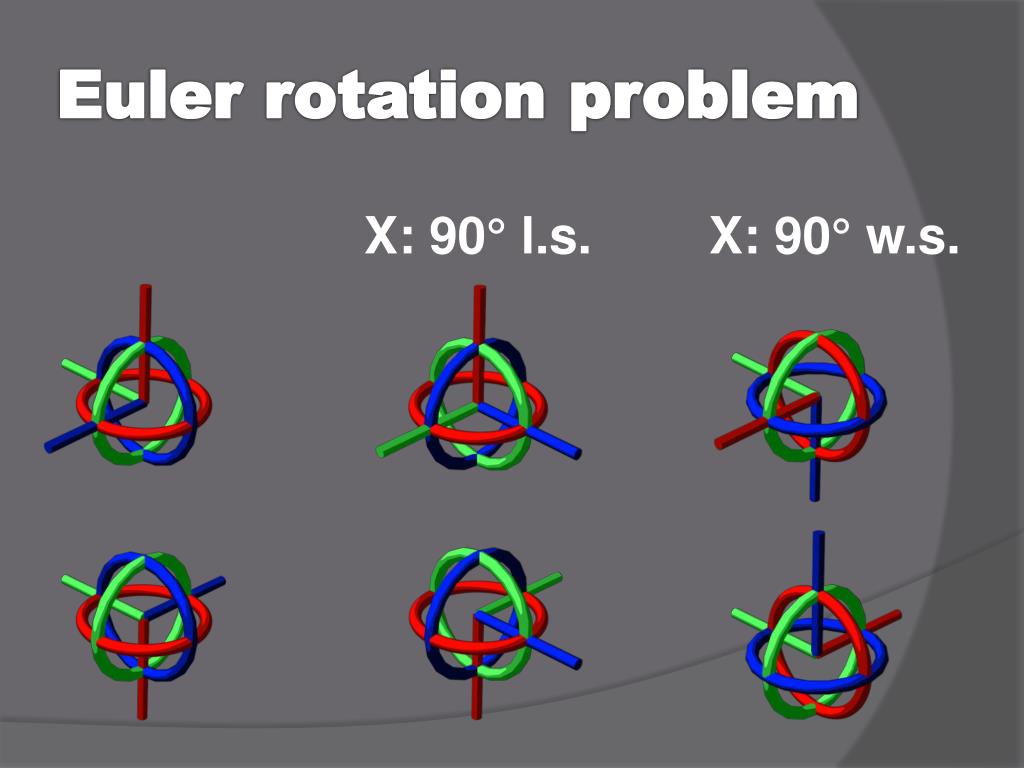

  35. Euler rotation problem X: 90° w.s. X: 90° l.s.

  36. Euler rotation problem X, Y, Z ?

  37. Quaternions • Slerp

  38. Luminosity direction • Improve phototropism

  39. Luminosity direction

  40. Luminosity direction

  41. Luminosity direction

  42. Real-time

  43. Separating the processes

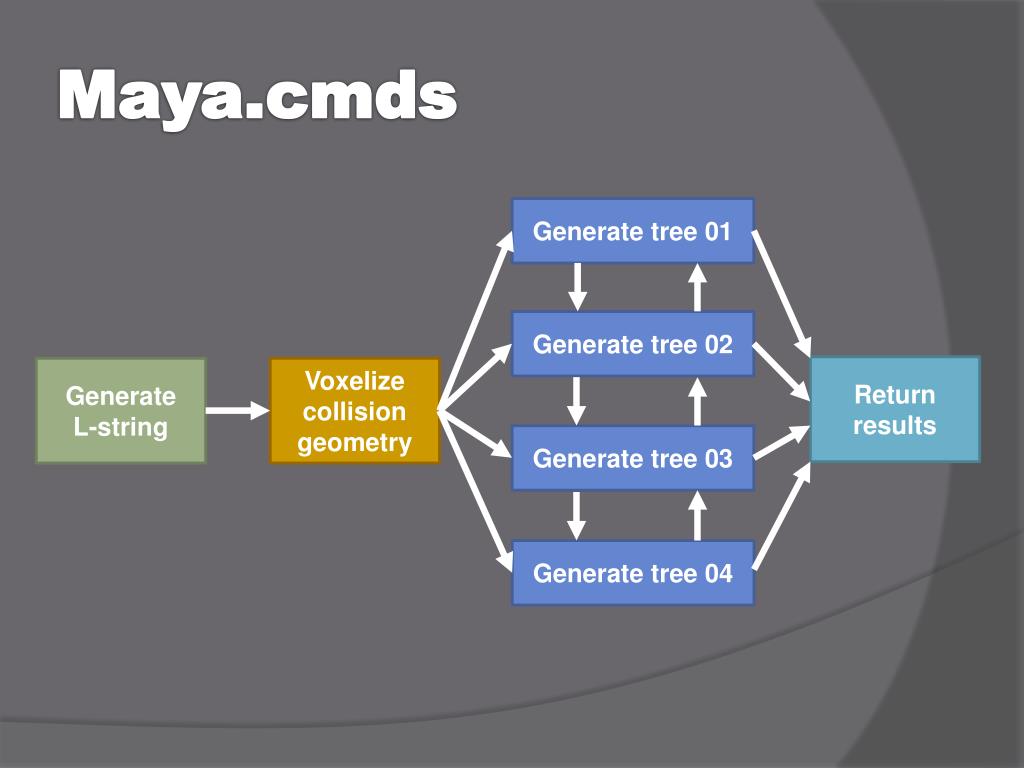

  44. Maya.cmds Generate tree 01 Generate tree 02 Return results Generate L-string Voxelize collision geometry Generate tree 03 Generate tree 04

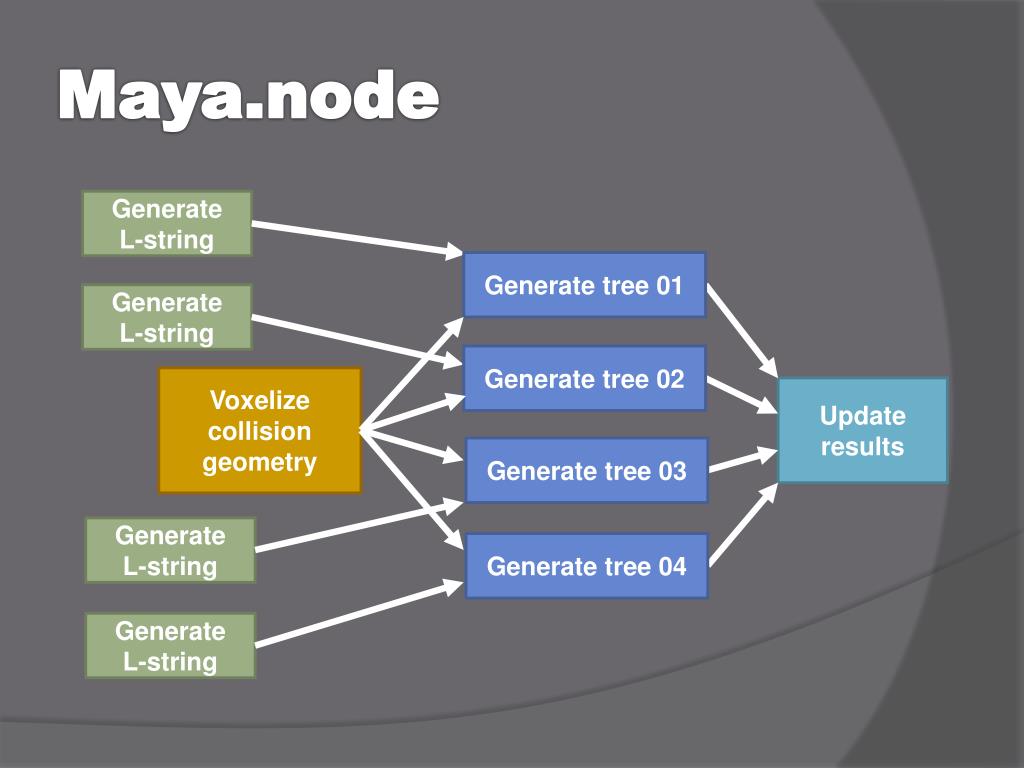

  45. Maya.node Generate L-string Generate tree 01 Generate L-string Generate tree 02 Voxelize collision geometry Update results Generate tree 03 Generate L-string Generate tree 04 Generate L-string
