  1. P1363.1 D5 Overview William Whyte NTRU Cryptosystems December 2005

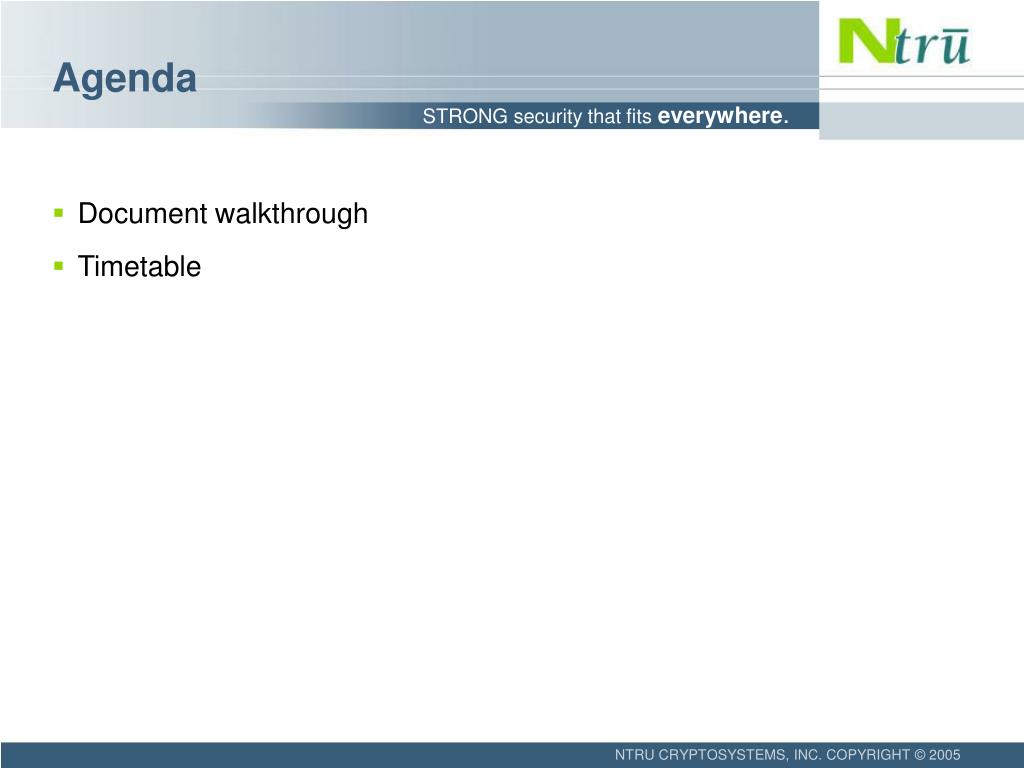

  2. Agenda • Document walkthrough • Timetable

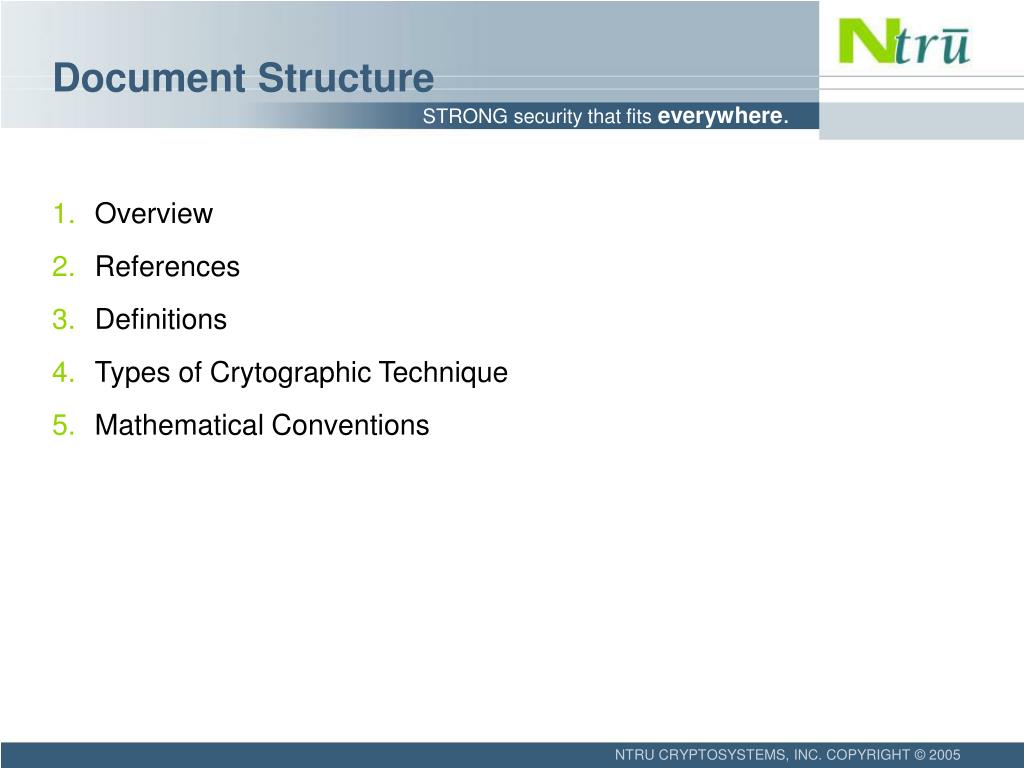

  3. Document Structure • Overview • References • Definitions • Types of Crytographic Technique • Mathematical Conventions

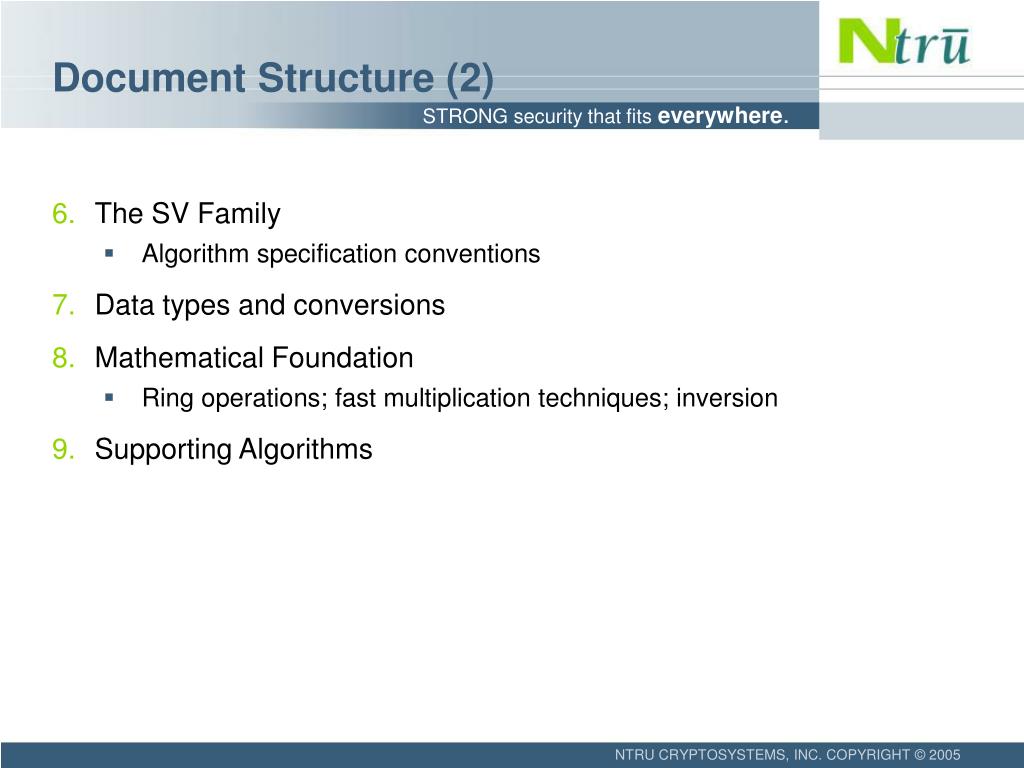

  4. Document Structure (2) • The SV Family • Algorithm specification conventions • Data types and conversions • Mathematical Foundation • Ring operations; fast multiplication techniques; inversion • Supporting Algorithms

  5. Document Structure (3) • Encryption Scheme • Components • Primitives • Encoding Methods • Scheme Overview • Scheme Operations • Signature Scheme • Components • Primitives • Encoding Methods • Scheme Overview • Scheme Operations • Security Considerations • Bibliography

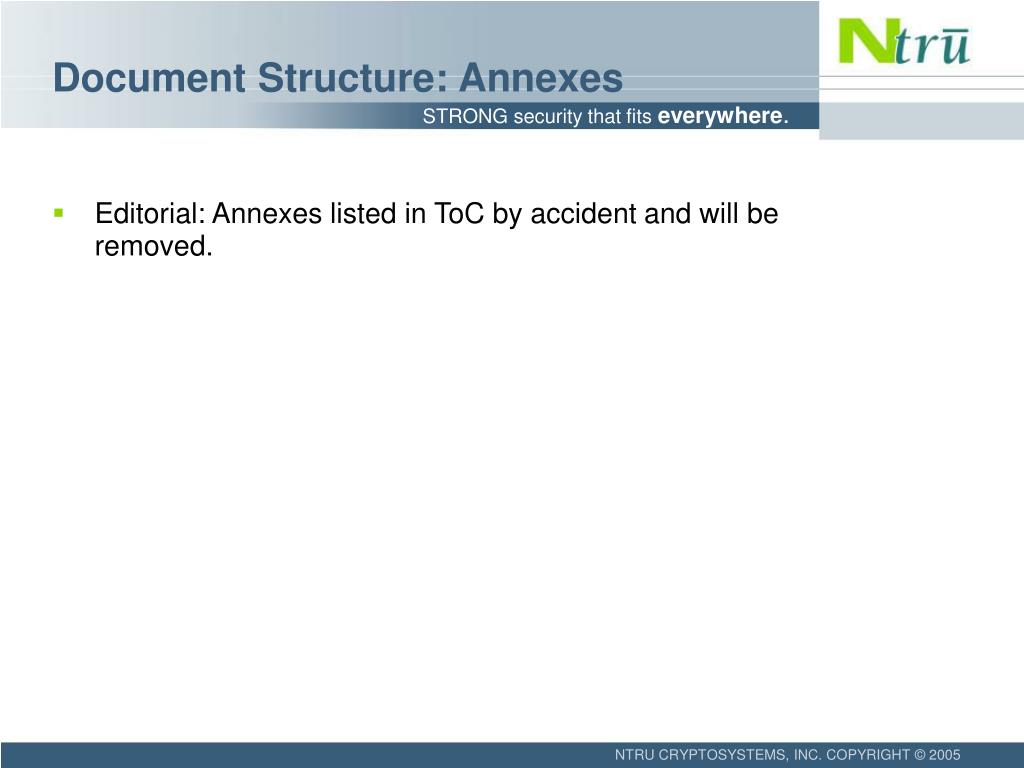

  6. Document Structure: Annexes • Editorial: Annexes listed in ToC by accident and will be removed.

  7. Conversion Primitives • Integer to/from octet string, bit string • Ring element to/from octet string, bit string • Binary ring element to/from octet string, bit string • Octet string to/from bit string • BS2OSP in other standards pads on the left (designed for bit strings < 1 byte or integers). X9.98 converts to “right-padded octet string”.

  8. Review: NTRU parameters • N, dimension of polynomial ring • NTRU works on polynomials of degree N-1 • Polynomial multiplication is convolution multiplication: terms of degree > N are reduced mod N. • Increases roughly linearly with k for k-bit security • For 80-bit security, N = 251. • q, “big” modulus • All coefficients in polynomial are reduced mod q • For 80-bit security, q = 197. • Increases roughly linearly with k for k-bit security • p, “small” modulus (Used only in NTRUEncrypt) • Reduce mod p during decryption • p = 2 for all security levels. • Sizes: • Public key, ciphertext size = N log2 q • message size (bits) = N log2 ||p||

  9. Review: NTRUEncrypt Operations • Key Generation • Generate f, g, “small” polynomials in Zq[X]/(XN-1). • Public key h = p*f-1*g mod q; private key = (f, fp = f-1 mod p). • Encrypt (Raw operation) • Encode message as “small” polynomial m. • Generate “small” random polynomial r • Ciphertext e = r*h + m mod q. • Decrypt (Raw operation) • Set a = f*e mod q. • “mod q” = in range [A, A+q-1]. • Set m = fp * a mod p.

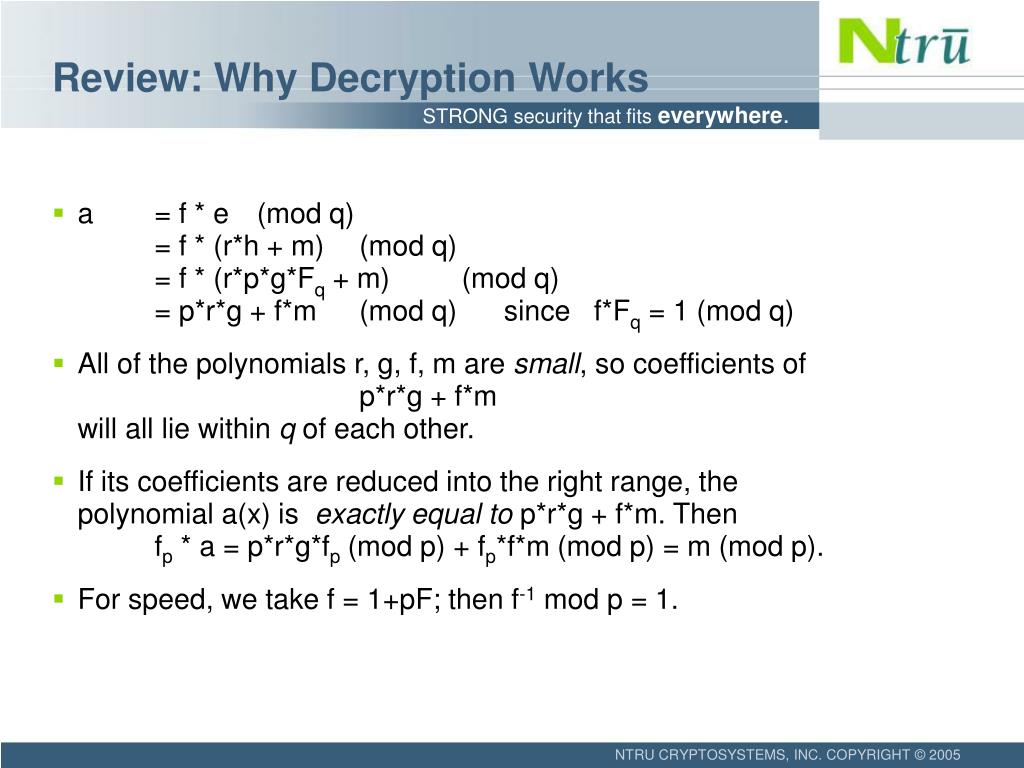

  10. Review: Why Decryption Works • a = f * e (mod q) = f * (r*h + m) (mod q) = f * (r*p*g*Fq + m) (mod q) = p*r*g + f*m (mod q) since f*Fq = 1 (mod q) • All of the polynomials r, g, f, m are small, so coefficients of p*r*g + f*mwill all lie within q of each other. • If its coefficients are reduced into the right range, the polynomial a(x) is exactly equal to p*r*g + f*m. Then fp * a = p*r*g*fp (mod p) + fp*f*m (mod p) = m (mod p). • For speed, we take f = 1+pF; then f-1 mod p = 1.

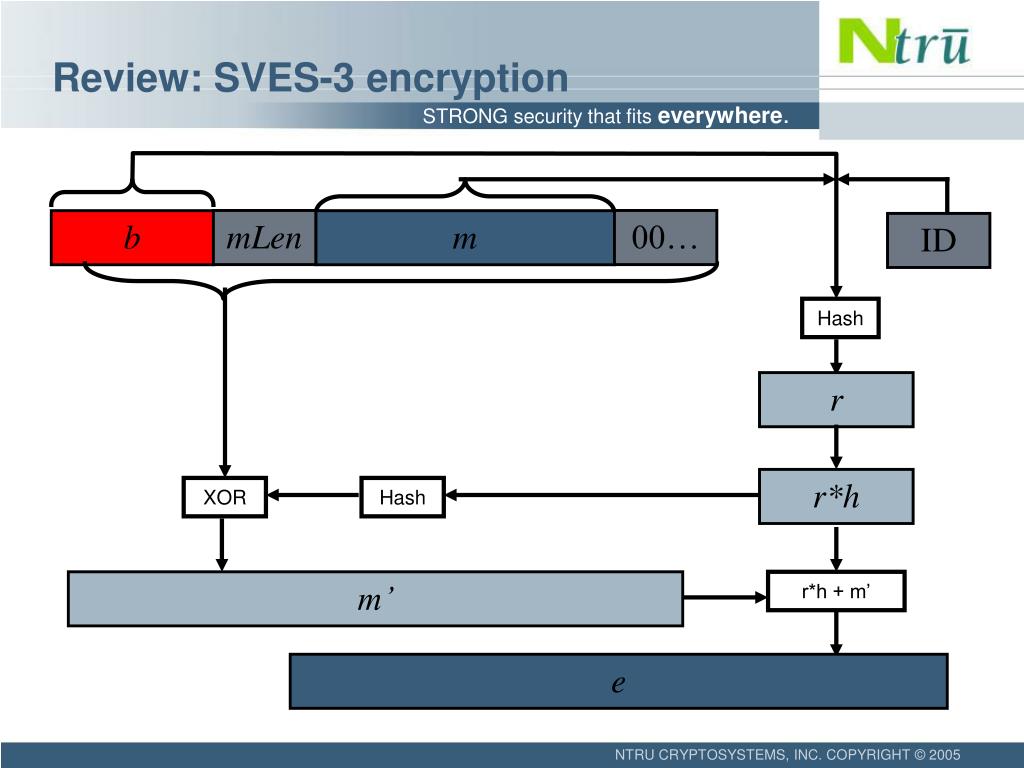

  11. Review: SVES-3 encryption mLen 00… b m ID Hash r r*h XOR Hash m’ r*h + m’ e

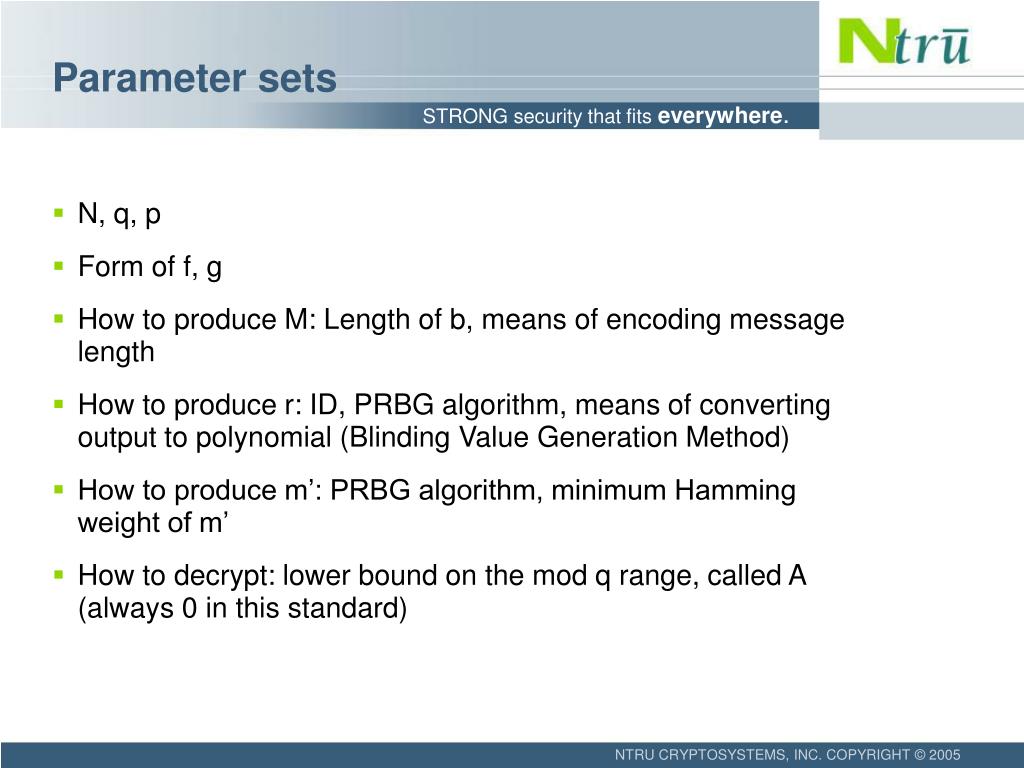

  12. Parameter sets • N, q, p • Form of f, g • How to produce M: Length of b, means of encoding message length • How to produce r: ID, PRBG algorithm, means of converting output to polynomial (Blinding Value Generation Method) • How to produce m’: PRBG algorithm, minimum Hamming weight of m’ • How to decrypt: lower bound on the mod q range, called A (always 0 in this standard)

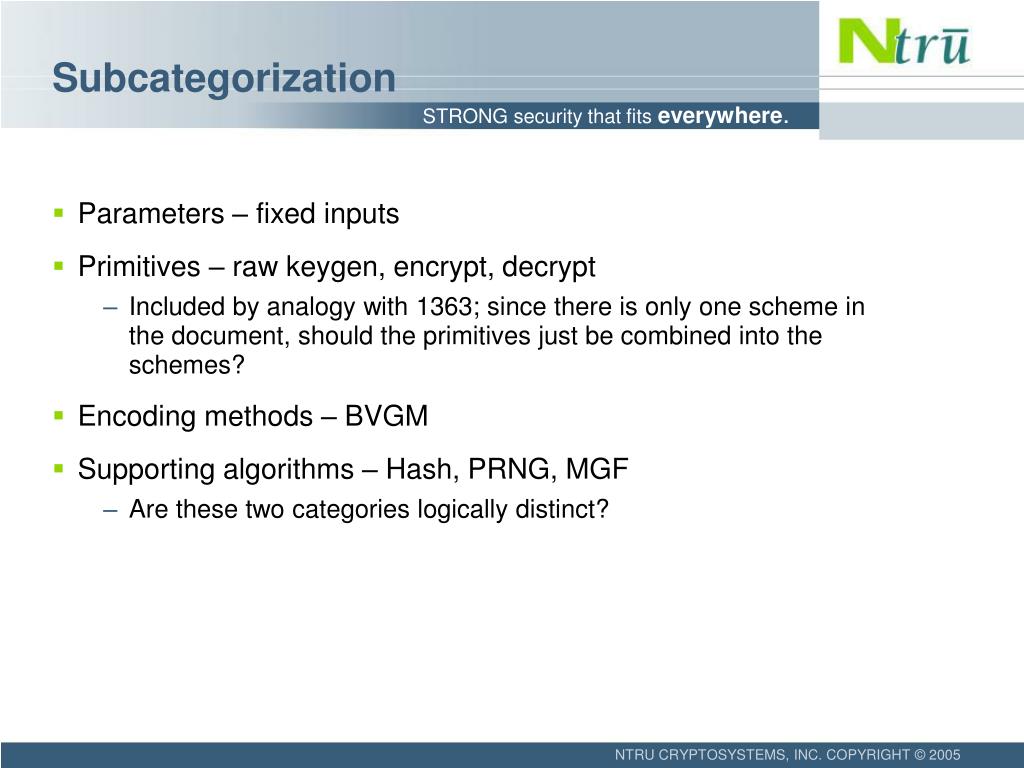

  13. Subcategorization • Parameters – fixed inputs • Primitives – raw keygen, encrypt, decrypt • Included by analogy with 1363; since there is only one scheme in the document, should the primitives just be combined into the schemes? • Encoding methods – BVGM • Supporting algorithms – Hash, PRNG, MGF • Are these two categories logically distinct?

  14. Different parameter sets • F, r are binary polynomials, or “product-form” (p1*p2 + p3), with p1, p2, p3 binary • One set of each type at each security level • Product-form polynomial multiplications are faster: if p is product-form, p*a can be calculated as p1*(p2*a) + p3*a. • Parameter sets give number of 1s in each component polynomial – dF and dr or df1, df2, df3, dr1, dr2, dr3 • Fixed, optimal number of 1s: more would make operations slower, fewer would be insecure.

  15. Key Pair Validation • Key pair: check F (or f1, f2, f3) and g = fh/p have right form according to parameter set. • Public key plausibility test: check that a significant amount of reduction mod q is likely to occur in calculating r*h. • No full public key validation.

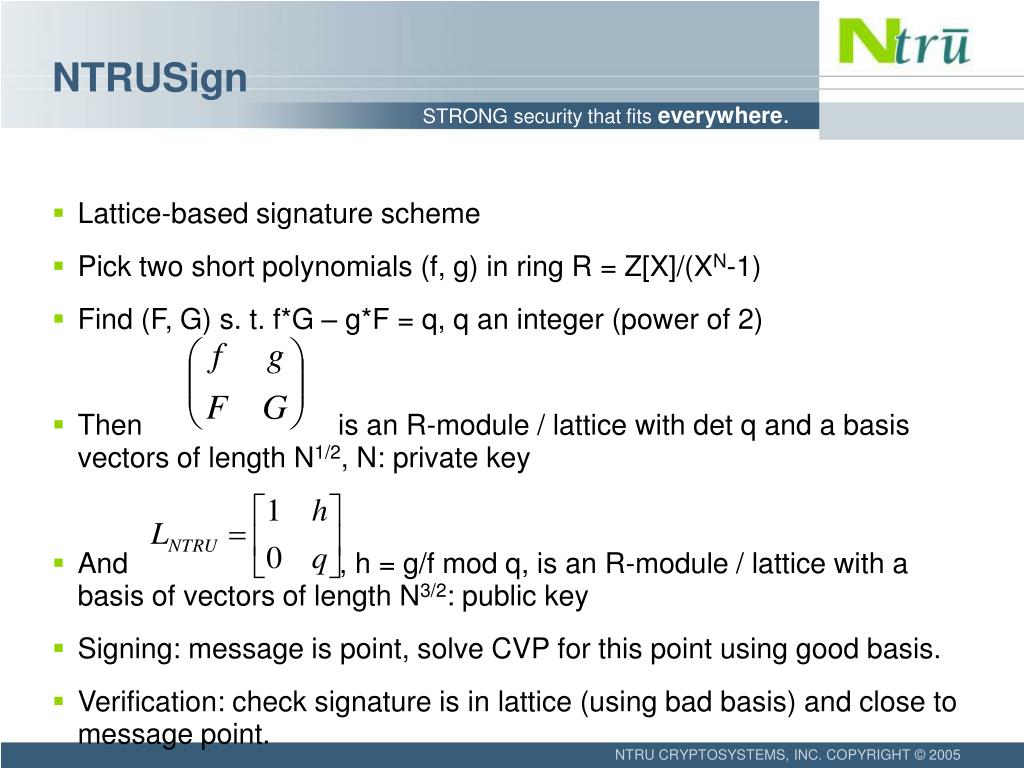

  16. NTRUSign • Lattice-based signature scheme • Pick two short polynomials (f, g) in ring R = Z[X]/(XN-1) • Find (F, G) s. t. f*G – g*F = q, q an integer (power of 2) • Then is an R-module / lattice with det q and a basis vectors of length N1/2, N: private key • And , h = g/f mod q, is an R-module / lattice with a basis of vectors of length N3/2: public key • Signing: message is point, solve CVP for this point using good basis. • Verification: check signature is in lattice (using bad basis) and close to message point.

  17. Signing & Verification • Use full basis B = , inverse B-1 = • message (0, m) • more efficient than (m1, m2), no security risk • Sign with a single public basis: (s, t) = B * Round (B-1 * (0, m)) • Transmit s. • Verifying: • calculate t = s*h mod q. • make sure ||s||, ||m-t|| are small ( < N) hash

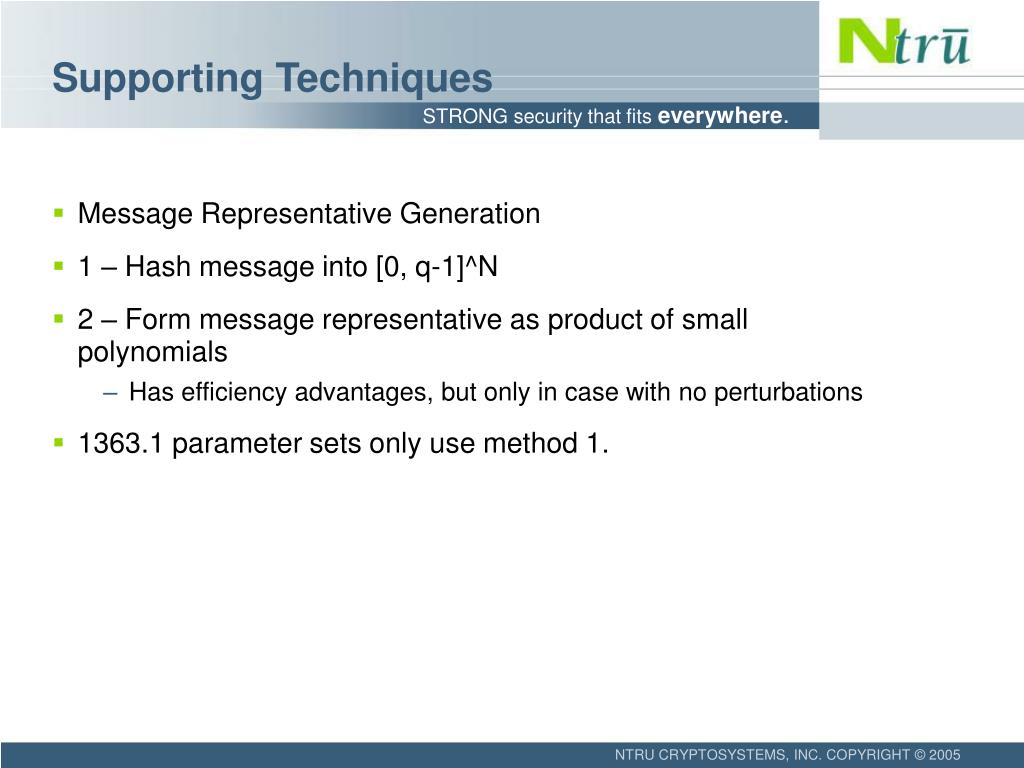

  18. Supporting Techniques • Message Representative Generation • 1 – Hash message into [0, q-1]^N • 2 – Form message representative as product of small polynomials • Has efficiency advantages, but only in case with no perturbations • 1363.1 parameter sets only use method 1.

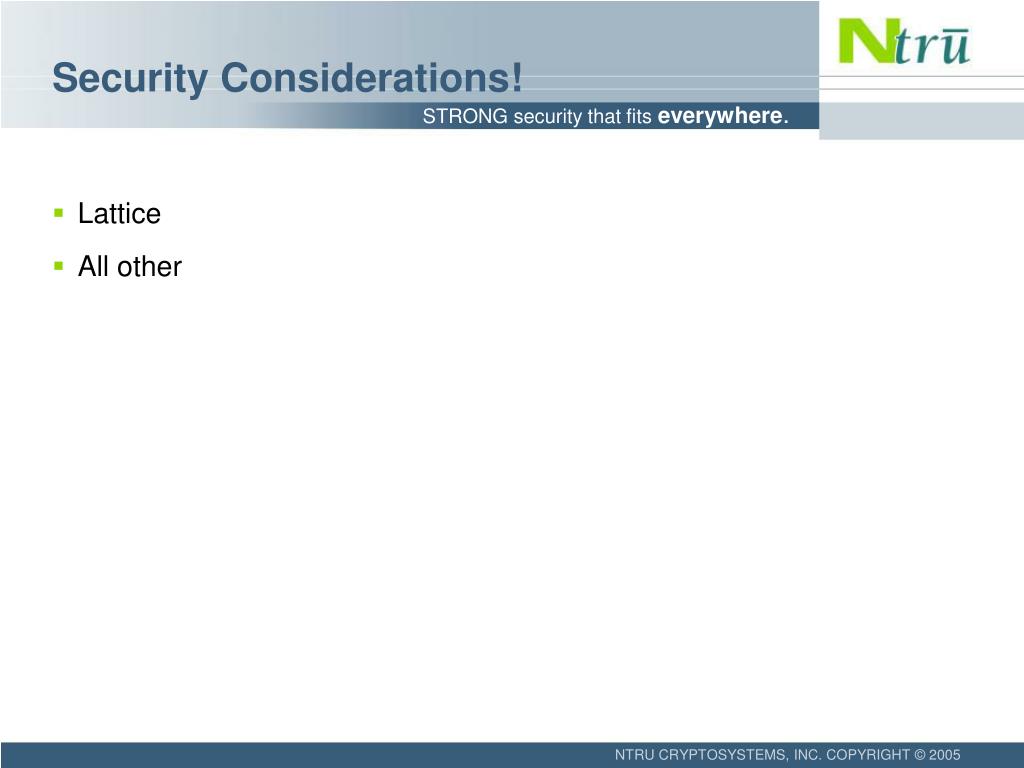

  19. Security Considerations! • Lattice • All other

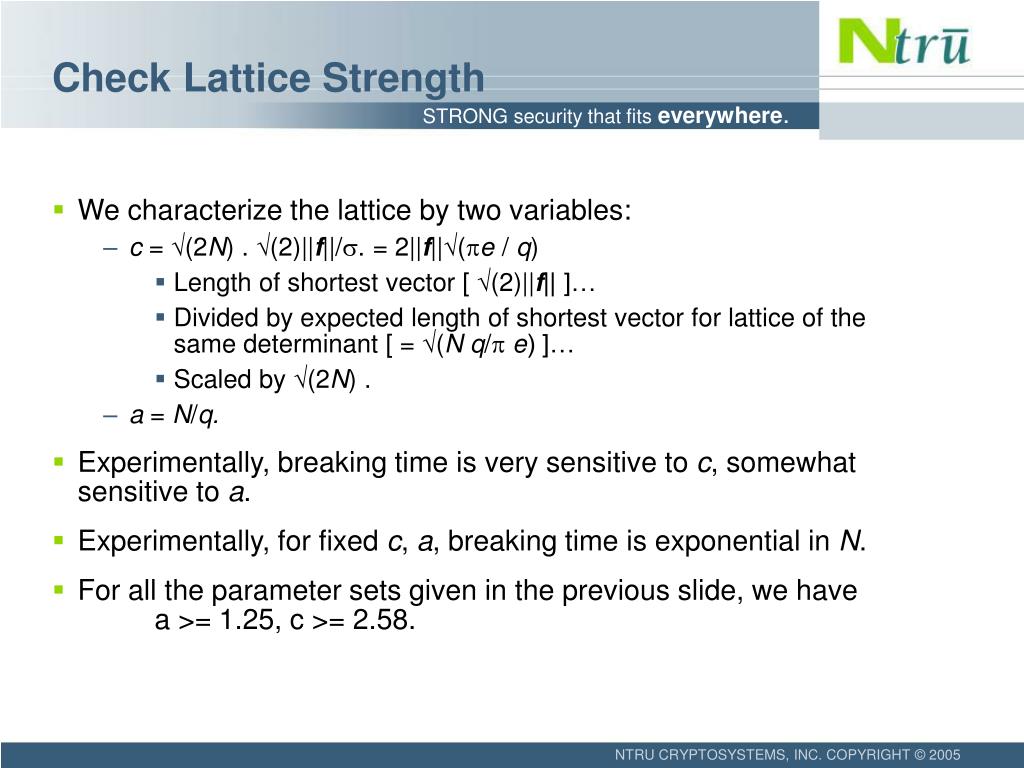

  20. Check Lattice Strength • We characterize the lattice by two variables: • c = (2N) . (2)||f||/s. = 2||f||(pe / q) • Length of shortest vector [ (2)||f|| ]… • Divided by expected length of shortest vector for lattice of the same determinant [ = (N q/pe) ]… • Scaled by (2N) . • a = N/q. • Experimentally, breaking time is very sensitive to c, somewhat sensitive to a. • Experimentally, for fixed c, a, breaking time is exponential in N. • For all the parameter sets given in the previous slide, we have a >= 1.25, c >= 2.58.

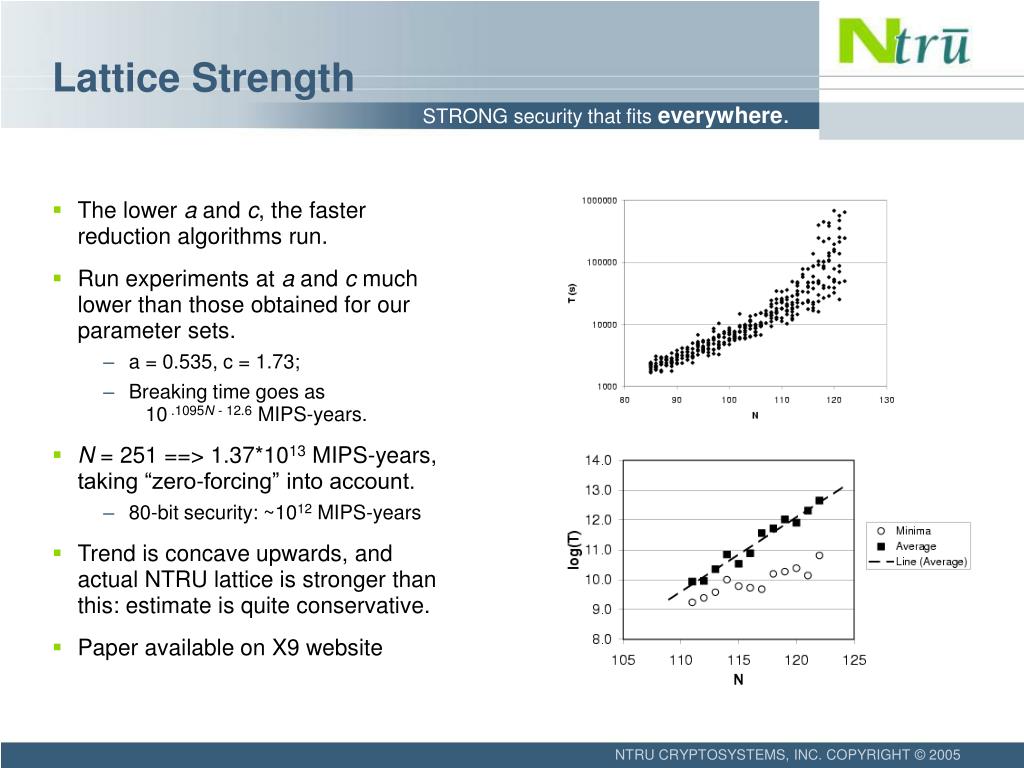

  21. Lattice Strength • The lower a and c, the faster reduction algorithms run. • Run experiments at a and c much lower than those obtained for our parameter sets. • a = 0.535, c = 1.73; • Breaking time goes as 10 .1095N - 12.6 MIPS-years. • N = 251 ==> 1.37*1013 MIPS-years, taking “zero-forcing” into account. • 80-bit security: ~1012 MIPS-years • Trend is concave upwards, and actual NTRU lattice is stronger than this: estimate is quite conservative. • Paper available on X9 website

  22. Binary F, g, r: Combinatorial Security • F, g, r have df, dg, dr 1s respectively • Brute force-like search on F, g, r can be speeded up by meet-in-the-middle techniques. • Using these techniques, number of binary convolution multiplications needed to break f is • Each multiplication requires df.N additions • … perhaps divided by 2-8 if we use wordsize cleverly • In general, use number of multiplications as security measure • Attacker will go for easiest of (f, g), (r, m); pick df = dr. • Take g = N/2: larger = greater security

  23. Pick q, p • Our choice: • Pick p = 2, q to be the first prime greater than p.min(dr, dg) + 1 + p.min(df, N/2)with large order mod N. • This gives zero chance of decryption failures • Minimum q to do so consistent with choice of p, df. • Best lattice security

  24. Other considerations • Keys (and random component b) must be generated with sufficient entropy • Added section B.3.1 stating that RNG should be seeded with k+64 bits • R*h must result in a reasonable amount of reduction mod q • Otherwise an attacker can recover r by linear algebra • N must be prime; if it is divisible by l, can form lattice of dimension 2N/l. • E(1) = r(1)h(1) +m’(1), and r(1) and h(1) are known; therefore, the ciphertext leaks m’(1) • Require m’ to be blinded. • q must have large order mod N: similar attack to above might otherwise leak value of m’(X) in larger fields. The chance of this happening is qorder(q mod N).

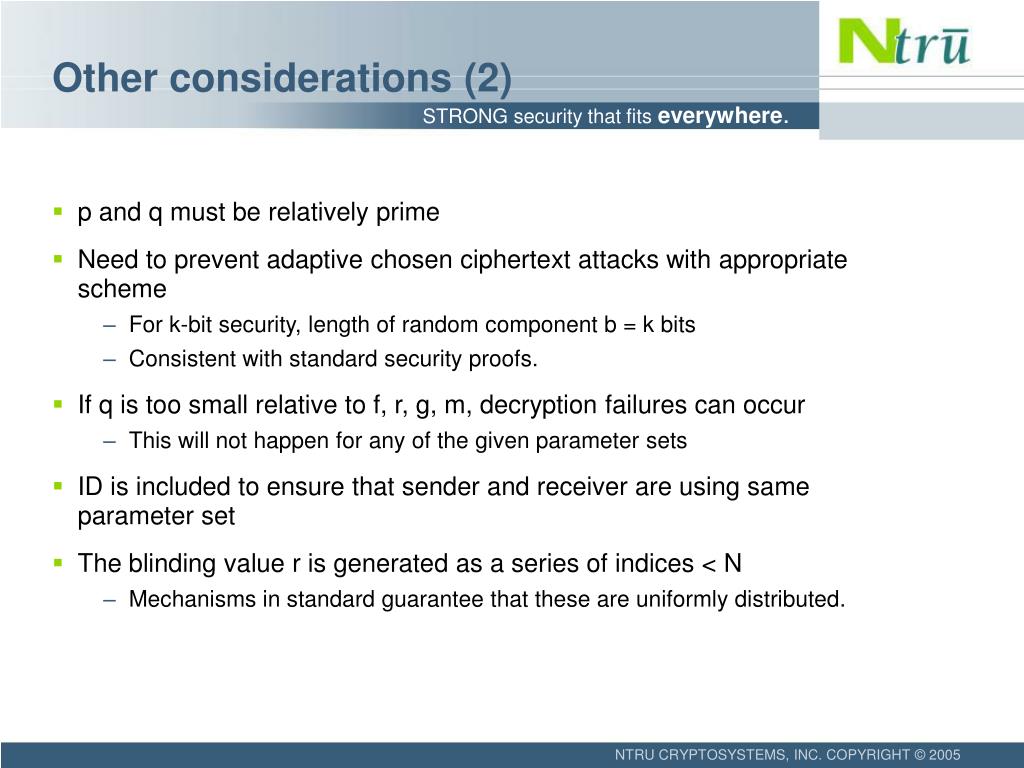

  25. Other considerations (2) • p and q must be relatively prime • Need to prevent adaptive chosen ciphertext attacks with appropriate scheme • For k-bit security, length of random component b = k bits • Consistent with standard security proofs. • If q is too small relative to f, r, g, m, decryption failures can occur • This will not happen for any of the given parameter sets • ID is included to ensure that sender and receiver are using same parameter set • The blinding value r is generated as a series of indices < N • Mechanisms in standard guarantee that these are uniformly distributed.

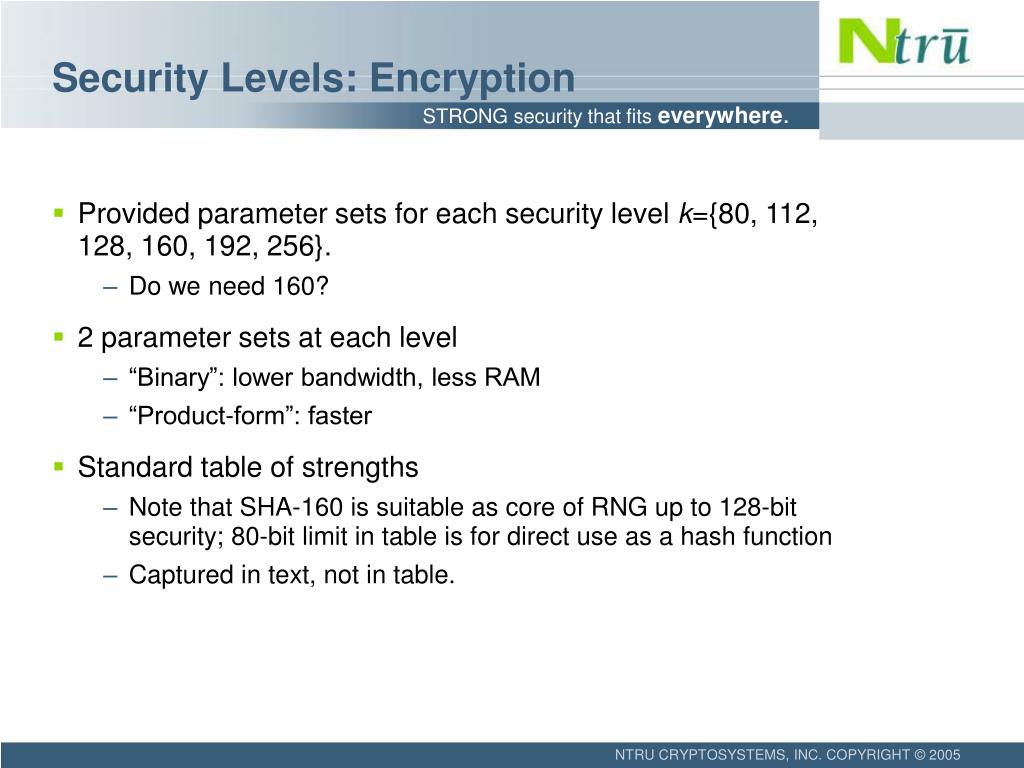

  26. Security Levels: Encryption • Provided parameter sets for each security level k={80, 112, 128, 160, 192, 256}. • Do we need 160? • 2 parameter sets at each level • “Binary”: lower bandwidth, less RAM • “Product-form”: faster • Standard table of strengths • Note that SHA-160 is suitable as core of RNG up to 128-bit security; 80-bit limit in table is for direct use as a hash function • Captured in text, not in table.

  27. Parameter set k N d dm0 q O(q) c (F, g) c (r, m) T(L) r Tzf(L) adds size (bits) ees251ep6 80 251 48 70 197 125 2.93 2.77 103.1 29 97.98 12048 2008 ees347ep2 112 347 66 108 269 173 2.94 2.83 143.9 31 138.26 22902 3033 ees397ep1 128 397 74 128 307 198 2.93 2.84 165.1 33 159.17 29378 3501 ees491ep1 160 491 91 167 367 490 2.98 2.90 205.0 35 198.75 44681 4383 ees587ep1 192 587 108 208 439 293 2.97 2.91 245.7 37 239.21 63396 5193 ees787ep1 256 787 140 294 587 393 2.95 2.91 330.6 41 323.45 110180 7690 Binary Parameter Sets

  28. Parameter set k N d dm0 q O(q) c (F, g) c (r, m) T(L) r Tzf(L) adds size (bits) ees251ep7 80 251 8 70 293 250 2.57 2.43 87.2 20 80.1 6024 2259 ees347ep3 112 347 11 108 541 173 2.31 2.22 117.8 16 118.7 11451 3370 ees397ep2 128 397 12 128 659 396 2.24 2.17 138.3 17 136.6 14292 3890 ees491ep2 160 491 14 167 967 490 2.08 2.02 171.3 16 170.1 22095 4870 ees587ep2 192 587 17 208 1229 293 2.02 1.97 203.3 14 204.6 29937 6347 ees787ep2 256 787 21 294 2027 393 1.78 1.73 278.1 14 276.7 51942 8459 Product-form Parameter Sets

  29. Signing Security Considerations • To be filled in. • Four main attacks • Brute force search on keyspace (square-rooted by combinatorial methods) • Lattice reduction attack on public key to recover private key (SVP) • Brute force search on possible signature space to find signature (also square-rootable) • Lattice reduction attack on public key and message to generate signature (CVP)

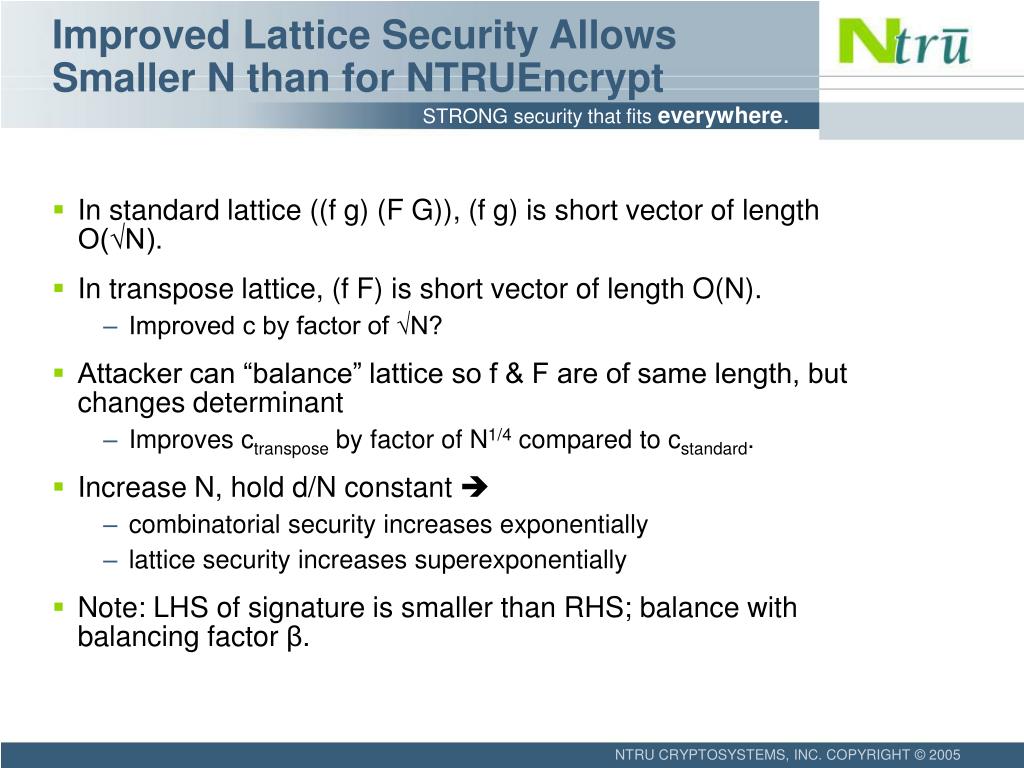

  30. Improved Lattice Security Allows Smaller N than for NTRUEncrypt • In standard lattice ((f g) (F G)), (f g) is short vector of length O(√N). • In transpose lattice, (f F) is short vector of length O(N). • Improved c by factor of √N? • Attacker can “balance” lattice so f & F are of same length, but changes determinant • Improves ctranspose by factor of N1/4 compared to cstandard. • Increase N, hold d/N constant  • combinatorial security increases exponentially • lattice security increases superexponentially • Note: LHS of signature is smaller than RHS; balance with balancing factor β.

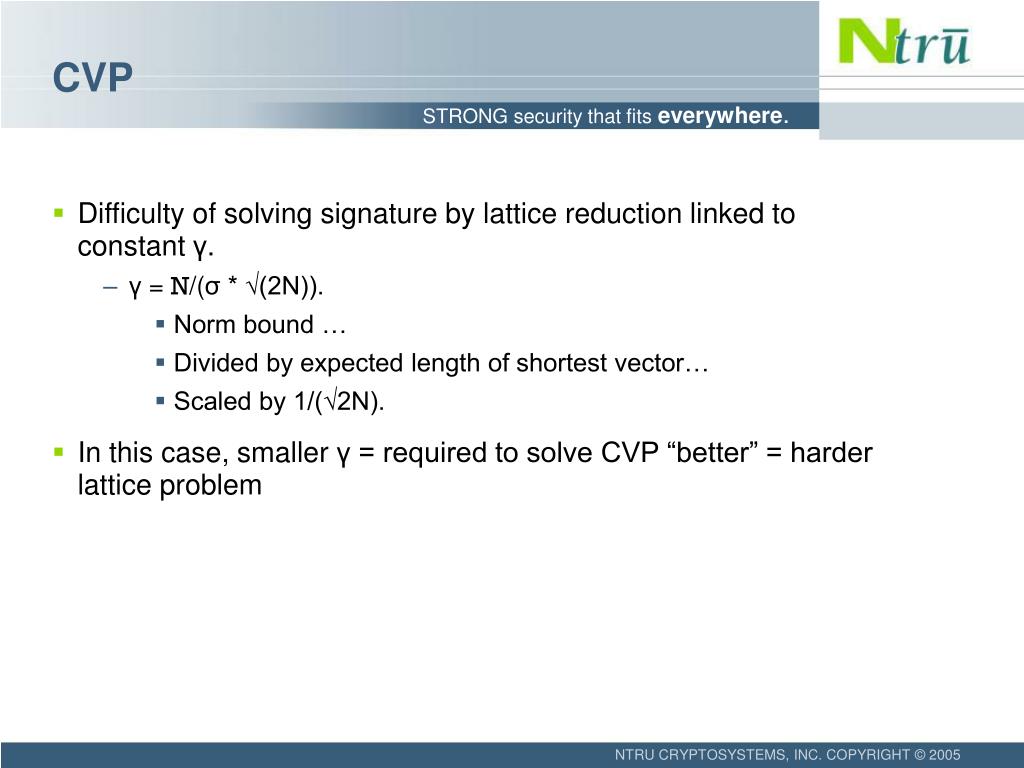

  31. CVP • Difficulty of solving signature by lattice reduction linked to constant γ. • γ = N/(σ * √(2N)). • Norm bound … • Divided by expected length of shortest vector… • Scaled by 1/(√2N). • In this case, smaller γ = required to solve CVP “better” = harder lattice problem

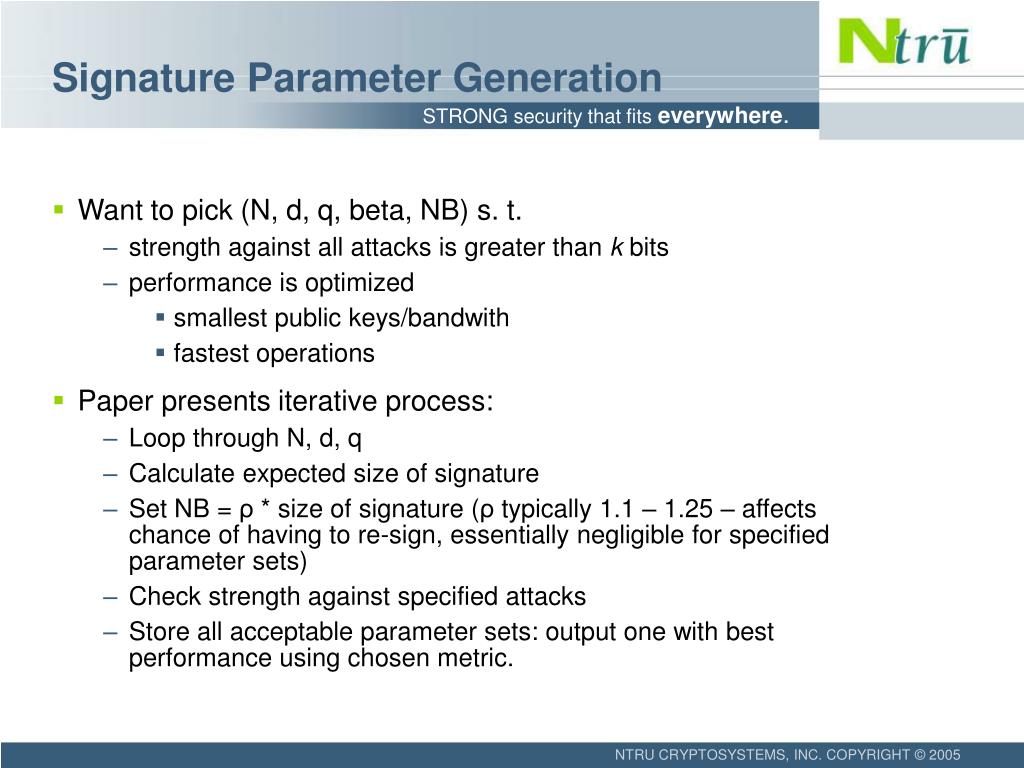

  32. Signature Parameter Generation • Want to pick (N, d, q, beta, NB) s. t. • strength against all attacks is greater than k bits • performance is optimized • smallest public keys/bandwith • fastest operations • Paper presents iterative process: • Loop through N, d, q • Calculate expected size of signature • Set NB = ρ * size of signature (ρ typically 1.1 – 1.25 – affects chance of having to re-sign, essentially negligible for specified parameter sets) • Check strength against specified attacks • Store all acceptable parameter sets: output one with best performance using chosen metric.

  33. Transcript Analysis • If message was random within ball of radius NormBound, transcript could not leak information • Transcript iss =d * f + D * F • d, D are {-1/2, 1/2}N • d, D slightly constrained: s must have integer coefficients. • Leaks information about geometry of lattice

  34. Signing with Perturbations • Message is (0, m); public basis is B0; b private bases B1 … Bb. • Set (sb+1, tb+1) = (0, m). • For each private basis i in turn, i = b, b-1, … 1: • Input point is (sb+1, tb+1) • (si, ti) = result of solving appr-CVP in basis Bi on point (si+1, ti+1). • Signature is appr-CVP on (s1, t1) in B0. • Can implement this such that each private basis operation requires: • 2 multiplies by (fi, Fi) (or (fi, gi) in transpose lattice) • One multiply by hi.

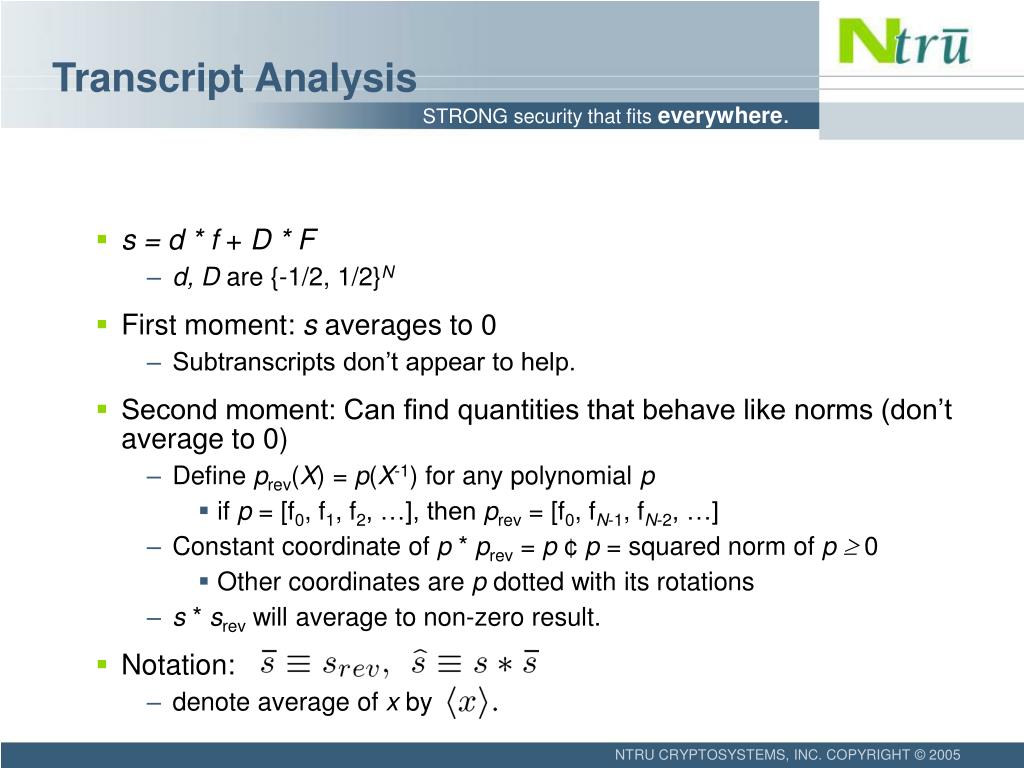

  35. Transcript Analysis • s =d * f + D * F • d, D are {-1/2, 1/2}N • First moment: s averages to 0 • Subtranscripts don’t appear to help. • Second moment: Can find quantities that behave like norms (don’t average to 0) • Define prev(X) = p(X-1) for any polynomial p • if p = [f0, f1, f2, …], then prev = [f0, fN-1, fN-2, …] • Constant coordinate of p * prev = p¢p = squared norm of p  0 • Other coordinates are p dotted with its rotations • s * srev will average to non-zero result. • Notation: • denote average of x by

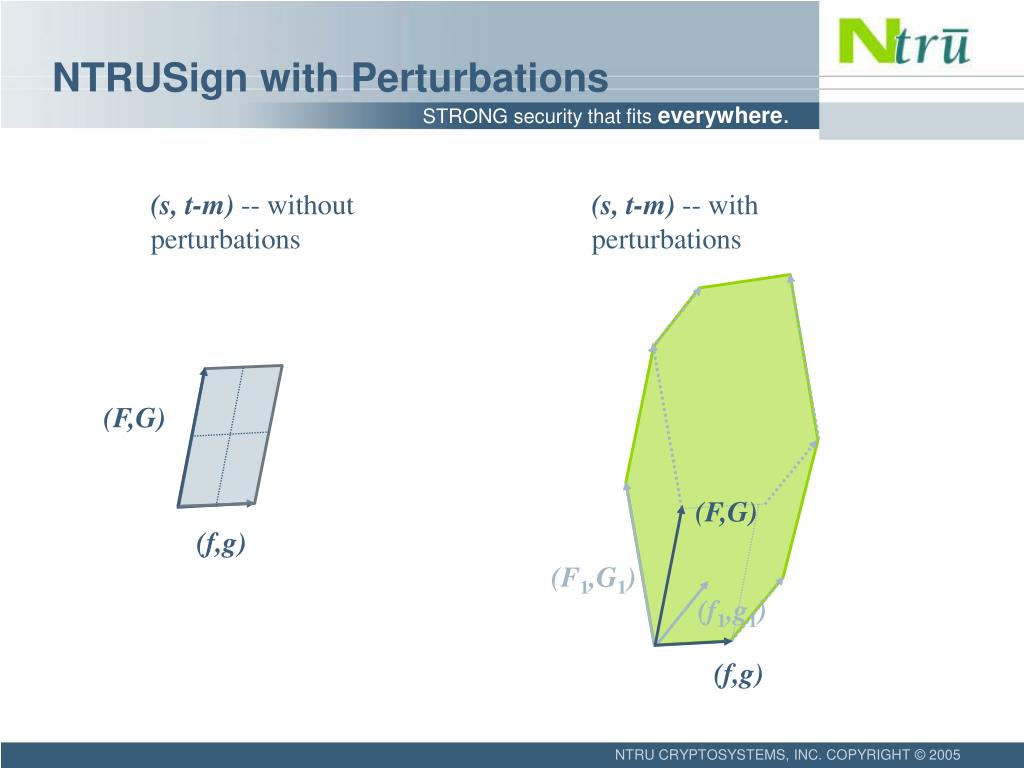

  36. (F,G) (f,g) (F1,G1) (f1,g1) NTRUSign with Perturbations (s, t-m) -- without perturbations (s, t-m) -- with perturbations (F,G) (f,g)

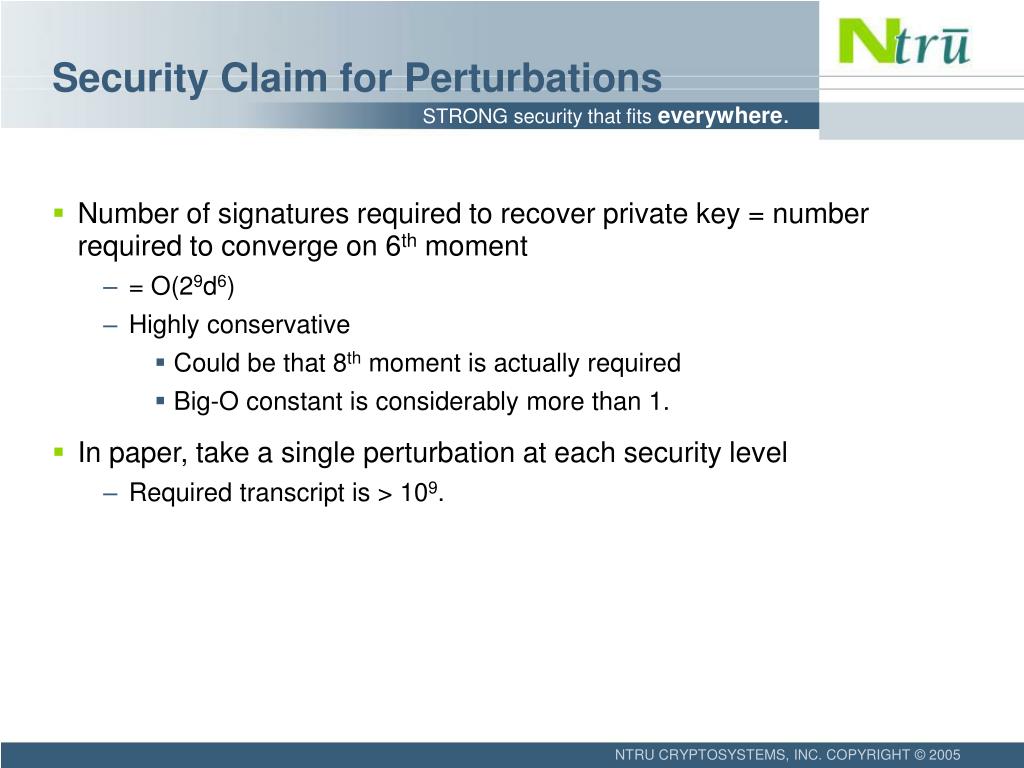

  37. Security Claim for Perturbations • Number of signatures required to recover private key = number required to converge on 6th moment • = O(29d6) • Highly conservative • Could be that 8th moment is actually required • Big-O constant is considerably more than 1. • In paper, take a single perturbation at each security level • Required transcript is > 109.

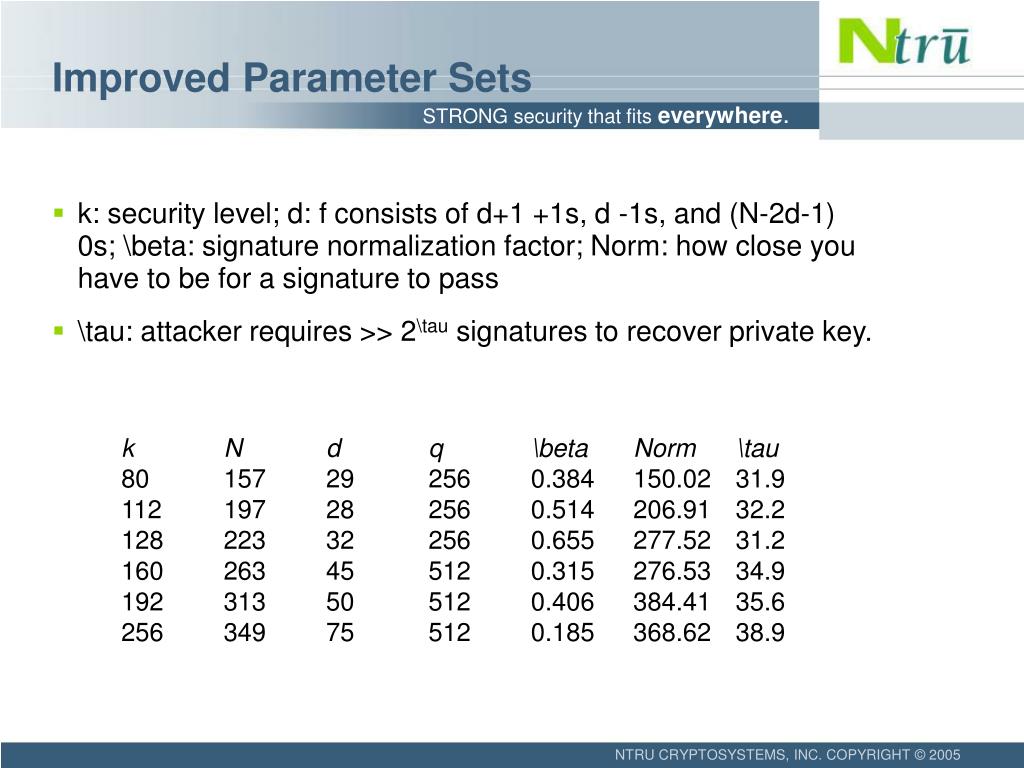

  38. Improved Parameter Sets • k: security level; d: f consists of d+1 +1s, d -1s, and (N-2d-1) 0s; \beta: signature normalization factor; Norm: how close you have to be for a signature to pass • \tau: attacker requires >> 2\tau signatures to recover private key. k N d q \beta Norm \tau 80 157 29 256 0.384 150.02 31.9 112 197 28 256 0.514 206.91 32.2 128 223 32 256 0.655 277.52 31.2 160 263 45 512 0.315 276.53 34.9 192 313 50 512 0.406 384.41 35.6 256 349 75 512 0.185 368.62 38.9

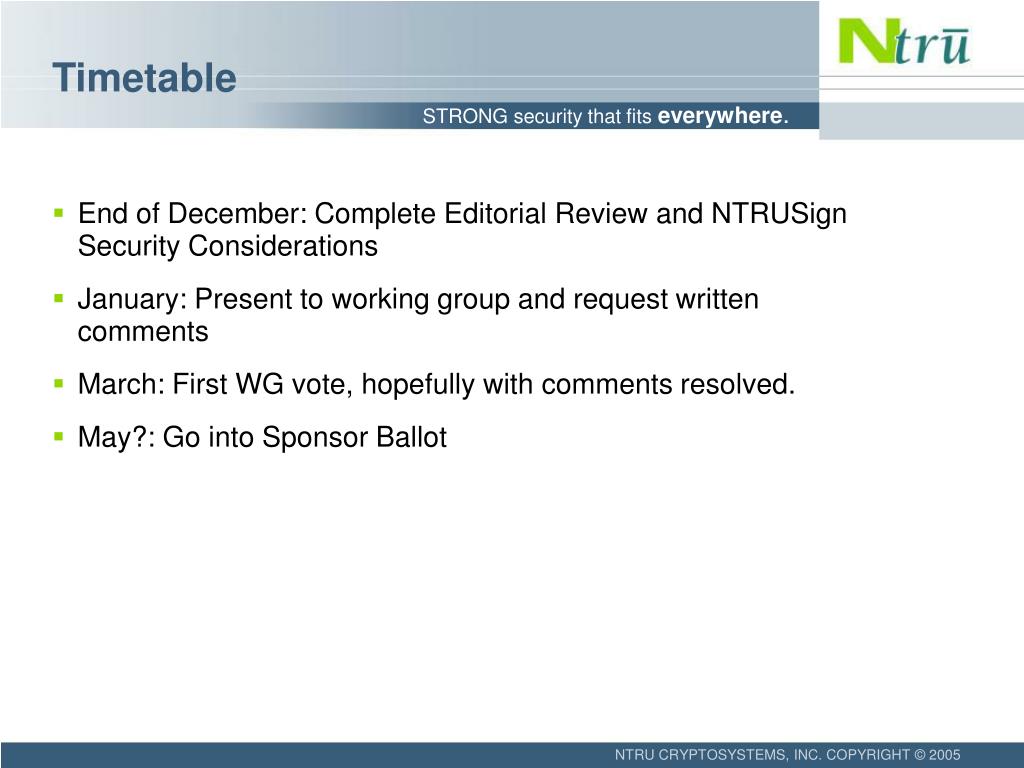

  39. Timetable • End of December: Complete Editorial Review and NTRUSign Security Considerations • January: Present to working group and request written comments • March: First WG vote, hopefully with comments resolved. • May?: Go into Sponsor Ballot
