  1. Socket Communication in C#

  2. How Sockets make communication? • Socketis a basic object that can do net communication. All net communications are build on Socket operation. • In server side, object TcpLinstener is running at an HTTP port and standing by to listen for the calls from Internet. (TcpLinstener is called ServerSocket in Java) • In a client side, client Socket call TcpLinstener by web server IP and port • OnceTcpLinstener got call, it will execute function accept() and create a socket object in server side to take care communication • All socket net communication is use data stream. • Object TcpLinstener can go back and listen again.

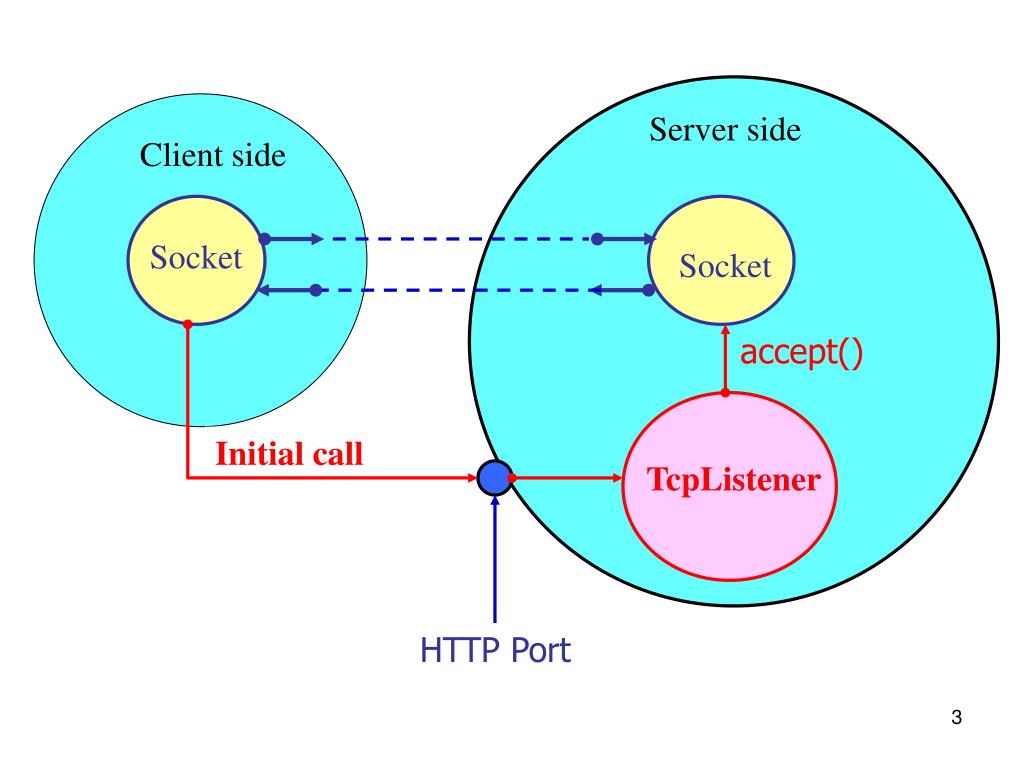

  3. Server side Client side Socket Socket accept() Initial call TcpListener HTTP Port

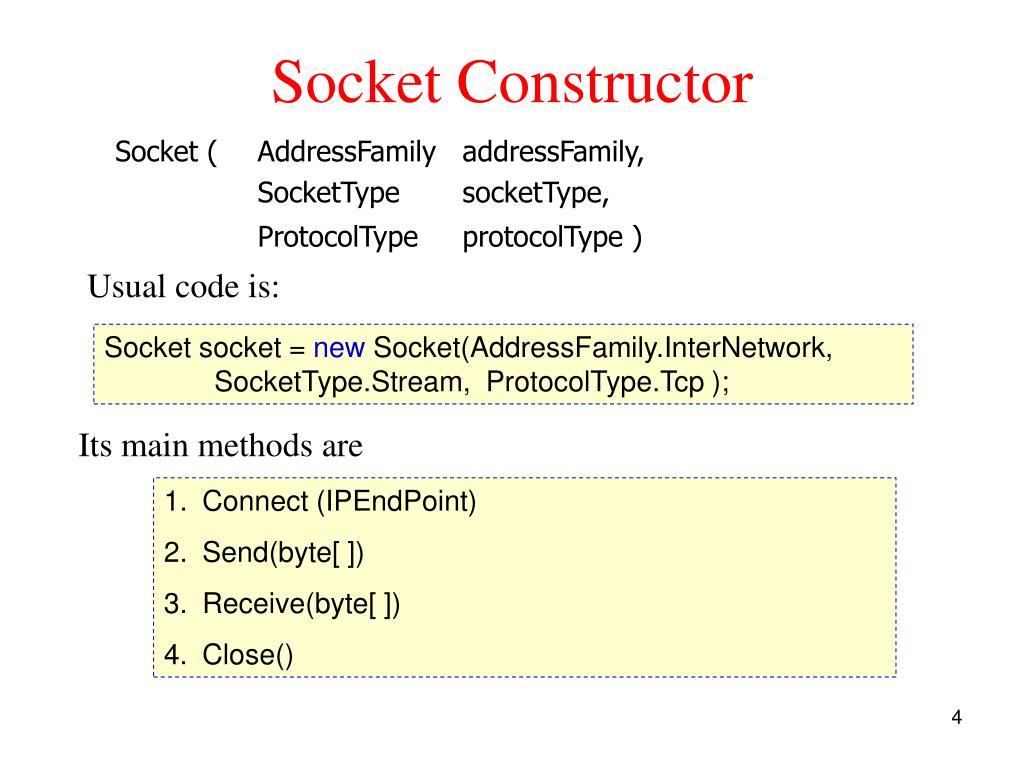

  4. Socket Constructor Socket ( AddressFamily addressFamily, SocketType socketType, ProtocolType protocolType ) Usual code is: Socket socket = new Socket(AddressFamily.InterNetwork, SocketType.Stream, ProtocolType.Tcp ); Its main methods are • Connect (IPEndPoint) • Send(byte[ ]) • Receive(byte[ ]) • Close()

  5. Connect to a server by IP & Port# In order to make a connection we make an IPEndPoint object of the remote server first. The process is the following: IPHostEntry IpEntry = Dns.GetHostByAddress("129.7.127.103"); IPAddress hostAddress = IpEntry.AddressList[0]; IPEndPoint hostEndPoint = new IPEndPoint(hostAddress, 8001); socket.Connect(hostEndPoint); Remarks:1. Dnsis a class that deals with the domain names issues.2. If use the remote server name, then we have to use code like IPHostEntry IpEntry = Dns.GetHostByName("www.nba.com"); 3. One PC could have multiple IPs, but the above code will get an IPAddress object for string "129.7.127.103".4. Number 8001 is the port number of the remote server.

  6. Send Data All data in net communication must be of type byte array. Therefore we must use class ASCIIEncoding object to convert string to bytes and vise versa. ASCIIEncoding asciiEnc = new ASCIIEncoding(); String str = Console.ReadLine(); byte[] binData = asciiEnc.GetBytes(str); socket.Send(binData); Also we can use the following code to control the length of out data socket.Send(binData, 0, binData.Length, SocketFlags.None);

  7. Receive Data Receiving data from net is similar to sending data. After receiving the binary data, use ASCIIEncoding object to convert it to string. ASCIIEncoding asciiEnc = new ASCIIEncoding(); byte[] binData = new byte[255]; int k = socket.Receive(binData); String str = asciiEnc.GetString(binData,0, k); Integer k is the total bytes received. If the input data is longer then the length of binData, some data could be lost. To prevent that case, we use the following code to control the length of input data no more than 255. socket. Receive(binData, 0, binData.Length, SocketFlags.None); If k==0, the connection to the server is lost.

  8. Use TcpClient object Like Socket, class TcpClient object can do TCP NetWork communication too. The connection code is very simple: TcpClient tcpClient = new TcpClient(); tcpClient.Connect("129.7.127.103",8001); However, it must use a Stream object to read and write. ASCIIEncoding asciiEnc = new ASCIIEncoding(); String str = Console.ReadLine(); byte[] binData = asciiEnc.GetBytes(str); Stream stream = tcpClient.GetStream(); stream.Write(binData, 0, binData.Length);// send data out Receiving code is byte[] binDataIn = new byte[255]; int k=stream.Read(binDataIn, 0, 255); //receive data

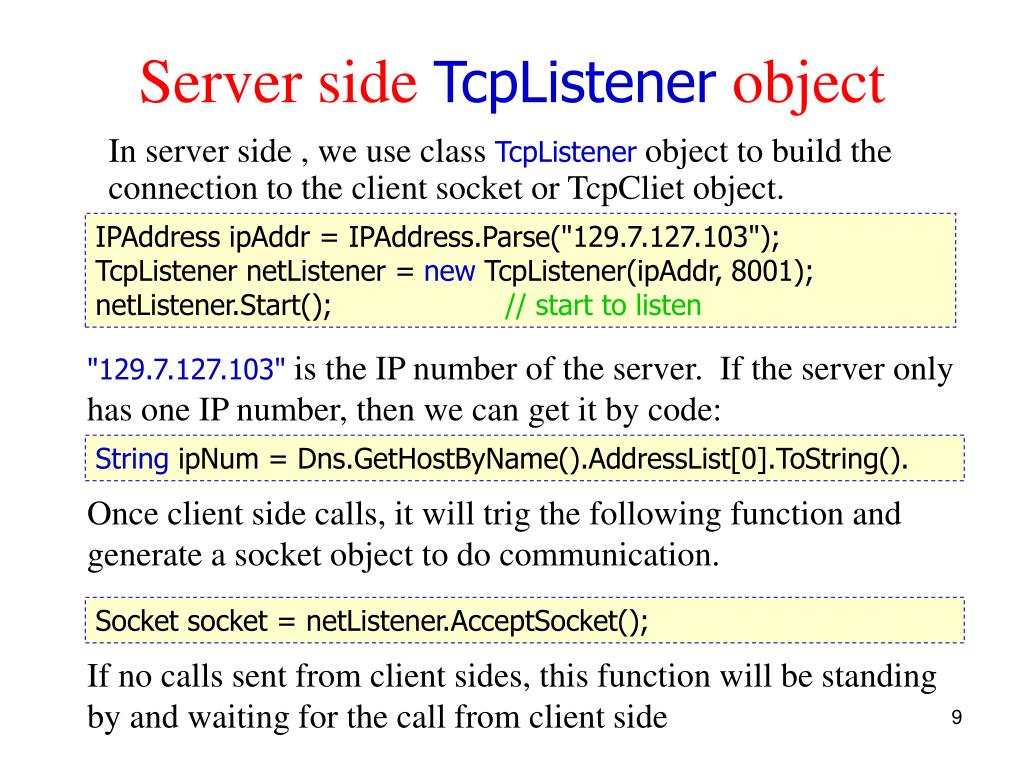

  9. Server side TcpListener object In server side , we use class TcpListener object to build the connection to the client socket or TcpCliet object. IPAddress ipAddr = IPAddress.Parse("129.7.127.103"); TcpListener netListener = new TcpListener(ipAddr, 8001); netListener.Start(); // start to listen "129.7.127.103"is the IP number of the server. If the server only has one IP number, then we can get it by code: String ipNum = Dns.GetHostByName().AddressList[0].ToString(). Once client side calls, it will trig the following function and generate a socket object to do communication. Socket socket = netListener.AcceptSocket(); If no calls sent from client sides, this function will be standing by and waiting for the call from client side

  10. Client Socket example • using System; • using System.IO; • using System.Net; • using System.Text; • using System.Net.Sockets; • public class client • { • public static void Main() • { • Socket socket = new Socket(AddressFamily.InterNetwork, SocketType.Stream, ProtocolType.Tcp ); • try{ • IPHostEntry IpEntry = Dns.GetHostByAddress("192.168.1.103"); • IPAddress hostAddress = IpEntry.AddressList[0]; • IPEndPoint hostEndPoint = new IPEndPoint(hostAddress, 8001); • Console.WriteLine("Connecting.....");socket.Connect(hostEndPoint);

  11. if(socket.Connected) Console.WriteLine("Connected"); • Console.Write("Enter the string to be transmitted : "); • ASCIIEncoding asciiEnc= new ASCIIEncoding(); • while(true) • { • string str=Console.ReadLine(); • if(str.ToLower() =="quit") break; • byte[] binDataOut = asciiEnc.GetBytes(str); • socket.Send(binDataOut, 0, binDataOut.Length,SocketFlags.None); • byte[] binDataIn=new byte[255]; • int k = socket.Receive(binDataIn, 0, 255 , SocketFlags.None); • string msg = asciiEnc.GetString(binDataIn, 0, k); • Console.Write(msg); • } • socket.Close(); • } • catch (Exception e) • { • Console.WriteLine("Error..... " + e.StackTrace); • } • Console.ReadLine(); • } }

  12. Client TcpClient example • using System; • using System.IO; • using System.Net; • using System.Text; • using System.Net.Sockets; • public class client • { • public static void Main() • { • TcpClient tcp = new TcpClient(); • try • { • Console.WriteLine("Connecting.....");tcp.Connect("192.168.1.103", 8001); • Console.WriteLine("Connected"); • Console.WriteLine("Enter the string to be transmitted : "); • ASCIIEncoding asciiEnc= new ASCIIEncoding(); • Stream stream = tcp.GetStream();

  13. while(true) • { • string str=Console.ReadLine(); • if(str.ToLower() =="quit") break; • byte[] binDataOut = asciiEnc.GetBytes(str); • stream. Write(binDataOut, 0, binDataOut.Length); • byte[] binDataIn=new byte[255]; • int k = stream.Read(binDataIn,0,255); • string msg = asciiEnc.GetString(binDataIn, 0, k); • Console.Write(msg); • } • Tcp.Close(); • Console.ReadLine(); • } // end of try • catch (Exception e) • { • Console.WriteLine("Error..... " + e.StackTrace); • Console.ReadLine(); • } • } • }

  14. Server Socket example • using System; • using System.Net; • using System.Text; • using System.Net.Sockets; • public class server • { • public static void Main() • { • bool connected =false; • try{ • IPAddress ipAddr = IPAddress.Parse("192.168.1.103"); • TcpListener myListener = new TcpListener(ipAddr,8001); • myListener.Start(); • Console.WriteLine("The server is running at port: " + myListener.LocalEndpoint); • Console.WriteLine("Waiting for a connection....."); • Socket socket = myListener.AcceptSocket(); • Console.WriteLine("Connection accepted from" + socket.RemoteEndPoint)

  15. connected =true; • byte[] binDataIn = newbyte[255]; • Console.WriteLine("The message from client side... "); • while(true) • { • int k=socket.Receive(binDataIn); • if(k==0) break; • ASCIIEncoding asciiEnc = new ASCIIEncoding(); • string msg = asciiEnc.GetString(binDataIn, 0, k); • byte [] binOut = new byte [k]; • for(int i=0; i<k; i++)binOut[i] = binDataIn[k-i-1]; • socket.Send(binOut); • Console.WriteLine(msg); • } • socket.Close(); • myListener.Stop(); • } • catch (Exception e) { if(!connected)Console.WriteLine("Error..... " + e.ToString() ); }Console.WriteLine("\nClient closed connection"); • Console.ReadLine(); • } }

  16. Output

  17. Multiple Threading • From last example, we can see that TcpListener build connection while sockets do communication • Therefore one TcpListener can serve for many client sockets. To this purpose we must use multiple thread. • Thread is a connection between program and operating system. With a thread, system can arrange CPU time to execute the program instructions. • Any program has a natural thread that from Main() function. • Some program operation will control thread until it finished. Such as play a music. If the program only has one thread, during the music playing time, the window cannot be moved or resized. • TcpListener needs thread for standing by and listening. Socket needs thread to do communication. Therefore we need multiple threads for socket communications

  18. Add Thread object • First we must addusing system.Threading; • Create a function in the class, which must be void and no argument, suppose it is: private void foo() {…} • Then create a Thread object in the following way: Thread t = new Thread(new ThreadStart(foo)); t.Start(); 4. Then function foo() will get a new Thread 5. We can call t.Suspend() and t.Resume(). 6. To destroy a thread, call t.Abort()

  19. Communication class • public class Communication • { • Socket socket=null; • int n; • public Communication(Socket sock, int k) • { socket = sock; n = k; } • public void Talk() • { • byte[] binDataIn = new byte [255]; • Console.WriteLine("The socket " + n + " begin to work... "); • try • { • while(true) • { • int k=socket.Receive(binDataIn); • If (k==0) break; // if client closed

  20. ASCIIEncoding asciiEnc = new ASCIIEncoding(); • string msg = asciiEnc.GetString(binDataIn,0,k); • byte [] binOut = new byte [k]; • for(int i=0; i<k; i++) • { • binOut[i] = binDataIn[k-i-1]; • } • socket.Send(binOut); • Console.WriteLine("from client " + n +" " +msg); • } • } • catch(Exception) { } // if client shut down • Console.WriteLine("Client " + n +" Disconnected"); • socket.Close(); • } • } • }

  21. How to Assign Thread ? • int count = 0; • while(true) • { • Socket socket = myListener.AcceptSocket(); • count++; • Console.WriteLine("Connection " + count + " accepted from • "+socket.RemoteEndPoint); • Communication com = new Communication(socket, count); • Thread t = new Thread(new ThreadStart(com.Talk)); • t.Start(); • } • // this is listening loop After call t.Start(), the thread will assign to function Talk() of class Communication object com.

  22. Communication between Clients In this case, we must put all server side sockets object in a container, so that we can send message to every client by using this container. Socket 1 Client socket 1 Socket 2 Client socket 2 ArrayList Server side

  23. Use ArrayList to store object We must store all socket in ArrayList object that can be accessed by all threads. The basic methods of ArrayList object are: Add(object obj);Remove(object obj); ArrayList list = new ArrayList(); Communication com1 = new Communication(socket, count); List.Add(com1); Its property Count is the total objects in the list. To access its object use index function []. However, we must do casting operation to get original class object. Communication com2 =( Communication) list[3];

  24. Synchronized operation • When some data is shared by multiple threads, we must do Synchronized operation. For example if the shared data is written in one thread, we must block all writing process from other threads. Sometimes, we even need to block reading process. • In C#, we can use class ReaderWriterLock object to do so. ReaderWriterLock rw = new ReaderWriterLock() static public void remove(object obj) { rw.AcquireWriterLock(Timeout.Infinite); list.Remove(obj) ; rw.ReleaseWriterLock(); }

  25. Server Broadcast example • using System; • using System.Net; • using System.Text; • using System.Net.Sockets; • using System.Collections; // for ArrayList • using System.Threading; • public class server • { • static ArrayList list = new ArrayList(); • static ReaderWriterLock rw = new ReaderWriterLock(); • static public void remove(object obj) • { • rw.AcquireWriterLock(Timeout.Infinite); • list.Remove(obj) ; • rw.ReleaseWriterLock(); • }

  26. Server Broadcast example • static public void AddList(object obj) • { • rw.AcquireWriterLock(Timeout.Infinite); • list.Add(obj) ; • rw.ReleaseWriterLock(); • } • static public void SendToAll(byte[] binData) • { • rw.AcquireWriterLock(Timeout.Infinite); • for(int k = 0; k<list.Count; k++) • { • Communication com = (Communication)list[k]; • Socket sock = com.socket; • sock.Send(binData); • } • rw.ReleaseWriterLock(); • }

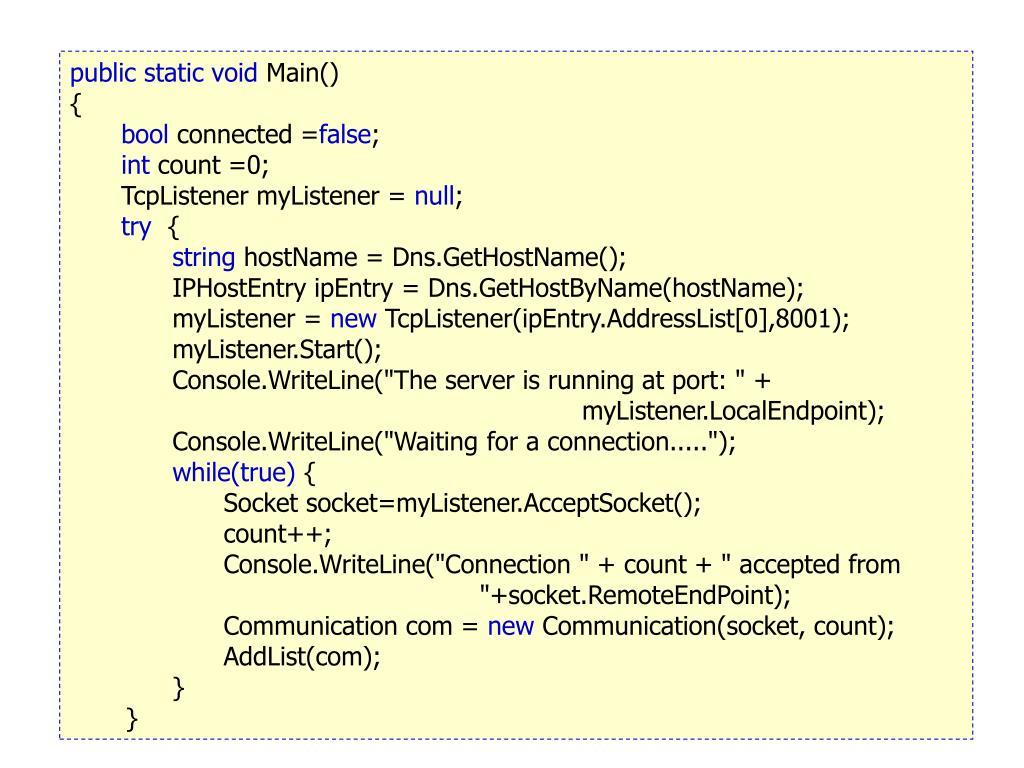

  27. public static void Main() • { • bool connected =false; • int count =0; • TcpListener myListener = null; • try { • string hostName = Dns.GetHostName(); • IPHostEntry ipEntry = Dns.GetHostByName(hostName); • myListener = new TcpListener(ipEntry.AddressList[0],8001); • myListener.Start(); • Console.WriteLine("The server is running at port: " + myListener.LocalEndpoint); • Console.WriteLine("Waiting for a connection....."); • while(true) { • Socket socket=myListener.AcceptSocket(); • count++; • Console.WriteLine("Connection " + count + " accepted from "+socket.RemoteEndPoint); • Communication com = new Communication(socket, count); • AddList(com); • } • }

  28. catch (Exception e) • { • if(!connected)Console.WriteLine("Error..... " + e.ToString() ); • } • myListener.Stop(); • Console.WriteLine("\nClient closed connection"); • Console.ReadLine(); • } • public class Communication • { • public Socket socket=null; • int n; • public Communication(Socket sock, int k) • { • socket = sock; • n = k; • Thread t = new Thread (new ThreadStart (Talk)); • t.Start(); • }

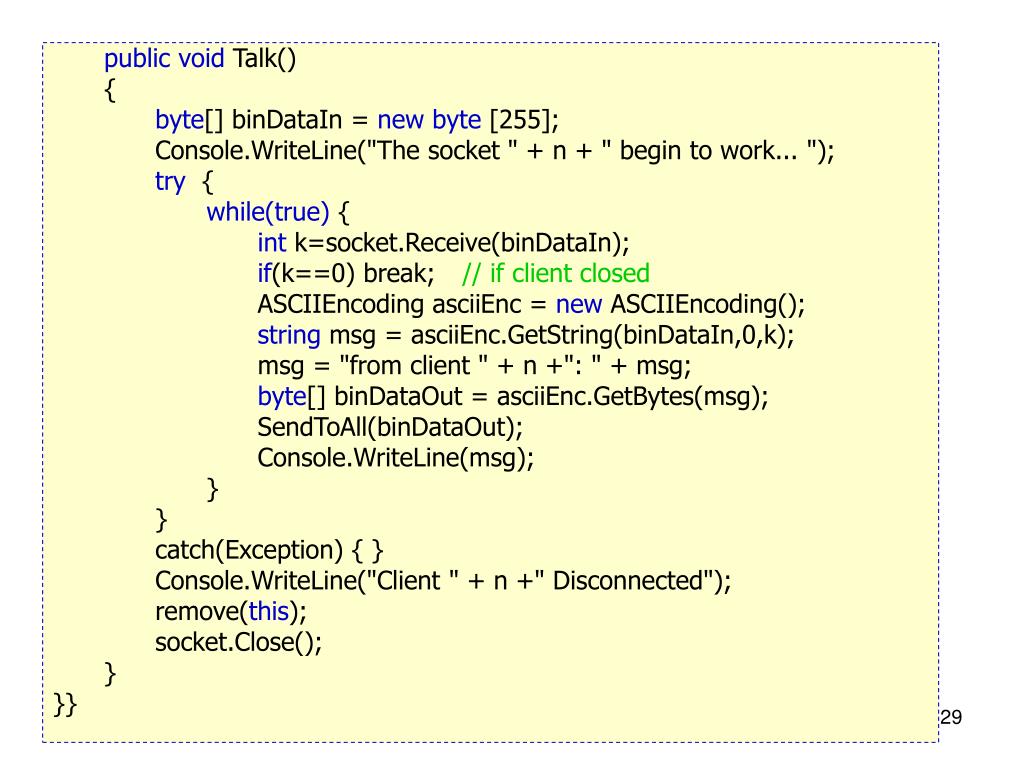

  29. public void Talk() { byte[] binDataIn = new byte [255]; Console.WriteLine("The socket " + n + " begin to work... "); try { while(true) { int k=socket.Receive(binDataIn); if(k==0) break; // if client closed ASCIIEncoding asciiEnc = new ASCIIEncoding(); string msg = asciiEnc.GetString(binDataIn,0,k); msg = "from client " + n +": " + msg; byte[] binDataOut = asciiEnc.GetBytes(msg); SendToAll(binDataOut); Console.WriteLine(msg); } } catch(Exception) { } Console.WriteLine("Client " + n +" Disconnected"); remove(this); socket.Close(); } }}

  30. Client side In client side we need to add one thread to take care the messages from broadcasting. using System; using System.IO; using System.Net; using System.Text; using System.Net.Sockets; using System.Threading ; public class client { static bool connected = false; static Socket socket = null;

  31. public static void Main() • { • Console.WriteLine("Please enter the Server IP address"); • string IP = Console.ReadLine(); • Console.WriteLine("Please enter the Server HTTP port number"); • string port = Console.ReadLine(); • int p; • try{ • p = Int32.Parse(port); • } • catch(Exception) • { • Console.WriteLine("Wrong port number"); • return; • } • socket = new Socket(AddressFamily.InterNetwork, • SocketType.Stream, ProtocolType.Tcp ); • IPHostEntry IpEntry = Dns.GetHostByAddress(IP); • IPAddress hostAddress = IpEntry.AddressList[0]; • IPEndPoint hostEndPoint = new IPEndPoint(hostAddress, p); • Console.WriteLine("Connecting.....");

  32. try { • socket.Connect(hostEndPoint); • } • catch(Exception) { • Console.WriteLine("No connection to server\nPress enter to exit"); • Console.ReadLine(); • return; • } • connected = socket.Connected; • if(connected) Console.WriteLine("Connected"); • Console.WriteLine("Enter the string to be transmitted : "); • ASCIIEncoding asciiEnc= new ASCIIEncoding(); • Thread t = new Thread(new ThreadStart(GetMsg)); • t.Start(); • while(connected){ • String str=Console.ReadLine(); • if(str.ToLower() =="quit") break; • byte[] binData = asciiEnc.GetBytes(str); • socket.Send(binData, 0, binData.Length, SocketFlags.None); • socket.Close(); • } • }

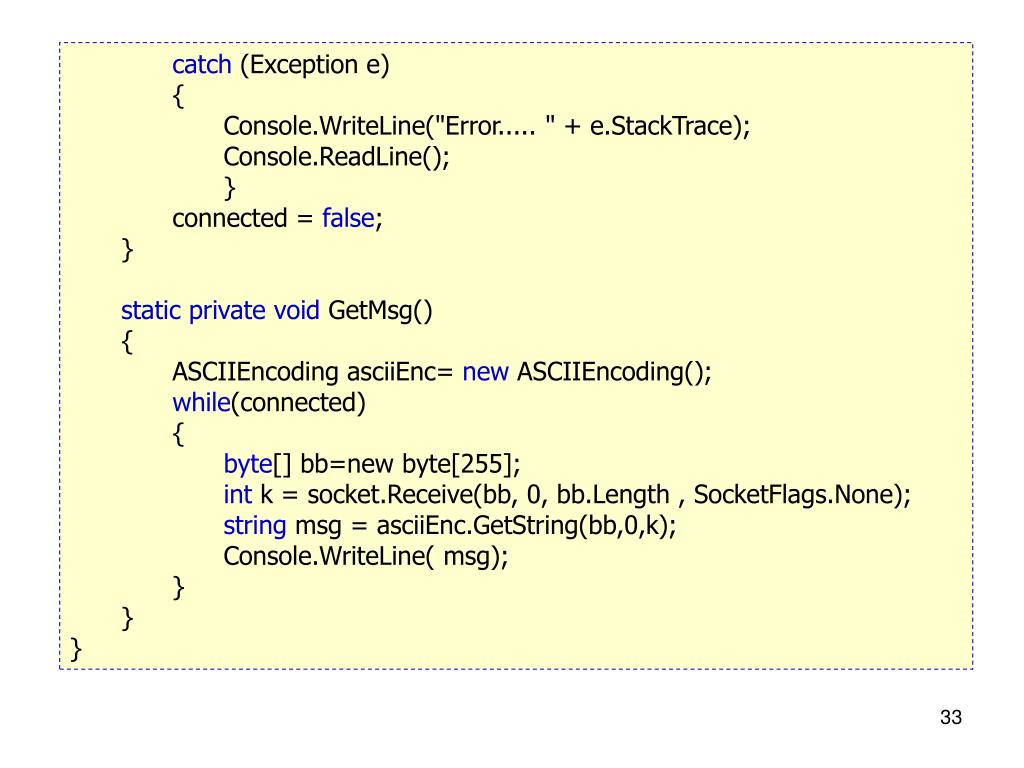

  33. catch (Exception e) • { • Console.WriteLine("Error..... " + e.StackTrace); • Console.ReadLine(); • } • connected = false; • } • static private void GetMsg() • { • ASCIIEncoding asciiEnc= new ASCIIEncoding(); • while(connected) • { • byte[] bb=new byte[255]; • int k = socket.Receive(bb, 0, bb.Length , SocketFlags.None); • string msg = asciiEnc.GetString(bb,0,k); • Console.WriteLine( msg); • } • } • }
