SystemVerilog basics Jean-Michel Chabloz

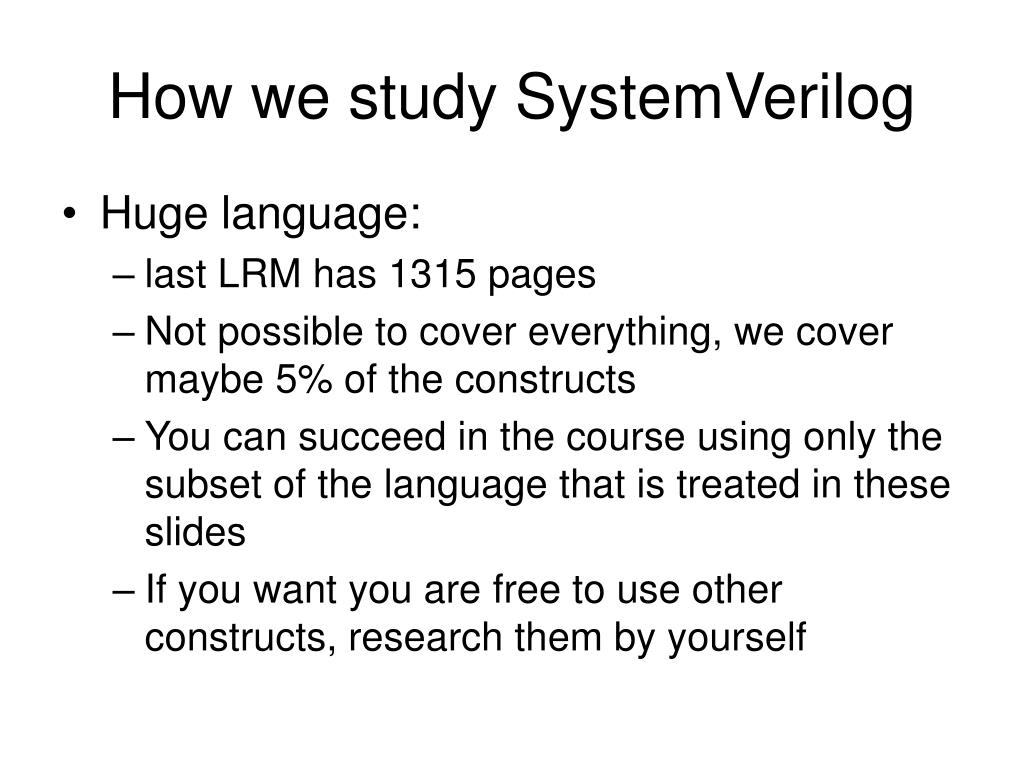

How we study SystemVerilog • Huge language: • last LRM has 1315 pages • Not possible to cover everything, we cover maybe 5% of the constructs • You can succeed in the course using only the subset of the language that is treated in these slides • If you want you are free to use other constructs, research them by yourself

SystemVerilog Hello World module M(); initial $display(“Hello world”); endmodule

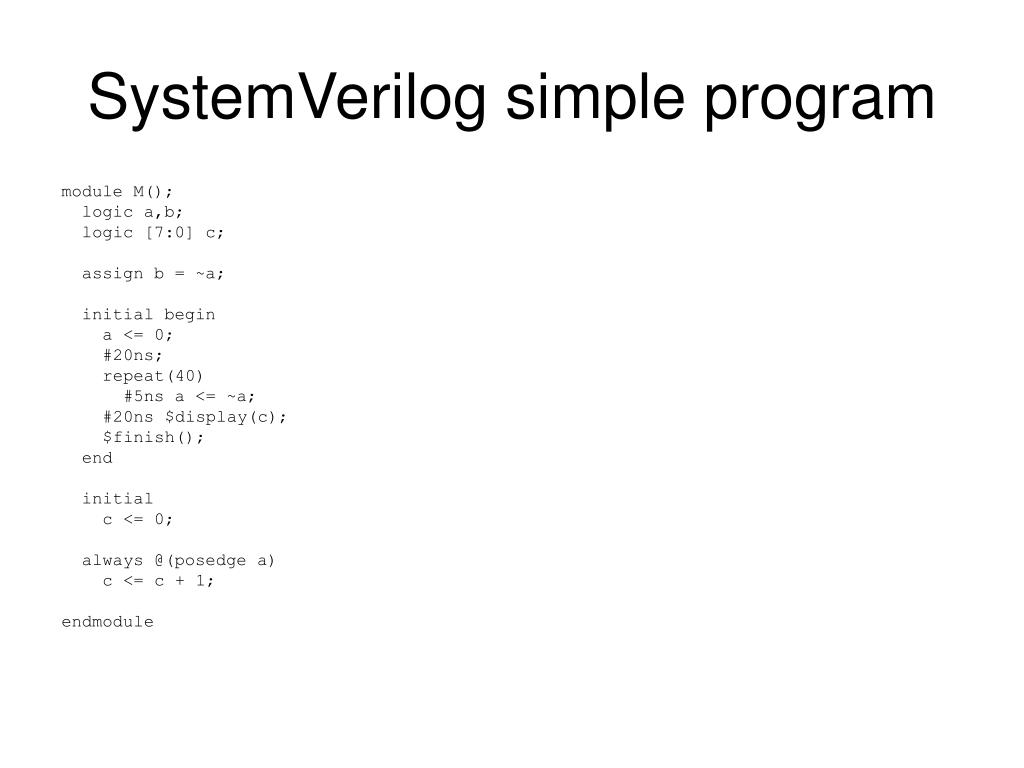

SystemVerilog simple program module M(); logic a,b; logic [7:0] c; assign b = ~a; initial begin a <= 0; #20ns; repeat(40) #5ns a <= ~a; #20ns $display(c); $finish(); end initial c <= 0; always @(posedge a) c <= c + 1; endmodule

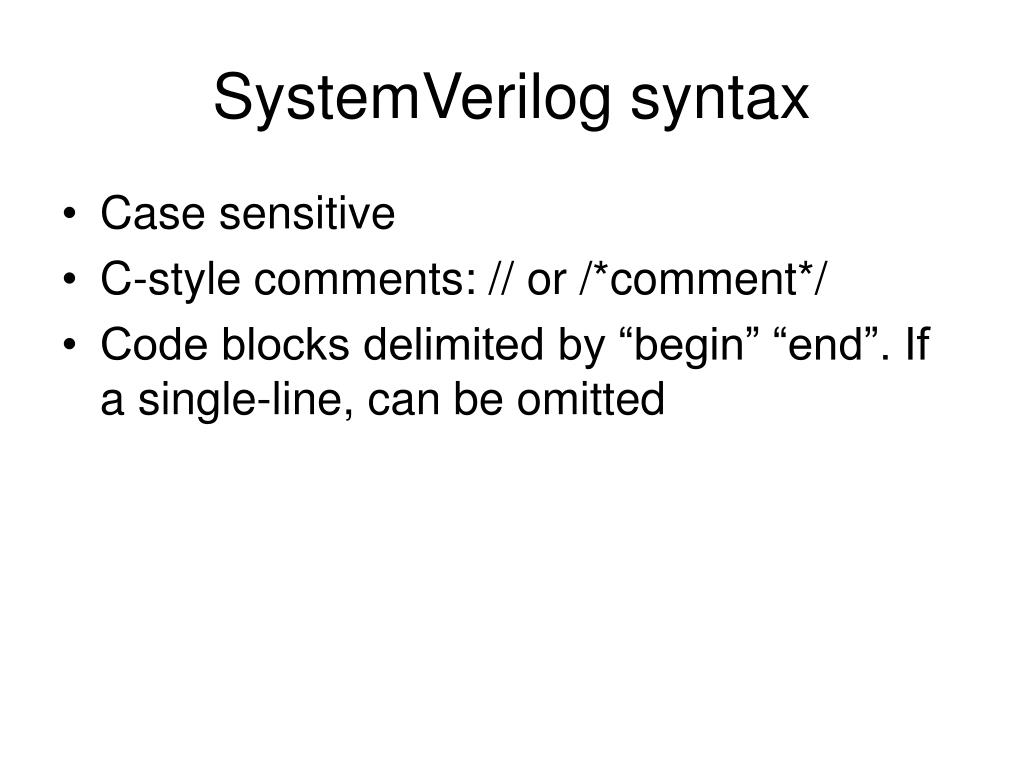

SystemVerilog syntax • Case sensitive • C-style comments: // or /*comment*/ • Code blocks delimited by “begin” “end”. If a single-line, can be omitted

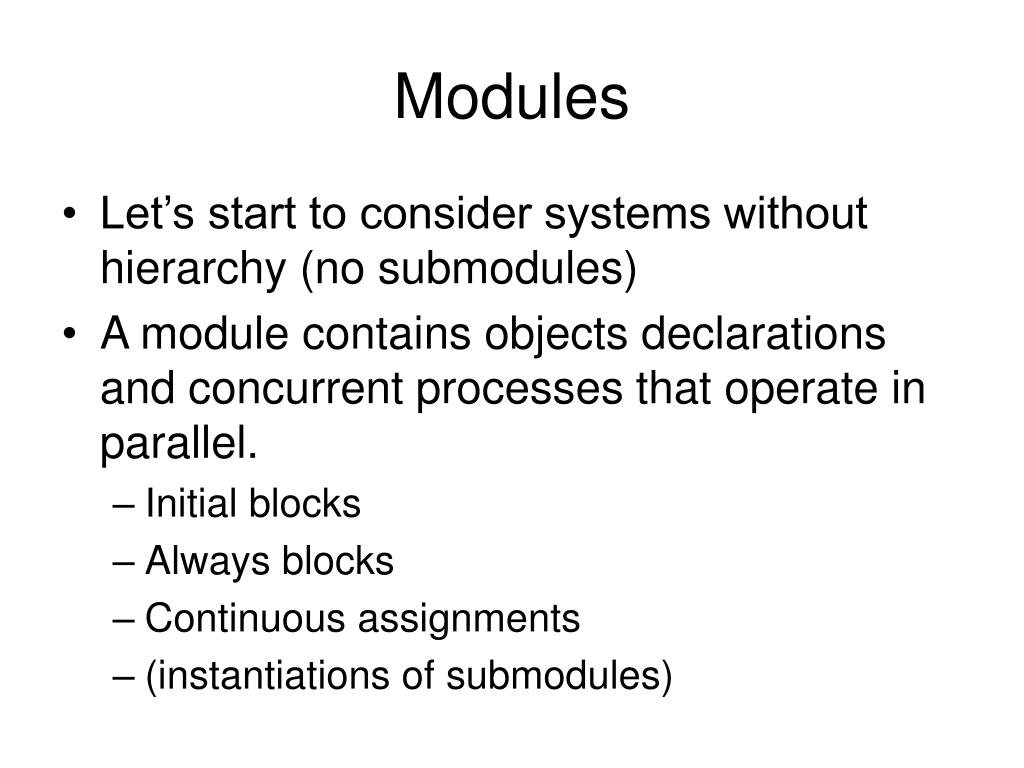

Modules • Let’s start to consider systems without hierarchy (no submodules) • A module contains objects declarations and concurrent processes that operate in parallel. • Initial blocks • Always blocks • Continuous assignments • (instantiations of submodules)

SystemVerilog basic data types • Data types: • logic – 4 valued data type: • 0, 1, X, Z • initialized to X • can also be called reg // deprecated verilog legacy name • bit – 2 valued data type: • 0, 1 • initialized to 0 • Defining a data type: • bit a; • logic b; • bit c, d;

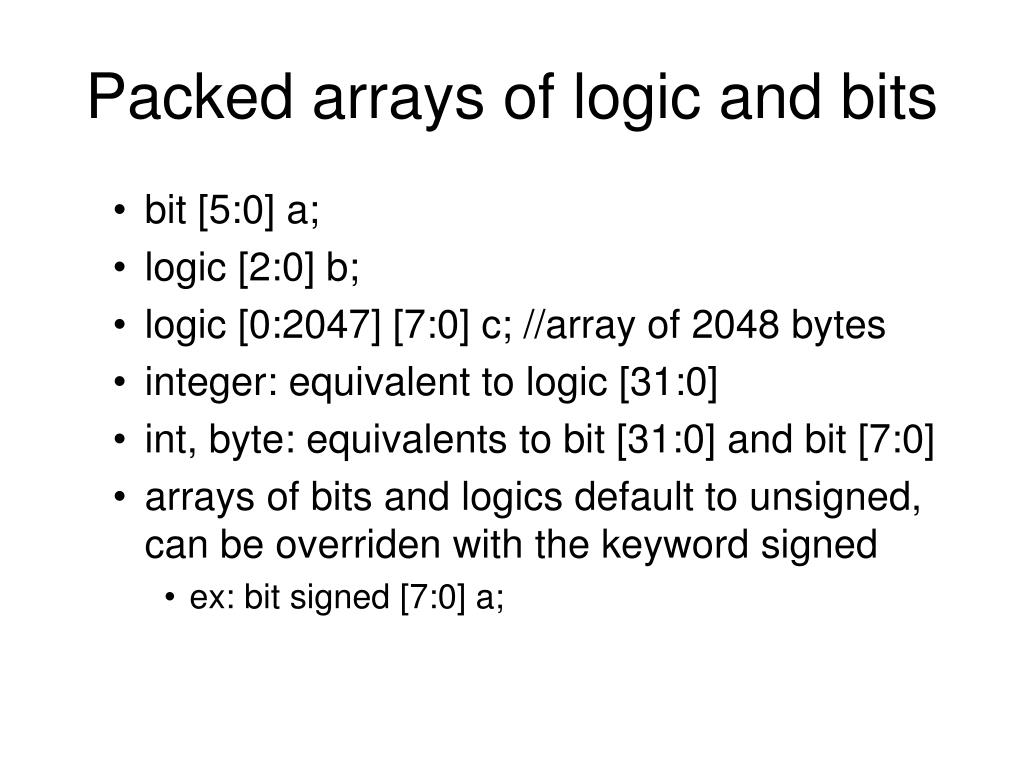

Packed arrays of logic and bits • bit [5:0] a; • logic [2:0] b; • logic [0:2047] [7:0] c; //array of 2048 bytes • integer: equivalent to logic [31:0] • int, byte: equivalents to bit [31:0] and bit [7:0] • arrays of bits and logics default to unsigned, can be overriden with the keyword signed • ex: bit signed [7:0] a;

Literals • Decimal literal: • a <= 54; // automatically extended to the length of a with 0 padding • a <= ‘d54; • a <= 12’d54; // specifies that a is 12-bits wide • Unspecified length: • ‘1, ‘0, ‘x, ‘z // fills with all 1s, 0s, xs, zs • binary literal • 12’b1000_1100_1110 // underscores can be put anywhere except the beginning of a literal • ‘b11011 // automatically resized with zeroes if fed to something bigger • hexadecimal literal: • 12’hc; // “000000001100” • ‘hcd: // ”….0000011001101”

Packed array access • Single element access: • bit [7:0] a • a[5] <= a[6]; • bit [9:0][7:0] b: • b[5] <= 15; • Packed arrays can be sliced: • bit [7:0] a; • a[3:2] <= 2’b10; • a[3:0] <= a[7:4]; • bit [2047:0][7:0] a; bit [1:0][7:0] b; • a[2047:2046] <= b

packed structures • equivalent to a packed array subdivided into named fields: • example: 48 bit packed array • can be accessed as pack1[15:0] <= ‘b0; • can access pack1[9:4] <= 15; • can be accessed as pack1.d <= ‘b0; • the whole struct can be resetted with pack1 <= ‘b0; • unpacked struct (no “packed” keyword) allow only acces through the named fields (pack1.d <=‘b0); struct packed { int a; bit [7:0] c; bit [7:0] d; } pack1;

Other data types • Enumerated data type: • enum bit [1:0] {idle, writing, reading} state • If skipping the type an int type is assumed • Can be typedeffed (like all other data types): • typedef enum{red, green, blue, yellow, white, black} Colors; • Colors [2:0] setOfColors; // array of 3 elements of type colors

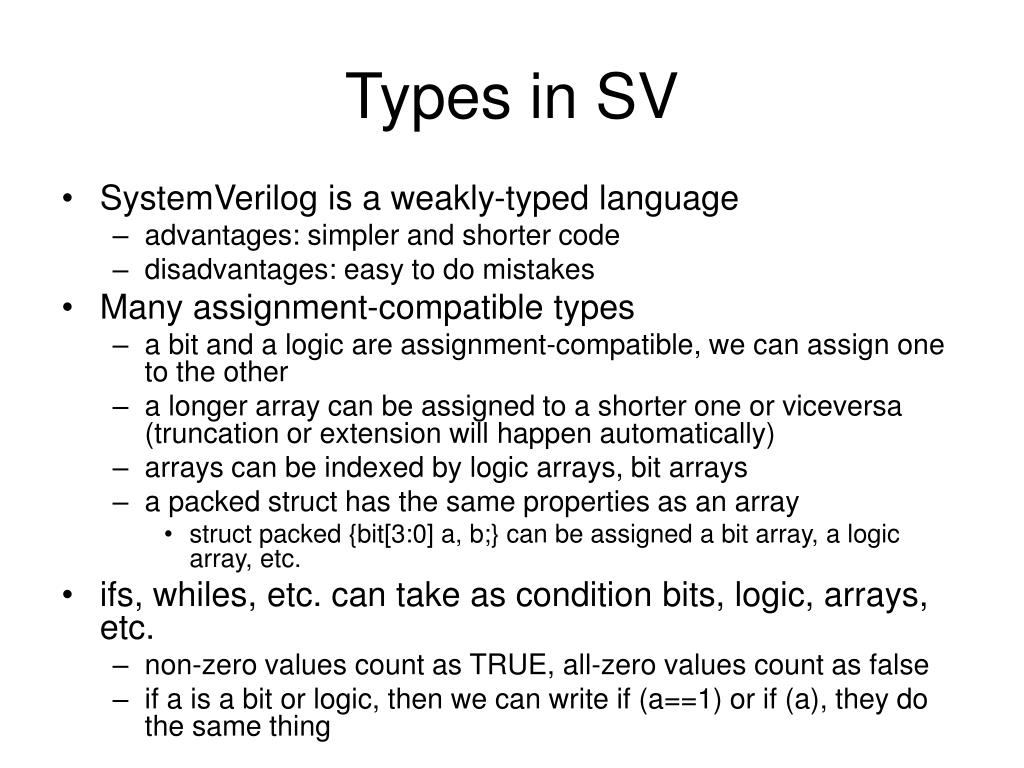

Types in SV • SystemVerilog is a weakly-typed language • advantages: simpler and shorter code • disadvantages: easy to do mistakes • Many assignment-compatible types • a bit and a logic are assignment-compatible, we can assign one to the other • a longer array can be assigned to a shorter one or viceversa (truncation or extension will happen automatically) • arrays can be indexed by logic arrays, bit arrays • a packed struct has the same properties as an array • struct packed {bit[3:0] a, b;} can be assigned a bit array, a logic array, etc. • ifs, whiles, etc. can take as condition bits, logic, arrays, etc. • non-zero values count as TRUE, all-zero values count as false • if a is a bit or logic, then we can write if (a==1) or if (a), they do the same thing

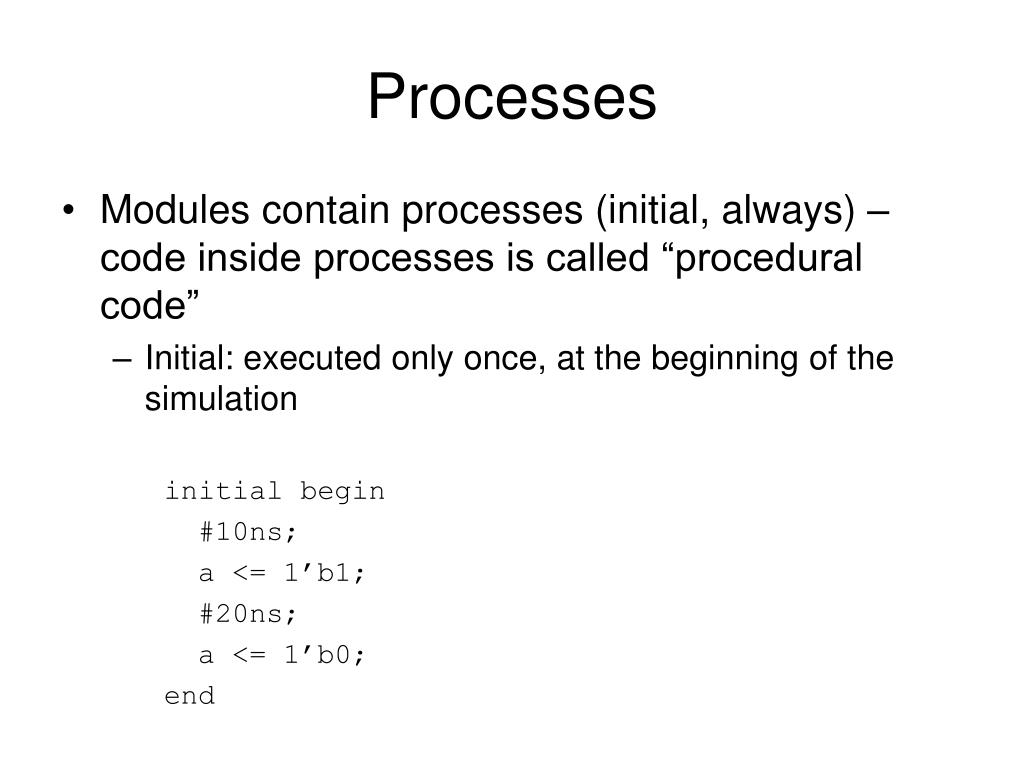

Processes • Modules contain processes (initial, always) – code inside processes is called “procedural code” • Initial: executed only once, at the beginning of the simulation initial begin #10ns; a <= 1’b1; #20ns; a <= 1’b0; end

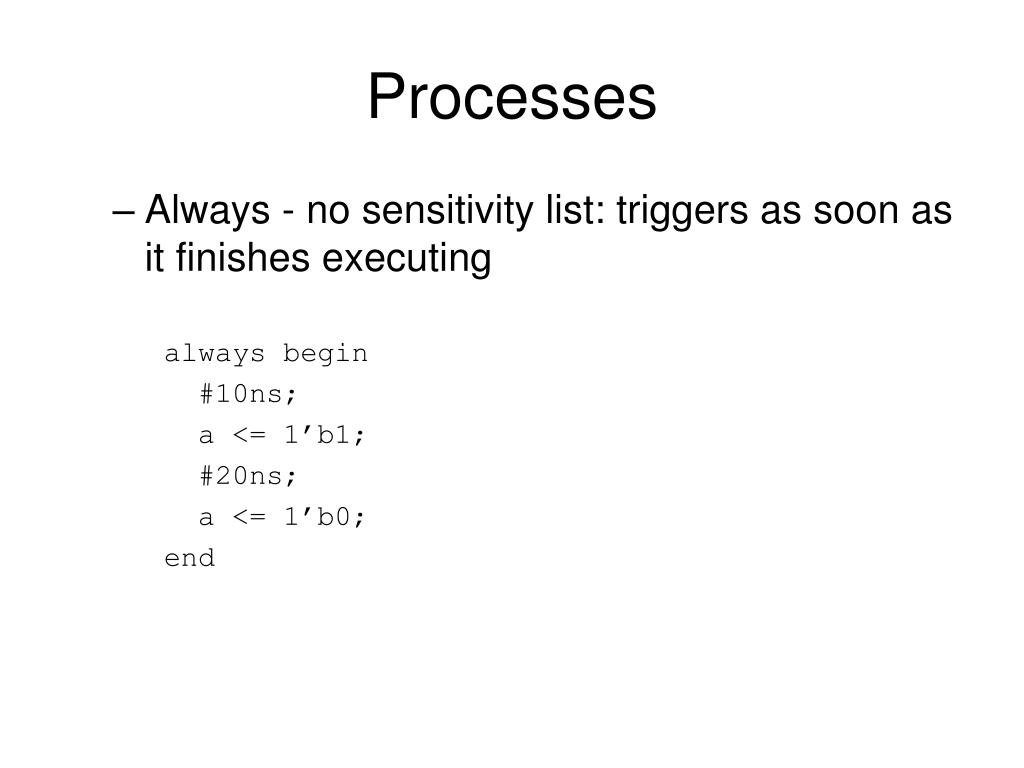

Processes • Always - no sensitivity list: triggers as soon as it finishes executing always begin #10ns; a <= 1’b1; #20ns; a <= 1’b0; end

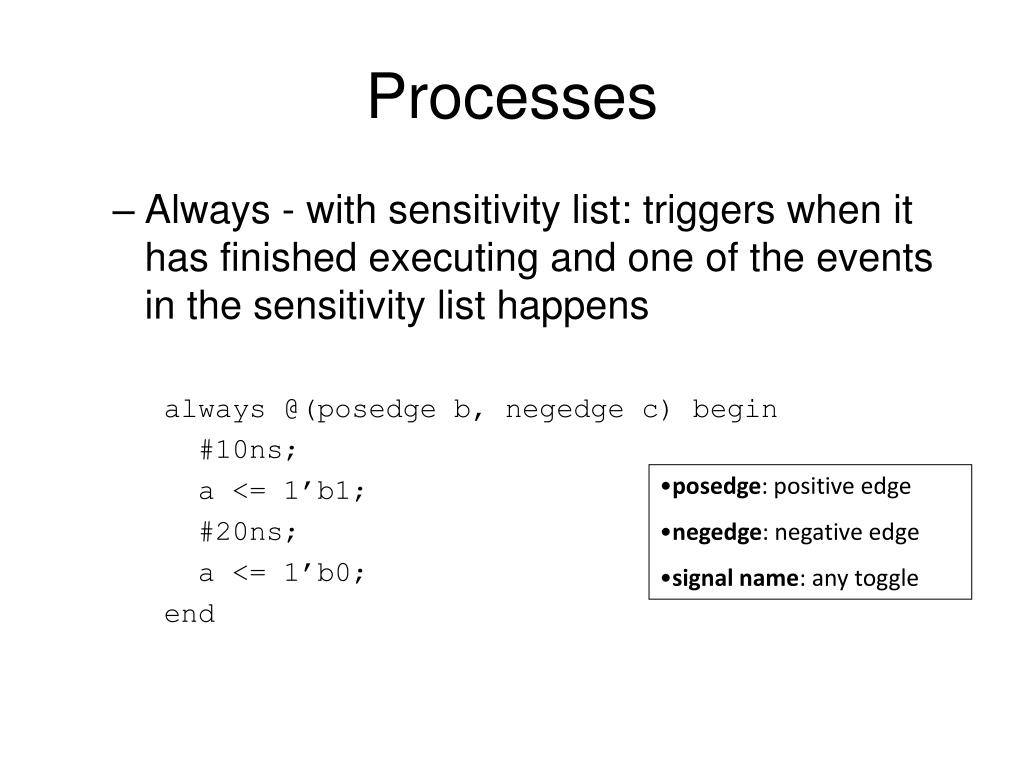

Processes • Always - with sensitivity list: triggers when it has finished executing and one of the events in the sensitivity list happens always @(posedge b, negedge c) begin #10ns; a <= 1’b1; #20ns; a <= 1’b0; end • posedge: positive edge • negedge: negative edge • signal name: any toggle

Always block, combinational process • The sensitivity list must contain all elements in the right-hand side always @(a,b) begin c <= a+b; end • SystemVerilog allows using always_comb instead • the sensitivity list is automatically compiled always_comb begin c <= a+b; end

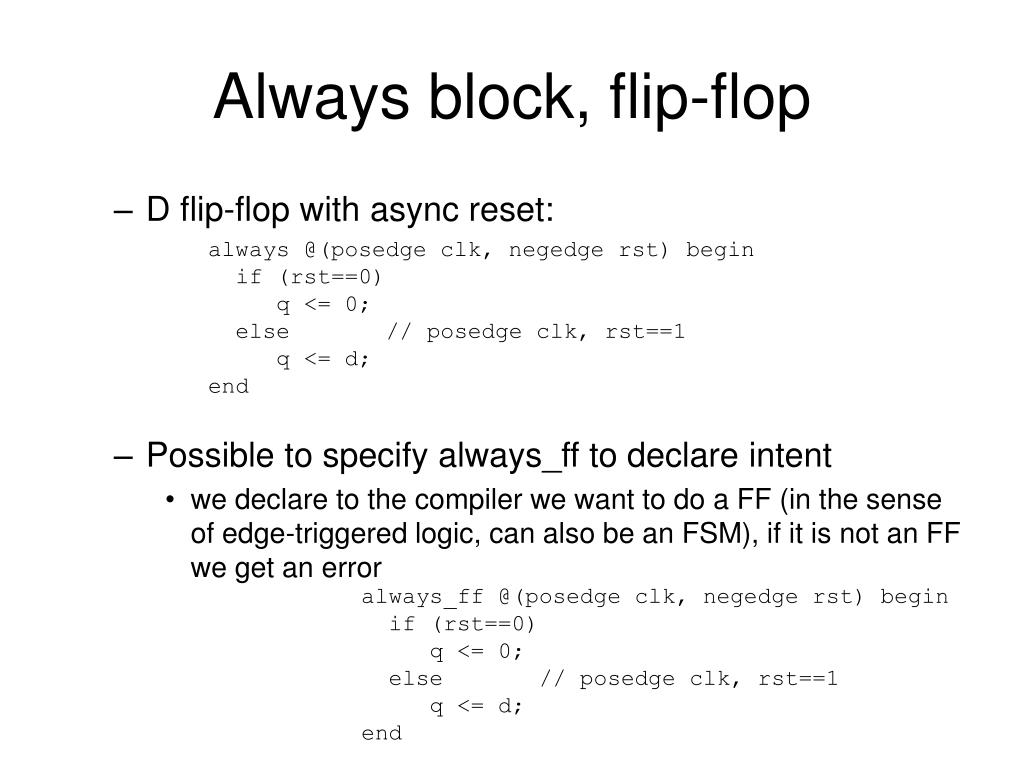

Always block, flip-flop • D flip-flop with async reset: • Possible to specify always_ff to declare intent • we declare to the compiler we want to do a FF (in the sense of edge-triggered logic, can also be an FSM), if it is not an FF we get an error • always @(posedge clk, negedge rst) begin • if (rst==0) • q <= 0; • else // posedge clk, rst==1 • q <= d; • end • always_ff @(posedge clk, negedge rst) begin • if (rst==0) • q <= 0; • else // posedge clk, rst==1 • q <= d; • end

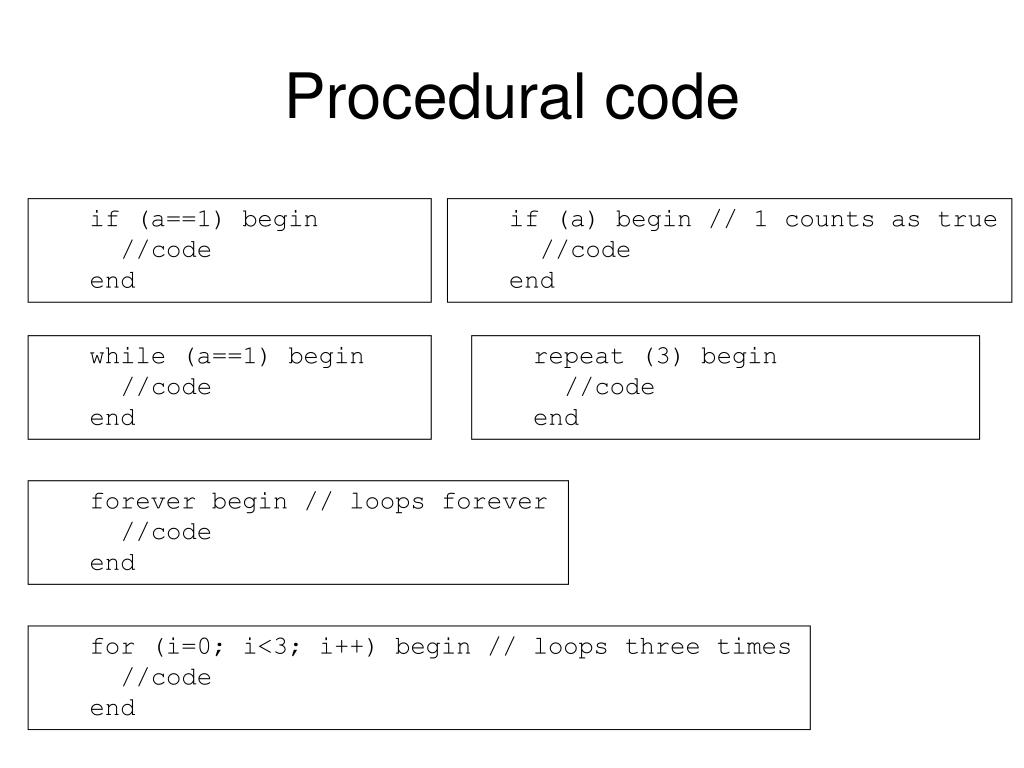

Procedural code • if (a==1) begin • //code • end • if (a) begin // 1 counts as true • //code • end • while (a==1) begin • //code • end • repeat (3) begin • //code • end • forever begin // loops forever • //code • end • for (i=0; i<3; i++) begin // loops three times • //code • end

if trees if (condition) begin … end else begin … end

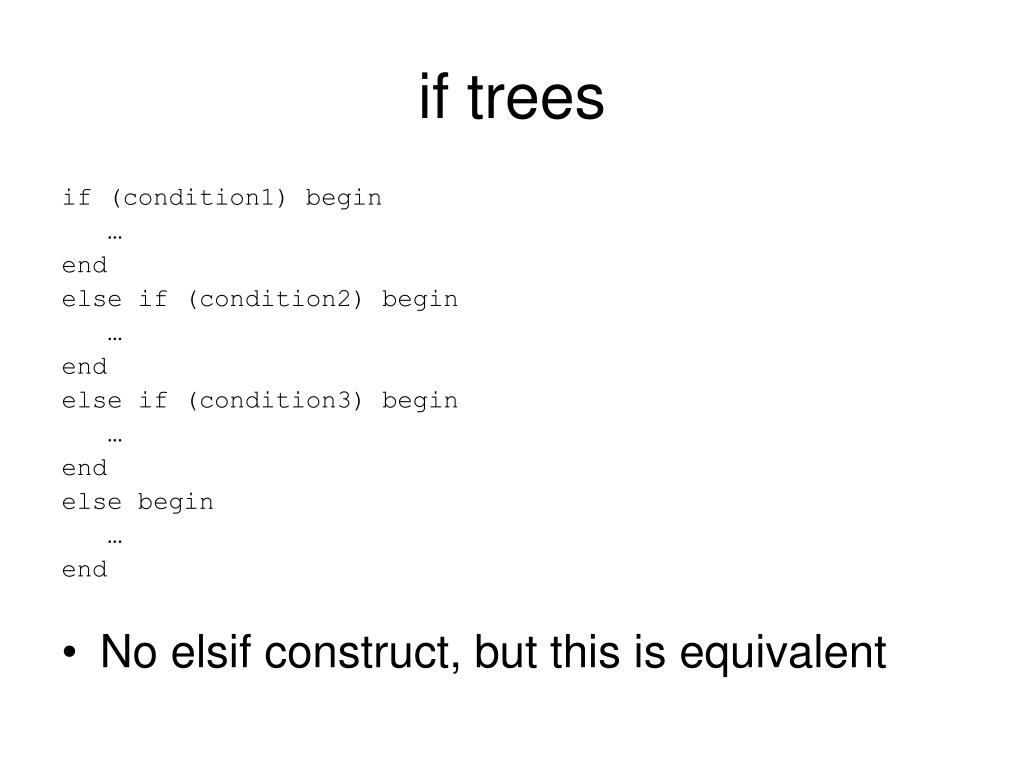

if trees if (condition1) begin … end else if (condition2) begin … end else if (condition3) begin … end else begin … end • No elsif construct, but this is equivalent

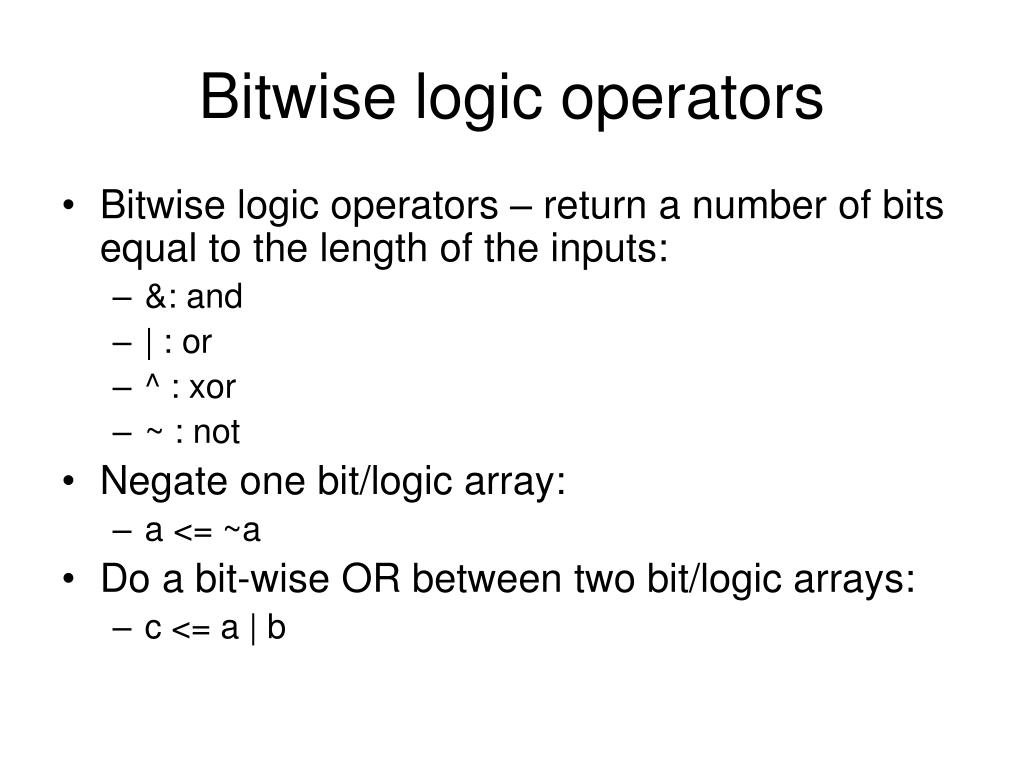

Bitwise logic operators • Bitwise logic operators – return a number of bits equal to the length of the inputs: • &: and • | : or • ^ : xor • ~ : not • Negate one bit/logic array: • a <= ~a • Do a bit-wise OR between two bit/logic arrays: • c <= a | b

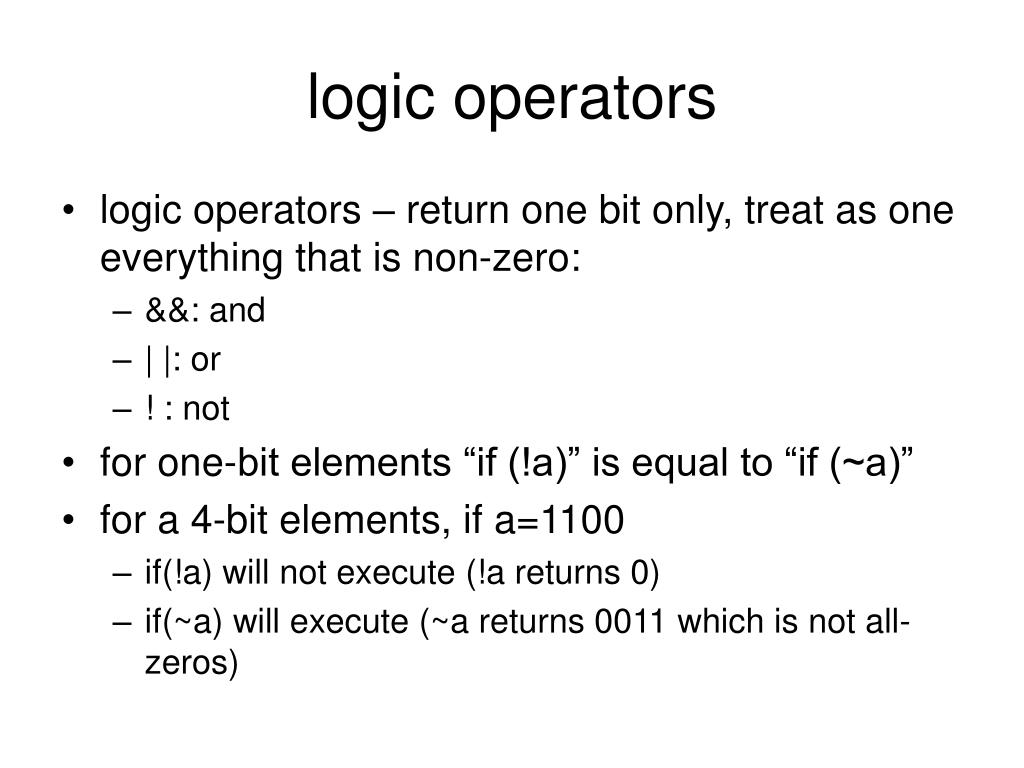

logic operators • logic operators – return one bit only, treat as one everything that is non-zero: • &&: and • | |: or • ! : not • for one-bit elements “if (!a)” is equal to “if (~a)” • for a 4-bit elements, if a=1100 • if(!a) will not execute (!a returns 0) • if(~a) will execute (~a returns 0011 which is not all-zeros)

comparisons • equality: == • diseguality: != • greather than: > • lower than: < • greater or equal than: >= • lower or equal than: <=

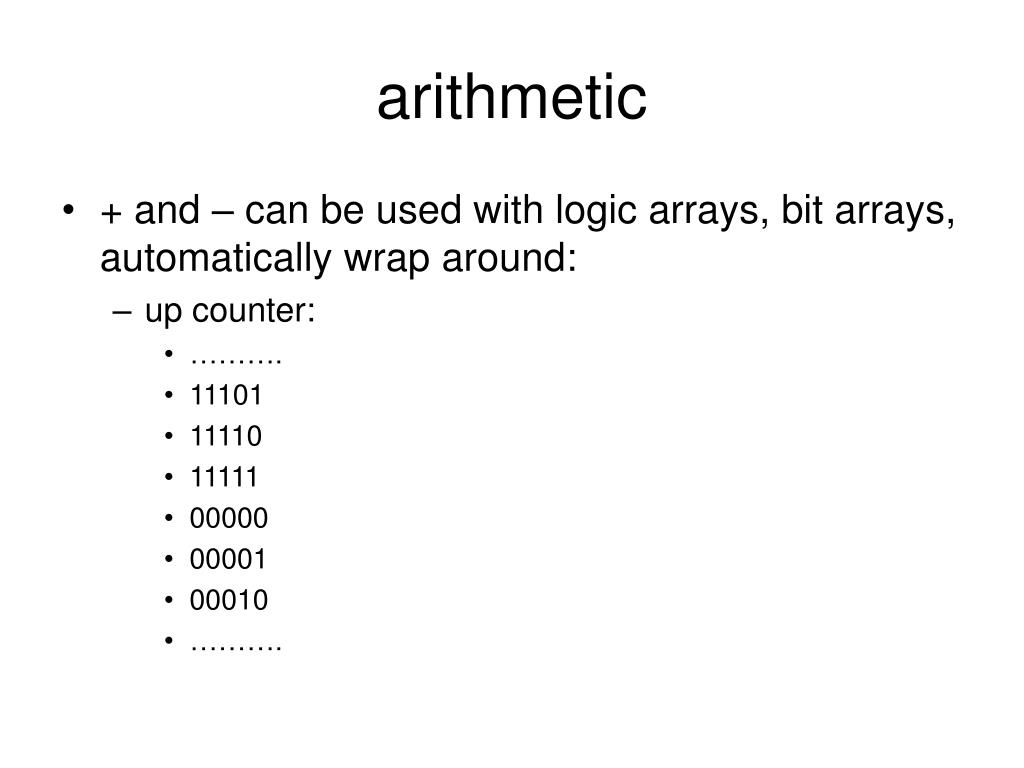

arithmetic • + and – can be used with logic arrays, bit arrays, automatically wrap around: • up counter: • ………. • 11101 • 11110 • 11111 • 00000 • 00001 • 00010 • ……….

Timing Control in Processes • #10ns: waits for 10 ns • #10: wait for 10 time units – time unit specified during elaboration or with a `timescale directive in the code • #(a): wait for a number of time units equal to the value of variable a • #(a*1ps): wait for a number of picoseconds equal to the value of a • @(posedge a): waits for the positive edge of a • @(b): wait until b toggles • wait(expr): waits until expr is true • wait(b): wait until b is one • Timing checks can be bundled with the next instr: #10ns a<=!a

fork… join • Spawn concurrent processes from a single process: A is printed at 30ns; B at 20ns; join waits until both subprocesses have finished, the last display takes place at 40ns initial begin #10ns; fork begin #20ns; $display( “A\n" ); end begin #10ns; $display( “B\n" ); #20ns; end join $display(both finished); end

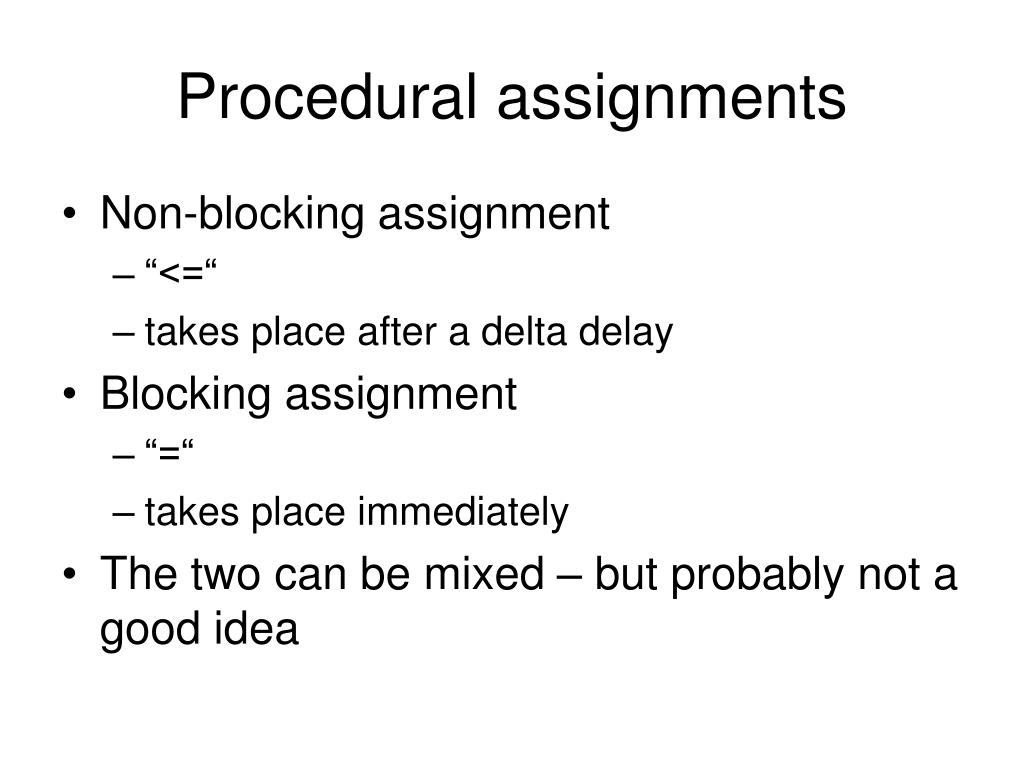

Procedural assignments • Non-blocking assignment • “<=“ • takes place after a delta delay • Blocking assignment • “=“ • takes place immediately • The two can be mixed – but probably not a good idea

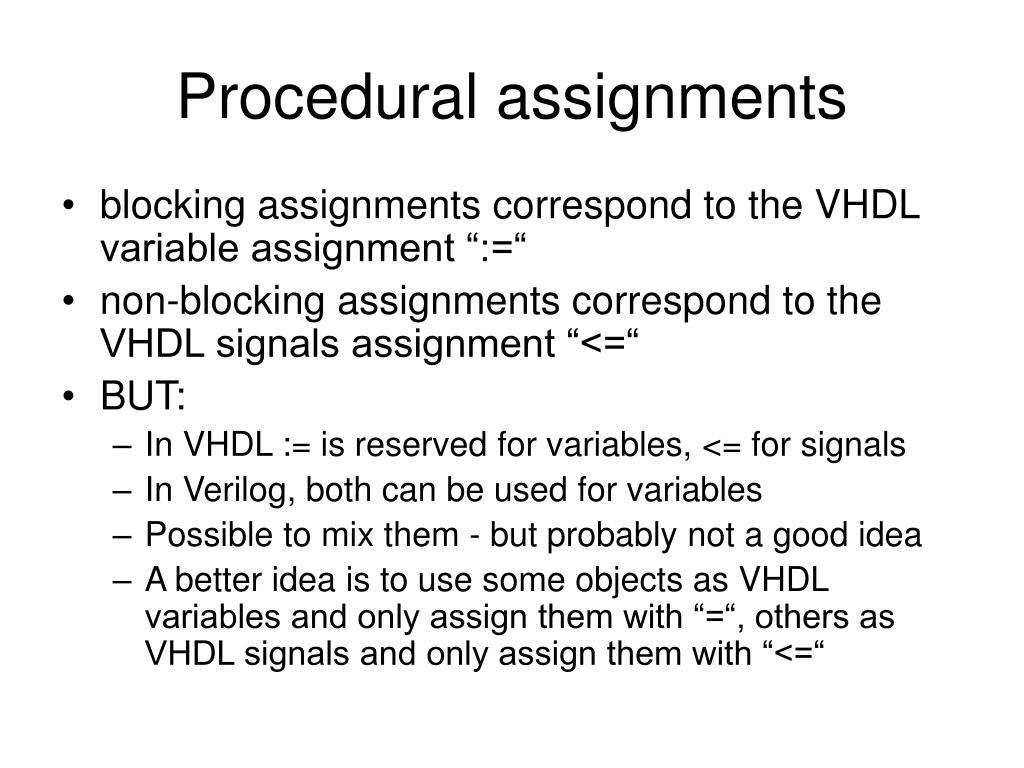

Procedural assignments • blocking assignments correspond to the VHDL variable assignment “:=“ • non-blocking assignments correspond to the VHDL signals assignment “<=“ • BUT: • In VHDL := is reserved for variables, <= for signals • In Verilog, both can be used for variables • Possible to mix them - but probably not a good idea • A better idea is to use some objects as VHDL variables and only assign them with “=“, others as VHDL signals and only assign them with “<=“

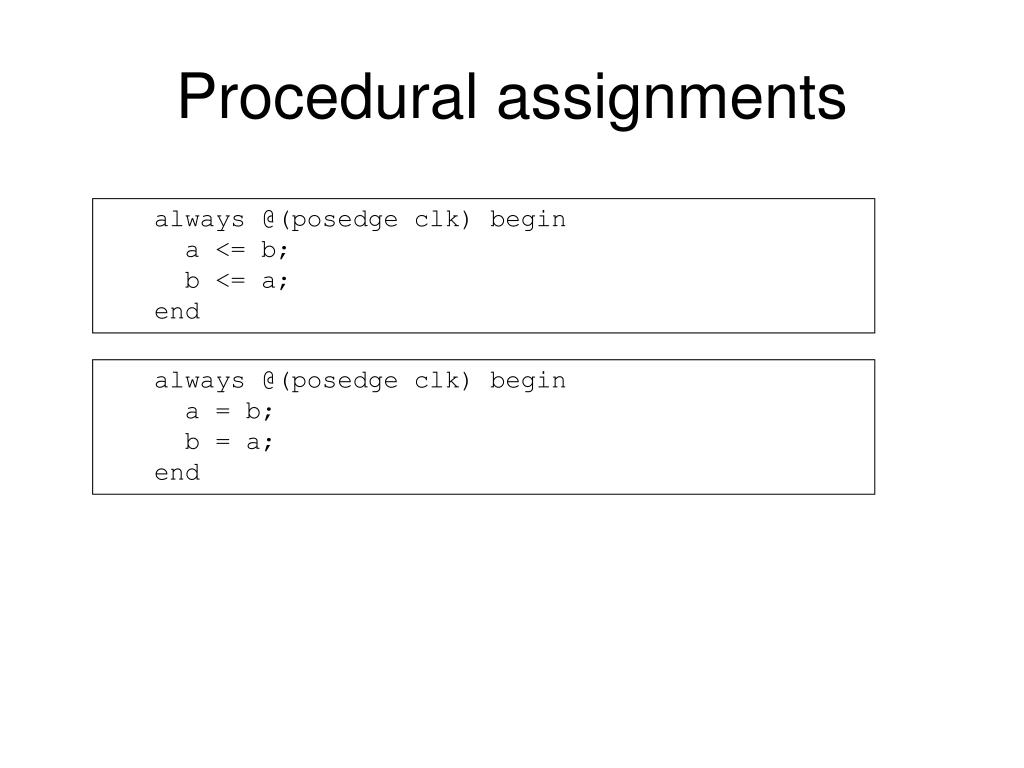

Procedural assignments • always @(posedge clk) begin • a <= b; • b <= a; • end • always @(posedge clk) begin • a = b; • b = a; • end

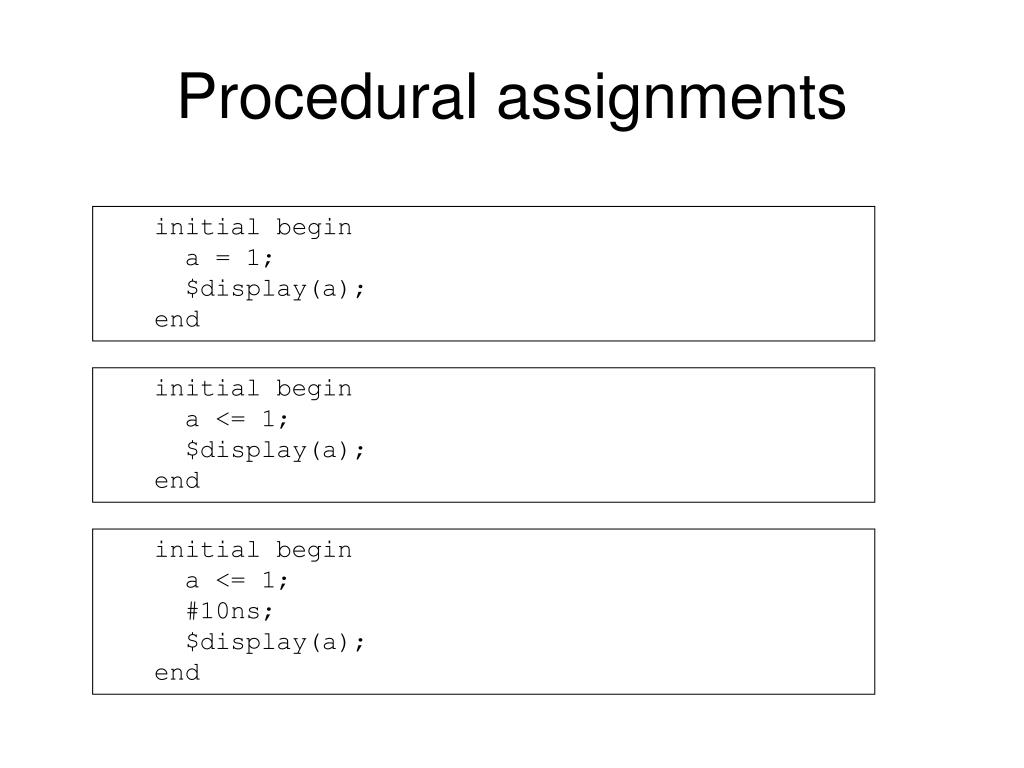

Procedural assignments • initial begin • a = 1; • $display(a); • end • initial begin • a <= 1; • $display(a); • end • initial begin • a <= 1; • #10ns; • $display(a); • end

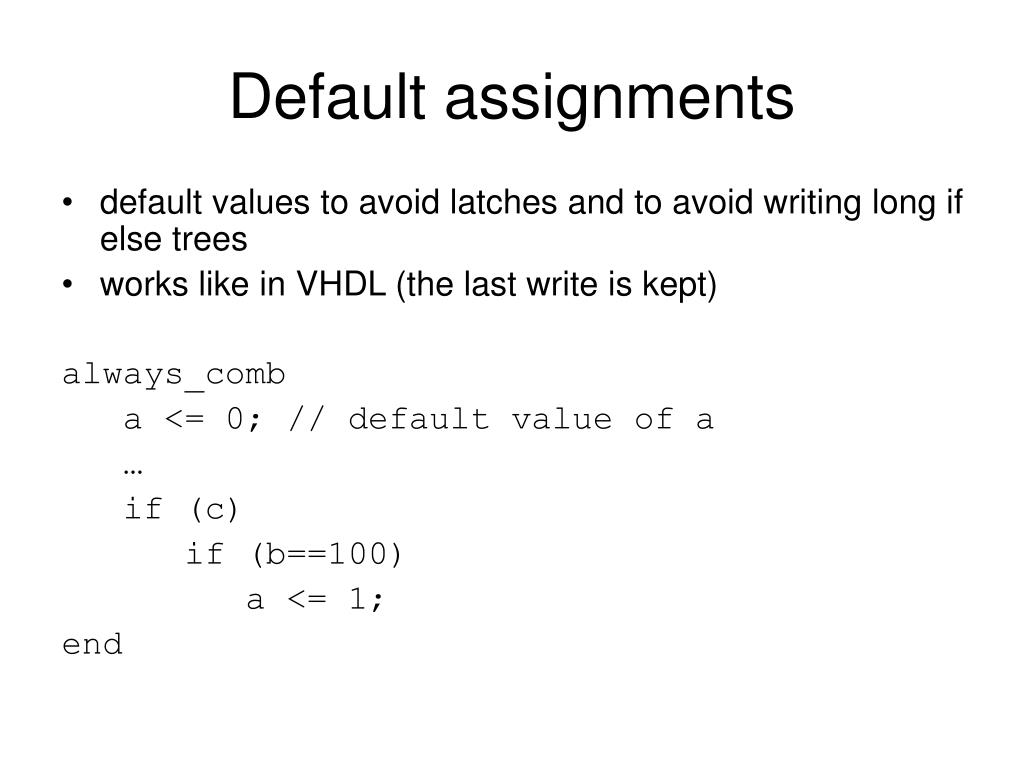

Default assignments • default values to avoid latches and to avoid writing long if else trees • works like in VHDL (the last write is kept) always_comb a <= 0; // default value of a … if (c) if (b==100) a <= 1; end

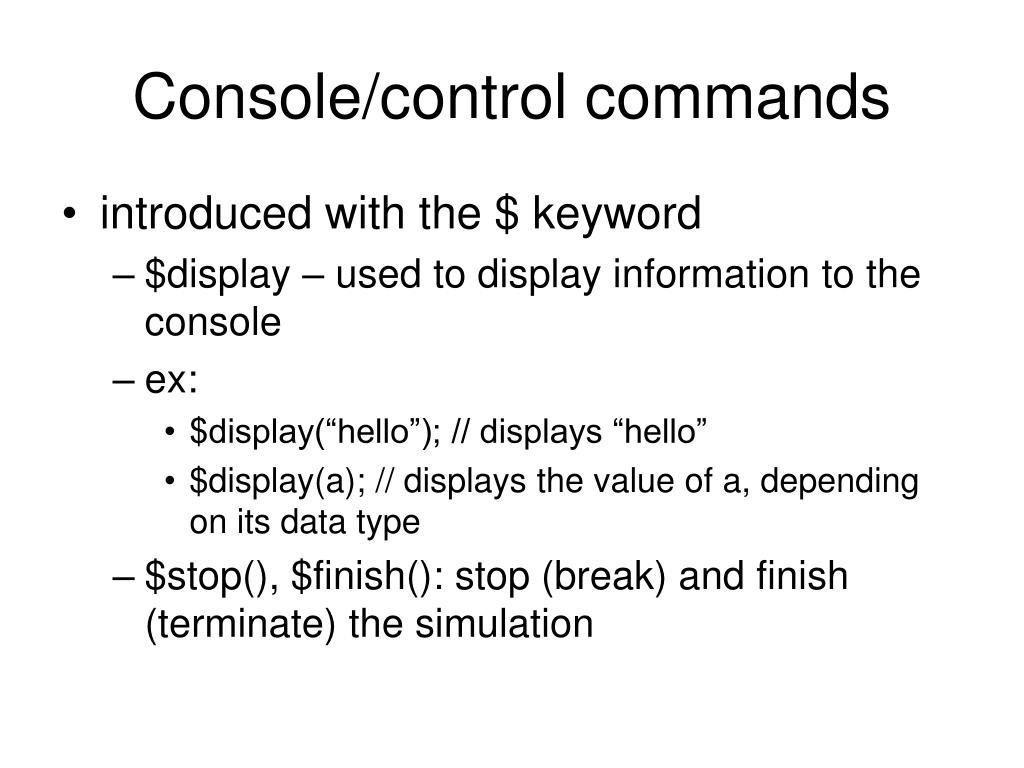

Console/control commands • introduced with the $ keyword • $display – used to display information to the console • ex: • $display(“hello”); // displays “hello” • $display(a); // displays the value of a, depending on its data type • $stop(), $finish(): stop (break) and finish (terminate) the simulation

Direct generation of random numbers • $urandom returns a 32-bit random unsigned number every time it is called • Can be automatically assigned to shorter values, automatic clipping will take place: bit a; a <= $urandom; • To generate a random number between 0 and 59 we can use: $urandom%60 (modulus) • Note: if not seeded, every time the testbench is run we get the same values • this behavior is required for being able to repeat tests

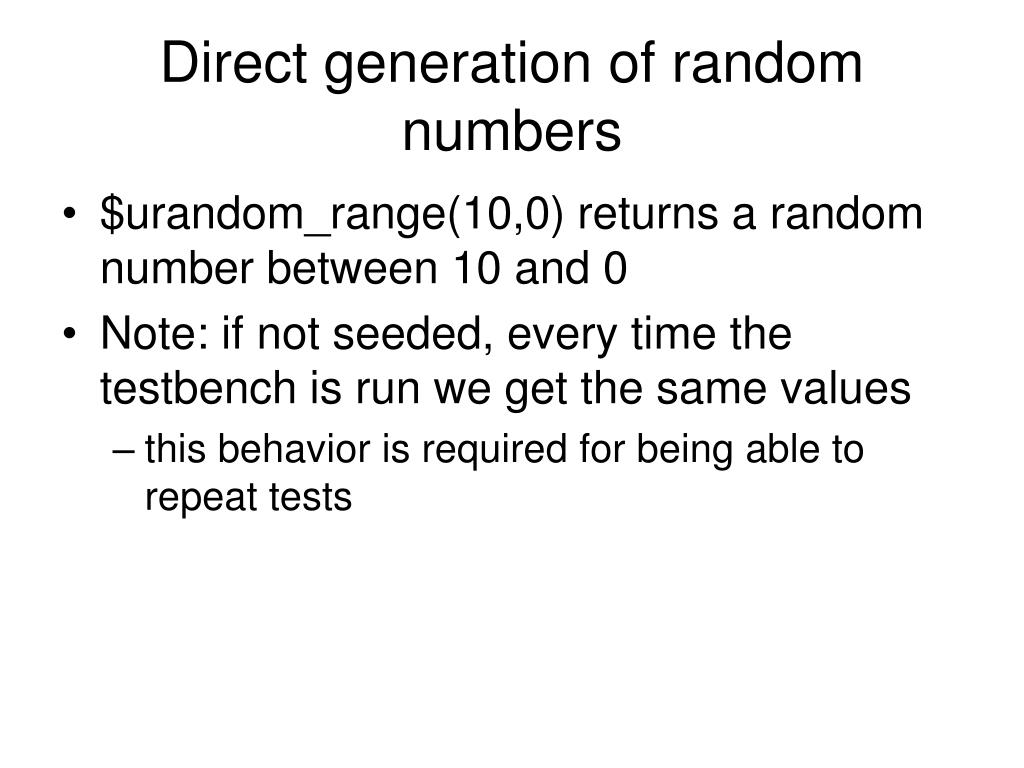

Direct generation of random numbers • $urandom_range(10,0) returns a random number between 10 and 0 • Note: if not seeded, every time the testbench is run we get the same values • this behavior is required for being able to repeat tests

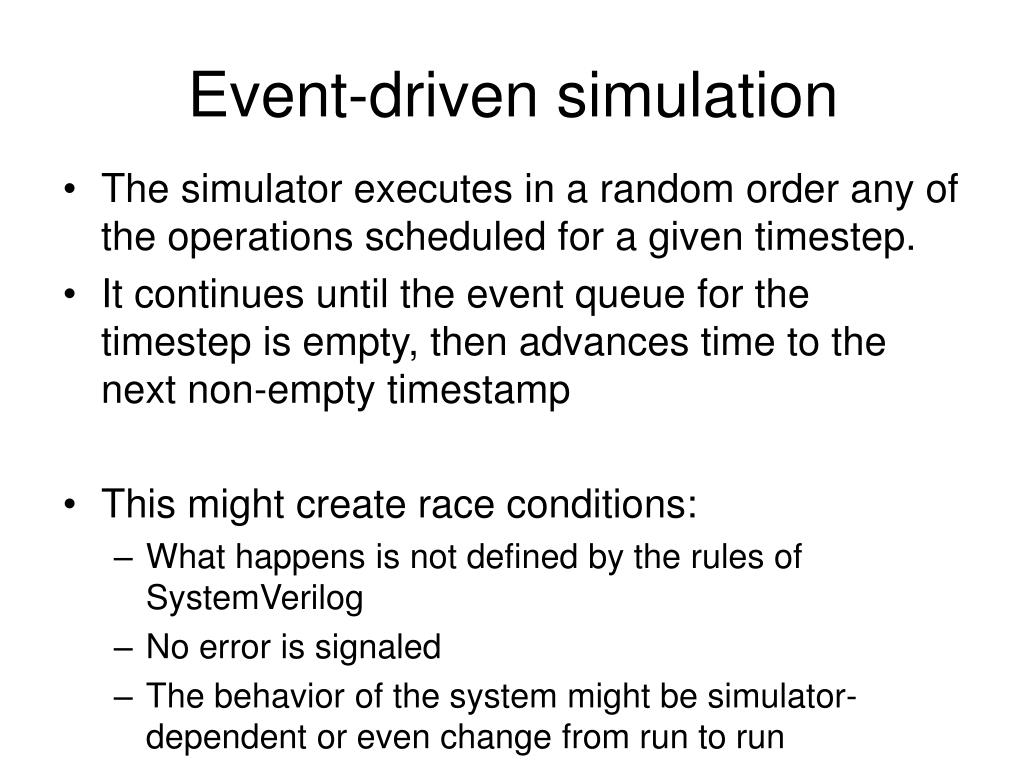

Event-driven simulation • The simulator executes in a random order any of the operations scheduled for a given timestep. • It continues until the event queue for the timestep is empty, then advances time to the next non-empty timestamp • This might create race conditions: • What happens is not defined by the rules of SystemVerilog • No error is signaled • The behavior of the system might be simulator-dependent or even change from run to run

Race condition • initial begin • #10ns; • a = 1; • end • initial begin • #10 ns; • a = 0; • end • initial begin • #20 ns; • $display(a); • end

Race condition • initial begin • #10ns; • a <= 1; • end • initial begin • #10 ns; • a <= 0; • end • initial begin • #20 ns; • $display(a); • end

Race condition • initial begin • #10ns; • a <= 1; • end • initial begin • #10 ns; • a = 0; • end • initial begin • #20 ns; • $display(a); • end

Race condition • initial begin • #10ns; • a = 1; • a = 0; • end • initial begin • #20 ns; • $display(a); • end

Race conditions • Happen when two different processes try to write the same signal during the same time step • Ways to avoid: • don’t write the same signal in different processes, unless you really know what you do (you know that the two processes will never write the signal in the same time step)

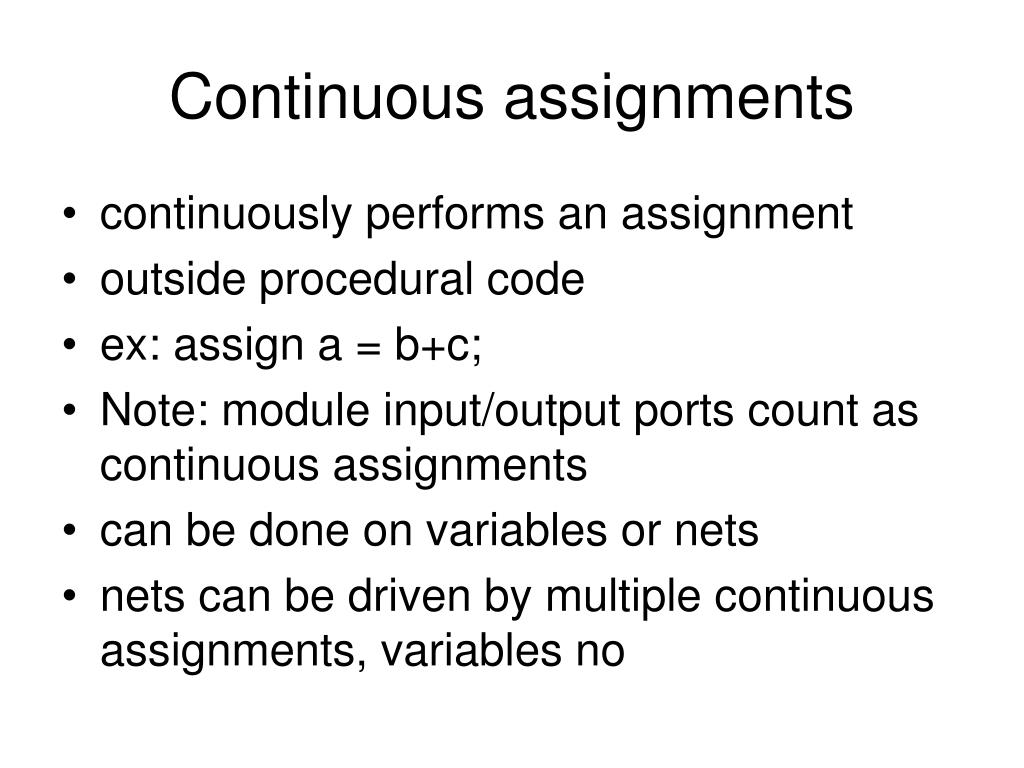

Continuous assignments • continuously performs an assignment • outside procedural code • ex: assign a = b+c; • Note: module input/output ports count as continuous assignments • can be done on variables or nets • nets can be driven by multiple continuous assignments, variables no

Variables vs Nets • Variables: • Are defined as: var type name • Example: var logic a (logic is default, can be omitted) • The keyword “var” is the default, it can be omitted • So when we define something like • logic a; • bit [7:0] b; we are actually defining variables

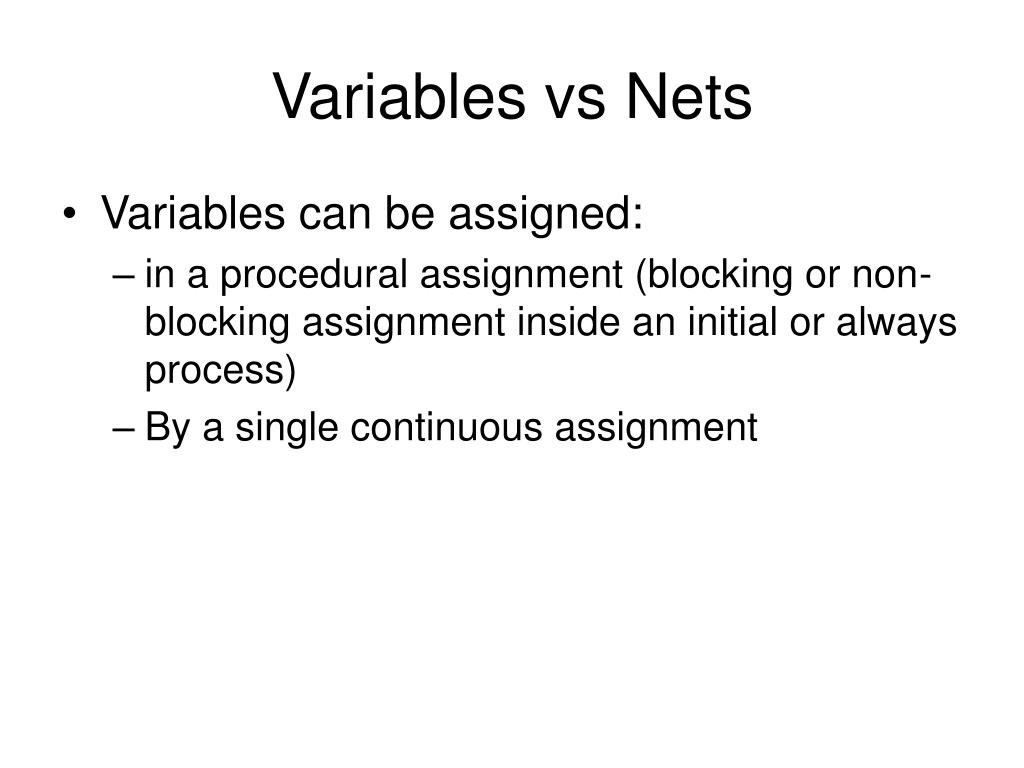

Variables vs Nets • Variables can be assigned: • in a procedural assignment (blocking or non-blocking assignment inside an initial or always process) • By a single continuous assignment

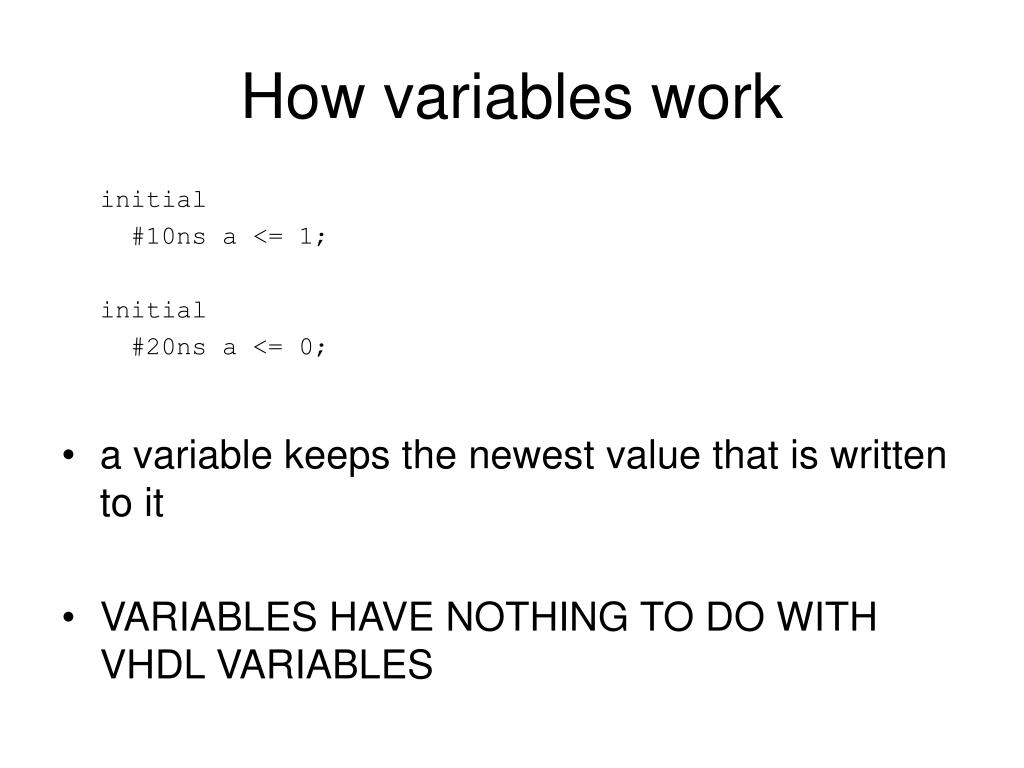

How variables work initial #10ns a <= 1; initial #20ns a <= 0; • a variable keeps the newest value that is written to it • VARIABLES HAVE NOTHING TO DO WITH VHDL VARIABLES

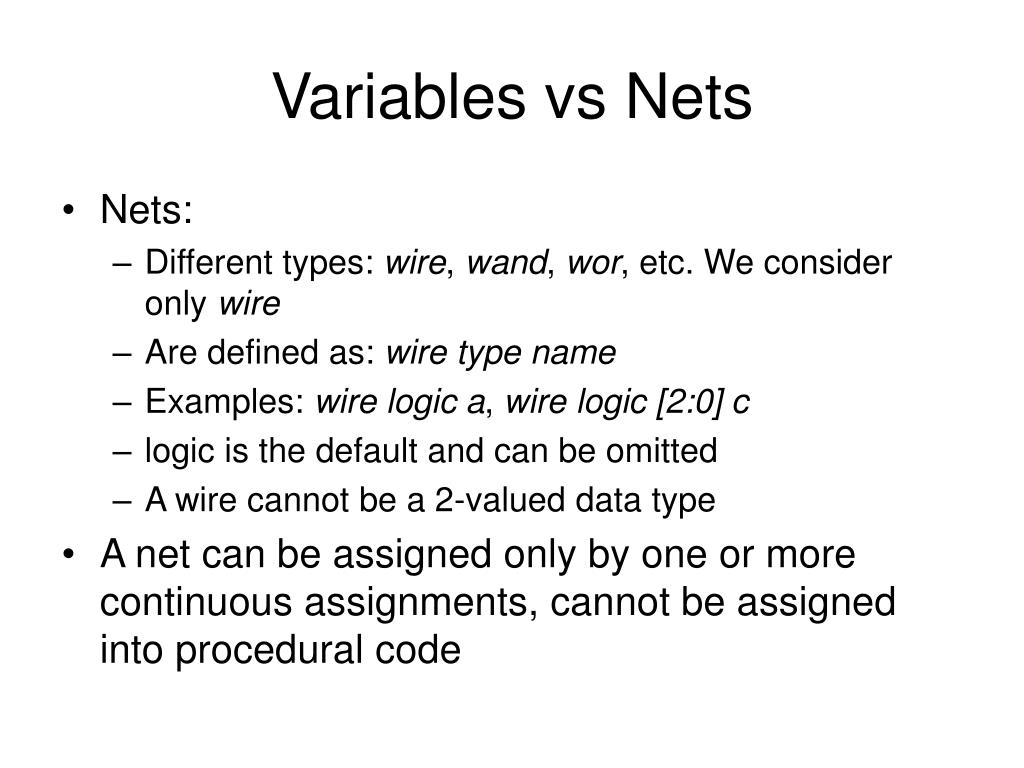

Variables vs Nets • Nets: • Different types: wire, wand, wor, etc. We consider only wire • Are defined as: wire type name • Examples: wire logic a, wire logic [2:0] c • logic is the default and can be omitted • A wire cannot be a 2-valued data type • A net can be assigned only by one or more continuous assignments, cannot be assigned into procedural code

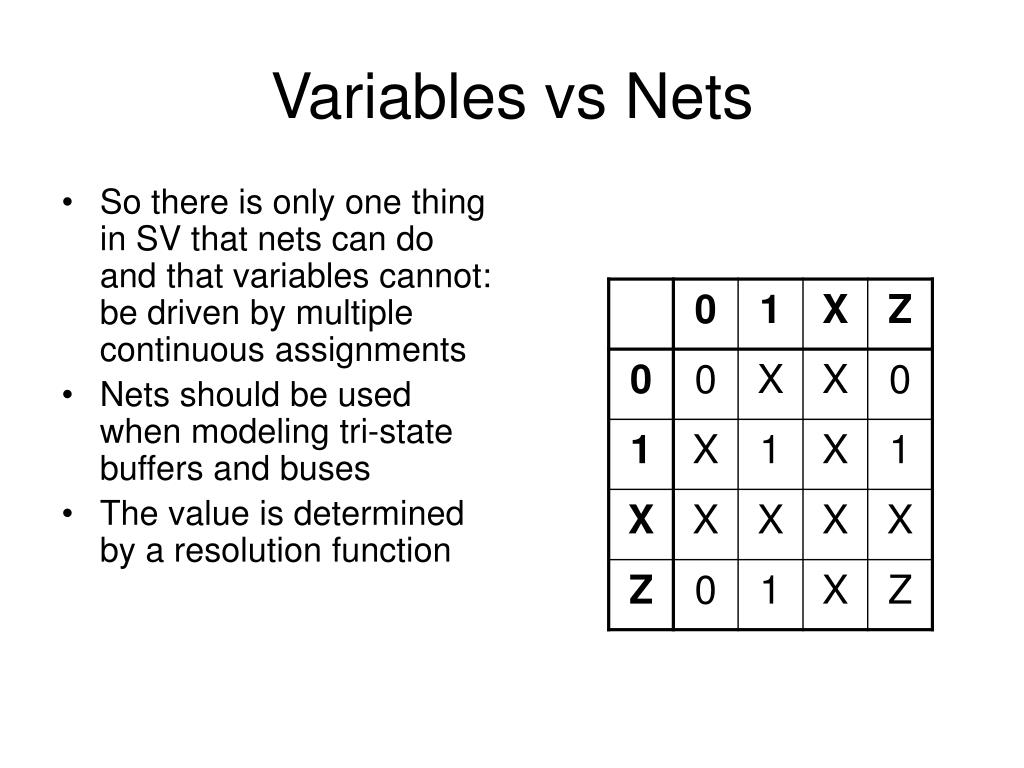

Variables vs Nets • So there is only one thing in SV that nets can do and that variables cannot: be driven by multiple continuous assignments • Nets should be used when modeling tri-state buffers and buses • The value is determined by a resolution function

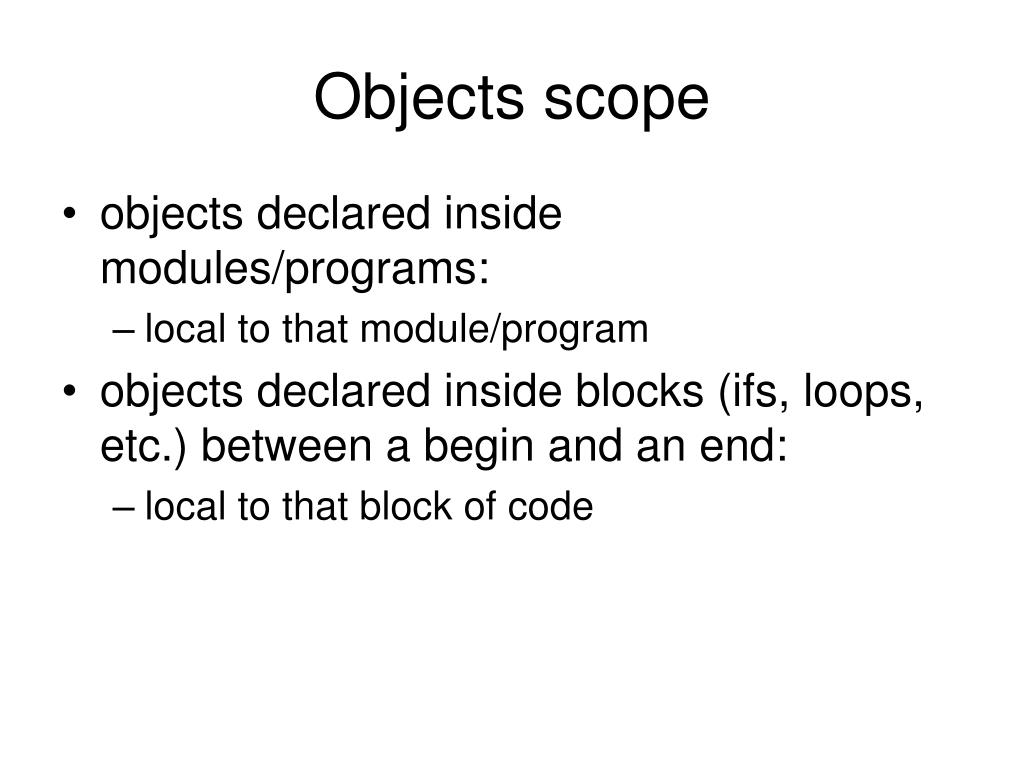

Objects scope • objects declared inside modules/programs: • local to that module/program • objects declared inside blocks (ifs, loops, etc.) between a begin and an end: • local to that block of code

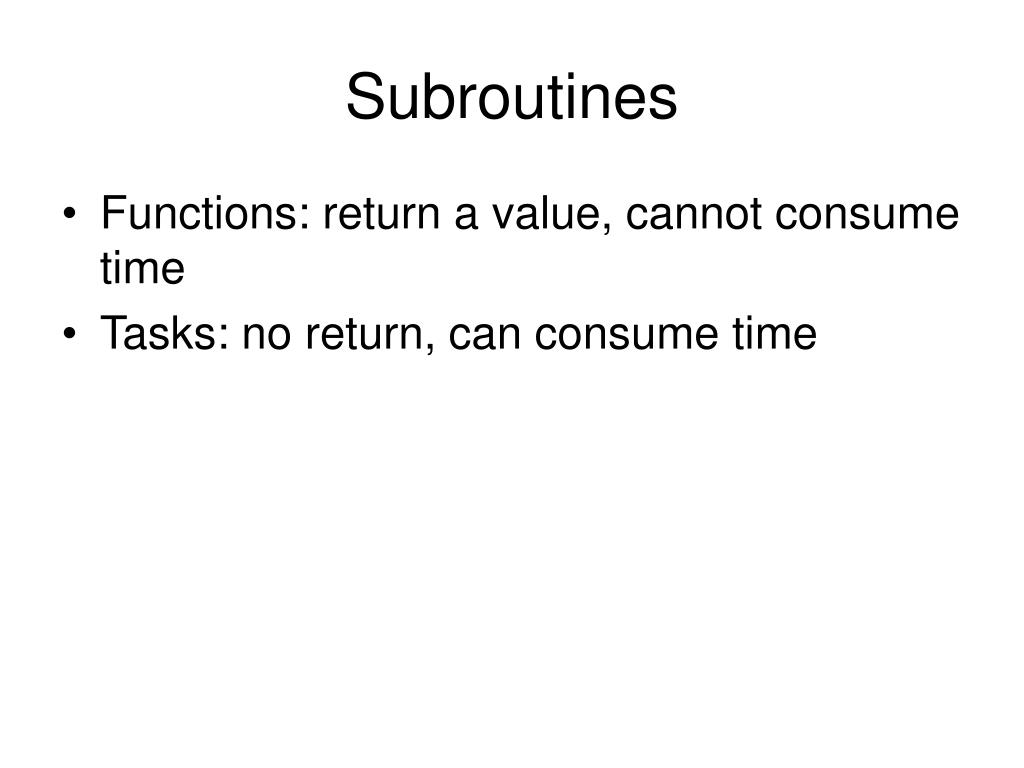

Subroutines • Functions: return a value, cannot consume time • Tasks: no return, can consume time

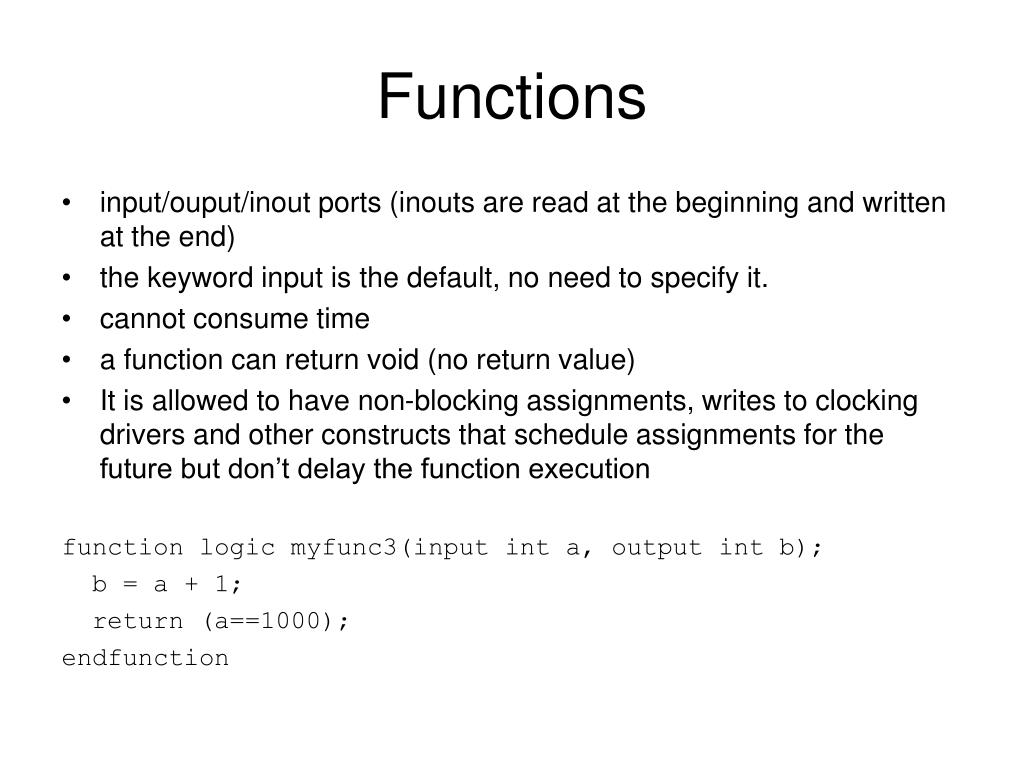

Functions • input/ouput/inout ports (inouts are read at the beginning and written at the end) • the keyword input is the default, no need to specify it. • cannot consume time • a function can return void (no return value) • It is allowed to have non-blocking assignments, writes to clocking drivers and other constructs that schedule assignments for the future but don’t delay the function execution function logic myfunc3(input int a, output int b); b = a + 1; return (a==1000); endfunction
