  1. Digital Sound • Actual representation of sound • Stored in form of thousands of individual numbers (called samples) • Not device dependent • Stored in bits

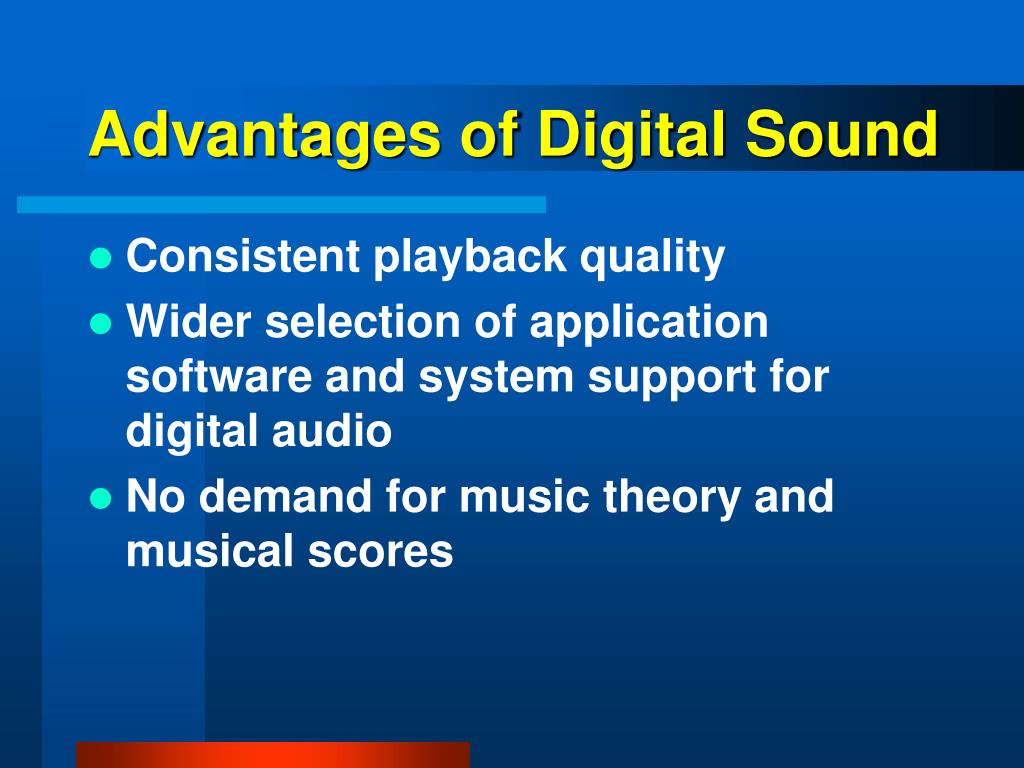

  2. Advantages of Digital Sound • Consistent playback quality • Wider selection of application software and system support for digital audio • No demand for music theory and musical scores

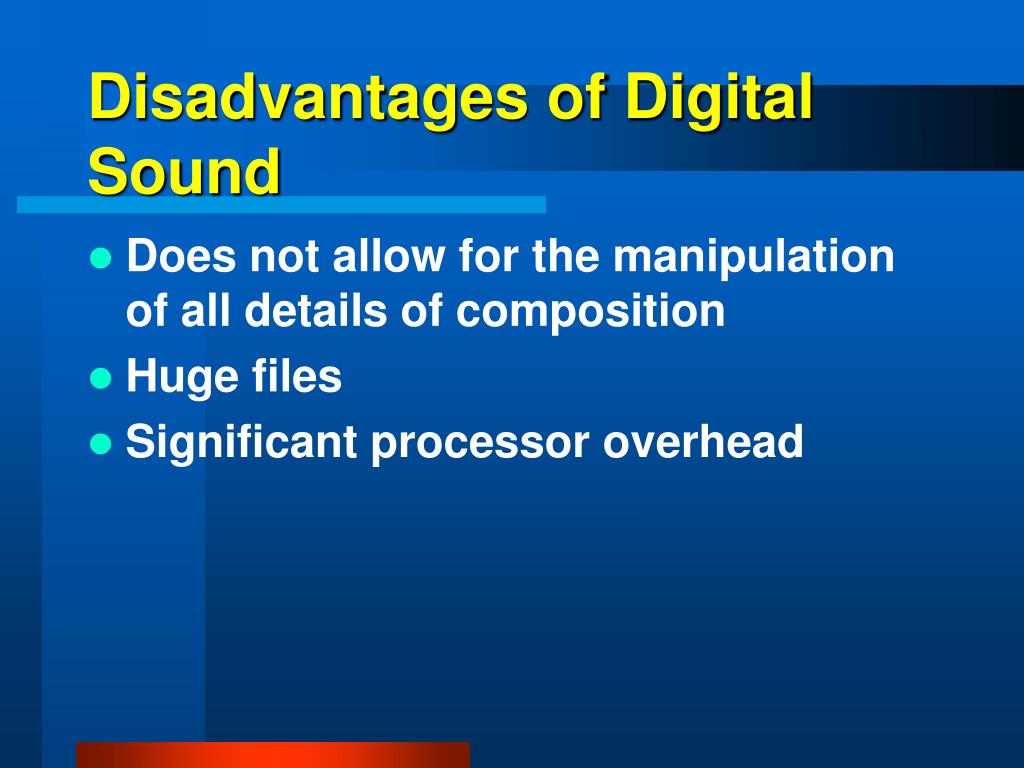

  3. Disadvantages of Digital Sound • Does not allow for the manipulation of all details of composition • Huge files • Significant processor overhead

  4. Sound Quality • Capture at highest possible quality • Determine by capabilities of target delivery platform

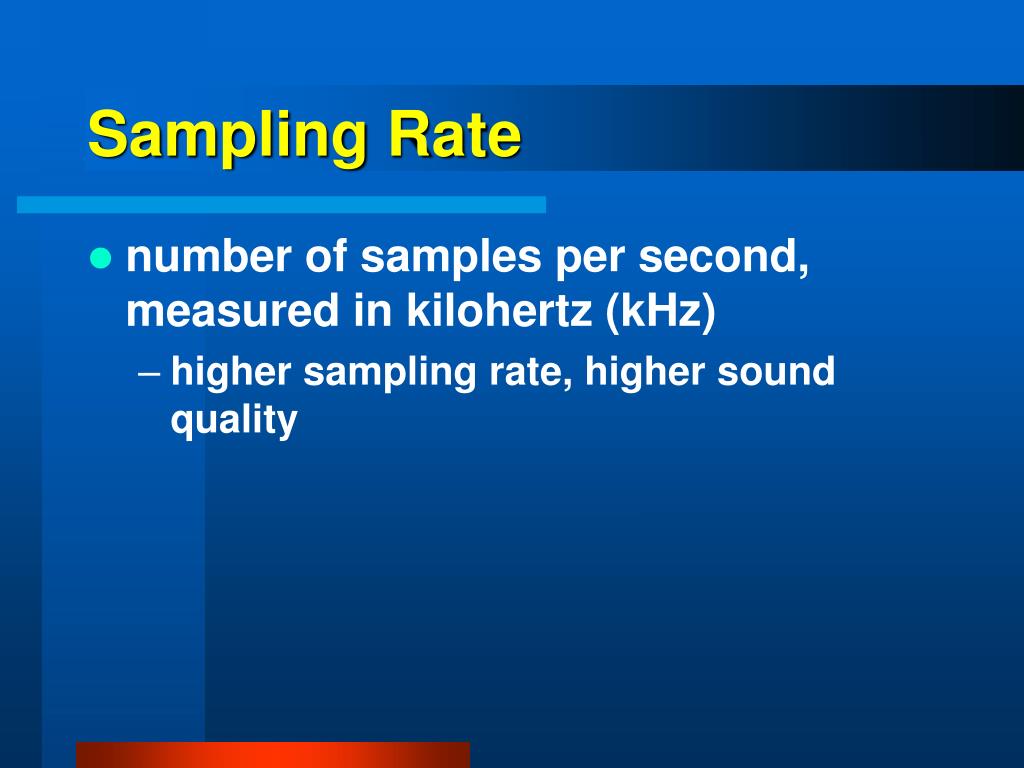

  5. Sampling Rate • number of samples per second, measured in kilohertz (kHz) • higher sampling rate, higher sound quality

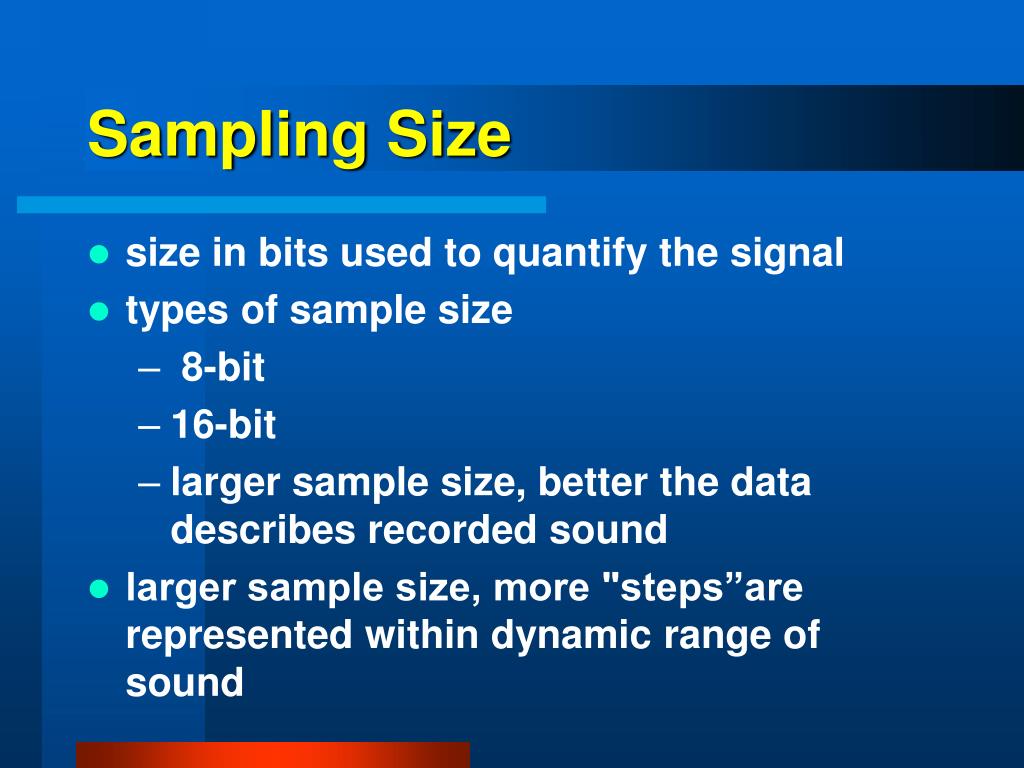

  6. Sampling Size • size in bits used to quantify the signal • types of sample size • 8-bit • 16-bit • larger sample size, better the data describes recorded sound • larger sample size, more "steps”are represented within dynamic range of sound

  7. Stereo Vs. Monophonic Sound • Stereo Sound • more lifelike and realistic • provides data in two different channels - left and right • files require twice as much storage space as mono files • Monophonic Sound • tend to sound "flat" and uninteresting • only one channel

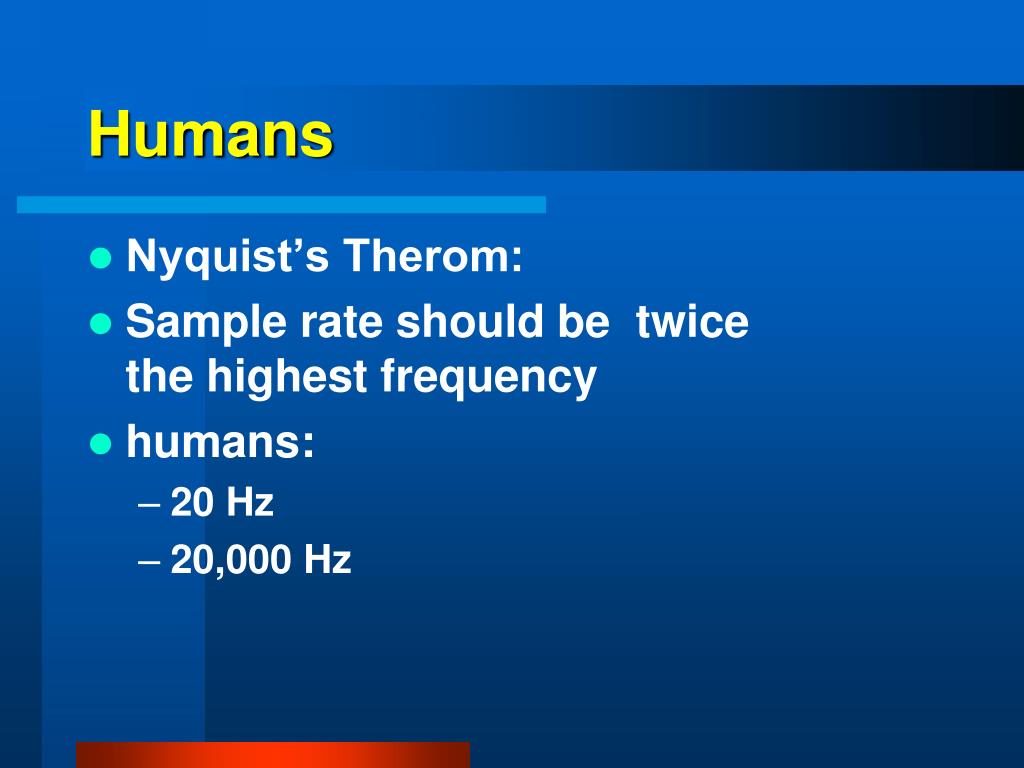

  8. Humans • Nyquist’s Therom: • Sample rate should be twicethe highest frequency • humans: • 20 Hz • 20,000 Hz

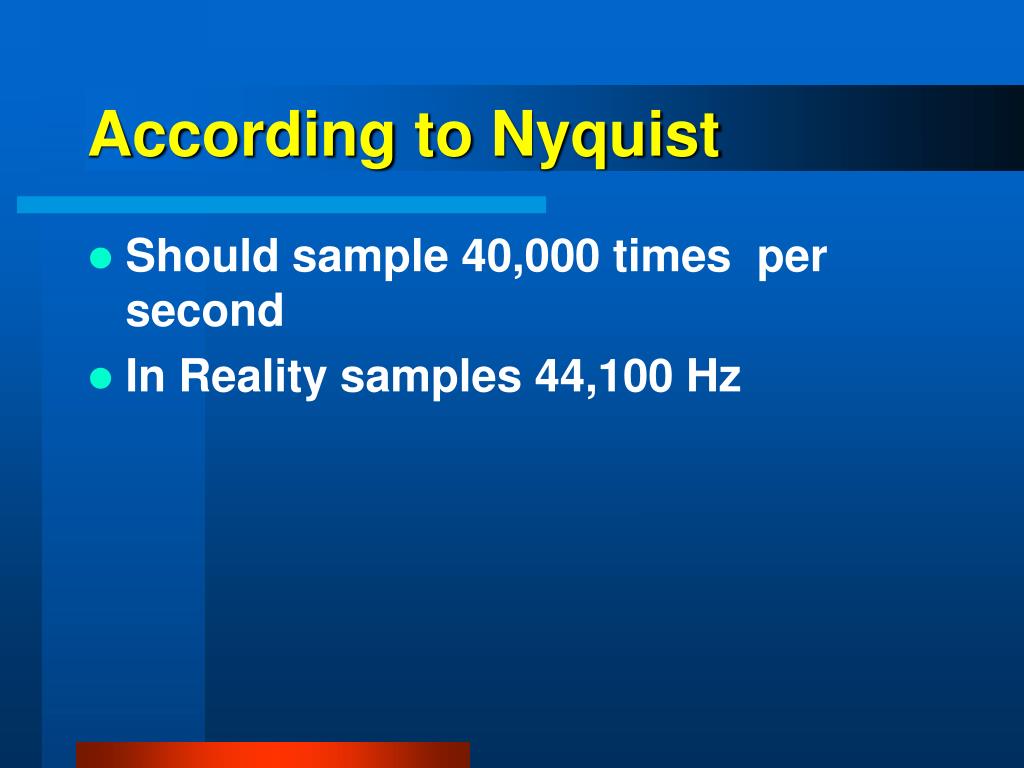

  9. According to Nyquist • Should sample 40,000 times per second • In Reality samples 44,100 Hz

  10. Sampling Formulas • to determine the size in bits of a digital mono recording: • sampling rate * duration of recording in seconds * (bit resolutions) * 1 • to determine the size in bytes of a digital stereo recording: • sampling rate * duration of recording in seconds * (bit resolutions) * 2

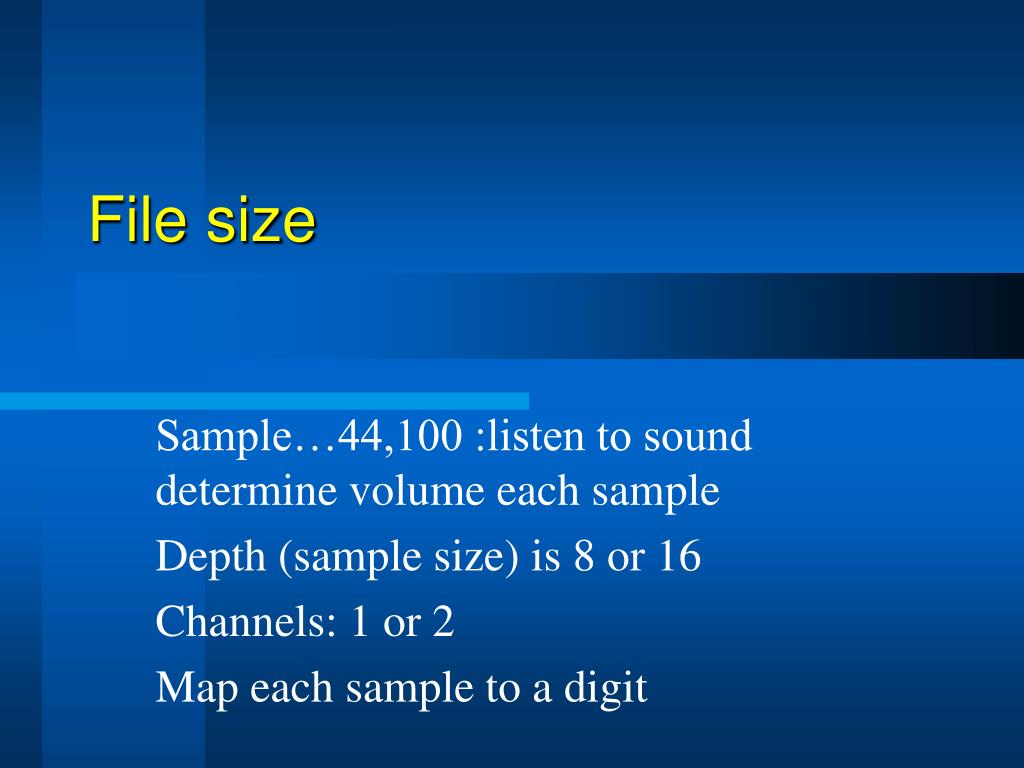

  11. File size Sample…44,100 :listen to sound determine volume each sample Depth (sample size) is 8 or 16 Channels: 1 or 2 Map each sample to a digit

  12. File Size vs. Quality • Higher the sound quality, the larger the file • Record at highest sampling rate and resolution, i.e., 16-bit stereo, 44.1 kHz

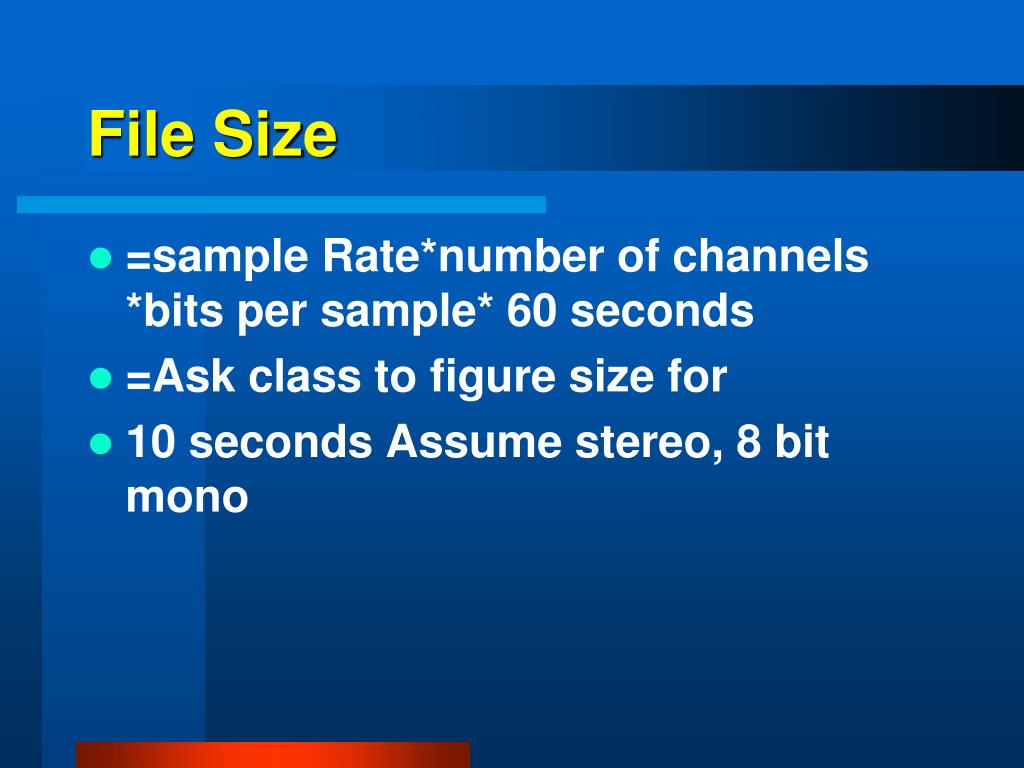

  13. File Size • =sample Rate*number of channels *bits per sample* 60 seconds • =Ask class to figure size for • 10 seconds Assume stereo, 8 bit mono

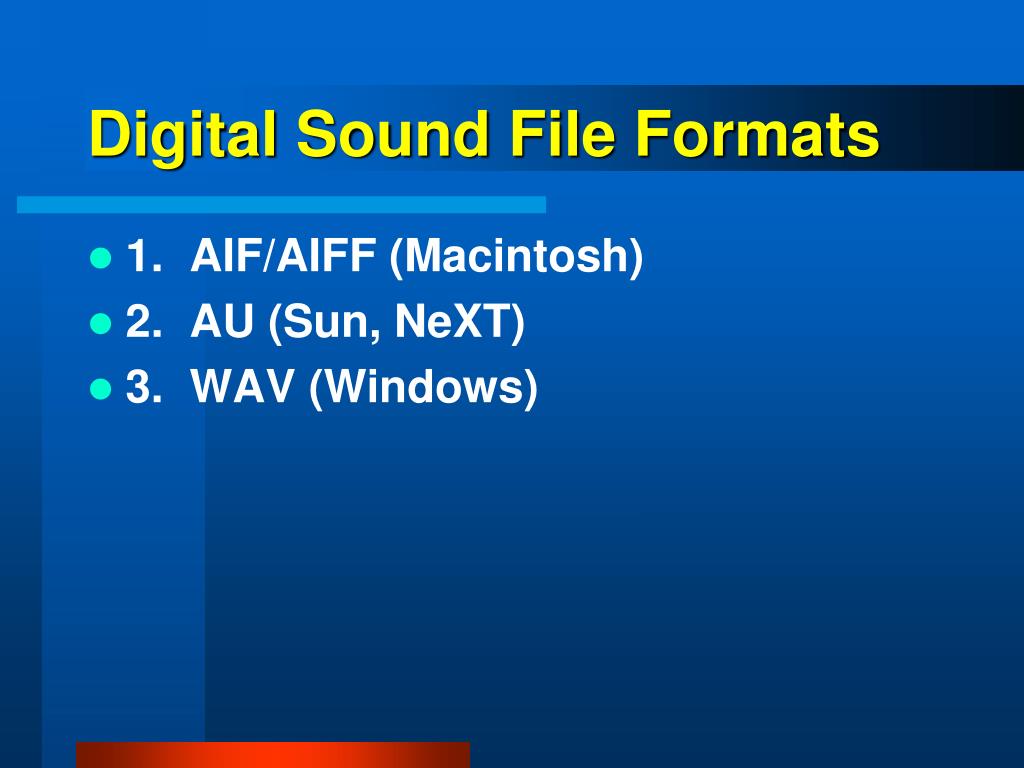

  14. Digital Sound File Formats • 1. AIF/AIFF (Macintosh) • 2. AU (Sun, NeXT) • 3. WAV (Windows)
