Presentation Transcript

  1. Monitor Mouse Key Board Printer (Inkjet) UPS Cabinet Computer… An electronic machine PPT 8.1.1

  2. INPUT UNITS : Key Board, Mouse, Scanner, Barcode Scanner, Pen Drive, CD, DVD • OUTPUT UNITS : Monitor, Printer, Speaker, Pen Drive, CD, DVD • CPU : Brain of Computer ( Processor ) PPT 8.2.2 Computer’s PPT 8.1.2

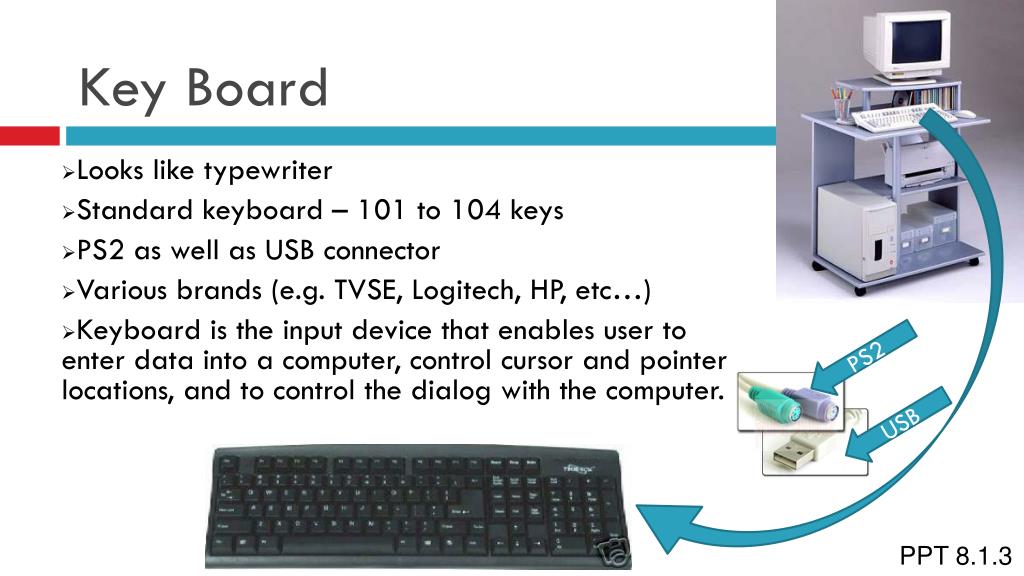

  3. Key Board • Looks like typewriter • Standard keyboard – 101 to 104 keys • PS2 as well as USB connector • Various brands (e.g. TVSE, Logitech, HP, etc…) • Keyboard is the input device that enables user to enter data into a computer, control cursor and pointer locations, and to control the dialog with the computer. PS2 USB PPT 8.1.3

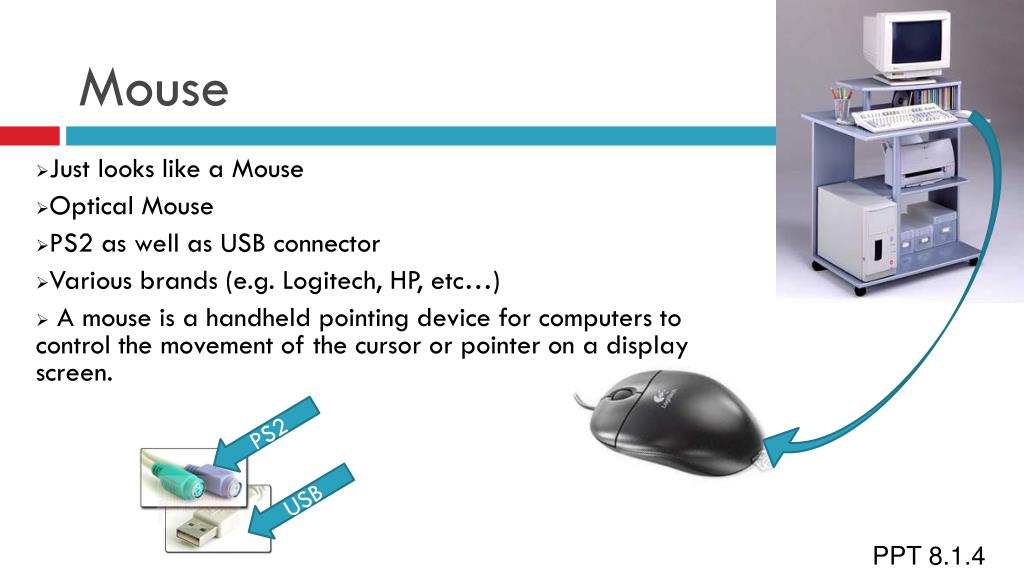

  4. Mouse • Just looks like a Mouse • Optical Mouse • PS2 as well as USB connector • Various brands (e.g. Logitech, HP, etc…) • A mouse is a handheld pointing device for computers to control the movement of the cursor or pointer on a display screen. PS2 USB PPT 8.1.4

  5. Monitor • Just looks like a TV • Type : Digital – Flat – LCD having different size • COM port available • Various brands (e.g. Samsung, Philips, LG, HP, etc…) • Monitor, also known as display screen, is a computer peripheral device capable of showing still or moving images generated by a computer and processed by a graphics card. PPT 8.1.5

  6. Cabinet • It is a Box containing – Mother Board, CPU, SMPS, RAM, PCI Cards, Hard Disc, CD/DVD Drive, Floppy Drive, Ports, etc… PPT 8.1.6

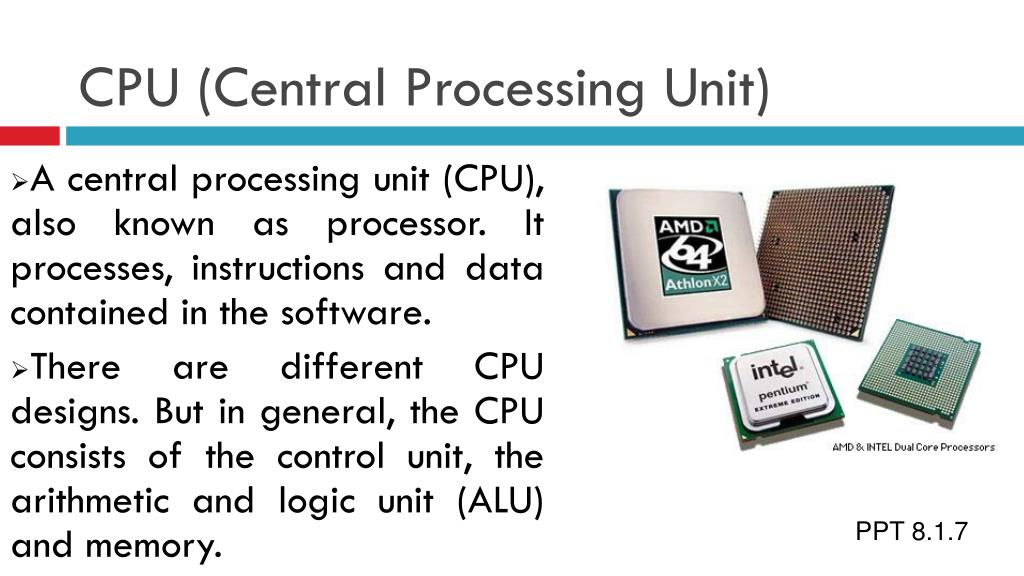

  7. CPU (Central Processing Unit) • A central processing unit (CPU), also known as processor. It processes, instructions and data contained in the software. • There are different CPU designs. But in general, the CPU consists of the control unit, the arithmetic and logic unit (ALU) and memory. PPT 8.1.7

  8. SMPS (Switch Mode Power Supply) • Switch Mode Power Supplies is the latest technology for high efficiency power supplies. The switch mode power supply, uses a high frequency switch to maintain the output voltage. PPT 8.1.8

  9. RAM (Random Access Memory) • Random Access Memory (RAM) is a volatile memory whose contents can be accessed in any (i.e., random) order. • Higher the RAM – Faster the Computer PPT 8.1.9

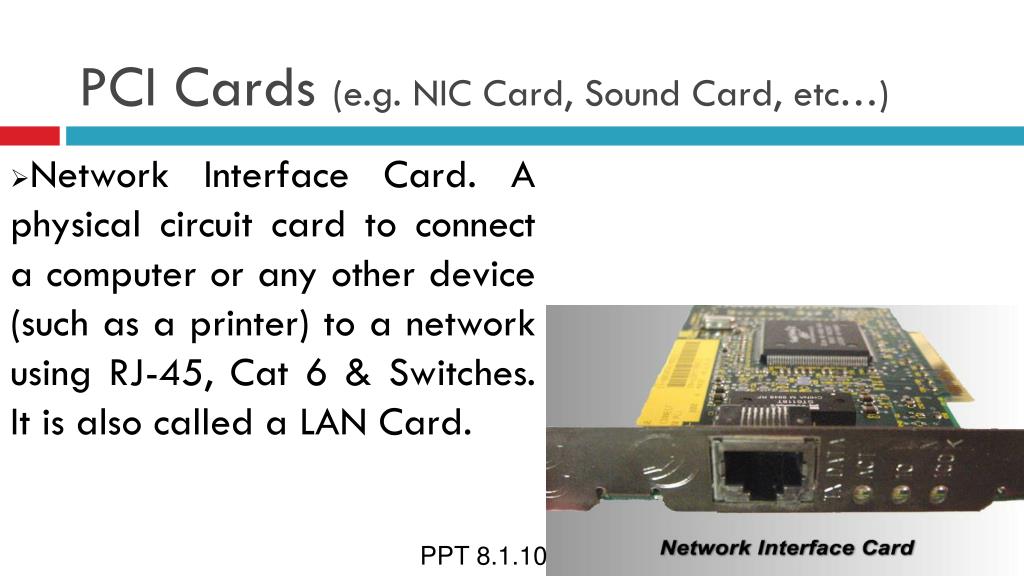

  10. PCI Cards (e.g. NIC Card, Sound Card, etc…) • Network Interface Card. A physical circuit card to connect a computer or any other device (such as a printer) to a network using RJ-45, Cat 6 & Switches. It is also called a LAN Card. PPT 8.1.10

  11. Networking Devices Cat -6 RJ – 45 16 Port Switch Crimping Tool Using the RJ-45 Connectors, Cat 6 Cable and Switches, Networking can be established with computers. PPT 8.1.11

  12. Hard Disk • Hard disk drive, also known as hard drive or hard disk, is a magnetic disk to store large amounts of computer data. A hard disk uses rigid rotating platters (disks). It stores and retrieves information from a magnetic surface. • Brand Name : Seagate, Samsung, IBM, etc… PPT 8.1.12

  13. Other Accessories CPU FAN Spike Guard PS2 Connector USB Connector PPT 8.1.13

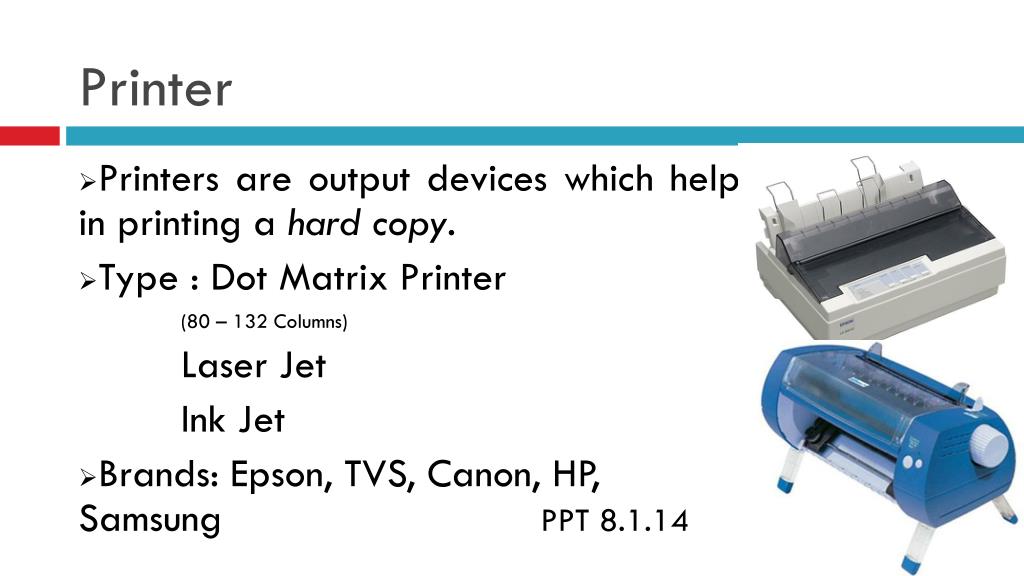

  14. Printer • Printers are output devices which help in printing a hard copy. • Type : Dot Matrix Printer (80 – 132 Columns) Laser Jet Ink Jet • Brands: Epson, TVS, Canon, HP, Samsung PPT 8.1.14

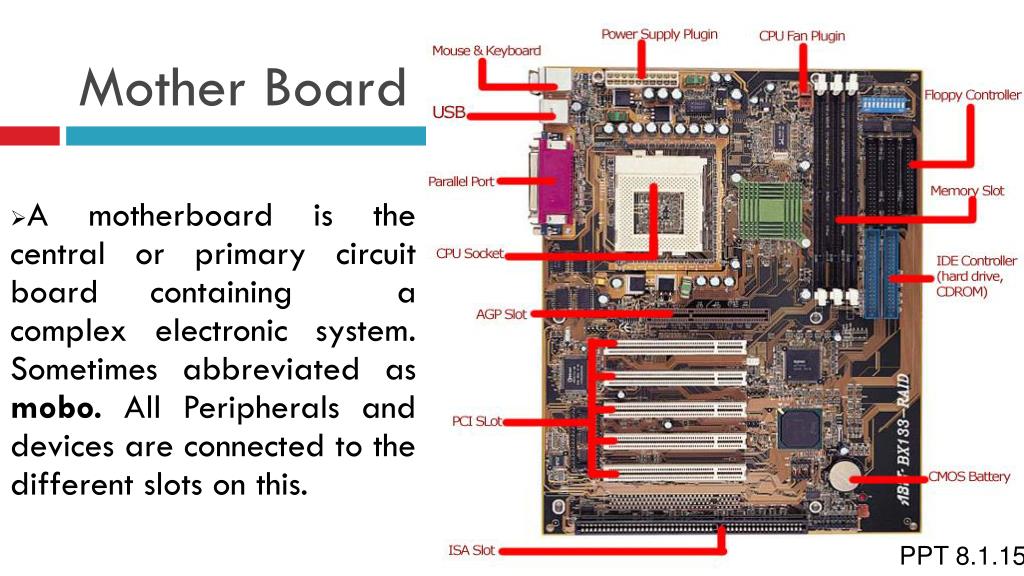

  15. Mother Board • A motherboard is the central or primary circuit board containing a complex electronic system. Sometimes abbreviated as mobo. All Peripherals and devices are connected to the different slots on this. PPT 8.1.15

  16. Mother Board All slots will be serially numbered and functions stated. 1 – Joint Mouse & Key Board here 2 – Attached Pen Drive & USB Printer also 3 – Attached Printer (Dot Matrix) 4 – Attached Processor (CPU) 5 – For Graphic Card 6 – Battery for Date & Time 7 – Slot for Hard Disk & CD-DVD Drive 8 – Slot for RAM 9 – Slot for Floppy Controller 10 – CPU fan power socket 11 – SMPS Socket PPT 8.1.16

  17. UPS (Uninterrupted Power Supply) • Electronic and computer-based equipment for high quality uninterrupted power supply. • Price : Depends on KVA (Kilo Volt Ampere) and the backup period. • Higher the Backup Time – More the Cost PPT 8.1.17

  18. Thank You… Computer… An electronic machine
