  1. Montana State University September 14, 2009 Joseph A. Shaw Justin A. Hogan ZERT Hotspot Observations

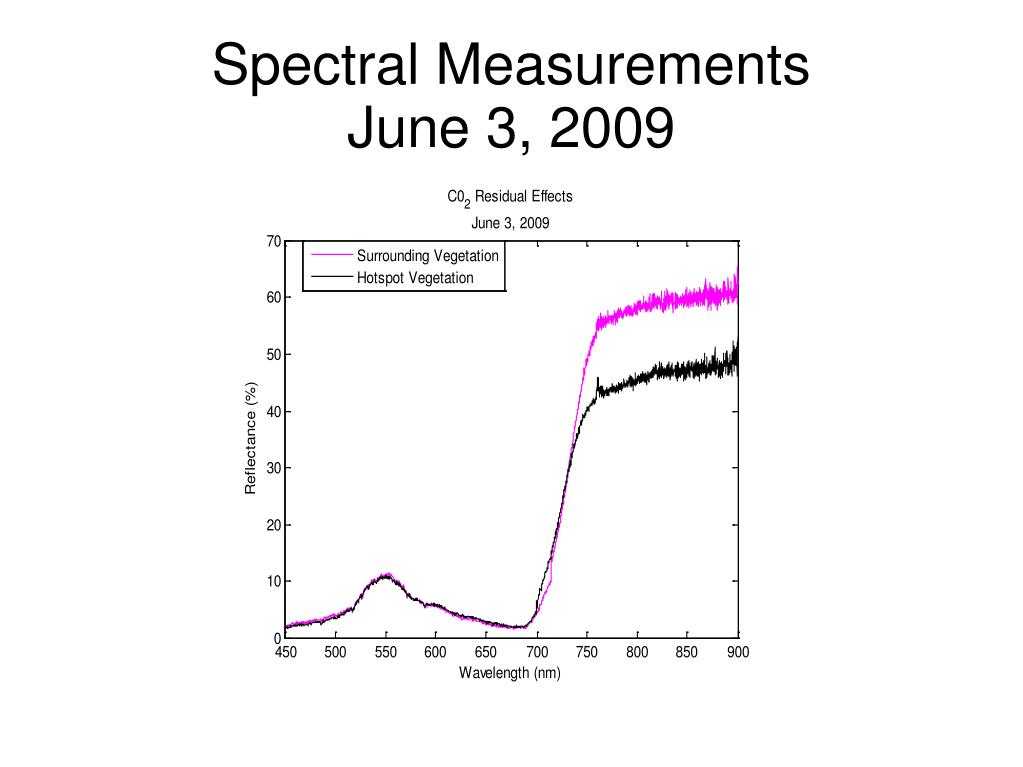

  2. Spectral MeasurementsJune 3, 2009

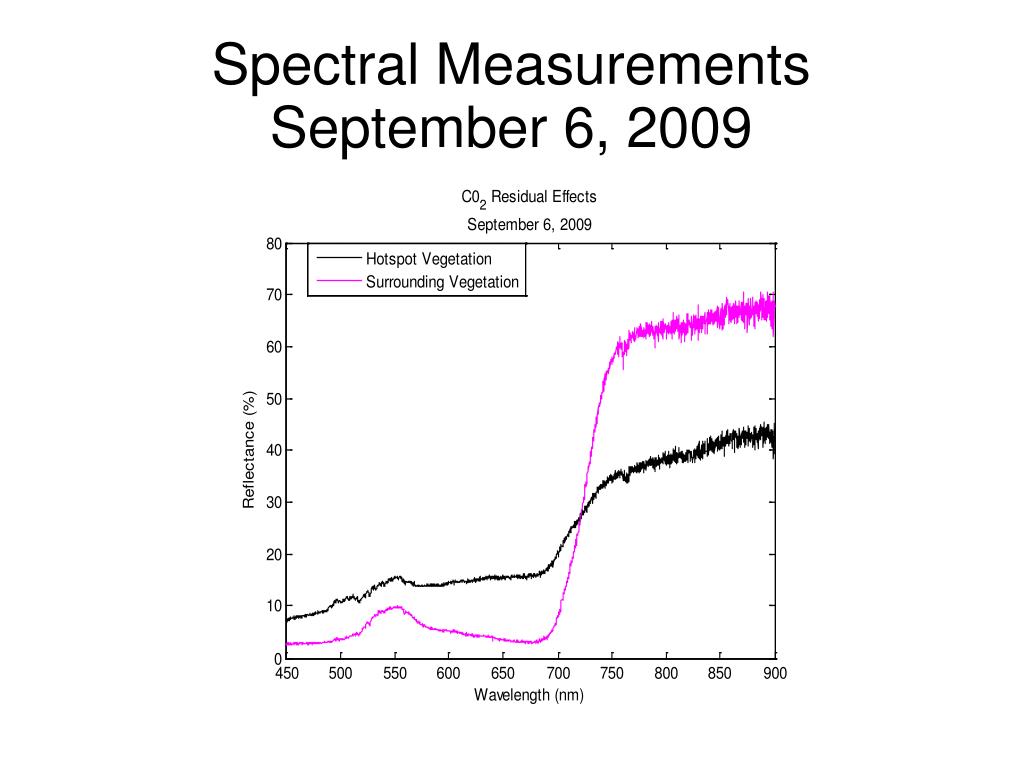

  3. Spectral MeasurementsSeptember 6, 2009

  4. Spectral Comparisons

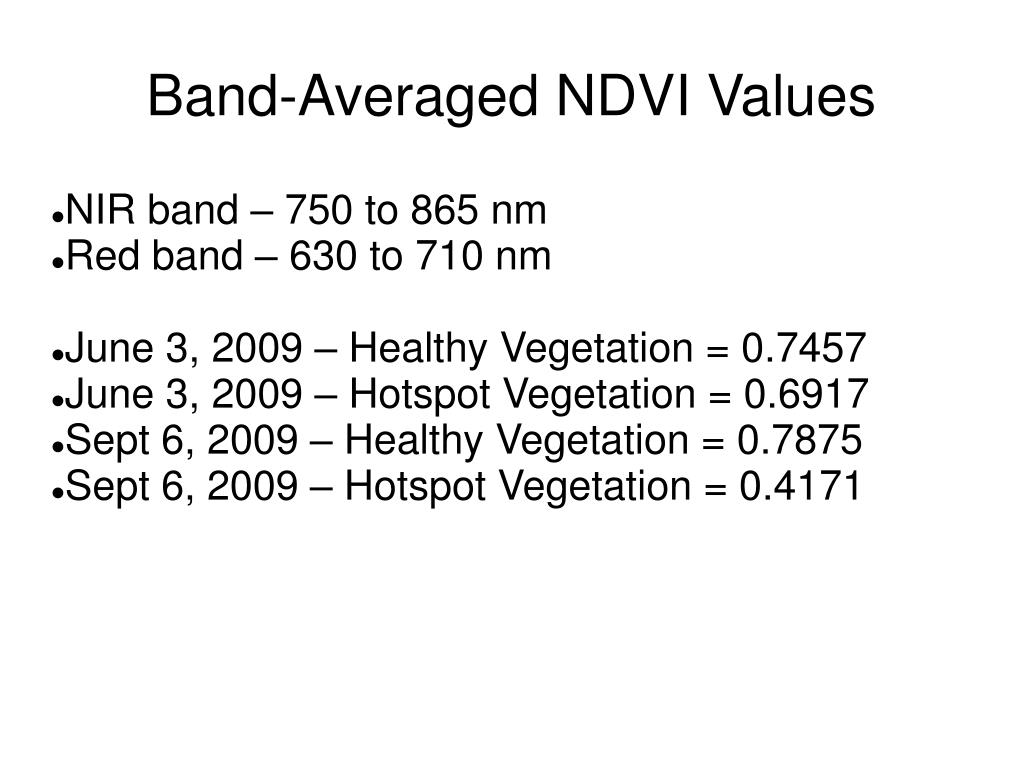

  5. NIR band – 750 to 865 nm Red band – 630 to 710 nm June 3, 2009 – Healthy Vegetation = 0.7457 June 3, 2009 – Hotspot Vegetation = 0.6917 Sept 6, 2009 – Healthy Vegetation = 0.7875 Sept 6, 2009 – Hotspot Vegetation = 0.4171 Band-Averaged NDVI Values

  6. Post-release NDVI Scene (0,0) Hotspot Ave. NDVI = 0.4264

  7. Hotspot Images
