Systems Programming & Scripting

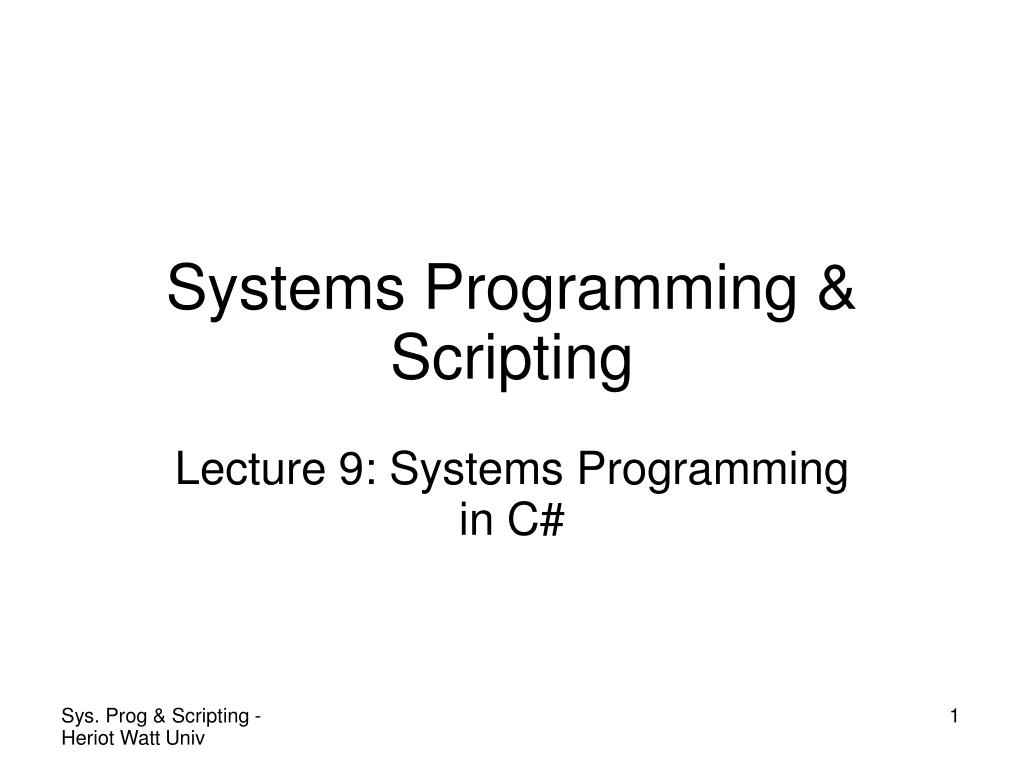

1. Lecture 9: Systems Programming in C# Systems Programming & Scripting

2. Characteristics of System Programming in C# • Build algorithms and data structures from scratch • C# is a full-blown object-oriented language • Use strong typing to help manage complexity of large pieces of software • Strong typing throughout the language • Focus is often on speed of execution • Direct management of space and time • Easy access to low-level operating system is crucial • Low-level system libraries

3. Example of low-level data-structures: Doubly Linked List • Goal: Define a data structure that is space efficient and permits traversal in both directions • Method: Explicit use of references into the heap • Exercise in resource conscious programming

4. Basic Structure • class LinkedListNode { • LinkedListNode next; • LinkedListNode prev; • private int data; • public int MyData() { … } • public void Insert(LinkedListNode node) { … } • public void Remove() { … } • public void ShowList () { ... } • public LinkedListNode (int data) { ... } • }

5. Constructor • public LinkedListNode (int data) { • this.data = data; • // init references • this.next = null; • this.prev = null; • }

6. Lookup • public int MyData() { • return this.data; • }

7. Insertion • public void Insert(LinkedListNode node) { • LinkedListNode nextNode = this.next; • this.next = node; • node.prev = this; • node.next = nextNode; • if (nextNode != null) { // pitfall • nextNode.prev = node; • } • }

8. Removal (buggy) • public void RemoveBuggy() { • this.prev.next = this.next; • this.next.prev = this.prev; • //nulls are put here to ensure stability • this.next = null; • this.prev = null; • }

9. Removal • public void Remove() { • if (this.prev != null) { • this.prev.next = next; } • if (this.next != null) { • this.next.prev = prev; } • //the nulls are put here to ensure stability • this.next = null; • this.prev = null; • }

10. Showing • public void ShowList () { • Console.WriteLine("{0}",this.MyData()); • if (this.next == null) { • return; • } else { • this.next.ShowList(); • } • }

11. Showing (reverse order) • public void ShowListReverse () { • Console.WriteLine("{0}",this.MyData()); • if (this.prev == null) { • return; • } else { • this.prev.ShowListReverse(); • } • }

12. (Un-)managed vs (un-)safe • Managed code: Code which runs within the confines of the .NET CLR. • Unmanaged code: Code which does not run in the CLR, and are totally independent of it. • Safe code: Managed code which has type safety and security embedded within. • Unsafe code: Managed code which involves 'unsafe' operations, such as pointer operations which access memory directly.

13. Unsafe C# Code • Unsafe C# code permits direct access to the memory with C-style pointers. • Direct access data structures must be marked with the keyword fixed • It must be marked with the keyword unsafe

14. Pointers in C# • Within code marked as unsafe, it is possible to use C-style pointers, i.e. &x represents the address of the data structure in x *x de-references a pointer, i.e. it returns the value at location x in memory • Address arithmetic can be used on pointers, e.g. to traverse an array

15. A Simple Example with Pointers • The following method swaps the values of 2 integer variables: unsafe static void Swap(int* x, int *y) { int z = *x; *x = *y; *y = z; } • The method should be called like this: int x =5; int y = 7; Swap (&x, &y);

16. Pointer Arithmetic • Display a memory area: p = &arr; for (int i=0; i < arr.Length; i++) { Console.WriteLine(*(p+i)); }

17. Example of unsafe C# code • Copy a block of memory containing ints public unsafe static void memcpy (int *p1, int *p2, int n) { int *p = p1; int *q = p2; for (int i = 0; i<n; i++) { *q++ = *p++; } }

18. Calling unsafe code • The memory being processed must be fixed so that garbage collection won't move it while running the unsafe code: int[] iArray = new int[10]; int[] jArray = new int[10]; ... fixed (int *fromPtr = iArray) { fixed (int *toPtr = jArray) { memcpy(fromPtr, toPtr, 10); }}

19. Call external functions from C# • To call an external function, its type and some meta-information has to be declared. For example sum should be a C function, computing the sum of an array of integers: [DllImport ("libsum.so", EntryPoint="sum")] static unsafe extern int sum(int *p, int n);

20. Call external functions from C# • We can call this function from C# like this int []arr = new int[10]; for (int i = 0; i<arr.Length; i++) { arr[i]=i; } fixed (int *p = arr) { Console.WriteLine("array initialised to [0..9] = {0}", showArr(arr)); int s = sum(p, 10); // calls a C function Console.WriteLine("sum of array, computed on C side {0}", s); }

21. External functions • This is the C function, computing the sum: int sum (int *p, int n) { int s; int *q; for (s = 0, q = p+n; p<q; s+=*p++) { } return s; }

22. Compiling with external function • To compile the code, several steps are necessary: • First compile the external C code: • Then compile the C# code • Now you can execute it gcc -O2 -fPIC -c -o libsum.o sum.c gcc -shared -Wl,-soname,libsum.so -o libsum.so libsum.o gmcs -unsafe sumWrapper.cs mono sumWrapper.exe

23. Summary • Explicit references can be used for resource conscious programming • Care has to be taken when dereferencing • This level of programming is similar to using explicit pointers in C; it is • powerful and • dangerous

24. Exercises • Complete the linked list module as presented and write a Tester function. • Write an append function, that takes 2 linked lists, represented by a reference to their start nodes, and add all elements of the 2nd list to the end of the 1st list • Develop a 2nd version of append that leaves the input lists unchanged. • Implement an in-place array reversal function, using explicit pointers.
