  1. Vertical Profiling of Atmospheric Ozone Critical Design Review Western State College of Colorado Sarah Kampf Keith Nunn Brian Webb 04/02/04

  2. Overview • Mission Description • Mission Goals • System Requirements • System Overview • Mass Budget • Project Organization • Budget • Schedule

  3. Mission Description • To Design and Build a Light Weight, Energy Efficient Photometer • To Obtain a Vertical Profile of Ozone Concentration as a Function of Altitude

  4. Mission Goals and NASA Benefits • To Develop an Understanding of Ozone Concentration as a Function of Altitude • To Develop a Cost Effective Method to Measure Ozone Concentration as a Function of Altitude • To Develop a Clear Understanding of Photometric Analysis • Demonstrates ability to measure ozone profile in a Mars-like environment

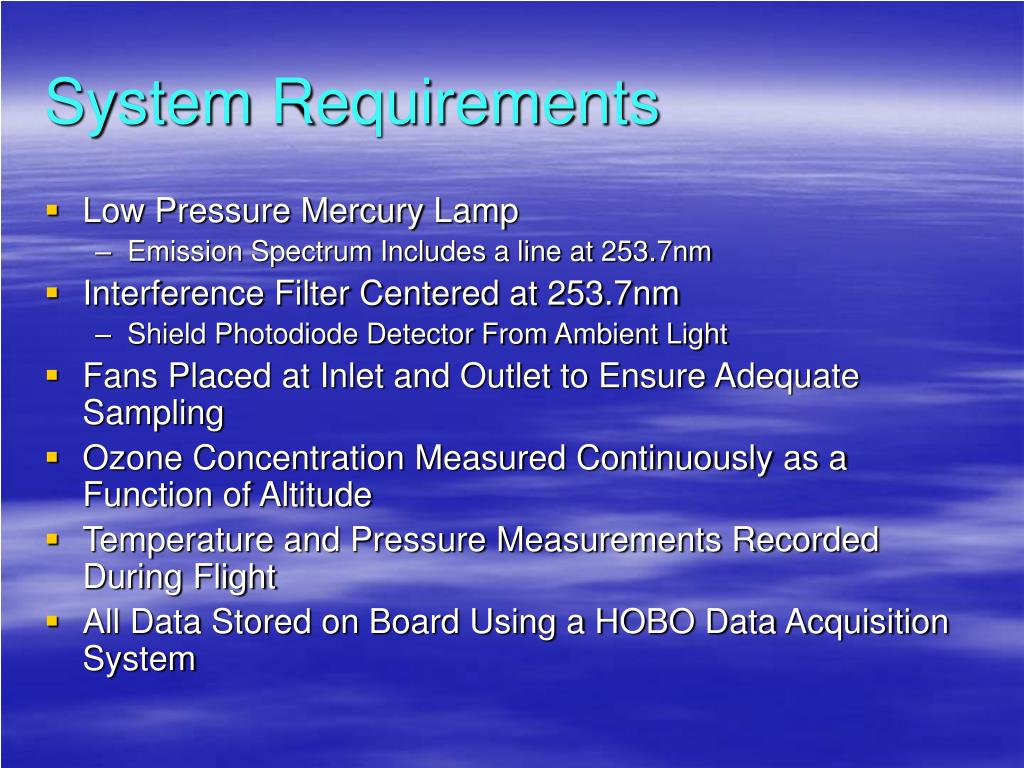

  5. System Requirements • Low Pressure Mercury Lamp • Emission Spectrum Includes a line at 253.7nm • Interference Filter Centered at 253.7nm • Shield Photodiode Detector From Ambient Light • Fans Placed at Inlet and Outlet to Ensure Adequate Sampling • Ozone Concentration Measured Continuously as a Function of Altitude • Temperature and Pressure Measurements Recorded During Flight • All Data Stored on Board Using a HOBO Data Acquisition System

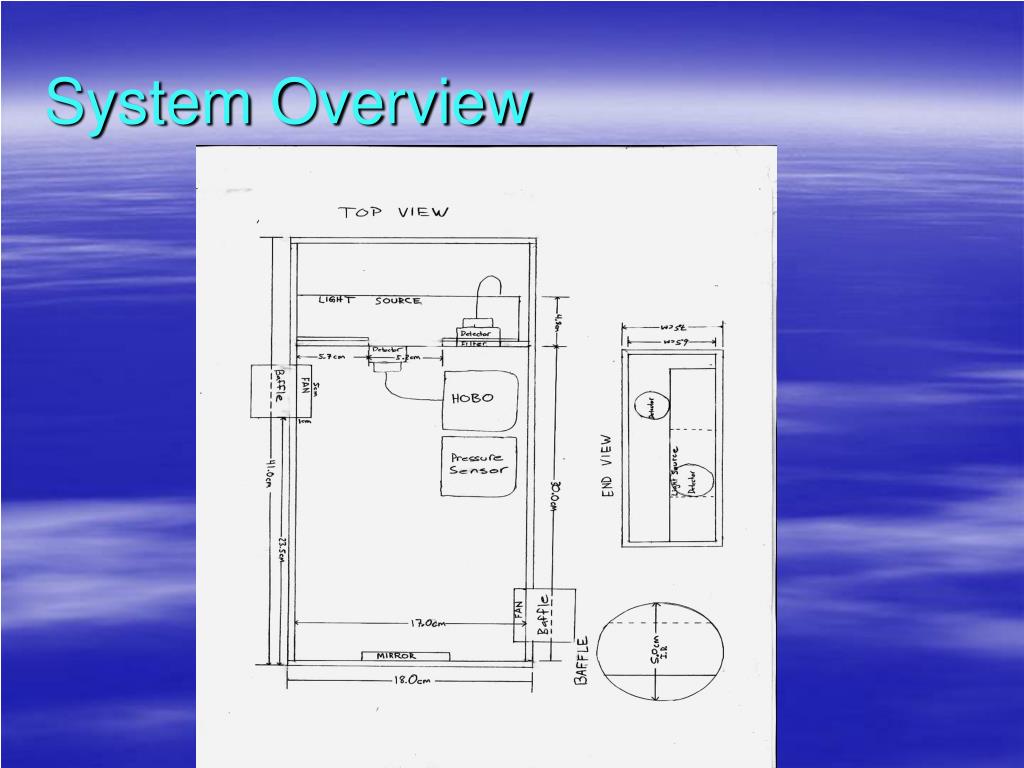

  6. System Overview

  7. Mass Budget • 2129cm2 Plexiglas =1000g • Mercury Lamp = 115g • Two Fans = 41g • HOBO = 27g • Mirror = 13g • Two Detectors = 82g • Three Solar Panels = 84g • Six Volt Power Source = 92g • Optical Filter = 4g ----------- • Total Mass =1458g

  8. Power Budget • Low Pressure Mercury Lamp 4 Watts

  9. Budget • Corona Discharge Ozone Generator (Calibration) = $ 120.00 • 30L Liquid Nitrogen (Calibration) = $ 30.00 ---------------- • Calibration Sub Total = $ 150.00 • Light Source = $ 50.00 • Two Fans = $ 10.00 • HOBO Data Acquisition System = $ 80.00 • Pressure Sensor = $ 250.00 • Two Ultraviolet Detectors = $ 160.00 • Three Photovoltaic Panels = $ 20.00 • Optical Filter = $ 100.00 • Lucite - 3000cm2 = $ 10.00 ---------------- • Instrument Sub Total = $ 680.00 • Project Total = $ 830.00

  10. Project Organization • Team Members • Keith Nunn • Sarah Kampf • Brian Webb • In Memory of Mike Roberts 1982-2004 • Faculty Advisor • Dr. Theodore Violett

  11. Schedule • Complete instrument design - 04/07/2004 • Complete instrument assembly - 04/15/2004 • Complete instrument calibration - 05/01/2004 • On site visit - 07/2004 • Launch - 08/07/2004

  12. Special Thanks • Dr. Theodore Violett (Western State College) • Dr. Dale Orth (Western State College) • Colorado Space Grant
