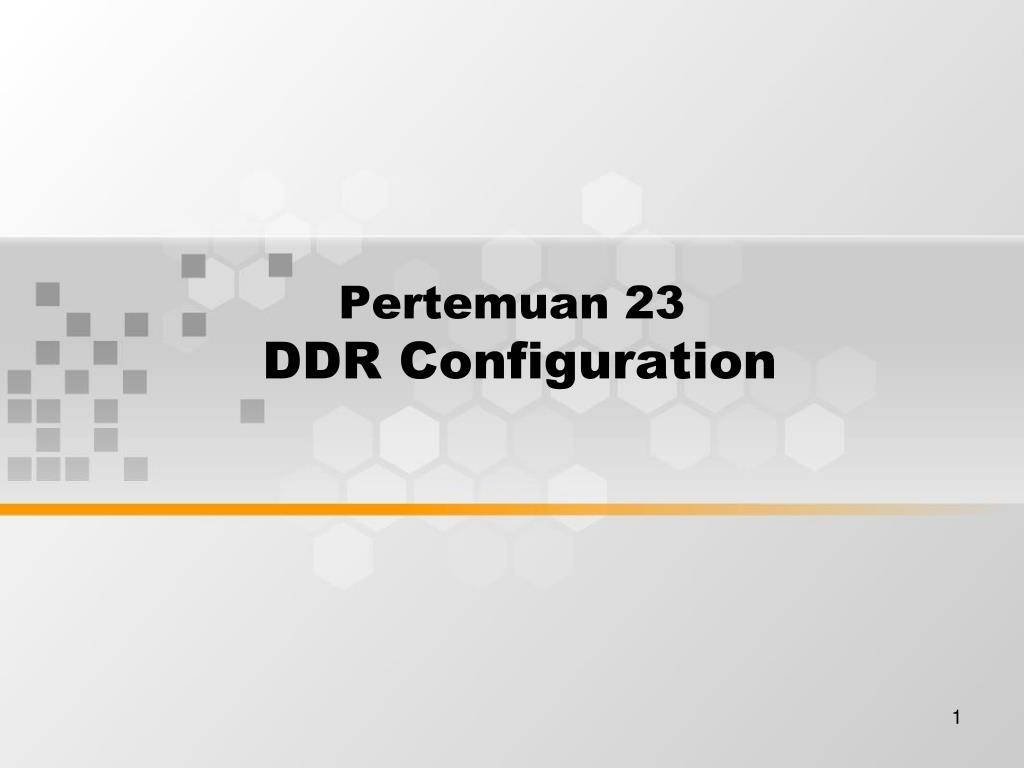

  1. Pertemuan 23DDR Configuration

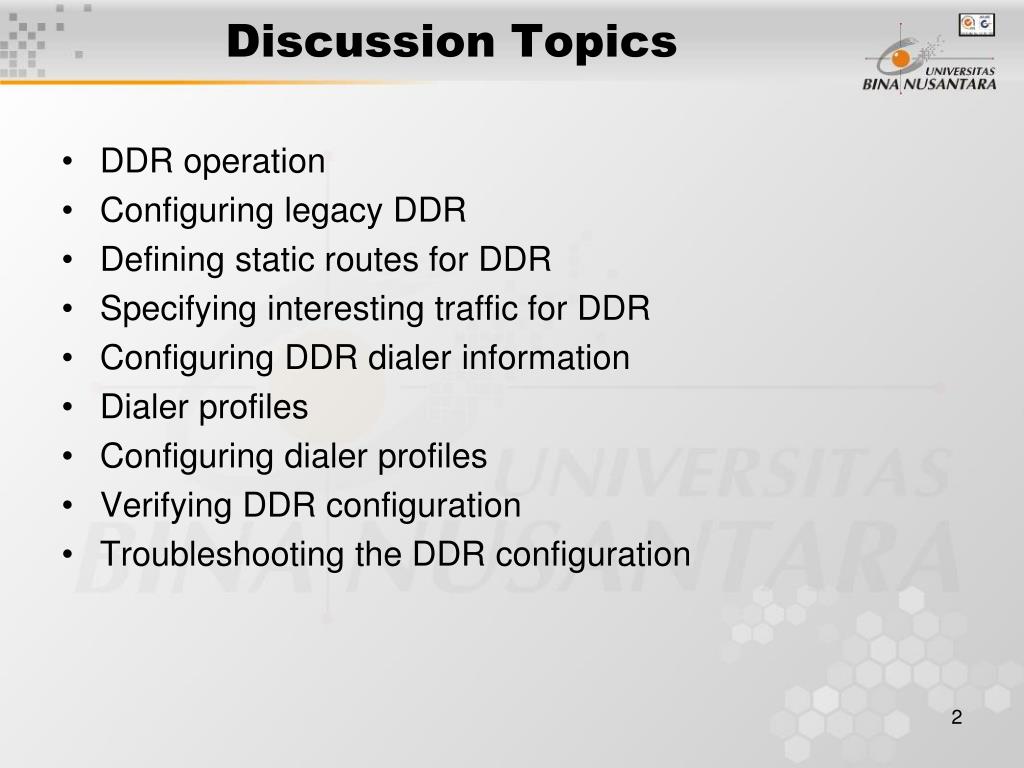

  2. Discussion Topics • DDR operation • Configuring legacy DDR • Defining static routes for DDR • Specifying interesting traffic for DDR • Configuring DDR dialer information • Dialer profiles • Configuring dialer profiles • Verifying DDR configuration • Troubleshooting the DDR configuration

  3. DDR Operation

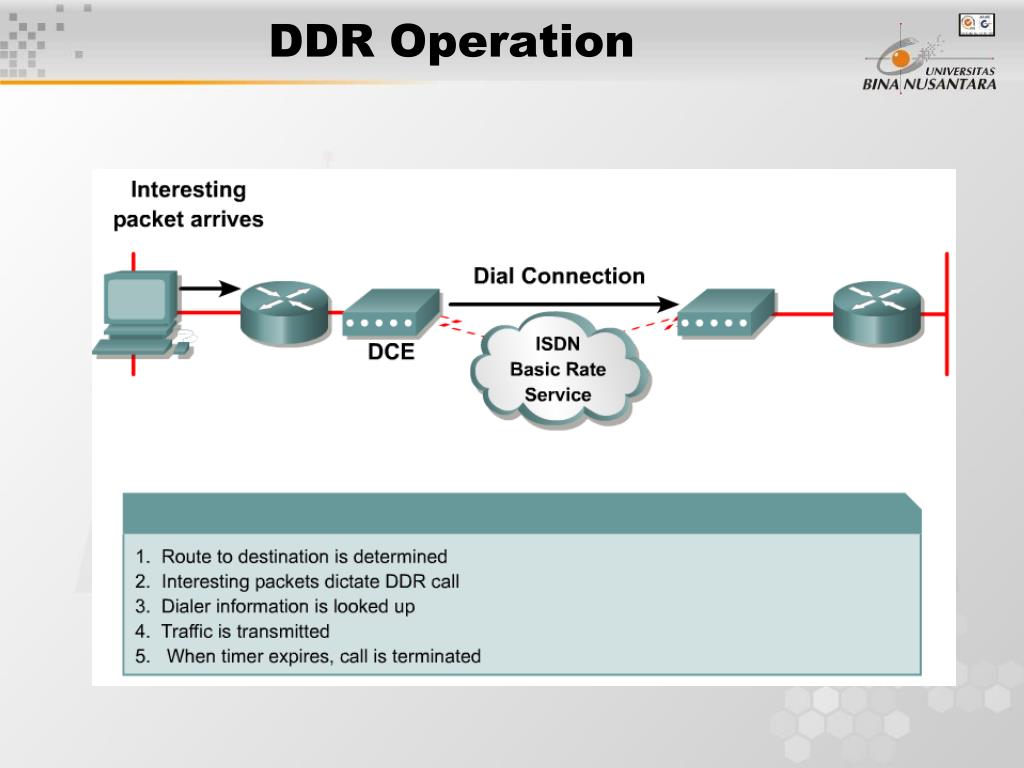

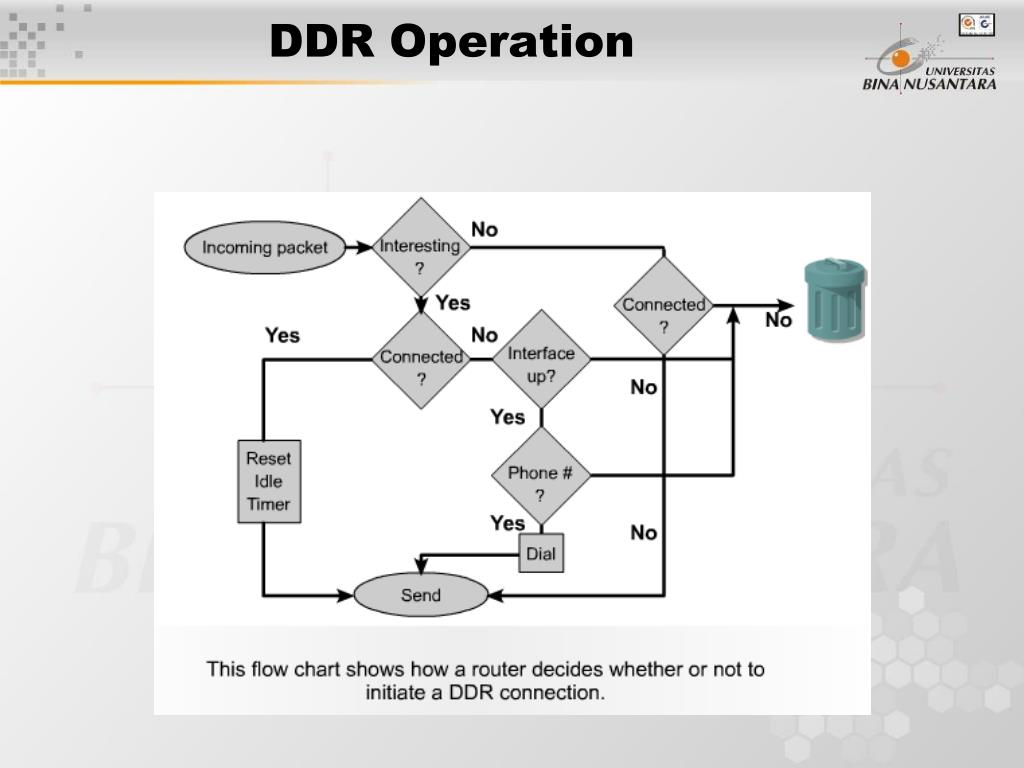

  4. DDR Operation

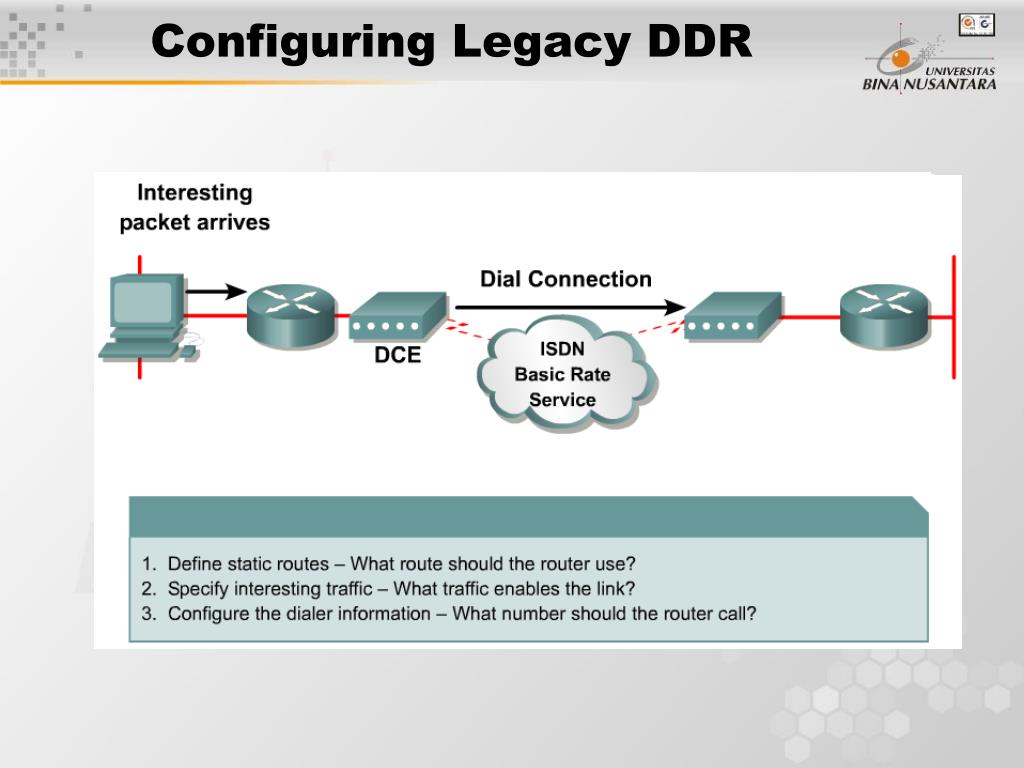

  5. Configuring Legacy DDR

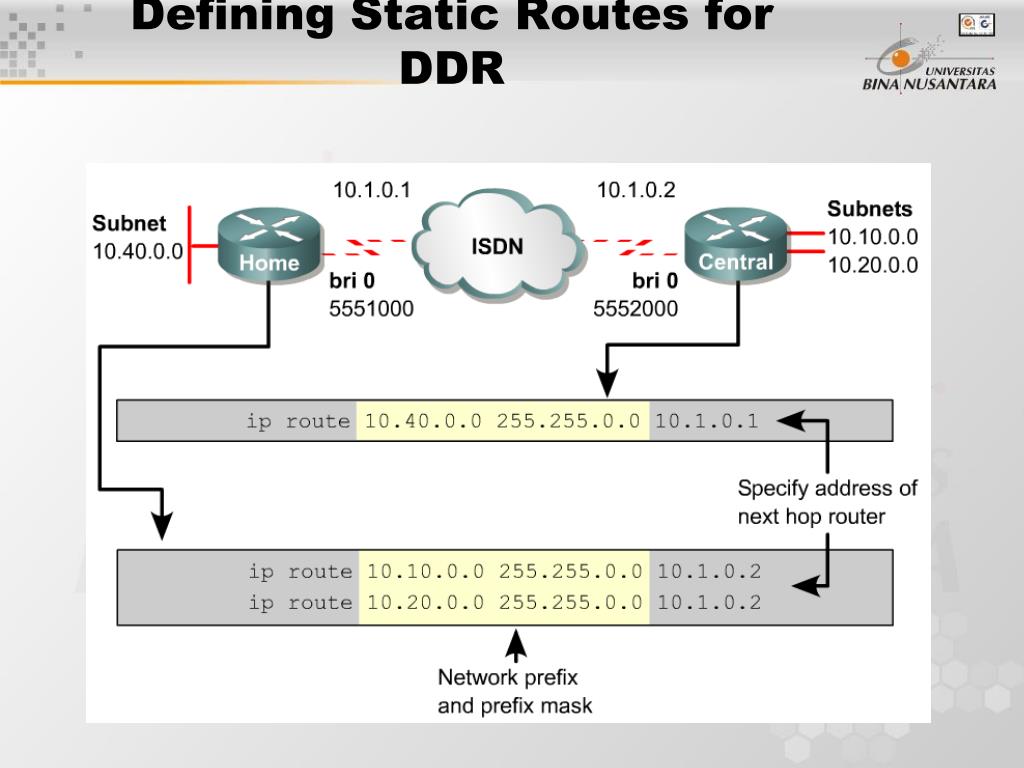

  6. Defining Static Routes for DDR

  7. Static Route Considerations • When configuring static routes, consider the following: • By default, a static route will take precedence over a dynamic route because of its lower administrative distance. Without additional configuration, a dynamic route to a network will be ignored if a static route is present in the routing table for the same network. • To reduce the number of static route entries, define a summarized or default static route

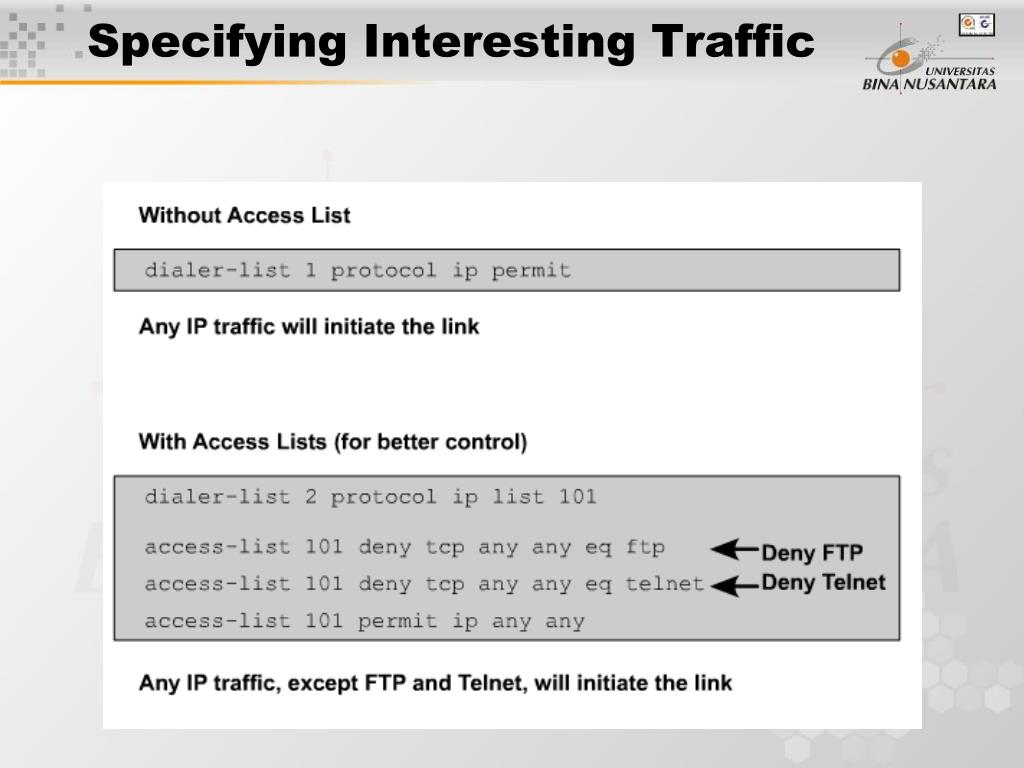

  8. Specifying Interesting Traffic

  9. Configuring Dialer Information - PPP

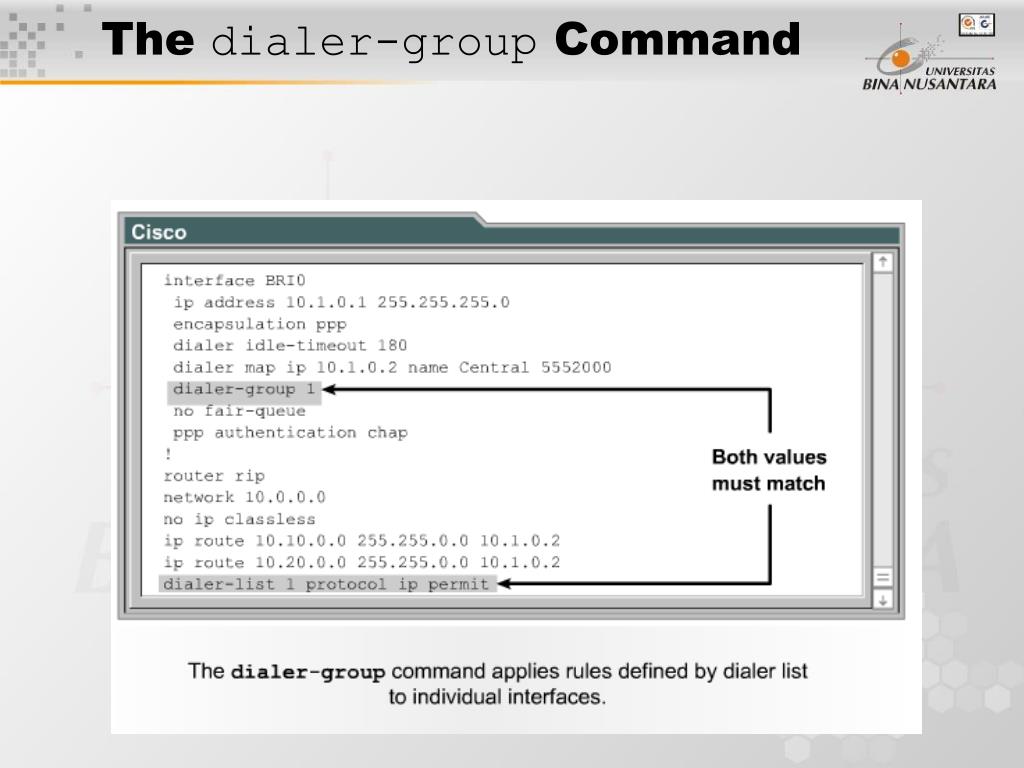

  10. The dialer-group Command

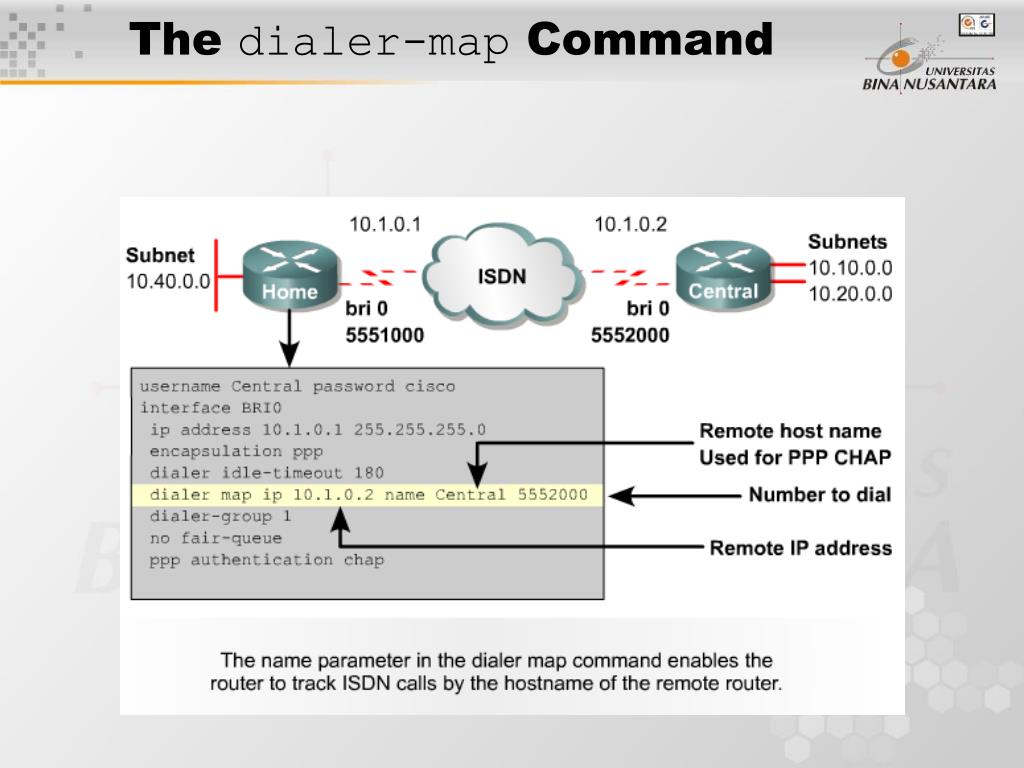

  11. The dialer-map Command

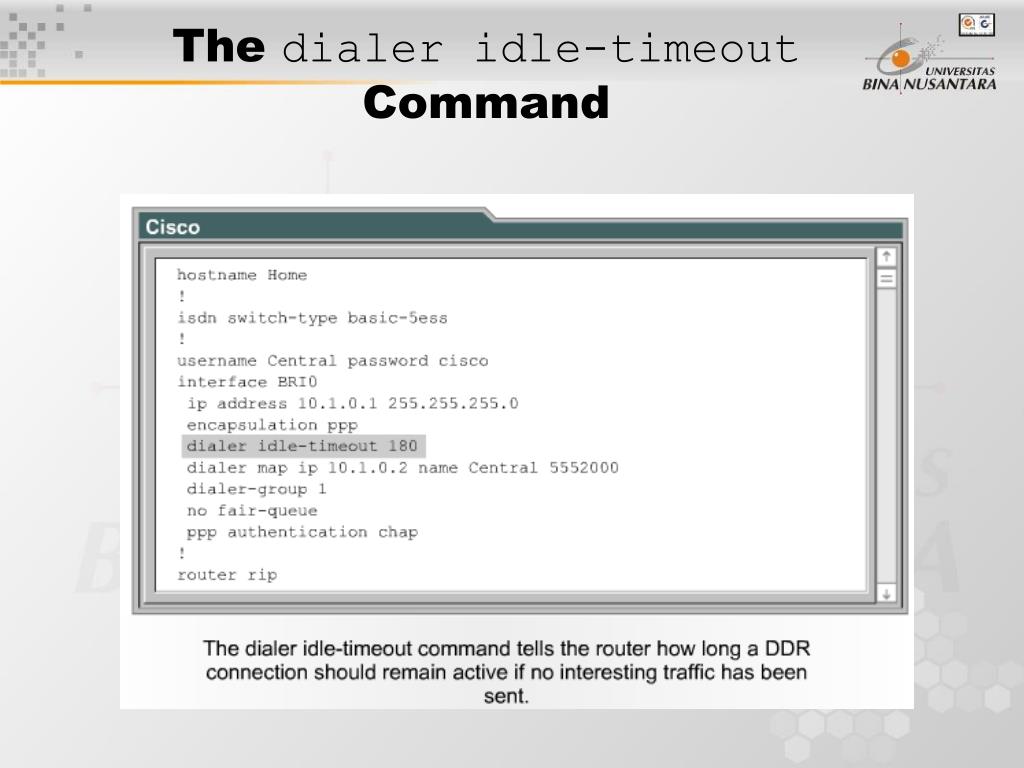

  12. The dialer idle-timeout Command

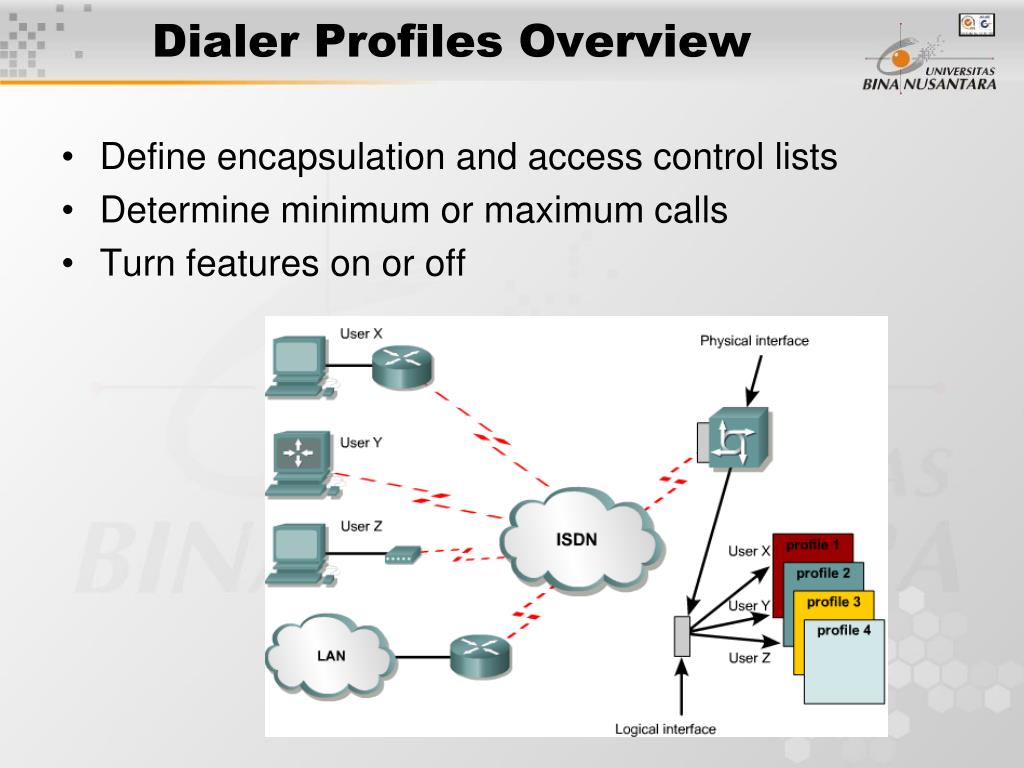

  13. Dialer Profiles Overview • Define encapsulation and access control lists • Determine minimum or maximum calls • Turn features on or off

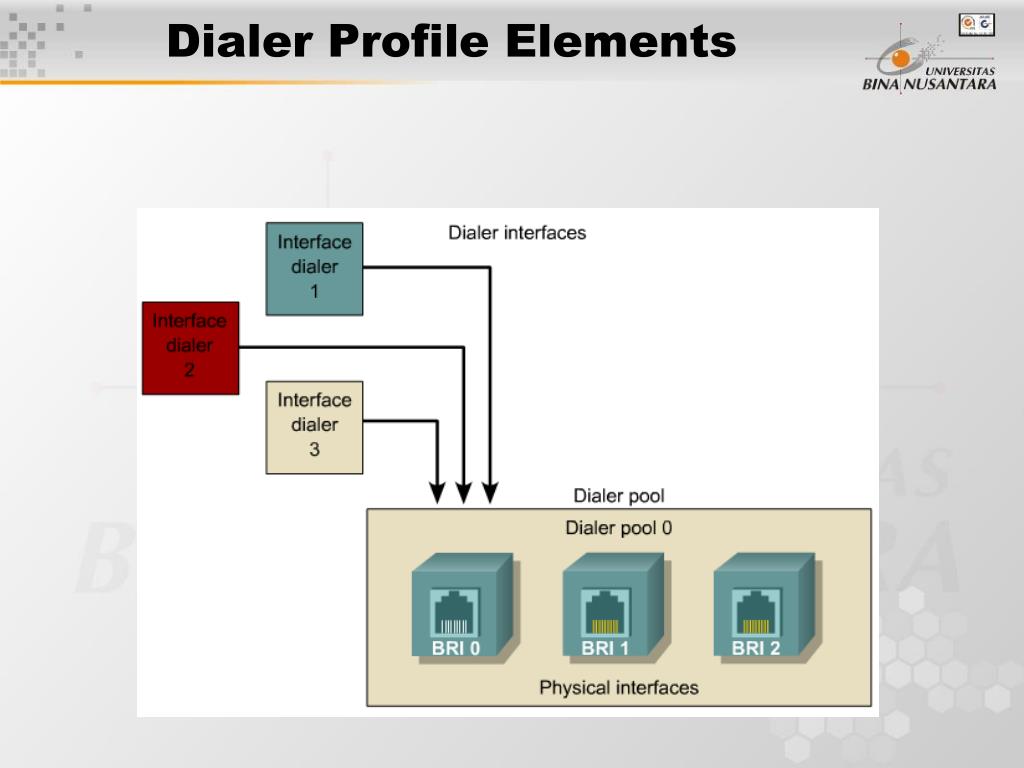

  14. Dialer Profile Elements

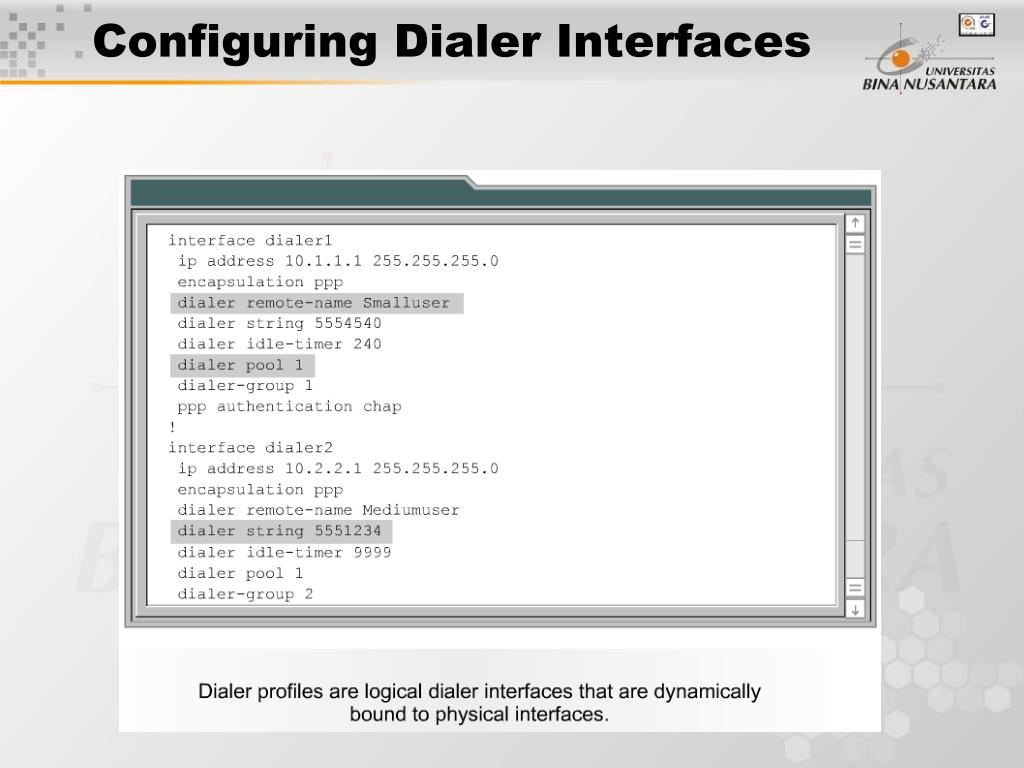

  15. Configuring Dialer Interfaces

  16. Configuring Physical Interfaces

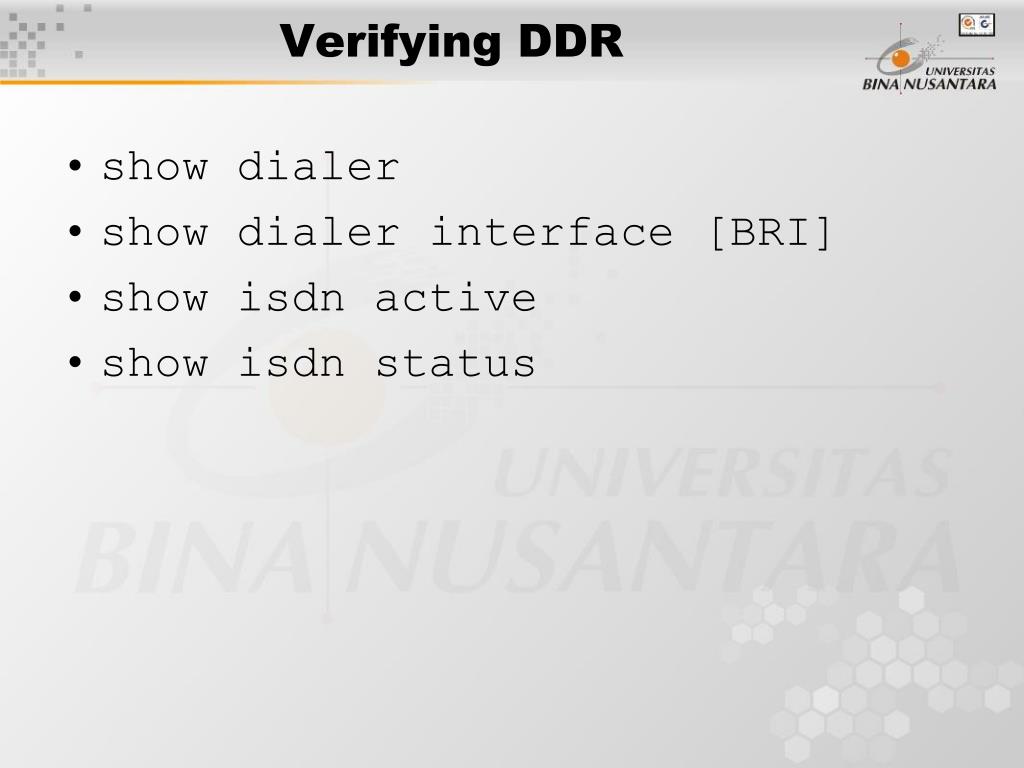

  17. Verifying DDR • show dialer • show dialer interface [BRI] • show isdn active • show isdn status

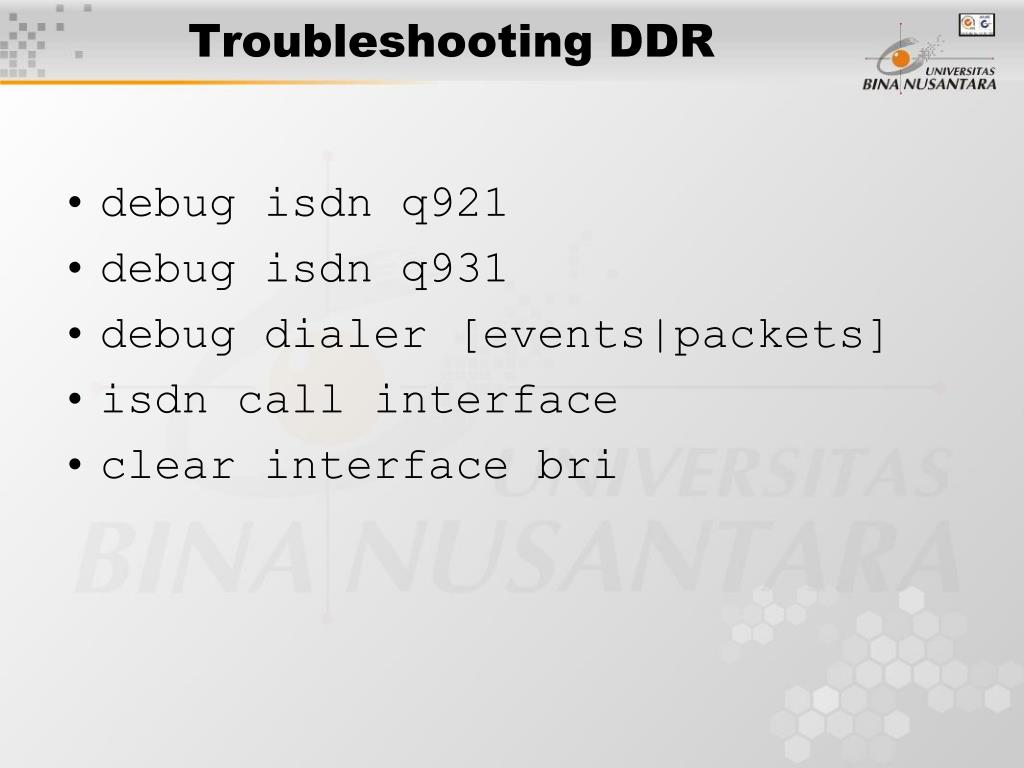

  18. Troubleshooting DDR • debug isdn q921 • debug isdn q931 • debug dialer [events|packets] • isdn call interface • clear interface bri
