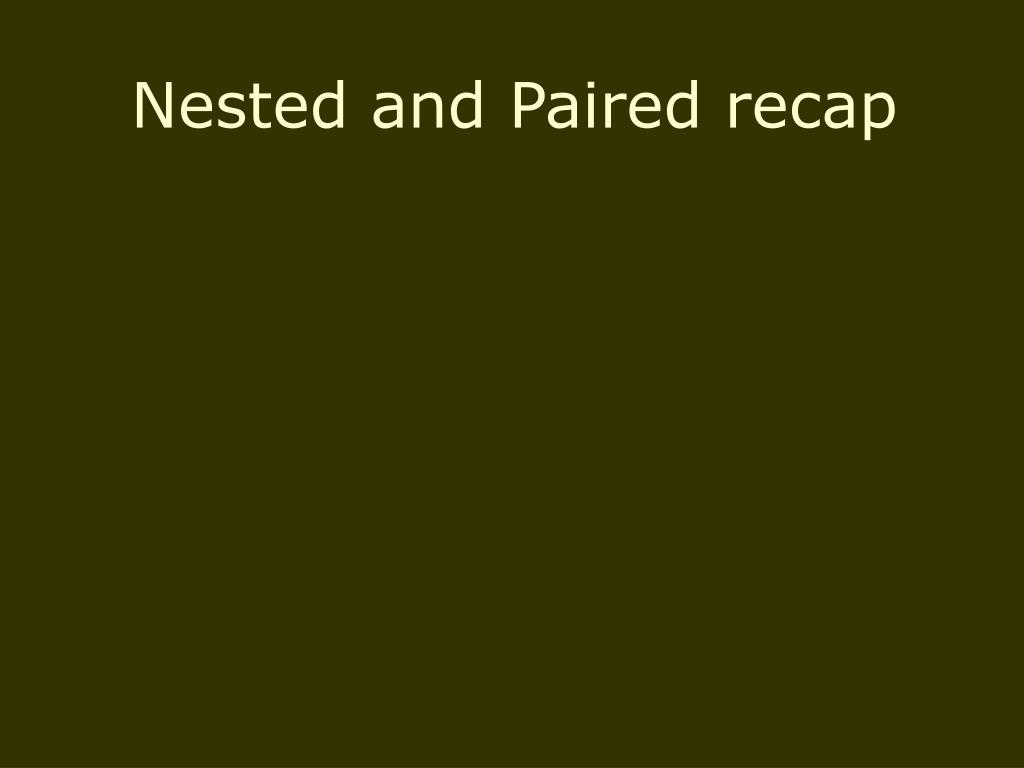

  1. Nested and Paired recap

  2. Nested and Paired sampling • When you have sampled one thing many times. • Why? • To handle pseudoreplication. • or • To reduce noise.

  3. Nested vs Paired tests • Nested • A fixed factor above a random factor • Paired • A fixed factor within a random factor • Both are examples of mixed models.

  4. Nested recrap p = 0.00039

  5. Nested recrap

  6. Nested recap p = 0.11

  7. Nested recap p = 0.11

  8. Test Nested designs • By hand. Calculate means.Make an ordinary anova or regression on those means. • With anova over nestingthing variance aov(y~x+Error(nestingthing))

  9. Anova on oakmeans summary(aov(oakmeansY~oakhabitatsX)) Df Sum Sq Mean Sq F value Pr(>F) oakhabitatsX 1 38.920 38.920 2.8344 0.1095 Residuals 18 247.165 13.731

  10. Nested Anova with Error summary(aov(oaktwig~habitat+Error(oak))) Error: oak Df Sum Sq Mean Sq F value Pr(>F) habitat 1 389.21 389.21 2.8344 0.1095 Residuals 18 2471.65 137.31 Error: Within Df Sum Sq Mean Sq F value Pr(>F) Residuals 180 3454.5 19.2

  11. Linear Mixed Model with lmer mixoak<-lmer(oaktwig~habitat+(1|oak)) summary(mixoak) Random effects: Groups Name Variance Std.Dev. oak (Intercept) 11.812 3.4369 Residual 19.192 4.3808 Number of obs: 200, groups: oak, 20 Fixed effects: Estimate Std. Error t value (Intercept) 13.530 1.172 11.547 habitatopen 2.790 1.657 1.684

  12. Linear Mixed Model with lmer mixoak<-lmer(oaktwig~habitat+(1|oak)) summary(mixoak) Random effects: Groups Name Variance Std.Dev. oak (Intercept) 11.812 3.4369 Residual 19.192 4.3808 Number of obs: 200, groups: oak, 20 Fixed effects: Estimate Std. Error t value (Intercept) 13.530 1.172 11.547 habitatopen 2.790 1.657 1.684  38 %  62 %

  13. Paired recap

  14. Paired recap

  15. Paired recap p = 0.0050

  16. Paired recap p = 0.0017

  17. Test Paired designs • By hand. Calculate differences.Test if the differences differ from zero. a) Permutation b) 1-sample t-test • With a paired t-test. • With anova over pairingthing variance aov(y~x+Error(pairingthing))

  18. One sample t-test t.test(diffr) One Sample t-test t = -3.6876, df = 18, p-value = 0.001685 alternative hypothesis: true mean is not equal to 0 mean of x -5.868421

  19. Paired t-test t.test(groupA,groupB,paired=T) Paired t-test data: groupA and groupB t = -3.6876, df = 18, p-value = 0.001685 alternative hypothesis: true difference in means is not equal to 0 mean of the differences -5.868421

  20. Paired Anova with Error summary(aov(shoot.cm~catkin.YN+Error(birch))) Error: birch Df Sum Sq Mean Sq F value Pr(>F) Residuals 18 852.41 47.36 Error: Within Df Sum Sq Mean Sq F value Pr(>F) Catkin.YN 1 327.16 327.16 13.598 0.001685 ** Residuals 18 433.06 24.06

  21. Non-Paired Anova summary(aov(shoot.cm~catkin.YN)) Df Sum Sq Mean Sq F value Pr(>F) catkin.YN 1 327.16 327.16 9.1623 0.004544 ** Residuals 36 1285.47 35.71

  22. Paired Anova with Error summary(aov(shoot.cm~catkin.YN+Error(birch))) Error: birch Df Sum Sq Mean Sq F value Pr(>F) Residuals 18 852.41 47.36 Error: Within Df Sum Sq Mean Sq F value Pr(>F) Catkin.YN 1 327.16 327.16 13.598 0.001685 ** Residuals 18 433.06 24.06

  23. Nested Anova with Error summary(aov(oaktwig~habitat+Error(oak))) Error: oak Df Sum Sq Mean Sq F value Pr(>F) habitat 1 389.21 389.21 2.8344 0.1095 Residuals 18 2471.65 137.31 Error: Within Df Sum Sq Mean Sq F value Pr(>F) Residuals 180 3454.5 19.2

  24. Nested vs Paired tests • Nested • A fixed factor above a random factor • Paired • A fixed factor within a random factor • Both are examples of mixed models.

  25. How was the oakdata faked?

  26. How was the oakdata faked? habitat<-factor(rep(c("forest","open"),each=100))

  27. How was the oakdata faked? habitat<-factor(rep(c("forest","open"),each=100)) oak<-rep(1:20,each=10)

  28. How was the oakdata faked? habitat<-factor(rep(c("forest","open"),each=100)) oak<-rep(1:20,each=10) oak<-paste("O",oak,sep="")

  29. How was the oakdata faked? habitat<-factor(rep(c("forest","open"),each=100)) oak<-rep(1:20,each=10) oak<-paste("O",oak,sep="") oak<-factor(oak)

  30. How was the oakdata faked? habitat<-factor(rep(c("forest","open"),each=100)) oak<-rep(1:20,each=10) oak<-paste("O",oak,sep="") oak<-factor(oak) oaktwig<-c(rep(rnorm(10,12,3),each=10), rep(rnorm(10,15,3),each=10))

  31. How was the oakdata faked? habitat<-factor(rep(c("forest","open"),each=100)) oak<-rep(1:20,each=10) oak<-paste("O",oak,sep="") oak<-factor(oak) oaktwig<-c(rep(rnorm(10,12,3),each=10), rep(rnorm(10,15,3),each=10)) oaktwig<-oaktwig+rnorm(200,0,5)

  32. How was the oakdata faked? habitat<-factor(rep(c("forest","open"),each=100)) oak<-rep(1:20,each=10) oak<-paste("O",oak,sep="") oak<-factor(oak) oaktwig<-c(rep(rnorm(10,12,3),each=10), rep(rnorm(10,15,3),each=10)) oaktwig<-oaktwig+rnorm(200,0,5) oaktwig<-ifelse(oaktwig<1,1,oaktwig)

  33. How was the oakdata faked? habitat<-factor(rep(c("forest","open"),each=100)) oak<-rep(1:20,each=10) oak<-paste("O",oak,sep="") oak<-factor(oak) oaktwig<-c(rep(rnorm(10,12,3),each=10), rep(rnorm(10,15,3),each=10)) oaktwig<-oaktwig+rnorm(200,0,5) oaktwig<-ifelse(oaktwig<1,1,oaktwig) oakdata<-data.frame(habitat,oak,oaktwig)

  34. How was the oakdata faked? habitat<-factor(rep(c("forest","open"),each=100)) oak<-rep(1:20,each=10) oak<-paste("O",oak,sep="") oak<-factor(oak) oaktwig<-c(rep(rnorm(10,12,3),each=10), rep(rnorm(10,15,3),each=10)) oaktwig<-oaktwig+rnorm(200,0,5) oaktwig<-ifelse(oaktwig<1,1,oaktwig) oakdata<-data.frame(habitat,oak,oaktwig) write.xls(oakdata,"oakdata.xls") write.table(oakdata,file="clipboard",sep="\t",quote=F)

  35. Tomorrows mission… • You should fake data (first in Excel), so: • What is your response variable? • What is your explanatory variables? • Are they categorical or continuous? • Bring two graphs on paper! • One with your hypothesised relationships. • One with non-significant effects. • Then we will do power analyses.

  36. Break?
