  1. The “Right” machine forthe job?

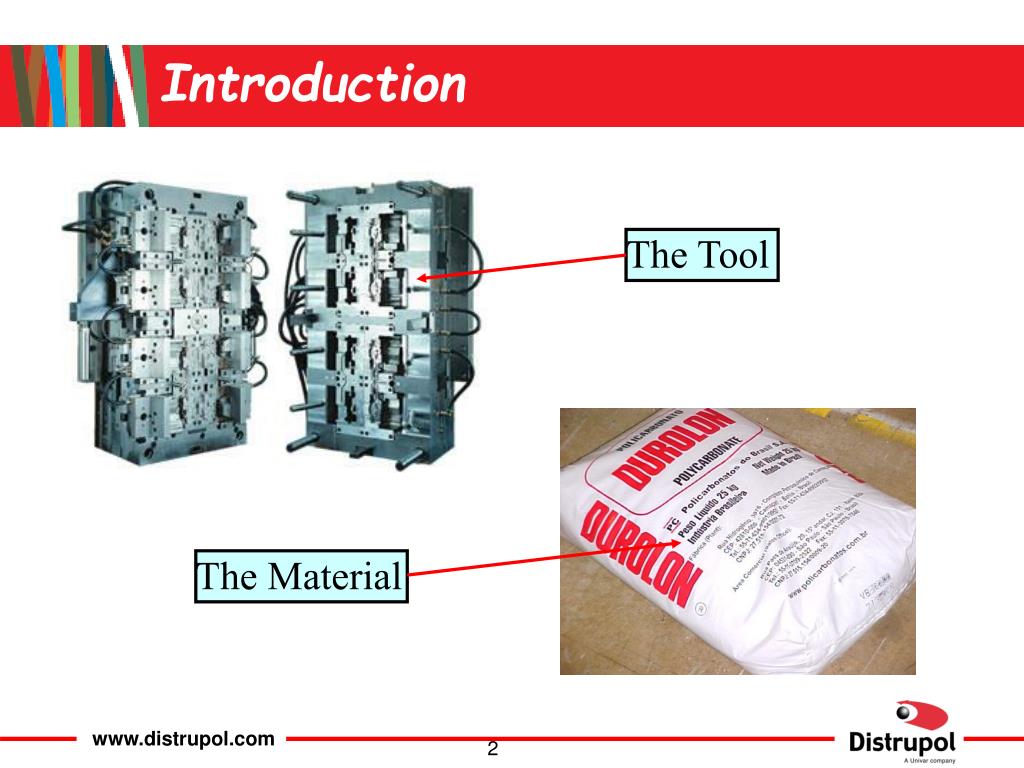

  2. The Tool The Material Introduction

  3. But which Machines?????????

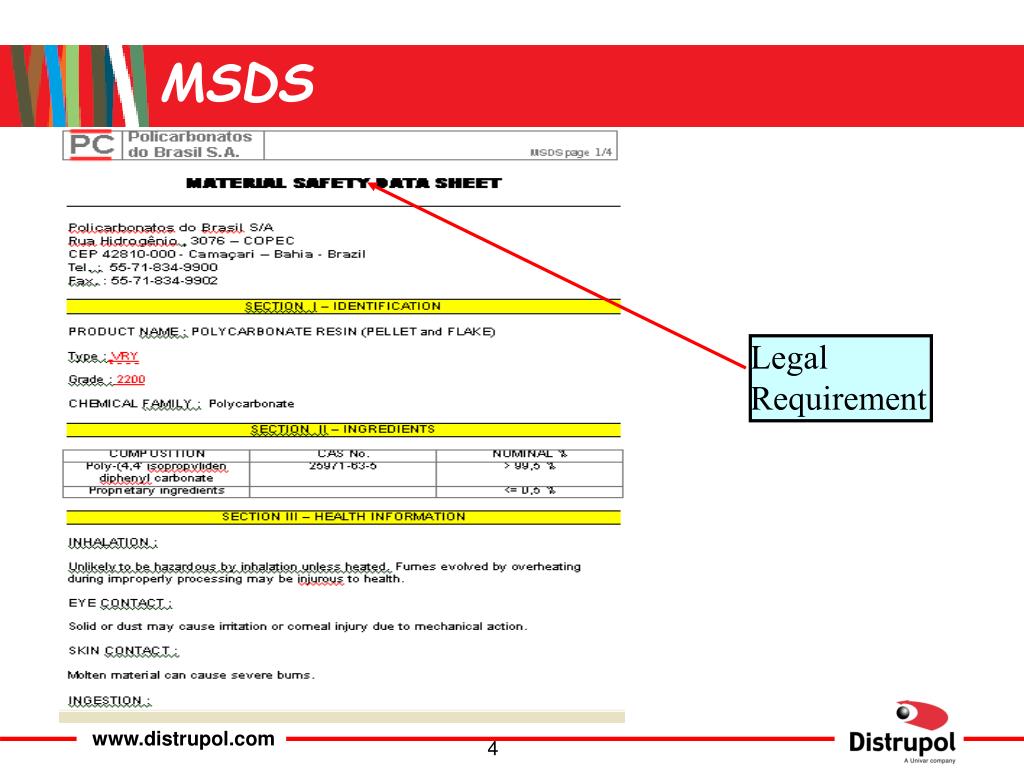

  4. Legal Requirement MSDS

  5. Moulding

  6. CH O 3 O C O C n CH 3 What is Polycarbonate?

  7. 800 100 Tensile strength (kg/cm2) 700 50 Izod impact strength (kg cm/cm) 0 600 2 2.5 3.0 Molecular weight (x10 ) 4 Molecular Weight Vs. Strength

  8. 10 6 5 Flow Value (10 m/sec) 4 3 2 1.5 20,000 25,000 30,000 Molecular weight Molecular Weight Vs. Flow

  9. Injection Moulding Hopper Clamping unit Screw & Barrel Nozzle

  10. Clamping Pressure Calculated by multiplying the projected area of the cavity (cavities), including runner system by the maximum internal pressure (hold pressure).

  11. Clamping Pressure • ABS 0.45 to 0.65T/cm2 • LCP 0.75 to 0.8T/cm2 • PA 0.65 to 0.75 T/cm2 • PBTP 0.65 to 0.75 T/cm2 • PC 0.5 to 0.8 T/cm2 • PE 0.15 to 0.55 T/cm2 • PETP 0.65to 0.75T/cm2 • PMMA 0.45 to 0.75 T/cm2 • POM 0.85 to 1 T/cm2 • PP 0.15 to 0.55 T/cm2 • PPS 0.3 to 0.6 T/cm2 • PS 0.3 to 0.5 T/cm2

  12. Injection Unit Hopper Screw & Barrel Nozzle

  13. Screw Design

  14. Screw Types

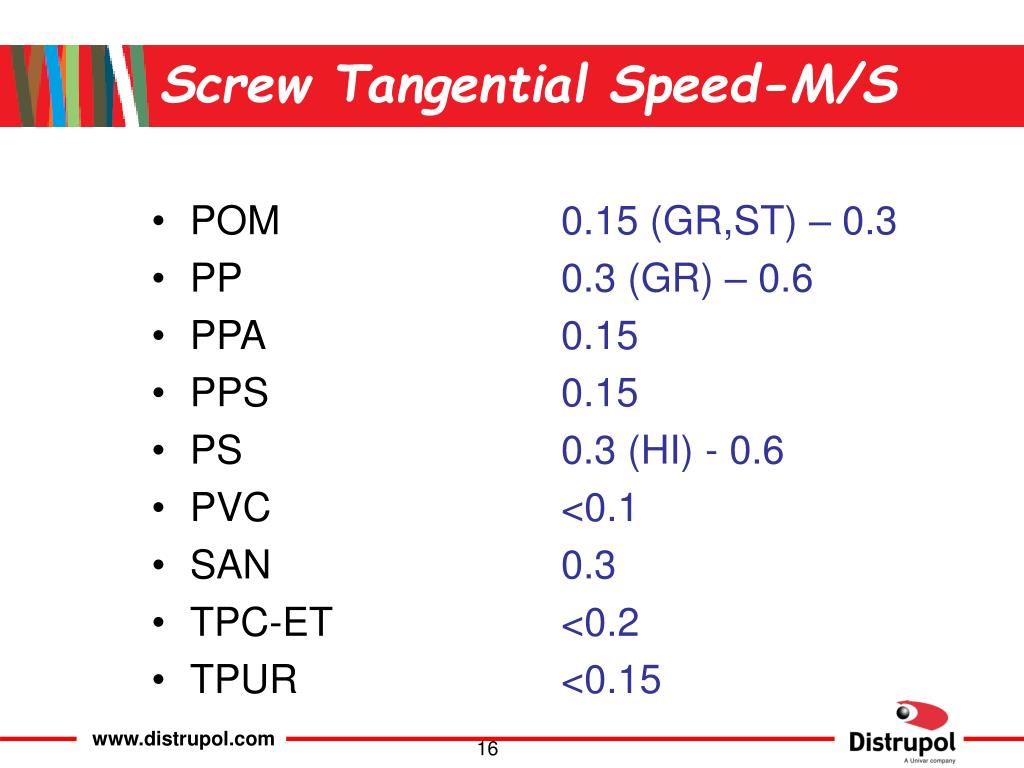

  15. Screw Tangential Speed-M/S • ABS 0.2 (GR,FR) - 0.3 • ETPV 0.2 • PA 0.15 (GR,FR) – 0.4 • PBTP 0.2 (GR,FR) – 0.3 • PC 0.2 (GR,FR) - 0.3 • PE 0.5 – 0.6 • PETP 0.15 (FR) – 0.20 • PMMA 0.2 (ST) – 0.3

  16. Screw Tangential Speed-M/S • POM 0.15 (GR,ST) – 0.3 • PP 0.3 (GR) – 0.6 • PPA 0.15 • PPS 0.15 • PS 0.3 (HI) - 0.6 • PVC <0.1 • SAN 0.3 • TPC-ET <0.2 • TPUR <0.15

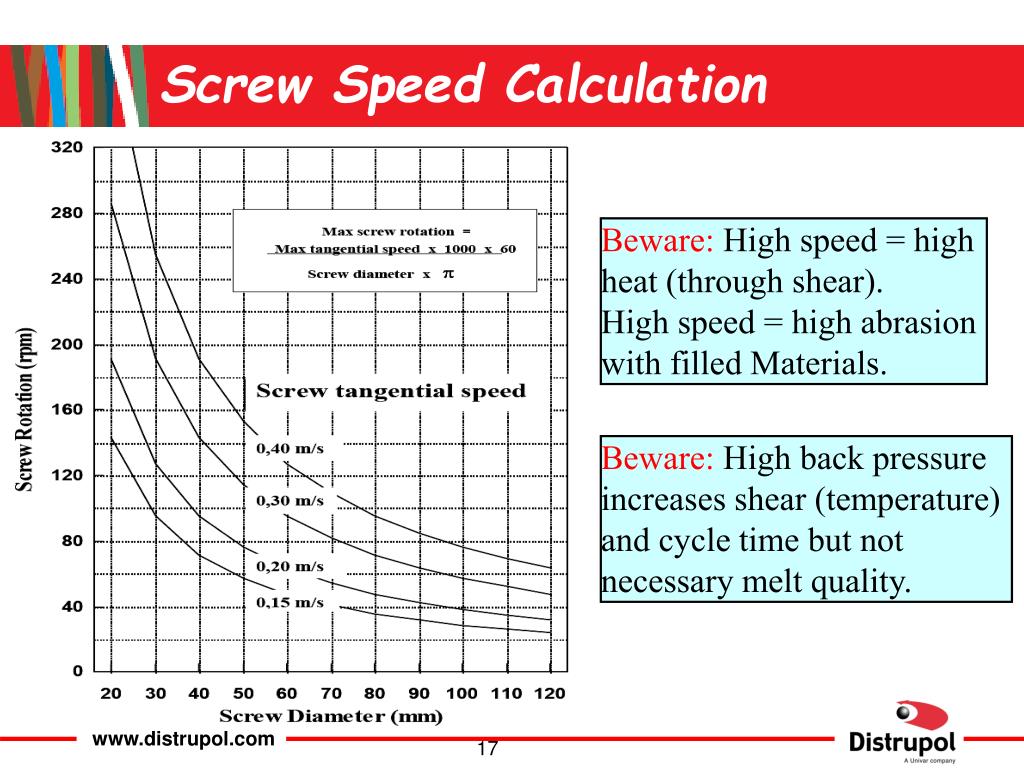

  17. Screw Speed Calculation Beware: High speed = high heat (through shear). High speed = high abrasion with filled Materials. Beware: High back pressure increases shear (temperature) and cycle time but not necessary melt quality.

  18. 4 10 280c 300c Melt viscosity (poise) 320c 3 10 3 4 10 10 Shear Rate (Sec ) -1 Melt Viscosity characteristics

  19. PPH PA 6 GPPS 120 PPC HDPE Spiral flow length (cm) LDPE 80 POM ABS Polycarbonate 40 2 40 (Kg/cm G) 140 Injection Pressure Pressure Vs. Flow

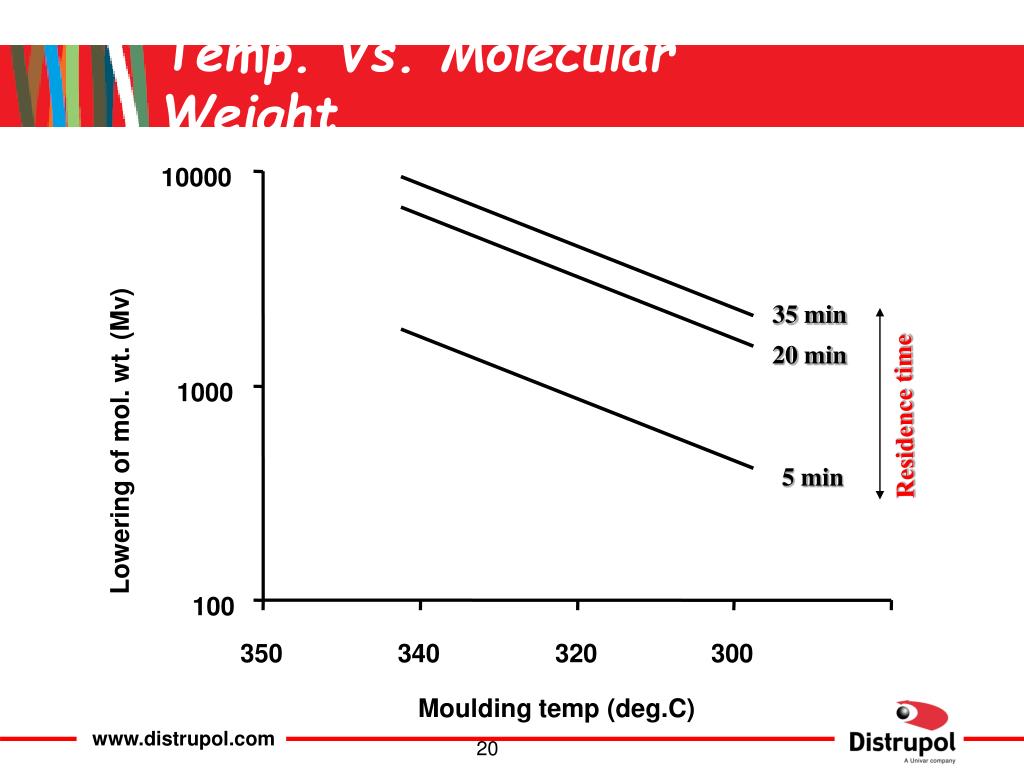

  20. 10000 35 min 20 min 1000 Residence time Lowering of mol. wt. (Mv) 5 min 100 350 340 320 300 280 Moulding temp (deg.C) Temp. Vs. Molecular Weight

  21. Hold-on-time Toughened Nylon 6.6

  22. Temperature Profiles

  23. The right Melt temperature The right Melt quality Conclusion

  24. A Polymer for Every Application
