Web Services Examples

Web Services Examples. HTTP Tunnel/Monitor $ corej2ee tools tunnel –Dlocalport=8001 –Dhost=localhost –Dport=7001. RMI Easy When Client/Server are both Java Standard API Java Centric Proprietary Implementations RMI/IIOP added basic interoperability, but no transactions or security CORBA

hyacinth-roy
Télécharger la présentation

Web Services Examples

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

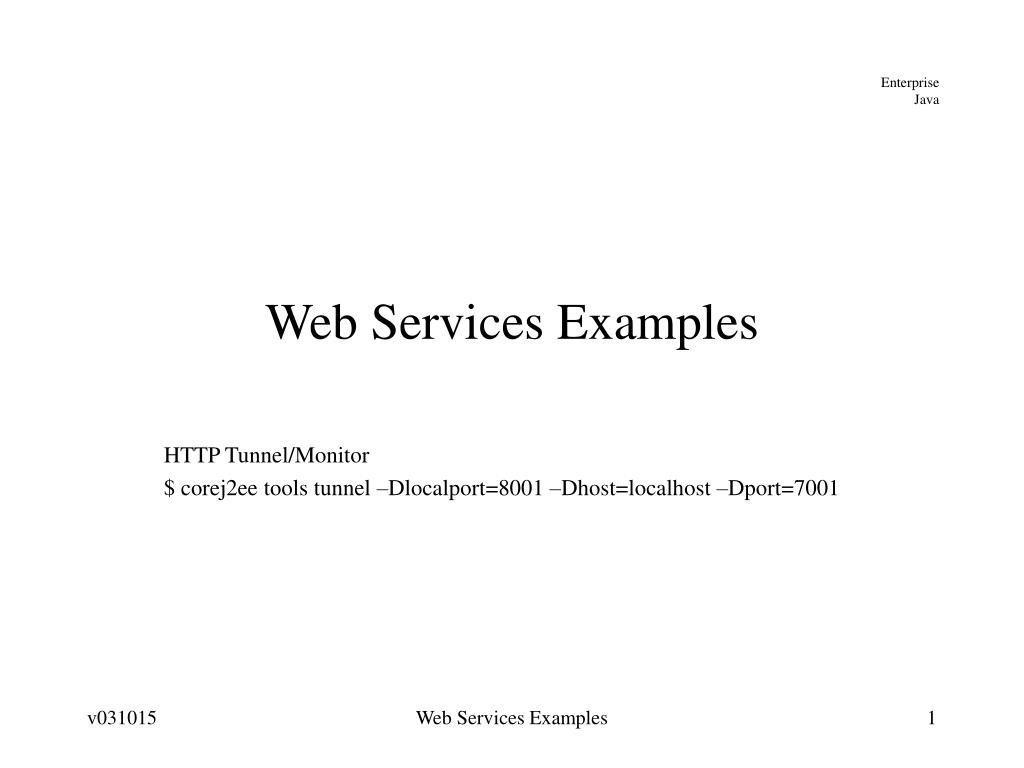

  1. Web Services Examples HTTP Tunnel/Monitor $ corej2ee tools tunnel –Dlocalport=8001 –Dhost=localhost –Dport=7001 Web Services Examples

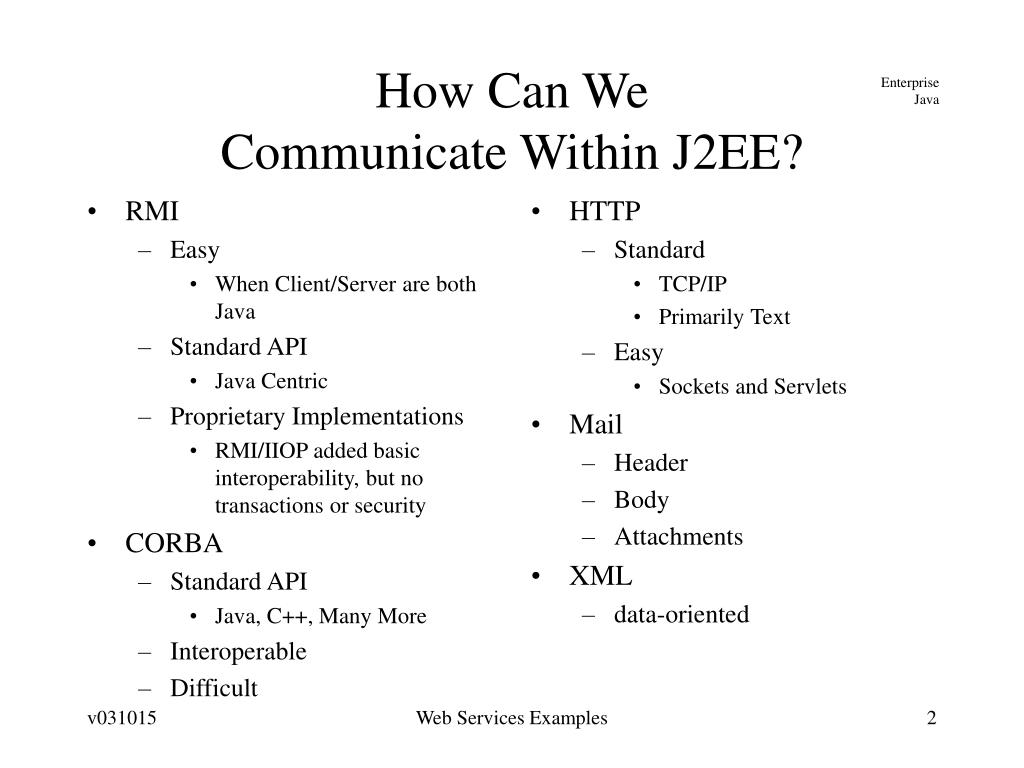

  2. RMI Easy When Client/Server are both Java Standard API Java Centric Proprietary Implementations RMI/IIOP added basic interoperability, but no transactions or security CORBA Standard API Java, C++, Many More Interoperable Difficult HTTP Standard TCP/IP Primarily Text Easy Sockets and Servlets Mail Header Body Attachments XML data-oriented How Can We Communicate Within J2EE? Web Services Examples

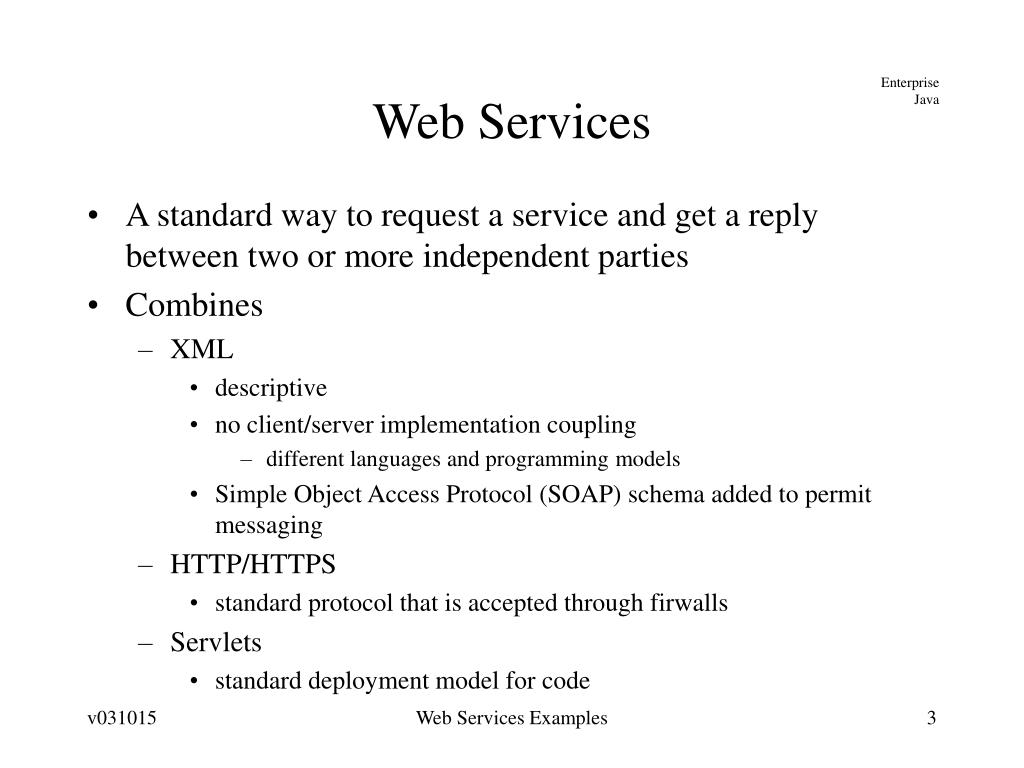

  3. Web Services • A standard way to request a service and get a reply between two or more independent parties • Combines • XML • descriptive • no client/server implementation coupling • different languages and programming models • Simple Object Access Protocol (SOAP) schema added to permit messaging • HTTP/HTTPS • standard protocol that is accepted through firwalls • Servlets • standard deployment model for code Web Services Examples

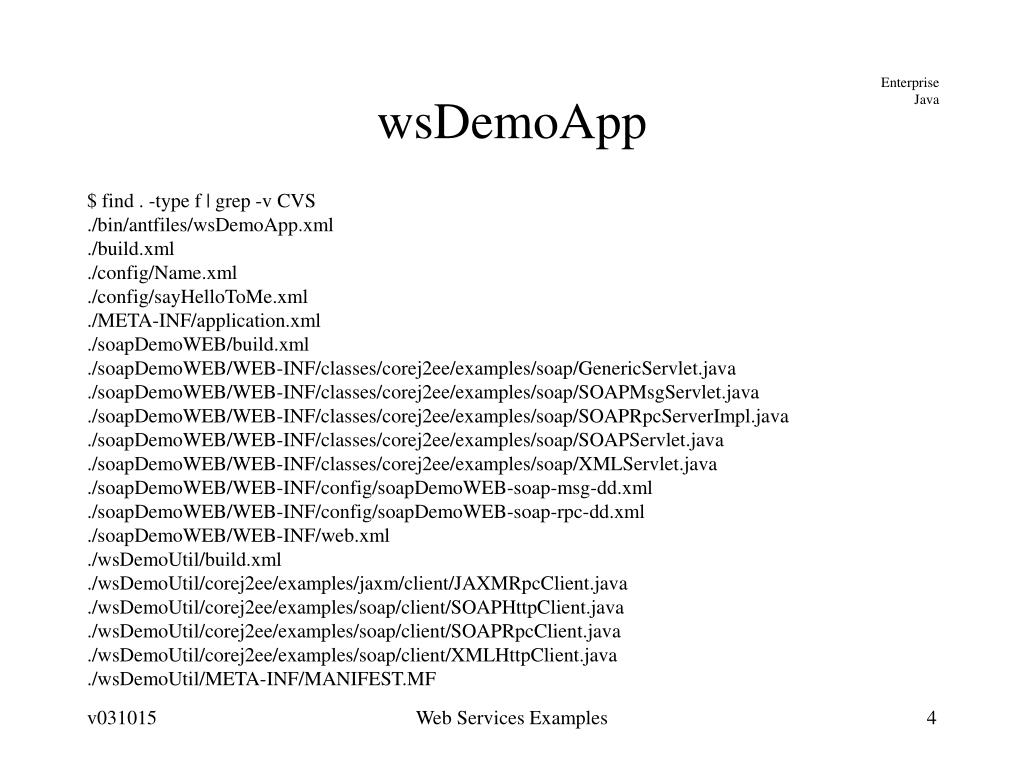

  4. wsDemoApp $ find . -type f | grep -v CVS ./bin/antfiles/wsDemoApp.xml ./build.xml ./config/Name.xml ./config/sayHelloToMe.xml ./META-INF/application.xml ./soapDemoWEB/build.xml ./soapDemoWEB/WEB-INF/classes/corej2ee/examples/soap/GenericServlet.java ./soapDemoWEB/WEB-INF/classes/corej2ee/examples/soap/SOAPMsgServlet.java ./soapDemoWEB/WEB-INF/classes/corej2ee/examples/soap/SOAPRpcServerImpl.java ./soapDemoWEB/WEB-INF/classes/corej2ee/examples/soap/SOAPServlet.java ./soapDemoWEB/WEB-INF/classes/corej2ee/examples/soap/XMLServlet.java ./soapDemoWEB/WEB-INF/config/soapDemoWEB-soap-msg-dd.xml ./soapDemoWEB/WEB-INF/config/soapDemoWEB-soap-rpc-dd.xml ./soapDemoWEB/WEB-INF/web.xml ./wsDemoUtil/build.xml ./wsDemoUtil/corej2ee/examples/jaxm/client/JAXMRpcClient.java ./wsDemoUtil/corej2ee/examples/soap/client/SOAPHttpClient.java ./wsDemoUtil/corej2ee/examples/soap/client/SOAPRpcClient.java ./wsDemoUtil/corej2ee/examples/soap/client/XMLHttpClient.java ./wsDemoUtil/META-INF/MANIFEST.MF Web Services Examples

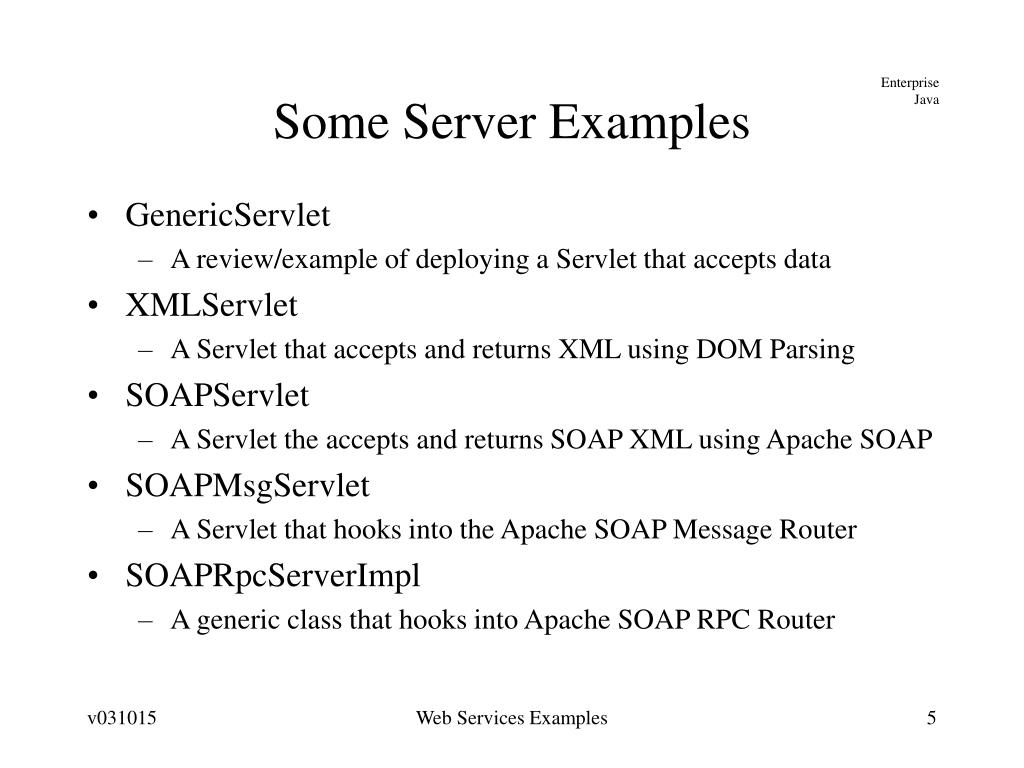

  5. Some Server Examples • GenericServlet • A review/example of deploying a Servlet that accepts data • XMLServlet • A Servlet that accepts and returns XML using DOM Parsing • SOAPServlet • A Servlet the accepts and returns SOAP XML using Apache SOAP • SOAPMsgServlet • A Servlet that hooks into the Apache SOAP Message Router • SOAPRpcServerImpl • A generic class that hooks into Apache SOAP RPC Router Web Services Examples

  6. Some Client Examples • XMLHttpClient • Sends and receives and XML Document to an URL using HTTP • SOAPHttpClient • Sends and receives SOAP Messages using Apache SOAP • SOAPRpcClient • Invokes SOAP Services using Apache SOAP • JAXMRpcClient • Invokes SOAP Services using JAXM Web Services Examples

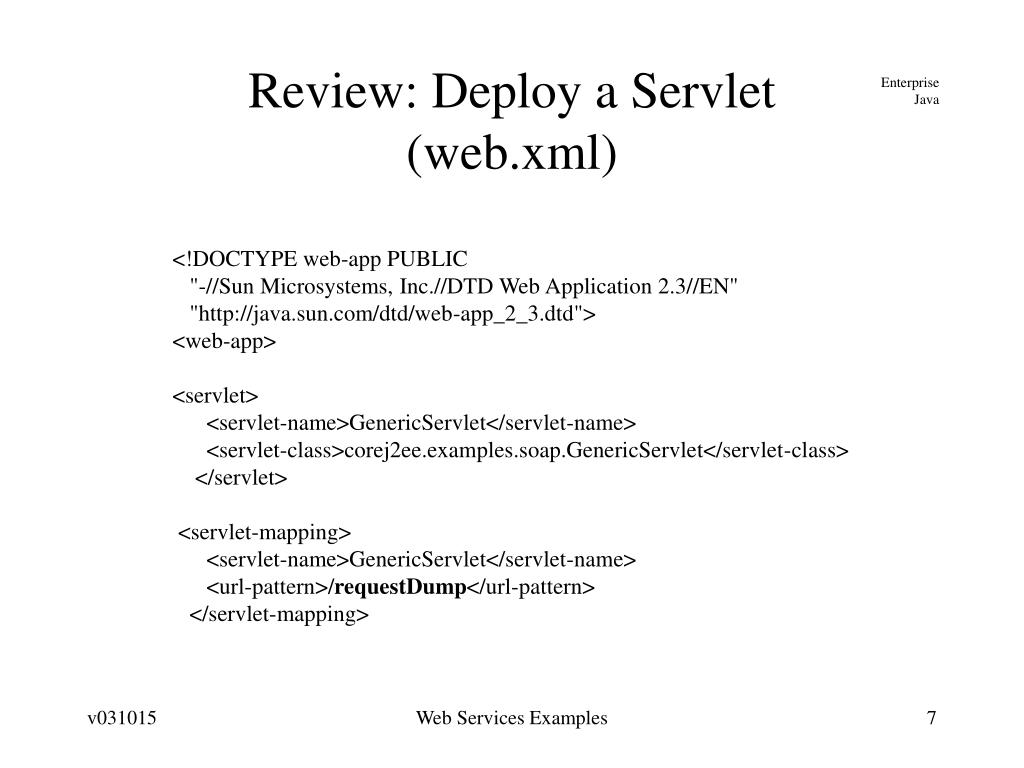

  7. Review: Deploy a Servlet(web.xml) <!DOCTYPE web-app PUBLIC "-//Sun Microsystems, Inc.//DTD Web Application 2.3//EN" "http://java.sun.com/dtd/web-app_2_3.dtd"> <web-app> <servlet> <servlet-name>GenericServlet</servlet-name> <servlet-class>corej2ee.examples.soap.GenericServlet</servlet-class> </servlet> <servlet-mapping> <servlet-name>GenericServlet</servlet-name> <url-pattern>/requestDump</url-pattern> </servlet-mapping> Web Services Examples

  8. Review: Generic Servlet public class GenericServlet extends HttpServlet { public void doPost(HttpServletRequest request, HttpServletResponse response) throws IOException { printHeaders(request, response); printDocument(request, response); response.setContentType("text/xml"); //required } protected int printDocument(HttpServletRequest request, HttpServletResponse response) throws IOException { InputStream is = request.getInputStream(); InputStreamReader reader = new InputStreamReader(is); char buffer[] = new char[1024]; int len=0; while ((len=reader.read(buffer, 0, buffer.length)) >= 0) { getOut().print(new String(buffer,0,len)); } return 0; } Web Services Examples

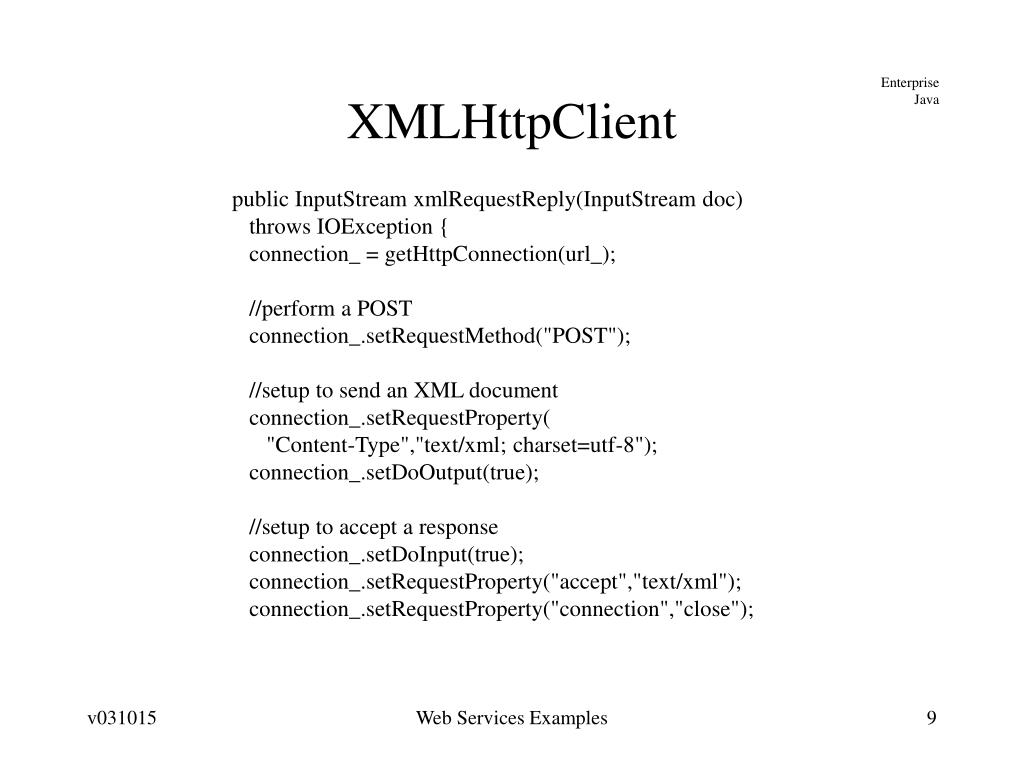

  9. XMLHttpClient public InputStream xmlRequestReply(InputStream doc) throws IOException { connection_ = getHttpConnection(url_); //perform a POST connection_.setRequestMethod("POST"); //setup to send an XML document connection_.setRequestProperty( "Content-Type","text/xml; charset=utf-8"); connection_.setDoOutput(true); //setup to accept a response connection_.setDoInput(true); connection_.setRequestProperty("accept","text/xml"); connection_.setRequestProperty("connection","close"); Web Services Examples

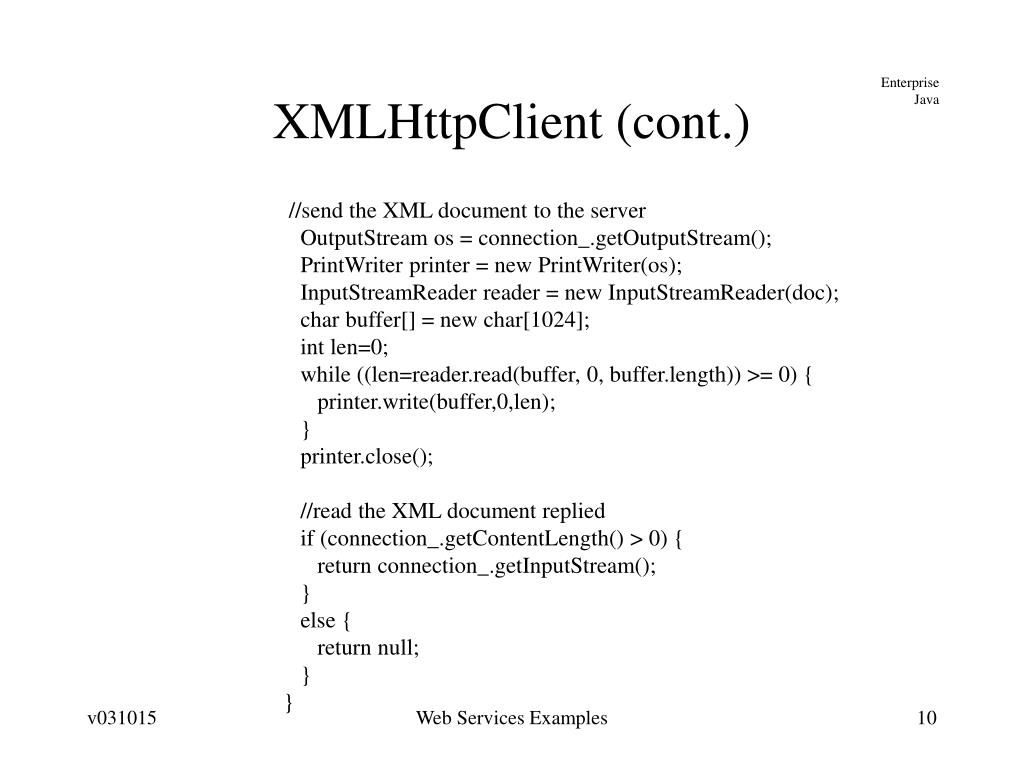

  10. XMLHttpClient (cont.) //send the XML document to the server OutputStream os = connection_.getOutputStream(); PrintWriter printer = new PrintWriter(os); InputStreamReader reader = new InputStreamReader(doc); char buffer[] = new char[1024]; int len=0; while ((len=reader.read(buffer, 0, buffer.length)) >= 0) { printer.write(buffer,0,len); } printer.close(); //read the XML document replied if (connection_.getContentLength() > 0) { return connection_.getInputStream(); } else { return null; } } Web Services Examples

  11. Invoke the GenericServlet $ corej2ee wsDemoApp requestDump java -Durl=http://localhost:7001/soapDemo/requestDump -classpath \ ${XERCES_HOME}\xercesImpl.jar;${WL_HOME}\server\lib\weblogic.jar;\ ${COREJ2EE_HOME}\lib\wsDemo.jar;${COREJ2EE_HOME}\lib\corej2ee.jar \ corej2ee.examples.soap.client.XMLHttpClient ${COREJ2EE_HOME}/config/Name.xml' opening connection to:http://localhost:7001/soapDemo/requestDump reply= Name.xml <?xml version='1.0' encoding='UTF-8'?> <name xmlns="urn:corej2ee-examples-ws"> <firstName>cat</firstName> <lastName>inhat</lastName> </name> Web Services Examples

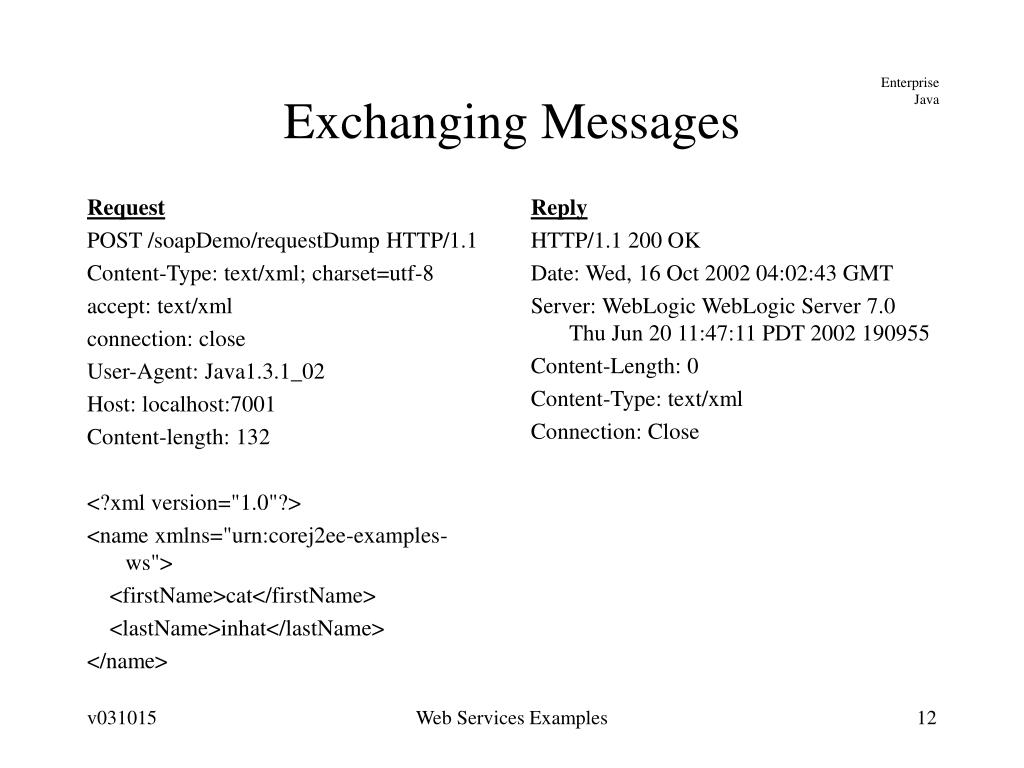

  12. Request POST /soapDemo/requestDump HTTP/1.1 Content-Type: text/xml; charset=utf-8 accept: text/xml connection: close User-Agent: Java1.3.1_02 Host: localhost:7001 Content-length: 132 <?xml version="1.0"?> <name xmlns="urn:corej2ee-examples-ws"> <firstName>cat</firstName> <lastName>inhat</lastName> </name> Reply HTTP/1.1 200 OK Date: Wed, 16 Oct 2002 04:02:43 GMT Server: WebLogic WebLogic Server 7.0 Thu Jun 20 11:47:11 PDT 2002 190955 Content-Length: 0 Content-Type: text/xml Connection: Close Exchanging Messages Web Services Examples

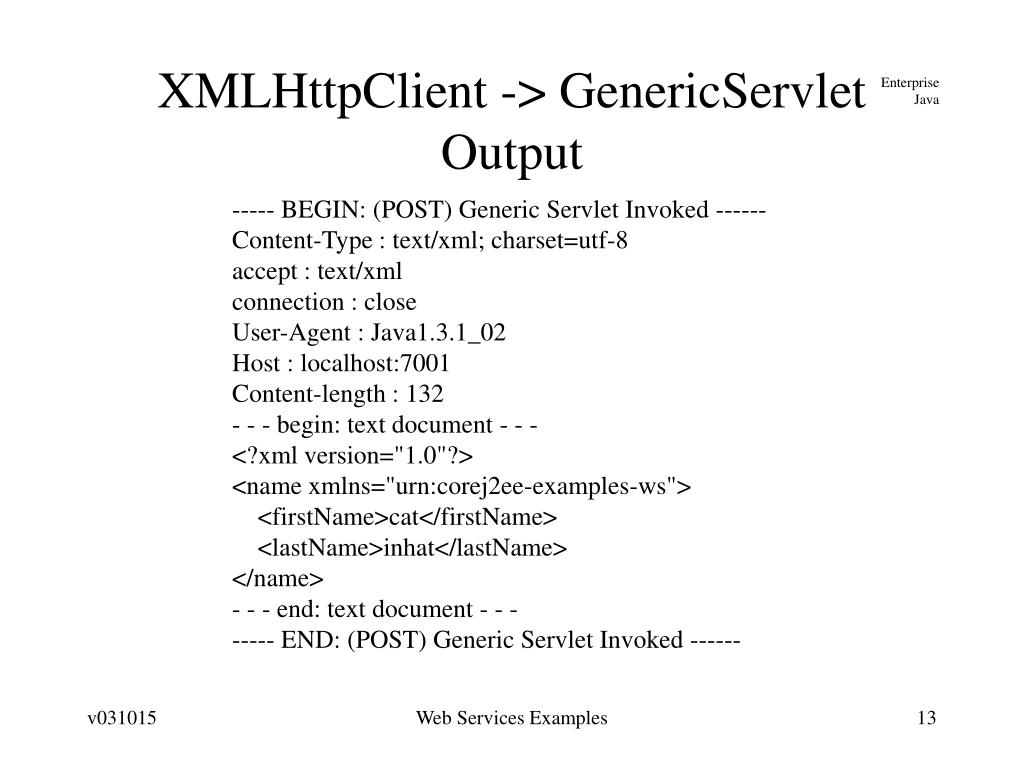

  13. XMLHttpClient -> GenericServlet Output ----- BEGIN: (POST) Generic Servlet Invoked ------ Content-Type : text/xml; charset=utf-8 accept : text/xml connection : close User-Agent : Java1.3.1_02 Host : localhost:7001 Content-length : 132 - - - begin: text document - - - <?xml version="1.0"?> <name xmlns="urn:corej2ee-examples-ws"> <firstName>cat</firstName> <lastName>inhat</lastName> </name> - - - end: text document - - - ----- END: (POST) Generic Servlet Invoked ------ Web Services Examples

  14. Inserting XML Knowledge into Servlet (XMLServlet) protected int printDocument(HttpServletRequest request, HttpServletResponse response) throws IOException { try { if (request.getContentLength() == 0) { return 0; } InputStream is = request.getInputStream(); DocumentBuilder parser = dbf_.newDocumentBuilder(); Document doc = parser.parse(is); OutputFormat format = new OutputFormat("XML",null,true); XMLSerializer serializer = new XMLSerializer(getOut(), format); serializer.serialize(doc); } catch (… return 0; } response.setContentType("text/xml"); //required response.getWriter().print("<reply>hello</reply>"); Web Services Examples

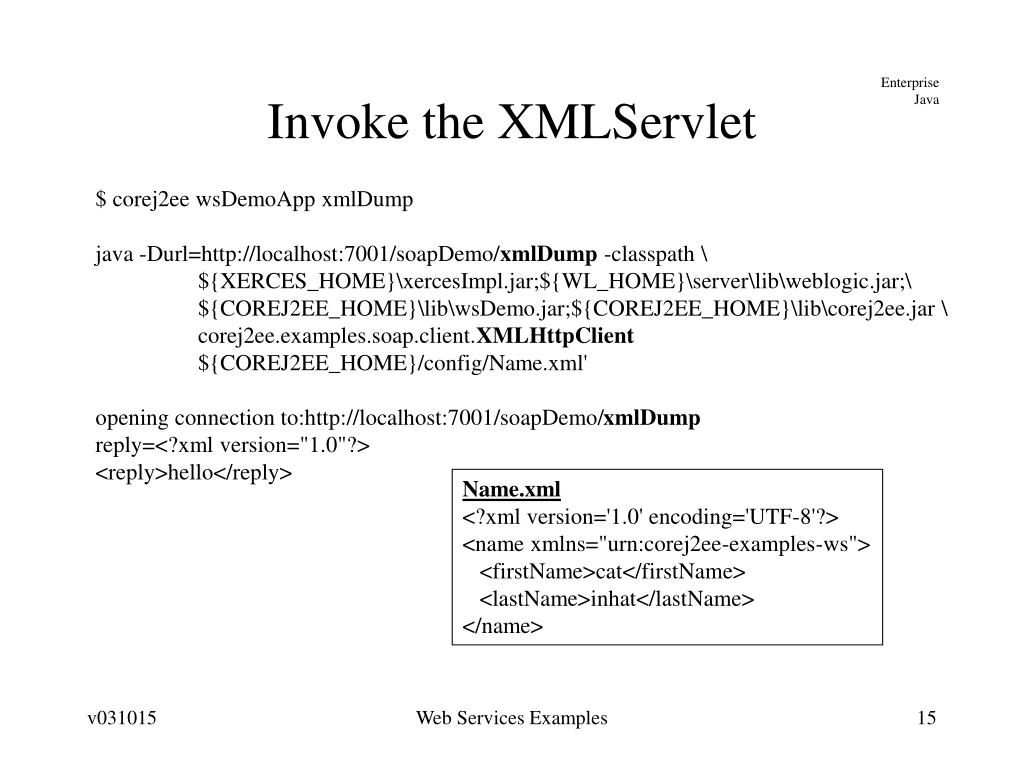

  15. Invoke the XMLServlet $ corej2ee wsDemoApp xmlDump java -Durl=http://localhost:7001/soapDemo/xmlDump -classpath \ ${XERCES_HOME}\xercesImpl.jar;${WL_HOME}\server\lib\weblogic.jar;\ ${COREJ2EE_HOME}\lib\wsDemo.jar;${COREJ2EE_HOME}\lib\corej2ee.jar \ corej2ee.examples.soap.client.XMLHttpClient ${COREJ2EE_HOME}/config/Name.xml' opening connection to:http://localhost:7001/soapDemo/xmlDump reply=<?xml version="1.0"?> <reply>hello</reply> Name.xml <?xml version='1.0' encoding='UTF-8'?> <name xmlns="urn:corej2ee-examples-ws"> <firstName>cat</firstName> <lastName>inhat</lastName> </name> Web Services Examples

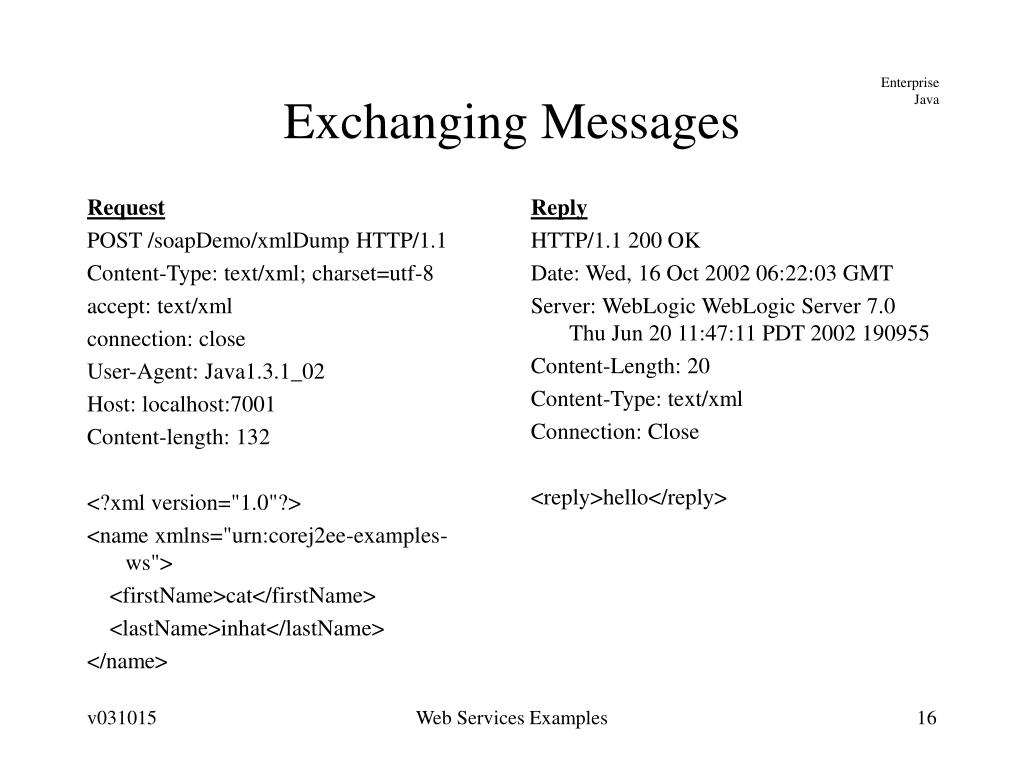

  16. Request POST /soapDemo/xmlDump HTTP/1.1 Content-Type: text/xml; charset=utf-8 accept: text/xml connection: close User-Agent: Java1.3.1_02 Host: localhost:7001 Content-length: 132 <?xml version="1.0"?> <name xmlns="urn:corej2ee-examples-ws"> <firstName>cat</firstName> <lastName>inhat</lastName> </name> Reply HTTP/1.1 200 OK Date: Wed, 16 Oct 2002 06:22:03 GMT Server: WebLogic WebLogic Server 7.0 Thu Jun 20 11:47:11 PDT 2002 190955 Content-Length: 20 Content-Type: text/xml Connection: Close <reply>hello</reply> Exchanging Messages Web Services Examples

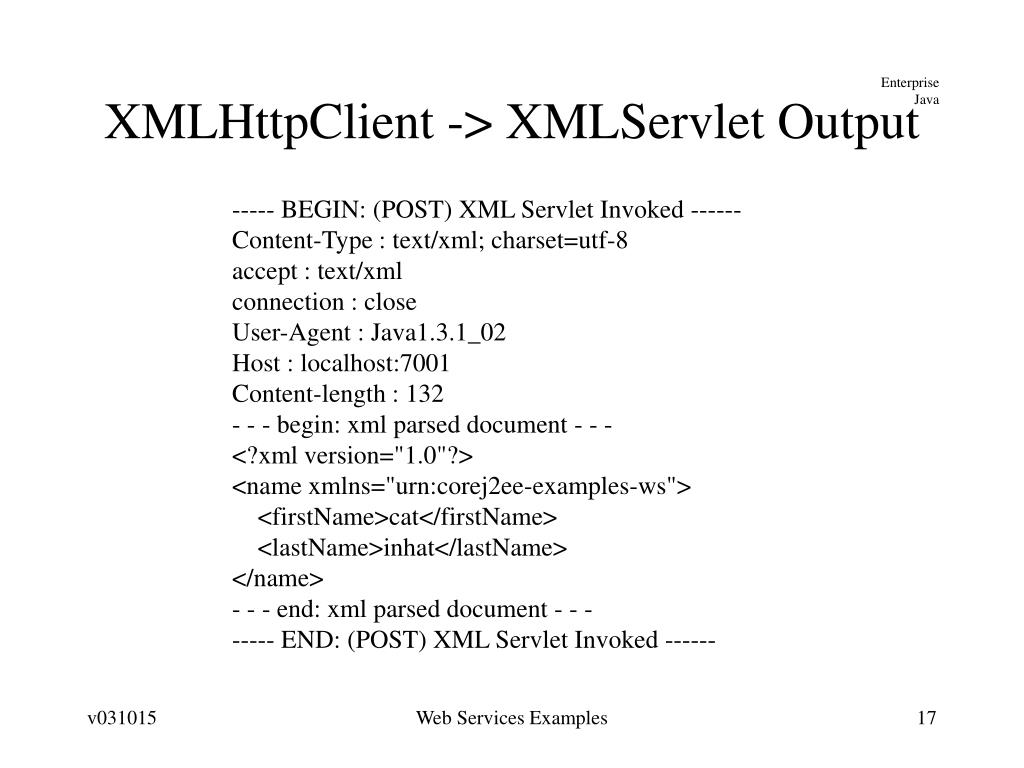

  17. XMLHttpClient -> XMLServlet Output ----- BEGIN: (POST) XML Servlet Invoked ------ Content-Type : text/xml; charset=utf-8 accept : text/xml connection : close User-Agent : Java1.3.1_02 Host : localhost:7001 Content-length : 132 - - - begin: xml parsed document - - - <?xml version="1.0"?> <name xmlns="urn:corej2ee-examples-ws"> <firstName>cat</firstName> <lastName>inhat</lastName> </name> - - - end: xml parsed document - - - ----- END: (POST) XML Servlet Invoked ------ Web Services Examples

  18. Build SOAP Messages • SOAP Message • SOAP Envelope • SOAP Header (optional) • SOAP Body Web Services Examples

  19. SOAPHttpClient public BufferedReader soapRequestReply(String to, Document doc) throws SOAPException { Element toElement = doc.createElement("to"); Text toText = doc.createTextNode(to); toElement.appendChild(toText); Element headerElement = doc.createElementNS("urn:corej2ee-examples-soap", "header"); headerElement.appendChild(toElement); Vector soapHeaderEntries = new Vector(); soapHeaderEntries.add(headerElement); Header soapHeader = new Header(); soapHeader.setHeaderEntries(soapHeaderEntries); Vector soapBodyEntries = new Vector(); soapBodyEntries.add(doc.getDocumentElement()); Body soapBody = new Body(); soapBody.setBodyEntries(soapBodyEntries); Build Header Build Body Web Services Examples

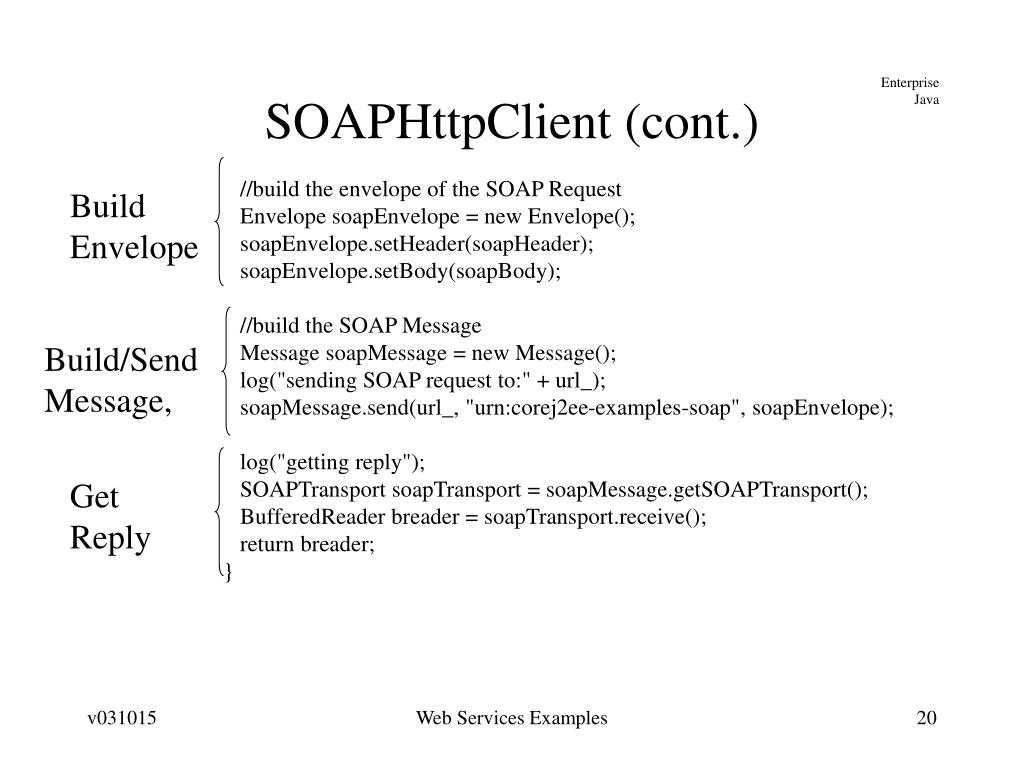

  20. SOAPHttpClient (cont.) //build the envelope of the SOAP Request Envelope soapEnvelope = new Envelope(); soapEnvelope.setHeader(soapHeader); soapEnvelope.setBody(soapBody); //build the SOAP Message Message soapMessage = new Message(); log("sending SOAP request to:" + url_); soapMessage.send(url_, "urn:corej2ee-examples-soap", soapEnvelope); log("getting reply"); SOAPTransport soapTransport = soapMessage.getSOAPTransport(); BufferedReader breader = soapTransport.receive(); return breader; } Build Envelope Build/Send Message, Get Reply Web Services Examples

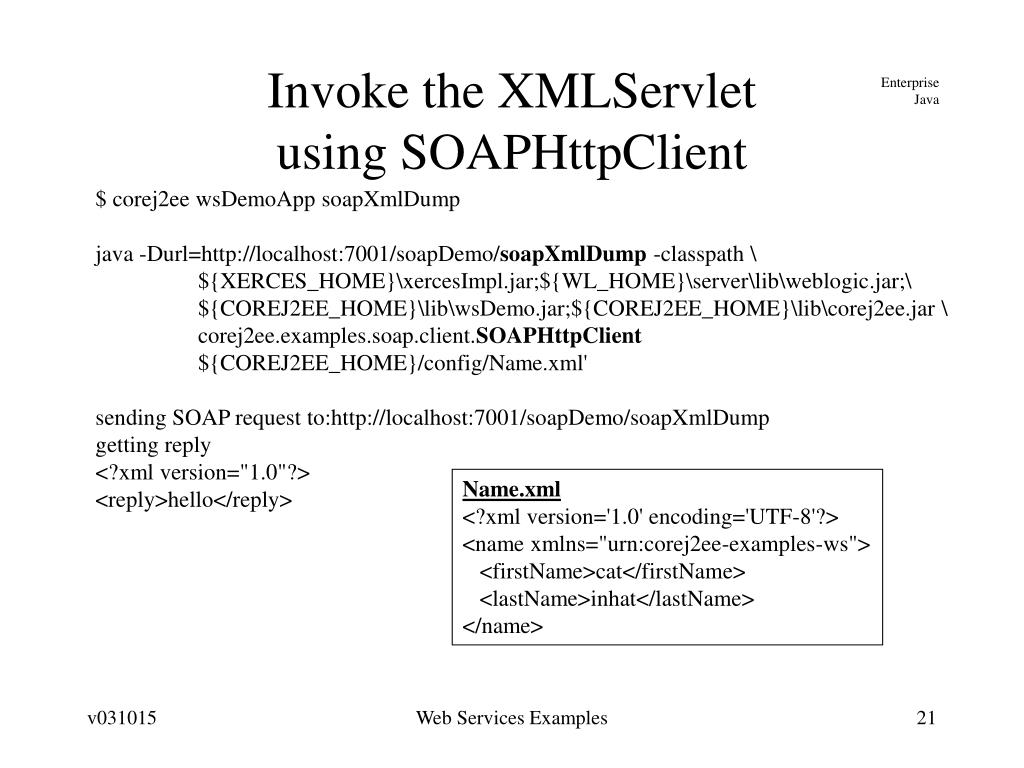

  21. Invoke the XMLServlet using SOAPHttpClient $ corej2ee wsDemoApp soapXmlDump java -Durl=http://localhost:7001/soapDemo/soapXmlDump -classpath \ ${XERCES_HOME}\xercesImpl.jar;${WL_HOME}\server\lib\weblogic.jar;\ ${COREJ2EE_HOME}\lib\wsDemo.jar;${COREJ2EE_HOME}\lib\corej2ee.jar \ corej2ee.examples.soap.client.SOAPHttpClient ${COREJ2EE_HOME}/config/Name.xml' sending SOAP request to:http://localhost:7001/soapDemo/soapXmlDump getting reply <?xml version="1.0"?> <reply>hello</reply> Name.xml <?xml version='1.0' encoding='UTF-8'?> <name xmlns="urn:corej2ee-examples-ws"> <firstName>cat</firstName> <lastName>inhat</lastName> </name> Web Services Examples

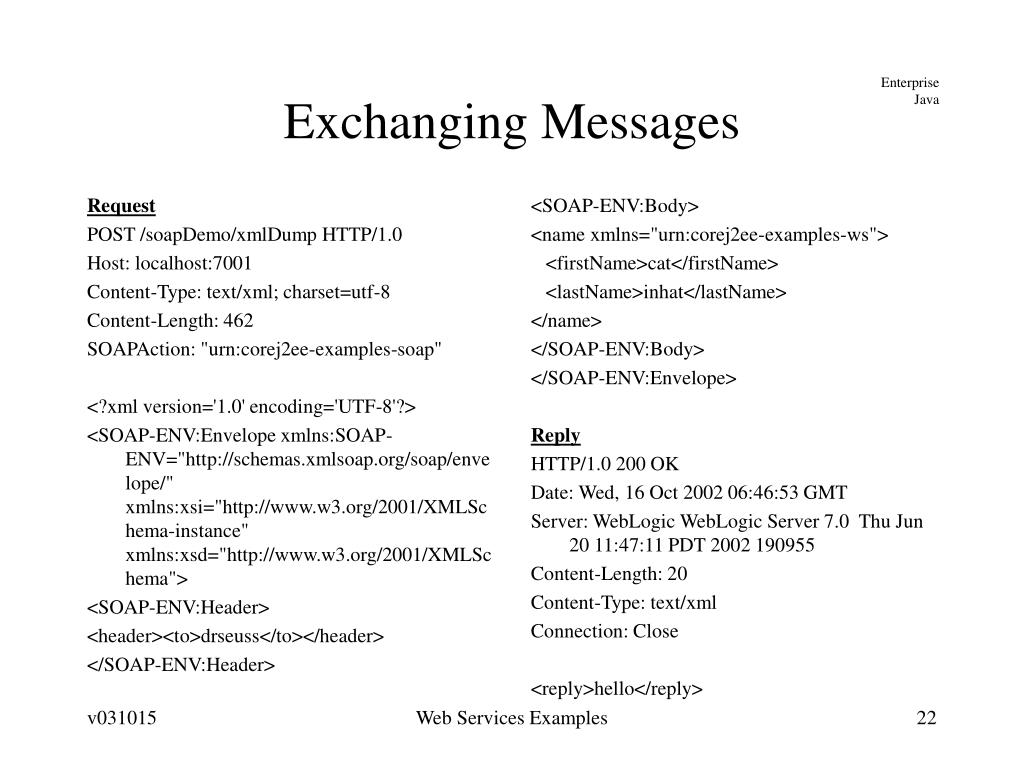

  22. Request POST /soapDemo/xmlDump HTTP/1.0 Host: localhost:7001 Content-Type: text/xml; charset=utf-8 Content-Length: 462 SOAPAction: "urn:corej2ee-examples-soap" <?xml version='1.0' encoding='UTF-8'?> <SOAP-ENV:Envelope xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema"> <SOAP-ENV:Header> <header><to>drseuss</to></header> </SOAP-ENV:Header> <SOAP-ENV:Body> <name xmlns="urn:corej2ee-examples-ws"> <firstName>cat</firstName> <lastName>inhat</lastName> </name> </SOAP-ENV:Body> </SOAP-ENV:Envelope> Reply HTTP/1.0 200 OK Date: Wed, 16 Oct 2002 06:46:53 GMT Server: WebLogic WebLogic Server 7.0 Thu Jun 20 11:47:11 PDT 2002 190955 Content-Length: 20 Content-Type: text/xml Connection: Close <reply>hello</reply> Exchanging Messages Web Services Examples

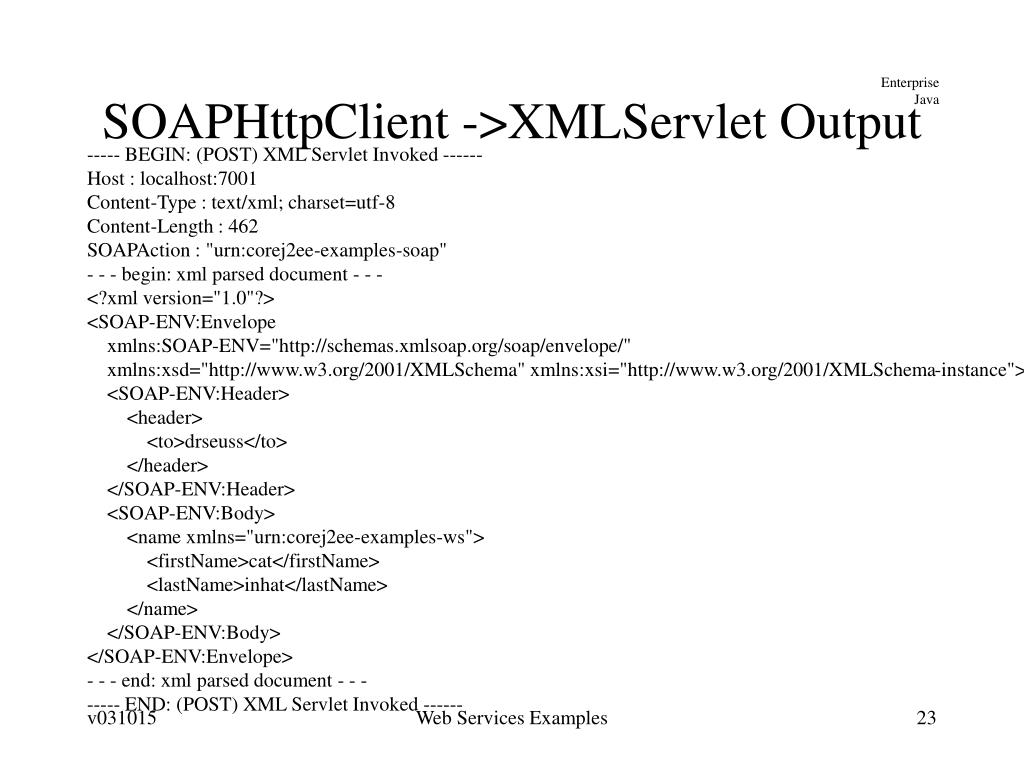

  23. SOAPHttpClient ->XMLServlet Output ----- BEGIN: (POST) XML Servlet Invoked ------ Host : localhost:7001 Content-Type : text/xml; charset=utf-8 Content-Length : 462 SOAPAction : "urn:corej2ee-examples-soap" - - - begin: xml parsed document - - - <?xml version="1.0"?> <SOAP-ENV:Envelope xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"> <SOAP-ENV:Header> <header> <to>drseuss</to> </header> </SOAP-ENV:Header> <SOAP-ENV:Body> <name xmlns="urn:corej2ee-examples-ws"> <firstName>cat</firstName> <lastName>inhat</lastName> </name> </SOAP-ENV:Body> </SOAP-ENV:Envelope> - - - end: xml parsed document - - - ----- END: (POST) XML Servlet Invoked ------ Web Services Examples

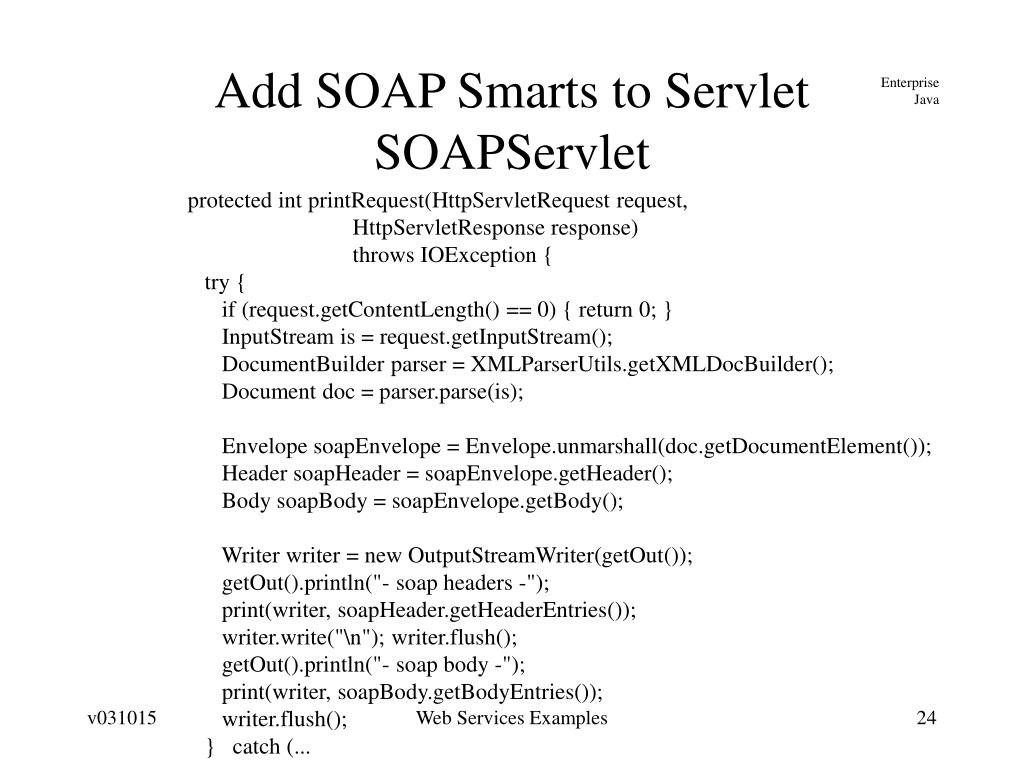

  24. Add SOAP Smarts to ServletSOAPServlet protected int printRequest(HttpServletRequest request, HttpServletResponse response) throws IOException { try { if (request.getContentLength() == 0) { return 0; } InputStream is = request.getInputStream(); DocumentBuilder parser = XMLParserUtils.getXMLDocBuilder(); Document doc = parser.parse(is); Envelope soapEnvelope = Envelope.unmarshall(doc.getDocumentElement()); Header soapHeader = soapEnvelope.getHeader(); Body soapBody = soapEnvelope.getBody(); Writer writer = new OutputStreamWriter(getOut()); getOut().println("- soap headers -"); print(writer, soapHeader.getHeaderEntries()); writer.write("\n"); writer.flush(); getOut().println("- soap body -"); print(writer, soapBody.getBodyEntries()); writer.flush(); } catch (... Web Services Examples

  25. Invoke the SOAPServlet using SOAPHttpClient $ corej2ee wsDemoApp soapDump java -Durl=http://localhost:7001/soapDemo/soapDump -classpath \ ${XERCES_HOME}\xercesImpl.jar;${WL_HOME}\server\lib\weblogic.jar;\ ${COREJ2EE_HOME}\lib\wsDemo.jar;${COREJ2EE_HOME}\lib\corej2ee.jar \ corej2ee.examples.soap.client.SOAPHttpClient ${COREJ2EE_HOME}/config/Name.xml' sending SOAP request to:http://localhost:7001/soapDemo/soapDump getting reply <?xml version="1.0"?> <reply>hello</reply> Name.xml <?xml version='1.0' encoding='UTF-8'?> <name xmlns="urn:corej2ee-examples-ws"> <firstName>cat</firstName> <lastName>inhat</lastName> </name> Web Services Examples

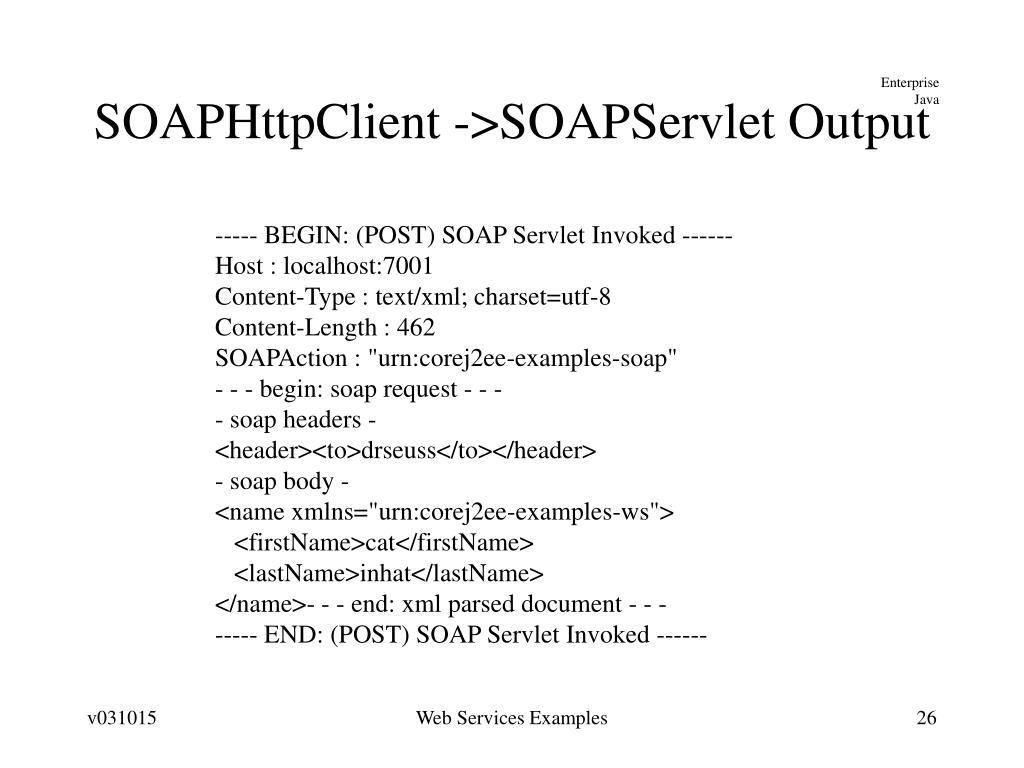

  26. SOAPHttpClient ->SOAPServlet Output ----- BEGIN: (POST) SOAP Servlet Invoked ------ Host : localhost:7001 Content-Type : text/xml; charset=utf-8 Content-Length : 462 SOAPAction : "urn:corej2ee-examples-soap" - - - begin: soap request - - - - soap headers - <header><to>drseuss</to></header> - soap body - <name xmlns="urn:corej2ee-examples-ws"> <firstName>cat</firstName> <lastName>inhat</lastName> </name>- - - end: xml parsed document - - - ----- END: (POST) SOAP Servlet Invoked ------ Web Services Examples

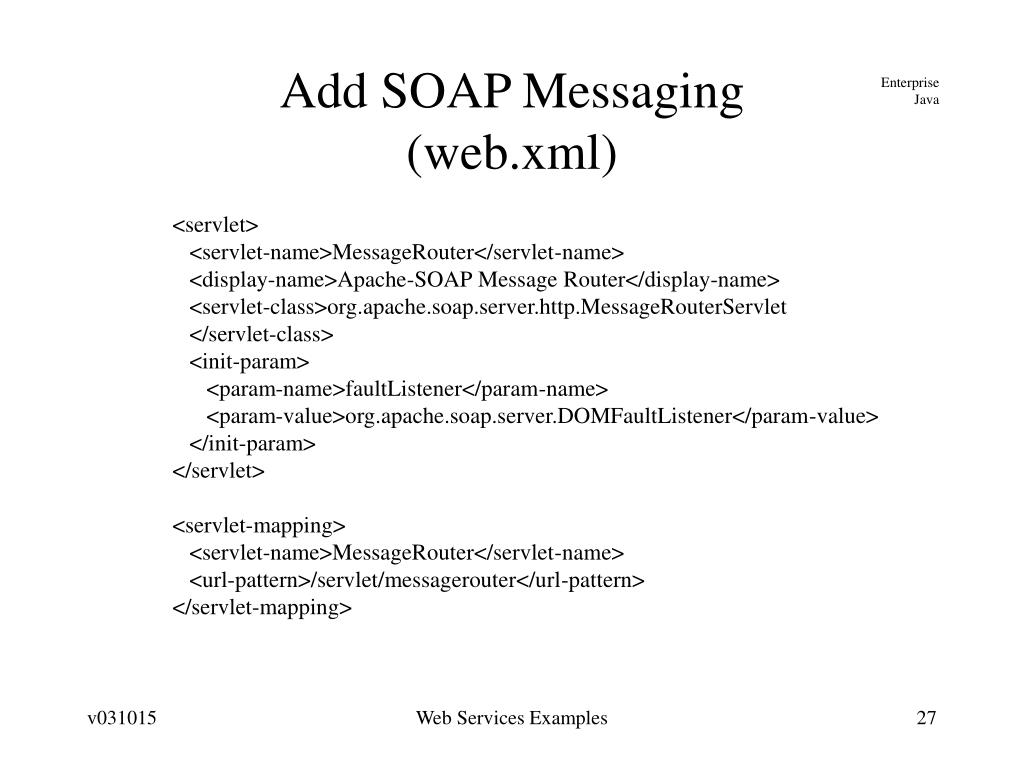

  27. Add SOAP Messaging(web.xml) <servlet> <servlet-name>MessageRouter</servlet-name> <display-name>Apache-SOAP Message Router</display-name> <servlet-class>org.apache.soap.server.http.MessageRouterServlet </servlet-class> <init-param> <param-name>faultListener</param-name> <param-value>org.apache.soap.server.DOMFaultListener</param-value> </init-param> </servlet> <servlet-mapping> <servlet-name>MessageRouter</servlet-name> <url-pattern>/servlet/messagerouter</url-pattern> </servlet-mapping> Web Services Examples

  28. Add SOAP Messaging(soapDemoWEB-soap-msg-dd.xml) <isd:service xmlns:isd="http://xml.apache.org/xml-soap/deployment" id="urn:corej2ee-examples-soap-msg" type="message"> <isd:provider type="java" scope="Application" methods="sayHelloToMe"> <isd:java class="corej2ee.examples.soap.SOAPMsgServlet" static="false"/> </isd:provider> <isd:faultListener>org.apache.soap.server.DOMFaultListener</isd:faultListener> </isd:service> $ corej2ee wsDemoApp soapdeploy $ java -classpath “${COREJ2EE_ROOT}\software\xerces-2_2_0\xercesImpl.jar;\ ${WL_HOME}\server\lib\weblogic.jar;\ ${COREJ2EE_ROOT}\software\soap-2_3_1\lib\soap.jar \ org.apache.soap.server.ServiceManagerClient http://localhost:8001/soapDemo/servlet/rpcrouter deploy ${COREJ2EE_HOME}/config/soapDemo-WEB-soap-msg-dd.xml Web Services Examples

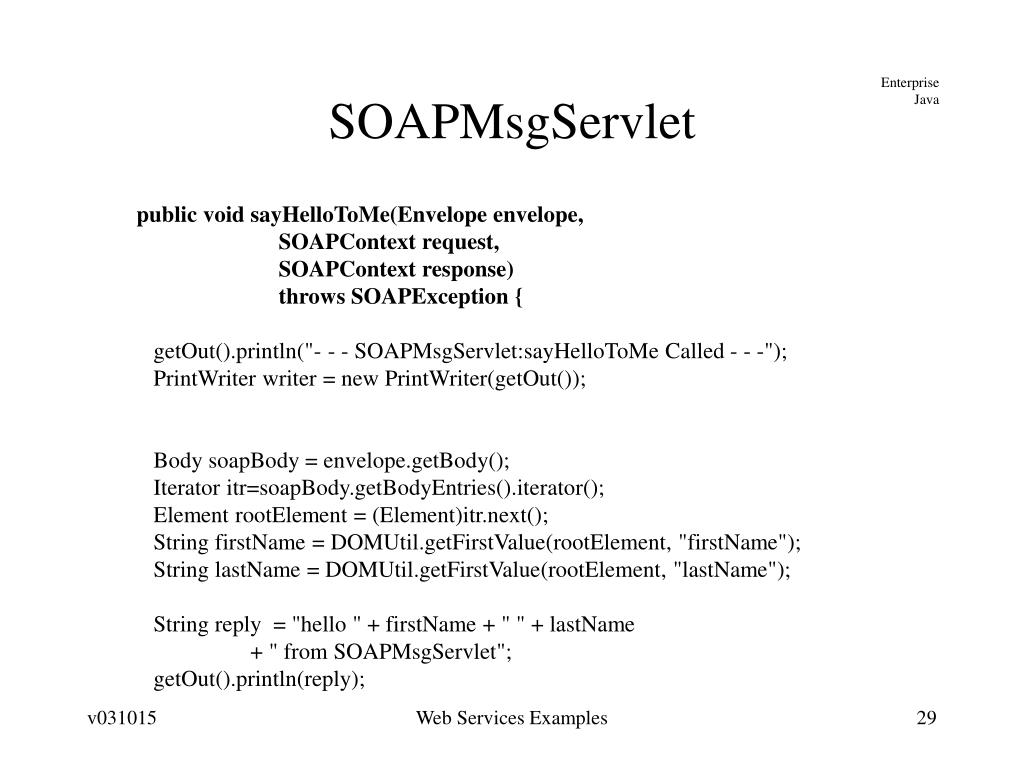

  29. SOAPMsgServlet public void sayHelloToMe(Envelope envelope, SOAPContext request, SOAPContext response) throws SOAPException { getOut().println("- - - SOAPMsgServlet:sayHelloToMe Called - - -"); PrintWriter writer = new PrintWriter(getOut()); Body soapBody = envelope.getBody(); Iterator itr=soapBody.getBodyEntries().iterator(); Element rootElement = (Element)itr.next(); String firstName = DOMUtil.getFirstValue(rootElement, "firstName"); String lastName = DOMUtil.getFirstValue(rootElement, "lastName"); String reply = "hello " + firstName + " " + lastName + " from SOAPMsgServlet"; getOut().println(reply); Web Services Examples

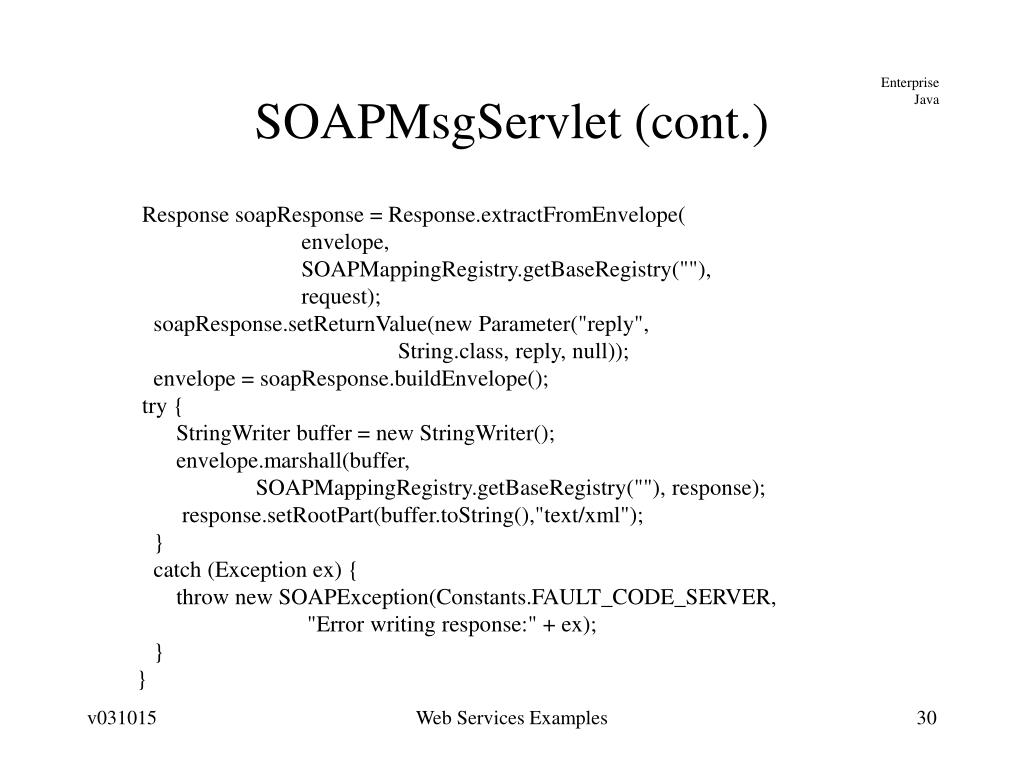

  30. SOAPMsgServlet (cont.) Response soapResponse = Response.extractFromEnvelope( envelope, SOAPMappingRegistry.getBaseRegistry(""), request); soapResponse.setReturnValue(new Parameter("reply", String.class, reply, null)); envelope = soapResponse.buildEnvelope(); try { StringWriter buffer = new StringWriter(); envelope.marshall(buffer, SOAPMappingRegistry.getBaseRegistry(""), response); response.setRootPart(buffer.toString(),"text/xml"); } catch (Exception ex) { throw new SOAPException(Constants.FAULT_CODE_SERVER, "Error writing response:" + ex); } } Web Services Examples

  31. SOAPRpcClient public String sayHelloToMe(String firstName, String lastName) throws SOAPException, Exception { Call soapRpcCall = new Call(); soapRpcCall.setEncodingStyleURI(Constants.NS_URI_SOAP_ENC); soapRpcCall.setTargetObjectURI(urn_); soapRpcCall.setMethodName(methodName_); //setup parameters to the method Vector params = new Vector(); params.addElement(new Parameter("firstName", String.class, firstName, null)); //encodingStyle params.addElement(new Parameter("lastName", String.class, lastName, null)); //encodingStyle soapRpcCall.setParams(params); Web Services Examples

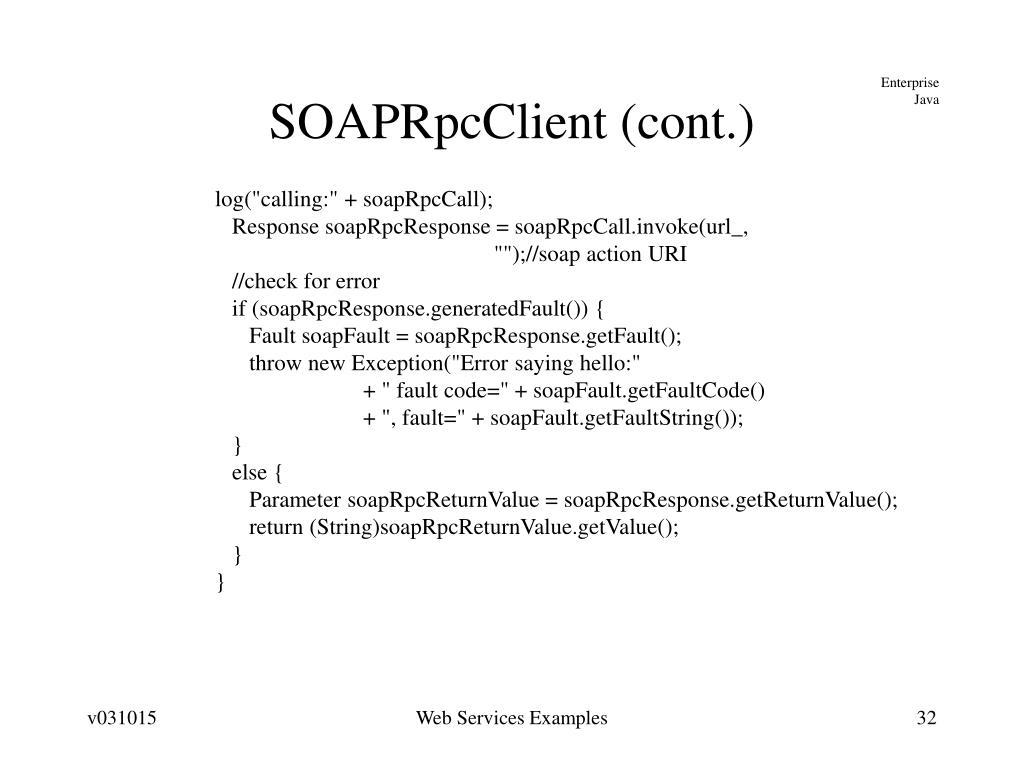

  32. SOAPRpcClient (cont.) log("calling:" + soapRpcCall); Response soapRpcResponse = soapRpcCall.invoke(url_, "");//soap action URI //check for error if (soapRpcResponse.generatedFault()) { Fault soapFault = soapRpcResponse.getFault(); throw new Exception("Error saying hello:" + " fault code=" + soapFault.getFaultCode() + ", fault=" + soapFault.getFaultString()); } else { Parameter soapRpcReturnValue = soapRpcResponse.getReturnValue(); return (String)soapRpcReturnValue.getValue(); } } Web Services Examples

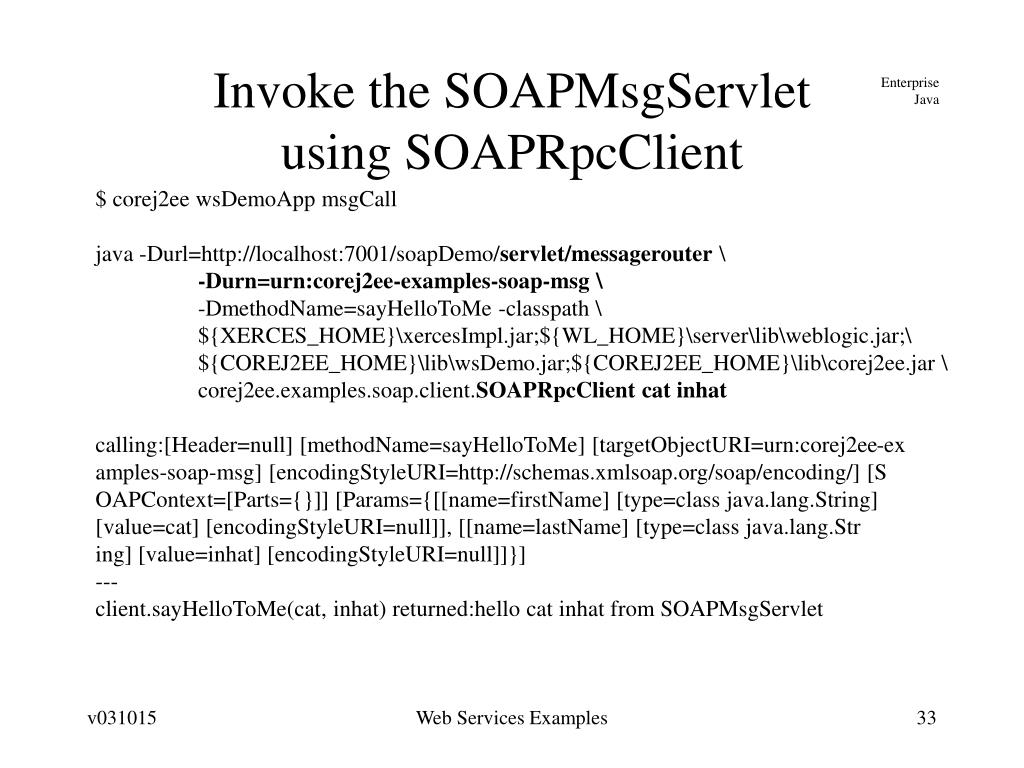

  33. Invoke the SOAPMsgServlet using SOAPRpcClient $ corej2ee wsDemoApp msgCall java -Durl=http://localhost:7001/soapDemo/servlet/messagerouter \ -Durn=urn:corej2ee-examples-soap-msg \ -DmethodName=sayHelloToMe -classpath \ ${XERCES_HOME}\xercesImpl.jar;${WL_HOME}\server\lib\weblogic.jar;\ ${COREJ2EE_HOME}\lib\wsDemo.jar;${COREJ2EE_HOME}\lib\corej2ee.jar \ corej2ee.examples.soap.client.SOAPRpcClient cat inhat calling:[Header=null] [methodName=sayHelloToMe] [targetObjectURI=urn:corej2ee-ex amples-soap-msg] [encodingStyleURI=http://schemas.xmlsoap.org/soap/encoding/] [S OAPContext=[Parts={}]] [Params={[[name=firstName] [type=class java.lang.String] [value=cat] [encodingStyleURI=null]], [[name=lastName] [type=class java.lang.Str ing] [value=inhat] [encodingStyleURI=null]]}] --- client.sayHelloToMe(cat, inhat) returned:hello cat inhat from SOAPMsgServlet Web Services Examples

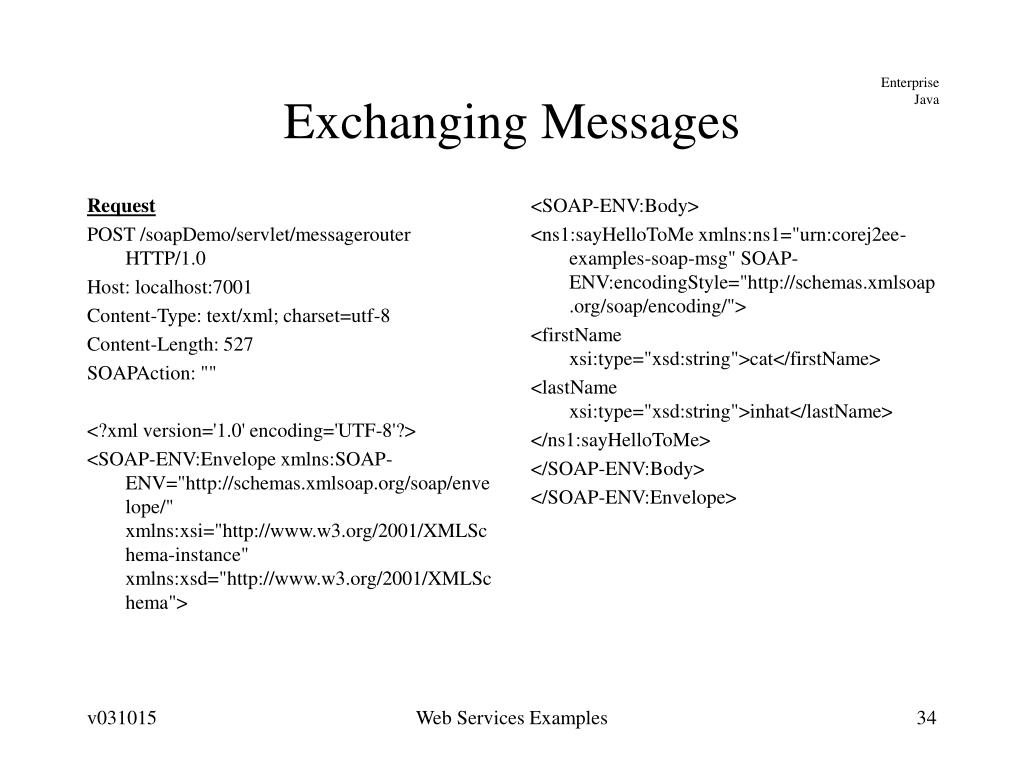

  34. Request POST /soapDemo/servlet/messagerouter HTTP/1.0 Host: localhost:7001 Content-Type: text/xml; charset=utf-8 Content-Length: 527 SOAPAction: "" <?xml version='1.0' encoding='UTF-8'?> <SOAP-ENV:Envelope xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema"> <SOAP-ENV:Body> <ns1:sayHelloToMe xmlns:ns1="urn:corej2ee-examples-soap-msg" SOAP-ENV:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"> <firstName xsi:type="xsd:string">cat</firstName> <lastName xsi:type="xsd:string">inhat</lastName> </ns1:sayHelloToMe> </SOAP-ENV:Body> </SOAP-ENV:Envelope> Exchanging Messages Web Services Examples

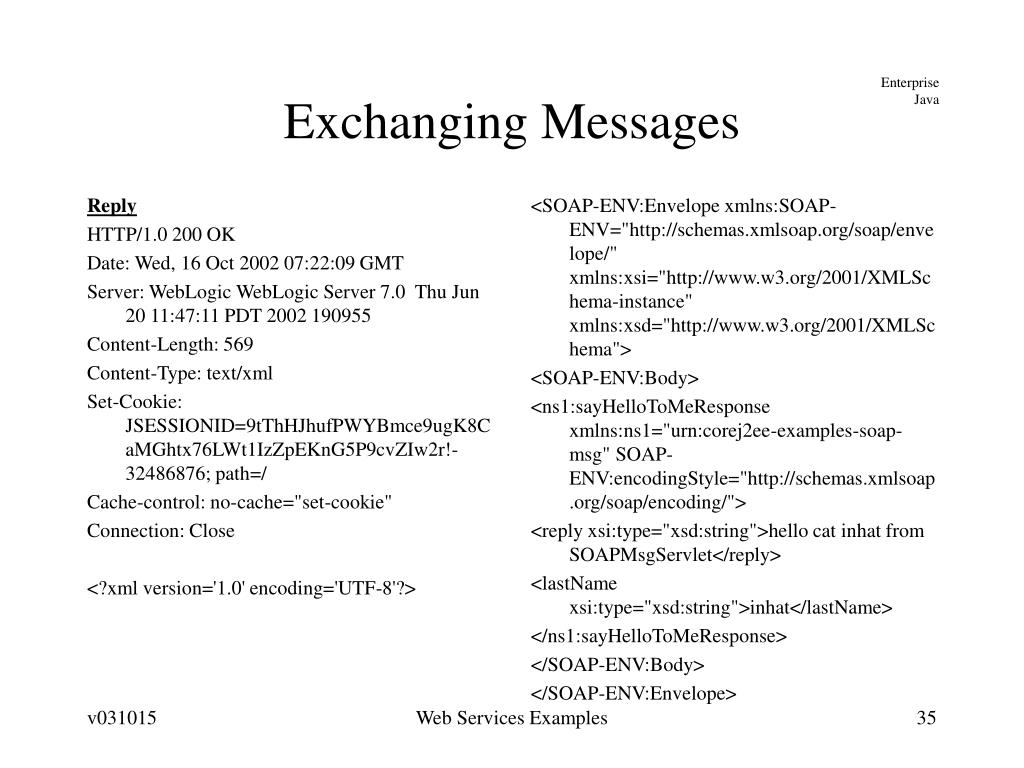

  35. Reply HTTP/1.0 200 OK Date: Wed, 16 Oct 2002 07:22:09 GMT Server: WebLogic WebLogic Server 7.0 Thu Jun 20 11:47:11 PDT 2002 190955 Content-Length: 569 Content-Type: text/xml Set-Cookie: JSESSIONID=9tThHJhufPWYBmce9ugK8CaMGhtx76LWt1IzZpEKnG5P9cvZIw2r!-32486876; path=/ Cache-control: no-cache="set-cookie" Connection: Close <?xml version='1.0' encoding='UTF-8'?> <SOAP-ENV:Envelope xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema"> <SOAP-ENV:Body> <ns1:sayHelloToMeResponse xmlns:ns1="urn:corej2ee-examples-soap-msg" SOAP-ENV:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"> <reply xsi:type="xsd:string">hello cat inhat from SOAPMsgServlet</reply> <lastName xsi:type="xsd:string">inhat</lastName> </ns1:sayHelloToMeResponse> </SOAP-ENV:Body> </SOAP-ENV:Envelope> Exchanging Messages Web Services Examples

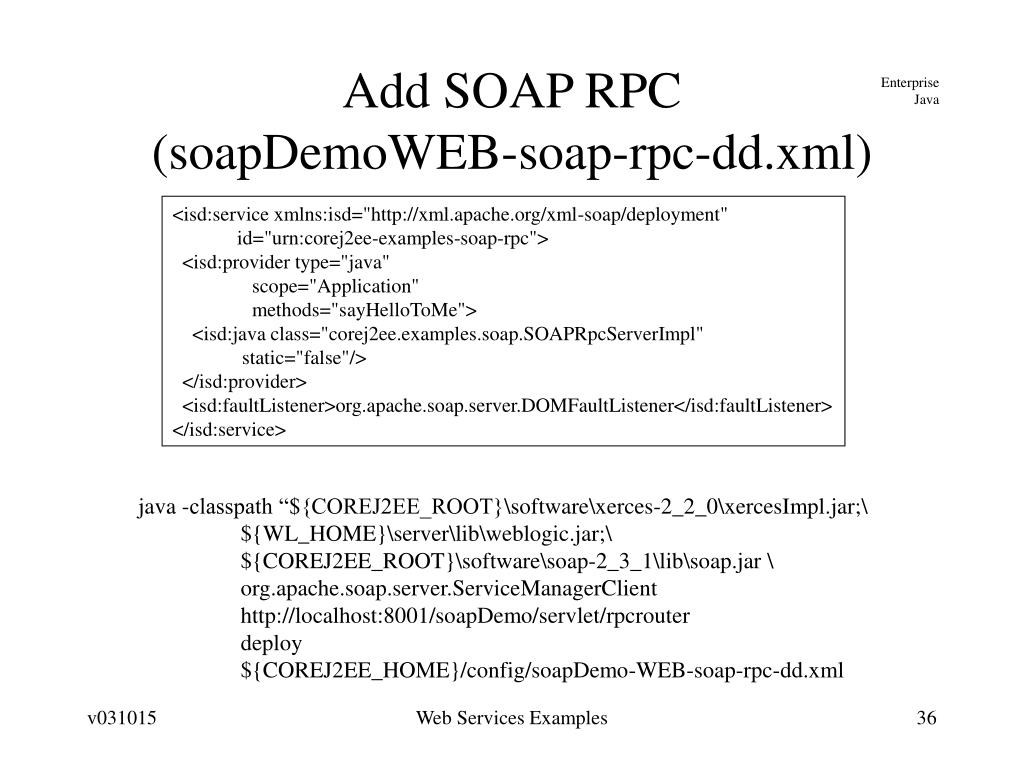

  36. Add SOAP RPC(soapDemoWEB-soap-rpc-dd.xml) <isd:service xmlns:isd="http://xml.apache.org/xml-soap/deployment" id="urn:corej2ee-examples-soap-rpc"> <isd:provider type="java" scope="Application" methods="sayHelloToMe"> <isd:java class="corej2ee.examples.soap.SOAPRpcServerImpl" static="false"/> </isd:provider> <isd:faultListener>org.apache.soap.server.DOMFaultListener</isd:faultListener> </isd:service> java -classpath “${COREJ2EE_ROOT}\software\xerces-2_2_0\xercesImpl.jar;\ ${WL_HOME}\server\lib\weblogic.jar;\ ${COREJ2EE_ROOT}\software\soap-2_3_1\lib\soap.jar \ org.apache.soap.server.ServiceManagerClient http://localhost:8001/soapDemo/servlet/rpcrouter deploy ${COREJ2EE_HOME}/config/soapDemo-WEB-soap-rpc-dd.xml Web Services Examples

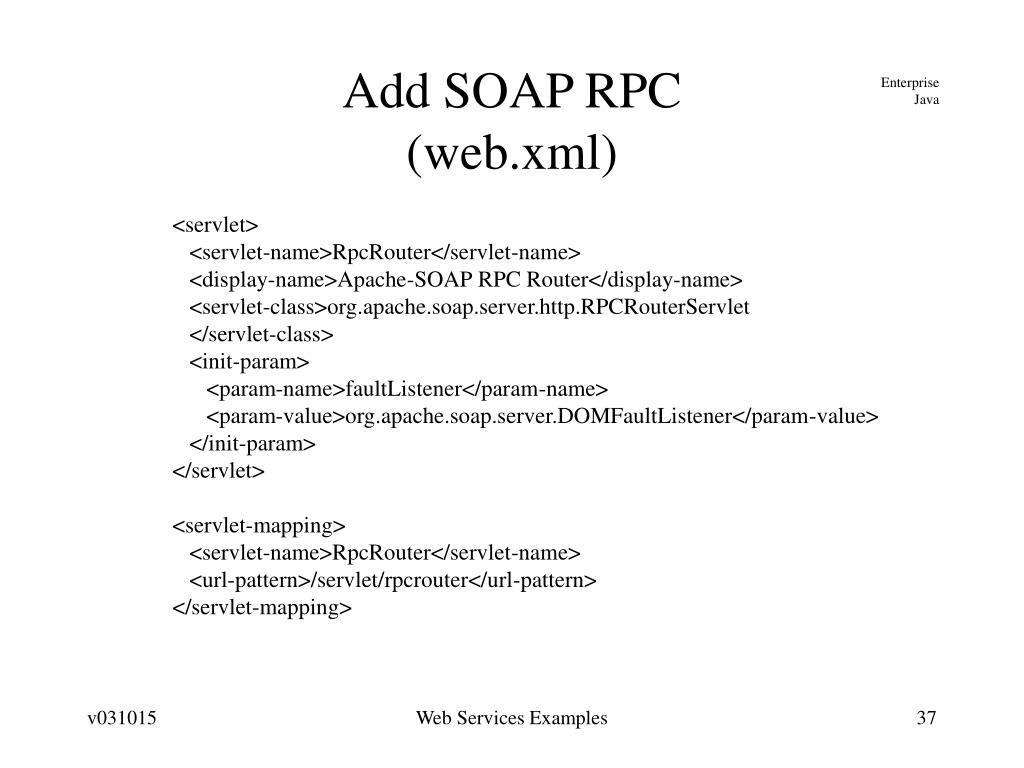

  37. Add SOAP RPC(web.xml) <servlet> <servlet-name>RpcRouter</servlet-name> <display-name>Apache-SOAP RPC Router</display-name> <servlet-class>org.apache.soap.server.http.RPCRouterServlet </servlet-class> <init-param> <param-name>faultListener</param-name> <param-value>org.apache.soap.server.DOMFaultListener</param-value> </init-param> </servlet> <servlet-mapping> <servlet-name>RpcRouter</servlet-name> <url-pattern>/servlet/rpcrouter</url-pattern> </servlet-mapping> Web Services Examples

  38. SOAPRpcServerImpl package corej2ee.examples.soap; public class SOAPRpcServerImpl { public String sayHelloToMe(String firstName, String lastName) { String response = "hello " + firstName + " " + lastName + " from SOAPRpcServerImpl"; System.out.println("- - - SOAPRpcServerImpl: sayHelloToMe Called - - -"); System.out.println(response); return response; } } Web Services Examples

  39. Invoking SOAPRpcServerImplwith SOAPRpcClient $ corej2ee wsDemoApp rpcCall java -Durl=http://localhost:7001/soapDemo/servlet/rpcrouter \ -Durn=urn:corej2ee-examples-soap-rpc -DmethodName=sayHelloToMe' -classpath ${COREJ2EE_ROOT}\software\xerces-2_2_0\xercesImpl.jar;\ ${WL_HOME}\server\lib\weblogic.jar;\ ${COREJ2EE_ROOT}\software\soap-2_3_1\lib\soap.jar;\ ${COREJ2EE_HOME}\lib\wsDemo.jar corej2ee.examples.soap.client.SOAPRpcClient cat inhat calling:[Header=null] [methodName=sayHelloToMe] [targetObjectURI=urn:corej2ee-ex amples-soap-rpc] [encodingStyleURI=http://schemas.xmlsoap.org/soap/encoding/] [S OAPContext=[Parts={}]] [Params={[[name=firstName] [type=class java.lang.String] [value=cat] [encodingStyleURI=null]], [[name=lastName] [type=class java.lang.Str ing] [value=inhat] [encodingStyleURI=null]]}] --- client.sayHelloToMe(cat, inhat) returned:hello cat inhat from SOAPRpcServerImpl Web Services Examples

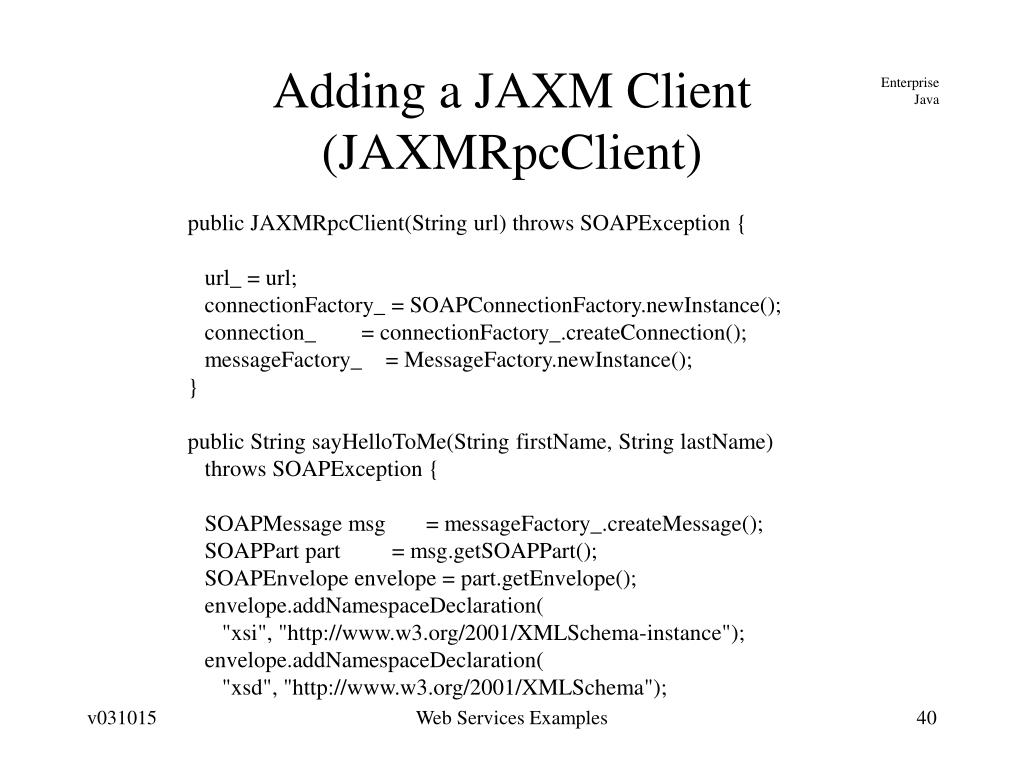

  40. Adding a JAXM Client(JAXMRpcClient) public JAXMRpcClient(String url) throws SOAPException { url_ = url; connectionFactory_ = SOAPConnectionFactory.newInstance(); connection_ = connectionFactory_.createConnection(); messageFactory_ = MessageFactory.newInstance(); } public String sayHelloToMe(String firstName, String lastName) throws SOAPException { SOAPMessage msg = messageFactory_.createMessage(); SOAPPart part = msg.getSOAPPart(); SOAPEnvelope envelope = part.getEnvelope(); envelope.addNamespaceDeclaration( "xsi", "http://www.w3.org/2001/XMLSchema-instance"); envelope.addNamespaceDeclaration( "xsd", "http://www.w3.org/2001/XMLSchema"); Web Services Examples

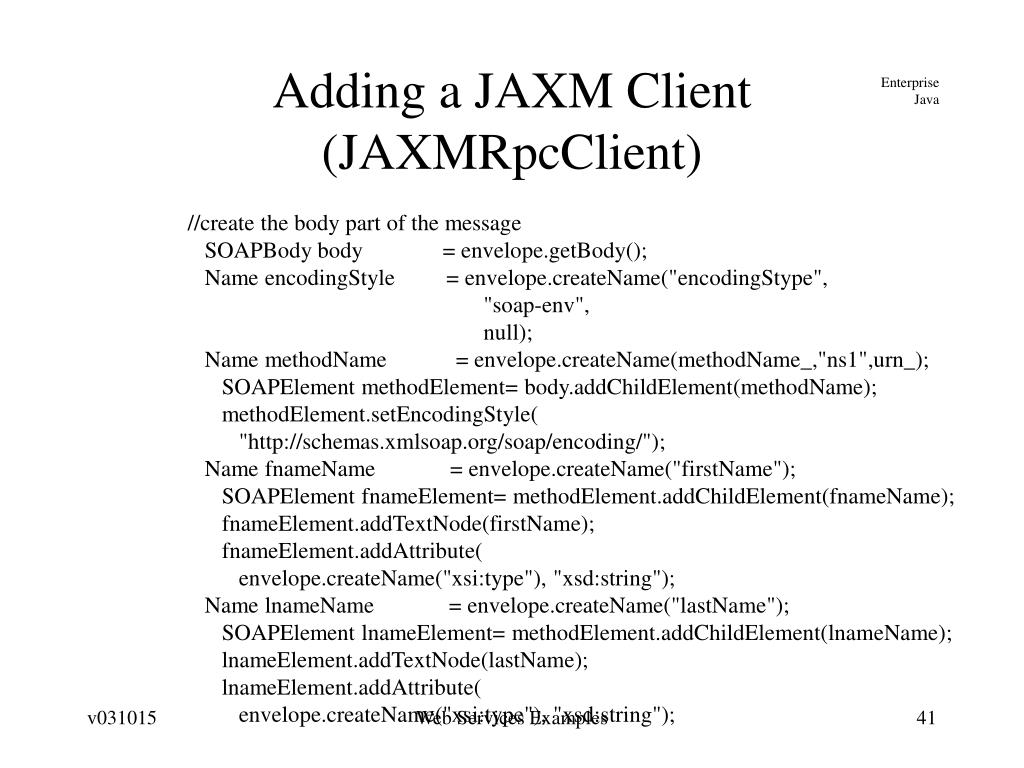

  41. Adding a JAXM Client(JAXMRpcClient) //create the body part of the message SOAPBody body = envelope.getBody(); Name encodingStyle = envelope.createName("encodingStype", "soap-env", null); Name methodName = envelope.createName(methodName_,"ns1",urn_); SOAPElement methodElement= body.addChildElement(methodName); methodElement.setEncodingStyle( "http://schemas.xmlsoap.org/soap/encoding/"); Name fnameName = envelope.createName("firstName"); SOAPElement fnameElement= methodElement.addChildElement(fnameName); fnameElement.addTextNode(firstName); fnameElement.addAttribute( envelope.createName("xsi:type"), "xsd:string"); Name lnameName = envelope.createName("lastName"); SOAPElement lnameElement= methodElement.addChildElement(lnameName); lnameElement.addTextNode(lastName); lnameElement.addAttribute( envelope.createName("xsi:type"), "xsd:string"); Web Services Examples

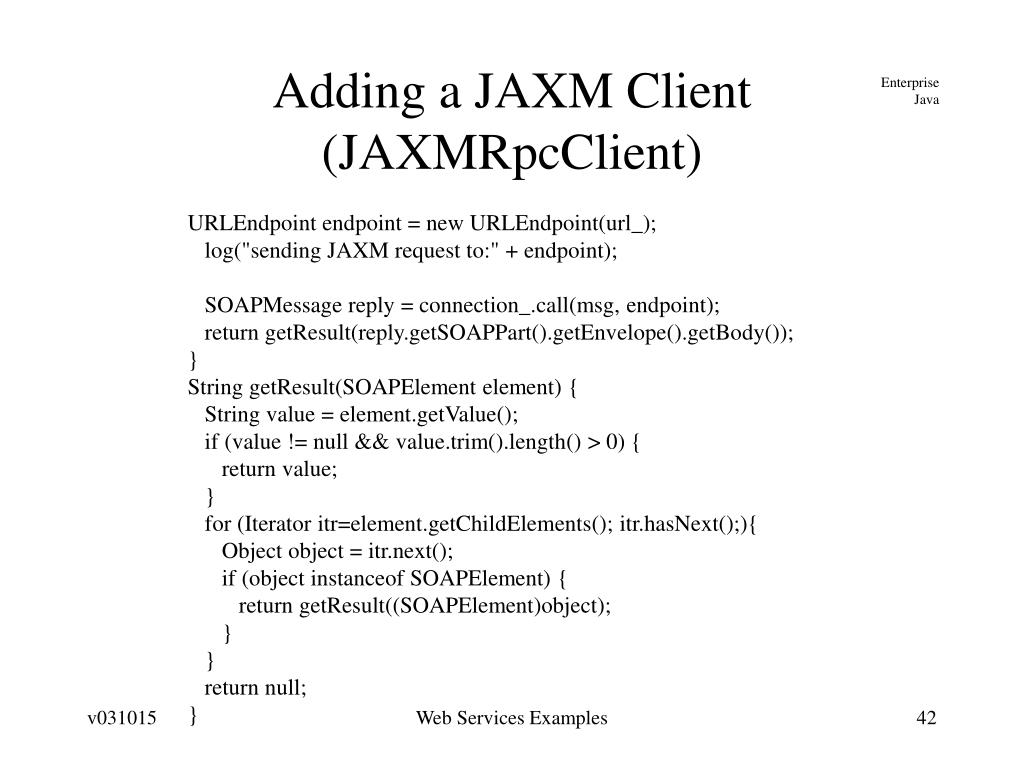

  42. Adding a JAXM Client(JAXMRpcClient) URLEndpoint endpoint = new URLEndpoint(url_); log("sending JAXM request to:" + endpoint); SOAPMessage reply = connection_.call(msg, endpoint); return getResult(reply.getSOAPPart().getEnvelope().getBody()); } String getResult(SOAPElement element) { String value = element.getValue(); if (value != null && value.trim().length() > 0) { return value; } for (Iterator itr=element.getChildElements(); itr.hasNext();){ Object object = itr.next(); if (object instanceof SOAPElement) { return getResult((SOAPElement)object); } } return null; } Web Services Examples

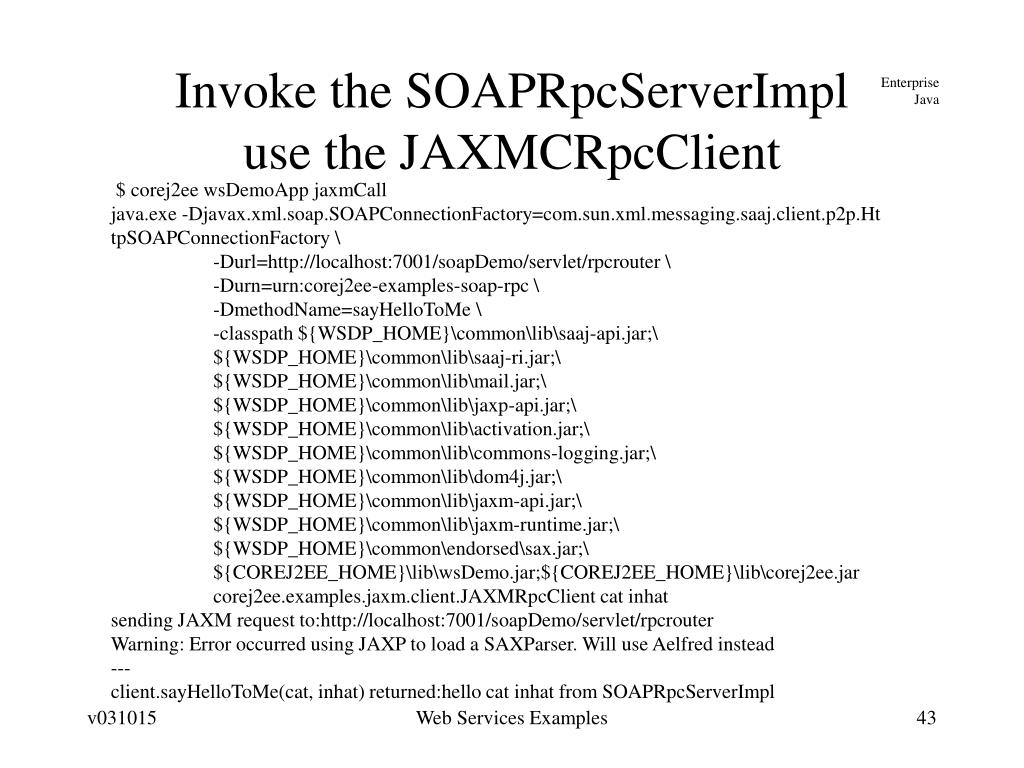

  43. Invoke the SOAPRpcServerImpluse the JAXMCRpcClient $ corej2ee wsDemoApp jaxmCall java.exe -Djavax.xml.soap.SOAPConnectionFactory=com.sun.xml.messaging.saaj.client.p2p.Ht tpSOAPConnectionFactory \ -Durl=http://localhost:7001/soapDemo/servlet/rpcrouter \ -Durn=urn:corej2ee-examples-soap-rpc \ -DmethodName=sayHelloToMe \ -classpath ${WSDP_HOME}\common\lib\saaj-api.jar;\ ${WSDP_HOME}\common\lib\saaj-ri.jar;\ ${WSDP_HOME}\common\lib\mail.jar;\ ${WSDP_HOME}\common\lib\jaxp-api.jar;\ ${WSDP_HOME}\common\lib\activation.jar;\ ${WSDP_HOME}\common\lib\commons-logging.jar;\ ${WSDP_HOME}\common\lib\dom4j.jar;\ ${WSDP_HOME}\common\lib\jaxm-api.jar;\ ${WSDP_HOME}\common\lib\jaxm-runtime.jar;\ ${WSDP_HOME}\common\endorsed\sax.jar;\ ${COREJ2EE_HOME}\lib\wsDemo.jar;${COREJ2EE_HOME}\lib\corej2ee.jar corej2ee.examples.jaxm.client.JAXMRpcClient cat inhat sending JAXM request to:http://localhost:7001/soapDemo/servlet/rpcrouter Warning: Error occurred using JAXP to load a SAXParser. Will use Aelfred instead --- client.sayHelloToMe(cat, inhat) returned:hello cat inhat from SOAPRpcServerImpl Web Services Examples

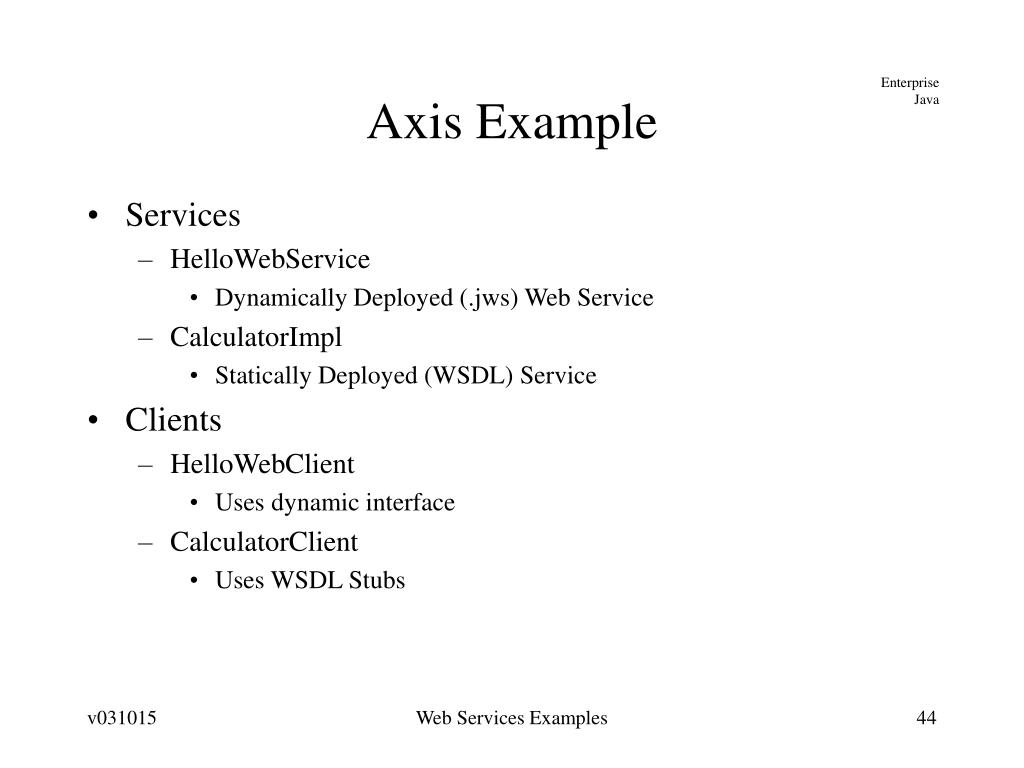

  44. Axis Example • Services • HelloWebService • Dynamically Deployed (.jws) Web Service • CalculatorImpl • Statically Deployed (WSDL) Service • Clients • HelloWebClient • Uses dynamic interface • CalculatorClient • Uses WSDL Stubs Web Services Examples

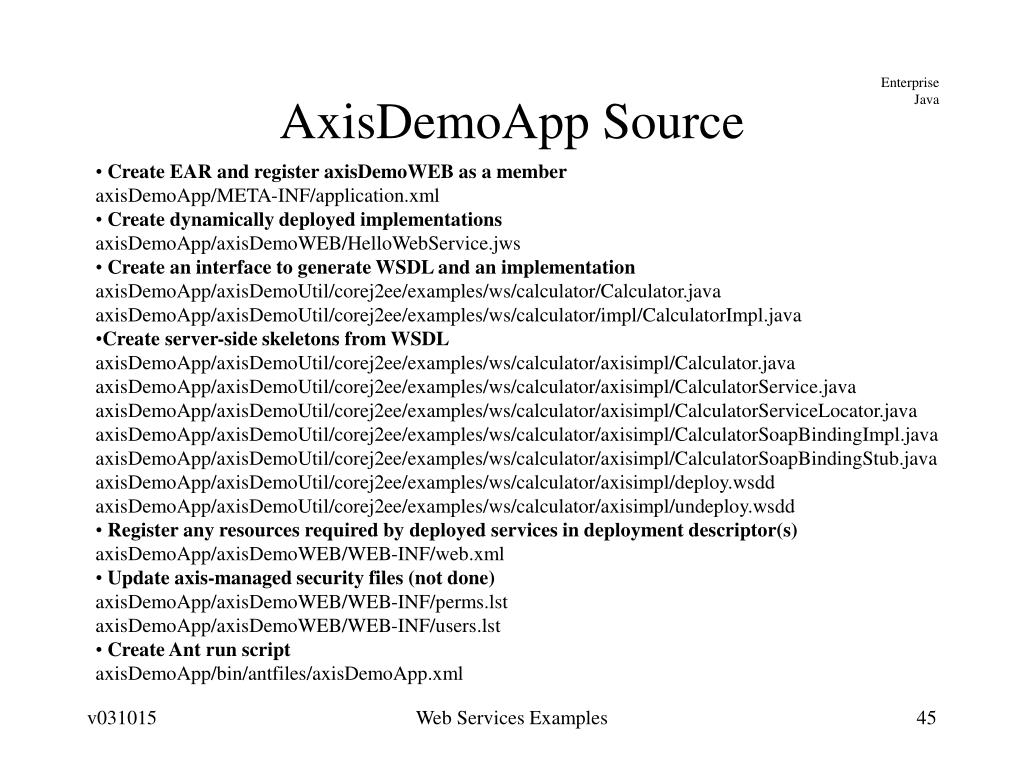

  45. AxisDemoApp Source • Create EAR and register axisDemoWEB as a member • axisDemoApp/META-INF/application.xml • Create dynamically deployed implementations • axisDemoApp/axisDemoWEB/HelloWebService.jws • Create an interface to generate WSDL and an implementation • axisDemoApp/axisDemoUtil/corej2ee/examples/ws/calculator/Calculator.java • axisDemoApp/axisDemoUtil/corej2ee/examples/ws/calculator/impl/CalculatorImpl.java • Create server-side skeletons from WSDL • axisDemoApp/axisDemoUtil/corej2ee/examples/ws/calculator/axisimpl/Calculator.java • axisDemoApp/axisDemoUtil/corej2ee/examples/ws/calculator/axisimpl/CalculatorService.java • axisDemoApp/axisDemoUtil/corej2ee/examples/ws/calculator/axisimpl/CalculatorServiceLocator.java • axisDemoApp/axisDemoUtil/corej2ee/examples/ws/calculator/axisimpl/CalculatorSoapBindingImpl.java • axisDemoApp/axisDemoUtil/corej2ee/examples/ws/calculator/axisimpl/CalculatorSoapBindingStub.java • axisDemoApp/axisDemoUtil/corej2ee/examples/ws/calculator/axisimpl/deploy.wsdd • axisDemoApp/axisDemoUtil/corej2ee/examples/ws/calculator/axisimpl/undeploy.wsdd • Register any resources required by deployed services in deployment descriptor(s) • axisDemoApp/axisDemoWEB/WEB-INF/web.xml • Update axis-managed security files (not done) • axisDemoApp/axisDemoWEB/WEB-INF/perms.lst • axisDemoApp/axisDemoWEB/WEB-INF/users.lst • Create Ant run script • axisDemoApp/bin/antfiles/axisDemoApp.xml Web Services Examples

  46. axisDemoApp EAR $ find axisDemoApp -type f axisDemoApp/axisDemo.jar axisDemoApp/axisDemoWEB/HelloWebService.jws axisDemoApp/axisDemoWEB/WEB-INF/jwsClasses/HelloWebService.class axisDemoApp/axisDemoWEB/WEB-INF/lib/axis-ant.jar axisDemoApp/axisDemoWEB/WEB-INF/lib/axis.jar axisDemoApp/axisDemoWEB/WEB-INF/lib/axisDemo.jar axisDemoApp/axisDemoWEB/WEB-INF/lib/commons-discovery.jar axisDemoApp/axisDemoWEB/WEB-INF/lib/commons-logging.jar axisDemoApp/axisDemoWEB/WEB-INF/lib/jaxrpc.jar axisDemoApp/axisDemoWEB/WEB-INF/lib/log4j-1.2.4.jar axisDemoApp/axisDemoWEB/WEB-INF/lib/saaj.jar axisDemoApp/axisDemoWEB/WEB-INF/lib/tools.jar axisDemoApp/axisDemoWEB/WEB-INF/lib/wsdl4j.jar axisDemoApp/axisDemoWEB/WEB-INF/perms.lst axisDemoApp/axisDemoWEB/WEB-INF/users.lst axisDemoApp/axisDemoWEB/WEB-INF/web.xml axisDemoApp/axisDemoWEB.war axisDemoApp/META-INF/application.xml Web Services Examples

  47. axisDemo.jar $ jar tf axisDemoApp/axisDemoWEB/WEB-INF/lib/axisDemo.jar --- not used here, but would have been self authored when needed --- META-INF/MANIFEST.MF --- autogenerated from WSDL --- corej2ee/examples/ws/calculator/axisimpl/Calculator.class corej2ee/examples/ws/calculator/axisimpl/CalculatorService.class corej2ee/examples/ws/calculator/axisimpl/CalculatorServiceLocator.class corej2ee/examples/ws/calculator/axisimpl/CalculatorSoapBindingStub.class --- autogenerated and then slightly modified to connect to CalculatorImpl --- corej2ee/examples/ws/calculator/axisimpl/CalculatorSoapBindingImpl.class --- self authored : contain implementation --- corej2ee/examples/ws/calculator/Calculator.class corej2ee/examples/ws/calculator/impl/CalculatorImpl.class Web Services Examples

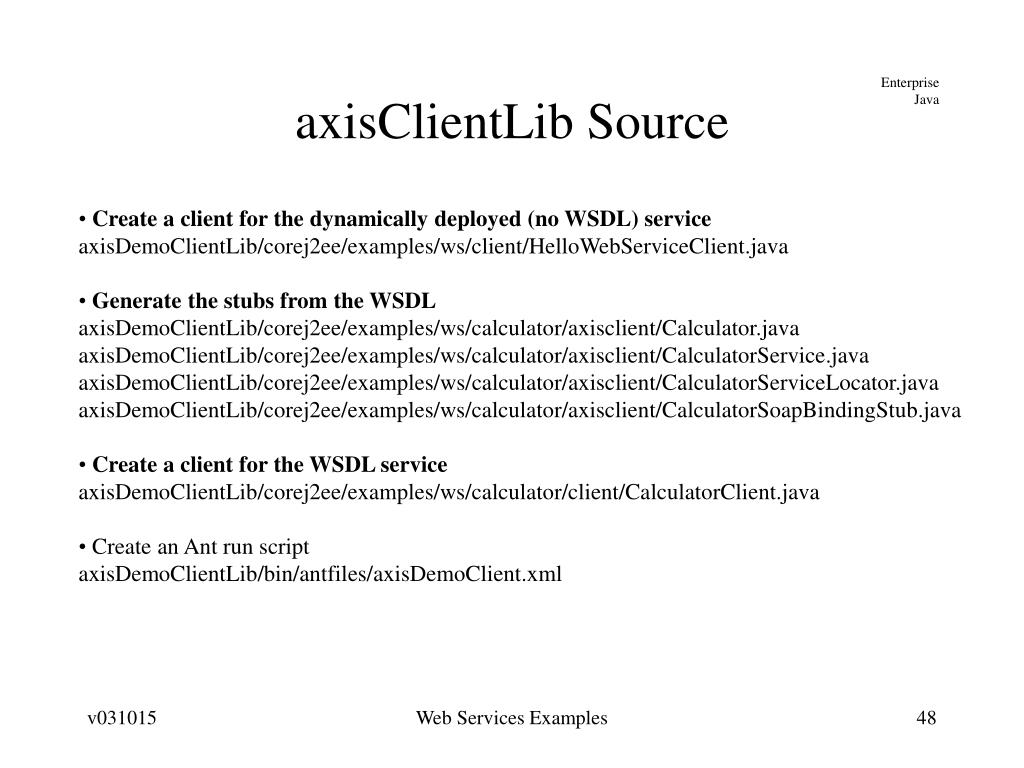

  48. axisClientLib Source • Create a client for the dynamically deployed (no WSDL) service • axisDemoClientLib/corej2ee/examples/ws/client/HelloWebServiceClient.java • Generate the stubs from the WSDL • axisDemoClientLib/corej2ee/examples/ws/calculator/axisclient/Calculator.java • axisDemoClientLib/corej2ee/examples/ws/calculator/axisclient/CalculatorService.java • axisDemoClientLib/corej2ee/examples/ws/calculator/axisclient/CalculatorServiceLocator.java • axisDemoClientLib/corej2ee/examples/ws/calculator/axisclient/CalculatorSoapBindingStub.java • Create a client for the WSDL service • axisDemoClientLib/corej2ee/examples/ws/calculator/client/CalculatorClient.java • Create an Ant run script • axisDemoClientLib/bin/antfiles/axisDemoClient.xml Web Services Examples

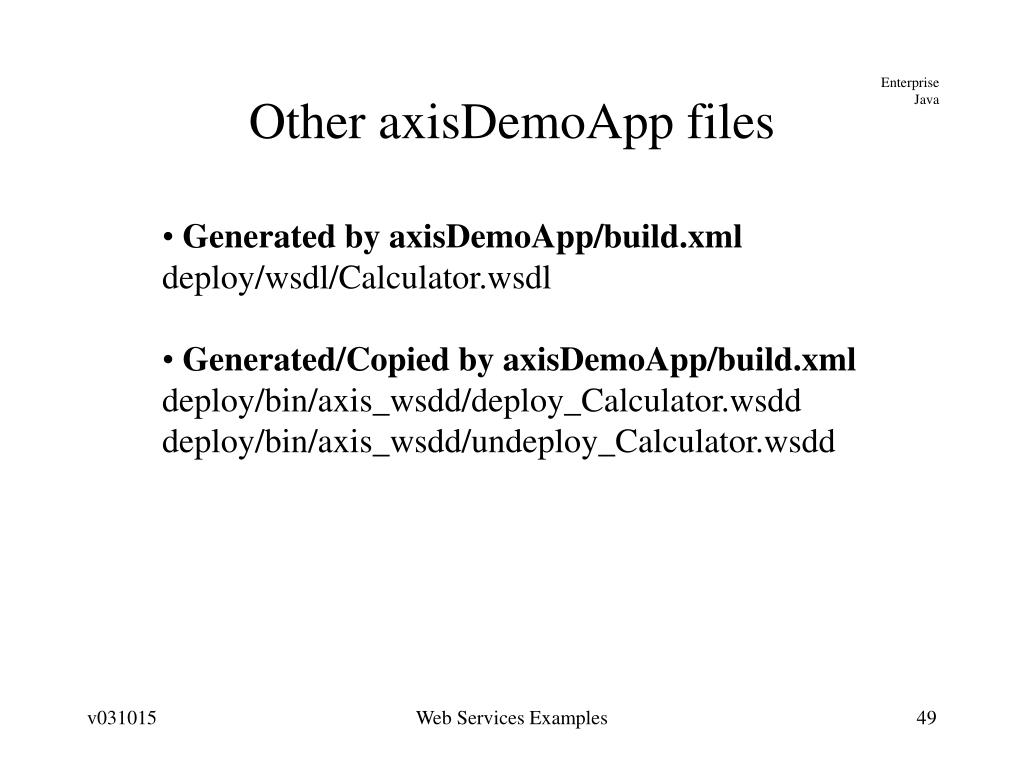

  49. Other axisDemoApp files • Generated by axisDemoApp/build.xml • deploy/wsdl/Calculator.wsdl • Generated/Copied by axisDemoApp/build.xml • deploy/bin/axis_wsdd/deploy_Calculator.wsdd • deploy/bin/axis_wsdd/undeploy_Calculator.wsdd Web Services Examples

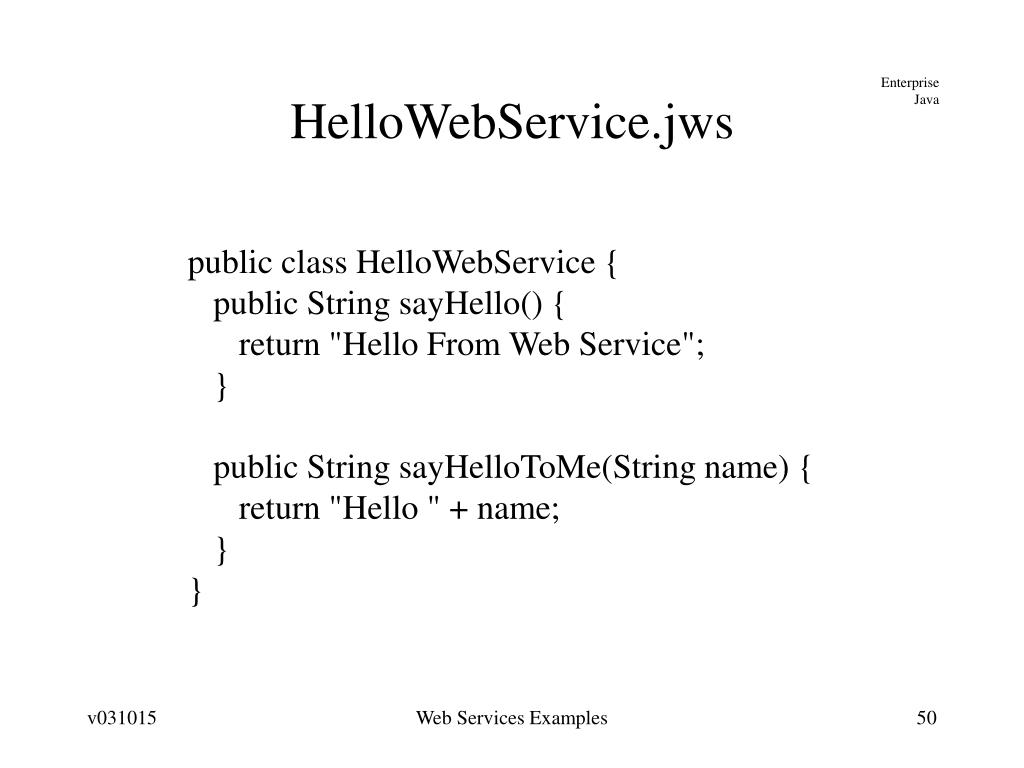

  50. HelloWebService.jws public class HelloWebService { public String sayHello() { return "Hello From Web Service"; } public String sayHelloToMe(String name) { return "Hello " + name; } } Web Services Examples
